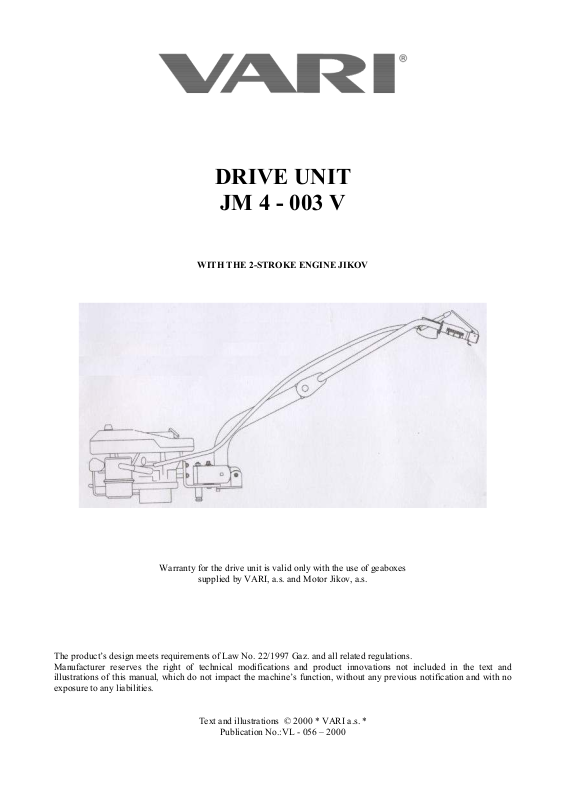

DRIVE UNIT
JM 4 - 003 V
WITH THE 2-STROKE ENGINE JIKOV
Warranty for the drive unit is valid only with the use of geaboxes
supplied by VARI, a.s. and Motor Jikov, a.s.
The product’s design meets requirements of Law No. 22/1997 Gaz. and all related regulations.
Manufacturer reserves the right of technical modifications and product innovations not included in the text and
illustrations of this manual, which do not impact the machine’s function, without any previous notification and with no
exposure to any liabilities.
Text and illustrations © 2000 * VARI a.s. *
Publication No.:VL - 056 – 2000
Page 2
Put down the following data concerning your machine. The data are needed for ordering spare parts.
It is advisable to make a copy of this page with all data on the machine purchase for the case of loss or theft of the
original record.
Notes:
Model
Serial number Engine: Drive unit:
Date of delivery (sale)
Supplier (Seller)
Address
Telephone/Fax
JM 4 – 003 V
WARNING!
User is obliged
that the user’s and other persons’ health and property do not suffer any harm.
Safety instructions contained in this manual do not describe all situations or conditions possibly occurring in practical
use.
Safety factors such as common sense, diligence and scrupulousness are not included; it is assumed, however, that all
persons authorized for machine operation or maintenance do possess the intelligence.
The machine can be operated only by persons at good mental and physical health.
For the professional use of the machine the machine owner is obliged to ensure a work safety training and provide
instructions on machine control for operators and to keep records on these trainings and briefings.
Manufacturer bears no responsibility for damages resulting from unauthorized use, improper machine
operation and damages resulting from any machine modifications not agreed with the manufacturer and for
damages resulting from using the drive unit for other machines than approved by the drive unit manufacturer.
to get acquainted with the Instructions for use and to follow all instructions for machine operation so
Should some instructions in the manual be unintelligible, you are encouraged to contact your seller or directly the
manufacturer of the machine. Contact address and telephone/fax connections are to be found at the end of the manual.
Instructions for use supplied with the machine are an integral part of the machine. They have to be available at any
time, placed at a well accessible place with no risk of their damage. In the case that the machine is sold to another
person, the Instructions for use must be given to the new machine owner. If the above conditions are not met, the
manufacturer bears no responsibility for incurred risks, accidents and injuries resulting from the machine operation.
To prevent injuries of yourself or other persons in the machine’s vicinity, it is necessary to follow safety regulations
marked in the manual with the following warning safety symbol:
On seeing the symbol in the Manual, read the attached
instructions carefully!
CONTENTS
I. INTRODUCTION ...........................................................................................................................................................3
II. SAFETY REGULATIONS ............................................................................................................................................3
III. MACHINE USE, TECHNICAL DATA AND TECHNICAL DESCRIPTION. .........................................................4
IV. INSTRUCTIONS FOR USE. ......................................................................................................................................6
V. HANDLING AND MAINTENANCE........................................................................................................................13
VI. STORAGE .................................................................................................................................................................14
VII. DISPOSAL OF PACKAGING AND MACHINE ...................................................................................................14
VIII. LIST OF COMPONENTS......................................................................................................................................15
IX. WARRANTY TERMS ...............................................................................................................................................30
X. INSTRUCTIONS FOR ORDERING SPARE PARTS:...............................................................................................30
Page 3
I. INTRODUCTION
Dear customer,
Thank you for the trust you have shown by purchasing our product. You have become owner of one constituent from a
wide range of machines and attachments made as a system of small farming and gardening technology by joint-stock
company VARI a.s. The system is meant for gardeners, small growers and farmers on smaller plots and for companies
involved in the provision of communal works.
Machines and implements made within the system can easily do all necessary work such as active and passive soil
cultivation, pumping of fluids, cutting of stalky plants and grass, snow removal, dirt sweeping, and transport of
materials on one-axle trailers.
Please read the manual thoroughly. If you adhere to instructions presented herein, you will have our products
performing a reliable work for you for years.
II. SAFETY REGULATIONS
This international warning symbol is for important communications concerning safety. On seeing the symbol, be
aware of a possible injury to yourself or to other persons and carefully read the following instructions:
1. Machine operator must be over 18 years of age. He/she is obliged to get acquainted with the instructions for use
of the drive unit and engine and to have knowledge of general principles of work safety. At work, the machine
operator should wear tight-fitting working clothes, sturdy shoes and working gloves. Working with adapters which
have rotary working tools such as rotary drum mowers, mulchers, etc., he/she should use sight and hearing
protectors (which have to be of approved types).
2. Adhere to safety instructions in the instructional manual for engine use! Don’t start the engine if it is not
connected to adapter! Don’t remove the engine while in operation! Don’t start the engine in enclosed spaces! After
the engine having been switched off, the engine exhaust silencer remains hot – be careful when handling the
engine. Wait until it cools down before handling the drive unit. Make sure that there are no leakages or spills on
engine parts when refuelling. Prior to another start, dry out the stained parts or wait until the petrol evaporates.
3. While working with all machines of the system, all other persons and animals have to be outside the machine’s
working space. The machine operator is allowed to continue working only after they have been shown out to a safe
distance.
4. Removal of any protective equipment and machine casing is prohibited!
5. User must adhere to traffic regulations of the country in which the machine is operated. Restrictions in force in
the Czech Republic are as follows: All working implements must be transported on a semi-trailer. Operation of a set
consisting of drive unit with tractor and trailer or implement carrier is permitted only under the following conditions:
– driving these vehicles at impaired visibility is prohibited on all public roads;
– driving these vehicles at non-impaired visibility is prohibited on communications of Class I and II with an
exception of their perpendicular crossing. Driving the vehicles on roads of Class III and special-purpose roads is
allowed.
– Driver of the permitted set of vehicles must be holder of driving licence “A“ or “B“ or “T“ or higher. According
to stipulations of § 34, paragraph 4 of the Decree No. 99/89 Gaz. issued by the Federal Ministry of Interior, the
operator is obliged to apply for a permission at district police traffic inspectorate which specifies further
conditions for one-axle cultivating tractors in road traffic with an exception of special-purpose roadst,
specifying them on the rear page of Technical certificate which can be purchased from the manufacturer.
– Exemptions for the small farming tractor from stipulations of Decree No. 102/1995 Gaz. issued by the Ministry
of Transport of the Czech Republic as amended are as follows (§/par.):
57/1 - the set is not equipped with headlights
58/1- the set is not equipped with side-marker headlights
60/1 – the set is not equipped with stop signal lamps
61/1 – the set is not equipped with direction indicator lights, change of travel direction is to be indicated by
driver’s arm
44 – neither drive unit nor semi-trailer are equipped with headlights.
6. When working with adapters attached to small farming tractor of the DSK-316 series, pay increased attention to
safety. These machine sets are prohibited to take part in road traffic except for their perpendicular crossing.
7. Safe slope accessibility of all working machines is 7 degrees.
8. The machines must not be operated in recreational and health-care zones at night from 21.00 to 07.00 o’clock.
9. Prior to starting the operation of any working machine of the System, check the function of the safety engine
switch by a switch installed on the left handrail of the engine unit. Function of the safety ignition switch is
explained below in this manual.
10. Working with the machines, use only Position II of the safety ignition switch! (see page ..., Figure 6).
Driving across easily combustible materials such as hay or straw should be prevented.
Page 4
11. Driving across easily combustible materials such as hay or straw should be prevented All kinds of machine
repair, adjustment or lubrication should be made with the machine out of operation.
12. All kinds of machine repair, adjustment or lubrication should be made with the machine out of operation.
There are the following pictographs on the machine
1. Instructions for use to be studied prior to
machine operation.
2. During the machine maintenance, the
conductor is to be disconnected from the spark
plug.
3. Entry of exposed and other persons into the
machine’s working space is prohibited.
4. Keep a safe distance from the machine
while in operation and a safe slope
accessibility of the machine.
User is obliged to maintain the pictographs on
the machine legible and to provide for their
replacement in the case of their damage. The
self-sticker is located on the carrier tube of
handlebars.
RESTRICTION OF MACHINE WORKING TIME
1. Working with adapters for cutting your are encouraged to use the “RUBBER VIBRATION ABSORBER TG-2“
which can considerably reduce vibration values at operator’s site.
2. With respect to the fact that the highest tolerable values of vibrations at operator’s site are to be exceeded, the product
cannot be at a long-time operation. Exposure time must not exceed X minutes per an 8-hour shift or the machine
operation must be interrupted so that its total duration does not exceed X minutes. Respective work procedures must be
accommodated to the requirement. Noise and vibration values are to be found in the respective instruction manuals for
individual adapters.
Drive unit Model JM 4-003 V x minutes
in aggregation with rotary cultivator AKY T20 N,K
in aggregation with rotary weeder RP-T2
in aggregation with plough APJ-18, APH-352
in aggregation with mowing machine NM 4-009
in aggregation with counterdrive mowing machine NM 4-021
in aggregation with mulcher TAJFUN – 45
in aggregation with rotary drum mower SAMSON-56
in aggregation with sweeping brush ZK-850
in aggregation with mowing machines AZS - 345,AZS - 346
30
75
60
20
100
40
70
200
200
III. MACHINE USE, TECHNICAL DATA AND TECHNICAL DESCRIPTION.
MACHINE USE
Drive unit Model JM 4 - 003 V/T serves as an energy source to drive VARI-System gearboxes.
Machine sets consisting of this engine unit, gearboxes DSK - 317, T - 20 A, T2, AKY and DSK – 316 series and
working attachments and implements of the VARI-System can make all kinds of farming works. Coupling to the
gearboxes is ensured by two quick-operating clamps and a holding screw to secure guide pivot in the console and
gearbox. This design solution enables a quick installation and dismounting of the drive unit onto/from the gearbox and
its re-installation on another machine.
Drive unit JM 4 - 003 with engines JIKOV is made in the following models:
– with engine JIKOV 1453 ISKRA
– with engine JIKOV 1445 VAPE
– with engine JIKOV 1454 VAPE DV CE
– with engine JIKOV 1447 VAPE DV CE
(individual engine models differing at ignition, use of decompression valve and cylinder volume).
Torque transmission onto gearboxes is ensured by centrifugal clutch to facilitate smooth start of the machine.
Page 5
The drive unit can be used with the following gearboxes:
DSK - 317: pfor transport in connection with one-axle semi-trailers of implement carriers, for work with the respective
working implements for passive soil cultivation (harrows, ploughs, blade cultivators, ridging shares ...) and also for
work with the machines for sowing, planting and harvest of crops.
T-20/A: identical use as that of DSK - 317, with an additional option of rotary cultivating mechanisms AKY - 357 / 8
the combination being rotary soil cultivator (the used type of soil cultivating mechanism should be adapted to soil
quality). Maximum carrying capacity of one-axle semi-trailers to be adhered to is 350 kg including the operator!
DSK - 316 MA, DSK - 316 PA, DSK - 316 PZ: gearboxes designed to drive mowing machines AZS - 345, AZS - 346,
NM 4 - 009, NM 4 - 021, hay tedders OP - 1.0 or OP-1.2, side-delivery hay rake and tedder NM 4 - 010, snow ploughs
AFS - 351, M - 50, sweeping brush ZK - 850 S/O, OK-1000, mulcher TAJFUN - 45, rotary drum mower SAMSON 56, tip cart MULA - 150. Connection of carrier AV-1 is possible.
RP - T2: rotary weeder for inter-row hoeing.
AZS - 349 , LTZ - 50 (P): rotary mower for cutting well-kept grass swards.
DZP - 003: pump for pumping and irrigation.
TORNADO: garden waste crusher.
Permitted one-axle trailers: HV-220
HV-220 S
HV-350-5
HV-350-7
ANV-366
ANV-350 U
Permitted implement carriers: AV-1
AV-3
TECHNICAL DATA.
Drive unit Model JM 4-003 V
Engine JIKOV 1453 ISKRA , 1454 VAPE, 1454 VAPE DV CE:
Bore
Stroke
Cylinder volume
Max. output declared by manufacturer at rotations
Advance
Engine JIKOV 1447 VAPE DV CE:
Bore
Stroke
Cylinder volume
Max. output declared by manufacturer at rotations
Advance
All engines:
No-load speed
Maximum speed
Engine rotations at controller position "1"
controller position "2"
controller position "3"
Clutch switching rotations
Fuel tank volume
Fuel-petrol/oil mixture at running-in
after running-in
Petrol grade
Oil grade
Spark plug (BRISK) (according to engine type)
Electronic ignition
Max.specific fuel consumption at 4000-4500 RPM.min
Length
Height
Width
Engine unit weight without fillings
-1
Unit Value
mm
mm
3
cm
kW / min
-1
mm
Value
Unit
mm
mm
3
cm
kW / min
-1
mm
-1
min
-1
min
-1
min
-1
min
-1
min
-1
min
litre
--
--
-API
--
-g/kWh
mm
mm
mm
kg
56.0
54.0
133.0
3.5/4800
3.0 ±0.25
60.0
54.0
153.0
3.8/4800
3.0 ±0.25
1700±100
4800±100
3700
4200
4800
2000-300
3.00
1:33
1:50
SPECIAL91
TC
D17YC, N17
6 V/17 W
600
1500
560
670
30.0
Page 6
TECHNICAL DESCRIPTION OF ASSEMBLY GROUPS.
Engines made by JIKOV are vertical 2-stroke ignition one-cylinder engines with atmospheric filling and forced air
cooling. Crankcase, cylinder, flange and case cap are aluminium castings worked on functional surfaces. Crank shaft is
mounted in two antifriction bearings. Rotor of cooling system fan and cup of engine manual starter are mounted on the
upper end of the shaft. Air cleaner has a high-quality cleaning insert and oil filling in the cleaner body enables operation
even in a very dusty environment. Carburetter with control in on the left side of the engine. It is equipped with a fuel
cock and starting air throttle for easier starting of the cold engine. DV engines are equipped with a decompression
valve for easier start of the engine.
Ignition is located on the front engine face. Dynamo-magneto is on the rotor of ventilator which is under the plastic
tank.
Plastic fuel tank is located above the engine. Fuel system is equipped with a fuel cleaner.
Engine is started by manual starter which is mounted so that the driver can start the engine from the machine operator’s
site. It consists of a cup with incisions, disk with pawls, winding cord and handle.
Exhaust silencer is on the right side and it is provided with a casing to prevent burning of the operator when handling
the engine.
Engine rotations are controlled by an automatic speed-limit device. A lever which falls into incisions in the tank holder
is to control engine rotations in three stages of regulation.
On the lower part of the engine an aluminium flange is screwed on inside which there is a twin-jaw centrifugal clutch
whose design makes it possible to adjust a correct function of clutch switching in dependence on engine rotations by
means of adjustment bolts. Clips of quick-operating clamps by means of which the engine unit is to be secured on the
gearbox are screwed onto the flange.
IV. INSTRUCTIONS FOR USE.
MACHINE ASSEMBLY
The drive unit consists of a complete engine assembly (with clutch, steering members and flange) and handlebars.
The complete engine assembly is first added a holder of handlebars, which is to be screwed onto bolts on the rear side
of the engine by using nuts M8 and washers. Recommended tightening moment is 15.7 Nm.
Carrier tube of handlebars is to be slid into the lower swivel joint on the holder of guide handrails and the handlebars
are to be secured with carriage bolt M10x100, flat and lock washers and tightening crank.
Accelerator lever is to be screwed onto the right handrail in front of the rubber grip with a bolt and nut which are parts
of the accelerator lever. Mount the lever so that it does not bump into the rubber grip but is rather easy to reach even at
the position of adjusted maximum rotations. Bowden of gas control should be led from above through the carrier tube of
handlebars. Gas litz wire is to be set by means of adjustment bolt on the bowden so that the carburetter control has only
a negligible backlash.
Figure 1: Drive unit assembly
Vodicí rukojeti Guide handlebars
Aretační páčka stranového natáčení Arrestment lever of turning to sides
Motor JIKOV Engine JIKOV
Madlo pro přenášení Grip for displacement
Příruba, rychloupínač, odstředivá spojka Flange, quick-operating clamp, centrifugal clutch
Deska s čepem a otočným držákem řídítek Plate with pivot and swivelling holder of handlebars
Kabel zkratování motoru Engine short-circuiting cable
Madlo řídítek Handlebar rail
Utahovací klička Tightening crank
Spodní kostka na nosné trubce řídítek Lower box-angle plate on the carrier tube of handlebars
Vratový šroub M10x100 Carriage bolt M10x100
Páčka akcelerátoru Accelerator lever
Bezpečnostní vypínač zapalování BVA-96 Safety ignition switch BVA-96
Page 7
ASSEMBLING THE SAFETY IGNITION SWITCH BVA-96
Cable for the safety ignition switch BVA - 96 is a part of the complete engine assembly. Cable eye on the yellow cable
is to be fixed under the left upper nut with which the holder of handlebars is screwed onto the engine. Pass flexible
tubing 12x0.5x300 mm through both cables. Dismount the safety ignition switch BVA-96 from the handlebars. Draw
the two cables through the lower hole in the handlebars carrier tube side up to the tube end. The insulation sleeving
which protects the cables in their lower part should be slid into the carrier tube of handlebars ca. 10 cm deep. Then
mount a plastic plug with hole onto the cables and knock it with its notched end into the upper part of the carrier tube of
handlebars. Pass the insulation sleeving 12x0.5x300 through the two cables again. Tip the rail of handlebars down, pass
the cables through it and mount the connectors into pins on cables leading from the body of the safety switch. Slide the
flexible tubing which protects the cables ca. 10 cm into the tube of handlebars.
Cables must be reaching in the carrier tube of handlebars and rail to such a distance that they are not stressed at
any of the extreme positions of the handlebars.
Connector on the yellow cable is to be mounted into the yellow cable on the switch and connector on the red cable is to
pu mounted into a shorter cable leading from the middle of the BVA-96 safety switch body. Cover the red cable
coupling with insulation sleeving! Put the safety ignitiion switch into the tube of handlebar rai and secure it with bolt
M5x10 with washer.
Correct functioning of the switch can be achieved only with the “live“ contact of the two cables being prevented!
Prior to each machine use check also the function of the BVA-96 safety ignition switch!
Bowden of gas control should be fixed onto the handrail with the plastic tightening tape at the lower bending of handrail
tube.
ASSEMBLING THE SHOCK ABSORBER
The use of shock absorber Model TG-2 which considerably absorbs vibrations generated during the machine
operation and transmitted onto the handlebars is compulsory for working with cutting adapters.
Assembly of the shock absorber "TG-2" is to be made according to Figure 2. Shock absorber foot is to be screwed onto
the lower box-angle plate on the carrier tube of handlebars with two bolts M6x14 with lock washers. The shock
absorber TG-2 (Position 2) is to be screwed onto the engine flange plate (Position 1) with bolts M8x16.
By tightening the rubber silent blocks set the position of handlebars so that it is in the machine axis. the tightening
should be made so that the rubber silent blocks have only a light contact with the surface on the complete assembly of
handrail holder (Position 1). the silent blocks are to be secured by tightening the counternuts.
Page 8
ADJUSTING THE SHOCK ABSORBER TG-2
Basic setting of vibration dampers see the assembly of shock absorber onto handlebars. Correct functioning of the shock
absorber requires de-arrestment of the pin on the swivel holder of handlebars. Tip the arresting-pin-controlling lever
upwards and secure it with the retaining split pin (See Figure 2). The handlebars are in their movement to sides
restricted only by the vibration dampers.
Figure 2: TG-2 shock absorber assembly
Pojistná podložka Lock washer
Šroub M8x16 Bolt M8x16
Šroub M6x14 Bolt M6x14
Pojistná podložka Lock washer
Patka tlumiče Shock absorber foot
Tlumič vibrací TG-2 Shock absorber TG-2
Silentbloky Silent blocks
Matice silentbloku Silent block nut
Páčku vyklopit nahoru Lever to be tipped upwards
Zasunout závlačku do čepu Split pin to be slid into the pivot
ADJUSTING THE GUIDE HANDLEBARS
Design of handlebars enables their setting to sides and height. Side adjustment is possible by arrestment pivot in the
lower joint of handlebars (Figure 3). There are three holes in the plate, into which the pivot falls thus arresting the
position of guide handlebars. There positions are used in cases when it not desirable that the operator moves on the
worked soil (e.g. at rotary cultivation). Height adjustment can be made at two places on the guide handlebars. Basic
height setting is made by loosening the tightening crank in the lower joint, setting of the carrier tube of handlebars in
the teeth on the carrier tube and lower joint, and by a subsequent tightening of the bolt. Finer height setting of
handlebars height can be made by loosening the tightening crank in the upper joint, slight turning in the teeth on the
carrier tube and in the upper joint of the rail, and by a subsequent tightening of the tightening crank.
Page 9
Figure 3: Adjustment of guide handlebars
Utahovací klička jemného nastavení madel řídítek Tightening crank for fine setting of handlebar rails
Páčka aretačního čepu stranového nastavení řídítek Arrestment pivot lever for side setting of handlebars
Jemné nastavení madel řídítek Fine adjustment of handlebar rails
Nastavení polohy nosné trubky řídítek Setting the position of the carrier tube of handlebars
Utahovací klička nastavení polohy nosné trubky řídítek Tightening crank for adjusting the handlebars carrier tube position
Stranové natáčení Turning to sides
MOUNTING THE DRIVE UNIT ONTO GEARBOXES
Drive unit which is a power supply to prime all VARI-System machines is mounted into a flange in the upper part of
the gearboxes.
On the lower face of the complete flange assembly there is a cylindrical part which is to be slid into the gearbox flange
when mounting the drive unit onto the gearbox. A second part to seat the driving unit onto the gearboxes is a pivot on
the holder of handlebar rails, which is to fall into a hole in the console on the gearbox flange. The pivot is to be secured
by screwing in the crank which is a part of the gearbox.
In gearbox Model T - 20 A the drive unit can be installed in two directions, which makes it possible to properly use
engine’s power with respect to gearing of the gearbox.
Methods of drive unit installation for different works are described in the instruction manual for gearbox Model T - 20
A.
In gearbox Model T - 2 and pump Model DZP - 003 the drive unit position on the gearbox is to be secured not by means
of the pivot in the handlebar rail holder but by means of a pin which is pressed into the gearbox flange and which falls
into the hole in the complete flange assembly after the driving unit has been mounted onto the gearbox.
PROCEDURE OF DRIVE UNIT INSTALLATION
1. Get the gearbox with working implements or attachments you wish to use at work ready according to relevant
instructions in the operating manuals for the given machines or implements.
2. Clean the connecting points for the gearbox and the inside of the clutch disk.
Clutch disk in the gearbox must not be greasy since the centrifugal clutch might be slipping and the clutch lining
and engine crankshaft sealing could suffer damage due to higher temperature!
3. Release the tightening crank which retains the pivot (which is a part of the holder of guide handlebars) in the
gearbox.
4. Clean the surface of cylindrical flange and pivot on the holder of guide handlebars from dirt.
5. Hold the driving unit with one hand gripping on the holder located on the front face of the engine while holding it
with the other hand by the upper joint of handlebar rail.
Page 10
6. Put the drive unit on the gearbox so that the cylindrical part of engine flange falls into the gearbox flange and the
pivot on the holder of handlebar rails falls into the hole in the console on the gearbox.
7. Move the drive unit slightly to and fro until it fully sits on the gearbox.
8. Then secure the drive unit by means of two clips of quick-operating clamps. Pawls on the clips of quick-operating
clamps are to be hooked on pins in lugs on the gearbox flange. Lock the quick-operating clamps by pulling on the
eye of the clip towards the engine case surface.
9. Finally, tight the tightening crank which secures the pivot on the holder of guide handlebars in the gearbox.
Removal of the drive unit is made as a reverse procedure. Loosen the clips of quick-operating clamps by disengaging
the quick-operating clamp so that you take a hold of the clip eye from below and pull it upwards. Pawl of the clip is to
be taken out from the pin and the quick-operating clamp should be pushed aside so that it does not stand in the way to
the removal of the drive unit from the gearbox.
Be careful when engaging the quick-operating clamps. Your fingers might be injured. Clips have a high tension
and engagement of them requires force.
Be careful at removing the drive unit and its displacement onto another machine since the exhaust silencer is hot
while in operation.
During the removal or installation the machine should be approached from the left side, i.e. from the side of air
cleaner and carburetter on the drive unit engine.
Figure 4: Procedure of drive unit installation
Hold the drive unit at this place with your left hand Zde uchopte pohonnou jednotku levou rukou
Tightening crank Utahovací klička
Hook of the quick-operating clamp Hák rychloupínače
Hold the drive unit at this place with your right hand Zde uchopte pohonnou jednotku pravou rukou
Quick-operating clamp – disengaged – engaged Rychloupínač – vypnut – zapnut
Engine flange Příruba motoru
Gearbox flange Příruba převodové skříně
Page 11
ADJUSTMENT AND MAINTENANCE OF THE JIKOV ENGINE
1. PREPARATION
a) Fuel: Use only automobile petrols of which the best is currently available Czech petrol grade SPECIAL 91. Two-
stroke engine are lubricated with a fuel mixture consisting of petrol blended with oil at a recommended ratio.
For lubrication of this two-stroke engine the manufacturer recommends a mixture of petrol and oil. Use oil "MOGUL
TS " or “MOGUL TSF” designed for heavy-duty engines, with excellent lubricating properties, at the use of which a
well-set engine exhibits lower values of emissions and smoke density. Blending ratio of the mixture (petrol : oil) is 50 :
1. For the time of running in the engine (ca. 10 hours) it is advisable to reduce the ratio to 33 : 1 .
The mentioned oils are currently available in the network of petrol stations.
Adhere to safety regulations when refuelling. Do not refuel the machine in enclosed spaces, do not smoke and do
not do refuelling in a vicinity of open fire.
Fuel tank should be filled only up to 2.5 cm below the upper edge of the tank neck. Fuel tank volume is 3 litres.
b) Air cleaner: For the correct functioning of the oil air cleaner the body of the air cleaner must be filled with engine
oil. Remove the lower part of oil air cleaner by releasing the tightening sleeve and fill it with engine oil which is
normally used for petrol/oil mixture.
Oil surface is to be max. 0.5 cm above the bottom of the lower part of the oil air cleaner.
It is advisable to make regular checks of oil for its contamination in the lower part of the cleaner. If so, replace it with
new oil without delay.
In the dry season (summer months and at cutting), check the air cleaner every day, otherwise once a week. Practical
results from the machine use indicate that oil must be exchanged after about 30 hours of operation.
Air cleaner should be checked with the engine switched off !
Air cleaner insert wash out in technical petrol –when dirty- and before mounting it back, let it dry properly. The check
is to be made along with the check of oil volume in the oil air cleaner.
2. STARTING THE ENGINE
Start the engine only when it is coupled to a gearbox or another aggregate of the VARI-System!
Do not start the engine in enclosed rooms. Gases generated at fuel combustion are dangerous to life!
When starting the engine, shift the gear to neutral or disengage the travel clutch. Be very careful in aggregates
without a possibility of disconnecting the drive from the machine since the machine may get into motion at
increased starting rotations.
Start is to be made so that you will stand behind the machine in the direction of the starting cord, holding the
handlebars and controlling the accelerator lever with your left hand and making start with your right hand by using
the grip on the starter cord. Engine rotations should be reduced immediately after the start. Safety ignition switch
is in Position 1 at starting.
a) Cold motor:
Open the fuel cock, shut the starting throttle (lever must point upwards) and set the accelerator lever to about a 1/3 of
lever step. Put the starter gearing into engagement by slightly pulling the handle out and start the engine by a rapid pull
on the handle of the self-returning starter. Right after start, open the starting throttle (lever in horizontal position), but
do not load the engine with high rotations.
If the engine does not start at a second try, the starting throttle must be opened, accelerator lever set to full opening and
the start should be repeated.
b) Warmed-up engine:
Open the fuel cock. Set the accelerator lever to about a 1/2 of lever step and start the engine.
It is recommended that the fuel cock on the carburetter is closed even at a shorter break in machine operation.
3. OPERATION
After having been started, the engine can be fully loaded after about a minute. Speed limit governor on the rear face of
the tank serves to set engine rotations according to the used machines or implements or works to be carried out (see
instructions for use of respective implements and machines of the VARI-System).
4. STOPPING THE ENGINE
If you wish to stop the machine, shift the accelerator lever into Position "MIN", the centrifugal clutch will be
disconnected and the machine will come to a stop.
If you wish to switch off the engine, release the lever of safety ignition switch on the left handlebar and the engine will
switch off. This switch will provide for engine switch-off and machine stop in critical situations with danger of collision
or injury to operator.
Page 12
5. TECHNIQUE OF CONTROLLING THE JIKOV ENGINE WITH AUTOMATIC CENTRIFUGAL
CLUTCH
Coupling of the centrifugal clutch depends on engine rotations. This is why steering of this type of engine requires
technique which differs from that applied in controlling for example an engine with multiple-disk clutch. Two working
positions of accelerator lever are illustrated in Figure 5:
– " MAX " : with accelerator lever in this position the engine has maximum output and the clutch is in full
engagement (provided that the engine is not overloaded and is not runnig at low rotations)
– " MIN " : with accelerator lever in this position the engine has no-load speed and the clutch is out of
engagement. Engine working speed is between 2500 to 4800 RPM. Use maximum engine rotations so that clutch
slippage and hence its damage cannot occur.
Engine rotations should be increased fast so that the engine has higher speed than the rotations at which the clutch gets
into engagement in order to prevent clutch slippage. Centrifugal clutch has a smooth engagement at a rapid increase of
engine rotations.
Figure 5: Working positions of accelerator lever
Pohled na páčku akcelerátoru zhora View of the accelerator lever from above
Směr jízdy stroje vpřed Direction of machine drive forward
Poloha „MIN“ „MIN“ Position
Poloha „MAX“ „MAX“ Position
TECHNIQUE OF CONTROLLING THE SAFETY IGNITION SWITCH
Safety ignition switch Model BVA - 96 meets the standard of safety ignition switches used by manufacturers of small
gardening technology abroad. This switch ensures switching of engine ignition system and hence stoppage of engine
operation immediately after the operator has left its site in a critical situation or for putting the machine out of operation.
The safety ignition switch has three functional positions as follows:
Position 1 is to be used for starting the engine, setting engine speed or for a short-time putting of the machine out of
operation while the engine is still on.
At this position of the safety ignition switch, always shift on neutral gear on the gearbox or switch off the clutch of
travel wheels and disconnect the drive of working implements!
Position 2 is to be used for machine operation. If the machine is in operation, the wire dog has to be always released!
Position 3 is to be used for switching the engine off in critical situations or for putting the machine out of operation. The
engine will switch off after the lever of the safety ignition switch on the left handlebar rail has been released. Putting the
hand away from the handlebar will do to stop the engine on the condition that the wire pawl is released.
Page 13
Figure 6: Positions of the safety ignition switch
V. HANDLING AND MAINTENANCE
Regular treatment of the engine is very important for its long service life and correct functioning. If you adhere to these
fundamental maintenance instructions, the engine will serve you long without any greater problems.
It is advisable to have records on fuel mixture consumption and time of engine operation. The information is a good
indicator of the technical condition of the engine.
Thorough cleaning of the engine is recommended after 50 hours of operation. However, if your engine works in dusty
environment and under high temperatures (such as at rotary cultivation or cutting), the intervals of engine cleaning
should be shorter. Particularly important is to check the oil air cleaner (see page 26), vicinity of the upper part of
cooling fan rotor and fuel cleaner. Should these places be soiled or clogged, the engine output is reduced and the wear
of parts increased.
Take care that the stalks of plants do not get between fan blades and cylinder and head lamination when cutting highgrown swards. Insufficient engine cooling results in overheating and danger of engine seizure.
To clean the engine use only the “environment-friendly“ detergents !
Recommended Czech-made detergents are for example " ARVA - EKO " or " EKOLAN 93 ".
Clean the engine only when it is cold.
Proper engine operation needs correctly adjusted spark plugs. Spark plugs recommended for engines 1453 ISKRA,
1454 VAPE, and for engines 1447 VAPE DV CE, 1454 VAPE DV CE are BRISK N17 ( BRISK N17 C) and BRISK
D17YC respectively.
Spark plug should be cleaned with a wire brush after 50 hours of operation and the spark contact gap should be set to
0,6 - 0,7 mm by using feeler gauges.
MAINTENANCE PLAN:
Interval daily monthly 3 months 6 months once a year
Check, adjustment
Air cleaner
Fuel cleaner
Engine cooling • •
Spark plug
Fuel hose
DIAGNOSTICS OF DEFECTS AND REMEDIAL ACTIONS
Problem: Cold engine cannot be started:
Reason: a) Defect in fuel piping
b) Spark plug does not spark
c) Blocked main carburetter jet
Rectification:
ad a) Make sure whether there is enough petrol in the tank,
check whether the fuel cock is open and fuel flows through the feeding hose. If not so, clean the fuel system completely.
20 hrs 50 hrs 100 hrs 300 hrs
•
to be replaced every three years
•
•
•
•
•
Page 14
ad b) Screw out the spark plug, clean electrodes and insulator with a steel brush, set the gap between the
electrodes, check the ignition spark, fix the spark plug to the cable terminal and put the hexagonal block on the spark
plug to the exhaust. there must be a visible sparking to be seen on the spark plug electrode at a trial start.
If not so, use a new spark plug a test it according to the prescribed procedure. If the defect cannot be rectified even after
the spark plug has been exchanged, check the condition of the cable terminal and cable itself. Should the sparking not
occur even now, contact an authorized service shop for repair.
ad c) If the fuel gets into carburetter, the sparking occurs but the engine does not start, the reason may be a clogged
main jet. Dismount the float chamber, screw out the main jet and clean it by blowing it through.
Problem: Engine is warm but cannot be started
Reason: Engine is oversaturated with fuel mixture
Rectification: a) Turn the accelerator lever into Position "MAX"
b) Screw out the spark plug
c) 5times to 6times pull on the starter cord; this makes the engine turning while the excessive mixture
is blown out through the spark plug hole
d) Screw on the spark plug (cleaned) and start the engine
Problem: Engine warming up, not performing well
Reason: Clogged suction channel to carburetter and oil air cleaner, or dirty exhaust piping or clogged engine
cooling system
Rectification: a) Clean the oil air cleaner and piping
b) Clean the cooling system fan and lamination on the cylinder
c) Burn out the exhaust piping
d) Check the contents of tank and carburetter for possible water (water condensate may occur in drops
at the tank bottom or in the lower part of the carburetter).
VI. STORAGE
The machine should be kept at a dry place. Access of unauthorized persons to the machine should be prevented. The
drive unit must be installed onto one of adapters or secured so that its turning upside down and oil getting into the
exhaust or into the air filter and carburetter is prevented. At preparing the drive unit ready for storage, adhere to the
below instructions.
PROCEDURES TO BE CARRIED OUT PRIOR TO THE LONG-TERM STORAGE OF THE ENGINE
a) Wash the engine and clean it from all dirt and dust
b) Tighten all bolts on the flange and on the cylinder head
c) Check the function of spark plug and/or reset the distance of electrodes of the spark gap
d) Clean the carburetter and fuel piping, empty the fuel tank
e) Coat or spray the thoroughly cleaned engine and accessories with a preservative
f) During the long-term storage, put the engine into operation for about 30 minutes at least once in three months.
Before the start, remove all preservatives from the engine.
g) After the test, carry out operations described under items b), d), e).
h) Cover the engine with a suitable material (e.g. canvas or paper).
VII. DISPOSAL OF PACKAGING AND MACHINE
Paper packaging - secondary raw materials to be offered for sale
- to be placed in containers at collecting points
- incineration
- other use
Plastic materials - to be placed in containers at collecting points
Wood - incineration, crushing, chopping
After the product’s service life has expired, you are obliged to provide for the disposal of the machine with taking into
account the use of secondary raw-materials according to Waste Law No. 238/91 Gaz. and its possible amendments.
The procedure to be recommended for machine disposal after the end of its service life is as follows:
1. Dismount all parts from the machine that can still be used.
2. Dismount machine parts made of plastic materials and arrange for their disposal according to Waste Law No.
238/91 Gaz. as amended.
3. Dismount parts made of non-ferrous metals. The stripped machine remainder including the dismounted parts of
non-ferrous metals are to be disposed according to Law No. 238/91 Gaz. and its possible amendments.
Page 15
VIII. LIST OF COMPONENTS
JIKOV ENGINES
Spare parts supplied by the engine manufacturer: MOTOR JIKOV trading
Lipenská 37
370 04 ČESKÉ BUDĚJOVICE
Mail orders- Telephone 038/27801
Note: Tables include common parts for all engines. Position/s with * hold/s only for engine Model 1447 VAPE DV
CE (and if mentioned in the note below the Table also for engine Model 1454 VAPE DV CE); Position/s ** hold/s
only for engine Model 1454 VAPE DV CE. If the Position No. is listed as * or ** , the above engines are not to be
added positions without this supplementary marking.
1. Crankshaft with piston
Pos. JKPOV Ordering No. Part Pcs
1. 273 521 003 717 997-3224 Gufero 17x35x10 ČSN 0294010 2
2. 324 163 020 383 994-3145 Bearing UR 6203 ČSN 024630 1
3. 482 060 102 236 601-0226 Shim block 2
4. 482 996 906 331 969-0631 Crankshaft assembly 1
5. 311 728 504 065 540-0408 Feather 3x5 ČSN 301385.11 1
6. 324 163 038 300 994-3144 Bearing 6303 UR ČSN 024630 1
7. 319 237 140 505 301-1971 Piston pin 1
8. 311 733 100 140 602-1802 Retaining ring 14 ČSN 022931 2
9. 326 070 701 310 304-3026 Piston ring 56x2 ČSN 27011.70 2
9*. 304-3048 Piston ring 60x2 ČSN 27011.70 2
10. 482 060 102 239 601-0229 Shim block 2
11. 319 231 211 290 723-0217 Piston A 56 mm 1
11*. 723-0267 Piston A 60 mm 1
12. 532 888 200 080 994-3136 Needle bearing KBK 14x17x20 INA 1
13. 482 079 304 035 793-0425 Connecting rod 1
14. 324 162 050 000 994-3130 Bearing 18x24x13 1
15. 482 030 119 832 301-1982 Crank pin 1
Parts available for engines 1453 ISKRA, 1454 VAPE, 1454 VAPE DV CE are as follows:
piston I. re-bore Drawing no.:723 0242 piston ring I. re-bore Drawing no.:304-3060
piston II. re-bore Drawing no.:723-0261 piston ring II. re-bore Drawing no.:304-3061
Page 16
2. Crankcase
Pos. JKPOV Ordering No. Part Pcs
1. 627 832 019 003 626-2903 Crankcase sealing 1
2. 482 010 155 831 101-5581 Bolt M 8x153 ČSN 426518.52 4
3. 311 213 310 064 601-1605 Washer 6.4 ČSN 021733.05 6
4. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 6
obligatory order: crankcase-assembly: ordering no.: 960-3919
3. Cylinder with head
Pos. JKPOV Ordering No. Part Pcs
1. 482 013 066 032 130-6602 Cylinder head nut 4
2. 311 210 211 084 354-0253 Washer 8.4 ČSN 021702.15 4
3. 482 071 603 132 716-0312 Cylinder head 1
3*. 716-0324 Cylinder head 1
3**. 716-0323 Cylinder head 1
4. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 2
5. 311 214 510 064 652-1602 Washer 6.4 ČSN 021745.05 2
6. 278 432 510 097 625-1018 Sealing 2
7. 321 162 111 516 625-1017 Insulation pad 1
8. 309 276 140 620 101-5626 Bolt M 6x30 ČSN 021176.25 2
9. 482 071 607 234 716-0724 Cylinder 1
9*. Cylinder 1
10. 482 010 155 533 101-5553 Cap screw 2
11. 627 832 011 030 625-5002 Cylinder sealing 1
11*. 625-5003 Cylinder sealing 1
12*. 626-2605 Sealing under head 1
13*. 934-3103 Decompression valve 1
14*. 994-3014 Clip Gorbin 2
15*. 913-2563 Fuel hose 5x360mm 1
16**. 626-2604 Sealing under head diam. 56 mm 1
Note: Positions 13*, 14*, 15* also for engine 1454 VAPE DV CE
positions 3**,16** only for engines 1454 VAPE DV CE
Page 17
For engines 1453 ISKRA, 1454 VAPE
For engines 1454 VAPE DV CE, 1447 VAPE DV CE
Page 18
4. Air cleaner
Pos. JKPOV Ordering No. Part Pcs
1. 482 996 052 035 960-5205 Sleeve 1
2. 482 060 655 036 606-5510 Air cleaner- lower part 1
3. 482 994 619 033 946-1903 Cleaning insert 1
4. 309 203 140 811 101-2536 Bolt M 8x12 ČSN 021103.25 2
5. 311 210 211 084 354-0253 Washer 8.4 ČSN 021702.15 2
6. 482 994 648 130 946-4810 Air cleaner-upper part 1
7. 273 133 010 424 913-7602 Rubber coupling 1
8. 548 241 571 421 994-3008 Hose clip 1
9. 273 111 351 074 913-1010 Sealing ring 1
optional order: air cleaner assembly (positions 1-7), ordering no.: 984-1011
Page 19
5. Exhaust silencer
Pos. JKPOV Ordering No. Part Pcs
1. 311 120 114 080 180-0185 Nut M 8 ČSN 021401.25 2
2. 311 210 200 084 354-0253 Washer 8.4 ČSN 021702.15 3
3. 309 332 000 000 102-0304 Bolt B 3,9x19 PN 021232.05 1
4. 311 212 610 053 304-0254 Washer 4.3 ČSN 021726.15 1
5. 482 030 203 034 304-3701 Spacer tube 1
6. 946-7815 Grid 1
7. 482 091 357 033 913-5703 Screen 1
8. 482 061 605 031 616-0501 Screening metal plate 1
9. 482 994 682 137 946-8217 Exhaust silence-assembly 1
10. 278 432 510 098 625-1016 Exhaust sealing 1
11. 309 203 140 811 101-2536 Bolt M 8x12 ČSN 021103.25 1
12. 311 212 610 053 304-0278 Washer 5.3 ČSN 021726.15 2
13. 311 214 010 050 651-0919 Washer 5 ČSN 021740.05 2
14. 311 201 140 050 180-0143 Nut M 5 ČSN 021401.25 2
optional order: Exhaust silencer-Assembly, ordering no.: 948-0738
Page 20
6. Pneumatic governor
Pos. JKPOV Ordering No. Part Pcs
1. 309 231 140 811 101-1655 Bolt M 8x12 ČSN 021131.25 1
2. 311 214 610 084 601-0804 Washer 8.4 ČSN 021746.05 1
3. 482 993 039 034 930-3904 Regulation flap-Assembly 1
4. 482 013 535 032 135-3502 Steering linkage 1
5. 315 111 702 480 134-2501 Return spring of the regulator 1
6. 482 992 003 239 920-0329 Lever-Assembly 1
7. 309 203 140 615 101-2521 Bolt M 6x18 ČSN 021103.25 1
8. 482 060 250 338 602-5038 Insert 1
9. 311 212 610 064 304-0501 Washer 6.4 ČSN 021726.15 1
10. 311 214 010 060 651-0920 Washer 6 ČSN 021740.05 1
11. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 1
Page 21
7. Starter
Pos. JKPOV Ordering No. Part Pcs
1. 482 060 417 033 604-1703 Catcher 1
2. 273 993 815 000 913-6501 Handle 1
3. 482 091 332 035 913-3205 Starting cord A 4x1520 1
4. 311 733 000 110 602-1517 Retaining ring 10 ČSN 022930 1
5. 482 060 722 032 607-2202 Cup 1
6. 315 116 159 370 134-2630 Spring 1
7. 321 841 008 049 746-3401 Starting drum 1
8. 482 929 630 302 963-0302 Cup with spring 1
9. 482 060 474 035 604-7405 Pawl 1
10. 315 116 152 800 134-0805 Spring 1
11. 482 994 668 035 946-6805 Casing-Assembly 1
12. 311 214 510 064 652-1620 Washer 6.4 ČSN 021740.05 4
13. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 4
14. 482 060 250 538 602-5058 Washer 1
15. 311 210 211 064 54-0246 Washer 6.4 ČSN 021702.15 4
optional order: starter complete ordering no.: 984-0821
Page 22
8. Clutch
Pos. JKPOV Ordering No. Part Pcs
1. 311 733 000 120 602-1502 Ring 12 ČSN 022930 4
2. 482 993 741 033 937-4103 Clutch hub - Assembly 1
3. 311 213 310 105 601-1608 Washer 10 ČSN 021733.05 1
4. 311 150 115 100 130-0184 Nut M 10x1 ČSN 021401.55 1
5. 482 993 726 033 937-2603 Clutch weight complete 2
6. 315 110 004 040 134-0361 Spring 2
7. 309 501 140 636 101-2440 Bolt M 6x70 ČSN 021101.55 1
8. 465 990 800 018 130-1302 Nut M 6 ONL 3248 1
9. 309 573 140 816 103-7203 Bolt M 8x20 ČSN 021143.55 3
10. 311 214 010 080 651-0906 podložka 8 ČSN 021740.05 3
11. 482 993 026 033 930-2603 Closure-Assembly 2
12. 482 993 056 032 930-5602 Interflange-Assembly 1
13. 482 060 102 930 601-0290 Shim block -
13. 482 060 102 931 601-0291 Shim block -
13. 482 060 102 932 601-0292 Shim block -
13. 482 060 102 933 601-0293 Shim block -
14. 301-2076 Weight sleeve 4
optional order: Weight-Assembly (positions 5,6,7,8), ordering no.:960-6701
Page 23
9. Fuel system
Pos. JKPOV Ordering No. Part Pcs
1. 482 994 329 035 943-2905 Fuel tank + Cap 1
2. 482 994 659 136 946-5916 Cooling mantle 1
3. 846-1702 Plastic tank cap 1
4. 482 060 913 031 609-1301 Handle (only for 1454 VAPE) 1
4*. 946-8604 Holder weldment 1
5. 482 013 502 032 135-0202 Clip 1
6. 309 203 140 612 151-2506 Bolt M 6x14 ČSN 021703.15 4
7. 311 214 010 060 651-0920 Washer A6 ČSN 021740.05 4
8. 311 120 114 060 180-0141 Nut M 6 ČSN 021401.25 4
9. 482 013 027 033 130-2703 Nut 1
10. 311 214 510 150 602-1607 Washer 15 ČSN 021745.05 1
11. 309 203 140 812 101-2533 Bolt M 8x14 ČSN 021103.25 4
12. 311 210 211 084 354-0253 Washer 8.4 ČSN 021702.15 5
13. 482 060 754 031 947-5902 Starter ratchet 1
14. 482 071 810 232 718-1025 Fan runner 1
15. 443 761 287 300 000-2873 Fuel cock 2873 1
16. 482 091 325 333 913-2533 Fuel hose 2
17. 532 928 470 178 943-1428 Fuel cleaner V 6004 1
18. 286 519 000 000 994-6014 Connecting neck TS5 1
19. 482 091 325 334 913-2534 Fuel hose 1
20. 482 091 325 332 913-2532 Fuel hose 1
21. 913-0102 "O" ring 2
22. 604-1503 Connection wire-Bowden holder 1
23. 601-0272 Ring-Sealing 2
24. 105-1504 Connection wire bolt 1
25. 135-3102 Sleeve gorbin 4
option for ordering:position 15. – two-way fuel cock 3395
fuel hose can be ordered in meters ordering no.: 286 121 030
Note: position 4* holds also for engine 1454 VAPE DV CE
Page 24
10. Carburetter
Pos. JKPOV Ordering No. Part Pcs
1. 974-1718 Carburetter body-Complete assembly 1
1*. 974-1453 Carburetter body-Complete assembly 1
2. 443 919 460 134 946-0134 Float complete assembly 1
3. 443 919 340 113 934-0113 Needle valve complete assembly 1
4. 443 919 341 602 934-1602 No-load run jet complete 1
5. 443 915 702 803 720-2803 Bowden support 1
6. 443 915 611 313 711-1313 Float chamber 1
7. 443 916 449 301 644-9301 Throttle flap lever 1
8. 443 916 443 201 644-3201 Stop lever 1
9. 443 916 441 102 644-1102 Starting flap lever 1
10. 722 923 110 102 625-9006 Friction washer 1
11. 722 923 110 101 625-0248 Sealing 5.5/2.5 1
12. 722 923 110 201 625-0164 Sealing 10/7.1/1 1
13. 601-9202 Starting flap 1
14. 443 916 013 809 601-3809 Fuse 1
15. 601-1502 Throttle disk 1
16. 311 214 010 030 601-0917 Washer A3 ČSN 021740.05 2
17. 311 214 000 040 601-0903 Washer 4 ČSN 021740.00 1
18. 482 060 105 035 601-0505 Washer with lip 1
19. 443 916 010 272 601-0272 Sealing 2
20. 482 060 102 438 601-0248 Washer 1
21. 443 913 065 901 306-4506 Emulsion tube 1
22. 11 210 211 032 304-0239 Washer A 3.2 ČSN 021702.15 2
23. 250-5802 Starting flap axis 1
24. 250-5801 Throttle valve axis 1
25. 443 911 122 082 220-8200 Main jet 22-075-00 1
26. 207-5802 Pin 2x12 ČSN 022156 1
27. 443 912 010 154 201-0154 Hinge axis 1
28. 311 120 114 050 180-0143 Nut M 5 ČSN 021401.25 1
29. 149-0103 Ball IV. ČSN 023680 1
30. 443 911 341 602 134-1602 Spring 1
31. 134-0351 Spring 1
32. 315 110 020 310 134-0155 Spring 1
33. 315 116 095 070 134-0123 Lock spring 1
34. 311 120 314 050 130-0171 Nut M 5 ČSN 021403.25 1
35. 443 911 051 504 105-1504 Connection wire bolt 1
36. 103-0702 Axis bolt 2
37. 443 911 017 004 101-7004 Steering bolt 1
38. 443 911 014 902 101-4902 Regulation screw 1
39. 443 911 013 606 101-3606 Stop screw 1
40. 309 231 140 408 101-1632 Bolt M 4x8 ČSN 021131.25 1
41. 309 231 140 306 101-1631 Bolt M 3x6 ČSN 021131.25 2
42. 443 911 010 801 101-0801 Button-headed screw M 4x14 2
43. 273 111 014 194 913-0150 Ring 42x2 ČSN 029281.2 1
Note: position 1* also for engine 1454 VAPE DV CE
Positions 13, 15, 29, 31, 36 are not supplied
Page 25
12. Ignition for 1453 ISKRA
Pos. JKPOV Ordering No. Part Pcs
1. 994-1710 Spark plug N 17 1
2. 371 511 221 432 998-0404 Cable shoe OKS-14.3.G 1
3. 994-2225 Flywheel magneto 1
4. 304-0241 Washer 4.3 ČSN 021702.15 3
5. 101-1657 Bolt M4x14 ČSN 021131.25 3
6. 913-4308 Bushing 1
7. 994-605 Condenser 1
8. 998-1224 Contact 1
9. 998-1309 Ignition reel 1
10. 998-0113 High voltage conductor 1
Option for ordering: ignition system ISKRA-complete, ordering no.: 994-2255
12. Ignition for 1454 VAPE
Pos. JKPOV Ordering No. Part Pcs
1. 994-1710 Spark plug N 17 1
2. 371 511 221 432 998-0404 Cable shoe OKS-14.3.G 1
3. 443 211 261 080 994-2222 Non-contact flywheel magneto 1
4.
5. 101-1331 Bolt M 4x12 ČSN 021151.25 3
6. 994-0906 Electric switch VAPE 1
7. Holder (part of the switch) 1
8. 101-1618 M 5x16 ČSN 021131.25 2
9. 304-0234 Washer 5 ČSN 021740.05 2
10.
11.
12.
13. 998-0112 High voltage conductor 1
Page 26
12. Ignition for 1454 VAPE DV CE, 1447 VAPE DV CE
Pos. JKPOV Ordering No. Part Pcs
1.
2. 371 511 221 432 998-0404 Cable shoe OKS-14.3.G 1
3. 443 211 261 080 994-2222 Non-contact flywheel magneto 1
4. 946-8604 Holder weldment 1
5. 101-1331 Bolt M 4x12 ČSN 021151.25 3
6. 994-0906 Electric switch VAPE 1
7. Holder (part of the switch) 1
8. 101-1618 M 5x16 ČSN 021131.25 2
9. 304-0234 Washer 5 ČSN 021740.05 2
10. 529-0313 Angle 1
11. 934-1724 Spark plug D17YC 1
12. 998-0412 Cable shoe 1
13. 998-0112 High voltage conductor 1
Ignition for 1453 ISKRA
Ignition for 1454 VAPE , 1454 VAPE DV CE , 1447 VAPE DV CE
Page 27
Pos. Trading No. Part No. Name Pcs
3926 Engine assembly 1453 ISKRA
3922 engine assembly 1454 VAPE
3923 Engine assembly 1454 VAPE DV CE
3924 Engine assembly 1447 VAPE DV CE
1 Engine JIKOV 1453 ISKRA 1
2 Engine JIKOV 1454 VAPE 1
3 Engine JIKOV 1454 VAPE DV CE 1
4 Engine JIKOV 1447 VAPE DV CE 1
5 192 016 22 9 8040 024 Handlebars plate 1
6 192 006 22 9 8053 009 Swivel holder of handlebars 1
7 192 007 32 0 9311 103 Pivot 1
8 192 008 32 0 8041 015 Lever 1
9 101 641 622 9 8074 012 Bowden JM 4-003 1
10 632 0 8610 004 Short-circuiting cable 1
11 101 630 START 1AG 235 Gas lever 1
12 124 500 1.25x11.25x28x8.5 Spring 1
13 127 504 ČSN 02 2156 Pin 3x18 1
14 ISO 7042 Nut M10 12910 self-locking 1
15 195 528 ČSN 02 1727.15 Washer 11 1
16 101 655 ČSN 02 1178.25 Bolt M8x25 4
17 104 572 ČSN 02 1401.25 Nut M8 4
18 104 574 ČSN 02 1740.05 Washer 8 4
19 189 525 3,6x200 Tightening tape black 1
20 101 653 5x0,5 Insulation sleeving 1
21 101 651 12x0,5 Insulation sleeving 1
22 101 647 0,8x5,5 Core 1
22 101 648 Insulation tube 1
engine accessories:
Spanner 8x10 , spanner for spark plug OK 21 , spanner for spark plug OK 16 (only for engines 1454 VAPE DV CE ,
1447 VAPE DV CE), screwdriver York C 700 , spanner 13x16 , handle 8 mm á 1 pc , wrapped in plastic bag.
Page 28
Pos. Trading No. Part No. Name Pcs
3916 22 9 8078 037 Guide handlebars VR-02
1 192 010 22 9 8045 035 Carrier tube of handlebars-Weldment 1
2 192 011 22 9 8045 055 Complete handrail-Weldment 1
3 192 012 22 9 9016 010 Tightening nut 2
4 101 643 BVA-96 Safety ignition switch 1
5 101 628 1 MA 04 005 Left rubber grip 1
6 104 627 1 MA 02 005 Right rubber grip 1
7 171 534 ČSN 02 1319.05 Bolt M10x100 2
8 106 530 ČSN 02 1740.05 Washer 10.2 2
9 131 518 ČSN 02 1702.15 Washer 10.5 2
10 192 013 32 0 3915 003 Plug modification 1
Page 29
Pos. Trading No. Part No. Name Pcs
3915 12 9 8565 086 Shock absorber TG-2 1
1 192 014 22 9 1436 006 Absorber yoke-Complete 1
2 T 16437 Silentblok ULMER TECHNIK 2
3 192 015 22 9 8032 025 Absorber lug-Weldment 1
4 ČSN 02 1143.55 Bolt M8x16 2
5 1512506 ČSN 02 1103.25 Bolt M6x14 2
6 104 572 ČSN 02 1401.25 Nut M8 2
7 104 574 ČSN 02 1740.05 Washer 8.2 2
8 6510920 ČSN 02 1740.05 Washer 6.1 2
9 195 501 632 0 9245 009 Pivot arrestment split pin 1
Page 30
IX. WARRANTY TERMS
1. Manufacturer answers for product’s design, function, quality and completeness of the machine and implements only
on the condition that the machine is handled according to the instructions presented in the manual which is an
integral part of the delivery of all machines and implements.
2. Warranty does not apply to safety devices against machine overloading, to defects from natural wear of the machine
or implement, improper storage or unskilled operation and/or to damages caused by the customer or by a third
person.
3. Warranty extincts by a breakdown of the machine or working implement, which did not result from a defect
incurred at the manufacturer’s or from any intervention into construction of the machine or implement not agreed by
the manufacturer.
4. Detailed description of warranty terms is to be found in the Letter of quarantee which is attached to the machine or
implement and which is given to the customer at purchase.
X. INSTRUCTIONS FOR ORDERING SPARE PARTS:
The following data are to be used for easier identification when ordering the spare parts:
- Machine type, engine type, machine serial number and year of manufacture;
- Ordering number given by manufacturer and its name in the component list;
- Number of ordered pieces separately for each item;
- Precise address, telephone number, fax number or e-mail address;
- If you are not certain about the correct identification of the component, send the damaged component either to the
nearest service shop or to the manufacturer;
- All components should be ordered in the nearest service shop or at your dealer’s.
In the case of any confusions concerning the spare parts or technical issues, the VARI a.s. commercial, customerservice or technical departments are prepared to answer all your inquiries.
Contact to manufacturer:
VARI,a.s. Telephone: (+420) 325 607 111
Opolanská 350 Fax: (+420) 325 607 264
Libice nad Cidlinou (+420) 325 637 550
CZECH REPUBLIC E-mail:
289 07 internet:
Address of the nearest service workshop will be provided by any outlet with VARI products or directly by VARI, a.s.
vari@vari.cz
http://www.vari.cz/
http://techweb.vari.cz
Loading...
