1 Introduction
This manual describes the operation and installation of the VSA series PWM servo amplifiers
manufactured by Varedan Technologies. This is the section most people skip over, but it does have some
useful information, so please take the time to read it.
The VSA Series Pulse Width Modulated (PWM) Servo Amplifiers are designed for high performance
OEM applications requiring PWM switching type amplifiers. These fully digital servo amplifiers are
available in a variety of power ranges to drive three-phase brushless motors, single-phase brush-type
motors or voice coils. These amplifiers operate in position, velocity, or torque (current) mode using either
an analog input or digital command, or 2-phase sine input mode using analog inputs.
Programmable commutation options include sinusoidal from a motor mounted encoder, externally
commutated 2-phase sine input or trapezoidal commutation using motor mounted hall sensors.
Packaging options include a DC powered module or an AC line powered stand-alone.
Most connections are identical between the module and the stand alone with the exception of the motor
connector and the power connector. Please refer to section 6.
The design of these amplifiers includes an on-board high-speed Digital Signal Processor (DSP) which
performs the PID loop controls as well as monitors all key system functions in real-time to protect the
amplifier in the event of a system fault.
Serial communication options include both USB and RS-232 interfaces. An intelligent operating system
allows setup and storage of all system parameters using simple ASCII command over the serial interface.
The serial interface can also be used to view all operating parameters in real-time. Non-volatile memory
provides storage of the parameters during power off conditions.
A front-panel 7-segment LED display provides real-time indication of system status. Depending on the
mode of operation, up to 20 errors conditions are monitored by the DSP in real-time. The DSP disables
the outputs and displays an error code in the event of system malfunction.
The amplifier has a built in operating system that has many commands to perform the set up and
configuration of the unit. While it may seem daunting at first to have to learn all of these commands, only a
handful are typically used by any particular application. The large number of commands allows this
amplifier to be extremely flexible so it can easily be used across many different applications. Please feel
free to contact the factory for help with configuration and proper use of the commands.
For most applications, once the configuration is set using the serial commands, a simple WRITE
command is issued to save the settings in internal non-volatile memory (NVM). Following the WRITE
operation, all settings will be restored following a power-on reset so in most cases, no serial
communication is required one the unit has been set up and the settings saved. To automate the process
of setting up multiple units with the same configuration, a text file can be downloaded to each unit over the
serial interface.
Page 5
VSA Series Product User Guide
1.1 Main Parts
1.1.1 Module Parts
USB/RS232Connection
DSP Program Switch
Status LED
Signal Connector
Reset Switch
Feedback Connector
DC Bus Connector
Motor Connector
Baseplate
Page 6
VSA Series Product User Guide
1.1.2 Stand Alone Parts
USB/RS232Connection
DSP Program Switch
Status LED
Signal Connector
Reset Switch
Feedback Connector
Motor Connector
Baseplate
AC Power Input
Page 7
VSA Series Product User Guide
2 Model Part Numbering
The following table illustrates the various part numbers used to define the available model configurations.
2.1 Modules
VSA - 1530 - 170 - 1 - 1
Varedan switching amplifier
Continuous Power
Peak Power
Maximum DC Bus Voltage
Hardware Configuration Code
1=Standard Module (as shown top left)
2=Alternate Connector Configuration (as shown top right)
3-999=Other customer specified configurations
Software Configuration Code
1=Standard configuration
2-999 = Customer specific options
2.2 Stand Alone
VSA - 1530 - SA -170 - 1 - 1
Varedan switching amplifier
Continuous Power
Peak Power
Stand Alone Package
Maximum DC Bus Voltage
Hardware Configuration Code
1=Standard Module (as shown above)
2-999=Other customer specified configurations
Software Configuration Code
1=Standard configuration
2-999 = Customer specific options
Page 8
VSA Series Product User Guide
3 Safety Information
You REALLY need to read this information before operating this amplifier.
3.1 Hazardous Voltage Information
Hazardous voltages are present at the motor output terminals, input
power connection, and within the sheet metal enclosure.
Disconnect the power before plugging / unplugging any
connections or before servicing or disassembling the enclosure.
3.2 Airflow and Cooling
CAUTION
The user must insure proper airflow for the application. Failure to
do so may cause permanent damage to the unit and is not covered
3.3 Selecting a mounting area
The VSA amplifier module should be mounted in a solid, clean, dry location with adequate ventilation.
Avoid mounting areas that:
Obstruct the intake or exhaust vents.
Allow dust, debris to enter and contaminate the cooling capability of the drive.
Have humidity above 80% or are susceptible to moisture or coolant.
Are prone to corrosive or flammable materials.
Have an ambient temperature higher than 85°F (30°C).
Are under water.
Vibrate, are susceptible to vibration or that could transmit the cooling fan vibration to sensitive
test equipment.
CAUTION
under warranty.
Page 9
VSA Series Product User Guide
4 Module Specifications
4.1 Mechanical & Environmental
Size 7.125 X 4.60 X 1.45 inches
Weight 0.94 lb (0.43 kg)
Ambient temperature 0 to +45 °C operating, -40 to +85 °C storage
Humidity 0% to 95%, non-condensing
Contaminants Pollution degree 2
Environment IEC68-2: 1990
Cooling Heat sink and/or forced air-cooling may be required for continuous power output
Figure 1: VSA Module Dimensions
7.1250
1.4500
4.6000
0.8000
1.4500
6.7250
3.2500
4.6000
0.7300
7.1250
7.1250
0.8000
1.4500
6.7250
Page 10
VSA Series Product User Guide
5 Stand Alone Specifications
5.1 Mechanical & Environmental
Size 7.125 in X 4.60 in X 2.50 inches
Weight 0.94 lb (0.43 kg)
Ambient temperature 0 to +45 °C operating, -40 to +85 °C storage
Humidity 0% to 95%, non-condensing
Contaminants Pollution degree 2
Environment IEC68-2: 1990
Cooling Heat sink and/or forced air-cooling may be required for continuous power output
Figure 2: VSA Stand Alone Dimensions
STAND A LONE DI GITAL PWM AMPLIFIER
1 2
Line
AC
Neutral
3
Earth Ground
Motor C
Motor B
Motor A
J3
123
Bottom Surface
Bottom Surface
VSA-1530-SA
VSA-1530-SA
STAND ALON E DIGITAL PWM AMPLIFIER
Encoder Controller I/O
Reset
J2 J1
Status Display
DSP Program
RS232 / USB
Page 11
VSA Series Product User Guide
6 Electrical Specifications
Module Stand Alone
MODEL
Input Voltage 70-340 VDC 70-340 VDC 80-240 VAC Single-Phase
Motor bus = AC Input Volts * 1.414
Output Power
Peak Current 30 50 30 50 Amps
Peak time 1 1 1 1 Seconds
Continuous current 15 20 15 20 Amps
PWM Outputs 20 kHz center-weighted PWM (Can be factory adjusted)
PWM Ripple Frequency 40 kHz (Can be factory adjusted)
Commutation and Control
Current loop 20 kHz (50 µs period) update rate
Velocity Loop 4 kHz (250 µs period) update rate
Position loop 1 kHz (1mS period) update rate
Commutation Field Oriented Control (FOC) or Traditional Sinusoidal
Phase Initialization Selectable: Hall startup then sinusoidal from encoder
Encoder startup, no halls required
External 2-phase analog sine input
Bandwidth 3 kHz typical, varies with load inductance
Minimum Load Inductance 400uH line to line
Current Monitor Output
Output Voltage Range 0-10 VDC 0-10VDC
Scaling 1V = 4 Amps 1V=6 Amps 1V = 4 Amps 1V=6 Amps
Serial Interface
Interface Type RS-232 or USB
Baud 115k
Data Format 8 Data bits, No Parity, 1 Stop Bit
Protocol ASCII
Encoder Power Supply Output
Output Voltage +5 VDC
Maximum Output Current 250mA, Internally fused
VSA-1530 VSA-2050 VSA-1530-SA VSA-2050-SA
Page 12
VSA Series Product User Guide
6.1 I/O Interface Drawings
6.1.1 Digital Inputs

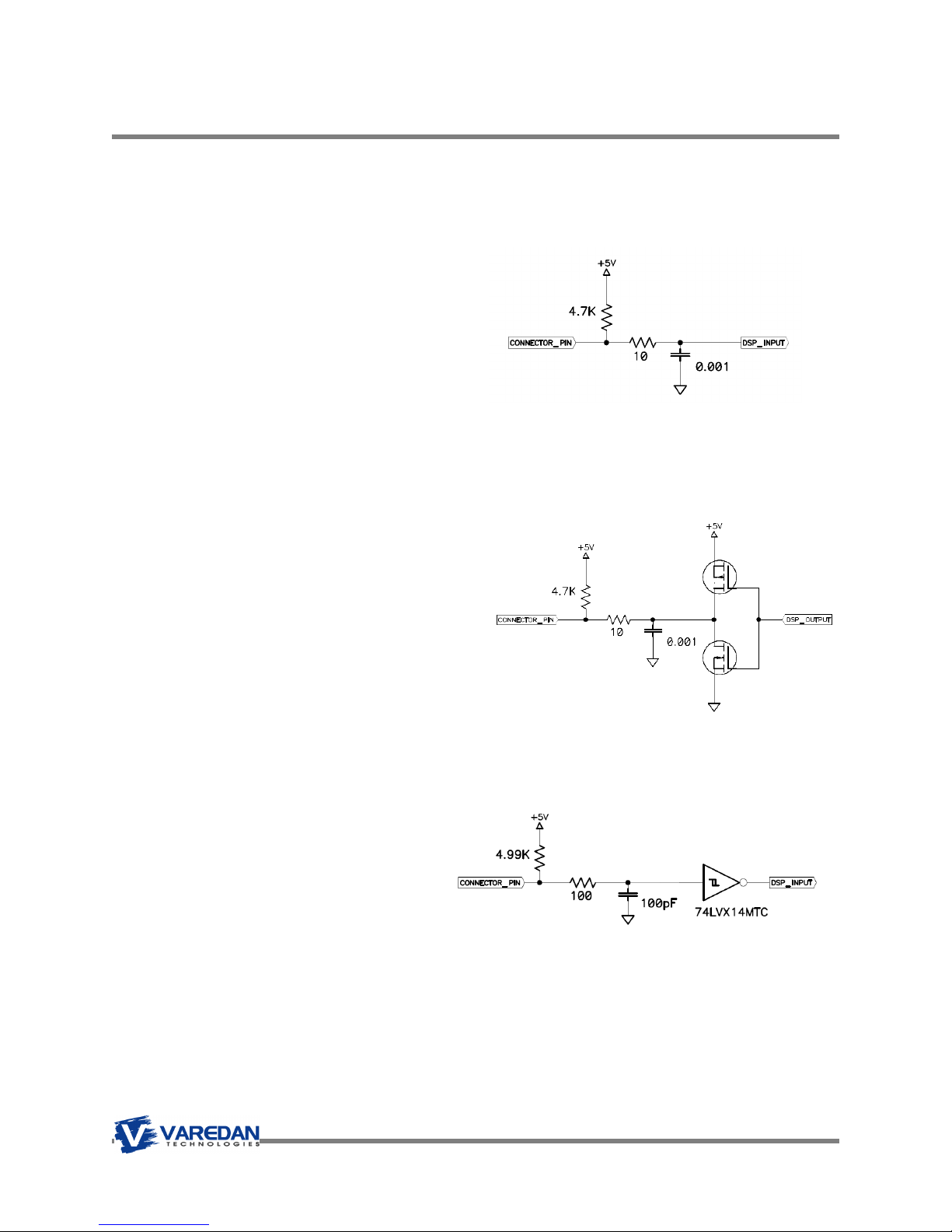

The following drawing shows the circuitry for Enable, Reset, Fault and the User I/O pins when configured
as inputs.
Fault, Enable, Reset, User1,2,3,4 Configured As Inputs
Input Voltage Range 0-5 VDC
Internal Pull-up 4.7k ohms
Absolute Maximum Voltage 5.5 VDC
Logic High +2 to +5 VDC
Logic Low -0.5 to 0.8 VDC
Filter 16MHz
6.1.2 Digital Outputs
The following drawing shows the circuitry for Fault and User I/O pins when configured as outputs.
Fault, User 1,2,3,4 Configured As Outputs
Internal Pull-up 4.7k ohms
High Level Output Current -10mA
Low Level Output Current 25mA Maximum
High Level Output Voltage 4 VDC
6.1.3 High-Speed Digital Input
The following drawing shows the circuitry for the High-Speed digital input.
Input Voltage Range 0-5 VDC Schmitt Trigger Input type 74LVX14
Internal Pull-up 4.99k ohms
Absolute Maximum Voltage 7 VDC
Logic High Threshold +2.2 VDC
Logic Low Threshold 0.9 VDC
Filter 16MHz
Page 13
VSA Series Product User Guide
6.1.4 Regen Output
The following drawing shows the circuitry for Regen output. This output can be used to control an external
relay when the bus voltage exceeds a preset level. The relay should have a dumping resistor connected in
a manner that will safely handle the extra voltage.
Output Type Digital
High Level Output Voltage 3 VDC @Ioh = -50uA
Low Level Output Voltage 0.1 VDC @Ioh = -50uA
6.1.5 Analog Inputs DAC A+, DAC A-, DAC B+, DAC B-
The following drawing shows the typical analog input circuitry for the DAC inputs. The inputs are scaled to
accept a maximum of +/-10 VDC. For single-ended operation, apply the voltage to the DAC + input and
connect the signal ground to the DAC - input.
Input Voltage Range +/-10VDC Differential, non-isolated
Maximum Voltage +/-10VDC
Input Impedance 10k ohms
Resolution 12-bit
6.1.6 High Current Output
The high current output is a general-purpose output driven by an open drain MOSFET. It can sink up to
500mA of current.
Output Type Open Drain MOSFET
Internal Pull-up 4.7k ohms
High Level Output Current -5mA
Low Level Output Current 500mA Maximum
High Level Output Voltage 5 VDC
Page 14
VSA Series Product User Guide
6.1.7 Encoder Inputs and Outputs
The following drawing shows the typical encoder input circuit. Jumper JP3 controls the encoder load. With
the jumpers all in, 100-ohm resistors are place across the encoder inputs as shown. When Encoder Type
is set to “S” in software for single ended, the 1K ohm pull up/pull down pair is switched in as shown.
If using JP3, always insert or remove all 3 jumpers at a time. JP3 is located under the cover directly
behind the Reset button.
Encoder Inputs A+, A-, B+, B-, I+, I-
Input Type Single-ended or RS-422 Differential
Single Ended Input Voltage Range 0-5 VDC
Differential Input Voltage Range +/-5.8 VDC
Absolute Maximum Differential Voltage +/-12 VDC
High Level Input Voltage +2 VDC
Low Level Input Voltage 0.8 VDC
Maximum Switching Frequency 25MHz
Input Termination 100 ohms, software configurable
Encoder Outputs A+, A-, B+, B-, I+, I-
Output Type RS-422 Differential Line Driver
High Level Output Voltage 3 VDC @Iol=20mA
Low Level Output Voltage 0.2 VDC @Iol=20mA
Differential Output Voltage 2.6 VDC @Rload = 100 ohms
Maximum Switching Frequency 25MHz
6.1.8 Hall Inputs
The following drawing shows the typical hall input circuitry.
Input Voltage Range 0-5 VDC Schmitt Trigger Input
Internal Pull-up 1k ohms
Absolute Maximum Voltage 7 VDC
Logic High Threshold +2.2 VDC
Logic Low Threshold 0.9 VDC
Filter 3.3kHz
6.1.9 Motor Temperature Switch Input
The motor temperature switch input is designed to connect to a motor mounted thermal switch, either an
PTC or open contact type device. The active level of the fault condition can be set in software.
Input Voltage Range 0-5 VDC Schmitt Trigger Input
Internal Pull-up 1k ohms
Absolute Maximum Voltage 7 VDC
Logic High Threshold +2.2 VDC
Logic Low Threshold 0.9 VDC
Filter 3.3kHz
Page 15
Loading...
