Varavon Timeroid User Manual

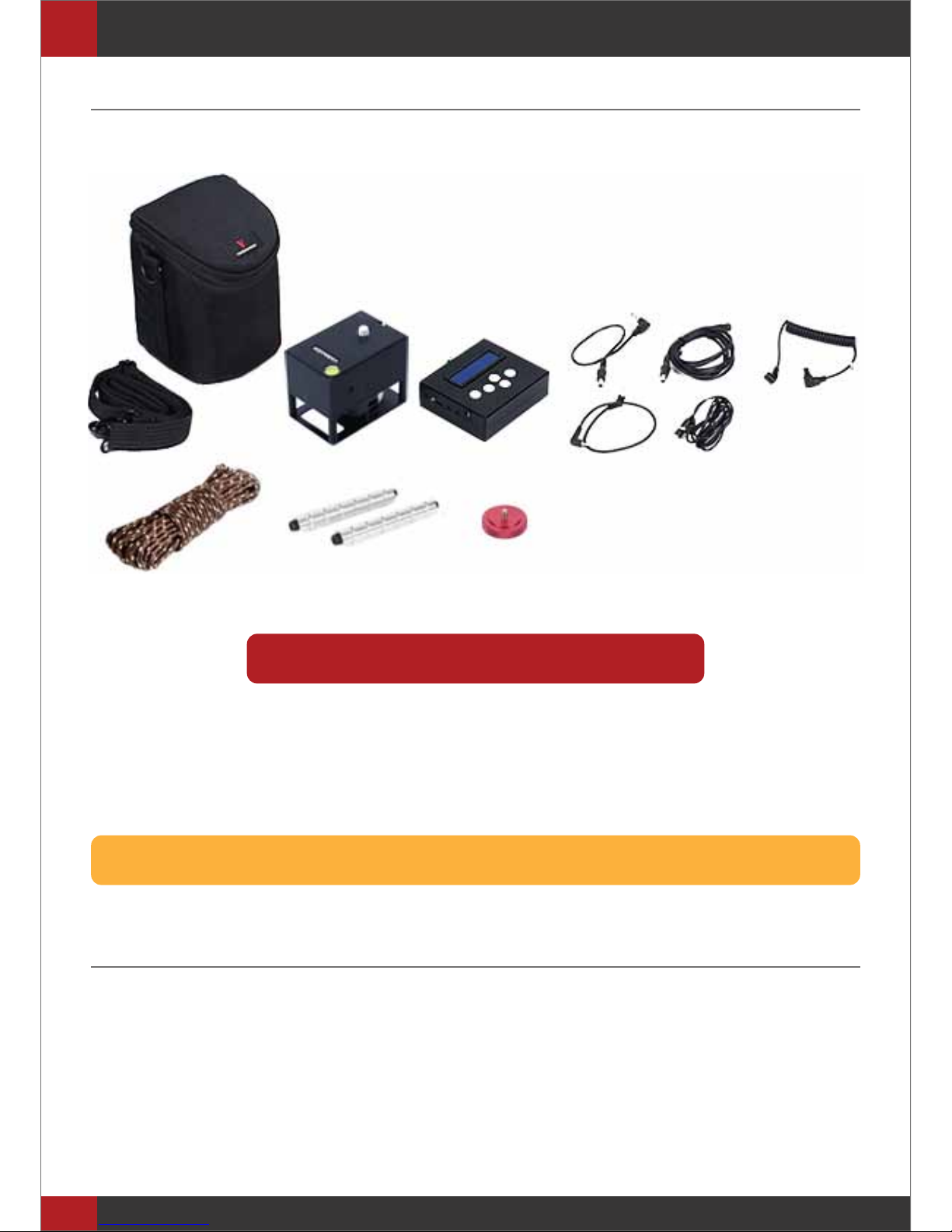

Side poleRope

(5m/16.4ft)

Panning knob

Controller

Bag

Cables

- Motor

- Motor extension

- Release (*optional)

- Release extension

- Limiter

Strap

1.5 Axis
body

VARAVON TIMEROID

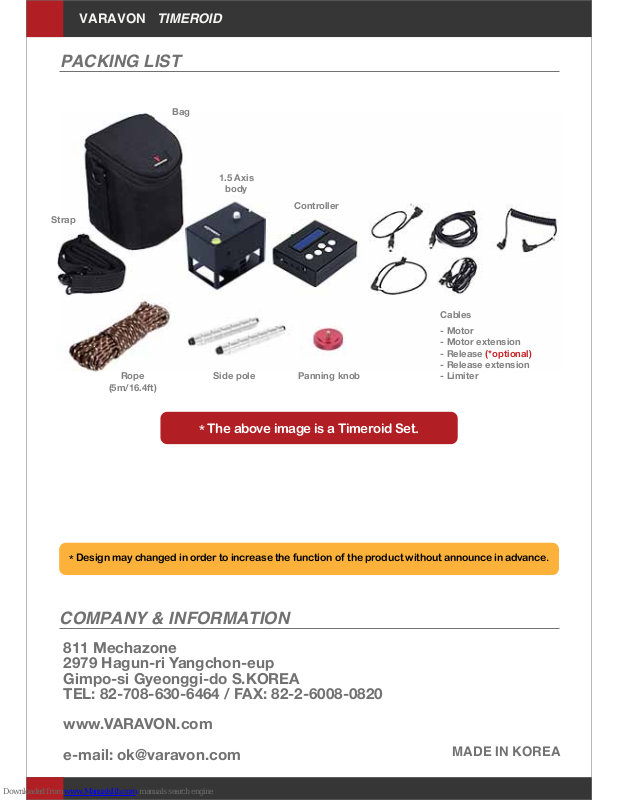

PACKING LIST

MADE IN KOREA

COMPANY & INFORMATION

811 Mechazone
2979 Hagun-ri Yangchon-eup
Gimpo-si Gyeonggi-do S.KOREA
TEL: [phone] / FAX: [phone]

www.VARAVON.com

e-mail: [email protected]

*

Design may changed in order to increase the function of the product without announce in advance.

*

The above image is a Timeroid Set.

VARAVON TIMEROID

Moving Timelapse

1

.5

Axis

User Manual

STEP 01

The assembly procedure

VARAVON TIMEROID

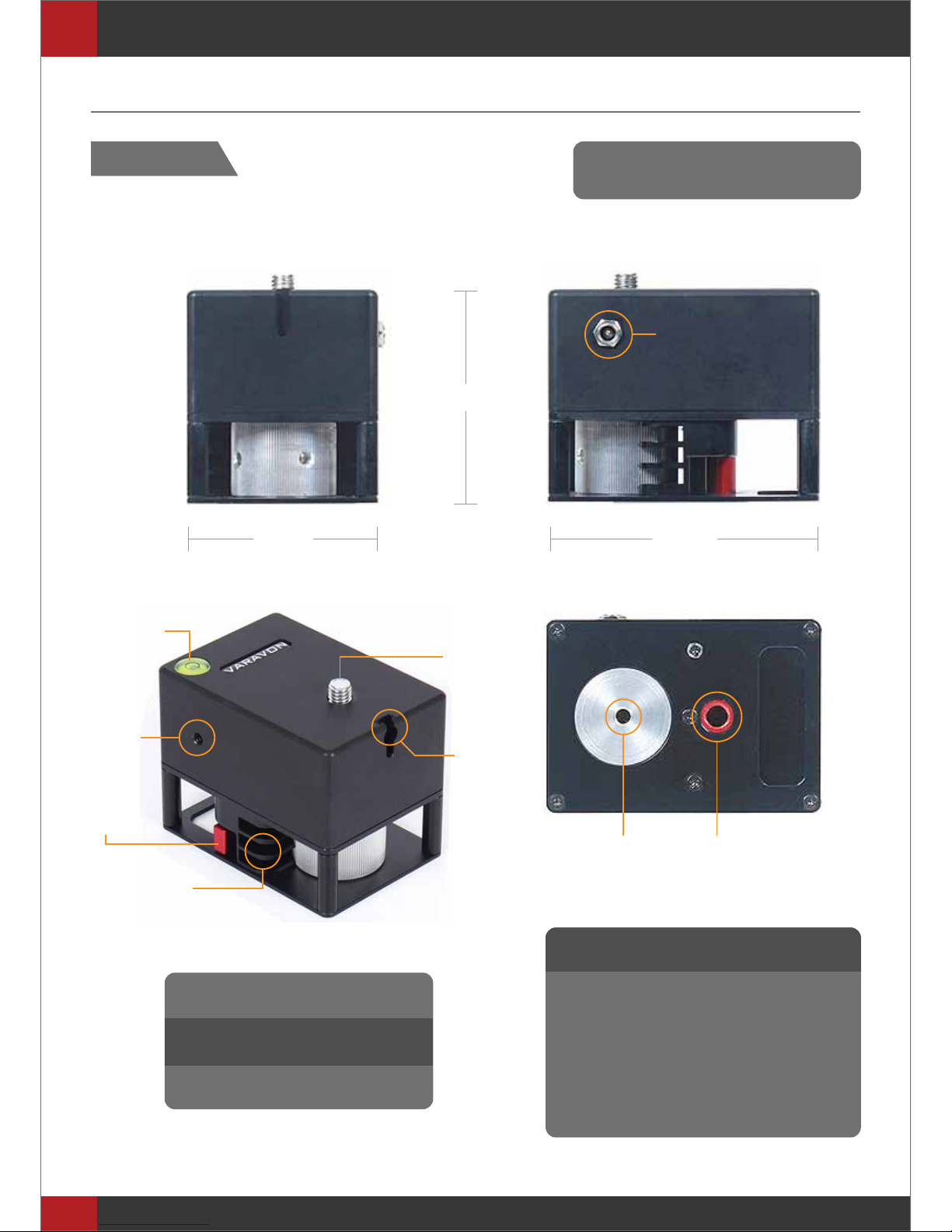

Main body overview

* Other brand 3/8 holes that
support the slider can be used.

MOVING or PANNING

Water level

Panning
dial knob
mounted

3/8 inch
bolt

Motor
connection

Rope guide

3/8 inch hole

Lock lever

Controller

hanging

hole

1/4 inch

hole

(Panning)

3/8 inch

hole

(Moving)

70 mm

78 mm

100 mm

MOT-1

6.5

SPECIFICATION

- Width : 70 mm (2.7 inch)

- Height : 78 mm (3 inch)

- Depth : 100 mm (4 inch)

- Total weight : 690 g (1.5 lb)

- Material : Alluminum

rpm

Moving timelapse on slider

STEP 02

VARAVON TIMEROID

The assembly procedure

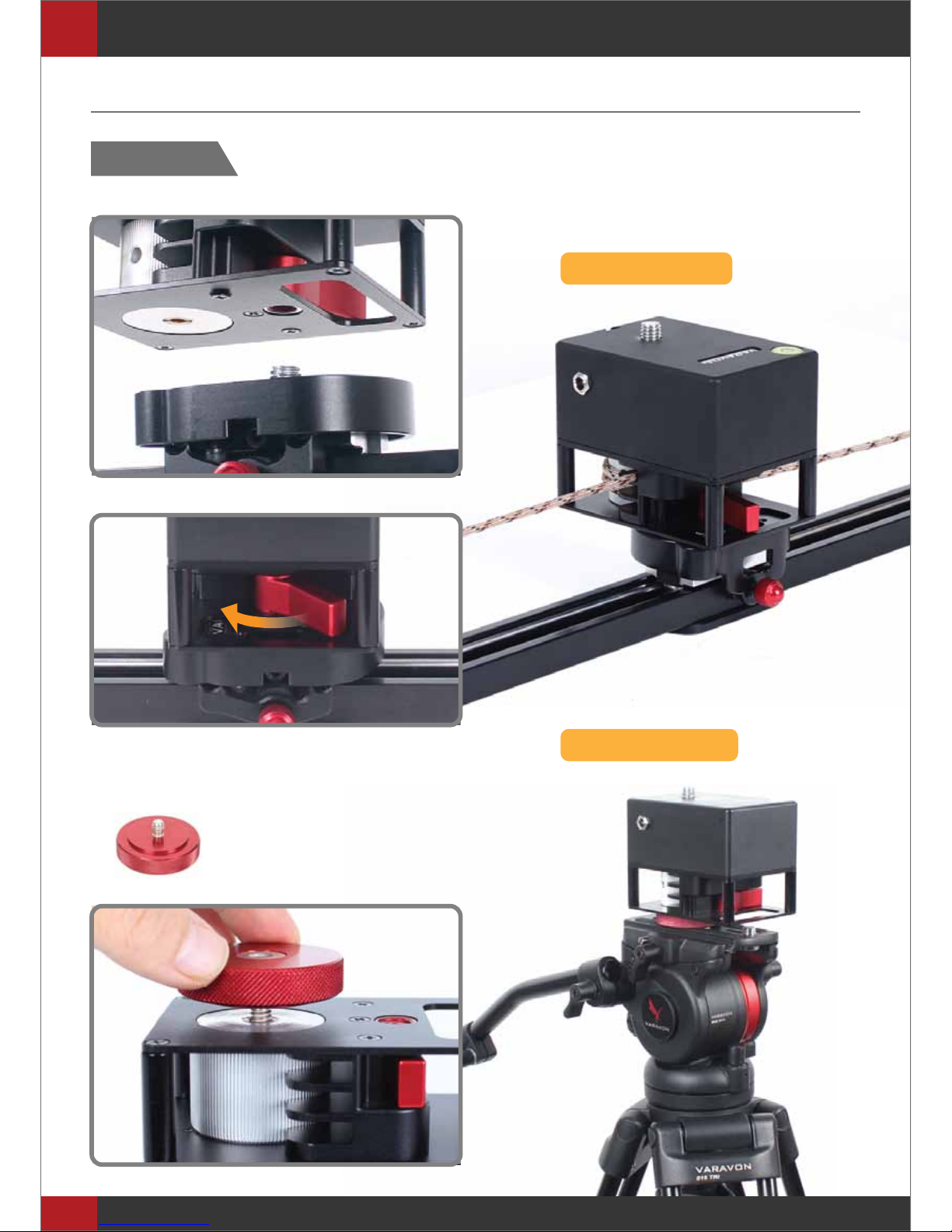

Moving or panning setting

Fixed to the main body of the slider

Using the axis of the motor

Used in combination panning

dial knob

Lock the direction

of the arrow

Panning timelapse on tripod

*

Rope tightly so that the horizontal

Side pole supports two bolts

The assembly procedure

VARAVON TIMEROID

STEP 03

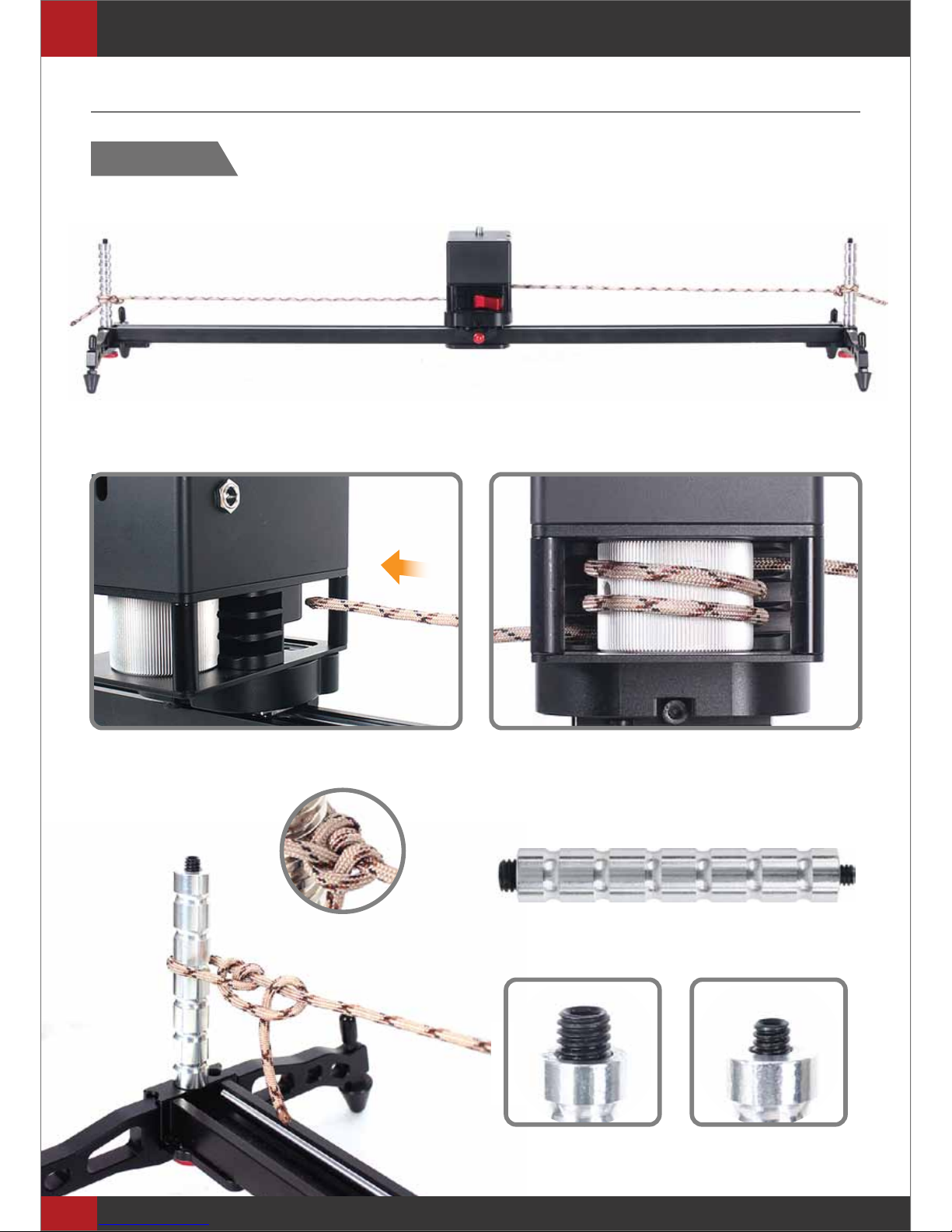

Wire setting on slider

*

Put the rope direction or position may vary Recommended to be like the picture

3/8 inch 1/4 inch

*

Round turn and

three half hitches

VARAVON
PBH 35P
Maximum Load : 20kg (44lb)

The assembly procedure

VARAVON TIMEROID

STEP 04

Video-head mounted

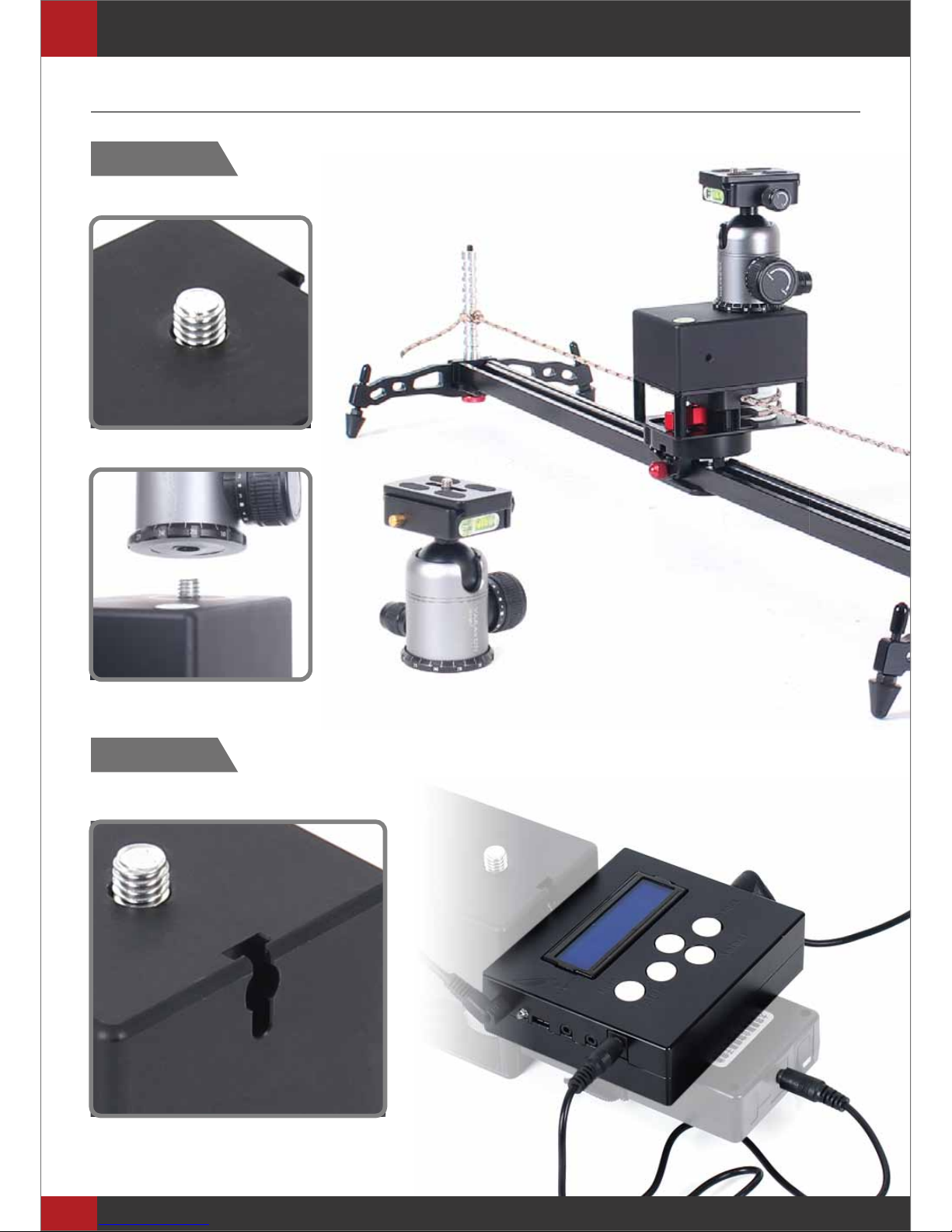

STEP 06

Controller mounted

3/8 inch supported

Can be mounted in the hole

Motor connection

Limiter

Not available

* Example for canon
* Optinal Products

Release

CONTROLLER

Power / Battery

The assembly procedure

VARAVON TIMEROID

STEP 07

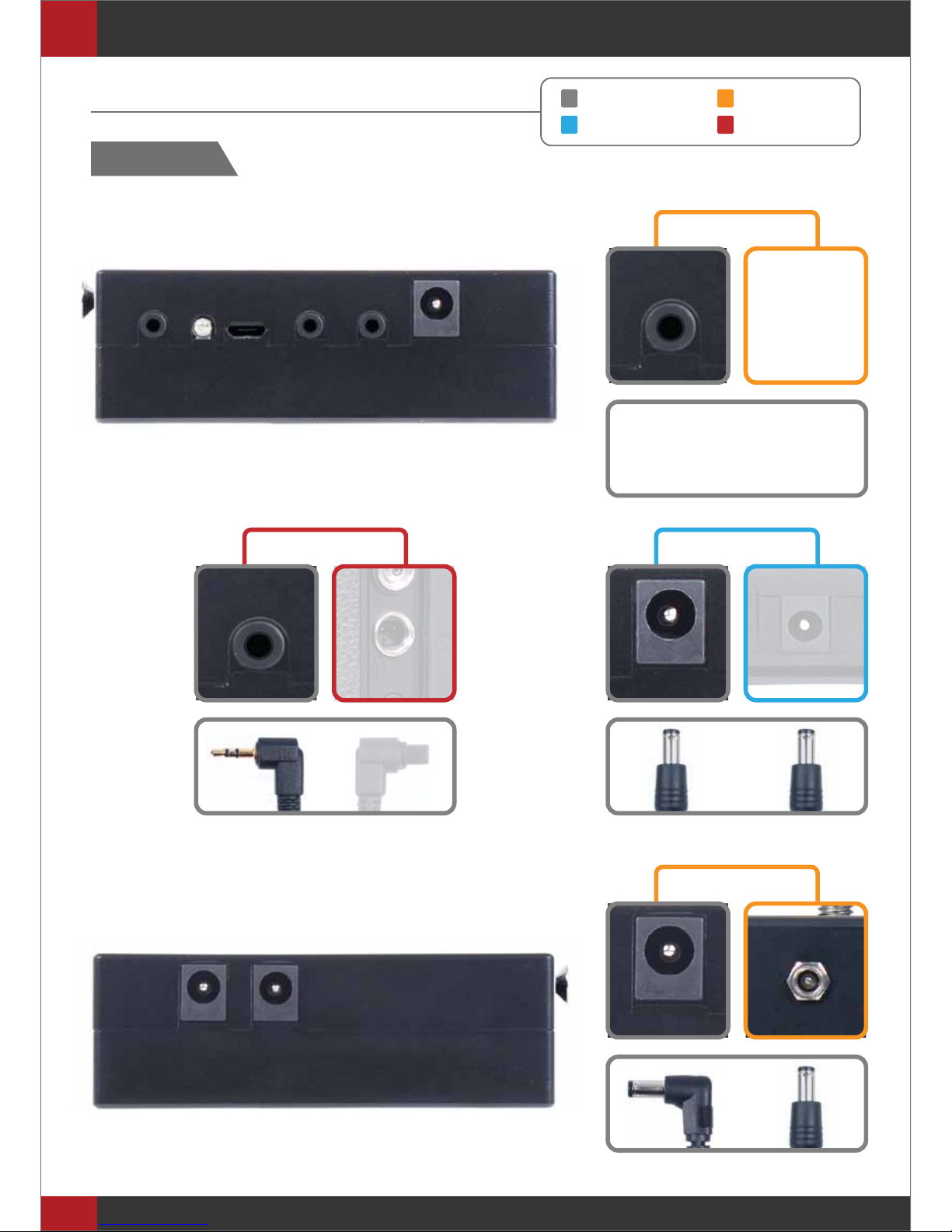

Controller cables setting

BATTERY

TIMEROID Body

CAMERA

* MOT1 : Moving

CAM EXT0 EXT1

USB

MOT1 MOT2

PW 12V

CAM

PW 12V

EXT1

PW 12V

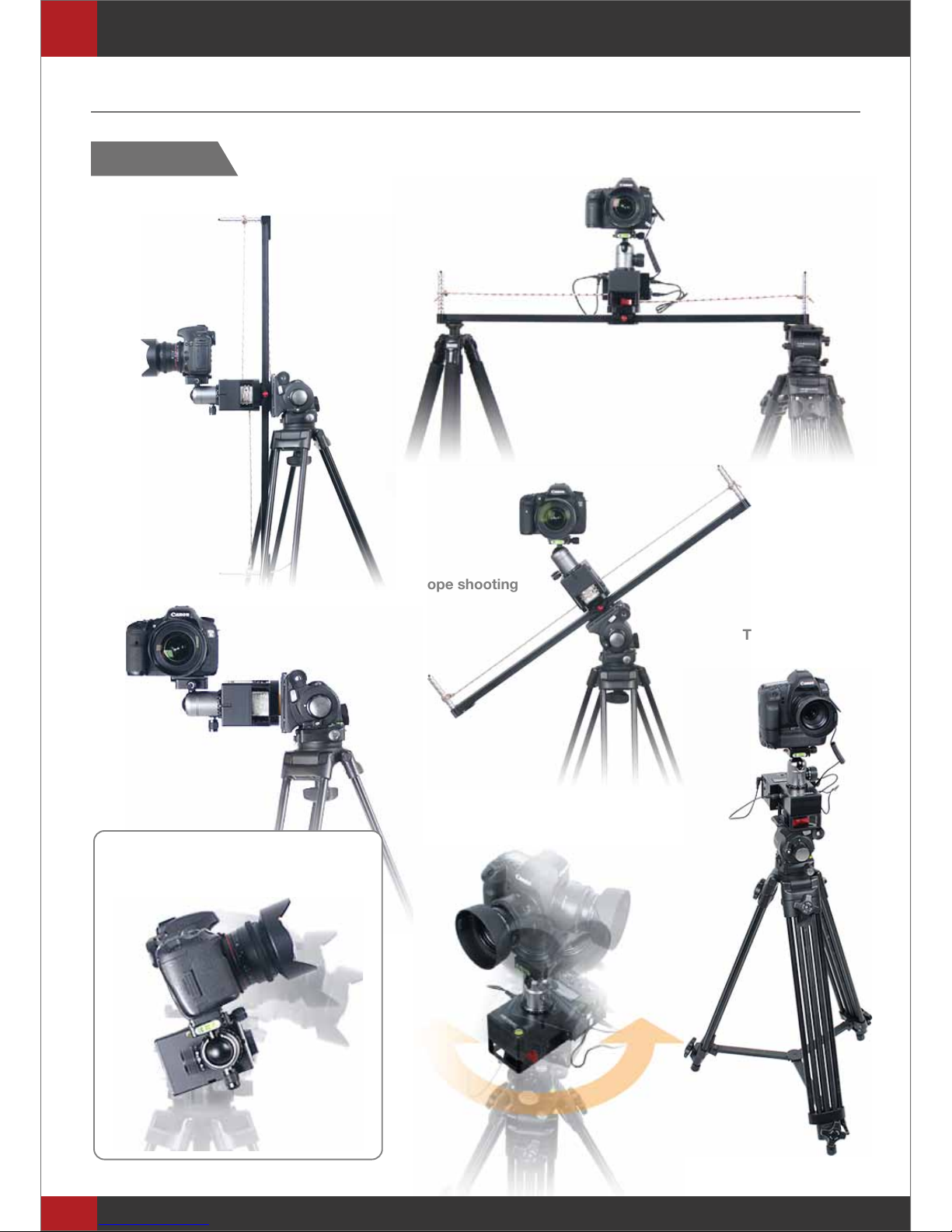

Slope shooting

Vertical shooting

Slider shooting

Tripod shooting

Tilt shooting

The application of a tripod and
ball head

The assembly procedure

VARAVON TIMEROID

STEP 08

Applications

Panning shooting
