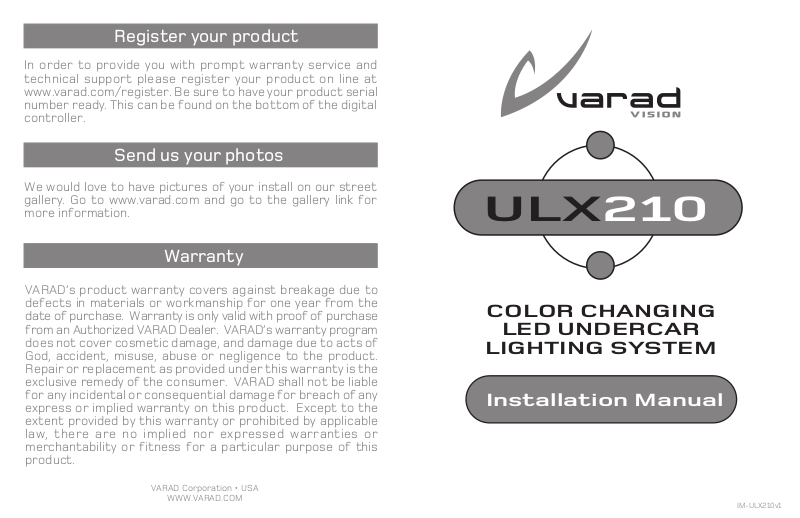

Varad ULX210 User Manual

Register your product

In order to provide you with prompt warranty service and
technical support please register your product on line at
www.varad.com/register. Be sure to have your product serial
number ready. This can be found on the bottom of the digital
controller.

Send us your photos

We would love to have pictures of your install on our street
gallery. Go to www.varad.com and go to the gallery link for
more information.

Warranty

VARAD’s product warranty covers against breakage due to
defects in materials or workmanship for one year from the
date of purchase. Warranty is only valid with proof of purchase
from an Authorized VARAD Dealer. VARAD’s warranty program
does not cover cosmetic damage, and damage due to acts of
God, accident, misuse, abuse or negligence to the product.
Repair or replacement as provided under this warranty is the
exclusive remedy of the consumer. VARAD shall not be liable
for any incidental or consequential damage for breach of any
express or implied warranty on this product. Except to the
extent provided by this warranty or prohibited by applicable
law, there are no implied nor expressed warranties or
merchantability or fitness for a particular purpose of this
product.

ULX210

COLOR CHANGING

LED UNDERCAR

LIGHTING SYSTEM

Installation Manual

VARAD Corporation • USA

WWW.VARAD.COM

IM-ULX210v1

General

Trouble Shooting

Warrant

Thank you for purchasing the ULX210 color changing LED undercar
lighting system from VARAD. To ensure proper use, please read this
manual prior to installation.

The ULX210 demonstrates the innovation and technical abilities of
the engineering team at VARAD. Our latest kit combines superior
functionality with sleek product styling to put your ride at the
forefront of the tuner scene. With 4 low profile LED lightbars, LED
indicator, and push button activation, you can generate 1000 colors
with the color changing pattern or there is also the 9 preset colors.
With our patented system configuration, optimum color bleed is
achieved using our latest high flux 180 degree LED’s. These new high
flux LED’s allow us to use fewer LED’s than those found in typical
applications to provide a more uniform and superior color blend. If
you demand the latest in lighting technology, VARAD will take you
there - Enjoy!

Features

• 1000 colors.

• 1 Strobing and 1 Breathing pattern.

• Auto Color changing pattern and 9 preset selectable colors.

• Auxiliary input lighting - alarm system or courtesy light.

• Simple 5 piece installation.

• Push button control with LED that indicate color and pattern.

• Low profile tubes (0.5” x 0.7”).

• Waterproof acrylic LED lightbars.

System does not turn “ON”

Check “Ignition Wire”, make sure it is getting constant 12
volts positive when engine is “ON”.
Check fuse. If fuse looks bent or blown replace with a 5amp
fast acting glass fuse.

LED lightbar does not work.

Check to see that cable between LED lightbar and wire
harness is not damaged.

Check to see the connections between light bars is correct.

For technical support:

Check website www.varad.com

or email questions to: [e-mail]

12

Mode 1 • Color Wash

Mode Features

Precautions

Mode 1 allows you to select the system color. To set system
color push the button momentarily and the digital controller
will begin the color wash process. Each time you push the
button momentarily the system will start and stop the color
wash process leaving you your selected color. Stopping at any
particular color will define your system color. The system
color will be used for certain patterns in mode 2. For instance,
if you stop at purple then all breathing or strobe patterns will
be purple. When you return to mode 1 the system will return
to the color selected last time. The system color will be
indicated on the LED indicator

Mode 2 • Strobing or Breathing

When in mode 2 you can select the strobing or breathing
patterns with a momentary push of the button.

Mode 3 • Preset Colors

Mode 3 allows you to select from 9 preset colors. Each time
you push the button momentarily the system will go to the
next selected preset color. The system color will be indicated
on the LED indicator.

Replace the fuse only with the type provided in the fuse holder. Failure
to do so, can cause malfunction.

Quick Start

Refer to page 8

Table of contents

Page

1.

Technical specifications.

2.

ULX210 parts list.

3.

Installation of LED lightbars / Required tools.

4.

Installation of controllers.

5.

Wiring schematic.

6.

Wiring schematic.

7.

Wiring schematic (Cont.)

8.

Operation of ULX210.

9.

Operation of ULX210 (Cont.), Auxiliary lighting.

10.

Mode operation flow chart.

11.

Mode features.

12.

Trouble shooting.

11
