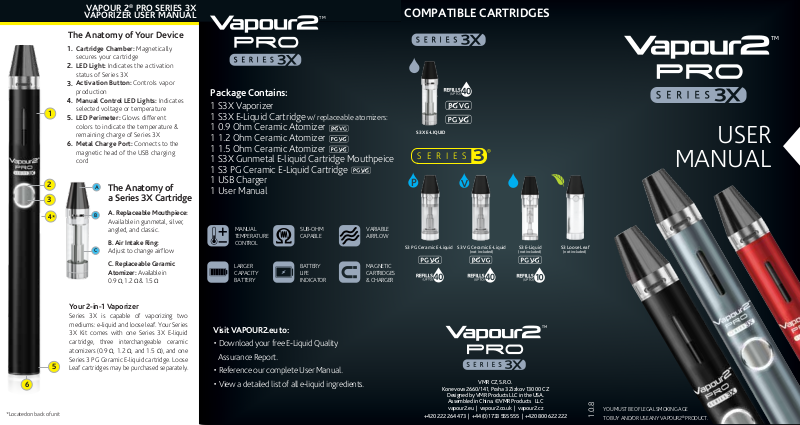

Vapour2 PRO 3X User Manual

VAPOUR 2® PRO SERIES 3X

VAPORIZER USER MANUAL

TM

COMPATIBLE CARTRIDGES

1

2

3

4*

5

6

*Located on back of unit

The Anatomy of Your Device

Cartridge Chamber: Magnetically

1.

secures your cartridge

LED Light: Indicates the activation

2.

status of Series 3X

Activation Button: Controls vapor

3.

production

Manual Control LED Lights: Indicates

4.

selected voltage or temperature

LED Perimeter: Glows different

5.

colors to indicate the temperature &
remaining charge of Series 3X

Metal Charge Port: Connects to the

6.

magnetic head of the USB charging
cord

A

The Anatomy of
a Series 3X Cartridge

A. Replaceable Mouthpiece:

B

Available in gunmetal, silver,
angled, and classic.

B. Air Intake Ring:

C

Adjust to change airflow

C. Replaceable Ceramic
Atomizer: Available in

0.9 Ω, 1.2 Ω & 1.5 Ω

Your 2-in-1 Vaporizer

Series 3X is capable of vaporizing two
mediums: e-liquid and loose leaf. Your Series
3X Kit comes with one Series 3X E-liquid
cartridge, three interchangeable ceramic
atomizers (0.9 Ω, 1.2 Ω, and 1.5 Ω), and one
Series 3 PG Ceramic E-liquid cartridge. Loose
Leaf cartridges may be purchased separately.

Package Contains:

1 S3X Vaporizer
1 S3X E-Liquid Cartridge

w/ replaceable atomizers:

1 0.9 Ohm Ceramic Atomizer
1 1.2 Ohm Ceramic Atomizer
1 1.5 Ohm Ceramic Atomizer
1 S3X Gunmetal E-liquid Cartridge Mouthpeice
1 S3 PG Ceramic E-Liquid Cartridge
1 USB Charger
1 User Manual

MANUAL
TEMPERATURE
CONTROL

LARGER
CAPACITY
BATTERY

SUB-OHM
CAPABLE

BATTERY
LIFE
INDICATOR

Visit VAPOUR2.eu to:

• Download your free E-Liquid Quality

Assurance Report.

• Reference our complete User Manual.

• View a detailed list of all e-liquid ingredients.

VARIABLE
AIRFLOW

MAGNETIC
CARTRIDGES
& CHARGER

S3X E-LIQUID

SERIES

3

P

S3 PG Ceramic E-Liquid

[phone] | [phone] | [phone]

S3 VG Ceramic E-Liquid

(not included)

Konevova 2660/141, Praha 3 Zizkov 130 00 CZ

Designed by VMR Products LLC in the USA.

Assembled in China. ©VMR Products LLC
vapour2.eu | vapour2.co.uk | vapour2.cz

VMR CZ, S.R.O.

S3 E-Liquid

(not included)

TM

S3 Loose Leaf

(not included)

YOU MUST BE OF LEGAL SMOKING AGE

1.0.8

TO BUY AND/OR USE ANY VAPOUR2

USER

MANUAL

®

PRODUCT.

TM

VAPOUR2® PRO SERIES 3X
VAPORIZER USER MANUAL

Initiating Your Device

Remove Series 3X components from their packaging and

1.

charge your device, using the included USB Charger.

Unscrew the mouthpiece

2.

of your cartridge and fill
the chamber.

Unlock your device for use by pressing the

4.

Activation Button three times. The LED
Perimeter will flash white. Locking your device is
the same three clicks, with the LED Perimeter
flashing red.

Press the Activation Button and take a puff.

5.

Get Charged

Series 3X arrives with a partial charge, so make sure you completely charge
the unit before your first use. Plug the USB charger into a USB port and
connect the magnetic head to the Metal Charge Port on the end of the
device. The LEDs surrounding the Activation Button and along the
Perimeter will flash, indicating that Series 3X is charging. The LED perimeter
will pulse red; turning solid green when Series 3X is fully charged.

Series 3X will need to be recharged when the LED Perimeter begins a set of
red double flashes that dim off. But this won’t put your experience on pause
– Series 3X is designed for use while charging. Connect Series 3X to the USB
charger and continue normal use.

Locking and Unlocking Series 3X

Like your cell phone, Series 3X has a lock feature to prevent accidental
activation. Push the Activation Button three times. The LED Perimeter will
flash red. This will lock Series 3X and render it unresponsive to accidental
input when not in use. To unlock, push the Activation Button three times.
The LED Perimeter will flash white , indicating that Series 3X is ready to use.

Battery Life Indicator

To see the amount of charge remaining in your Series 3X device, simply
shake your device a few times. The LED Perimeter will glow, indicating
how much charge is remaining. The LED Perimeter lights will correspond
with five battery levels.
Note: This function will shut off following ten minutes of inactivity. To
reactivate the battery life indicator, press the Activation Button once.

Discover the satisfaction of Series 3X!

Align the small circle on the

3.

side of the cartridge (below the
mouthpiece) with the notch on
your device and slide the
cartridge
into the
cartridge
chamber.

BATTERY LEVELS

100%

80%
60%
40%
30%

Stealth Mode

Your Series 3X device has a stealth mode feature that will dim all LED lights.

To activate stealth mode, press the Activation Button nine times. To exit

stealth mode, press the Activation Button nine times, or lock and then

unlock your device.

Series 3X Compatible Cartridges

Series 3X is able to vaporize two different types of mediums:
e-liquid and loose leaf. V2 Pro offers several types of Series 3
compatible cartridges, with each specially designed for use with a
specific medium. The intelligent mechanics of Series 3X allow it to
automatically recognize each type of cartridge and perform
accordingly. Series 3x is also backwards compatible with all Series
3 cartridges.

Changing the Atomizer in Your Series 3X Cartridge

To access the atomizer, first unscrew the bottom of the cartrdge, and then
and then unscrew the atomizer from the bottom of the cartridge. Replace
the atomizer with your desired compatible atomizer. There are three
interchangeable atomizers available for the Series 3X E-liquid cartridge:

0.9 Ω, 1.2 Ω & 1.5 Ω. If there has already been liquid inside the cartridge, be
sure to hold the cartridge upside down to keep any liquid from falling out.
Do not attempt to change the atomizer in a cartridge filled with liquid.

Adjusting Airflow on the Series 3X Cartridge

Just below the mouthpiece of your Series 3X cartridge is a metal ring that
rotates to your desired amount of airflow. To adjust the amount of airflow,
rotate the ring to your preference.

ADJUSTING AIRFLOW

Minimum Slight More Full

Cartridge Use

E-Liquid Cartridge

1. Unscrew the mouthpiece from the cartridge and drip e-liquid into
the small slot next to the hollow center post.

•Hold the cartridge at a slight angle when filling it to prevent spills.

•Do not fill beyond the full line.

•Do not allow liquid to fall into the center post.

2. Replace the mouthpiece

3. To adjust airflow, twist the air flow ring to your desired setting.

(Detailed instructions above. See “Adjusting Airflow”)

4. To change the atomizer, unscrew the current one and replace with
your desired atomizer. (Detailed instructions above. See “Changing
the Atomizer”)

5. Insert the cartridge into the Series 3X cartridge chamber.

6. Make sure that Series 3X is unlocked.

7. If desired, set your preferred voltage. (See “Setting the Voltage”)

8. Press the Activation Button and begin puffing.

•If the Activation Button is pressed for ten seconds or longer while
the E-liquid cartridge is in use, the LED lights will flash white five
times before Series 3X automatically cuts off. This eliminates the
potential for accidental activation.

Setting the Voltage on Series 3X:

Series 3X has three different voltage settings for E-liquid cartridges:

1.8 V, 2.5 V, and 3.3 V. Choosing a higher voltage setting will
produce more vapor. To select the voltage, press the Activation
Button twice. Series 3X will enter voltage setting mode. While Series
3X is in voltage setting mode, the Manual Control LEDs (on the back
of unit) will cycle, indicating three different voltage settings To make
your selection, press the Activation Button once when the glowing
LEDs correspond with your desired voltage

SETTING VOLTAGE

1.8 volts 2.5 volts 3.3 volts

Loose Leaf Cartridge

1. Remove the mouthpiece from the cartridge.

2. Add loose leaf to the chamber.

a. For best results, use loose leaf that is ground or shredded.

b. Be sure not to pack tightly or above the white

ceramic ring.

3. Replace the mouthpiece and insert the cartridge into the

cartridge chamber.

4. Make sure that Series 3X is unlocked.

5. If desired, set your preferred temperature. (Detailed

instructions above. See “Setting the Voltage on Series 3X”)

6. Press and hold the Activation Button until the LED Perimeter
turns red, indicating heating has started. Once heating has started
you can let go of the button.

7. As Series 3X warms to optimal temperature, the LED Perimeter
will change from red to green. When the LED Perimeter is green,
Series 3X has reached the ideal temperature to vaporize loose
leaf. Puff freely without pressing the Activation Button.

8. Press and hold the activation button to turn off the heating, or
heating will automatically cut off two minutes after the LED
Perimeter has turned green. The LED Perimeter will flash green 5
seconds before cut off.

Loose Leaf Cartridge Maintenance

Your Loose Leaf cartridge comes with the tools needed to perform

regular maintenance. Use the pick to remove particles of used loose

leaf, and the brush to sweep away smaller debris left inside the

chamber.

QUICK CLICK GUIDE

2

CLICKS

Adjust

Voltage

3

CLICKS

Lock &
Unlock

9

CLICKS

Stealth

Mode
