Page 1
2
Page 2
®
Page 3
1
+
Page 4
Press and hold 3 seconds: Power ON/ OFF
BLINKING: Heating/Adjusting
SOLID: Maintaining
BLINKING: Charging
SOLID: Battery Level
BLACK: OFF
BLUE (SOLID): Standby
BLUE (FLASHING):Paired to Smartphone
GREEN: GO Time!
RED: Recharge
+ BUTTON: Increase Temperature (press or hold)
-
BUTTON: Decrease Temperature (press or hold)
GO Time
Power ON (into Standby)
Power OFF
Tap for initiating heating in Standby Mode
2
Page 5
Temp 1 (half BLUE) – 320°F / 160°C
Temp 2 (BLUE) – 338°F / 170°C
Temp 3 (half YELLOW) – 356°F / 180°C
Temp 4 (YELLOW) – 374°F / 190°C
Temp 5 (half ORANGE) – 392 °F / 200°C
Temp 6 (ORANGE) – 410°F / 210°C
Temp 7 (half RED) – 428°F / 220°C
Temp 8 (RED) – 446°F / 230°C
1) Open magnetic lid
to reveal heating chamber.
2) Prepare finely
ground aromatic blends.
3) Fill the heating
chamber to the top.
4) Secure the magnetic lid
over the heating chamber.
2
3
4
1
...And corresponding heating chamber
temperature presets:
3
Page 6
1) Press and Hold GO Button
for 3 seconds until it lights up Blue
2) Feel the Vibration Notification
3) Battery Level is displayed for 1 second
4) Blinking Temperature LED indicates
warming of the heating chamber
5) GO Button Lights up Green
Its GO Time!
1) Press the GO Button
2) Follow steps 2-5 as above
• Heating Chamber heats up in as little as 35-45 seconds.
• Feel free to adjust heating Chamber temperature
up or down with +/- buttons
2
3
1
5
4
4
Page 7
Top 3 reasons to use the Pick/Pack Tool
1) To secure and remove oven screen
2) To stir materials at any point before,
during or after a session
3) To easily remove materials in
preparation for a reload.
• Always keep the Pick/Pack tool clean before inserting back into the housing
• Use a key to assist removing the Pick/Pack tool from the
housing if its stuck
5
1
Ensure GO Button is lit up Green or Blue
1) Press and Hold both the (+) and (-)
buttons simultaneously
2) Individualy press the (+) or (-) buttons
to increase or decrease the Session Time
(30, 60, 90, 120 seconds)
3) White LED will indicate session time
• 4 White LEDs… 120 Seconds
• 3 White LEDs… 90 Seconds
• 2 White LEDs… 60 Seconds
• 1 White LED… 30 Seconds
2
2
Page 8
Automatic shut o timer will turn OFF
after 30 minutes of non-use.
Press and hold the GO Button for 3 seconds.
• Press GO Button / adjust temperature anytime!
• GO Button stays green for 90 seconds,
then returns to Standby Mode.
• Open up the heating chamber lid and stir the aromatic blends
anytime within 15 seconds and the heating cycle will resume.
• GO Button will turn Blue when lid removed.
• Temperature LED turns solid when lid removed during warming.
• When adjusting to a new temperature and GO Button is Green,
it will take about 10 seconds to stabilize at the new temperature.
• During Recharging pressing the GO Button for 3 seconds will
stop the heating process and return into Recharging mode.
6
Page 9
• 4 White LEDs… 75%+ Battery
• 3 White LEDs… 50% Battery
• 2 White LEDs… 15% Battery (recharge)
• 1 White LED… 5% Battery (recharge)
Plug the micro USB connector into the
base and the other end into a USB port.
Approximately 3h to full recharge.
While recharging the battery level, White LEDs
will blink.
A solid White LED indicates current charge level.
• 4 White LEDs… 75%+ Battery
• 3 White LEDs… 50% Battery
• 2 White LEDs… 15% Battery (recharge)
• 1 White LED… 5% Battery (recharge)
• With at least one solid battery LED lit, SUMMIT
can be used while recharging.
• Charging continues during use while plugged into USB.
• Press GO Button / adjust temperature anytime
during recharging.
7
+®
Page 10

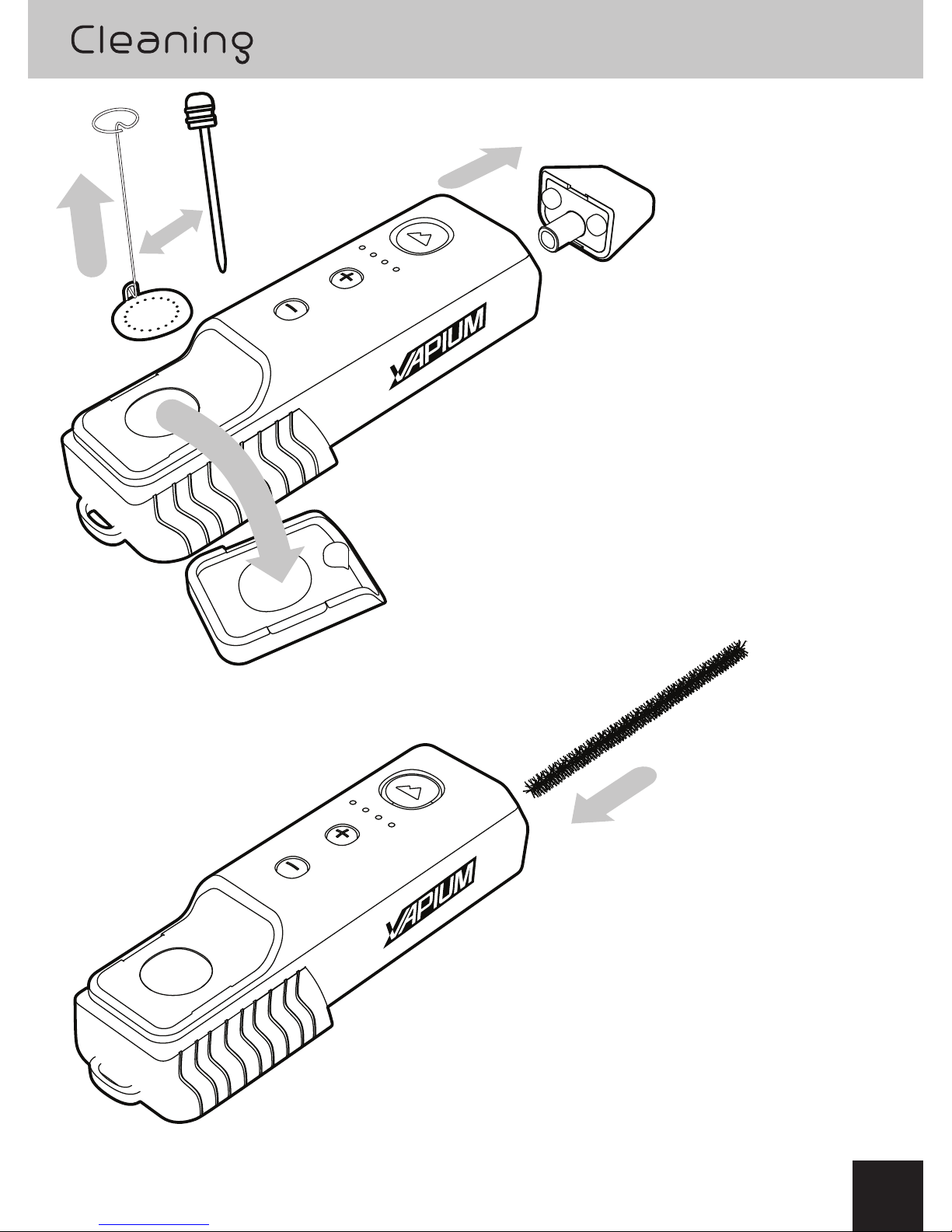

1) Open magnetic lid to
reveal heating chamber.
2) Remove the
magnetic mouthpiece.
3) Use the pick/pack tool to
pick out the filter screen
from inside the heating chamber.
4) Run the provided elongated
cleaning brush through from
the mouthpiece end
into the inhalation tube.
3
2
1
4
8
Page 11

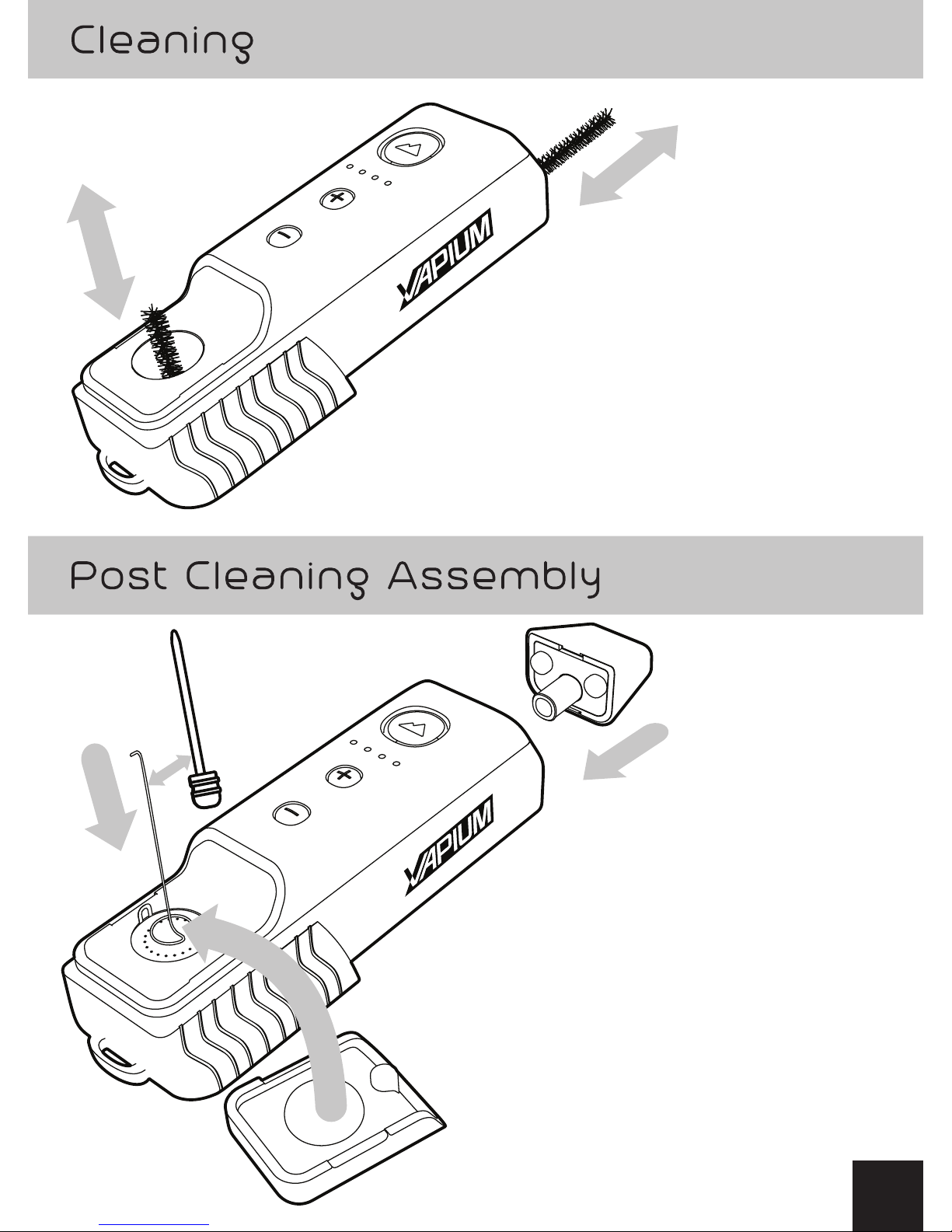

5) Push the elongated cleaning
brush through the inhalation tube
and into the heating chamber.
6) Using two hands, pull the
elongated cleaning brush back and
forth.
6
5
7
8
9
9
7) Place the heating chamber
screen on top of the heating chamber
mouth and use the packing end of the
pick/pack tool to push it securely against
the base of the heating chamber.
8) Close magnetic lid over
heating chamber.
9) Replace mouthpiece.
Page 12
If heating is in progress, removal of
the heatinc chamber lid will pause
warming of the heating chamber.
GO Button will flash red.
Time to recharge!
GO Button turns Blue.
Replace lid within 15 seconds
to continue heating cycle.
10
• With the Heating Chamber lid removed, pressing the GO Button
will result in the GO Button LED to flash RED, replace the lid and
follow the steps on page 4.
Page 13
1) Press and Hold GO Button
for 3 seconds until it lights up Blue.
2) Feel the Vibration Notification.
3) Battery Level is displayed for 1 second.
4) Blinking Temperature LED indicates
warming of the heating chamber.
5) Enable Bluetooth® on Smartphone
6) Scan for VAPIUM SUMMIT
7) Launch VAPIUM smartphone APP
8)Select Settings in the APP
9)Select VAPIUM SUMMIT
from the list of available devices
10) Flashing Blue GO Button indicatges
SUMMIT is paired to Smartphone
1) Exit smartphone APP
2) Turn o Bluetooth®
• Battery life is extended on the SUMMIT by not being paired
to the smartphone
• Battery life is extended on the SUMMIT by not being paired
to the smartphone
2
3
1
4
11
10
Page 14
140
150
160
170
180 200
210
220
230
240
190
12
Displays battery level
Connect SUMMIT+
Switch between
Fahrenheit and Celcius
temperature display
Temporarily boost
heating chember
temperature by
10 °C / 50° F
GO Button
BLUE/WHITE - Standby
BLUE - Heating
GREEN - At Temperature
Press APP GO Button (Standby)
Slide to adjust heating temperature
Press APP GO Button to heat
60 120
30
90
Press APP GO Button (Standby)
Slide to adjust heating temperature
Press APP GO Button to heat
Page 15
VAPIUM Ltd. believes strongly in the quality of its products. We guarantee
our products to be free of malfunction due to defect in materials or
workmanship for a period of two (2) years from the date of purchase. If
such a defect is found, an exchange or repair to the device in question
will be issued. We do not oer refunds on used products. All warranted
items must have been purchased from our website (www.vapium.com),
an authorized distributor or authorized retail location. In the event that
servicing is required due to defect, please contact our support department
for information on where to send your unit along with a copy of the sales
receipt for warranty service and the unit serial number.
Vaporizers, such as those manufactured by VAPIUM®, (“Vapium
Vaporizers”) are designed, manufactured, and sold as hot air extraction
devices used and intended to be used in the field of aromatics. The
lawful and proper use of any Vapium Vaporizer or accessory is a required
condition of sale.
By purchasing any of these devices you are representing that you are 18
years of age or older and that you agree to follow the instructions contained
herein and in any accompanying literature.
The improper use of these devices may void any applicable warranty. Any
illegal use of this device could subject the user to severe fines, penalties,
and/or imprisonment under federal law.
Vapium Vaporizers are only to be used by someone knowledgeable in the
field of aromatics. Only legal, safe, known, identifiable, and commercially
developed and marketed aromatic blends or compounds should be used
in any device purchased from this website. Keep these devices and all
13
Page 16
aromatic products out of the reach of children and animals. Study this
information, the product instructions, and all of the accompanying
literature before using a Vapium Vaporizer or any aromatic blend or
compound. Likewise, always keep in mind that this device is extremely
ecient in extracting the bioactive ingredients from any aromatic
compound.
The information contained in this disclaimer and any other cautionary
instructions, and all of the documents and literature included with any
Vapium Vaporizer, was developed for informational purposes only. In no
way is any of the information contained in these documents intended to
be a medical or prescriptive guide or to be used for diagnosing or treating
a health problem or disease. No aromatic should take the place of any
prescribed medication. Neither the manufacturer nor the seller, or their
respective aliates, directors, ocers, or shareholders, of any aromatic
products on this Site shall be held responsible for the misuse of same or
the misuse of any aromatic blend or compound. You, the purchaser and/or
user of this device, are responsible for your own use of such products.
If pregnant, nursing or diagnosed with epilepsy, a heart condition, allergies
or other medical condition, seek the advice and assistance of a physician or
trained health professional before using any Vaporizer or aromatic blend
or compound. If you believe or suspect that you have a medical problem,
promptly contact your doctor or health care provider.
The statements and devices shown here and on our website have not been
evaluated by the United States Food and Drug Administration (“FDA”) or
by any other comparable agency or administration in any other jurisdiction.
The SUMMIT+® is not a medical device and is not intended to diagnose,
treat, mitigate, cure or prevent any ailment, disease or other conditions.
The SUMMIT+® is not intended to administer medicinal or illegal products
of any kind and is not intended for use with any substance that may aect
the structure or any function of the body. If you have any health problems
consult your doctor or pharmacist before using. The SUMMIT+® systems
14
Page 17
are not designed, nor intended for use with any material that is not lawful,
allergenic, or poisonous or may cause harm. If you use a Vapium Vaporizer,
you do so at your own risk. Inhalation is unadvisable and may potentially
be harmful. Vaporizing does not necessarily eliminate any and all toxins
found in vaporized substances so much care should be taken prior to use.
Our products are not smoking cessation devices. The lawful and proper
use of Vapium Vaporizers is a condition of sale. Any improper use of the
SUMMIT+® voids the warranty. Any illegal use of our devices could
subject the user to severe fines, penalties and/or imprisonment under the
law of your jurisdiction. No liquid sources of vapor can be used with the
SUMMIT+®. Use of liquids is likely to cause damage to this device and may
cause harm or risk of injury to the user. Liquid will boil in our vaporizers and
may burn the user. All comments and testimonials presented, in any form,
by customers are not and do not represent the opinions of the manufacturers. The SUMMIT+® is intended to be used solely with aromatic material.
You must be 18 or older and respect all local laws to purchase a Vaporizer.
In no event will Vapium Ltd. or any of their ocers, directors, members or
employees be liable to you for any lost profits, lost savings or incidental, indirect, special or consequential damages, arising out of your use or inability
to use the product, service, website or the breach of this agreement, even
if advised of the possibility of such damages. Some jurisdictions do not
allow the limitation or exclusion of liability for incidental or consequential
damages so the above limitation or exclusion may not apply to you, in which
case the liability of Vapium Ltd. and all related parties shall be limited to
the fullest extent of the law.
If you have any questions regarding this Privacy Policy, our website
Vapium.com, or your order please reach out to us using the Contact Us
form, call us direct at 1-844-GO-VAPIUM or [email protected].
15
Loading...
