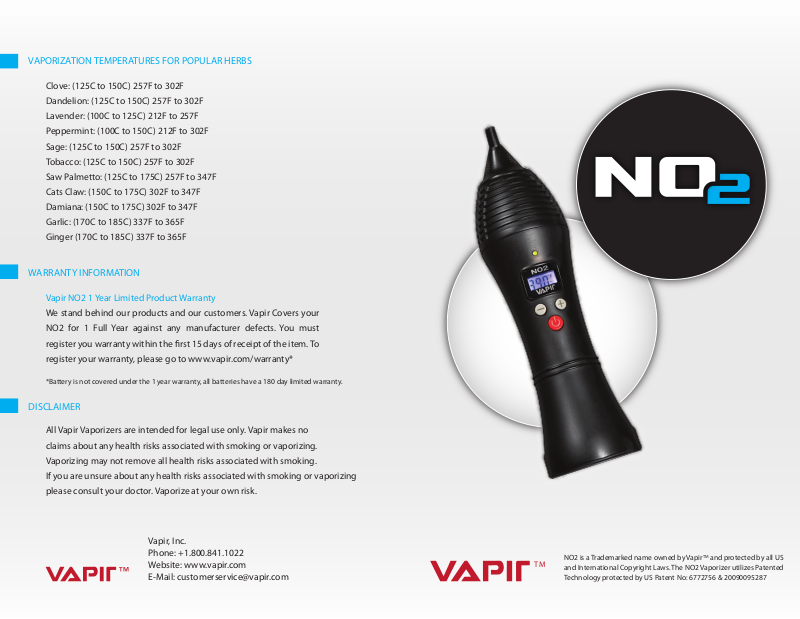

Vapir NO2 User Manual

VAPORIZATION TEMPERATURES FOR POPULAR HERBS

Clove: (125C to 150C) 257F to 302F

Dandelion: (125C to 150C) 257F to 302F

Lavender: (100C to 125C) 212F to 257F

Peppermint: (100C to 150C) 212F to 302F

Sage: (125C to 150C) 257F to 302F

Tobacco: (125C to 150C) 257F to 302F

Saw Palmetto: (125C to 175C) 257F to 347F

Cats Claw: (150C to 175C) 302F to 347F

Damiana: (150C to 175C) 302F to 347F

Garlic: (170C to 185C) 337F to 365F

Ginger (170C to 185C) 337F to 365F

WARRANTY INFORMATION

Vapir NO2 1 Year Limited Product Warranty

We stand behind our products and our customers. Vapir Covers your

NO2 for 1 Full Year against any manufacturer defects. You must

register you warranty within the rst 15 days of receipt of the item. To

register your warranty, please go to www.vapir.com/warranty*

*Battery is not covered under the 1 year warranty, all batteries have a 180 day limited warranty.

DISCLAIMER

All Vapir Vaporizers are intended for legal use only. Vapir makes no

claims about any health risks associated with smoking or vaporizing.

Vaporizing may not remove all health risks associated with smoking.

If you are unsure about any health risks associated with smoking or vaporizing

please consult your doctor. Vaporize at your own risk.

Vapir, Inc.

Phone: [phone]
Website: www.vapir.com
E-Mail: [e-mail]

NO2 is a Trademarked name owned by VapirTM and protected by all US

TM

and International Copyright Laws. The NO2 Vaporizer utilizes Patented
Technology protected by US Patent No: 6772756 & 20090095287

IDENTIFYING THE PARTS PRE-USAGE INSTRUCTIONS - ADDITIONAL PARTS

The NO2 comes with 1 Internal Re-Chargeable Battery, 1 Power Cord, 3 Sets

of Mesh Bowl (1 already installed), 2 Bamboo Cleaning Sticks, 1 Measuring

Cup, 1 Cleaning Brush, 1 Tube Attachment and 1 X-Tip Mouthpiece.

Prior to using the tube attachment, make sure to soak it in warm water (DO

NOT USE BOILING WATER). It is suggested that you use the tube attachment

while vaporizing for a much better draw. To install the tube, simply push one

Top / Mouthpiece

end of the tube over the top of the unit until it is fully secure.

Top / Mouthpiece opening

(unscrew to open)

LED Heat

indicator light

Digital Temperature

Display

Temperature

Down Button

Heat ON/OFF Button &

C/F Temperature Setting

You can also use the mouthpiece in conjunction with the tube. Installation of

the mouthpiece is quite easy, simply push the open end (the larger opening)

over the open end of the tube until it is fully secure.

Included are 2 sets of mesh screens for usage when the rst set becomes too

Set/Actual
Temperature

Battery charge
indicator

Power ON / OFF
Button

Temperature
Up Button

Battery Door

dirty or worn out. You can clean the mesh screens using the cleaning brush.

Changing Internal Mesh Screen - Using the Bamboo Cleaning

stick (included with the unit) put the stick inside of the herb

chamber and grab the bottom of the mesh screen and lifts out

- the screen should come out quite easily. To install the new

screen, use the bamboo stick and simply push the screen

inside the herb chamber until it reaches the bottom and is

ush with the bottom of the herb chamber.

Changing Mouthpiece Mesh Screen - Remove the top of the

unit by gently turning it counter-clockwise. Turning the

mouthpiece over you will see the mesh screen holder. To

remove the mesh screen simply locate the 3 lines on either side

of the mesh screen holder. Securely grab the 3 lines and turn

counter clockwise to open. If mesh screen holder is dicult to

remove you can gently use pliers to do so. Remove the old mesh

screen and insert a new mesh screen. To assist with installation

of the mouthpiece mesh screen use the tip of the NO2 (when

removed from unit) to depress the screen into the correct shape.

Now replace the mesh screen holder by pressing down and

turning clockwise until secure.

1 2

QUICKSTART GUIDE DIRECTIONS FOR USAGE

1. Always pre-grind your herbs, it is important that you nely grind your

1. Grind Your herbs

2. Turn the Unit On

herbs to allow heat to penetrate all surface areas for maximum benet.

2. Set the unit to your desired temperature*. Using the + and - buttons

you can toggle through exact temperature settings in order to nd the

one you desire. It does take a little practice to nd the perfect

temperature for your liking. In the meantime, here is a good guideline to

follow: if you are not getting enough avor, turn the temperature up. If

your herbs are burning then turn the temperature down.

3. Set Desired Temperature

Not enough avor? Turn temperature up.

If herbs are burning? Turn temperature down.

4. Press Red Button to Engage Heat

5. When LED Turns Green, Remove Top

& Insert Herbs

(approximately 3/4 full or less),

Replace top then inhale and enjoy!*

*For best draw it is suggested that you use the included tube.

3. When you have set your desired temperature, engage the heating

element by pressing the Heat Button (Red Button located beneath the

LCD Temperature Display). Once this button has been pressed a Red LED

light will illuminate above the LCD Temperature Display indicating the

heating process has begun.

4. Now that the unit has reached the desired temperature the Red LED will

change to a Green LED, indicating the unit is fully heated and ready for

usage.

Please note, the temperature will change inside the unit causing the

*

temperature to drop slightly and the Green LED will revert back to a Red LED
indicating the unit is re-heating to reach your desired temperature. This is
normal and will occur during usage.

**Vapir recommends plugging your NO2 into a surge protector while using in
AC mode.

3 4
