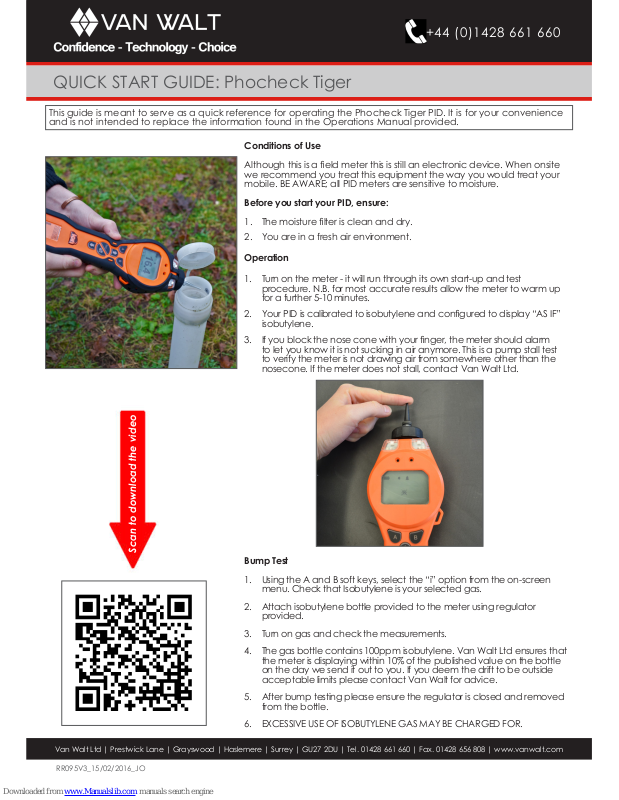

QUICK START GUIDE: Phocheck Tiger

+44 (0)1428 661 660

This guide is meant to serve as a quick reference for operating the Phocheck Tiger PID. It is for your convenience and is not intended to replace the information found in the Operations Manual provided.

RR095V3_15/02/2016_JO

Conditions of Use

Although this is a eld meter this is still an electronic device. When onsite

we recommend you treat this equipment the way you would treat your

mobile. BE AWARE; all PID meters are sensitive to moisture.

Before you start your PID, ensure:

1. The moisture lter is clean and dry.

2. You are in a fresh air environment.

Operation

1. Turn on the meter - it will run through its own start-up and test procedure. N.B. for most accurate results allow the meter to warm up for a further 5-10 minutes.

2. Your PID is calibrated to isobutylene and congured to display “AS IF” isobutylene.

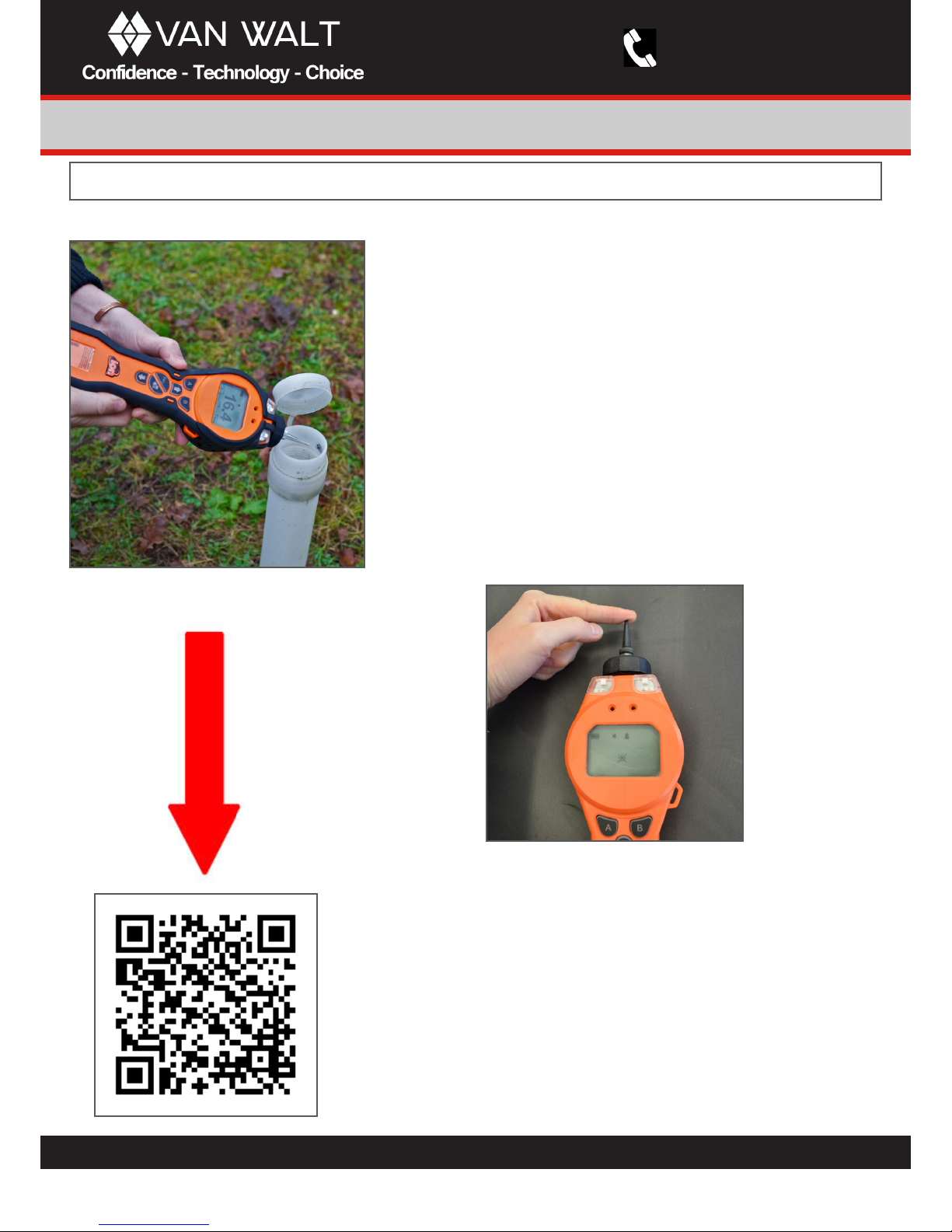

3. If you block the nose cone with your nger, the meter should alarm to let you know it is not sucking in air anymore. This is a pump stall test to verify the meter is not drawing air from somewhere other than the

nosecone. If the meter does not stall, contact Van Walt Ltd.

Bump Test

1. Using the A and B soft keys, select the “i” option from the on-screen menu. Check that Isobutylene is your selected gas.

2. Attach isobutylene bottle provided to the meter using regulator provided.

3. Turn on gas and check the measurements.

4. The gas bottle contains 100ppm isobutylene. Van Walt Ltd ensures that the meter is displaying within 10% of the published value on the bottle on the day we send it out to you. If you deem the drift to be outside

acceptable limits please contact Van Walt for advice.

5. After bump testing please ensure the regulator is closed and removed from the bottle.

6. EXCESSIVE USE OF ISOBUTYLENE GAS MAY BE CHARGED FOR.

Scan to download the video

Page 2

QUICK START GUIDE: Phocheck Tiger

+44 (0)1428 661 660

ZEROing your PID (Very Important)

1. To zero machine – Select “Zero” from on-screen menu. You will be presented with two “zero-ing” options.

2. Your PID has “zero’d” on start up to the CALIBRATED zero value. This means the unit may now be displaying minor drift and/or background

“noise”.

3. You may choose to zero the unit to your fresh air environment by

selecting the second zero icon. BE SURE YOU ARE IN A KNOWN FRESH

AIR ENVIRONMENT.

4. At any time you can return to the calibrated zero by selecting the rst zero icon.

Menu/Soft Keys

• To check gas selection – Select “i” from on-screen menu.

• To change gas selection – Select “Gas Bottle” from on-screen menu.

Scroll up/down to nd the rst letter of your chosen gas. Then up/ down in the subsequent menu to nd your gas.

*NB* IF YOU CHANGE THE GAS SELECTION BE SURE TO CHECK, AND AMEND

THE ALARM LEVELS.

• To check alarm levels – Select “i” from on-screen menu.

• To change alarm levels – Select “Spanner” from on-screen menu and

select “Alarm Bell” symbol from subsequent menu.

Calibrating your PID

Your PID will arrive to you calibrated, however if you wish to calibrate it yourself - please contact Van Walt for advice.

Problems

Please contact Van Walt Ltd if you encounter any problems. DO NOT

attempt to open the PID.

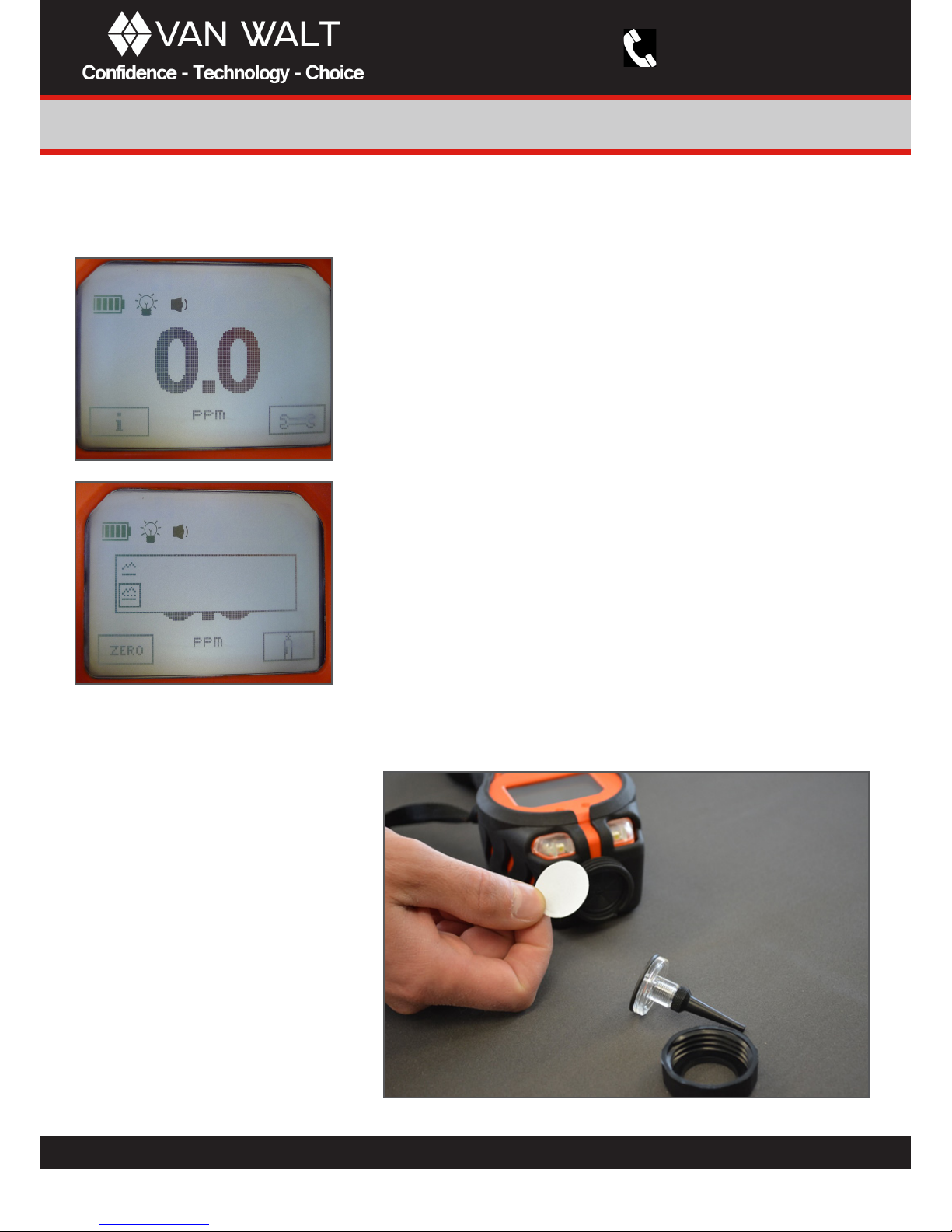

Figure 1: Changing the moisture lter
