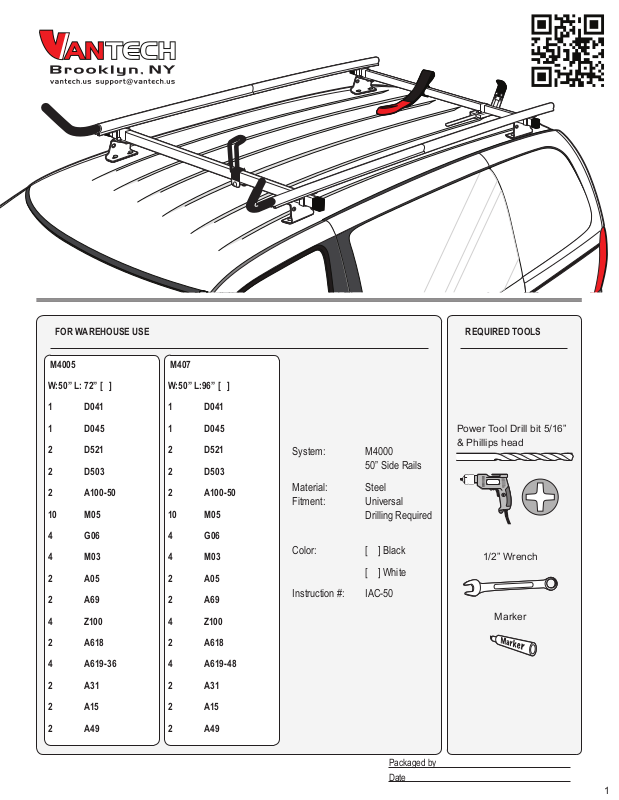

FOR WAREHOUSE USE
REQUIRED TOOLS
M4005
W:50” L: 72” [ ]
1 D041
1 D045
2 D521
2 D503
2 A100-50
10 M05
4 G06
4 M03
2 A05
2 A69
4 Z100
2 A618
M407
W:50” L:96” [ ]
1 D041
1 D045
2 D521
2 D503
2 A100-50
10 M05
4 G06
4 M03
2 A05
2 A69
4 Z100
2 A618
Power Tool Drill bit 5/16”
& Phillips head
System: M4000
50” Side Rails
Material: Steel
Fitment: Universal
Drilling Required
Color: [ ] Black
[ ] White
Instruction #: IAC-50
1/2” Wrench
Marker
4 A619-36
2 A31
2 A15
2 A49
4 A619-48
2 A31
2 A15
2 A49
Packaged by
Date
1
PART # DESCRIPTION QTY ITEM
items not drawn to scale
HARDWARE D041
B014 5/16” CARRIAGE BOLT 3/4” 16
B016 5/16” CARRIAGE BOLT 1 1/4” 8
N005 5/16” NYLON NUT 16
W008 5/16” WASHER 16
G06 1.5” X 6” RUBBER GASKET 4
M03 INTERIOR PLATE (4” B-B) 4
HARDWARE D045
S051 5/16” SINGLE SLIDER 8
SS-B201 TAP SCREW 14
N005 5/16” NYLON NUT 16
W008 5/16” WASHER 16
A618 1” TUBE 2
A31 BULL HORN 2
HARDWARE D503
B018 5/16” CARRIAGE 1 3/4” 2
N016 5/16” KNOB 2
2
PART # DESCRIPTION QTY ITEM
items not drawn to scale
HARDWARE D521
B014 5/16” CARRIAGE 3/4” 4
W008 5/16” WASHER 4
N005 5/16” NYLON NUT 4
A100-50 CROSS-BAR 50 2
M05 1” X 1 1/2” C-CLAMP 10
M01 6” MOUNTING BASE 4
A05 ANGLED LADDER SUPPORT 2
A69 EZ-VELCRO STRAP 2
Z100 RUBBER CAP 4
619-36/48 RAIL 36”/48” 4
A15 STOPPER 2
A49 PUSH TO SECURE 2
3

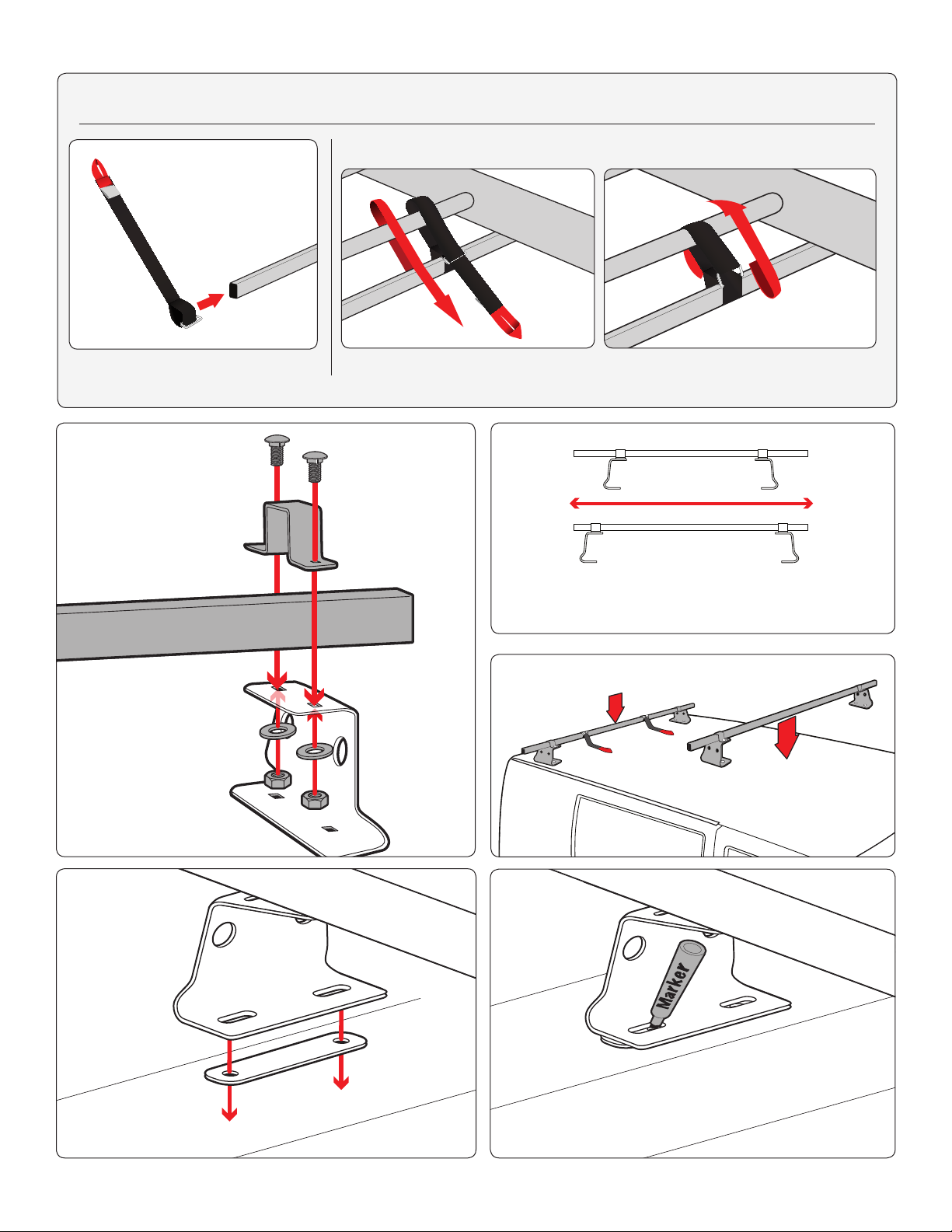

EZ-VELCRO STRAP
(Rear cross-bar)
How it works
(Ladder)
Insert rear cross-bar into opening
of EZ-velcro straps.
X4
Repeat for
all mounts.
M05
W008
N006
Pull EZ-velcro to secure via velcro.Slide strap around equipment the
through steel ring.
B014
Adjust the mounting bases to
position to best fit your vehicle.
M01
Align with interior
plate to ensure bolt
alignment.
M03
Mark with a visible marker.
Remove van rack and use
a 5/16” drill bit.
Repeat for all mounts.
B014
B014
G004
M01
Repeat for all mounts.
M03
W008
N005
Z100
Repeat for all mounts.
Secure from the interior of vehicle.
Repeat for all mounts.
5

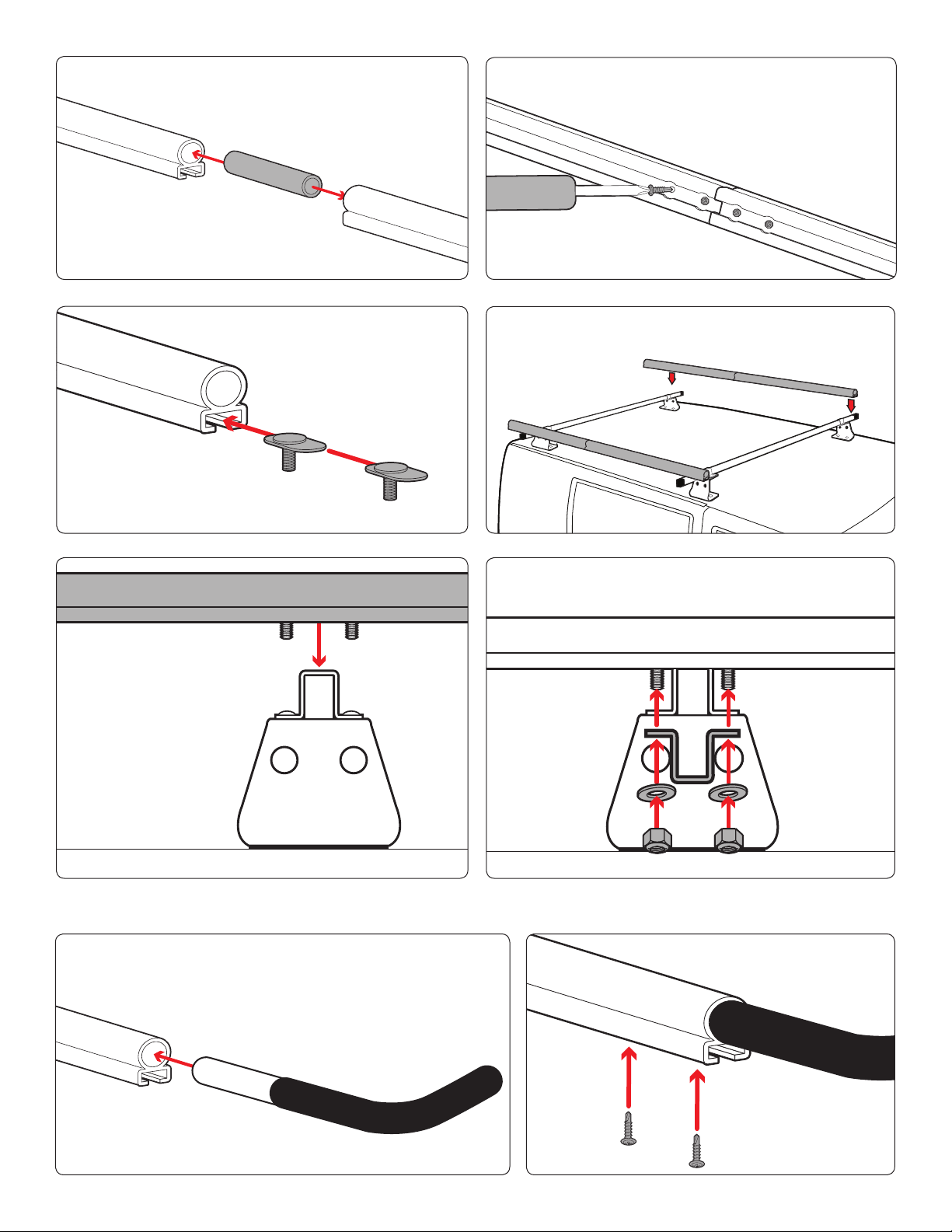

A619
A619
Slide in Sliders from front
and rear of Side Rails
Repeat for all mounts.
618
A619
B201
S051
S051
A619
X4
Repeat for all mounts.
Install towards
Front of vehicle on
X2
Passenger and Driver side
S051
M05
M01
W008
N005
A31
B201
6
Install onto front
bar and have
bend face the rear
of vehicle.
A02
(FRONT BAR)
B014
B018
N016
N005
W008
A15
M05
X2
A49
LADDER
W008
N005
CROSS BAR
B014
PUSH TO
SECURE
7
A
ccessories
|
S T E E L & A L U M I N U M
M-s
eries
A01 A02
Part # Description Size Bar Type MSRP
A01 Ladder Guide 5.5” 1” X 1/2” 13.95
A05 Ladder Stopper 5” 1” X 1/2” 14.95
A09 Side Support 5” 1” X 1/2” 13.95
Ì Ladder Stopper and Guides prevent items from sliding
forward and allows easy bungee and tie-down.
Ì Galvanized and dipped in rubber for durability.
Ì Easy turn knob allows quick adjustment and removal.
Part # Description Length Capacity MSRP
A69 EZ Velcro Strap 10” 75 lbs 13.95
Ì Strap a ladder with the EZ velcro straps.
Ì Holds up to a maximum of 75 lbs in combination
with the ladder stopper or guide.
Ì Loops into cross bar up to 2” X 1”.
A09
Part # Description Height Bar Type Color MSRP
A49 Push to Secure 6”-8” 1” X 1 1/2” Black or white $59.00
Ì Secure your ladder with the Vantech push 2 secure system.
Ì Clamps onto cross bar with 1” X 1 1/2” with “C” clamps.
Ì Holds ladders 6”-8” in height.
Vantech 6” conduit carrier. Spring assist rear door for a water tight seal.
Padlock tab for rear hatch door. A35 requires drilling into cross bars.
A34 is a direct bolt-on if you have aluminum cross bars with built-in
channels on top.
Part # Description Width Bar Type Color MSRP
A35
A34
Ì Includes: Front cap, rear door, 2 “U” brackets and hardware.
Ì 6” PVC pipe not included.
6” Conduit Carrier
(drilling required)
6” Conduit Carrier
(Slider bolt-on)
6” Universal Silver 89.00
Aluminum
6”
Channels
Silver 89.00
Steel Cross Bar
Plastic Bar Guards
Part # Description Length MSRP
A42 3/4” wide bar guard 42” 5.00
A50 3/4” wide bar guard 56” 6.00
A88 3/4” wide bar guard 63” 7.00
A89 3/4” wide bar guard 72” 8.00
A41 3/4” wide bar guard 84” 9.00
A60 3/4” wide bar guard 96” 10.00
A96 2” wide bar guard 51” 9.00
A97 2” wide bar guard 59” 10.00
A98 2” wide bar guard 65” 11.00
A99 2” wide bar guard 72” 12.00
Ì For Steel Systems
Ì Prevents scratch and damage to
crossbars
Ì Self Adhesive line the underside of
bar guard
Part # Description Length Color MSRP
Adjustable Extension Arm
A82
with 8” Convex Mirror
Ì Made from aluminum material. Bolts onto the
eyehooks on the M series mounting base.
Ì No drilling is required. Extension arm can adjust in
length and angle.
Ì Convex mirror is 8” wide stainless steel.
25”-32
Black or
White
79.00
Part # Description Width Bar Type Material Color MSRP
A38 Wind Foil 24" 1” X 1.5” Aluminum Black / White 35.00
A39 Wind Foil 36" 1” X 1.5” Aluminum Black / White 36.00
A53 Wind Foil 48" 1” X 1.5” Aluminum Black / White 37.00
A54 Wind Foil 60" 1” X 1.5” Aluminum Black / White 40.00
A55 Wind Foil 63" 1” X 1.5” Aluminum Black / White 42.00
Reduces wind noise and vibration & still allows
optional accessories for cross bar.
Aluminum Cross Bar
Rubber Bar Guards
Part # Description Length MSRP
A51 Rubber Bar Guards 48" 12.00
A86 Rubber Bar Guards 65" 16.00
A52 Rubber Bar Guards 72" 18.00
A36 Rubber Bar Guards 84" 20.00
A85 Rubber Bar Guards 96" 22.00
Ì For aluminum systems with channels
Ì Prevents scratch and damage to crossbars
Ì Reduces windnoise if present
Ì Press ed into channels of Cross bars
Ì Rubber Material
8
