Introduction
The AVOX|Jukebox is easiest way to turn your 2.5” notebook hard drive into a portable audio/video player. With a
simple to use interface, the AVOX|Jukebox can play movies, music, or a slideshow of your pictures when connected to
AV inputs on any televison. Also, since it utilizes high speed USB 2.0, you can get your data from your computer to
your 2.5” hard drive up to 40 times faster than USB 1.1. And since it also doubles as a portable enclosure, you can
store your documents, programs, or any other data on the AVOX|Jukebox as well.
¾ Digital Multimedia Player via Home TV or Car TV
¾ USB 2.0 External Storage via PC(NTFS, FAT32)
¾ Audio - Stereo, Digital Coaxial 5.1ch. Sound
¾ Video - Composite, HD Component 480p, 720p, 1080i
¾ DVD Manager - Playback of DVD File same as Original DVD Title
¾ Easy Firmware Upgrade.
Specifications
Product Name AVOX|Jukebox
Power DC 5V / 2A
Weight 160g (without HDD) approx.
Dimension 80 x 148 x 24 mm approx.
Available OS Windows 98SE/ME/2000/XP, Mac OS 9.0 Higher, Linux 2.4 Higher
USB Interface 480Mbps USB 2.0 (USB 1.1 Compatible) / Slave
HDD Type 2.5” IDE HDD
HDD File System NTFS / FAT32
TV Type NTSC / PAL
Movie
Supported Format
Video Output
Audio Output
External IR Support (Optional)
Working Temperature 0˚C ~ 60˚C
Working Humidity 10% ~ 50%
Music MP3, OGG Vorbis, WAV, WMA (except WMA9 pro.lossless)
Photo JPG(JPEG)
MPEG 1, 2, 4 (MPG, MPEG, AVI, M2V, DAT, VOB, IFO etc.)
DivX, XviD (except GMC, Qpel option applied)
COMPOSITE
COMPONENT Y, Pb, Pr (480p, 720p, 1080i Progressive Scan)
STEREO L-R
DIGITAL COAXIAL (DTS Pass-Through Only)
3
Precautions
□ We do not recommend storing sensitive or critical data on the AVOX|Jukebox. Due to the portable nature of the enclosure/media player, there is
a greater likelihood of mishandling which may cause damage. We are responsible for the AVOX|Jukebox only and are at no point liable for data
loss or any hard drive problems.
□ In a car, we recommend you use a cigarette lighter adaptor that provides DV 5V/2A. We are not responsible for the damage or loss of data by
using an incorrect cigarette lighter jack.
□ Unplug all cables from the AVOX|Jukebox when it is not in use. Do not leave the power adaptor plugged in when not in use.
□ Always handle the AVOX|Jukebox by its sides. The top & bottom aluminum cover may become warm/hot from hard drive activity.
□ The AVOX|Jukebox does not support DivX/XviD encodings of video files that has GMC, Qpel option.
□ The AVOX|Jukebox supports only pass-through for DTS Audio.
□ Do not turn off power while a file is in use.
□ If the length of USB cable is too long, connection issues may arise (Recommended : up to 3 meters maximum)
□ A USB 2.0 Host Adaptor is required for the AVOX|Jukebox to operate at USB 2.0 speeds.
□ [IMPORTANT] : If an unformatted HDD is inserted into the AVOX|Jukebox, a PC cannot detect the Mpeg4 Player. Make sure that the HDD is
formatted. For “How to format a HDD, contact HDD manufacturer or the seller.
□ Do not drop the unit or subject it to impact, especially during use. Doing so may cause damage to the unit or the hard drive. Please note that
any problems with the hard drive must be dealt with by the hard drive manufacturer.
□ We recommend you only use the supplied cables or accessories that are made specifically for use with the AVOX|Jukebox. Using other cables or
accessories may inhibit the ability of the unit to perform properly, or cause damage.
□ [IMPORTANT] : Store and operate the unit away from water and heavy moisture. If the AVOX|Player should become wet, unplug all cables from
the unit immediately. Continued use under this condition may result in shock, physical damage to the unit and to any device it is connected to
and damage or loss of data on the HDD.
□ Do not touch the unit if your hands are wet. There may be a risk of shock and possible damage to the unit and to data on the HDD.
□ Keep unit away from direct sunlight.
□ Keep unit away from devices that transmit strong magnetic signal. It may cause data damage or loss on HDD.
□ Any attempt to disassemble or reverse engineer any part of the AVOX|Jukebox is strictly prohibited. It will result in the voidance of the product
warranty and possible damage to the unit and loss of data.
System Requirements
▪ Interface : 480Mbps USB 2.0 High-Speed (USB 1.1 compatible)
▪ Power Supply : USB Bus Power or DC Power
▪ Available OS : Windows 98SE/ME/2000/XP, MAC 9.0 higher, Linux 2.4 higher
▪ Available System : Desktop / Laptop PC that has USB port(s)
Package Content
Primary Package
▪ AVOX|Jukebox ▪ Remote Control & Battery ▪ USB Cable, AV Cable( Composite + Stereo L-R),
▪ Component Video Cable ▪ Coaxial Audio Cable ▪ Power Adapter ▪ Windows 98 Driver CD ▪ User Manual
Optional Package
▪ External Remote Control IR Receiver ▪ Cigar Jack Lighter
4
Product Overview
① Power Power LED
Front
View
Back
View
② HDD HDD LED
③ IR IR LED
④ IR Receiving Area IR receiving area for remote signals
① USB Connect USB cable
② 5V Connect power Cable
③ IR/5.1 Connect coaxial cable for 5.1 ch. digital audio output
④ SD/HD Connect component Y, Pb, Pr cable for video output
⑤ AV Connect AV cable for composite video and(or) Stereo audio output
- Front View -
① Power
③ IR ④ IR Receiving Area
② HDD
- Back View -
① USB
② 5V
④ SD/HD
③ IR/5.1
(or Connect external remote control IR receiver)
⑤ AV
5
1. Use as External USB HDD
1.1 Insert Hard Disk
9 Only compatible with 2.5” IDE Hard Disk for Laptop(or Notebook) PCs.
9 Hard Disk should be “Master”. However, if the Hard Disk supports “Single” mode, you need to try to set
“Single “mode. You should not need to change the setting under most conditions.
① Grip the handles on the front
panel and pull back to remove,
then open the top cover.
④ Secure HDD onto PCB by
using the supplied screws.
② Pull the PCB out. ③ Grip HDD and insert it into
the pins of PCB (be sure to
align the 44 pins)
⑤ Insert the PCB into the case,
and then close the top cover
and secure the front panel.
6
1.2 Format Built-in HDD via USB
If the built-in HDD is not formatted, the PC cannot detect the hard disk drive. If this is the case, format the hard disk first
by referring to the following guide. If the hard disk drive is already formatted, skip to “1.3 Copy Data via USB”.
1.2.1 Windows 98SE, ME
1) Install Windows 98 Driver. Find the driver at
Windows 98 CD→ Windows 98 Driver Directory.
After finishing installation, Connect the AVOX to
your PC via USB cable.
(If not detected, plug in the power cable)
2) Select [Start→Program→Accessories→MS-
DOS Prompt] on Windows.
3) Type “fdisk” command at Command Prompt
window and press [Enter].
4) Type the “Y” at the “Do you wish to enable large
disk support (Y/N)” and press [Enter].
5) Select “5. Change current fixed disk drive” and
press [Enter].
6) Type the last Disk number in 0% usage.
7) Select “1. Create DOS partition or Logical DOS
Drive” and press [Enter].
7
A
8) Select “ 1. Create Primary DOS Partition ” and
press [Enter].
9) Wait until finishing verifying the drive integrity.
fter finishing drive integrity verification, type “Y”
10)
at “Do you wish to use the maximum available size for
a Primary DOS Partition (Y/N)”.
11) Type the capacity or % which you want to use and
press [Enter].
12) Drive integrity verification will start again. After
finishing that, press [ESC] key when the “Primary DOS
Partition created, drive letters changed or added”
message displays.
13) Press [ESC] key again. “ Shut down Windows
before restarting” message will be displayed. Press
[ESC] key finally for exiting FDISK.
8
14) Type “ exit ” command at “ C:\WINDOWS> ” and
press [Enter] to return to your Windows screen.
15) Unplug the AVOX and connect it again. New
volume will appear in [My Computer]. Click the right
mouse button on the new volume and select [Format].
1.2.2 Windows 2000
1) Connect the AVOX to your PC via USB cable.
(If not detected, plug in the power cable)
2) Select [Start → Settings → Control Panel →
Administrative Tools → Computer Management
→ Disk Management] on Windows.
3) If the [Disk Signature and Upgrade Disk Wizard] is
started, click Next to progress for finishing the wizard.
If this wizard not started, right
click the left area of
unallocated drive at no. 4 figure, and start the wizard.
WARNING: Look for the unallocated drive. DO NOT assume it is disk 1.
4) After finishing the [Disk Signature and Upgrade
Disk Wizard], Right-click the Unallocated Drive. And
then, click [Create Partition].
Right Click for
starting Disk
Wizard.
9
5) Click [Next] at the Create Partition Wizard
Windows.
6) Check [Primary Partition] and click [Next].
7) Type number that you want to use and click [Next].
8) Assign a drive letter and click [Next].

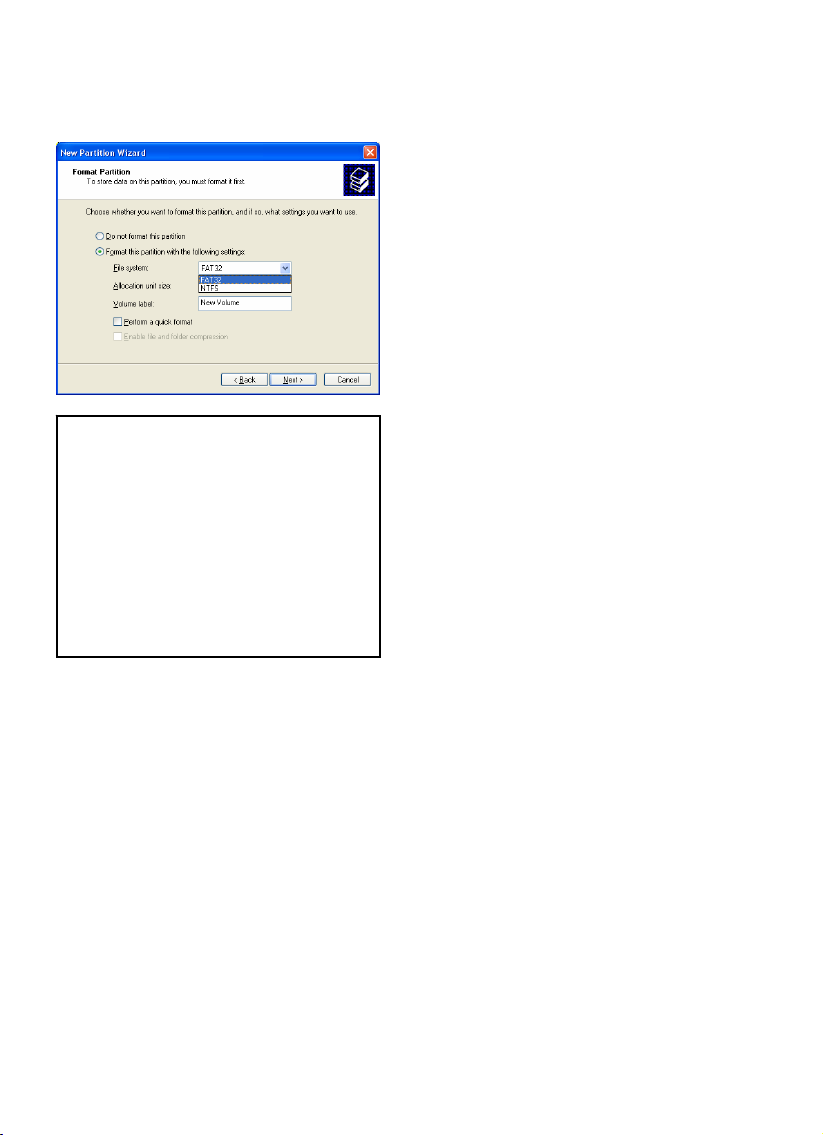

9) Choose FAT32 or NTFS at File system to use and
click [Next].
9 FAT 32 system is available on windows
98SE/ME/2000/XP, but NTFS system is available on
windows 2000/XP only.
9 If you choose FAT32 system on Windows 2000/XP,
one drive letter’s maximum size will be limited to 32GB. If
you want to use one drive letter of 32GB more in FAT32,
you have to format on windows 98SE/ME.
9 If you want to create two or more partition with one
disk drive, it will be recommended “Primary Partition”
10) After finishing Wizard setup, formatting will be
progressed automatically.
10
1.2.3 Windows XP
1) Connect the AVOX to your PC via USB cable.
(If not detected, plug in the power cable)
2) Click [Settings→Control Panel→ Administrative
Tools→Computer Management→Disk Management]
on Windows. If you cannot find
Control Panel, click “ switch to classic view”
top left corner of the screen.
3) If the [Disk Signature and Upgrade Disk Wizard]
starts, click [Next] to progress for finishing the wizard.
If this wizard does not start, right click the marked left
area of unallocated drive at figure no. 4 to
wizard.
WARNING: Look for the unallocated drive. DO NOT assume it is disk 1.
4) After finishing the [Disk Signature and Upgrade
Disk Wizard], Right-click the ‘Unallocated’
then, click [Create Partition].
Right Click for
starting Disk
Wizard.
5) Click [Next] at the New Partition Wizard.
Administrative Tools at
in the
start the
Drive. And
6) Check [Primary Partition] and click [Next].
7) Type number that you want to use and click [Next].
8) Assign a drive letter and click [Next].
11
9) Choose FAT32 or NTFS at File system to use and
click [Next].
9 FAT 32 system is available on Windows
98SE/ME/2000/XP, but NTFS system is available on
windows 2000/XP only.
9 If you choose FAT32 system on Windows 2000/XP,
one drive letter’s maximum size will be limited to 32GB. If
you want to use one drive letter of 32GB more in FAT32,
you have to format on windows 98SE/ME.
9 If you want to create two or more partition with one
disk drive, it will be recommended “Primary Partition”
10) After finishing Wizard setup, formatting will
progress automatically.
12
1.3 Copy Data via USB
It is possible to use the AVOX|Jukebox as an external USB hard disk drive. You can copy data from your PC to the
HDD in the AVOX via USB. However, the main use is to play media files from the hard disk on a TV set.
* When connecting to a PC, we recommend connecting the power cable to the AVOX.
1.3.1 Windows 98SE
9First, you have to install Windows 98 Driver before connecting PC. The driver is located at Windows 98 driver CD→Windows
98 Driver Directory. After finishing the driver installation, connect the AVOX to your PC via USB cable. If it is not detected, plug in
the AVOX power cable.
1) After installing the driver, connect the AVOX. And
then, check the driver installation at Windows [Start→
Settings→Control Panel→System→Device Manager→Hard
disk controllers→Hi-Speed USB-IDE Bridge Controller].
2) Check ‘My Computer’ or ‘Explorer’, there should be
a new volume. You can copy any data to this volume.
9If a new volume does not appear, make sure the HDD
is formatted as FAT32. Windows 98SE only detects
FAT32. You may also need to connect the power cable.
3) After copying your data, remove the AVOX by
the remove icon at Windows’ right-bottom corner.
Be sure to do this before removing the AVOX to
ensure that it is safe to remove the AVOX.
using
13
1.3.2 Windows ME
1) After connecting the AVOX, Windows itself will
install the driver automatically. Then, check the driver
installation at Windows [Start > Settings > Control
Panel > (view all Control Panel options) > System >
Device Manager > Universal Serial Bus controllers >
USB Mass Storage Device]
2) Check ‘My Computer’ or ‘Explorer’, there should be
a new volume. You can copy any data to this volume.
9 If a new volume does not appear, make sure the HDD
is formatted as FAT32. Windows ME only detects FAT32.
You may also need to connect the power cable.
3) After copying data, remove the AVOX by using the
remove icon at Windows’ right-bottom corner.
Be sure to do this before removing the AVOX to
ensure that it is safe to remove the AVOX.
14
1.3.3 Windows 2000, XP
1) After connecting the AVOX, Windows will
automatically install its own driver. And then, check
the driver installation at Windows [Start > Settings >
Control panel > (switch to classic View on Windows
XP) > system > Hardware > Device manager >
Universal Serial Bus controllers > USB Mass Storage
Device ].
2) Check ‘My Computer’ or ‘Explorer’, there should be
a new volume. You can copy any data to this volume.
9If a new volume does not appear, check if the HDD is
formatted as FAT32 or NTFS. Windows XP/2000 only
works with FAT, FAT32 and NTFS. You may also need
to connect the power cable of the AVOX.
3) After copying data, remove the AVOX by using the
remove icon at Windows’ right-bottom corner.
Be sure to do this before removing the AVOX to
ensure that it is safe to remove the AVOX.
9If you only have USB 1.1, you may see ‘High-Speed
USB Device connected to non High-Speed USB Hub.’
The unit will still operate correctly, though at a reduced
speed. You will need a USB 2.0 adaptor or port to
operate it at full speed.
15
1.3.4 Linux
9The AVOX will work with Linux 2.4 higher.
[Automatic Mount]
After booting, do log-in.
Connect the AVOX -> Power On AVOX -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at
Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following;
/dev/sda /mnt/mediatest vfat noauto, user 0 0 (in case of FAT32 HDD)
/dev/sda /mnt/mediatest ntfs noauto, user 0 0 (in case of NTFS HDD)
Do Log-in again.
9above example “sda” is assumed that the AVOX will be detected as “sda” on your system. If not, you have to write the drive
name which is detected as “USB Mass Storage”, not “sda”
[Manual Mount]
Connect the AVOX -> Power On AVOX -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at
Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following;
mount –t vfat /dev/sda /mnt/mediatest (in case of FAT32 HDD)
mount –t ntfs /dev/sda /mnt/mediatest (in case of FAT32 HDD)
9above example “sda” is assumed that the AVOX will be detected as “sda” on your system. If not, you have to write the drive
name which is detected as “USB Mass Storage”, not “sda”
[How to stop using]
Do [unmount] at Device Control.
1.3.5 Mac
9The AVOX will work on Mac 9.0 higher.
There is no need to install the additional drivers with Mac OS 9.x. The AVOX will be detected automatically. If the
AVOX is detected correctly, an icon will appear on the desktop. If not, make sure the disk is not formatted as NTFS.
To removing the AVOX safely, drag the icon to a trash and unplug the AVOX.
16
2. Use as Multimedia Player
2.1 Connect to External AV Device
2.1.1 Connect Video Cable
The AVOX supports 2 type of video output; “Composite” and “Component”. Use the video connection that your TV
supports. Most TVs support composite video connection. Do not connect the USB cable when connected to a TV.
Supplied
Component
Cable
[Blue]Connect to Pb jack of TV. [Green]Connect to Y jack of TV. [Yellow] Connect to Composite(CVBS) jack
9 If you cannot see anything after connecting video cable, check followings,
1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user
manual.
2. “AVOX” – Switch to Video Output Mode: Press [VIDEO] button repeatedly. Whenever press [VIDEO], video output signal is
changed.
3. Once you see a normal screen, you must save your video configuration on the AVOX. See “2.2.1 Video Setup”.
•Component Y, Pb, Pr •
: Connect to SD/HD jack of AVOX. : Connect to AV jack of AVOX.
Blue Green`
Red
[Red] Connect to Pr jack of TV.
•Composite•
Supplied
AV Cable
Yellow Red
of TV.
White
17
2.1.2 Connect Audio Cable
The AVOX supports 2 type of audio output; “Stereo” and “Coaxial”. Use the audio connection that your TV or Audio
system supports. Do not connect the USB cable when connected to a TV.
9If you cannot hear sound after connecting the Coaxial Cable, you have to change the audio setup of the AVOX to Encoded
Digital. See “2.2.2 Audio Setup”
•Coaxial: Digital 5.1 Ch. •
: Connect to IR/5.1 jack of AVOX. : Connect to AV jack of AVOX.
Supplied
Coaxial
Cable
Connect to Coaxial jack of Amplifier
or Receiver.
•Stereo•
Supplied
AV Cable
White Red Yellow
Connect to Audio Jacks of TV
White = L (Left) Audio Input / Red = R (Right) Audio Input
2.1.3 Connect External IR Receiver
External IR Receiver is an optional package and is not included with the primary AVOX package.
Connect the external IR receiver to IR/5.1 jack of the AVOX instead of Coaxial cable. External IR Receiver and Coaxial
cable are not used at the same time.
18
2.2 Basic Setup
2.2.1 Video Setup
This is guide for setting video output of the AVOX. You have to setup the AVOX’s video output mode same as TV set’s
video input mode.
9 If you cannot see anything after connecting video cable, check followings,
1. “TV “–“TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user
manual.
2. “AVOX” – Switch to Video Output Mode: Press [VIDEO] button repeatedly. Whenever press [VIDEO], video output signal is
changed.
3. Once you see a normal screen, you must save your video configuration on the AVOX. See “2.2.1 Video Setup”..
TV Video
Input Mode
Normal Video
S-Video
Component 480i
Component 480p HD Component Out On 480p
AVOX Video
Output Mode
TV Out: NTSC C/S-Video
(HD Component OFF)
TV Out: PAL C/S-Video
(HD Component OFF)
Not supported
Not supported
TV Out: NTSC C/YPbPr
(HD Component OFF)
TV Out: PAL C/YPbPr
(HD Component OFF)
Connection Jack
of TV, AVOX
CVBS or Composite Jack
(Generally Yellow Jack)
- -
Component 3 Jack
* Y(Green), Pb(Blue), Pr(Red)
Video Cable Type
Supplied AV Cable
Supplied Component Cable
* Y(Green), Pb(Blue), Pr(Red)
Component 720p HD Component Out On 720p
Component 1080i HD Component Out On 1080i
9NTSC, PAL : Standard of TV Output. Select a proper one for using in your country.
19
① Turn on the AVOX and press [SETUP] on
MediaType Selection screen.
< Setup Procedure>
② Move to ‘Video Setup’ icon and press
[ENTER].
③ Move to Video Output Mode that you want
and press [ENTER].
④ Finally, press [SETUP] again for saving
configurations.
Example of component video output settings.
20
2.2.2 Audio Setup
This is guide for setting up the audio output the AVOX. You can use Stereo or Digital 5.1 ch..
9Analogue/DCPM: Select when you connect the supplied AV cables (Red / White) to TV or Audio set directly.
9Encoded Digital: Select when you want to listen through 5.1Ch by connecting receiver (or amplifier) with supplied coaxial
cable.
<Setup Procedure>
① Turn on the AVOX and press [SETUP] in
MediaType Selection screen.
② Move to ‘Audio Setup’ icon and press
[ENTER].
③ Move to Audio Output Mode that you want
and press [ENTER].
④ Finally, press [SETUP] again for saving
configurations.
21
2.2.3 Other Setup
This is guide for setting TV Type, JPEG File Preview, Language Selection. In addition, current firmware version shows.
<Setup Procedure>
① Turn on the AVOX and press [SETUP] in
MediaType Selection Screen.
Move to ‘Other Setup’ icon and press [ENTER].
Move to settings that you want and press
[ENTER].
Finally, press [SETUP] again for saving
configurations.
2.2.3.1 TV Type Setup
Select one among 4:3 Letter Box, 4:3 Pan Scan, or 16:9.
2.2.3.2 Jpeg File Preview Setup
It is possible to enable or disable preview the photo file as a thumbnail image before playing.
2.2.3.3 Language Selection Setup
Select one language among English, German, Spanish, French, Italian, Portuguese, Danish, Swedish, or Dutch. User
interface language will be changed according to the language.
2.2.3.4 Check Firmware Version
Current Firmware version will be displayed on the Other Setup screen.
22
2.3 Basic Screen Menu
2.3.1 Media Type Selection
After turning on the AVOX, you can see MediaType Selection screen. In this screen, you can select “Video”, “Audio”,
Photo” or make “Play-List” with the arrow button. Press [ENTER]. Select one media type that you want to play.
2.3.2 File Selection
After selecting a Media type, ‘File Selection’ screen will be displayed. Move to a file that you want to play and press
[ENTER] or [PLAY/PAUSE].
☞ [ENTER] button Play one file that you select. After finishing playback, return to ‘file selection screen’.
☞ [PLAY/PAUSE] button After playing the file that you select, play next all files continuously.
☞ ▲▼ button Move to files with pressing ▲▼arrow buttons.
☞ button Mo ve to left icon with pressing ◀ arrow button. Press ▶ button in order to return to file selection screen.
☞ NEXT<I, PREV I> button Move to Next or Previous page when there is too many files to list on one screen.
☞ Left Icon Descriptions
Play All
Media Select Go to Media Type Selection directly.
After the file that you select, play next all files continuously. It is same as
[PLAY/PAUSE] button.
23
2.4 Play Video Files
It is possible to play video files like AVI, MPG, MPEG, DAT, M2V, and VOB.
Select ‘Video’ icon in Media Type Selection screen. Video file list will be displayed. Just move to a file and press
[ENTER] or [PLAY/PAUSE] button.
Select ‘Video’ icon in Media Type Selection screen.
< Function and Button Descriptions>
Move to a file and press [ENTER] or [PLAY/PAUSE]
button.
Press [ENTER] for playing just the file or
[PLAY/PAUSE] for playing all files from the selected file.
Remote Control Function Descriptions
It is possible to switch each audio language when the audio
AUDIO Dual Audio
SUBTITLE
Subtitle
Move& Size
Subtitle
Select or Hide
format is dual-audio, for example, including a local language
and English.
It is possible to change subtitle size and location.
◀▶button changes size and ▼▲ arrow button changes
location. After doing, press [ENTER].
The subtitle name same as video file is displayed on screen
automatically. However, it is possible to open the other
preferable subtitle files or hide.
24
Subtitle
Language Select
Subtitle
Sync.
4, 5, 6
Number Button
Scr. SIZE
TIME SEARCH
CANCEL
Brt. CONT
FILE INFO
FF
arrow button
REW
arrow button
VOLUME +
▲arrow button
VOLUME -
▼arrow button
MUTE Sound Off
ENTER Playback a File
Subtitle
Color Change
Zoom Vertical Zoom screen vertically.
Zoom Full Enlarge the overall screen.
Custom Enlarge or reduce the screen by ▲▼◀▶ arrow buttons.
Default Return to original screen size and position.
Screen Position
Jump to
Preferable
Playback Time
Delete Input
Numbers
Control luminosity,
color depth,
brightness
Show File
Information
Fast Forward
Rewind
Volume Up Volume up.
Volume Down Volume down.
It is possible to switch each subtitle language when the
subtitle is dual language format, for example, including a
local language and English.
* When selecting ‘Discriminating subtitle language’, first subtitle
language will be displayed.
It is possible to set the subtitle sync. with ◀▶(one second)
▼▲(60 second) when motion and subtitle sync is not
matched.
Subtitle color is changed when pressing number 4, 6 button.
In order to return default color (white), press number 5.
Move the screen to the direction with ▼▲◀▶ arrow
buttons. Press [Brt.Cont] key for returning to the original
screen position when applying Screen position.
Move to a selected time of a file.
In time search box, this button deletes all numbers in 0.
When pressing this button, 3 modes switch. After selecting
a mode, change settings with ◀▶ arrow buttons.
Show the file information which is being played. In order to
hide the information, press this button again.
Whenever pressing this button, play speed is changed with
8x, 16x, 32x in forward.
Whenever pressing this button, play speed is changed with
8x, 16x, 32x in backward.
Mute the sound. In order to hear sound, press this button
again.
Play a file. After finishing playback, return to file selections
screen.
25
PLAY / PAUSE
PLAY / PAUSE
Number button
II
II
PREV
I
NEXT
I
0
Playback
Next All Files
Pause
Playback
Previous File
Playback
Next File
Screen Reset
After the file that you select, play next all files continuously. It
is same as [PLAY/PAUSE] button.
Pause playback, if pressing this button when a file is being
played. In order to play again, press this button again.
Play a previous file before a current playback file. If you used
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
Play a next file after a current playback file. If you used
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
If a frame of a video file is broken, green color runs on a
overall screen. Press number [o “Zero”] for screen reset.
26
2.5 Play DVD Files
DVD manager function supports playing a ripped DVD file the same as an original DVD.
Make a folder and then save all ripped files into the folder. After connecting to a TV(or Monitor), select VIDEO_TS.IFO
file at the folder. Make sure that all the ripped files including VIDEO_TS.IFO from one DVD title will be located at one
folder.
9If you cannot find VIDEO_TS.IFO file among all the ripping files from an original DVD title, the DVD manager function will not
work.
Select ‘Video’ icon in Media Type Selection screen. Move to the folder including DVD ripping files and select
< Function and Button Descriptions>
‘video_ts.ifo’ file and press [ENTER] button.
Remote Control Function Description
AUDIO Select Audio Type Audio type will be changed whenever pressing this button.
SUBTITLE Select Subtitle Type Subtitle type will be changed whenever pressing this button.
Scr. SIZE Screen Size Screen size will be changed when press the button.
MENU Go to Menu Move to main menu while playing DVD.
SLOW Playback Slow
REPEAT
Chapter, Title
Repeat
Play slowly 1/2x, 1/4x, and 1/8x whenever pressing this
button.
Set chapter, title repeat.
27
A-B REPEAT A-B repeat Set the A-B repeat.
TITLE Go to Title Menu Move to title menu while playing DVD.
ANGLE Angle Apply angle function.
FILE INFO
TIME SEARCH
CANCEL
Brt. CONT
PREV
I
NEXT
I
FF
REW
ENTER Playback Play ‘Video_ts.ifo’ file.
PLAY / PAUSE
II
VOLUME + Volume Up Volume up.
VOLUME - Volume Down Volume down.
MUTE Sound Off
Show File
Information
Jump to Preferable
Playback Time
Delete Input
Numbers
Control luminosity,
color depth, brightness
Playback
Previous Chapter
Playback
Next Chapter
Fast Forward
Rewind
Pause
Show the file information which is being played. In order to
hide the information, press this button again.
Move to a selected time of a file.
In time search box, this button deletes all numbers in 0.
When pressing this button, 3 modes switch. After selecting
a mode, change settings with ◀▶ arrow buttons.
Play a previous chapter.
Play a next chapter.
Whenever pressing this button, play speed is changed with
8x, 16x, 32x, 48x in forward.
Whenever pressing this button, play speed is changed with
8x, 16x, 32x, 48x in backward.
Pause playback, if pressing this button when a file is being
played. In order to play again, press this button again.
Mute the sound. In order to hear sound, press this button
again.
28
2.6 Play Music Files
It is possible to play music files like MP3, OGG, WAV, WMA.
Select Audio icon in Media Type Selection screen. Music file list will be displayed. Just move to a file and press
[ENTER] or [PLAY/PAUSE] button.
Select ‘Audio’ icon in Media Type Selection screen.
< Function and Button Descriptions>
Move to a file and press [ENTER] or [PLAY/PAUSE]
button.
Press [ENTER] for playing just the file or
[PLAY/PAUSE] for playing all files from the selected file.
Remote Control Function Description
FILE INFO
TIME SEARCH
CANCEL
Brt. CONT
PREV
I
Show File
Information
Jump to Preferable
Playback Time
Delete Input
Numbers
Control luminosity,
color depth, brightness
Playback
Previous File
Show the file information which is being played. In order to
hide the information, press this button again.
Move to a selected time of a file.
In time search box, this button deletes all numbers in 0.
When pressing this button, 3 modes switch. After selecting
a mode, change settings with ◀▶ arrow buttons.
Play a previous file before a current playback file. If you used
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
29
Play a next file after a current playback file. If you used
NEXT
I
FF
REW
ENTER Playback a File
PLAY / PAUSE
II
PLAY / PAUSE
II
VOLUME + Volume Up Volume up.
VOLUME - Volume Down Volume down.
MUTE Sound Off
SUBTITLE Hide Mp3 Subtitle
9How to Play MP3 without TV set. MP3 Quick Play
Make a 'music' folder (in small letters not capital letters) at root directory of HDD and save MP3 files in the folder. If the HDD is
divided into two or more partitions, make a 'music' folder at first partition.
Turn on the AVOX and just press [PLAY/PAUSE] button. MP3 files at 'music' folder will be played automatically. Additionally,
after rebooting the AVOX, the last played file will be continued playing.
9How to See MP3 Subtitle
It is possible to show MP3 subtitles when the MP3 file supports subtitles. A MP3 subtitle supported file must be made by ‘iriver
caption editor’ program.
Playback
Next File
Go to 10 Sec. in
Forward
Go to 10 Sec. in
Backward
Playback
Next All Files
Pause
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
Go to 10 sec. in forward and play when a file is being played.
Go to 10 sec. in backward and play when a file is being
played.
Play a file. After finishing playback, return to file selections
screen.
After the file that you select, play next all files continuously. It
is same as [PLAY/PAUSE] button.
Pause playback, if pressing this button when a file is being
played. In order to play again, press this button again.
Mute the sound. In order to hear sound, press this button
again.
It is possible to show mp3 subtitle which the mp3 file
supports subtitle. In that case, this button will hide the
subtitle.
* mp3 subtitle supported file must be made by iriver caption editior
program, not support LDB program.
30
2.7 Play Photo Files
It is possible to play photo files like JPG(JPEG).
Select Photo icon in Media Type Selection screen. Photo file list will be displayed. Just move to a file and press
[ENTER] or [PLAY/PAUSE] button.
Select Picture icon in Media Type Selection screen.
< Function and Button Descriptions>
Move to a file and press [ENTER] or [PLAY/PAUSE]
button.
Press [ENTER] for playing just the file or
[PLAY/PAUSE] for playing all files from the selected file.
Remote Control Function Description
FILE INFO
PREV
I
NEXT
I
ENTER Playback a File
Show File
Information
Playback
Previous File
Playback
Next File
Show the file information which is being played. In order to
hide the information, press this button again.
Play a previous file before a current playback file. If you used
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
Play a next file after a current playback file. If you used
[ENTER] for playback, you can not use this function. This is
available in playing all files as using [PLAY/PAUSE] button or
'Play All' icon.
Play a file. After finishing playback, return to file selections
screen.
31
PLAY / PAUSE
II
PLAY / PAUSE
II
FF
REW
Playback
Next All Files
Pause
After the file that you select, play next all files continuously. It
is same as [PLAY/PAUSE] button.
Pause playback, if pressing this button when a file is being
played. In order to play again, press this button again.
Zoom In Enlarge a photo.
Zoom Out Reduce a photo.
ANGLE Rotation Rotate a photo.
방향키
▲▼
Panning Move the position of photo.
ENTER Return to Original Photo Return to original photo.
Brt. CONT
Control luminosity,
color depth, brightness
When pressing this button, 3 modes switch. After selecting a
mode, change settings with ▲▼ arrow buttons.
9 Photo Slide Show
If you play all files with 'Play All' icon or [PLAY/PAUSE], photo slide shows will be started.
9 Music Slide Show
Make a 'music' folder (in small letters not capital letters) at root directory of HDD and save MP3 files at the folder. If the HDD is
divided into two or more partitions, make a 'music' folder at first partition.
When you play one or all photo files, you can listen to mp3s and see photo slide show together.
9Photo Preview On, Off
It is possible to enable or disable preview the photo file as a thumbnail image before playing at Other Setup screen.
32
2.8 Make a Play-List
User can register all media type of files like video, music, and photo to play-list. The registered media files to play-list
will be played without discriminating media type.
9It is not possible to play each registered files independently. Use 'Play All, Random Play' icon or [PLAY/PAUSE] button.
Additionally, registered play-list will be deleted after rebooting.
① Select Play List icon in Media Type Selection screen. Move to a file and press [ENTER] for adding to Play-
* In order to move up to Left Icon, press [◀] button.
* Delete All icon means to delete all the added files.
* In order to delete a added file, move to a file on Play-List screen and press [ENTER] twice.
* In order to change location among added files, move to a file which you want to move and press [ENTER] and then
move to the other file where you want to add and press [ENTER].
List. After adding, press
Move to 'Display' icon and press [ENTER].
③ Play-List screen appears. You can see just added
files. Play as followings,
- Play All icon: play in order from selected file.
- Random Play icon: play in random.
- Play/Pause button: play in order from selected file.
◀ for moving to Left Icon.
33
2.9 Remote Controls
This is guide for basic use of remote control. For more details, ‘2.3 Basic Screen Menu’, ‘2.4 Play Video Files’, ‘2.5 Play
DVD Files’, ‘2.6 Play Music Files’, ‘2.7 Play Photo Files’, ‘2.8 Make a Play-List’.
ENTER Play a File
▲▼◄► Arrow Key
FILE INFO Show File Info
TIME SEARCH Jump to Specific play time
Brt.CONT Set Luminosity, Color Depth, Brightness
MEDIA TYPE Go to Media Type Selection Screen
VIDEO Change Video Output Mode
AUDIO Change Audio Type of Video, DVD file
SUBTITLE S ubtitle Settings
Scr. SIZE Screen Size Set tings
① Pull off the battery tray from remote controller’s body completely. ② Put the enclosed battery on the tray. ③ Insert the tray
into remote controller’s body completely.
POWER Turn On / Off SETUP Go to Set up Screen.
MENU Go to DVD Main Menu
TITLE Go to DVD Title Menu ANGLE DVD Angle, Photo Rotation
REPEAT Set DVD Chapter, Title Repeat A-B REPEAT Set DVD A-B Repeat
SLOW Play DVD Slowly
MAIN PAGE Go to Media Type Selection Screen.
PLAY/PAUSE Play next all files
Pause
STOP Stop Play
REW Play Faster in Backward
FF Play Faster in Forward.
PREV Go to Previous Page
Play Previous File in Play All
NEXT Go to Next Page
Play Next File in Play All
How to Insert/Change Battery
34
2.10 Others
2.10.1 Music Slide Show
Make a 'music' folder (in small letters not capital letters) at root directory of HDD and save MP3s files in the folder. If
the HDD is divided into two or more partitions, make a 'music' folder at first partition.
When you play one or all photo files, you can listen to mp3s and see photo slide show together.
2.10.2 MP3 Quick Play
This is for listening to MP3 files without a TV set.
Make a 'music' folder (in small letters not capital letters) at root directory of HDD and save MP3s files in the folder. If
the HDD is divided into two or more partitions, make a 'music' folder at first partition.
Turn on the AVOX and just press [PLAY/PAUSE] button. MP3 files at 'music' folder will be played automatically.
Additionally, after rebooting the AVOX, the last played file will continue playing.
2.10.3 Change Background Image
It is possible to change a background image on the AVOX. Save ‘mybg.jpg’ at root directory of the HDD. Background
image will be set to whatever the ‘mybg.jpg’ image is.
* Recommend to use 720x480 pixels image.
2.10.4 Change OSD Text Color
Press number 1 button before playing a file, OSD text color will be changed in dark or white. When you change
background image in dark or white, this function will allow reading the text easily.
2.10.5 Firmware Upgrade
You can check for firmware upgrades at the Download section of www.vantecusa.com.
After connecting to a TV set, move to the upgrade file and press [ENTER]. The upgrade will progress automatically.
After finishing the upgrade, you can check firmware version on Setup screen. Press [SETUP] button.
Technical Support/Contact Info
Vantec USA
43951 Boscell Rd
Fremont, CA 94538
Tech Support: 510-668-0368
www.vantecusa.com
Website:
Email: support@vantecusa.com
35
Loading...
