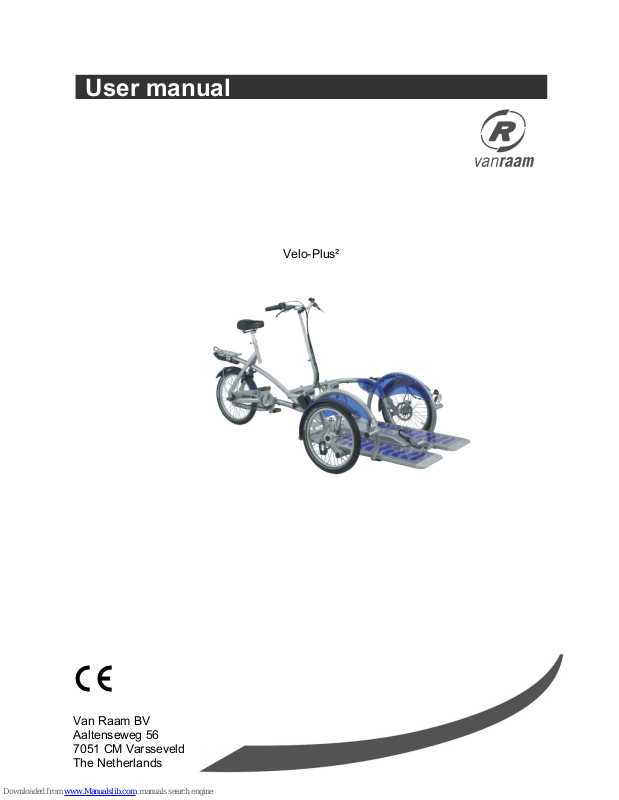

Page 1
Van Raam BV
Aaltenseweg 56
7051 CM Varsseveld
The Netherlands
User manual
Velo-Plus²
Page 2
User manual
Velo-Plus²
2
Page 3
User manual
Velo-Plus²
3
Contents
Contents .................................................................................................................3
Contact details manufacturer ...................................................................................3
Conformity ..............................................................................................................3
Introduction.............................................................................................................4
Delivery...................................................................................................................4
Intended usage .......................................................................................................4
Safety measures .....................................................................................................5
Delivery inspection ..................................................................................................6
Adjustment of the bicycle.........................................................................................6
Accessories...........................................................................................................11
Before the first use ................................................................................................15
Technical details....................................................................................................18
Maintenance and adjustments to be done by owner................................................18
Repairs and maintenance to be done by dealer......................................................20
Disposal................................................................................................................20
Handover/sale to a new owner...............................................................................20
Guarantee.............................................................................................................20
Frame number.......................................................................................................21
Contact details manufacturer
Van Raam BV
Aaltenseweg 56
7051 CM Varsseveld
The Netherlands
Tel. : +31 (0)315 257370
E-mail : [email protected]
Internet : www.vanraam.nl
Conformity
Van Raam declares as manufacturer that the Velo-Plus² bicycle has been produced
in accordance with the 93/42/EEG guidelines.
Page 4
User manual
Velo-Plus²
4
Introduction
This user manual gives important and necessary
information about the use of your bicycle. We ask you to go
through the manual thoroughly before using the bicycle.
Delivery
- bicycle with possible packaging
- user manuals (s)
- pump
- possible charger (s), depending on options
Intended usage
The bicycle is designed for normal use on level and solid ground. The usual bicycle
caution should always be taken into consideration. At the same time all safety
instructions as described in this manual should be complied with explicitly. Also the
local traffic rules should always be complied with.
All other use, including damage or physical injuries due to this, are not the
manufacturer's responsibility.
READ
THOROUGHLY!
Page 5
User manual
Velo-Plus²
5
Safety measures
• Ensure the bicycle is in good condition each time before using it.
• Check before each ride that the brakes are in order.
• Check the lights and reflectors.
• Regularly check whether all screw joints are tight.
• Regularly check whether the wheels, the handlebars and the saddle are
secure.
• Make sure there is sufficient air in the tyres.
• Only use the bicycle on a solid and level surface.
• Make sure that wide trousers or lose hanging clothing don’t get caught in the
chain, spokes or pedals.
• Do not use a pressure washer or a steam cleaner for the cleaning of the
bicycle.
• Use the parking brake if the wheelchair is driven on or off the ramp.
• Never place your feet or other limbs under the ramp. You can be hit by
moving parts and suffer from bruises.
• Always place the wheelchair in the driving direction.
Page 6
User manual
Velo-Plus²
6
Load
The maximum load should not be exceeded. See information in the index of technical
details on page 18. By permitted load we mean the total load, including the
wheelchair and load on the luggage rack.
Make sure that the permitted load on the luggage rack is not exceeded.
Damaged or worn out parts
The replacement and repair of parts (frame, forks, illumination, brakes, drive
mechanism and the handle bars) should always be performed by a dealer. If not, the
guarantee ceases to be valid and you will be personally responsible in the event of
possible damage.
Specific safety parts should always be replaced by new parts!
Delivery inspection
Check the delivery immediately after receiving it.
In the event of damage or incomplete delivery we ask you to contact your dealer
immediately.
Adjustment of the bicycle
Before using the bicycle, adjust it to the measurements of the cyclist. This is of great
importance, especially the saddle and the handlebars.
If an optimal adjustment of the bicycle, as defined in the instructions, is not
possible, you can contact your dealer for a fitting solution.
The brakes are correctly adjusted as standard and can only be adjusted by the dealer
during periodic maintenance.
Page 7
User manual
Velo-Plus²
7
MIN INSERT

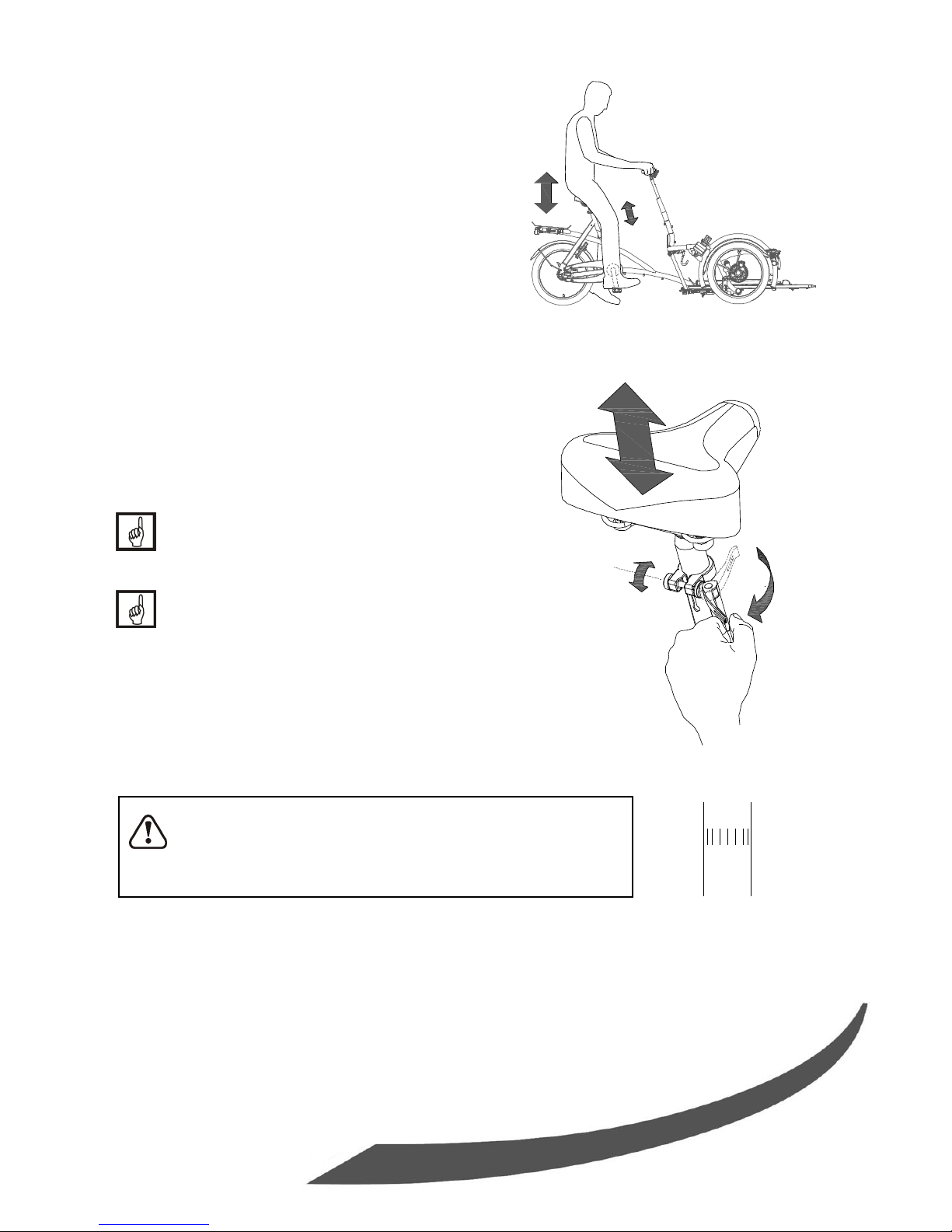

Saddle height
When the cyclist is sitting on the bicycle and
can put a foot on the pedal in the lowest
position, the saddle height is correct. Adjust
the saddle height in such a way that the leg is
stretched but relaxed in that position.
To adjust the saddle:
1. Open the quick-clamp [A].
2. Slide the saddle to the correct height.
3. Close the quick-clamp.
Make sure clothing cannot get
caught in the clamp!
If the clamp closes too easily, the
clamping force is too low. In this case,
open the clamp and tighten the nut (B)
a bit more. If a lot of force is necessary
to close the clamp, the nut should be
loosened slightly.
Do not pull out the saddle pin further than the
marking. The tube will not go into the shank deep
enough and will risk coming off. This can lead to
serious injuries.
[B]
[A]
Page 8
User manual
Velo-Plus²
8
MIN INSERT

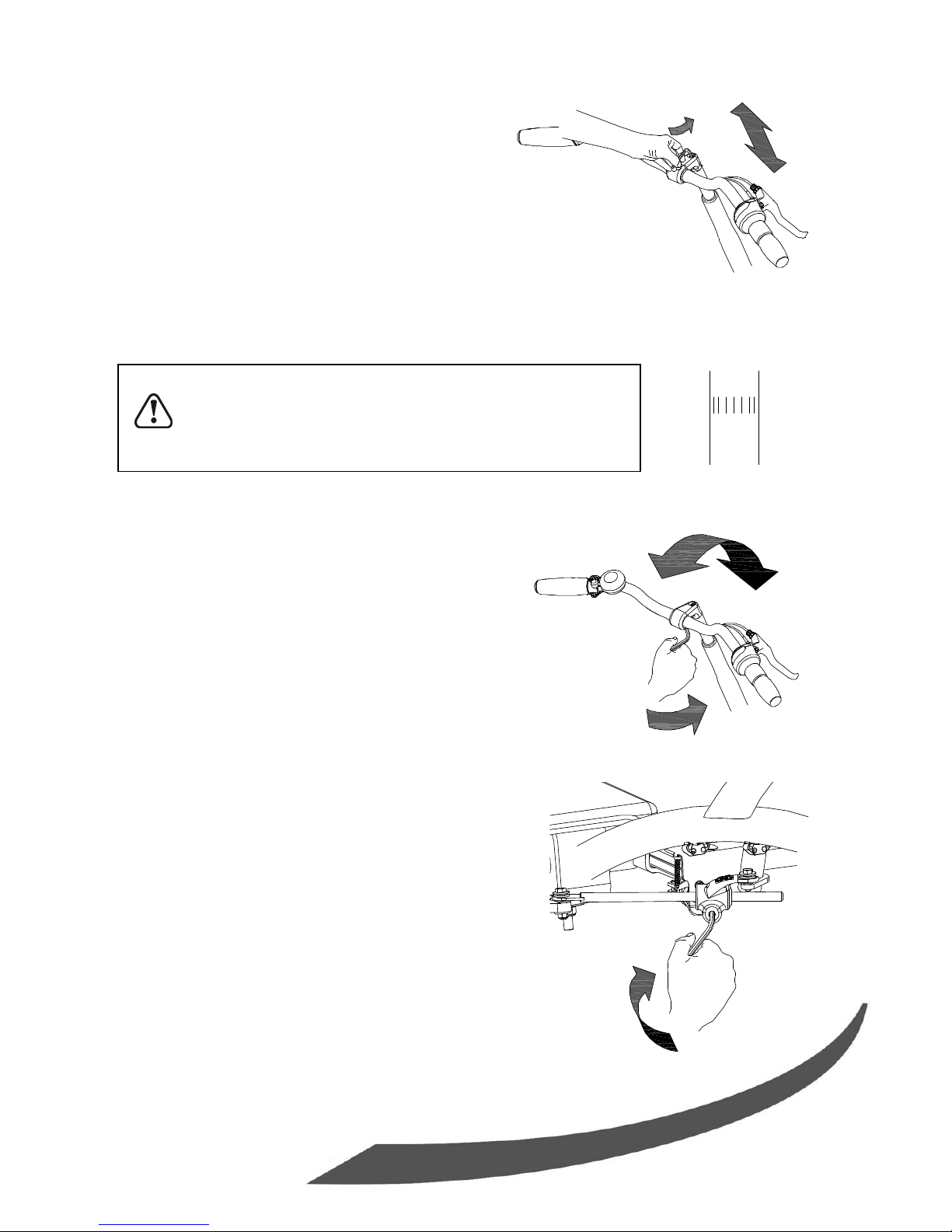

Handle bar height
The height of the handle bars affects the
comfort of the ride. It determines the pressure
on the hands and the position of the back.
Determine your own most comfortable height
by using the bike.
To adjust the handle bars:
1. Slightly loosen the screw by using an Allen
key.
2. Slide the handle bars to the correct height
and tighten the screw very firmly again.
Do not pull out the handle bars further than the
mark. Otherwise the tube will not be deep enough in
the shaft and will risk coming off, which can lead to
serious injuries.
Position handle bars
You can tilt the handle bars. This influences
the distance from the handle bars to the upper
body. Determine your own most comfortable
position by using the bike.
To tilt the handle bars:
1. Slightly loosen the screw with an Allen key.
2. Put the handle bars in the desired position
and then tighten the screw very firmly again.
Steering damper
The steering damper affects the stability
during steering. By adjusting the screw,
steering gets more rigid and stability will
increase. Determine your own most
comfortable setting for using the bike.
1.
2.
1.
2.
Page 9
User manual
Velo-Plus²
9

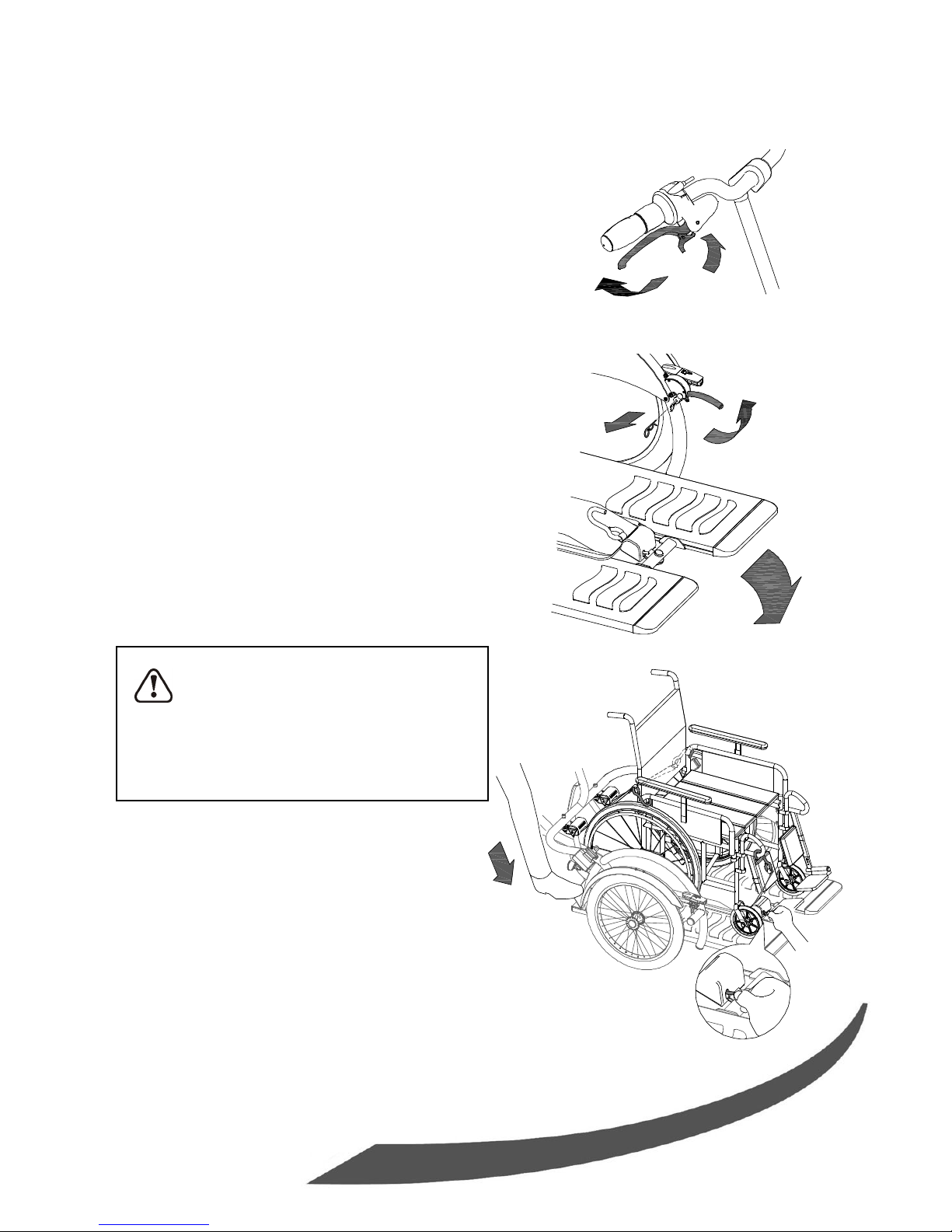

Wheelchair transport
If you want to transport a wheelchair on the Velo-Plus², follow the instructions below.
1. Attach the parking brake to the bike by
squeezing the right brake [A] and lock it
with the pin [B].
2. Remove the safety pin.
3. Pull the handle up so the ramp unlocks
and falls down.
4. Push the wheelchair backwards on the
ramp. Push the wheelchair until the ramp
is tilting and locks itself automatically with
a clear noticeable click.
5. Attach the wheelchair with the three belts.
Push the button to release the belt and
attach the hooks to the wheelchair.
Be sure that the ramp is locking!
Failing to do so may result in
serious injuries.
If the ramp does not lock properly
then use your foot [A] to push
until the ramp locks.
[A]
[A]
[B]
Page 10
User manual
Velo-Plus²
10

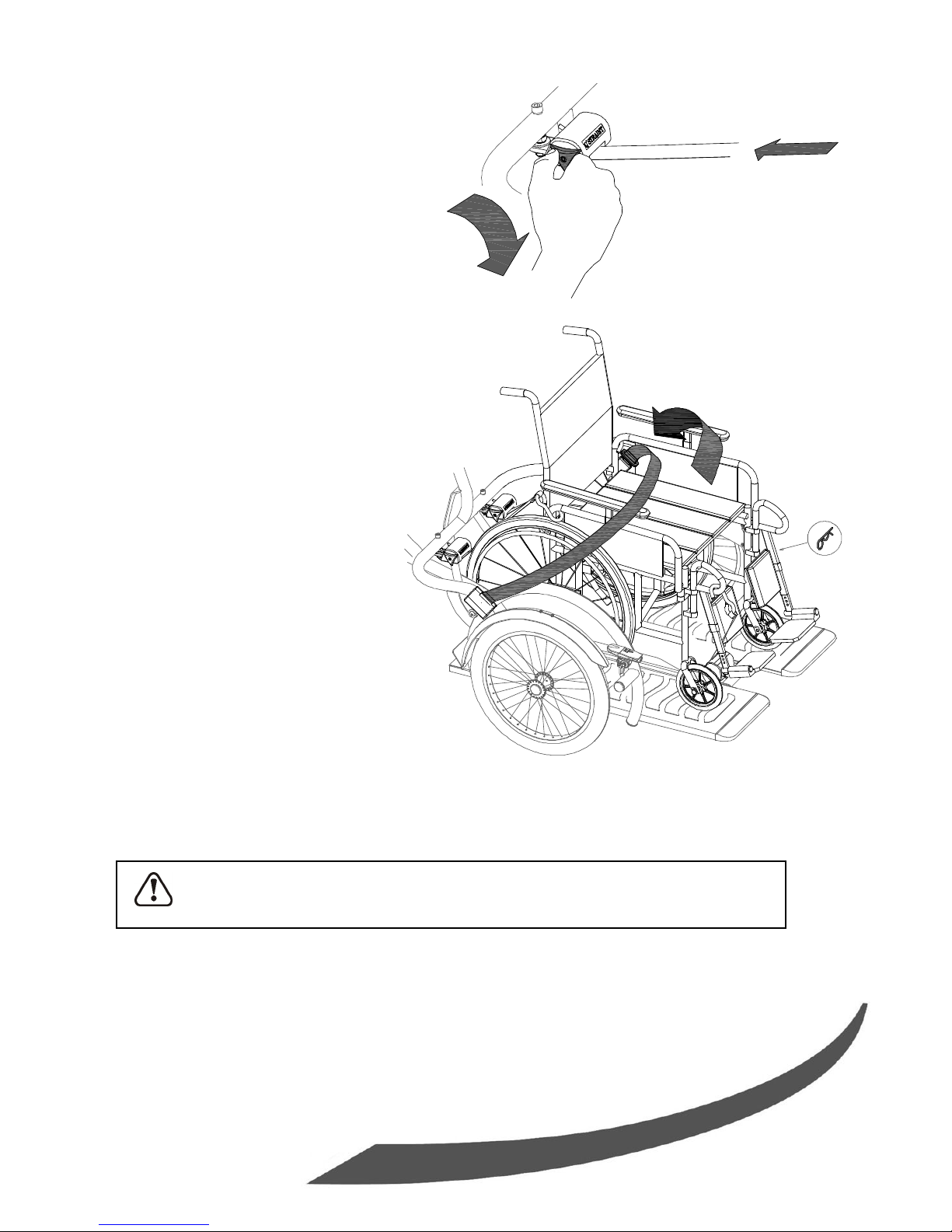

6. Next, turn the star knob to tighten the
belts.
7. Finally fasten the safety belt of the
passenger.
8. Replace the safety pin in the coupling.
To remove the wheelchair from the bike,
follow these steps in reverse order.
Caution: Stop the wheelchair when you release the hooks so that it
will not roll off the ramp.
Page 11
User manual
Velo-Plus²
11

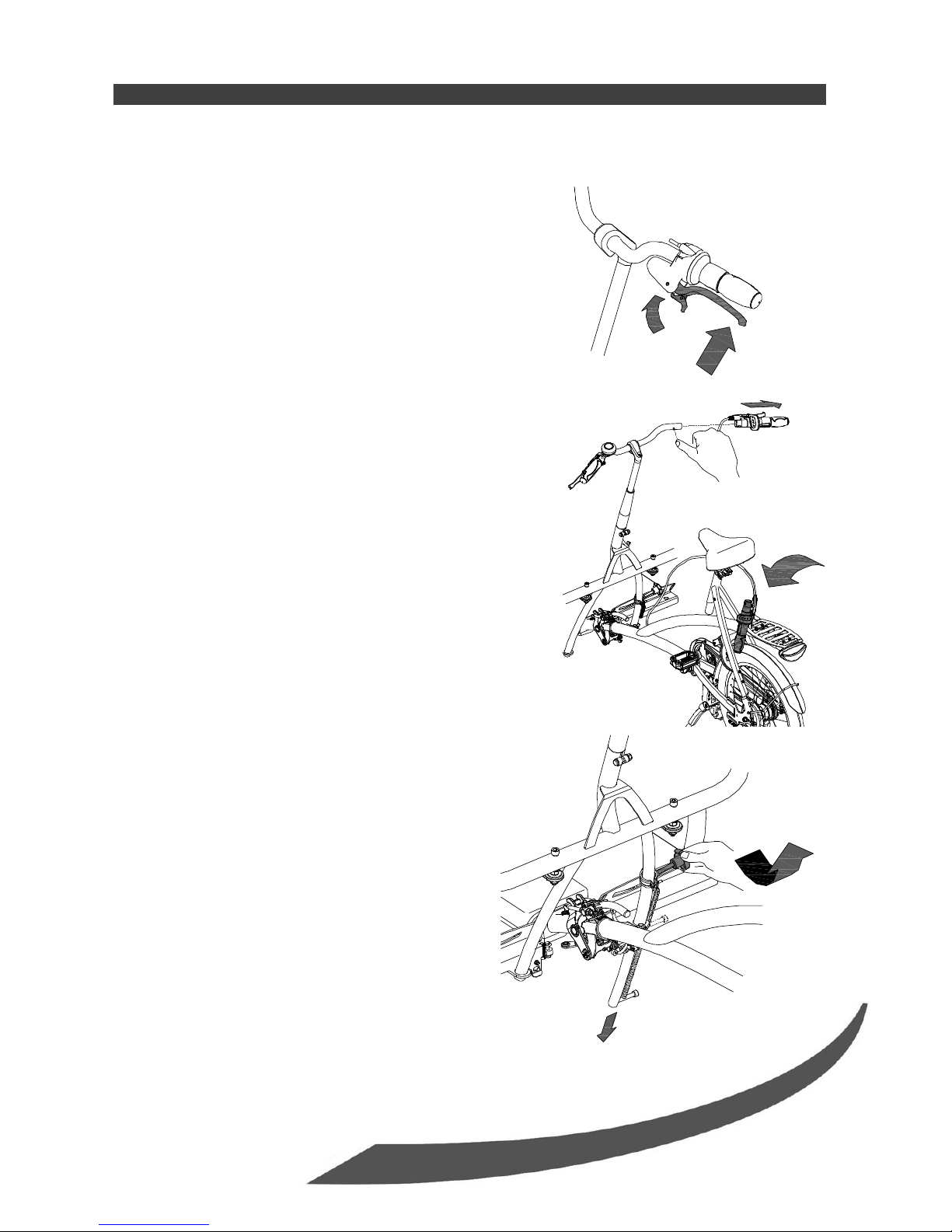

Accessories
Depending on your order, you can use the accessories as described below.
Dividable frame
The ramp can be disconnected from the bike,
which can be convenient if, for example, you
want to store the bike.
To disconnect the ramp:
1. Use the parking brake by pressing the left
brake [A] and securing the brake with the
pellet [B].
2. Remove the grip (with the gear) from the
handle bars. Push the pellet of the small
spring so the grip can be removed from the
handle bars.
3. Hang the grip together with the brake
handle on the luggage rack or other suitable
parts.
4. Lower the support. Loosen knob [A], push
down support [B] with your hand or foot and
then fasten the knob again
4.
[A]
[B]
[A]
[B]
Page 12
User manual
Velo-Plus²
12

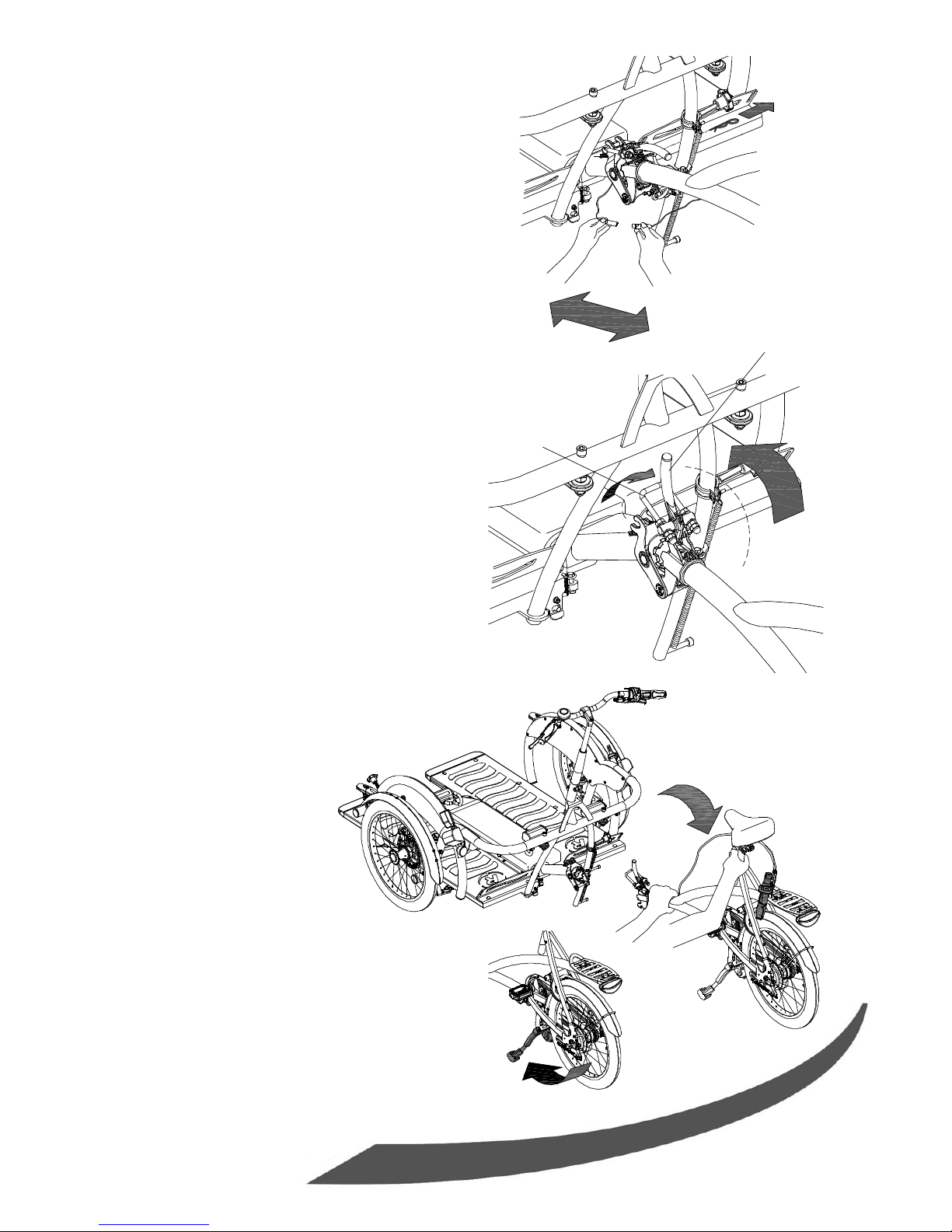

5. Remove the safety pin.
6. Optional: Loosen the cables when you
have an electric motor.
7. Pull the lever [A] up. Detach the bracket
[B] and pull the lever back.
8. Remove the bike apart from the coupling.
Caution: this is heavy! Hold the frame
firmly in both hands and place the rear
part on the stand.
9. Place the bike on the stand.
To reassemble the bike, follow these steps in
reverse order.
5.
6.
7.
[B]
[A]
8.
9.
Page 13
User manual
Velo-Plus²
13
Electric motors
The bicycle can be supplied with an electric motor. There are 2 types available.
Accelerator:
The electric motor is operated by using the accelerator. By using the cockpit you
start the motor and determine the power of the motor. This motor accelerates and
drives with a speed up to 6 km/h maximum. For more speed the cyclist has to pedal
as well.
Pas-Vario:
The electric motor is operated by the cockpit. With this cockpit you switch the engine
on/off and you can also determine the power of the motor. This motor only supports
the cycling and does not accelerate.

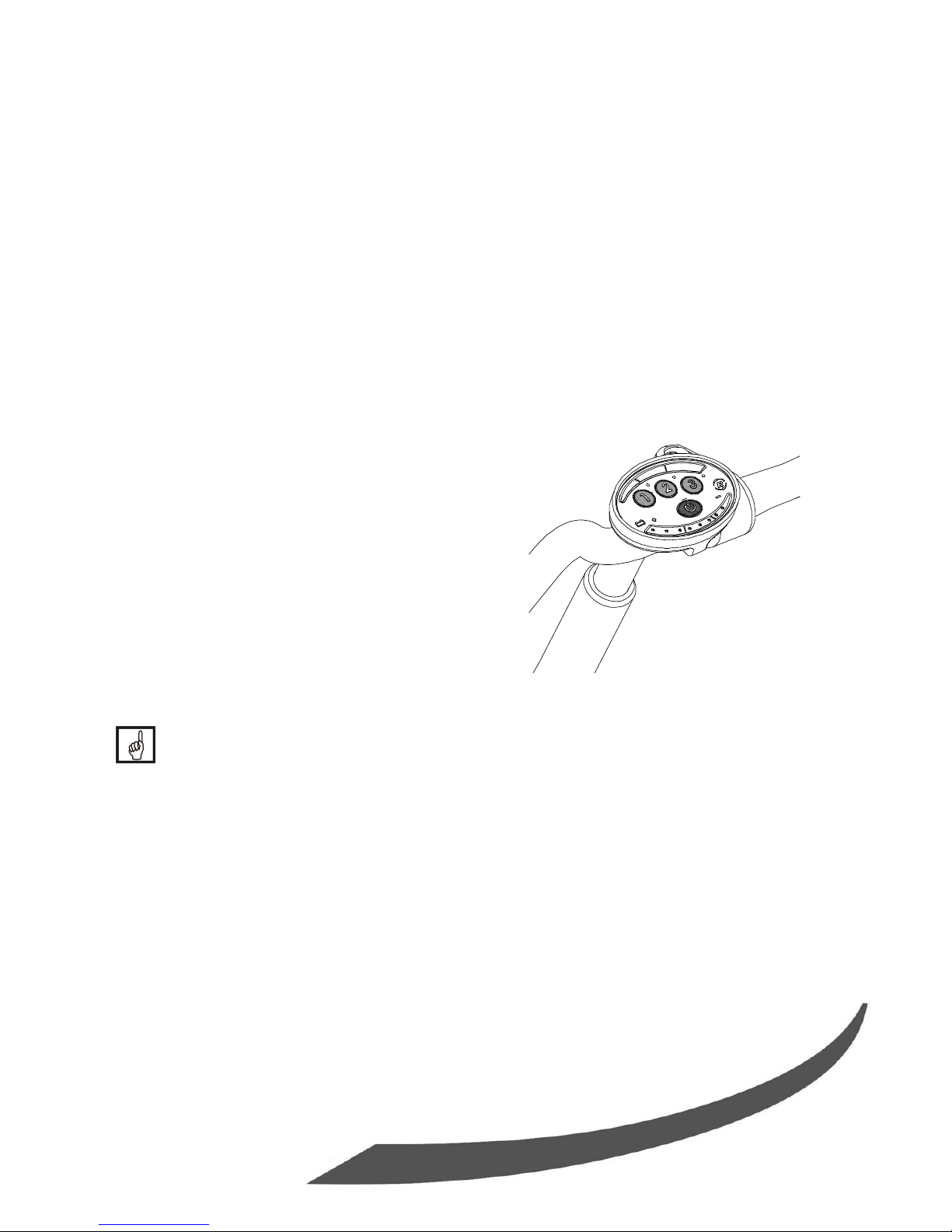

Use of the cockpit
(same in both types):
Press one of the buttons, 1, 2 or 3 to start the
electric motor. With these buttons you can
determine the power of the motor, also during
cycling.
With the red button you shut down the system.
If the system is not used, it will automatically shut
itself down after a period of time.
When walking backwards with the bicycle, always turn off the motor.
Page 14
User manual
Velo-Plus²
14

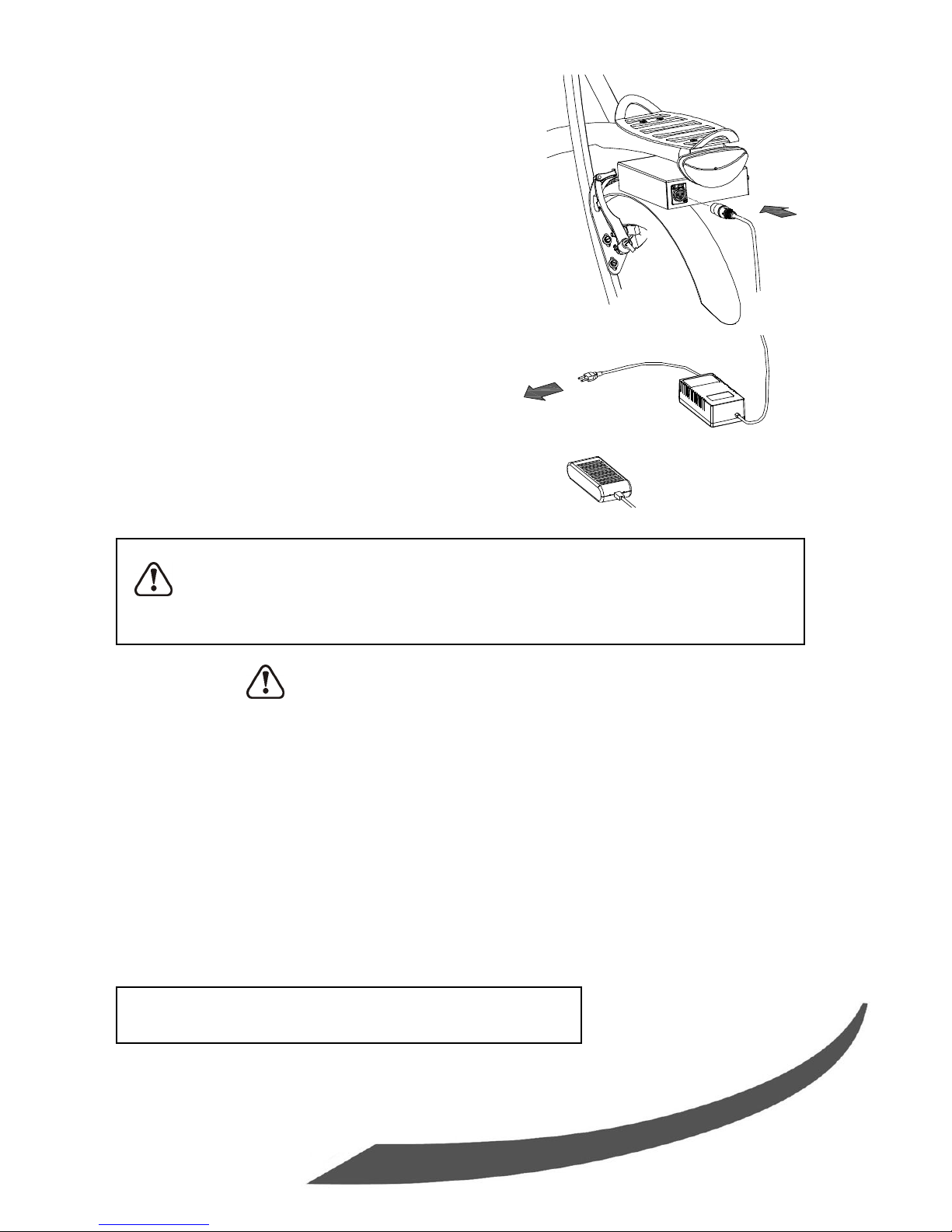

Charging the battery:
The charging point is situated under the luggage
rack. To charge the battery:
1. First connect the charger plug to the
charging point under the luggage rack.
2. Put the charger plug in the wall socket.
3. Depending on the state of the battery, it
needs 4 to 12 hours to charge. The battery
is completely charged when the green lamp
lights up.
4. As soon as the battery is charged, first take
the plug from the wall socket and then
disconnect the charger from the bicycle.
When charging, first connect the plug to the charging point on the
bicycle and then put the plug in the wall socket!
When charged, first take the plug from the wall socket and then
disconnect the charger from the bicycle!
Beware:
• Charge the battery until the green lamp lights up.
• Never interrupt the charging process.
• For the lifespan of the battery it is better to charge the battery when it is almost
discharged.
• It is damaging for the battery if it is not used for more than 2 months. In that case
charge the battery every now and then.
• The case of the charger may not be opened by the buyer. In the event of
problems go to your dealer!
• Only use the charger in non-humid indoor spaces.
• Below 5 degrees Celsius the charger will not function properly. In that case it is
advisable to charge the batteries indoors.
Extra accessories are available at your dealer.
Depending on your
order this charger is
delivered.
Page 15
User manual
Velo-Plus²
15
Before the first use

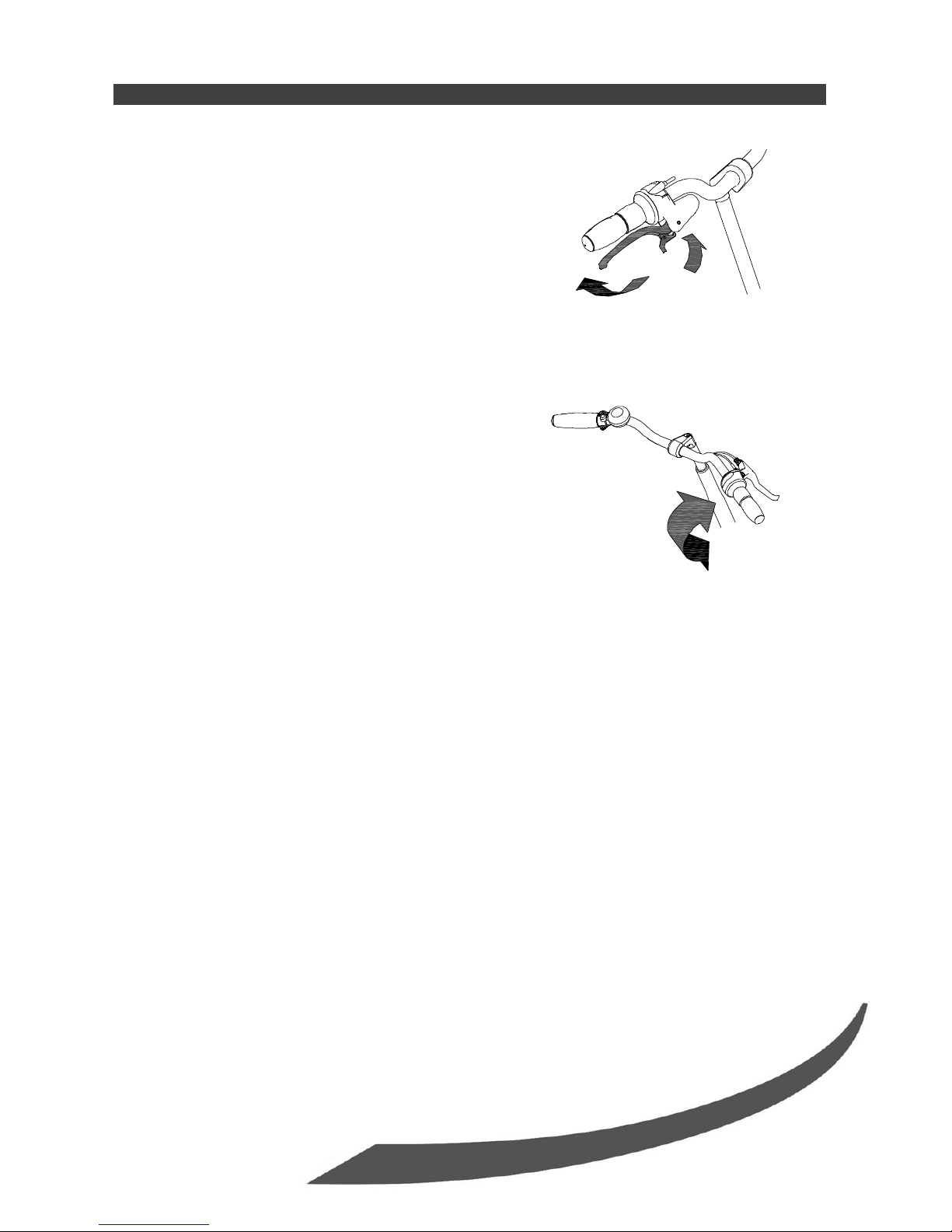

Parking brake
Always use the parking brake if you park the
bicycle and leave it behind.
To operate the parking brake, squeeze the
right brake [A] and lock it with the pin [B].
By squeezing the brake again it will unlock
itself.
Gears
Standard the bicycle has 8 gears. The gears
are used by turning the grip. Do not use the
pedals when turning the grip.
Option: When your bike has an electric
motor, there are 6 gears.
[A]
[B]
Page 16
User manual
Velo-Plus²
16

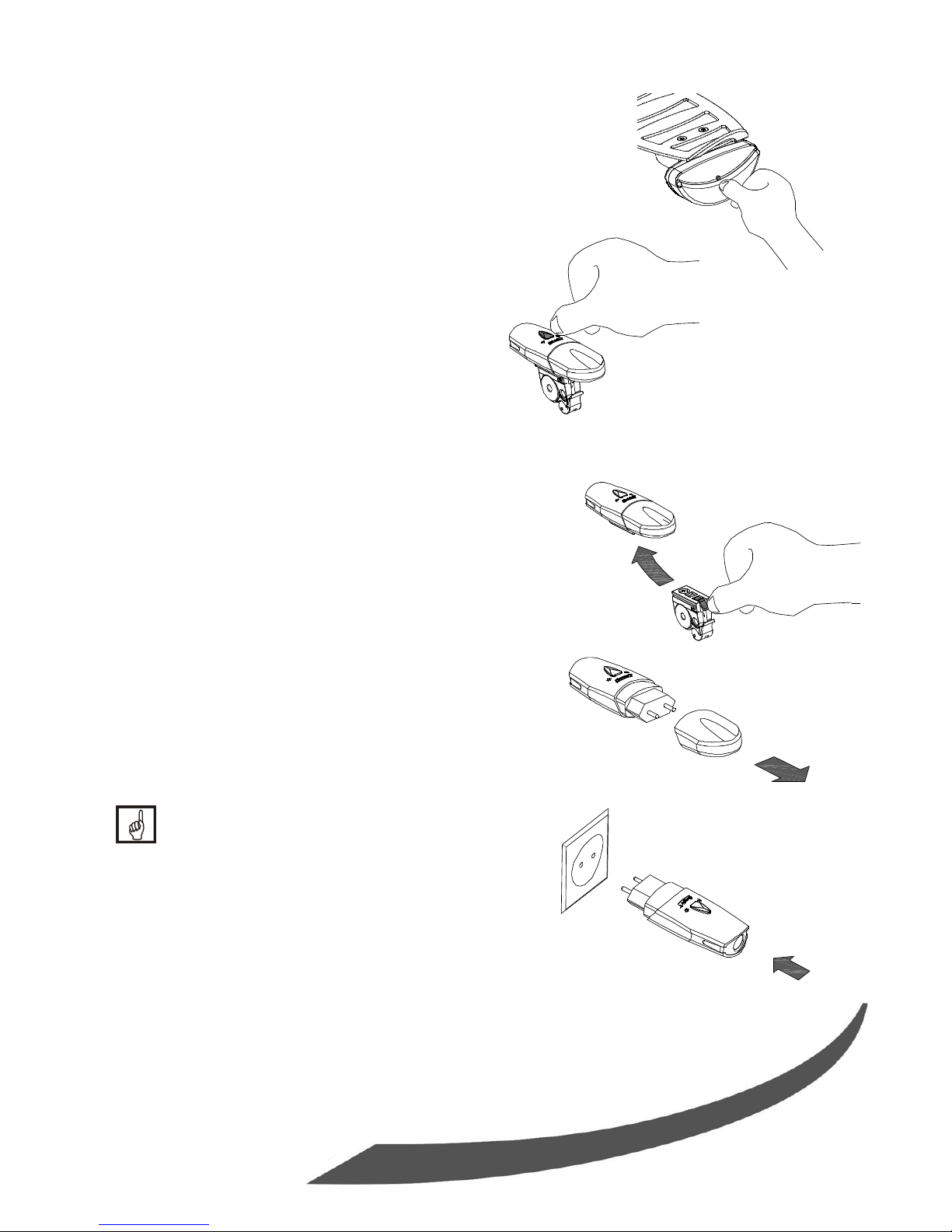

Illumination
The lights work on batteries. Push the button
to switch the lights on and off. Both lights have
2 modes; steady and flashing.
The front light has rechargeable batteries.
When the light on the lamp is red, the lamp
must be charged. The lamp can be charged in
the wall socket. To do this:
1. Push the pellet and slide the lamp out of the
holding device.
2. Remove the cover from the lamp.
3. Put the lamp in the wall socket. The charge
light on the lamp will be on.
4. As soon as the charge light turns off, the
lamp is charged. To fully charge the lamp,
leave it plugged in for another 6 hours, after
the charge light has expired.
For the lifespan of the batteries, we
recommend charging the lamp once
every 3 months, when not used for a
longer period.
Page 17
User manual
Velo-Plus²
17
Check before every ride:
• the brakes (including the parking brakes)
• the tyre pressure
• the illumination
• that all parts are secure
Contact your dealer and do not use your bicycle if you identify any irregularities!
As with all mechanical parts, the bicycle is subject to wear and tear and high loading.
If a component fails, it can lead to very dangerous situations. This can lead to
damage or injuries to the user of the bicycle. Any form of tearing, scratching or
changing of colour is an indication that the part should be replaced.
Points of interest during cycling
After you have adjusted the bicycle to the measurements of the cyclist and the
passenger, you can start using the bike.
The tricycle gives a very different ride experience than a bicycle with two
wheels!
Practice, in particular, with bends and braking, because a tricycle can react contrary
to what you would expect. It may happen that the front wheel comes off the ground
on the inside when going round a bend. To avoid this the rider leans towards the
inside of the bend with his body.
High speeds in the bends, driving on rough ground, and sharp bends can
lead to the tricycle falling over!
Important safety points for the cyclist
• Go very carefully during the first ride.
• When riding the bicycle hold both hands firmly on the handle bars and feet
on the pedals.
• Test the riding style of the bicycle on rough ground at moderate speed. This
way the cyclist learns how to react to unexpected movements of the bicycle
and the handle bars during use.
• Explore how the tilting movements of the bicycle react to body posture. Tilt
to the inside of the bend.
• Small obstacles should be cycled over with appropriate speed.
• Obstacles higher than 5 cm should be avoided.
Page 18
User manual
Velo-Plus²
18
Technical details
Length (cm) 243
Width (cm) 110
Boarding height (cm) 52
Front wheel 20“
Back wheel 20“
Weight (kg) From 49
Max. load luggage rack (kg) 20
Total max. load (kg) 220
Brakes, front Disk brakes
Brakes, back Drum brakes / Rim brakes
Maintenance and adjustments to be done by owner
Below you can find the instructions for maintenance and adjustments that you can do
yourself on a regular basis, which will keep your bicycle in top condition.
Cleaning
The frame of the bicycle can be cleaned with a damp cloth. For areas that are dirtier
you can use a mild detergent. The wheels can be cleaned with a damp brush with
plastic hairs (not a wire brush!) The saddle and the grips can be cleaned with mild
soap and water.
Do not use a pressure washer or a steam cleaner!
Inspection of the bicycle
After 200 kilometres or after a period of 2 months the bicycle should be inspected.
Check the brakes, the illumination and the spokes. Also check the tyre tread depth.
This should be at least 1 mm. Worn out tyres or possible faulty parts should be
replaced.
Also check the parking brake. With the parking brake pulled up, the bicycle should not
ride away with the cyclist.
Page 19
User manual
Velo-Plus²
19

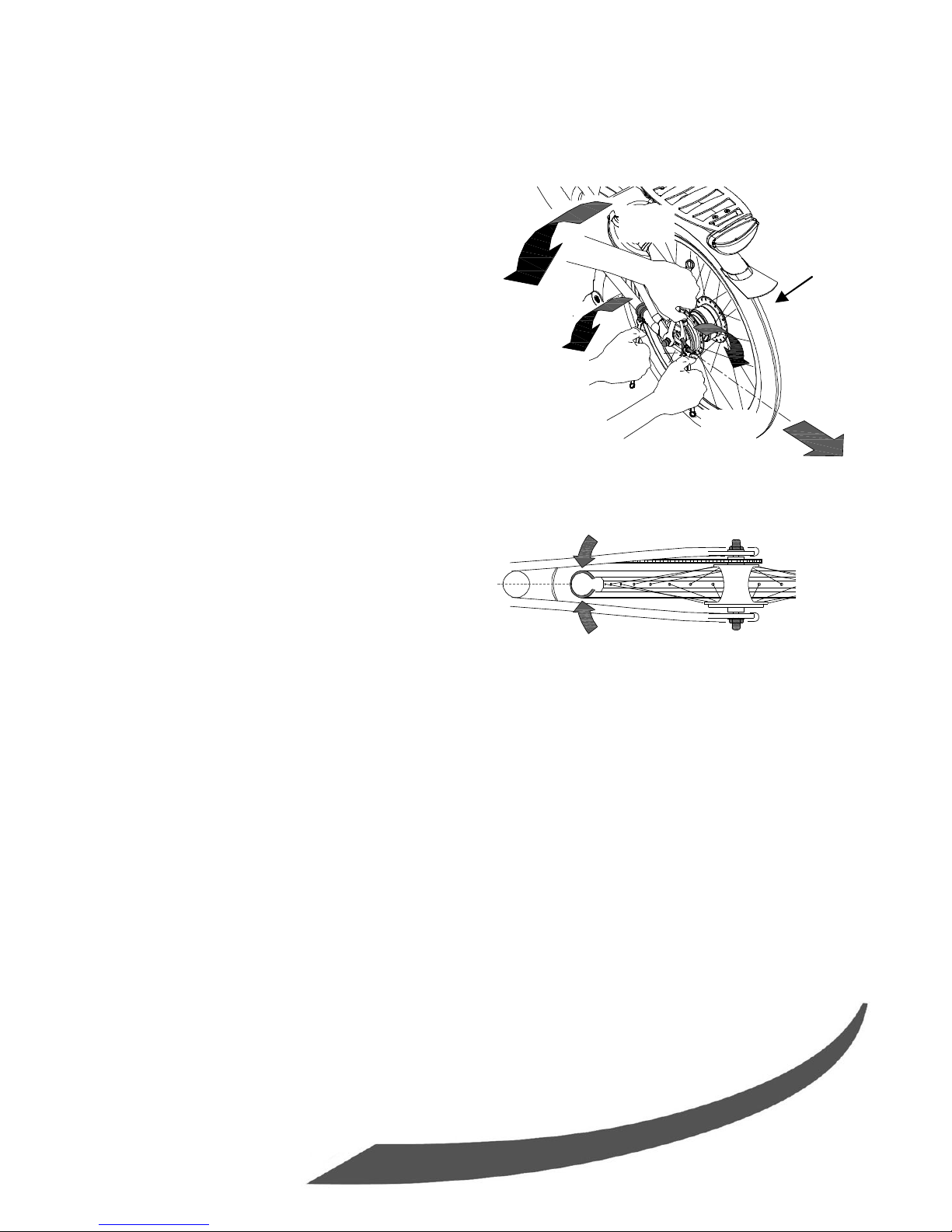

The correct tension of the chain
The chain should not be too tight. It should hang loose. Without effort you should be
able to move the chain up and down, half a centimetre approximately.
To keep the chain tension correct, the back wheel
axle is adjusted. Follow the instructions below:
1. Slightly loosen the nuts of the back wheel
axle, so that it can move backwards and
forwards.
2. Slightly loosen the nut of the bracket, so it
can also move.
3. By tightening the adjusting nuts at both
sides, the back wheel slowly moves
backwards. Tighten the adjusting nuts in
such a way that the chain is hanging loose,
as described above.
4. At the same time, make sure that the wheel is
straight and positioned in the centre of the frame,
as illustrated. Not to the left or to the right.
5. Slightly tighten the nuts of the back wheel axle.
6. Check whether the chain tension is correct
and whether the wheel is straight and in
the centre of the frame.
7. Tighten all the nuts again.
The right lubricant
The chain should be cleaned and maintained at regular intervals (every 3 months
approximately). Only use special chain grease or Tevlon spray. This is the only way
to make sure that the chain will run smoothly, will stay water resistant and will not
rust. Wipe the chain with a cloth, treat it with grease or spray and remove any excess
lubricant with a rag.
Other parts should not be treated with a lubricant.
Checking the rim
Due to the combined action of the brake and the rims, not only the brake lining but
also the condition of the rim is important. For this reason the rim should be checked at
regular intervals, for example when you inflate the tyres. The presence of fine cracks
in the spoke punches or deformation of the rim when there is higher air pressure,
indicate more serious wear and tear. In that case the rim should be replaced,
because it can lead to loss of brake function or even a crack in the rim, which can
lead to all kinds of dangerous consequences.
2.
4.
3.
3.
Page 20
User manual
Velo-Plus²
20
Repairs and maintenance to be done by dealer
It is recommended that the bicycle has a yearly inspection carried out by the dealer.
In the event of technical trouble or faults, the bicycle should be taken to the dealer for
repairs immediately.
The replacing of safety-related components (especially frame, brakes, illumination,
handle bars, front fork and actuation) should be performed by the dealer.
If you still decide you want to replace components yourself, you are responsible for
damage or harm due to incorrectly fitted components.
Only use original spare parts, which you can buy at you dealer. If requested the
dealer will make the necessary information on repair and maintenance available.
Disposal
If you want to dispose your bicycle, contact your dealer. You can also contact the
local waste disposal company. They will dispose the bicycle according to the
regulations of your town.
Handover/sale to a new owner
When you hand over your bicycle to a new owner it is important that you also hand
over all necessary technical documentation so that the new owner can use the bicycle
safely.
Guarantee
The guarantee is valid for all faults in the product, which are proven to be caused by
material or manufacturing error.
For our bicycles we give a guarantee of 5 years on the frame and the front fork. For
the paint, all accessories and other parts (except wear parts) we provide a 2 year
guarantee, as legally regulated.
Beware!
The guarantee as well as the product liability in general expires if the instructions
stated in this manual are not followed. This is also the case if unauthorized
maintenance is carried out or if technical changes or additions are made without
permission of Van Raam.
Page 21
User manual
Velo-Plus²
21

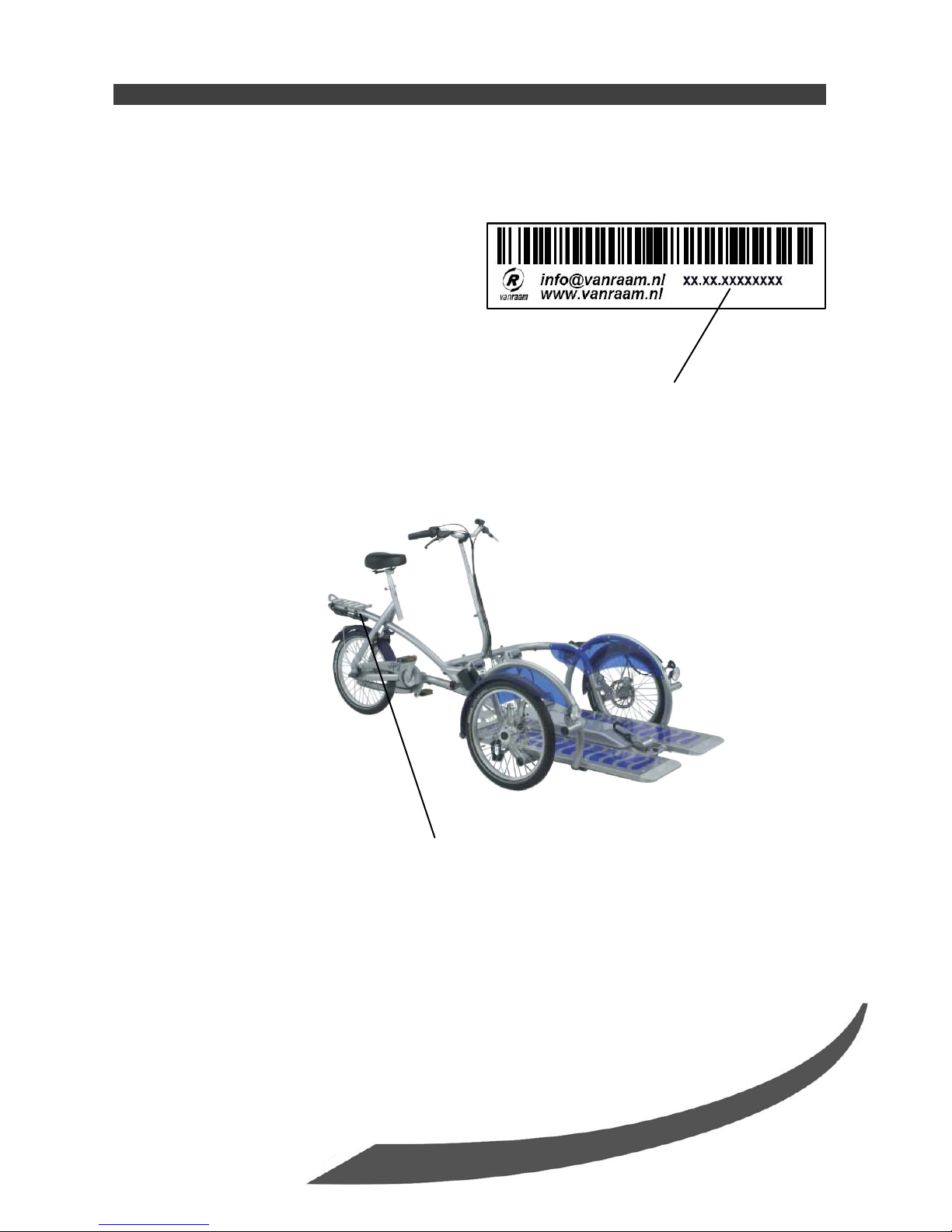

Frame number
The frame number is printed on the sticker. This sticker is located on the frame, see
the image below.
Example sticker:
Position of sticker:
Frame number
on the frame tube
Loading...
