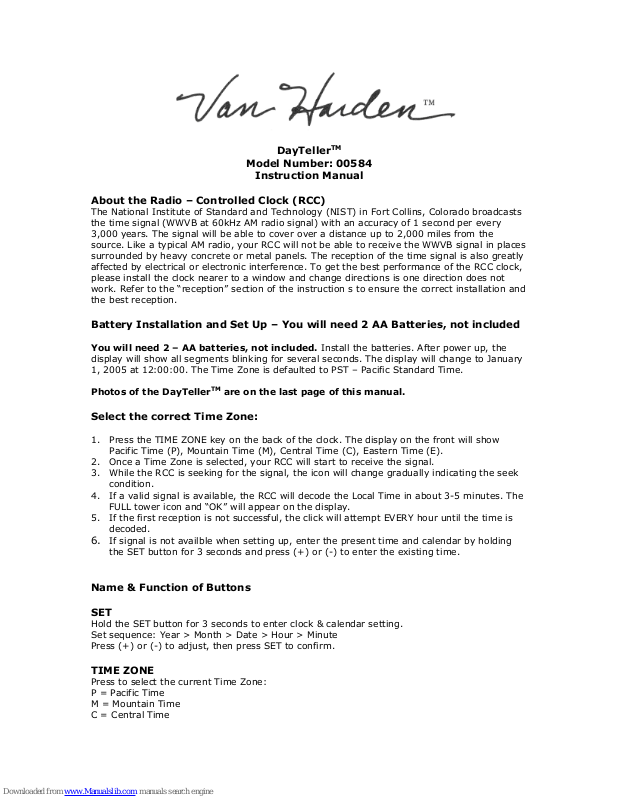

DayTeller
TM
Model Number: 00584
Instruction Manual
About the Radio – Controlled Clock (RCC)
The National Institute of Standard and Technology (NIST) in Fort Collins, Colorado broadcasts
the time signal (WWVB at 60kHz AM radio signal) with an accuracy of 1 second per every
3,000 years. The signal will be able to cover over a distance up to 2,000 miles from the
source. Like a typical AM radio, your RCC will not be able to receive the WWVB signal in places
surrounded by heavy concrete or metal panels. The reception of the time signal is also greatly
affected by electrical or electronic interference. To get the best performance of the RCC clock,
please install the clock nearer to a window and change directions is one direction does not
work. Refer to the “reception” section of the instruction s to ensure the correct installation and
the best reception.
Battery Installation and Set Up – You will need 2 AA Batteries, not included
You will need 2 – AA batteries, not included. Install the batteries. After power up, the
display will show all segments blinking for several seconds. The display will change to January
1, 2005 at 12:00:00. The Time Zone is defaulted to PST – Pacific Standard Time.
Photos of the DayTellerTM are on the last page of this manual.
Select the correct Time Zone:
1. Press the TIME ZONE key on the back of the clock. The display on the front will show
Pacific Time (P), Mountain Time (M), Central Time (C), Eastern Time (E).
2. Once a Time Zone is selected, your RCC will start to receive the signal.
3. While the RCC is seeking for the signal, the icon will change gradually indicating the seek
condition.
4. If a valid signal is available, the RCC will decode the Local Time in about 3-5 minutes. The
FULL tower icon and “OK” will appear on the display.
5. If the first reception is not successful, the click will attempt EVERY hour until the time is
decoded.
6. If signal is not availble when setting up, enter the present time and calendar by holding
the SET button for 3 seconds and press (+) or (-) to enter the existing time.
Name & Function of Buttons
SET
Hold the SET button for 3 seconds to enter clock & calendar setting.
Set sequence: Year > Month > Date > Hour > Minute
Press (+) or (-) to adjust, then press SET to confirm.
TIME ZONE
Press to select the current Time Zone:
P = Pacific Time
M = Mountain Time
C = Central Time
E = Eastern Time
Hold the TIME ZONE button for 3 seconds to trigger Daylight Saving Time “on” or “off”. Your
clock is preset to “DST ON”. Leave the setting “on” if you want to receive the Daylight Saving
Time in the summer.
Note: In parts of Arizona and Indiana where Daylight Saving Time is not applicable, set to
“DST OFF”. (The DST icon will appear on the display when DST is received.)
( + ) SEEK TIME
During the CLOCK setting, press the ( + ) button for 1 step advance. Hold down the ( + )
button for 10 steps/seconds for faster advance.
At normal mode, HOLD 3 seconds to get a Manual Synchronization of Atomic time signal.
( - ) SEEK TIME
During the CLOCK setting, press the ( - ) button for 1 step backward. Hold down the ( + )
button for 10 steps/seconds for faster backward.
LIMITED WARRANTY – INTERNATIONAL
Consumer may have more remedies at law than follows. DayTeller L.C. warrants to the owner,
this product to be free from defect in material and workmanship for one year from the date of
purchase. DAYTELLER L.C. SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER ARISING IN CONTRACT OR TORT. DayTeller L.C.
obligation (at its option) is limited to repair or replace this product. For technical questions,
call our toll free support hotline: 1 (877) 221–1252.
Features & Specifications:
1 WWVB Radio-Controlled Clock with 4 time zones (P, M, C, E)
1 Perpetual calendar with Monday, Date/Day of Week
1 Daylight Saving Time
1 12 hr clock
2 AA Batteries
To order additional products call us at 1 800 507-2837 or visit our website at
www.VanHarden.com. You can reach us by mail at the following address:
DayTeller L.C.
511 Wisconsin Drive
New Richmond, WI 54017
Made in China
Patent Pending
Rev. Nov. 2005
