Unvented (Vent-Free) LogMate Stove
This stove may be installed in an aftermarket* manufactured (mobile) home, where not
prohibited by state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
(i.e. Installation of this product is permitted after the manufactured (mobile) home is sited).
OWNER’S
OPERATION
AND
INSTALLATION
MANUAL
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
SVFBC
Circulating
Stove
WARNING: Improper installation, adjustment, alteration, service, or maintenance
can cause injury or property damage.
Refer to this manual for correct installation and operational procedures. For
assistance or additional information
consult a qualified installer, service
agency, or the gas supplier.
WARNING: The SVFBC stove is to be
used only with certain vent-free gas log
heaters (see Table 1). Do not burn wood
or other materials in this stove.
This is an unvented gas-fired heater. It
uses air (oxygen) from the room in which
it is installed. Provisions for adequate
combustion and ventilation air must be
provided. Refer to section
bustion and Ventilation,
Air for Com-
page 6.
Save this manual for future reference.
CONTENTS
SECTION PAGE
Safety Information................................................................................................. 2
Product Specifications ........................................................................................... 4
Local Codes ........................................................................................................... 5
Unpacking..............................................................................................................5
Product Features .................................................................................................... 6
Locating Stove....................................................................................................... 6
Air for Combustion and Ventilation...................................................................... 6
Installing .............................................................................................................. 10
Installation Clearances .................................................................................. 10
Installing GA3700 Blower Accessory .......................................................... 11
Installing Log Heater in Stove ...................................................................... 11
Technical Service ................................................................................................ 12
Replacement Parts ............................................................................................... 12
Accessories .......................................................................................................... 12
Illustrated Parts Breakdown ................................................................................ 13
Warranty Information ........................................................................... Back Cover
SAFETY
INFORMATION
W ARNINGS
WARNING ICON G 001
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this stove. Improper use of this
stove can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.
TABLE 1
For use with vent-free gas log heater models:
VANGUARD
VL18N
VL18P
VL18NT(A)
VL18PT(A)
VL18NV
VL18PV
VS18NV(B)
VS18PV(B)
®
VYS18N
VYS18P
VYD18N
VYD18P
VYBD18P
VYBD18N
VS18NT(A)
VS18PT(A)
COMFORT
FLAME
CF18N
CF18P
CF18NT(A)
CF18PT(A)
CFS18NV(B)
CFS18PV(B)
CFYS18N
CFYS18P
CFS18NTA
CFS18PTA
®
2
103661
SAFETY
INFORMATION
Continued
W ARNINGS
WARNING: Any change to this heater or its controls can be dangerous.
1. This stove shall not be installed in a bedroom or bathroom.
2. Never install the stove
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less
than 36 inches from the front, top, or sides of the stove
• in high traffic areas
• in windy or drafty areas
3. Do not use this stove as a wood-burning fireplace. Use only the logs specified in Table 1, page 2.
4. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock
wool. Using these added items can cause sooting.
5. You must operate this stove with the screen in place. Make sure the screen is
in place before running stove.
6. Do not allow fans to blow directly into the stove. Avoid any drafts that alter
burner flame patterns. Ceiling fans can create drafts that alter burner flame
patterns. Altered burner patterns can cause sooting.
7. Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.
8. Vent-free gas log heaters installed in this stove require fresh air ventilation to run
properly. See Air for Combustion and Ventilation, pages 6 through 9.
9. Do not run stove
• where flammable liquids or vapors are used or stored
• under dusty conditions
10.Do not use this stove to cook food or burn paper or other objects.
11.Never place any objects in the stove or on logs.
12.Stove front and screen becomes very hot when running the stove. Keep
children and adults away from hot surfaces to avoid burns or clothing
ignition. The stove will remain hot for a time after shut-down. Allow surfaces to cool before touching.
13.Carefully supervise young children when they are in the room with the stove.
14.Turn logs off and let cool before servicing. Only a qualified service person
should service and repair the stove.
15.Operating the stove above elevations of 4,500 feet could cause pilot outage.
16.Installation and repair should be done by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control
compartments, burners and circulating air passageways of the appliance be
kept clean.
17.Do not place clothing or other flammable material on or near the screen.
Continued
103661
3
PRODUCT
SPECIFICATIONS
31 1/2"
28"
1"
22 3/4"
19"
27"
20 1/4"
7 3/4"
1"
16 5/8"
24"
18 1/2"
26 1/2"
Figure 1 - Stove Front View
19 1/2"
15 1/2"
13 1/2"
4"
4"
1"
Door
Handle
1 1/2"
1"
1"
16"
12"
14 1/2"
18 1/2"
4
Figure 2 - Stove Side View
103661
PRODUCT
SPECIFICATIONS
Continued
28"
15 1/2"
4"
5 3/4"
Figure 3 - Stove Top View
LOCAL CODES
UNPACKING
Install and use stove with care. Follow all local codes. In the absence of local codes,
use the latest edition of The National Fuel Gas Code ANSI Z223.1, also known as
NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
NOTICE
Keep stove upright when removing from carton. Never turn stove on
its side.
1. Cut tape at top of carton. Remove stove by lifting it out of the top of carton.
2. Check carton contents for the following:
• Stove
• Touch-up paint
103661
CAUTION
Before installing log set, remove protective film from brass trim on
door. Failure to do so will result in soot and odors.
5
PRODUCT
FEATURES
Operation
This stove is designed to accept all gas log heaters listed in Table 1, page 2. It requires
no outside venting or chimney making installation easy and inexpensive. When used
without the blower, the stove requires no electricity making it ideal for emergency backup heat.
Blower Accessory
The stove will accept the GA3700 accessory. The variable blower allows you to
select the fan speed you desire. The blower circulates heated air from the stove into
the room. Use of blower is optional.
LOCATING
STOVE
AIR FOR
COMBUSTION
AND
VENTILATION
Planning
Plan where you will install the stove. This will save time and money later when you
install the stove. Before installation, consider the following:
1. Where the stove will be located. Allow for wall and ceiling clearances (see
Installation Clearances, page 10).
2. Everything needed to complete installation.
3. These models CANNOT be installed in a bedroom or bathroom.
4. Proper air for combustion and ventilation (see below).
This heater shall not be installed in a confined space or unusually tight
construction unless provisions are provided for adequate combustion and
ventilation air.
Read the following instructions to insure proper fresh air for this and other
fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for proper
combustion and ventilation.
Exhaust fans, stoves, clothes dryers, and fuel burning appliances draw air from the
house to operate. You must provide adequate fresh air for these appliances. This will
insure proper venting of vented fuel-burning appliances.
6
103661
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
PROVIDING ADEQUATE VENTILATION
The following is exerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Contruction; 2. Unconfined Space; 3. Confined Space.
The information on pages 6 through 9 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed
b. weather stripping has been added on openable windows and doors
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional
fresh air. See
If your home does not meet all of the three criteria above, proceed to page 8.
Ventilation Air From Outdoors
and
, page 9
and
.
Confined and Unconfined Space
The National Fuel Gas Code (ANSIZ2123.1, 1992 Section 5.3) defines a confined
space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3 per kw) of the aggregate input rating of all appliances installed in that
space and an unconfined space as a space whose volume is not less than 50 cubic
feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all
appliances installed in that space. Rooms communicating directly with the space
in which the appliances are installed*, through openings not furnished with doors,
are considered a part of the unconfined space.
* Adjoining rooms are communicating only if there are doorless passageways or
ventilation grills between them.
Continued
103661
7
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR STOVE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install stove plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example:
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can
support.
____________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)
Example:
3. Add the Btu/Hr of all fuel burning appliances in the space.
Example:
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example:
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your
options are as follows:
A. Rework work sheet, adding the space of an adjoining room. If the extra space provides an
unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air from Inside Building, page 9.
B. Vent room directly to the outdoors. See Ventilation Air from Outdoors, page 9.
C. Install a lower Btu/Hr gas log, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is
an unconfined space. You will need no additional fresh air ventilation.
Space size 22 ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) =
3168 cu. ft. (volume of space)
3168 cu. ft. (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum
Btu/Hr the space can support)
Vent-free stove ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Stove logs ___________________ Btu/Hr
Other gas appliances* + ___________________ Btu/Hr
Total = ___________________ Btu/Hr
Gas water heater 40,000 Btu/Hr
Vent-free stove with log heater + 30,000 Btu/Hr
Total = 70,000 Btu/Hr
63,300 Btu/Hr (maximum the space can support)
70,000 Btu/Hr (actual amount of Btu/Hr used)
W ARNING
If the area in which the stove and gas log heater may be operated is
smaller than that defined as an unconfined space or if the building
is of unusually tight contruction, provide adequate combustion and
ventilation air by one of the methods described in the
Gas Code, ANSI Z223.1, Section 5.3
or applicable local codes.
8
National Fuel
103661
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoining unconfined space, you must provide two permanent openings: one within 12" of
the ceiling and one within 12" of the floor on the wall connecting the two spaces (see
options 1 and 2, Figure 4). You can also remove door into adjoining room (see option 3,
Figure 4). Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for
Combustion and Ventilation for required size of ventilation grills or ducts.
W ARNING
Rework worksheet, adding the space of the adjoining unconfined
space.
appliances in both spaces.
The combined spaces must have enough fresh air to supply all
12"
Ventilation
Grills
Into Adjoining
Room,
Option 1
Or
Remove
Door into
Adjoining
Room,
Option
3
12"
Ventilation Grills
Into Adjoining Room,
Option 2
Figure 4 - Ventilation Air from Inside Building
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect
these items directly to the outdoors or spaces open to the outdoors. These spaces include
attics and crawl spaces.
IMPORTANT:
thermostat-controlled power vent. Heated air entering the attic will activate the power
vent.
Do not provide openings for inlet or outlet air into attic if attic has a
103661
Outlet
Air
Outlet
Air
Inlet
Air
Inlet Air
Ventilated
Attic
Ventilated
Crawl Space
Figure 5 - Ventilation Air from Outdoors
To Attic
To
Crawl
Space
9
INSTALLING
NOTICE
A qualified service person must install stove. Follow all local codes.
WARNING
Never install the stove
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects
are less than 36 inches from the front, top, or sides of the stove
• in high traffic areas
• in windy or drafty areas
CAUTION
Log heaters installed in this stove create warm air currents. These
currents move heat to wall surfaces next to stove. Installing stove
next to vinyl or cloth wall coverings or operating stove where impurities in the air (such as tobacco smoke) exist, may discolor walls.
CAUTION
Only open and close door with the handle at the bottom of the door.
IMPORTANT:
cial, installing stove in rooms without enough ventilation air may cause mildew to form
from too much moisture. See Air for Combustion and Ventilation, pages 6 through 9.
IMPORTANT:
properly.
Vent-free gas log heaters add moisture to the air. Although this is benefi-
Make sure the stove is level. If stove is not level, log set will not work
INSTALLATION CLEARANCES
W ARNING
Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.
Carefully follow the instructions below. This will ensure safe installation.
Minimum Wall and Ceiling Clearances
A. Clearances from the back of stove to wall should not be less than 3 inches (see
Figure 6).
3"
10
Figure 6 - Minimum Clearance to Back Wall
103661
INSTALLING
Continued
B. Clearances from the side of the stove opening to any combustible wall should not be
less than 20 inches (see Figure 7).
C. Clearances from the top of the stove opening to the ceiling should not be less
than 52 inches (seeFigure 7).
52"
20"
Figure 7 - Minimum Clearance to Wall and Ceiling
Door
Handle
20"
INSTALLING GA3700 BLOWER ACCESSORY
1. Install blower assembly per instruction sheet included in blower accessory kit.
2. Route blower power cord out the back of the stove and to a grounded, threeprong 120-volt electrical outlet. Plug electrical cord into outlet.
INSTALLING LOG HEATER IN STOVE
CAUTION
Do not pick up log base assembly by burners. This could damage
burners. Only handle base by grates.
103661
1. If installing GA3700 Blower Accessory , see Installing GA3700 Blower Acces-
sory, above.
NOTICE
Most building codes do not permit concealed gas connections. A
flexible gas line is provided to allow accessibility from the stove.
The manual shutoff valve should be accessible.
2. Attach gas log heater base to stove bottom with two screws included with base
(see Installing Heater Base Assembly in log set owner’s manual).
11
TECHNICAL
SERVICE
REPLACEMENT
PARTS
You may have further questions about installation, operation, or troubleshooting.
If so, contact DESA International’s Technical Service Department at
1-800-323-5190.
Note:
Use only original replacement parts. This will protect your warranty coverage
for parts replaced under warranty.
Parts Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement
part(s), call DESA International’s Technical Service Department at
1-800-DESA LOG (1-800-337-2564).
When calling DESA International, have ready
• your name
• your address
• model number of your stove
• how stove was malfunctioning
• type of gas used (propane or natural gas)
• purchase date
Usually, we will ask you to return the defective part to the factory.
ACCESSORIES
Parts Not Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement
part(s), call DESA International’s Parts Department at 1-800-972-7879 for referral
information.
When calling DESA International, have ready
• model number of your stove
• the replacement part number
Purchase these stove accessories from your local dealer. If they can not supply these
accessories, call DESA International’s Sales Department at 1-800-432-2382 for
information. You can also write to the address listed on the back page of this manual.
MANUAL SHUTOFF VALVE - GA5010
Manual shutoff valve with 1/8" NPT tap.
12
BLOWER ACCESSORY - GA3700
The variable blower allows you to select
the desired speed. The blower circulates
heated air from the stove into the room.
103661

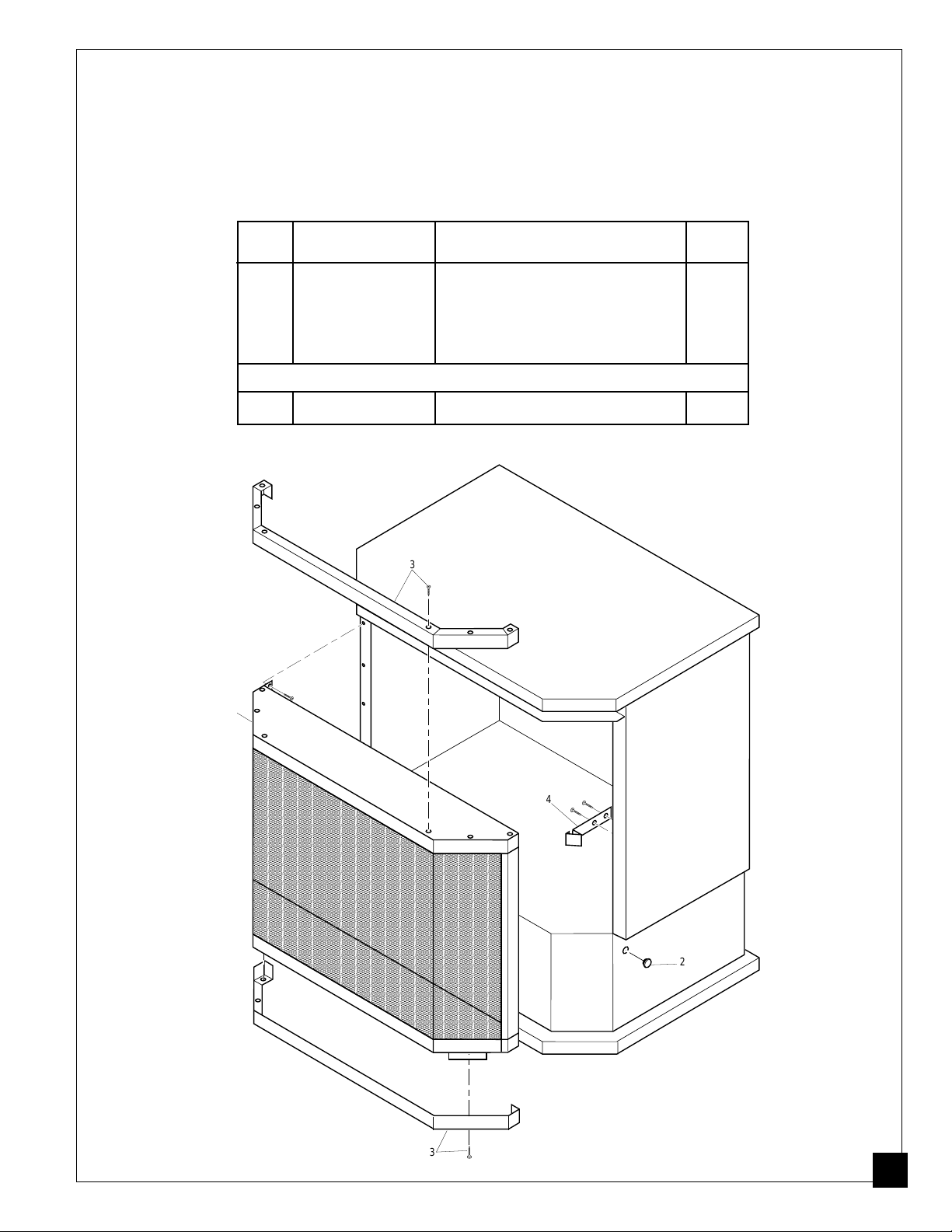

ILLUSTRATED
PARTS
BREAKDOWN
KEY
NO. PART NUMBER DESCRIPTION QTY.
1 103657-01 Door (includes 5 screws) and Handle 1
2 103693-01 Button Plug 1
3 103659-01 Brass Trim Kit (upper and lower)
4 103660-01 Door Latch Kit (includes 2 screws) 1
This list contains replaceable parts used in your stove. When ordering parts, follow
the instructions listed under Replacement Parts on page 12 of this manual.
Model SVFBC
(includes 6 screws) 2
PARTS AVAILABLE — NOT SHOWN
103662-01 Touch Up Paint 1
3
1
4
2
103661
3
13
NOTES
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
14
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
103661
NOTES
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
103661
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
15
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
VENT-FREE STOVE
DESA International warrants this product to be free from defects in materials and components for three (3) years from the
date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with
all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore
this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center.
Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will
provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater
MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail
or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation.
Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will
be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE
PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES
AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO THREE (3) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY
LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE
LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or
consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply
to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
103661-01
Rev. B
04/97
Loading...
