Vanguard 6435/6455
Installation Manual
Notice
©2003 Vanguard Managed Solutions, LLC 575 West Street Mansfield, Massachusetts 02048 (508) 261-4000 All rights reserved Printed in U.S.A.
Restricted Rights Notification for U.S. Government Users
The software (including firmware) addressed in this manual is provided to the U.S. Government under agreement which grants the government the minimum “restricted rights” in the software, as defined in the Federal Acquisition Regulation (FAR) or the Defense Federal Acquisition Regulation Supplement (DFARS), whichever is applicable.
If the software is procured for use by the Department of Defense, the following legend applies:
Restricted Rights Legend
Use, duplication, or disclosure by the Government
is subject to restrictions as set forth in
subparagraph (c)(1)(ii) of the
Rights in Technical Data and Computer Software
clause at DFARS 252.227-7013.
If the software is procured for use by any U.S. Government entity other than the Department of Defense, the following notice applies:
Notice
Notwithstanding any other lease or license agreement that may pertain to, or accompany the delivery of, this computer software, the rights of the Government regarding its use, reproduction, and disclosure are as set forth in FAR 52.227-19(C).
Unpublished - rights reserved under the copyright laws of the United States.
Notice (continued)
Proprietary Material
Information and software in this document are proprietary to Vanguard Managed Solutions (or its Suppliers) and without the express prior permission of an officer of Vanguard Managed Solutions may not be copied, reproduced, disclosed to others, published, or used, in whole or in part, for any purpose other than that for which it is being made available. Use of software described in this document is subject to the terms and conditions of the Software License Agreement.
This document is for information purposes only and is subject to change without notice.
Radio Frequency Interference Regulations
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Changes or modifications not expressly approved by Vanguard Managed Solutions could void the user's authority to operate the equipment.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
This is a Class A product. Operation of this equipment in a residential environment may cause radio interference, in which case the user may be required to take adequate measures to correct the interference at his/her own expense.
This product was verified under test conditions that included use of shielded DTE cable(s). Leased line cables with 1.5 turns through a ferrite cylinder were also used. Use of different cables will invalidate verification and increase the risk of causing interference to radio and TV reception.
You can obtain the proper cables from Vanguard Managed Solutions.
Telecommunications Regulations
Equipment that complies with Part 68 of the FCC rules includes a label or permanent marking on the printed circuit board that connects to the network that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult a trained technician.
Equipment that meets the applicable Industry Canada Terminal Equipment Technical Specifications is conformed by the registration number. Equipment that complies with Industry rules includes a label or permanent marking on the printed circuit board that connects to the network. The abbreviation, IC, before the registration number signifies that the registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
Writer: Bob Nichols Publication Specialist: Denise Skinner Illustrator: Tim Kinch
Part Number T0166, Rev H Publication Code: RC Printed: November 1999

Contents

About This Manual
Special Notices and Translations
Customer Information
Customer Response Card
Chapter 1. About the Vanguard 6435/6455
Vanguard 6435/6455 Description ................................................................. 1-2
Features ......................................................................................................... 1-3
Applications .................................................................................................. 1-6
PRI Supplementary Service .......................................................................... 1-11
Vanguard 6455 Requirements for Bisync ..................................................... 1-14
Enable Ease of Configuration .................................................................. 1-15
Chapter 2. Hardware Description
Enclosure ...................................................................................................... 2-2
Motherboard ................................................................................................. 2-6
Vanguard Daughtercards .............................................................................. 2-11
Enhanced Vanguard Daughtercards .............................................................. 2-18
10/100BaseT Enhanced Daughtercard ..................................................... 2-19
ATM Enhanced Daughtercard .................................................................. 2-21
T1E1 ATM Port Configuration ................................................................ 2-23
Vanguard 6435 and 6455 ATM Compression Support ............................ 2-24
Vanguard 6455 Option Cards ....................................................................... 2-25
SDB4 Option Card ................................................................................... 2-26
Token Ring Card ...................................................................................... 2-28
Voice over IP Convergence Card ............................................................. 2-29
Chapter 3. Installation and Replacement

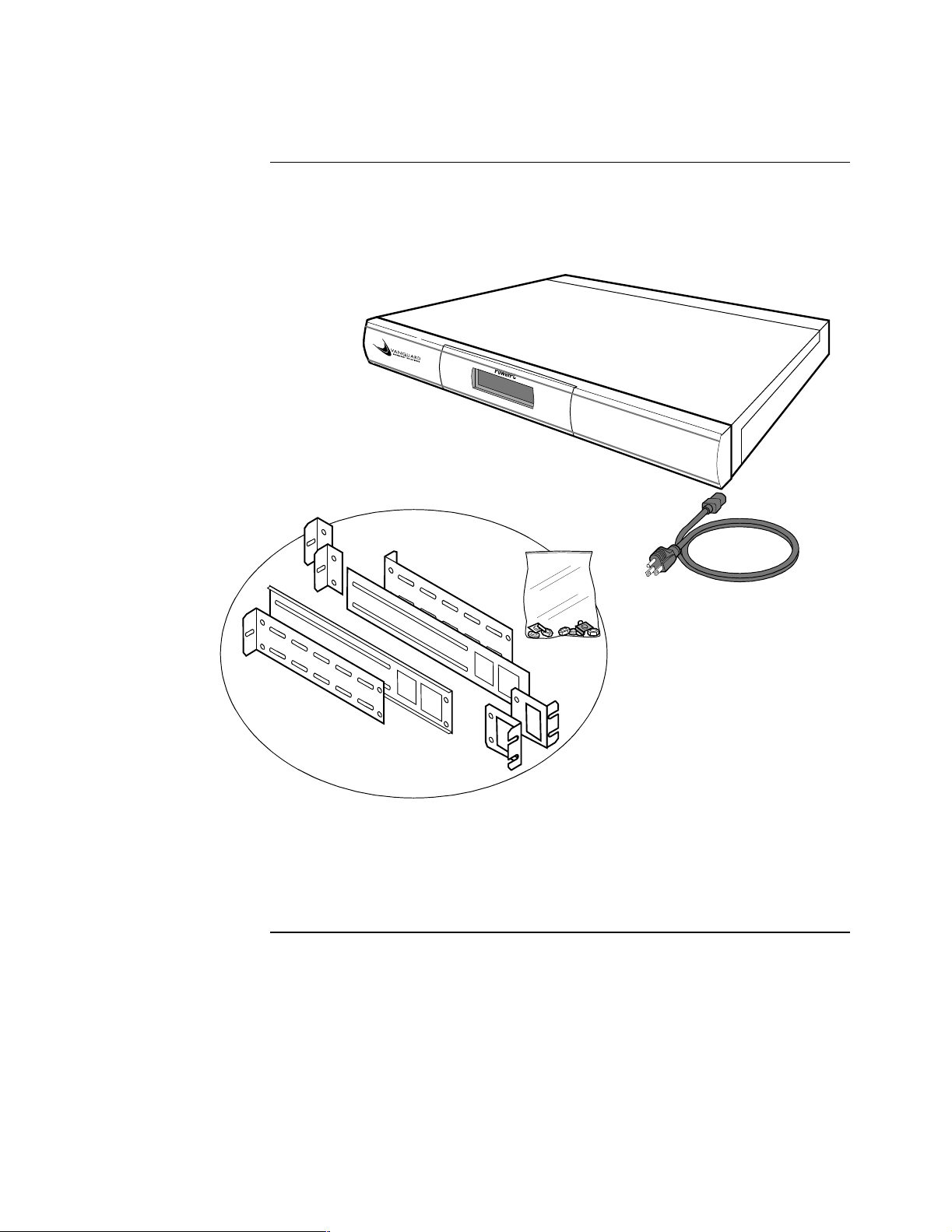

Checking Your Shipment Contents .............................................................. 3-2
Installing The Vanguard 6435/6455 ............................................................. 3-3
Installing the Standalone Version ............................................................. 3-4
Installing the 6455 Rack Mount Version .................................................. 3-6
Thermal Considerations ........................................................................... 3-8
Cabling Your Vanguard 6435/6455 .......................................................... 3-9
Modifying Your Vanguard 6435/6455 .......................................................... 3-15
v
Contents (continued)
Chapter 3. Installation and Replacement (Continued)

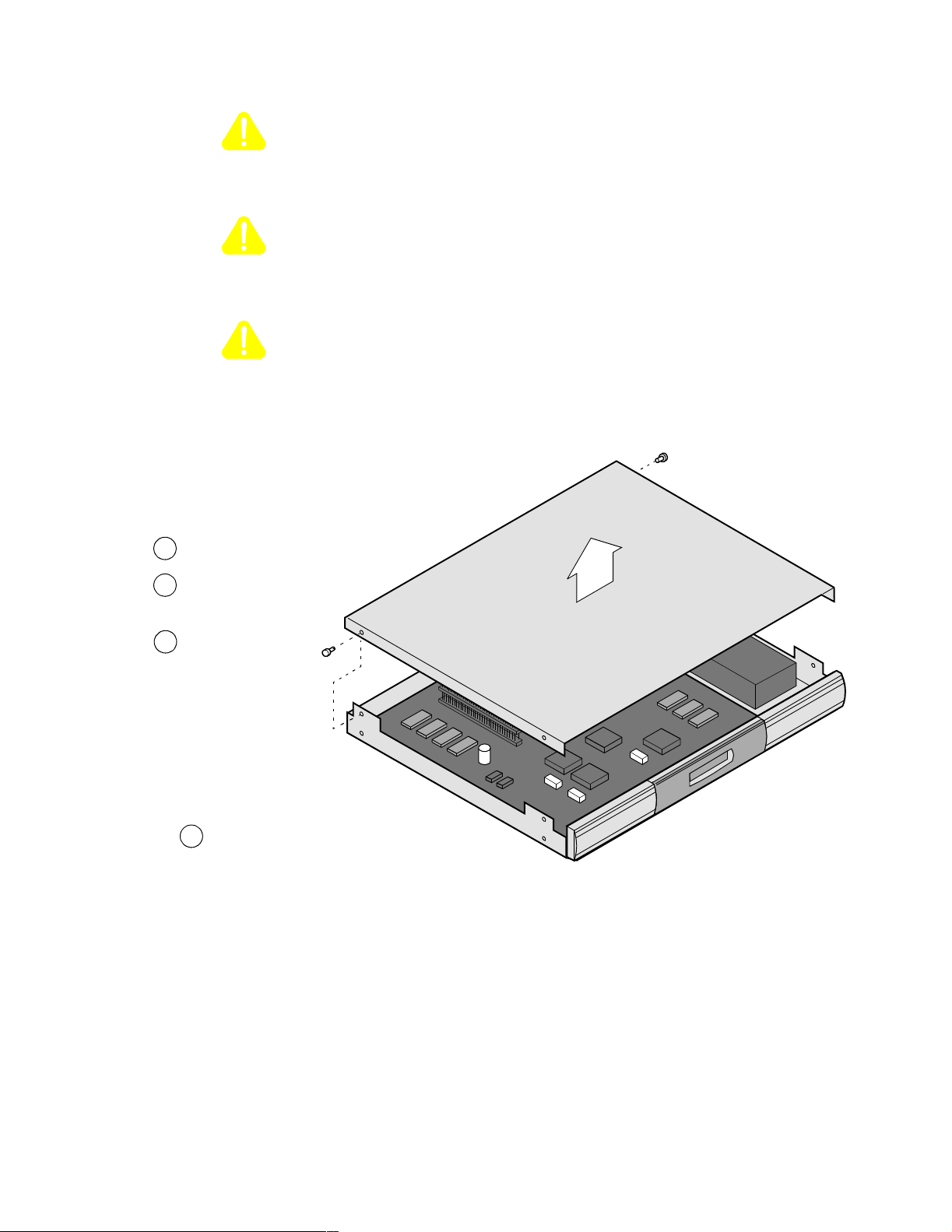

Accessing the Motherboard ...................................................................... 3-16
DIMs, SIMMs, DIMMs and Switches ..................................................... 3-21

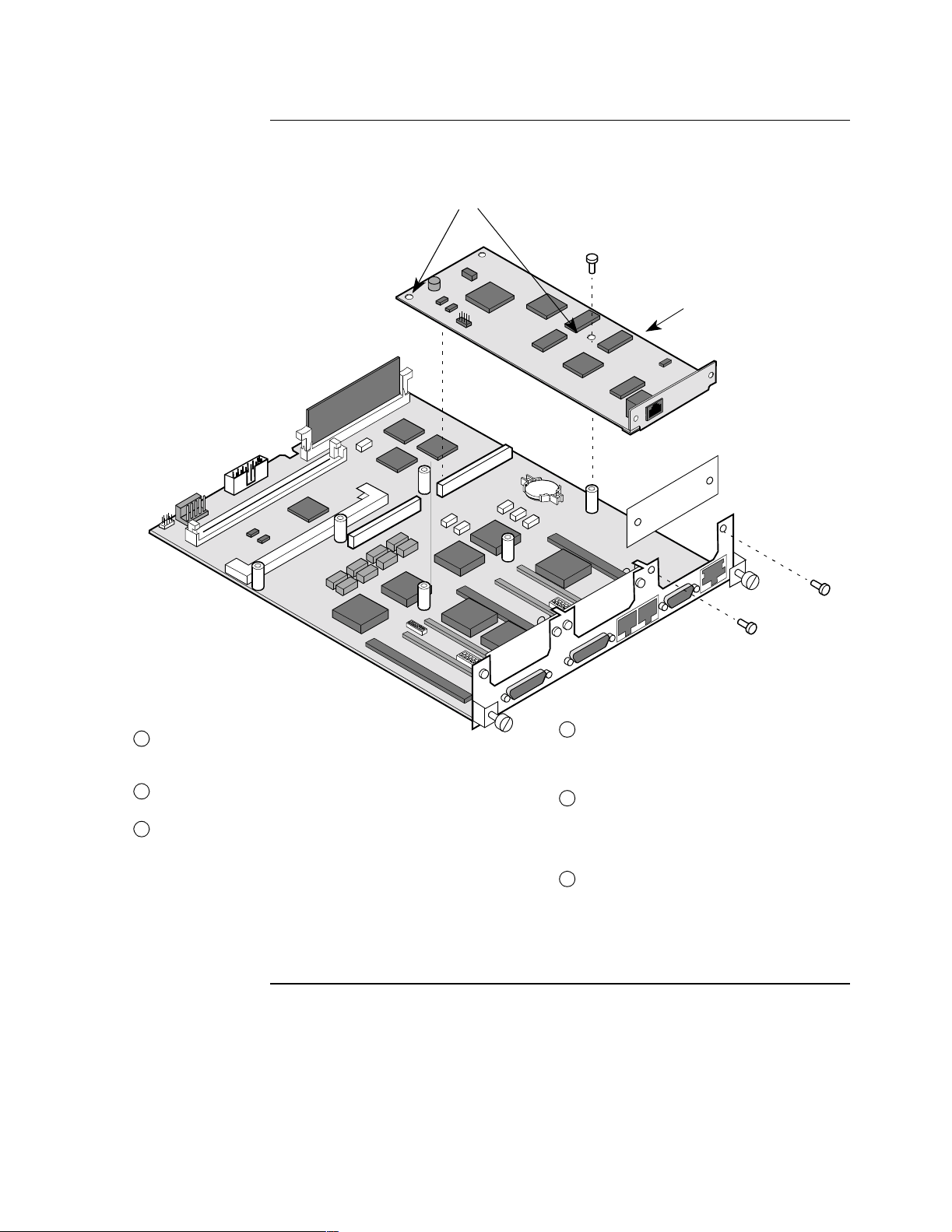

Installing/Removing Enhanced Vanguard Daughtercards ....................... 3-27
Installing/Removing Vanguard 6455 Option Cards ................................. 3-29
Installing/Removing the Lithium Battery ..................................................... 3-31
Installing Flash and CMEM ......................................................................... 3-33
Chapter 4. Powering Up Your Vanguard 6435/6455
Power Up Procedure ..................................................................................... 4-2
Power Up Sequence ...................................................................................... 4-3
Operating Front Panel Messages .................................................................. 4-5
Front Panel Display Messages ...................................................................... 4-6
Loading the Software ................................................................................... 4-7
Appendix A. Specifications
Appendix B. Software License and Regulatory Information
FCC Part 68 and Telephone Company Procedures and
Requirements for DSU, T1, and ISDN Interfaces .................................... B-2
Product Declarations and Regulatory Information ....................................... B-4
Return Procedures
Index
vi

About This Manual

Overview
Introduction This installation describes features, hardware, specifications, and applications for the
Vanguard 6435/6455.
Note
For information on operating system software and configuration, see the Vanguard Basic Configuration Manual (Part Number T0113).
Audience This manual is intended for people who install and operate the Vanguard 6435/6455.
How to Use This Manual
The following table describes the contents of this manual:
This Chapter Description
Chapter 1 Vanguard 6435/6455’s hardware and software features. Chapter 2 Description of the Vanguard 6435/6455 hardware
features and components.
Chapter 3 Installing and replacing Vanguard 6435/6455 hardware
including cards and motherboard. Chapter 4 Powerup procedures and software loading. Appendix A Product specifications. Appendix B FCC and Telephone Company procedures and
requirements.
vii

Special Notices and Translations

Special Notices The following notices emphasize certain information in the guide. Each serves a
special purpose and is displayed in the format shown:
Note
Note is used to emphasize any significant information.
Caution
Caution provides you with information that, if not followed, can result in damage to software, hardware, or data.
Warning
Warning is the most serious notice, indicating that you can be physically hurt.
Simplified Chinese
Danish
Særlige overskrifter Følgende overskrifter fremhæver nogle af oplysningerne i vejledningen. De tjener
hvert et specifikt formål og vises i følgende format:
Bemærk
Bemærk anvendes til at fremhæve vigtig information.
Forsigtig
Forsigtig understreger oplysninger, som, hvis de ikke bliver fulgt, kan føre til beskadigelse af software, hardware eller data.
Advarsel
Advarsel er den mest alvorlige overskrift, og tilkendegiver mulig personskade.
ix
Dutch
Bijzondere vermeldingen
De volgende vermeldingen besteden extra aandacht aan bepaalde informatie in de handleiding. Elke vermelding heeft een eigen nut en wordt in de volgende opmaak weergegeven:
Opmerking
Een opmerking wordt gebruikt om belangrijke informatie te benadrukken.
Let op
Dit kopje geeft aan dat u de beschreven instructies moet volgen om schade aan de software, hardware of gegevens te vermijden.
Waarschuwing
Een waarschuwing is de belangrijkste vermelding. Indien u deze niet volgt, kan dit tot lichamelijke verwondingen leiden.
Finnish
Erityisilmoitukset Seuraavat ilmoitukset korostavat tiettyjä oppaan tietoja. Kullakin on oma
erikoistarkoituksensa ja ne esitetään seuraavassa muodossa:
Huomaa
Huomautusta käytetään korostamaan tärkeätä tietoa.
French
Messages spéciaux
Vaara
Vaarailmoitus antaa tietoa, jonka huomiotta jättäminen voi johtaa ohjelmiston, laitteiston tai tietojen vahingoittumiseen.
Varoitus
Varoitus on kaikkein vakavin ilmoitus ja se kertoo mahdollisesta loukkaantumisriskistä.
Les messages suivants mettent en valeur certaines informations dans le guide. Chacun d’eux remplit une fonction spéciale et est affiché dans le format indiqué :
Important
Important est utilisé pour souligner des informations critiques au sujet d’une procédure.
Mise en Garde
Une mise en garde vous fournit des informations qui, si elles ne sont pas observées, peuvent se traduire par des dommages pour le logiciel, le matériel ou les données.
x
German
Avertissement
Un avertissement constitue le message le plus sérieux, indiquant que vous pouvez subir des blessures corporelles.
Besondere Hinweise
Durch die folgenden Hinweise werden bestimmte Informationen in diesem Handbuch hervorgehoben. Jeder Hinweis dient einem bestimmten Zweck und wird im dargestellten Format angezeigt:
Wichtig
WICHTIG wird zur Betonung signifikanter Angaben zu Vorgehensweisen verwendet.
Vors icht
Ein Vorsichtshinweis macht Sie darauf aufmerksam, daß Nichtbefolgung zu Software-, Hardware- oder Datenschäden führen kann.
Warnung
Eine Warnung weist Sie darauf hin, daß ernsthafte Körperverletzungsgefahr besteht.
Italian
Simboli speciali I seguenti simboli, ciascuno con una speciale funzione, evidenziano determinate
informazioni all’interno del manuale. Il formato è quello riportato qui di seguito.
Nota
Questo tipo di avvertimento viene utilizzato per evidenziare tutte le informazioni significative relative ad una procedura.
Attenzione
Questo tipo di avvertimento fornisce informazioni che, se non vengono seguite, possono provocare danni al software, all’hardware o ai dati.
Avvertenza
Questo tipo di avvertimento indica la presenza di condizioni di rischio che possono causare lesioni fisiche. Si tratta del simbolo più importante al quale prestare attenzione.
xi
Japanese
Korean
Norwegian
Spesielle
merknader
xii
Merknadstypene nedenfor representerer en bestemt type informasjon i håndboken. Hver merknadstype har en spesiell hensikt og vises på følgende format:
Merk
Merk brukes for å fremheve viktig informasjon.
Forsiktig
Forsiktig gir deg informasjon om situasjoner som kan føre til skade på programvare, datamaskin eller data dersom den blir fulgt.
Advarsel
Advarsel er den mest alvorlige merknaden og indikerer at du kan bli fysisk skadet.
Portuguese/ Portugal
Avisos Especiais Os avisos que se seguem realçam certas informações neste guia. Cada um deles serve
um objectivo especial e é visualizado no formato apresentado:
Nota
Nota é utilizado para realçar qualquer informação importante.
Atenção
Atenção faculta-lhe informações que, se não forem cumpridas, poderão provocar danos no software, hardware ou nos dados.
Cuidado
Cuidado constitui o aviso mais grave, o qual indica que poderá ficar fisicamente ferido.
Spanish/Spain
Notificaciones especiales
Swedish
Speciella beteckningar
Las siguientes notificaciones ponen énfasis sobre determinada información de la guía. Todas tienen un propósito especial y se muestran con el formato siguiente:
Nota
Las notas se utilizan para destacar determinada información de importancia.
Advertencia
Las advertencias le proporcionan información que debe seguirse, si no desea que el software, el hardware o los datos puedan verse dañados.
Aviso
Los avisos son las notificaciones de carácter más importante e indican la posibilidad de daños físicos para el usuario.
Följande beteckningar betonar viss information i handboken. Var och en har ett speciellt syfte och visas i formatet nedan:
OBS!
OBS! används för att betona viktig information.
Viktigt
Viktigt ger dig information som, om den inte följs, kan resultera i skada i programvara, maskinvara eller data.
xiii
Varning
Varning är den mest allvarliga beteckningen och den indikerar att du kan skadas fysiskt.
xiv

Customer Information

Customer Questions
Comments About This Manual
Customers who have questions about Vanguard Managed Solutions products or services should contact your VanguardMS representative or visit this website for product, sales, support, documentation, or training information:
http://www.vanguardms.com/
To help us improve our product documentation, please complete the comment card included with this manual and return it by fax to (508) 339-9592. If you prefer, provide your name, company, and telephone number, and someone in the documentation group will contact you to discuss your comments.
Customer Information xv

Customer Response Card

Vanguard Managed Solutions would like your help in improving its product documentation. Please complete and return this card by fax to (508) 339-9592; Attention: Product Documentaton, to provide your feedback.
To discuss comments with a member of the documentation group, provide telephone information at the bottom of this page. Thank you for your help.
Name _________________________________________________________________________
Company Name _________________________________________________________________
Address _______________________________________________________________________
_______________________________________________________________________
_______________________________________________________________________
Document Title: Vanguard 6455/6435 Installation Manual
Part Number: T0166, Revision H
Please rate this document for usability:
Excellent Good Average Below Average Poor
What did you like about the document? ______________________________________________
______________________________________________________________________________
Cut Here
______________________________________________________________________________
______________________________________________________________________________ ______________________________________________________________________________
What information, if any, is missing from the document? _________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
Please identify any sections/concepts that are unclear or explained inadequately.
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
Additional comments/suggestions. __________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
Telephone ________________________ Ext. _________________ Best time to call __________
Chapter 1
About the Vanguard 6435/6455
Overview
Description The Vanguard 6435/6455 products provide wide area network (WAN) access for
offices that depend on efficiently consolidating legacy protocols (SNA/SDLC and BSC) with Voice and LAN traffic over IP, Frame Relay, X.25, ISDN, and NX64 T1/E1 services. In brief, here is the difference between the Vanguard 6455 and 6435:
• Vanguard 6435: Supports two Async/Sync ports, two Async ports and an Ethernet port, as well as up to three optional Vanguard Daughtercards (two of which can be Enhanced Vanguard Daughtercards).
• Vanguard 6455: Provides the functionality of the Vanguard 6435 plus it can support two Option Cards.
Figure 1-1 shows the front panels of a Vanguard 6435 and a Vanguard 6455.
Vanguard 6435
--NODE UP--
Alphanumeric LCD
Vanguard 6455
--NODE UP--
Alphanumeric LCD
Figure 1-1. Vanguard 6435/6455 Front Panels
For a detailed description of the Vanguard 6435/6455 and its features, refer to the “Vanguard 6435/6455 Description” section on page 1-2 and the “Features” section on page 1-3.
For descriptions of the Vanguard 6435/6455 Daughtercards, Option Cards, and other hardware components, refer to the appropriate sections in Chapter 2, Hardware Description.
About the Vanguard 6435/6455 1-1

Vanguard 6435/6455 Description

Vanguard 6435/6455 Description
Introduction The Vanguard 6435 and 6455 are flexible, RISC processor-based multiservice
routers that provide increased performance and enhanced capability through high-speed interfaces for bandwidth-intensive LAN/WAN applications. They offer cost-effective, simultaneous support for voice, fax, video, and mixed protocol data traffic over IP, Frame Relay, X.25, ISDN, ATM or NX64 T1/E1 services. The Vanguard 6435 comes in a compact standalone version, where the Vanguard 6455 can be easily mounted in a 19-inch rack. They are SNMP-manageable and come with a variety of LAN, SNA, and IP networking features.
This section briefly describes the Vanguard 6435 and 6455.
Vanguard 6435 Description
Vanguard 6455 Description
The Vanguard 6435 is a multiservice router for small branch offices that depend on efficiently consolidating serial protocols (such as SNA/SDLC, BSC) with LAN traffic over dedicated or switched services. Fax, RemoteVU video, Voice over Frame Relay and Voice over IP can be combined with data over dedicated or public Frame Relay links and still maintain excellent voice and video quality.
The Vanguard 6435 supports three Vanguard Daughtercard slots for video, voice, fax and mixed protocol data over dedicated or switched services. Two of the slots can be used for Enhanced Vanguard Daughtercards, such as 10/100BaseT (auto-sensing).
The Vanguard 6455 extends the features of the Vanguard 6435 to address the networking needs of medium-to-large branch offices with higher density requirements. It is ideally suited for hierarchical networks where customers need to concentrate remote branch offices using analog or digital leased lines, IP, Frame Relay, ISDN, X.25, and NX64K services.
The Vanguard 6455 provides the following:
• Three Vanguard Daughtercard slots for video, voice, fax and mixed protocol data over dedicated or switched services. Two of the slots can be used for Enhanced Vanguard Daughtercards.
• Two Option Card slots for multi-port interfaces.
• Support for applications that require a number of high-speed interfaces and/or multiple LAN support: 10BaseT, 100BaseT, or Token Ring.
• Support for BSC 3270-to-SNA Conversion. For detailed information refer to the BSC 3270-to-SNA Manual, (Part Number T0101-08).
• Support for BSC 2780/3780-to-SNA/LU0 Conversion. For detailed information refer to the BSC 2780/3780-to-SNA/LU0 Manual, (Part Number T0101-09).
1-2 About the Vanguard 6435/6455

Features

Features
Introduction This section describes the features available with your Vanguard 6435/6455. For
descriptions of the software running on your Vanguard 6435/6455, refer to the appropriate protocol document.
Hardware Features This table lists the hardware features of the Vanguard 6435 and the Vanguard 6455:
Vanguard 6435 Vanguard 6455
Increased Flash SIMM Memory Size Expansion
Compact, low profile enclosure with fixed motherboard, and support for three daughtercards.
Motorola MPC860 PowerPC RISC processor.
4 Megabytes of Non-Volatile FLASH (can be expanded with optional SIMMs) and 16 Megabytes of SDRAM (can be expanded with an optional 32 Megabyte DIMM).
Standard rear panel ports include:
• Two Sync/Async Ports (with DB-25 connectors)
• One Ethernet 10BaseT port
• Two Async ports (RJ-45 connectors), one acts as the CTP
Release 6.2 and greater allows the Vanguard 6435 and 6455 to increase the FLASH memory and expand the CMEM area. Existing Vanguard 6435 and 6455’s can be expanded to 12MB FLASH memory as long as the bootprom is also updated. A new bootprom is required to support the 12MB Flash option with the 128 kbyte CMEM. To use 128k CMEM, 8 Mbyte FLASH SIMM must be installed and the bootprom updated. Below are the recommended configurations.
Vanguard 6435:
Low profile enclosure with rear accessible motherboard, and support for:
• three daughtercards
• two Vanguard 6455 Option Cards
Motorola MPC860 PowerPC RISC processor.
Before release 5.6 - 4 Megabytes of Non­Volatile FLASH (can be expanded with optional SIMMs) and 16 Megabytes of SDRAM (can be expanded with an optional 32 Megabyte DIMM). Release 5.6 and greater - ships with 32 Megabyte DIMM installed.
Standard rear panel ports include:
• Two Sync/Async Ports (with DB-25 connectors)
• One Ethernet 10BaseT port
• Two Async ports (RJ-45 connectors), one acts as the CTP

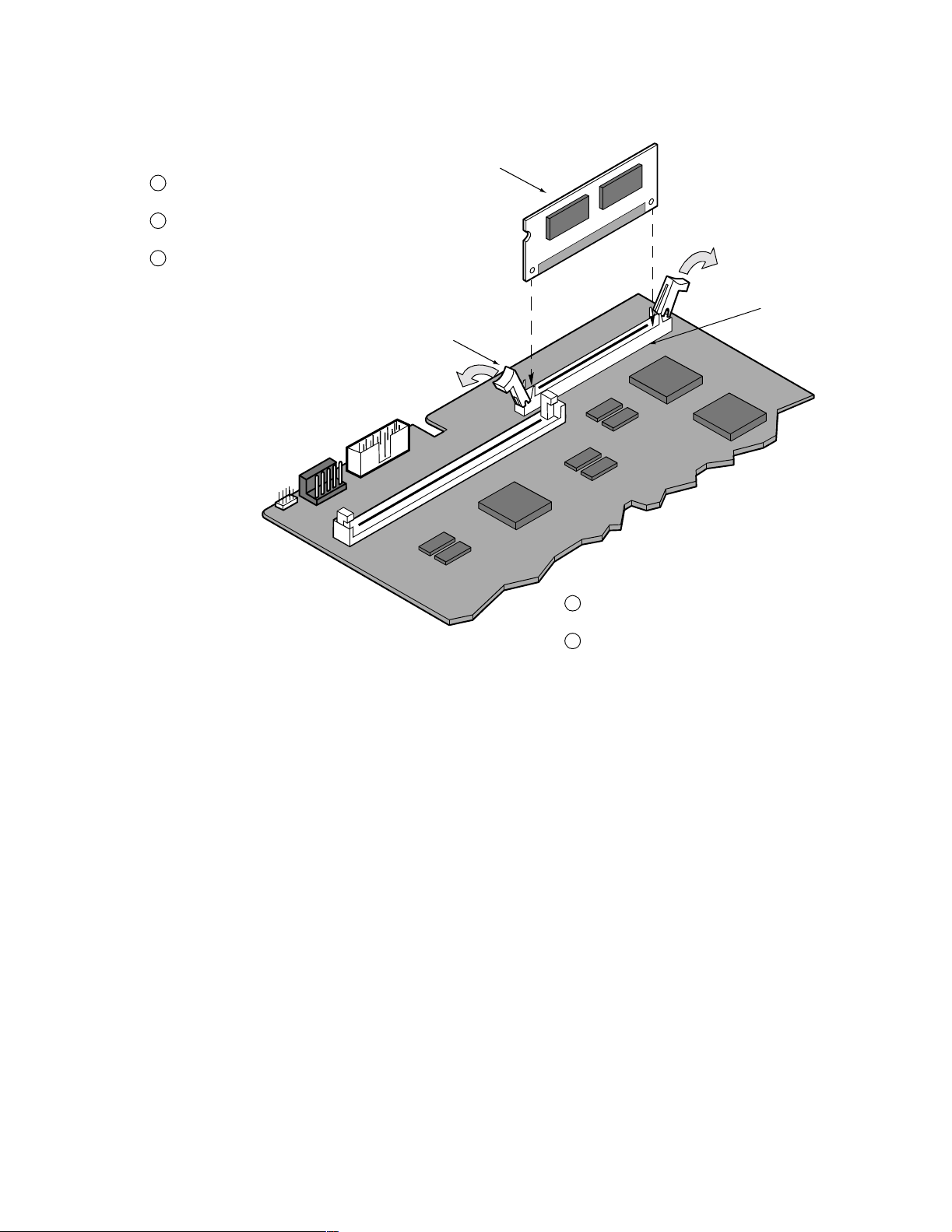

• SDRAM Expansion 16 Megabyte DIMM standard optional 32 Megabyte.
• 32 Megabyte is recommended when using the 8 Megabyte Flash SIMM.
Vanguard 6455:
• Vanguard 6455: Release 5.6 and greater the Vanguard 6455 ships with the recommended 32 Megabyte DIMM installed.
• Any Vanguard 6455 equipped with 16MB SDRAM and 8MB FLASH SIMM should be upgraded to 32MB SDRAM.
About the Vanguard 6435/6455 1-3
Features
Vanguard 6435 Vanguard 6455
16 Megabytes of SDRAM (can be expanded with an optional 32 Megabyte DIMM).
Expanded CMEM area from 64kbytes to 128 kbyte for the 12 MB Flash Option.
Below is a table with Flash memory sizes of different Flash SIMM scenarios:
FLASH Memory Size Example
Product
Type
FLASH
SIMM
Scenarios
Release 6.2
None 4M 64K 3.8125 M/
and greater
4M 4M 64K 3.8125 M/
8M 4M 128K 5.6875 M/
Prior to
None 4M 64K 3.8125 M/
Release 6.1
4M 4M 64K 3.8125 M/
On Board
FLASH
Sizes
CMEM
Sizes
With release 5.6 and greater the Vanguard 6455 is shipped with 32 Megabyte DIMM installed.
Expanded CMEM area from 64kbytes to 128 kbyte for the 12 MB Flash Option.
Maximum
Current
Image Sizes
3997696 bytes
3997696 bytes
5963776 bytes
3997696 bytes
3997696 bytes
Maximum
Alternate
Image Sizes
3.8125 M/ 3997696 bytes
3.8125 M/ 3997696 bytes
5.6875M/ 5963776
3.8125 M/ 3997696 bytes
3.8125 M/ 3997696
Total Flash Sizes
4M
8M
12M
4M
8M
For additional information about the rear panel ports, the daughtercards, and option cards, refer to appropriate section in Chapter 2, Hardware Description.
For information about the physical specifications of the Vanguard 6435/6455, refer to Appendix A, Specifications.
Optional Cards You can purchase several types of cards to expand the capability of your Vanguard
6435 and Vanguard 6455. There are three types of cards:
• Vanguard Daughtercards
• Enhanced Vanguard Daughtercards
• Vanguard 6455 Option Cards
Note
Additional cards may be supported with each software release. Check with your Vanguard Managed Solutions representative for the latest list.
1-4 About the Vanguard 6435/6455
Features
Vanguard Daughtercards
These standard Vanguard Daughtercards are currently supported by the Vanguard 6435 and Vanguard 6455:

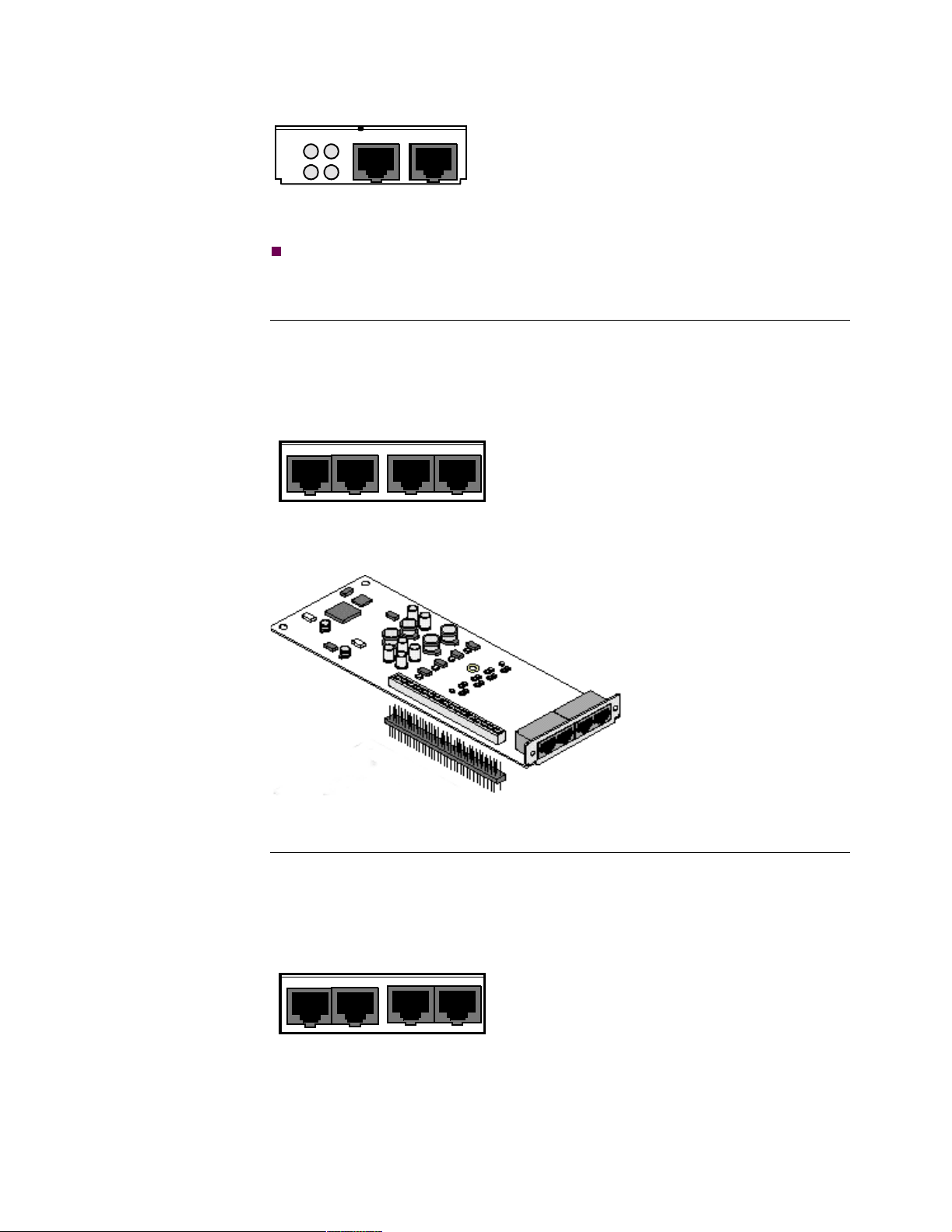

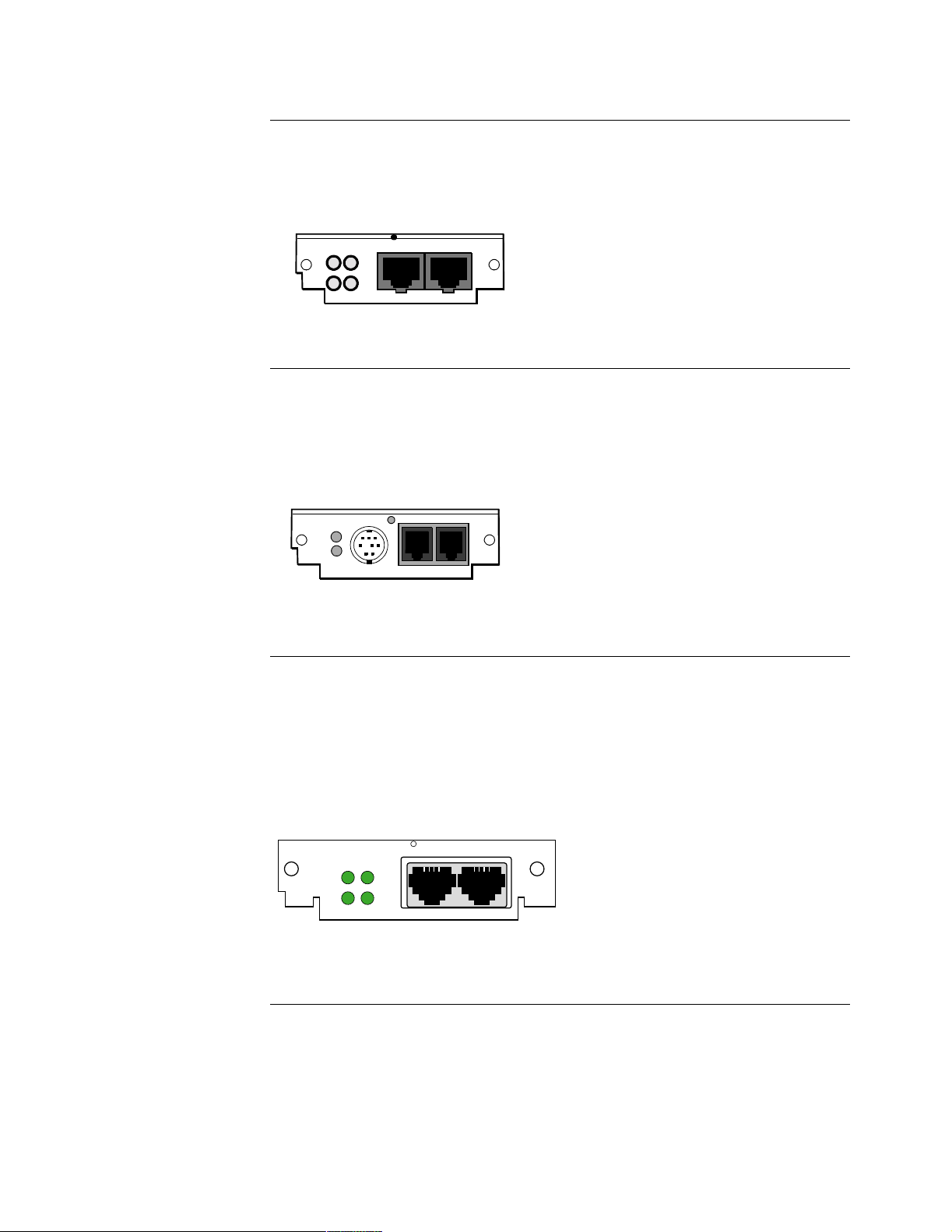

• 56K DSU/CSU
• DIM (X.21/V.24/V.35/V.36)
• ISDN BRI-U
• ISDN and enhanced ISDN BRI-S/T
• 1-Port Voice (FXS/FXO)
• 2-Port Voice FXS
•Dual E&M
•4-Port FXS
•4-Port FXO
• RemoteVU (video)
• FT1/FE1
• V.34 Modem
• V.90 Modem
Note
Release 6.2 or greater software is required for the V.90 modem.
For additional information about these cards, refer to the “Vanguard Daughtercards” section in Chapter 2. For detailed information about installing the Vanguard Daughtercards refer to the Vanguard Daughtercard Installation Guide (Part Number T0020).

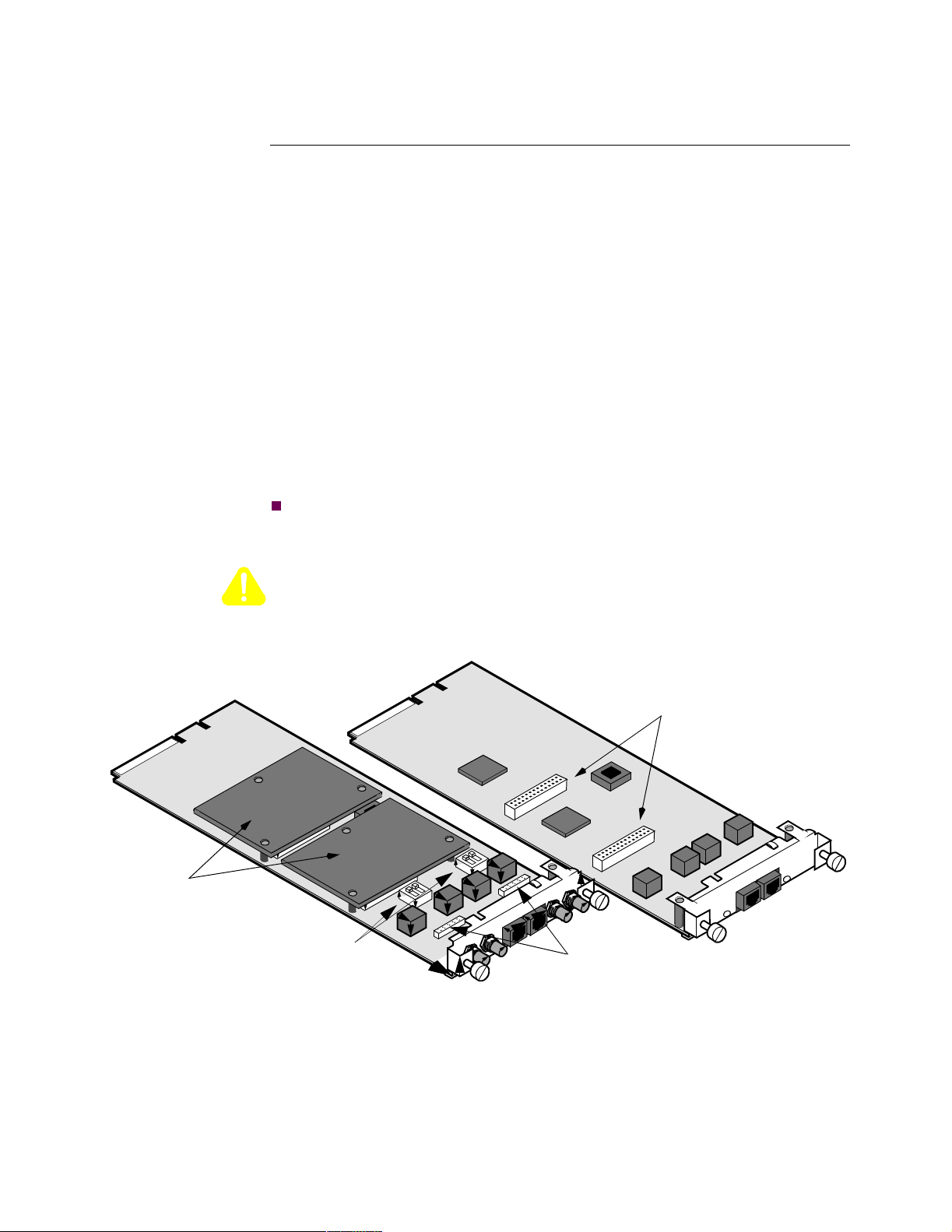

Enhanced Vanguard Daughtercards
One Enhanced Vanguard Daughtercard is currently supported by the Vanguard 6435 and Vanguard 6455: 10/100BaseT Enhanced Vanguard Daughtercard.
For additional information about this card turn to cards, refer to the “Enhanced Vanguard Daughtercards” section in Chapter 2.
For detailed information about installing the Enhanced Vanguard Daughtercards refer to the “Installing/Removing Enhanced Vanguard Daughtercards” section in Chapter 3.
Option Card (Vanguard 6455 only)

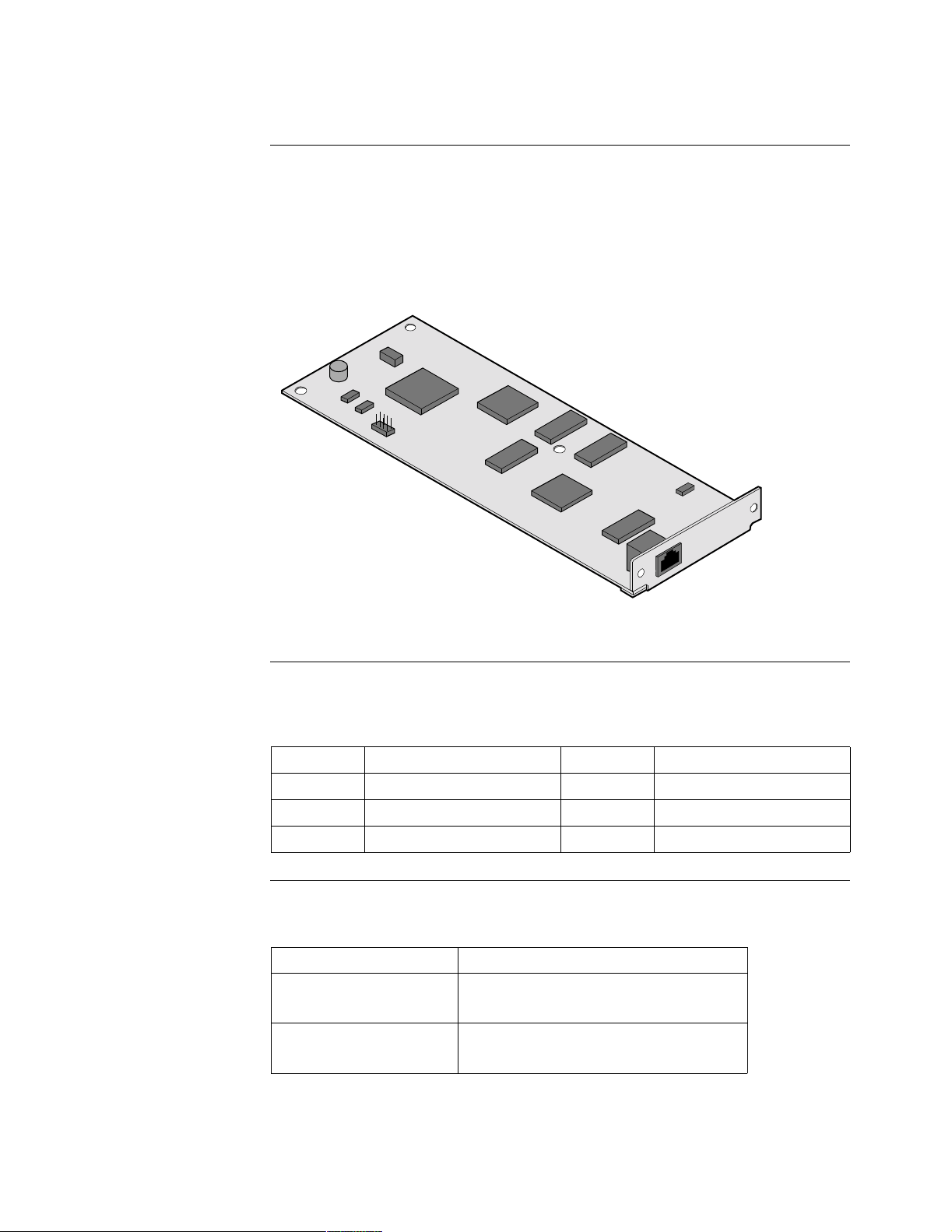

The 6455 supports two option cards:
• SDB 4-port Sync/Async
• Token Ring
For additional information about these Option Cards, refer to “Vanguard 6455 Option Cards” section in Chapter 2.
Software Support Vanguard 6435/6455 supports all the licenses in the Vanguard Applications Ware
software suite. For a detailed list of the software supported by the Vanguard 6435/6455:
• Contact your Vanguard Managed Solutions representative.
• Visit the Vanguard Managed Solutions website:
http://www.vanguardms.com/support/documentation/
About the Vanguard 6435/6455 1-5

Applications

Applications
Introduction This section describes several typical applications for the Vanguard 6435/6455:
• Multimedia Traffic
•IP Traffic
• Virtual Private Network (VPN) From Leased Line to Frame Relay With the Vanguard 6435
• Multiple LAN
Multimedia Traffic Figure 1-2 shows two Vanguard 6435s linked to a Vanguard 6560 at a main office.
The Vanguard 6435 connects a remote ATM site to a main bank location. The Vanguard 6435 connections are:
• 56K link (through a 56K DSU/CSU daughtercard) to the main bank location.
• ATM async or sync connection (through one of the serial ports or a DIM Site Daughtercard).
• Video camera connection (through a RemoteVU
• Phone connection (through a Single-Port or Dual-Port Voice Daughtercard).
The branch bank site shows how a Vanguard 6435 can handle the connection requirements with these connections:
• 128K link (through the FT1 or FE1 Daughtercard).
• Multiple video cameras (through one or more RemoteVU
• Ethernet LAN connection to the branch bank server.
• Transaction terminal (through one of the built-in serial ports).
• Phone system (using one of the Voice Daughtercards, such as the Dual-Port FXS, or the FT1).
• Cluster controller with attached devices, such as terminals or printers, (through one of the built-in serial ports).
ΤΜ
Daughtercard).
ΤΜ
Daughtercards).
1-6 About the Vanguard 6435/6455
Applications
Server
Burroughs Poll/Select
AS/400
PBX
PC
w/RemoteVU
FT 100 M
Vanguard 6560
Bank Main Office
Remote ATM Site
Vanguard 6435
56K
T1
Frame Relay
128 K
Vanguard 6455
Vi de o
Camera
Bank ATM
Bank ATM
Vi de o
Cameras
Ethernet LAN
Bank Branch Office
Figure 1-2. Multimedia Traffic Application
Controller
Server
About the Vanguard 6435/6455 1-7
Applications
IP Traffic The demand for Internet applications (search engines, browsers, video conferencing,
e-commerce) has resulted in explosive growth in the area of client networks. Furthermore, serial and non-IP LAN applications are migrating to IP. This is driven by the success of the Internet. The Vanguard 6435, equipped with the latest software, addresses these needs with IP enhancements such as IP Multicast, RIP2, and Router Proxy.
Figure 1-3 shows a network with a Vanguard 6435 on one end of a link and Vanguard 6560s on the other. IP Traffic is being transported by Frame Relay. The Applications Ware software in the Vanguard nodes (the 6435 and the 6560s) has the capability found in most routers plus the ability of packaging IP traffic in Frame Relay frames. Additionally, the 6435 and the 6560s can back up IP traffic with dial-on-demand or ISDN links.
Vanguard 6435
Server
Frame Relay
ISDN
Figure 1-3. IP Traffic Example
Server
6560 Cluster
1-8 About the Vanguard 6435/6455
Applications
Voice over Frame Relay or Voice over IP
Controller
The Vanguard 6435 and Vanguard 6455 can support Voice over Frame Relay (VoFR) or Voice over IP (VoIP) as shown in Figure 1-4. In this example, the Vanguard 6435 supports multiple voice lines in the remote branches, which can be set up as extensions on a PBX. These voice connections can be routed over Frame Relay or over IP, or routed over both transmission paths. The Frame Relay link can provide a high-speed connection between branches and the head office for voice and data. The LAN (Ethernet) link connects the Vanguard 6435 with the Internet Service Provider (ISP) to provide the IP link (for a possible company Intranet).
Vanguard 6435 Vanguard 6435
Frame Relay
LAN
IP/Intranet
Remote Branches
Headquarters
LAN
PBX
Server
Figure 1-4. Voice over Frame Relay or Voice over IP
Virtual Private Network through Data Encryption
This application example (Figure 1-5) shows how a Virtual Private Network (VPN) can be created by encrypting data before it is transmitted over Frame Relay or X.25 networks. There is no security and privacy for unencrypted data as it moves from one location to another through the public network. After encryption, the Vanguard 6435 offers secure transmission of data over any shared public medium, creating a virtual private network.
Data
ABCDE
Vanguard 6435
Server
Encrypted Data
1s$6g
Frame Relay
or X.25
Vanguard 6435
Server
Data
ABCDE
Figure 1-5. Virtual Private Network through Encryption
About the Vanguard 6435/6455 1-9
Applications
Multiple LANs The Vanguard 6435 and 6455 provide multiple LAN support for customers that need
to segment their LAN traffic. In the example in Figure 1-6, the customer has chosen to separate point-of-sale traffic from PC applications. Other customers choose to use the second LAN port for redundancy.
PC-based
Applications
Server
POS
Transaction
Host CPU
10BaseT
10/100BaseT
Autosensing
Vanguard 6455
Frame Relay
or IP
PBX
Figure 1-6. Multiple LAN Example
1-10 About the Vanguard 6435/6455

PRI Supplementary Service

PRI Supplementary Service
Introduction The PRI Supplementary Services provide transparent support for supplementary
PBX services, so that proprietary PBX features are not lost when connecting PBX’s through the Vanguard Managed Solutions Vanguard gateway networks. Examples of these features are:
• Calling Line Identification Presentation (CLIP)
• Calling Line Identification Restriction (CLIR) in temporary mode
• Call Holding
• Call Transfer
• Call Forwarding
• Call Waiting
Note
Release 6.0 and greater includes end-to-end support for Q.Sig supplementary services for the 6455 and 7300 Series platforms. This capability is consistent with the services now available for BRI on these same platforms.
Messaging Figure 1-7 through Figure 1-10 represent the four types of messaging supported:
• Basic Q.SIG Application
• Facilities Messages
• Connectionless Messages
• D-Channel Only Messages
QSIG
PBX
S0
E&M
PBX
FXS
PBX
QSIG
E1/PRI
QSIG to QSIG
Frame Relay
Internetw
orking
Figure 1-7. Basic Q.SIG Application
About the Vanguard 6435/6455 1-11
PRI Supplementary Service
101
Figure 1-8. Facilities Messages
QSIG
PBX
2
)
U
s
e
r
@
1
0
1
C
a
l
l
U
s
e
r
@
2
0
1
r
a
3
)
P
B
X
@
2
0
1
s
e
n
d
s
F
a
c
i
l
i
t
y
M
a
e
s
s
PBX
QSIG
a
r
e
s
t
d
1
0
1
@
X
B
P
)
4
o
w
n
c
a
l
l
@
2
0
Frame Relay
1
a
n
d
p
l
a
c
e
s
g
i
S
o
t
e
g
1) User @201 has calls forwarded to User @401
n
e
w
c
a
l
w
r
o
F
l
a
n
l
t
o
U
s
e
r
@
e
t
a
t
S
d
e
d
QSIG
PBX
4
1
0
201
401
2
)
P
B
X
@
2
0
1
t
r
a
n
s
f
e
r
s
c
a
l
l
t
o
PBX
101
QSIG
M
e
s
s
s
n
o
i
t
c
e
n
n
o
C
)
3
a
g
e
s
e
n
t
t
o
l
i
g
h
Frame Relay
t
M
e
s
s
Figure 1-9. Connectionless Message
QSIG
PBX
201
l
i
a
M
e
V
c
i
o
1) User @201 calls User @401, No Answer
QSIG
a
g
e
L
i
g
h
t
PBX
401
1-12 About the Vanguard 6435/6455
1
)
A
c
t
i
v
e
C
a
l
l
b
e
t
w
e
e
n
U
s
e
r
@
1
1
0
PBX
QSIG
101
Frame Relay
2) User @101 tries to make call to User @101
3) PB @101 sends back busy indication
4) PBX @410 "camps on" User @101 using "D" Channel Only Messages
5) PBX @401 places call when User @101 is free
Figure 1-10. D-Channel Only Messages
PRI Supplementary Service
QSIG
PBX
201
1
0
2
r
e
s
U
&
QSIG
PBX
401
About the Vanguard 6435/6455 1-13

Vanguard 6455 Requirements for Bisync

Vanguard 6455 Requirements for Bisync
Vanguard 6455 Requirements
BSC 3270-to-SNA Conversion Increase Parameters to Maximum Value
The guidelines below are required when using the BSC 3270-to-SNA Conversion feature:
• 32 Meg SIMM Memory Module
• Local Dynamic Port Creation Heap Size needs to be configured for Bisync and AS/400
Note
When setting the Local Dynamic Port Creation Heap Size, refer to the Ease of Configuration information located in the following section. A copy of your current configuration files should be saved before changing the Local Dynamic Port Create Heap Size.
The following Node Record Parameters need to be increased in order to accommodate increasing the number of SNA to Bisync 3270 Devices to 256:
• Mnemonic Table Size
• Quantity of DSP Devices
• Maximum Simultaneous Calls
The Frame Relay Station or X.25 Port parameter; Number of Two Way Simultaneous Calls, needs to be increased in order to accommodate increasing the number of SNA to Bisync 3270 Devices to 256. Maximum number of SLAC Stations supported for BSC/LU Devices on a Vanguard 6455 is 20.
BSC 2780/3780-to­SNA/LU0 Conversion Increase Parameters to Maximum Value
The following Node Record Parameters need to be increased in order to accommodate increasing the number of SNA 3780 remote ports to 256:
• Mnemonic Table Size
• Quantity of SES 3780 remote ports
• Maximum Simultaneous Calls
The Frame Relay Station or X.25 Port parameter; Number of Two Way Simultaneous Calls, needs to be increased in order to accommodate increasing the number of 3780 conversion stations to 256.
1-14 About the Vanguard 6435/6455
Vanguard 6455 Requirements for Bisync

Enable Ease of Configuration

Introduction This section explains how to configure and set up your Vanguard device for Ease of
Configuration.
Device Memory Ease of Configuration is a memory intensive function. Therefore, be sure that your
node has the maximum amount of RAM it can handle. For information about memory capacity, refer to the installation guide that came with your device.
Parameters To enable Ease of Configuration, you need to configure two Node Record
parameters and then boot the node. For Ease of Configuration, these parameters should be set to their maximum value. The parameters are described below:
Note
These parameters are also described in the Configure the Node chapter of the Vanguard Basic Configuration Manual (Part Number T0113).
*Shared Dynamic Port Creation Heap Size
Range: 0 to 16000000 Default: 0 Description: This specifies the size of the special shared memory pool
dedicated for Ease of Configuration.
• To disable this parameter set to zero (0).
• To enable Ease of Configuration, set this parameter to the maximum value.
Note
A change to this parameter requires a node boot to take effect.
*Local Dynamic Port Creation Heap Size
Range: 0 to 16000000 Default: 0 Description: This specifies the size of the special local memory pool dedicated
for Ease of Configuration.
• To disable this parameter set to zero (0).
• To enable Ease of Configuration, set this parameter to the maximum value.
Note
A change to this parameter requires a node boot to take effect.
About the Vanguard 6435/6455 1-15
Configuring the Parameters
This table explains how to configure the two parameters:
Step Action
1 From the Main menu, select Configure. 2 From the Configure menu, select Node. 3 Press ENTER until the parameter *SHARED Dynamic Port
Creation Heap Size appears. Enter the maximum value (16000000).
4 Press ENTER again. The parameter *LOCAL Dynamic Port
Creation Heap Size appears. Type the maximum value (16000000). 5 Press ; (semi-colon) and then press ENTER. 6 Perform a Node Boot (Warm).
The node reboots and the Ease of Configuration function is enabled.
After you complete this procedure, review the alarm log for disabled ports. If necessary, reduce the resource requirements allocated to the other ports and stations and repeat the above procedure.
Chapter 2
Hardware Description
Overview
Introduction This chapter describes the Vanguard 6435 and Vanguard 6455 and the hardware
components that make up the devices.
• Vanguard 6435/6455 enclosures and standard hardware components
• Daughtercards
• Enhanced Daughtercards
• Option Cards (Vanguard 6455 only)
Hardware Description 2-1

Enclosure

Enclosure
Introduction This section describes the following:
• Vanguard 6435/6455 enclosures
• Motherboard
• Front panel
•Rear panel

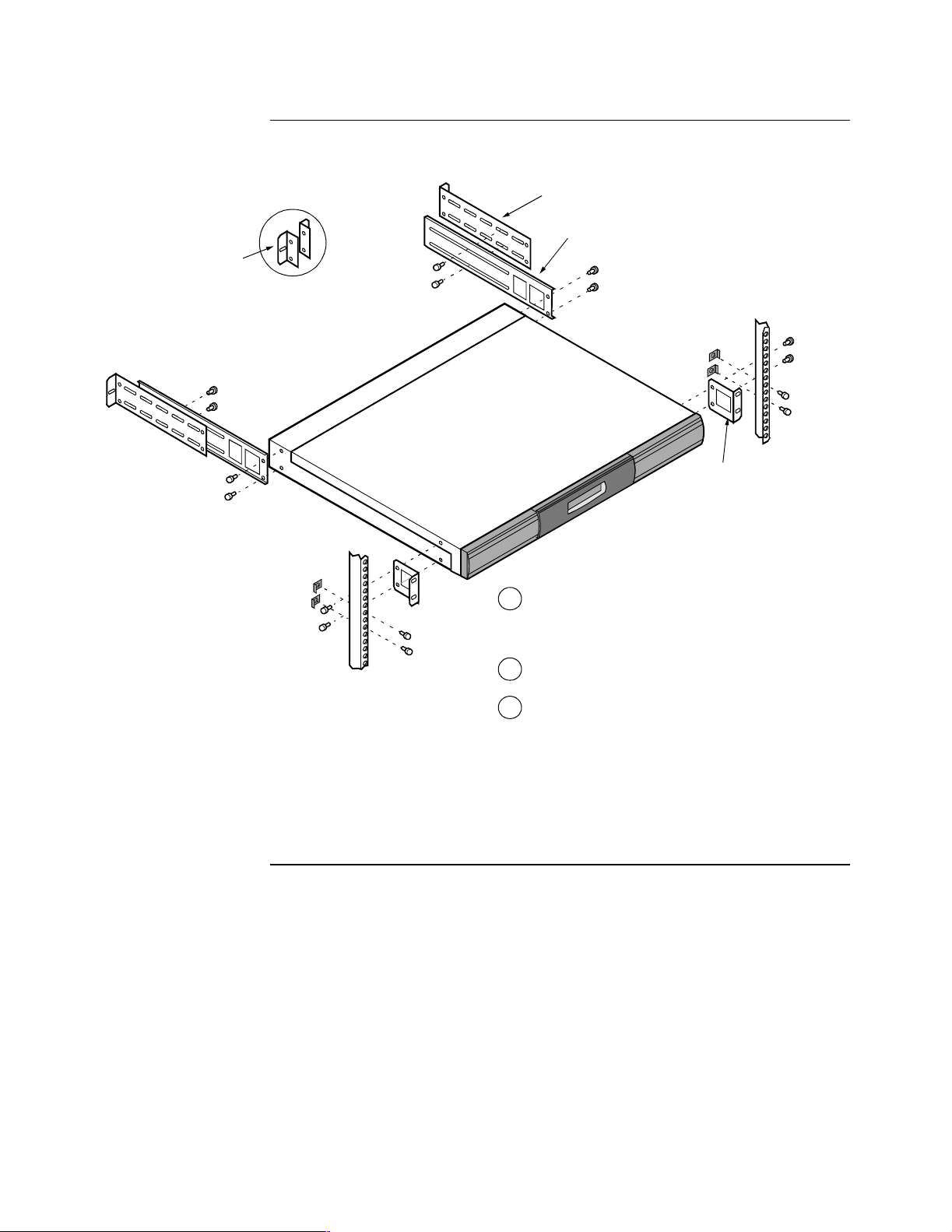

Enclosure The Vanguard 6455 fits into a low profile enclosure that can be used on a desktop or
mounted into a standard 19-inch equipment rack. The Vanguard 6455 enclosure contains a 110/220 Vac power supply with the power switch and receptacle on the rear panel.
The Vanguard 6435 fits into a compact, low profile enclosure case, designed for desktop or shelf installation. Its enclosure consists of two pieces:
• Lower base section with vent openings.
• Top cover section which is attached to the lower base section.
The enclosures contains a motherboard and (optional) daughtercards. With the Vanguard 6450, the enclosure can also hold up to two (optional) option cards.
Front Panel Figure 2-1 shows Vanguard 6435 and Vanguard 6455 front panels.
Vanguard 6455
--NODE UP--
Alphanumeric LCD
6455
Vanguard 6435
--NODE UP--
Alphanumeric LCD
6435
Figure 2-1. Vanguard 6435/6455 Front Panels
2-2 Hardware Description
Enclosure
The front panel display has a 16-character LCD display which provides Vanguard 6435/6455 status messages. These are especially useful during the power-up sequence when software loading and booting messages appear. For a full description of all display messages, refer to the “Front Panel Display Messages” section in Chapter 4.
Rear Panel Figure 2-2 shows a Vanguard 6455 rear panel and Figure 2-3 shows a Vanguard 6435
rear panel. The rear panel contain following:
• Two Sync/Async DIM ports (DB-25 connectors)
• Two Async ports (RJ-45 connector), one acts as the CTP
• One Ethernet port (with 10BaseT connector)
• Power Switch and Receptacle
The figure also shows locations for five optional cards:
• Three for Vanguard Daughtercards (Enhanced Vanguard Daughtercards can fit into only the right two daughtercard slots.)
• Two for option cards (Vanguard 6455 only)
Vanguard
Daughtercard
Universal 100/240 Volt
Hardware
Serial #
Power Switch
Power Supply
Two Sync/Async
DIM Ports (DB-25)
Slot
Software
Serial #
Figure 2-2. Vanguard 6455 Rear Panel
Vanguard
Daughtercard
Universal 100/240 Volt
Power Supply
Two Sync/Async
DIM Ports (DB25)
Power Switch
Slot
Vanguard Daughtercard
or Enhanced
Daughtercard Slots
Two Async Ports (RJ-45)
Vanguard Daughtercard
or Enhanced
Daughtercard Slots
Async Port
(RJ45)
CTP Port
(RJ45)
Two Option Card Slots
Ethernet (10BaseT)
Ethernet Port (10BaseT) (RJ45)
Figure 2-3. Vanguard 6435 Rear Panel

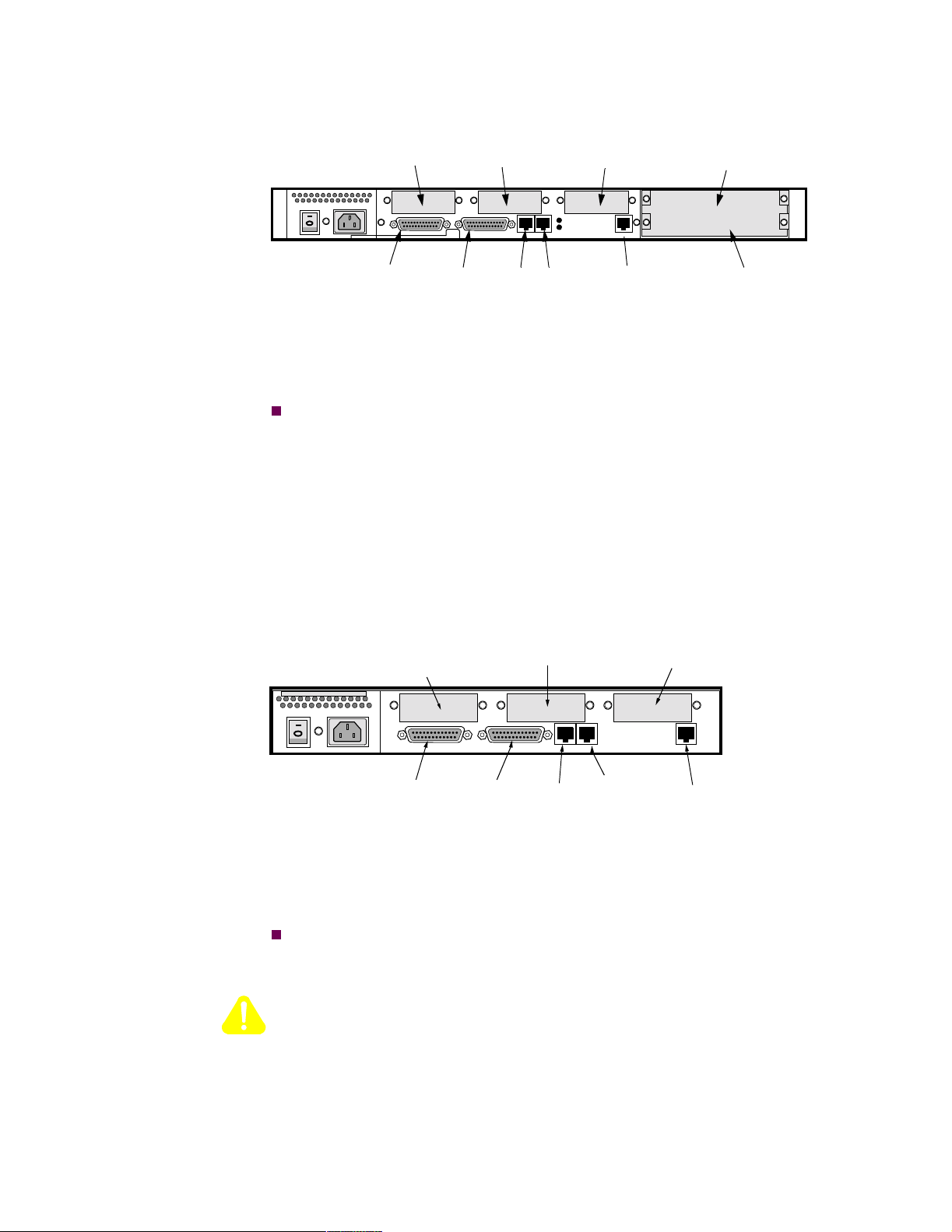

Figure 2-4 shows the port number on the Vanguard 6455 rear panel and Figure 2-5 shows the port numbers on the Vanguard 6435 rear panel.
Hardware Description 2-3
Enclosure
Daughtercard
Slot 1
Port 1 Port 2
DB25
Sync/Async
DIM
Sync/Async
Ports 10, 11, 12
Daughtercard
Slot 2 (note 1)
DB25
DIM
Port 3
RJ45
Async
Port 4
RJ45
CTP
Ter mi na l
Ports 13, 14, 15Ports 7, 8, 9
Daughtercard
Slot 3 (note 2)
Port 5
RJ45
Ethernet
10-BaseT
Ports 17 to 32
Option Card
Slot 1
Ports 33 to 48
Option Card
Slot 2
Figure 2-4. Vanguard 6455 Rear Panel Port Numbers
Note
Observe these notices (referenced in Figure 2-4 and 2-5) when identifying Ports and slot number on your Vanguard 6435 or Vanguard 6455
:
Note 1:When an Enhanced Daughtercard is installed in the second daughtercard slot on the Vanguard 6435/6455 this slot is referred to as Slot 1 meaning Enhanced Daughtercard Slot #1.
Note 2: When an Enhanced Daughtercard is installed in the second daughtercard slot on the Vanguard 6435/6455 this slot is referred to as Slot 2 meaning Enhanced Daughtercard Slot #2.
Ports 7, 8, 9
Daughtercard
Slot 1
Port 1 Port 2
DB25
Sync/Async
DIM
Ports 10, 11, 12
Daughtercard
Slot 2 (note 1)
DB25
Sync/Async
DIM
Port 3
RJ45
Async
Port 4
RJ45
CTP
Termina l
Ports 13, 14, 15
Daughtercard
Slot 3 (note 2)
Port 5
RJ45
Ethernet
10-BaseT
Figure 2-5. Vanguard 6435 Rear Panel Port Numbers
Note
For information about port numbering and cabling, refer to the “Cabling Your
Vanguard 6435/6455” section in Chapter 3.
Caution
Do not connect the Ports 3, 4, or 5 to the Public Communications Network.
2-4 Hardware Description
Serial Numbers There are two serial numbers on the Vanguard 6455 rear panel
(see Figures 2-2 and 2-3):
• Software Serial Number: Indicates the version of software running in your unit.
• Hardware Serial Number: Indicates the version of hardware in your unit.
Refer to these serial numbers when contacting your Vanguard Managed Solutions Service Representatives.
Note
On the Vanguard 6435, the serial numbers are underneath the unit.
Enclosure
Hardware Description 2-5

Motherboard

Motherboard
General Description
The Vanguard 6435 motherboard contains 4 Mbytes FLASH and has 16 Mbytes of SDRAM (synchronous DRAM) on an attached DIMM (expandable to 32 Mbytes of SDRAM). The Vanguard 6455 has 32 Mbytes of SDRAM.
The motherboard has connectors for:
• FLASH expansion: 4 Mbyte SIMM
• Vanguard 6435 - SDRAM Expansion: 16 Mbyte DIMM standard, 32 Mbyte optional. When using 8Mbyte flash, 32 Mbyte is recommended.
• Vanguard 6455- 32 Mbyte recommended
• Data Compression/Encryption SIMM
•Two DIMS
• Three Vanguard Daughtercards
• Two Enhanced Vanguard Daughtercards
There are three DIP switches:
• Two DIM DIP switches
• One Test Mode switch
There is a battery which provides power for the unit’s real time clock. Figure 2-6 shows the location of the motherboard components.
Enhanced Vanguard Daughtercard
Slots 2 and 1
Battery
Daughtercard Slot 3 Port 2 Switch 1
SDRAM
DIMM Slot
LCD Display Connector *
Power Supply Connector *
Fan Connector
Flash SIMM Slot
Data Compression/
Encryption SIMM Slot
Daughtercard Slot 2
Tes t M ode
DIP Switches
Daughtercard Slot 1

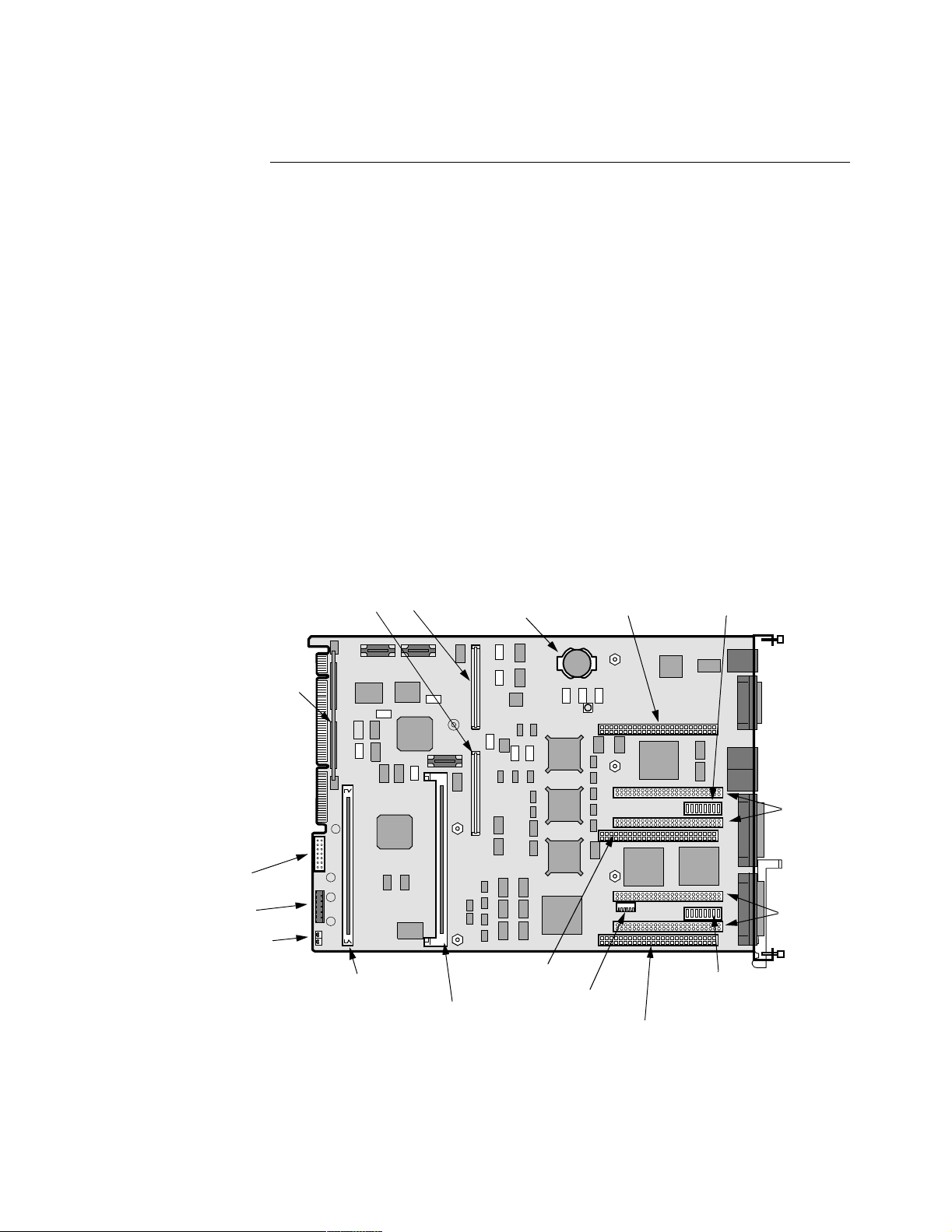

Figure 2-6. Vanguard 6435/6455 Motherboard
DIM Slot 2
DIM Slot 1
Port 1 Switch 3
2-6 Hardware Description
Motherboard
Access the Motherboard

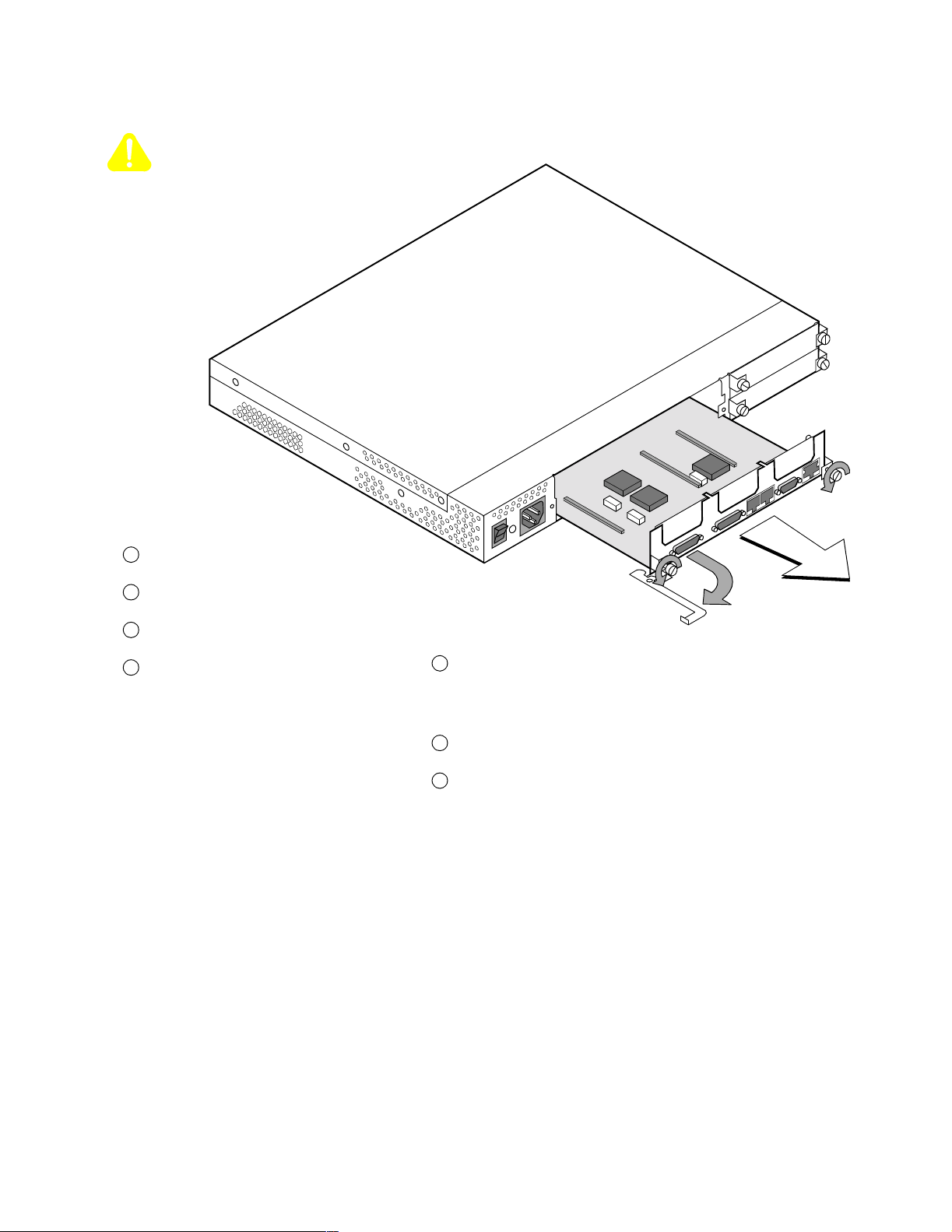

To access the motherboard components you must remove the motherboard from the enclosure.
• For information about removing and installing the motherboard refer to the “Accessing the Motherboard” section in Chapter 3.
• For information about removing or installing motherboard components, refer to the “Modifying Your Vanguard 6435/6455” section in Chapter 3.

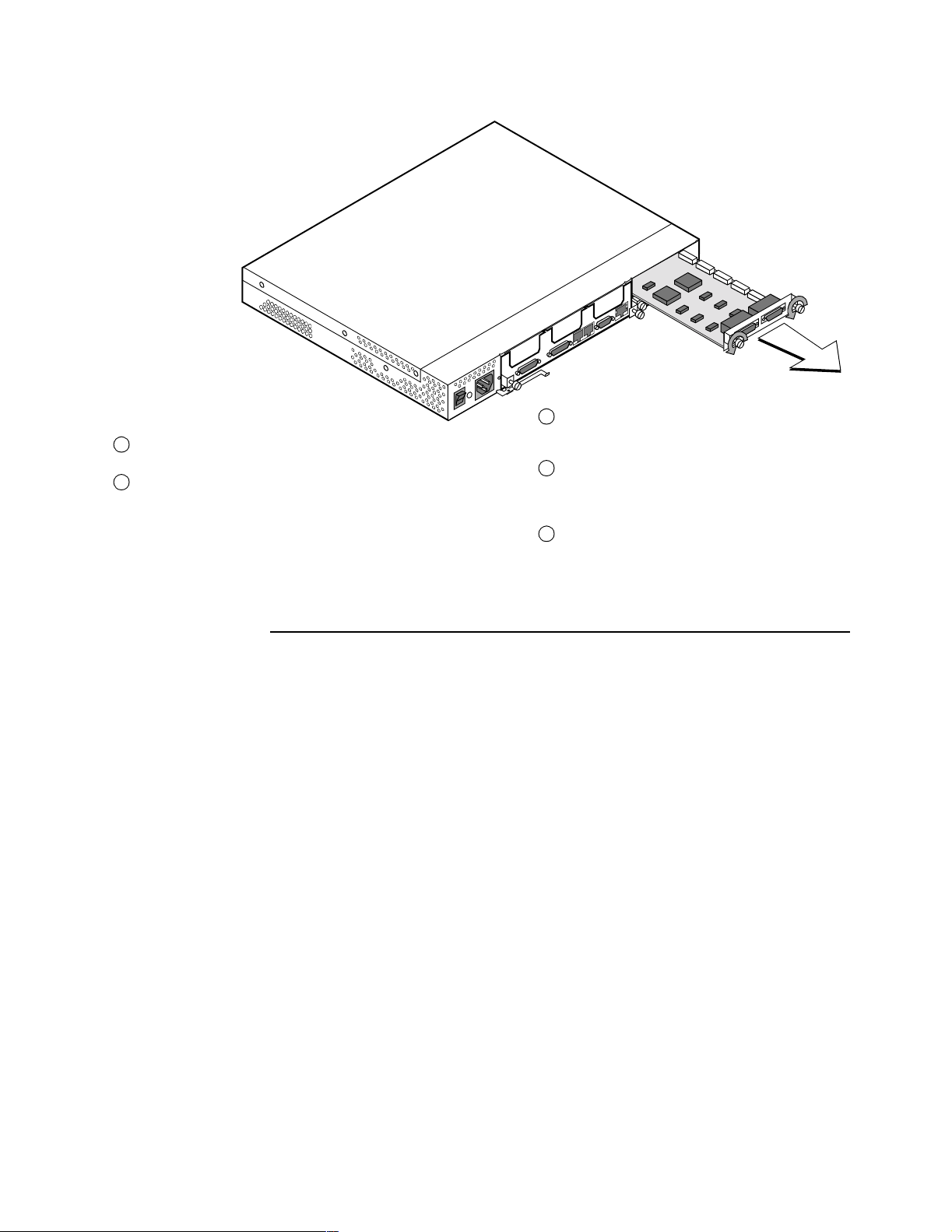

Daughtercards The Vanguard 6435/6455 can support up to three of these standard Vanguard
Daughtercards:
• 56K DSU/CSU
• DIM (V.11/V.24/V.35/V.36)
• ISDN BRI-U
• ISDN BRI-S/T & enhanced ISDN BRI S/T
• 1-Port Voice (FXS/FXO)
• 2-Port Voice FXS
• 4-Port Voice FXS
• 4-Port Voice FXO
•Dual E&M
• RemoteVU (video)
• FT1/FE1 Daughtercards
• V.34 Modem
• V.90 Modem
Note
Release 6.2 or greater software is required for the V.90. Release 6.3 and greater supports the enhanced ISDN BRI S/T.
The Vanguard 6435/6455 can support one or two Enhanced Vanguard Daughtercards. The Vanguard 6435/6455 support only one 10/100BaseT card at a time although you can install two ATM Enhanced Vanguard Daughtercards.
These daughtercards are described in the “Vanguard Daughtercards” on page 2-11 and the “Enhanced Vanguard Daughtercards” on page 2-18.
DIMs The Vanguard 6435/6455 supports V.11, V24, V.35, V.36, and DSU DIMs.
The two DIM slots are associated with specific ports:
• DIM Slot 1 is associated with Port 1.
• DIM Slot 2 is associated with Port 2.
Depending on how the DIMs are placed, the ports act as DTE or DCE. For more information, refer to the “DIMs, SIMMs, DIMMs and Switches” section in Chapter 3.

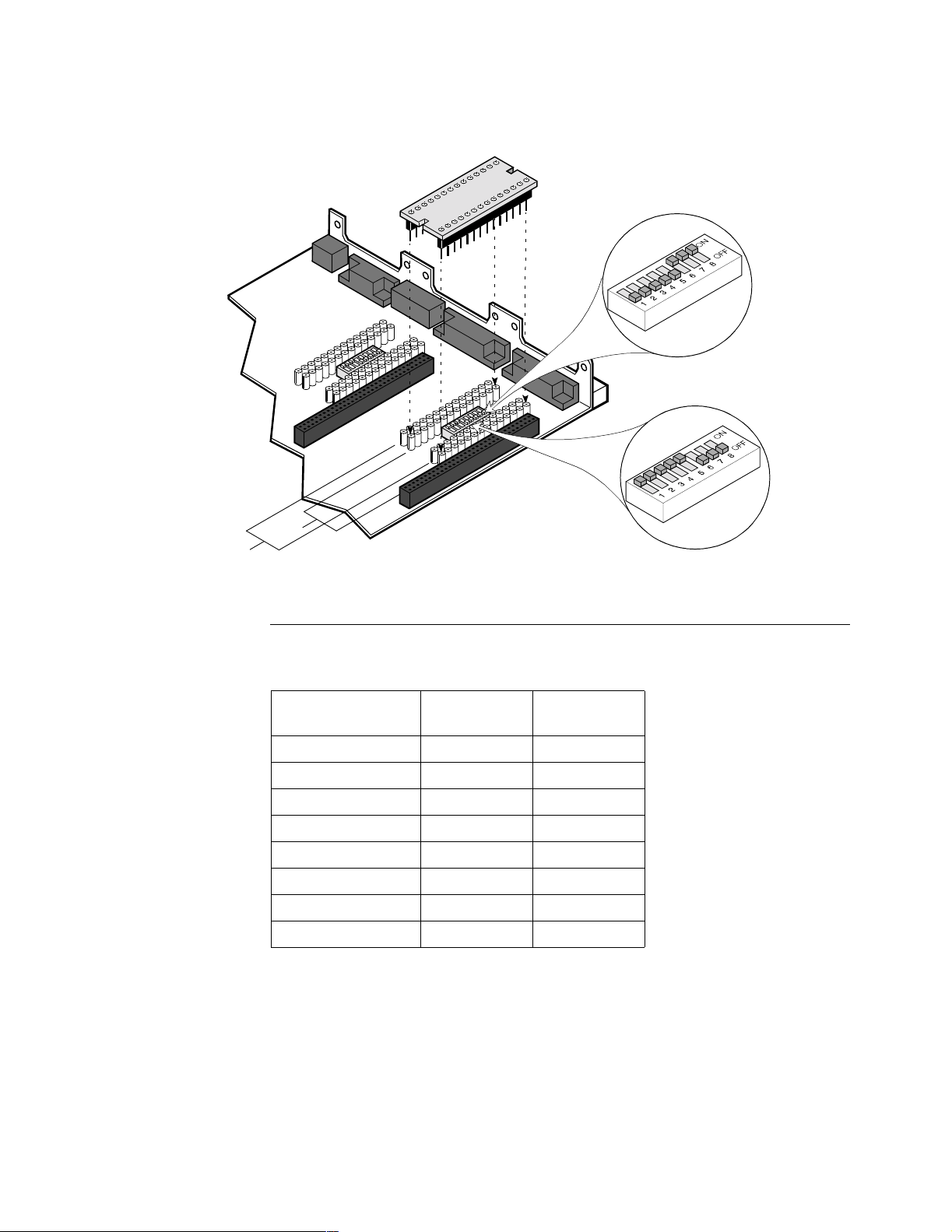

DIM DIP Switches Depending on the type of DIM on the motherboard, the DIP switches can have either
of two settings as shown in Figure 2-7. These switches are set at the factory. If you need to change the DIP switch settings, refer to “DIMs, SIMMs, DIMMs and Switches” section in Chapter 3.
Hardware Description 2-7
Motherboard
Switch Settings
for V.11, V.35, V.36, DSU for V.24
Switch Settings
Figure 2-7. Settings for DIM DIP Switches
This table details the DIM DIP switch settings:
Switch Number V.11, V.35, V.36, DSU V.24
1Off On 2Off On 3Off On 4Off On 5Off On 6On Off 7On Off 8On Off
Test Mode Switch Figure 2-8 shows the Test Mode switch and this table explains the function of each
switch setting.
Not
P1
Used
RI
MB
RI
MB
Default CTP
Reserved
P2
Figure 2-8. Test Mode Switch
Switch No./Name On Off
1: Port 2 RI/TM Pin 22 is input on Port 2 Pin 22 is output on Port 2 2: Port 2 MB Pin 25 is input on Port 2 Pin 25 is output on Port 2 3: Port 1RI/TM Pin 22 is input on Port 1 Pin 22 is output on Port 1 4: Port 1MB Pin 25 is input on Port 1 Pin 25 is output on Port 1
2-8 Hardware Description
5: Reserved — 6: Default CTP Off: Port 4 becomes 9600/
7Not Used 8Not Used
SIMMs The motherboard has two slots for SIMMs:
• FLASH: This connector takes a FLASH SIMM to increase the node’s FLASH memory.
• Data Compression/Encryption: Set on its side, this connector take a SIMM to provide data compression capabilities or a SIMM to provide encryption.
Caution
Be sure to place the FLASH, Data Compression, and Encryption SIMMs in the correct slot. The SIMM Slots are physically identical. If you place the SIMM in the wrong slot, the equipment can be damaged.
For information on installing or removing SIMMS, refer to the “DIMs, SIMMs, DIMMs and Switches” section in Chapter 3.
Motherboard
8/N, APAD, or ATPAD
DIMM The motherboard has a slot for a single SDRAM DIMM. The Vanguard 6435 comes
standard with a 16 Mbytes SDRAM DIMM. An option 32 Mbyte SDRAM DIMM is also available. Below are the recommended configurations.
Vanguard 6435:
• SDRAM Expansion 16 Megabyte DIMM standard optional 32 Megabyte.
• 32 Megabyte is recommended when using the 8 Megabyte Flash SIMM.
Vanguard 6455:
• Vanguard 6455: Release 5.6 and greater the Vanguard 6455 ships with the recommended 32 Megabyte DIMM installed.
• Any Vanguard 6455 equipped with 16MB SDRAM and 8MB FLASH SIMM should be upgraded to 32MB SDRAM. 32Mbyte.
Warning
Your Vanguard product was designed and certified for use with specific memory option SIMMs. It is IMPORTANT that you install only the devices that are certified for use with your Vanguard product. Installation of an incorrect FLASH SIMM module could result in damage to the SIMM device or your Vanguard Product. Please see the list below for the memory device that is compatible with your hardware platform.
Vanguard 6400 Compatible FLASH SIMM Devices are as follows:
4-Meg FLASH Devices PN - "EDI7F292MC100BNC" PN - "SM70848XA2JIES2"
Hardware Description 2-9
Motherboard
8-Meg FLASH Devices PN - "IW388X1-R-120" PN - "EDI7F492MC120BNC"
The FLASH SIMM Device Part Number (PN) can be found in small print on the face of the SIMM device. For further assistance, please call VanguardMS Service.
2-10 Hardware Description

Vanguard Daughtercards

Vanguard Daughtercards
Introduction The Vanguard 6455 and 6435 can support these standard Vanguard Daughtercards:
• DIM (X.21/V.24/V.35/V.36) Daughtercard
• 56K DSU/CSU Daughtercard
• ISDN BRI-U Daughtercard
• ISDN & enhanced ISDN BRI S/T Daughtercards
• ISDN BRI Voice Daughtercard
• RemoteVU (video) Daughtercard
• 1-Port Voice Daughtercard (FXS/FXO)
• 2-Port Voice FXS Daughtercard
• 4-Port Voice FXS Daughtercard
• 4-Port Voice FXO Daughtercard
• Dual E&M Daughtercard
• FT1/FE1 Daughtercards
• V.34 Modem
• V.90 Modem
This section briefly describes these cards. For instructions for installing these cards, refer to the Vanguard Daughtercard
Installation Guide (Part Number T0020).
Daughtercard Compatibility
Note
For information regarding Enhanced Vanguard Daughtercards, turn to the “Enhanced Vanguard Daughtercards” on page 2-18.
Older Vanguard Daughtercards do not fit into the Vanguard 6435/6455. You can only use the newer daughtercards which are identified by a dimple as shown in Figure 2-9. If the dimple is not present, do not attempt to use the Daughtercard in the Vanguard 6435/6455.
Also, when installing a Vanguard Daughtercard into a 6435/6455, you must use the shorter two-sided header. The taller header is used with other Vanguard units.
Dimple
DSU
Figure 2-9. New Vanguard 6435/6455 Daughtercard Example
Caution
If you attempt to force an older Vanguard Daughtercard into a Vanguard 6435/6455, the equipment will be damaged.
If you have an older Vanguard Daughtercard and would like to use it in a Vanguard 6435/6455, contact your service representative about having the card reworked.
Hardware Description 2-11
Vanguard Daughtercards
DIM Daughtercard This card supports a single V.11, V.24, V.35, or V.36 DIM (Digital Interface Module)
and can be set as either a DTE or DCE. Figure 2-10 shows the DIM Daughtercard connector as it appears on the back panel.
DIM SITE
Figure 2-10. DIM Daughtercard Connector
56 K DSU/CSU Daughtercard
ISDN BRI-U Daughtercard
The DSU Daughtercard provides an RJ48S connector and can support speeds of 56 kbps (synchronous). It conforms to AT&T 62310 point-to-point and multipoint, and to ANSI T1/E1.4/91-006 56 kbps. The card supports the following capabilities:
• Internal/external clocking
• Internal/external loopback
• 4-wire line driver operation
The card also supports multidrop DSUs when either of these conditions exist:
• If a MARK Idle protocol is used (such as MX25).
• If the Telco uses an OR’ed or Data Contention is used to mix individual DRU drops.
Figure 2-11 shows the 56K DSU/CSU Daughtercard connector as it appears on the back panel.
DSU
Figure 2-11. 56K DSU/CSU Daughtercard Connector
This card provides 2B+D Channel through an ISDN BRI U interface. It conforms to ANSI T1.601 1992 (2B1Q), is LAPD:ITU Q.921 compliant, and supports the following:
• Integral X.31
• Q.931 dial support
• NI1, 5ESS, DMS-100 switch types
• D Channel Packet Mode
• Leased Circuit Services (I Interface)
• Japan High-Speed Digital
Figure 2-12 shows the ISDN BRI-U Daughtercard connector as it appears on the back panel.
2-12 Hardware Description
BRI U
Figure 2-12. ISDN BRI-U Daughtercard Connector
Vanguard Daughtercards
ISDN & enhanced ISDN BRI-S/T Daughtercard
This card provides 2B+D Channel through a BRI S/T interface. It conforms to ITU I.430, is LAPD:ITU Q.921 compliant, and supports:
• Integral X.31
• Q.931 dial support
• NI1, 5ESS, DMS-100, ETSI, Euro Numeris switch types
• D Channel Packet Mode
• Leased Circuit Services (I Interface)
• Permanent B for German Monopol support or Japan High-Speed Digital
Figure 2-13 shows the ISDN BRI-S/T Daughtercard connectors as they appear on the back panel.
BRI S
HI Z
100
S-BUS
S-BUS
BRI-S/T DATA
TERMINAL LINE
LINK
D-ACT
Enhanced
Figure 2-13. ISDN & enhanced BRI-S/T Daughtercard Connectors
Note
Termination options for the Release 6.3 and greater enhanced ISDN BRI ST data Daughtercards are set in the Configure menu, and are not controlled by switches. For more information, refer to the Vanguard Integrated Services Digital Network: ISDN Manual (Part Number T0103-06).
ISDN BRI Voice Daughtercard
This card provides 2B+D Channel through a BRI S/T interface. It conforms to ITU I.430, is LAPD:ITU Q.921 compliant, and supports:
• Integral X.31
• ITU-T Q.931 (EURO IDSN) - ETSI switch type to connect to PBXs and public networks.
• ECMA 143 - QSIG Basic Service to connect to PBXs over private line.
• ECMA 165 - QSIG Generic Functions for Support of PBX Supplementary Services.
• ITU-T G.711A (A-law) and G.711U (µ-law) interface voice encoding.
• ITU-T G.723, G729, and Vanguard Managed Solutions proprietary CVSELP packet voice compression.
Figure 2-14 shows the ISDN BRI Voice Daughtercard connectors as they appear on the back panel.
Hardware Description 2-13
Vanguard Daughtercards
RemoteVU (Video) Daughtercard
BRI S
100
HI Z
S-BUS
S-BUS
Figure 2-14. ISDN BRI Voice Daughtercard Connectors
The RemoteVU Daughtercard provides complete end-to-end solution for the transport of video images over low bandwidths (as low as 2.4 kbps). It is ideal for applications such as security surveillance and remote monitoring.
The daughtercard has three ports:
• RJ-45 connector: for camera controls (such as pan-tilt-zoom).
• BNC connector: the primary video input from a single camera.
• 8 Pin Mini-DIN: connects to a custom cable that terminates in three BNC connectors.
When its video ports are connected to a video multiplexor, the RemoteVU Daughtercard can support up to 64 cameras. The daughtercard converts analog video to digital, scales size, and compresses and transports the data. In addition to supporting live video streams, the daughtercard has a one-minute history buffer for capturing video before the connection is established.

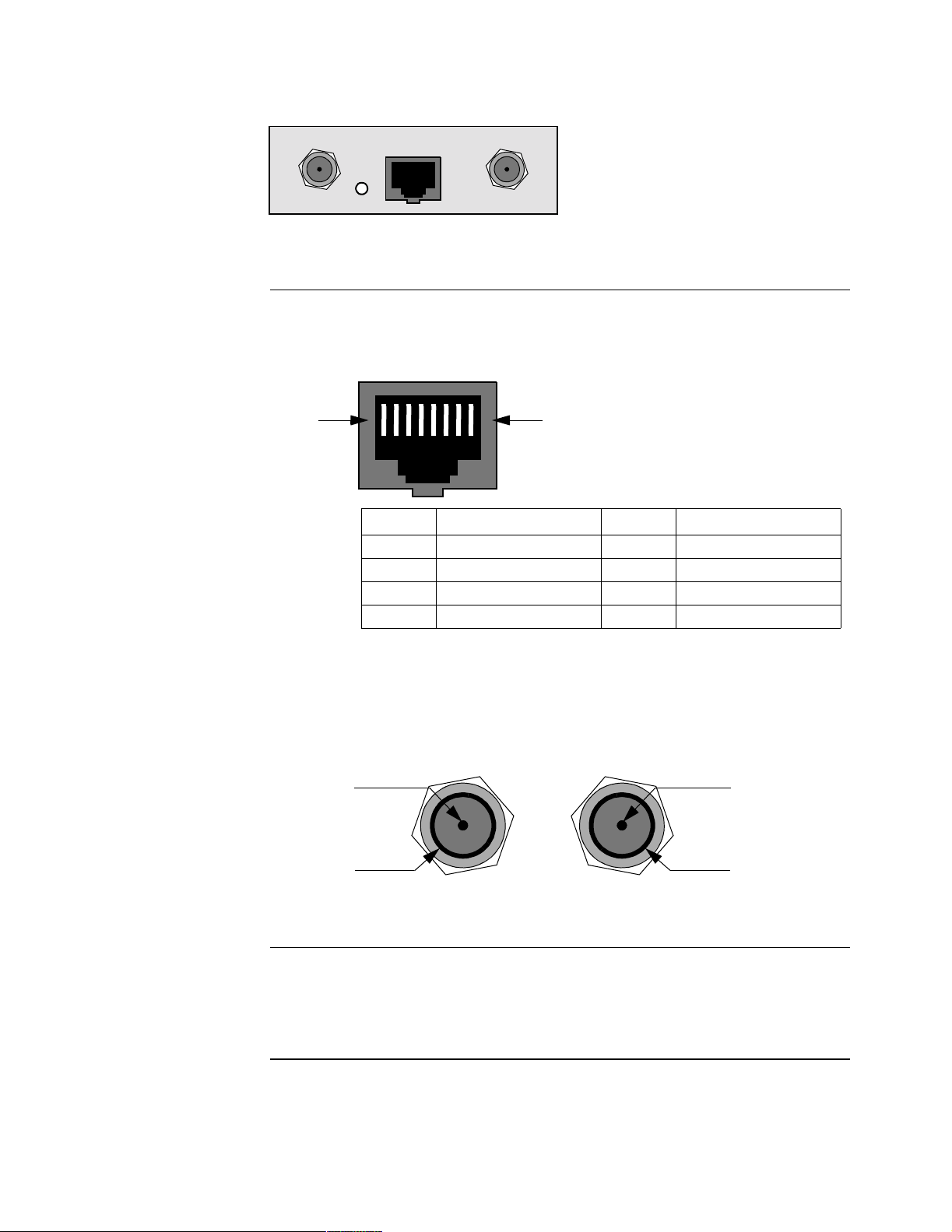

Figure 2-15 shows the RemoteVU Daughtercard connectors as they appear on the back panel.
\
VIDEO 2 VIDEO 1 CAMERA
Figure 2-15. Remote VU Daughtercard Connectors
1-Port FXS/FXO Voice Daughtercard
The 1-Port Voice FXS/FXO Daughtercard provides RJ11 connectors for FXS and FXO Ports. However, only one port can be active at a time.

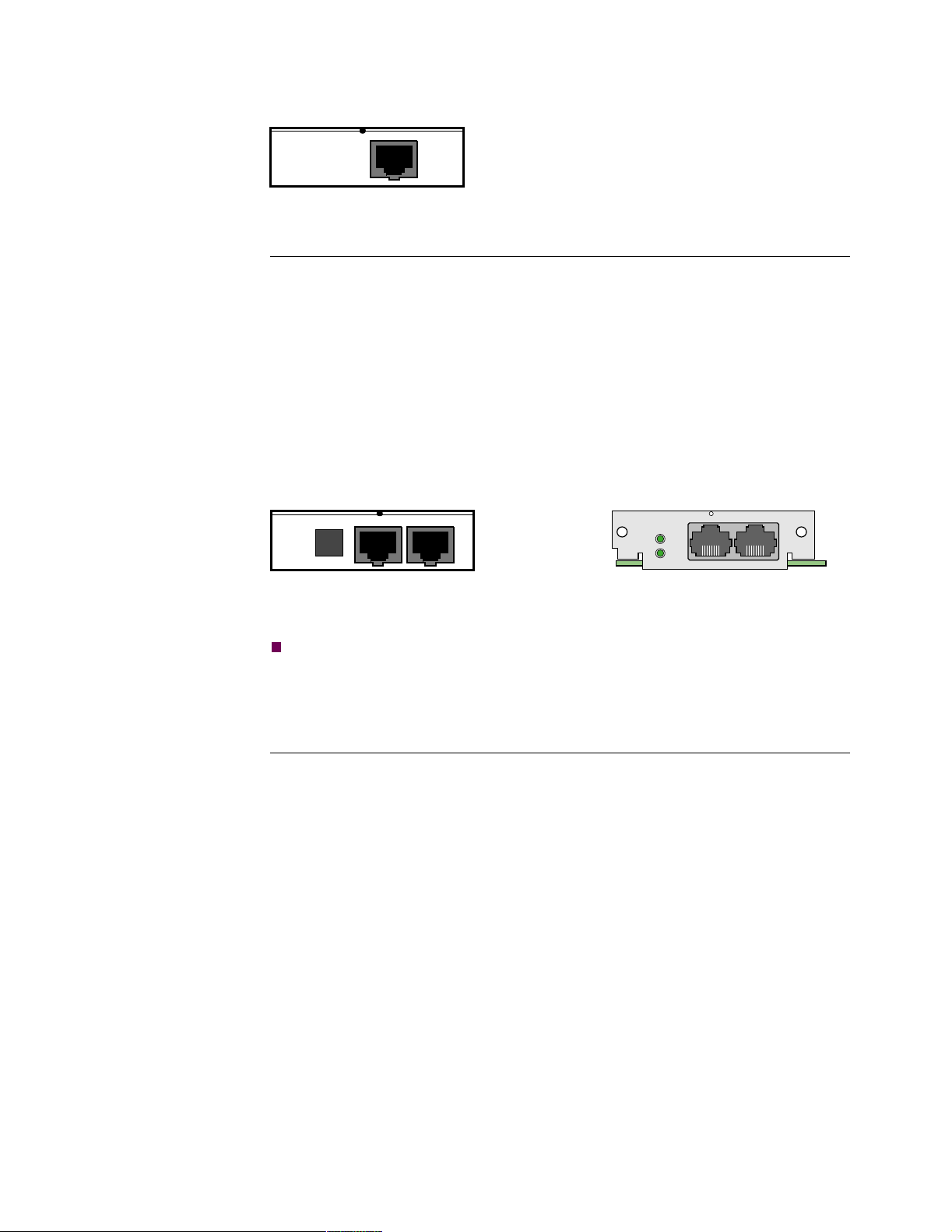

Figure 2-16 shows the FXS/FXO Voice Daughtercard connectors as they appear on the back panel.
\
FXS
LOC
REM
FXO
Figure 2-16. 1 port FXS/FXO Voice Daughtercard Connectors
2-Port Voice FXS Daughtercard
The 2-Port Voice FXS Daughtercard has two RJ11 connectors for two FXS Ports. The two ports can be used simultaneously and each port supports one voice channel.
Figure 2-17 shows the 2 Port Voice FXS Daughtercard connectors as they appear on the back panel.
2-14 Hardware Description
Vanguard Daughtercards
4-Port Voice FXS Daughtercard
LOC
FXS-1 FXS-212
REM
Figure 2-17. 2-Port Voice FXS Daughtercard Connectors
Note
Calls between two FXS ports within the same Vanguard 6435/6455 are not supported.
The Vanguard Quad FXS Daughter Card is supported on the Vanguard 6435 and
6455. The 4-Port Voice FXS Daughtercard has four RJ11 connectors for four FXS Ports.The new software for this card is in release 6.0.

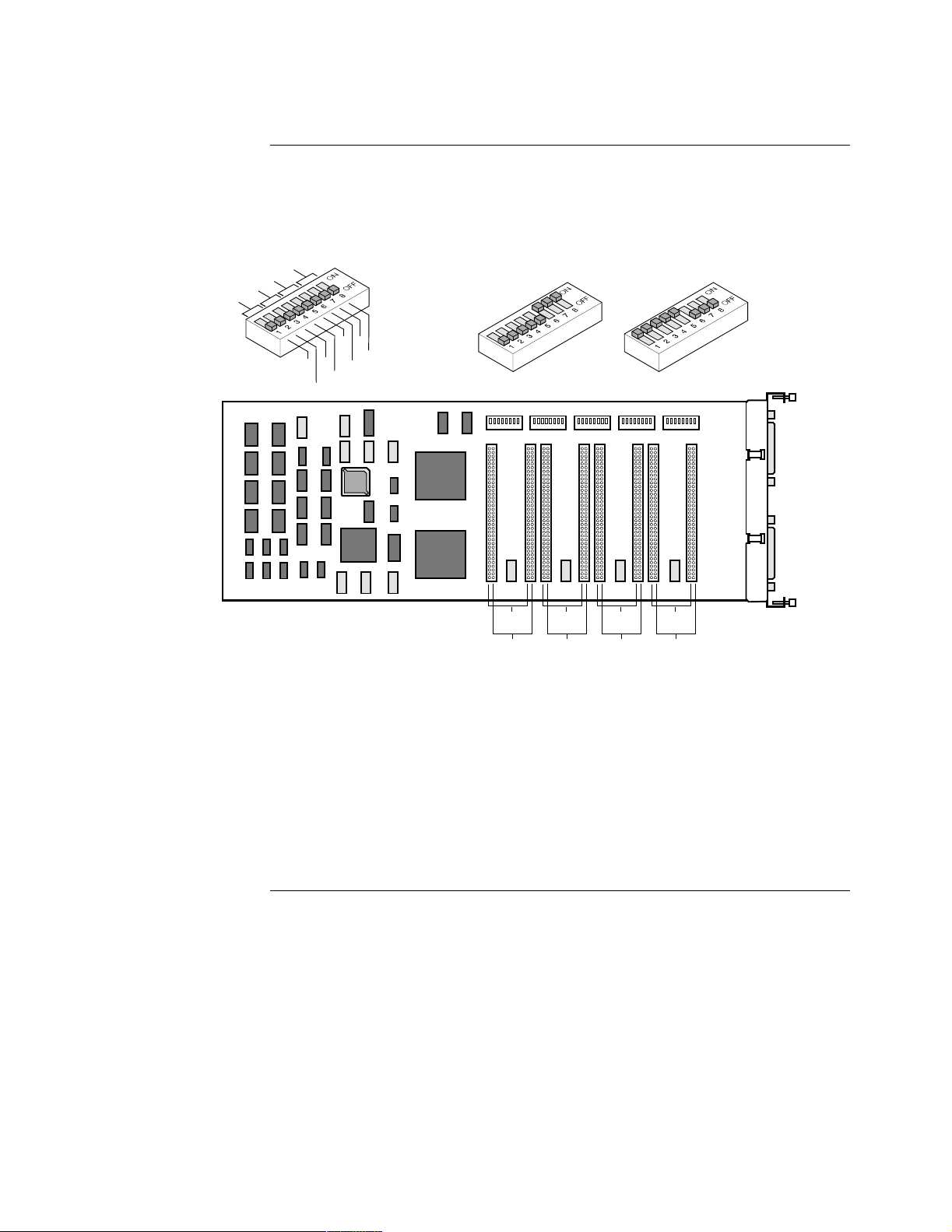

Figure 2-18 shows the 4-Port Voice FXS Daughtercard connectors as they appear on the back panel. Figure 2-19 shows the top view of an FXS Daughter Card.
FXS-1 FXS-2 FXS-3 FXS-4
Figure 2-18. FXS Daughtercard
Figure 2-19. Overview of FXS Daughtercard
4-Port Voice FXO Daughtercard
The Vanguard Quad FXO Daughter Card is supported on the Vanguard 6435 and
6455. The 4-Port Voice FXO Daughtercard has four RJ11 connectors for four FXO Ports.The new software for this card is in release 6.0.
Figure 2-20 shows the 4-Port Voice FXO Daughtercard connectors as they appear on the back panel. Figure 2-21 shows the top view of an FXO Daughter Card.
FXO-3 FXO-4FXO-2FXO-1
Figure 2-20. FXO Daughtercard
Hardware Description 2-15
Vanguard Daughtercards
Figure 2-21. Overview of FXO Daughtercard
FT1/FE1 Daughtercards
The FT1/FE1 Daughtercards allow a Vanguard 6435/6455 to transfer data over a T1 or E1 network. The daughtercards support full and fractional T1 or E1 speeds.
• The FE1 Daughtercard provides line rates 2.048 Mbps and data rates of n x 64 kbps (where n is 1 to 31) per channel.
• The FT1 Daughtercard provides line rates 1.544 Mbps and data rates of n x 56 kbps (where n is 1 to 24) per channel.
Figure 2-22 shows the FT1 and the FE1 Daughtercard connectors as they appear on the back panels. The FT1 Daughtercard has a single RJ48C connector while the FE1 Daughtercard has two BNC connectors along with one RJ48C connector.
\
NTWK
T1
ALARM
RX TX
ALARM
E1
NTWK
Figure 2-22. FT1 and FE1 Daughtercard Connectors
Note
The FE1 Daughtercard comes with this label which specifies that the E1 interface complies with the Australian requirements ACA TS 016 - 1997 for connection to E1 SELV services. Also the E1 interface meets the IEC950 specifications for TNV1.
Channelized Data is not Supported for Ports 7, 10 or 13
Although the "Channelized" and "ISDN-PRI" data features are configurable under the "Format Type" parameter for T1/E1 daughter cards on the Vanguard 6435/55 products, these features are not supported, and their use can result in unpredictable behavior.
Do not configure "Format Type" to "Channelized” or “ISDN-PRI". Set the default “Format Type” parameter to “Fractional”.
2-16 Hardware Description
Vanguard Daughtercards
Dual E&M Daughtercard
V.34 Modem Daughtercard
The Dual E&M Daughtercard has two E&M interfaces. The ports use RJ11 connectors.
Figure 2-23 shows the Dual E&M Daughtercard connectors as they appear on the back panel.
Figure 2-23. Dual E&M Daughtercard Connectors
The V.34 modem daughtercard is essentially a 3460 modem that can be installed in a Vanguard 6435 or Vanguard 6450. Once the card is in your unit, it performs as if it were an external modem. For information about configuring and using the V.34 modem, refer to the 3460 Fast’R User’s Guide (Part Number T0022-01).
Figure 2-24 shows the rear panel connectors on the V.34 modem daughtercard.
LEASE
DIAL
V.90 Modem Daughtercard
Figure 2-24. V.34 Modem Daughtercard Connectors
The V.90 modem daughtercard provides dial back-up for a customers PPP Async applications. The V.90 uses a dual RJ-11 for connection to central offices, PBXs or telephone systems. V.90 is designed for the Vanguard 6435 and 6455. The Vanguard V.90 daughtercard requires release 6.2 or greater software.
Figure 2-25 shows the rear panel connectors on the V.90 modem daughtercard. For installation instructions, refer to the Vanguard Daughtercard Installation Guide (Part Number T0020).
MR
.
RI OH
Line
CD
RXD
RJ-11 RJ-11
Phone
Figure 2-25. V.90 Modem Daughtercard Connectors
Hardware Description 2-17

Enhanced Vanguard Daughtercards

Enhanced Vanguard Daughtercards
Introduction This section describes the Enhanced Vanguard Daughtercards currently supported by
the 6435 and 6455. These include:
• “10/100BaseT Enhanced Daughtercard” on page 2-19
• “ATM Enhanced Daughtercard” on page 2-21
2-18 Hardware Description
Enhanced Vanguard Daughtercards

10/100BaseT Enhanced Daughtercard

Introduction The 10/100BaseT Enhanced Vanguard Daughtercard conforms to the Fast Ethernet
specification (IEEE 802.3u) known as 100BaseT. This LAN standard has raised the Ethernet speed limit from 10 Megabits to 100 Megabits per second. Furthermore, the card has an auto-sensing feature that allows it to determine if the connection is 10BaseT or 100BaseT and adjust its speed as required. This card supports half or full duplex operation with the default being half duplex.

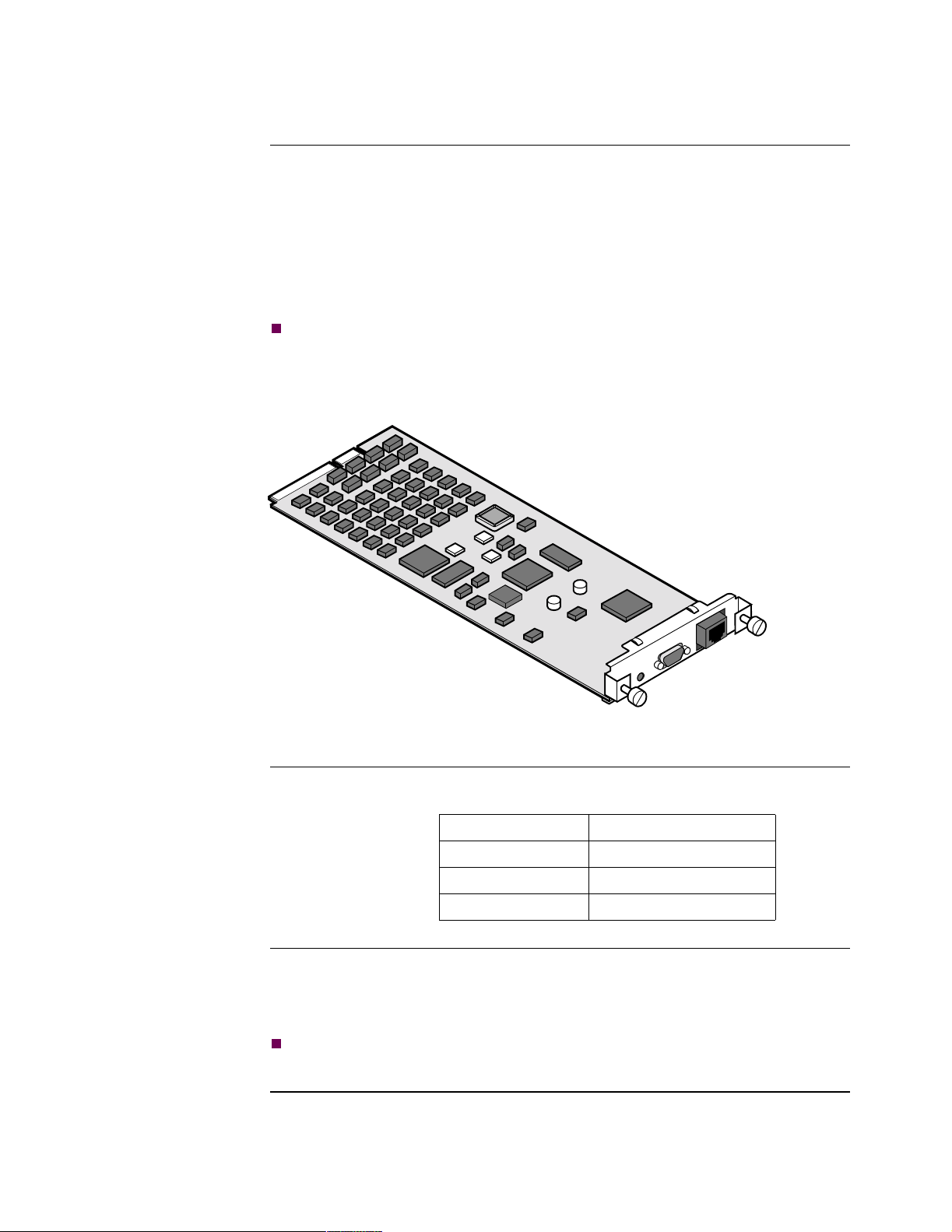

Figure 2-26 shows a drawing of the 10/100BaseT Enhanced Vanguard Daughtercard.
Figure 2-26. 10/100BaseT Enhanced Vanguard Daughtercard
RJ-45 Connector Pinout
EDC LEDs The 10/100BaseT Enhanced Vanguard Daughtercard has two LEDs built into the
The 10/100BaseT Enhanced Vanguard Daughtercard has a single RJ45 connector and is cabled using CAT-5 twisted pair copper cables. This table details the pin for the 10/100Base T RJ45 connector:
Pin Signal Pin Signal
1 Transmit Positive 4 Not Used 2 Transmit Negative 5 Not Used 3 Receive Data Positive 6 Receive Data Negative
rear panel connector. This tables explains the LEDs:
LED Description
Yellow • On: Active (Tx/Rx activity).
• Off: No activity.
Green • On: The link is up.
• Off: The link is down.
Hardware Description 2-19
Enhanced Vanguard Daughtercards
Configuring the 10/100BaseT Card
The Vanguard 6435/6455 supports only one 10/100BaseT Enhanced Vanguard Daughtercard at a time. However, the Vanguard 6435/6455 can simultaneously support the onboard Ethernet 10BaseT port (Port 5) and the 10/100BaseT port (either Port 10 or Port 13, depending on the card’s location).
Ethernet Port records can be configured for both ports (providing there are no conflicts between the two records such as bridge link and router interface numbers).
• If you manually configure the onboard 10BaseT Port (Port 5), the 10/100BaseT port (Port 10/13) automatically uses the default Ethernet Port record.
• If you do not configure either port, the 10/100BaseT Port (Port 10/13) uses the default configuration and the 10baseT Port (Port 5) is disabled.
• You can configure the 10/100BaseT Port (Port 10/13) as NULL which effectively disables the port.
For more information about configuring an Ethernet port, refer to the Ethernet Basics Guide (Part Number T0109).
Multiple LANs The Vanguard 6435/6455 can simultaneously support only two LANs in any of these
combinations:
• Two Ethernet LANs
• One token Ring LAN and one Ethernet LAN
Note
The Ethernet LANs can be either two 10BaseT LANs or one 10BaseT and one 100 BaseT.
2-20 Hardware Description
Enhanced Vanguard Daughtercards

ATM Enhanced Daughtercard

Introduction This section describes how to install a T1/E1 ATM Enhanced Daughtercard
(Figure 2-27) into a Vanguard 6435 or Vanguard 6455. They support a maximum of two ATM EDCs; each connecting a single port to either a T1 or E1 leased line network.
T1 ATM Enhanced
Daughtercard
E1 ATM Enhanced
Daughtercard

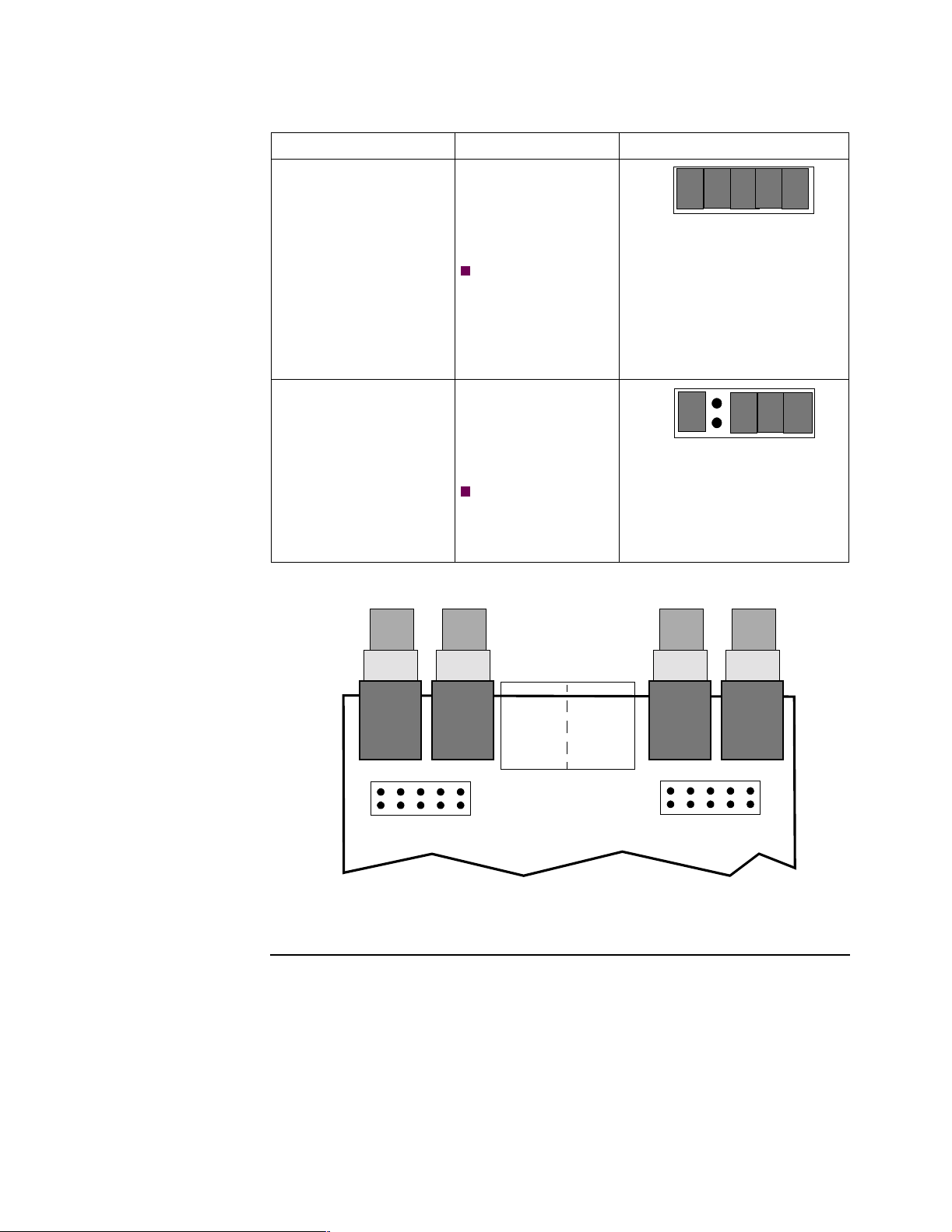

ATM E1 Switch Settings
Figure 2-27. ATM T1/E1 EDCs
The E1 version of the ATM Enhanced Daughtercard contains a block of DIP switches. These are two position slide switches that set connection impedance.
• When all switches are in the on position you select 75
• When all switches are in the off position you select 120
On position selects 75 Ω.
1
O N
2
Off position selects 120
1
O N
2
impedance.
impedance.
Ω.
Figure 2-28. ATM E1 Enhanced Daughtercard Switch Settings
There are two versions of the ATM Enhanced Daughtercard, one for T1 and the other for E1 applications. Figure 2-29 shows the rear panel of the T1 version and Figure 2-30 shows the rear panel of the E1 version.
Figure 2-29. ATM Enhanced Daughtercard Rear Panel: T1 Version
Hardware Description 2-21
Enhanced Vanguard Daughtercards
Figure 2-30. ATM Enhanced Daughtercard Rear Panel: E1 Version
ATM EDC Connector Pinouts
Figure 2-31 identifies the connector pinouts found in the RJ48C connectors of both T1 and E1 versions of this Enhanced Daughtercard. Figure 2-32 identifies the pinouts of BNC connectors found on the E1 version.
Pin 1
Pin 8
Pin Signal Pin Signal
1 Receive Ring 5 Transmit Tip 2 Receive Tip 6 No Connection 3 No Connection 7 No Connection 4 Transmit Ring 8 No Connection
Figure 2-31. RJ48C Connector and Pinout
RX
Receive Tip
Receive Ring
TX
Transmit Tip
Transmit Ring
Figure 2-32. BNC Connector: RX and TX
T1/E1 ATM Release 6.0 and greater includes enhanced ATM functionality for the Vanguard 6435
and 6455. The new enhancements are:
• Annex G Termination
• Variable Bit Rate (VBR) - real time and non-real time
2-22 Hardware Description

T1E1 ATM Port Configuration

If you are running T1 ATM on a Vanguard 6435 or 6455 Series product, the AAM port may not function after upgrading to release 6.0.R00A or greater (when certain parameters are not at default). You must have local CTP access to the node if this is the case. Do not upgrade to release 6.0.R00A if you have no other way to access the CTP than through ATM. The ATM connection could be down after booting in Release 6.0.R00A or greater.
You must have local CTP access if the following parameters are not configured as follows (prior to the upgrade):
Parameter Default
*Port Type: AAM *Maximum VPI Range: 3 *Maximum VCI Range: 127 F5 Link Assurance Timer: 3 F5 Link Assurance Count: 3
Enhanced Vanguard Daughtercards
CC Activate/Deactivate Timer: 5 CC Activate/Deactivate Count: 3
If these parameters are not set at default, you must reconfigure all AAM ports after release 6.0.R00A or greater has been booted on-line and then reboot the node again. All AAM station configurations are correctly transferred in the upgrade and will function once the AAM port is reconfigured properly.
Hardware Description 2-23
Enhanced Vanguard Daughtercards

Vanguard 6435 and 6455 ATM Compression Support

Introduction Release 6.3 and greater supports the use of compression on a Vanguard 6435 and
6455. Prior to release 6.3 ATM was not designed to support compression over an AAM station (connecting via PVC to LCON stations).
Main Menu->Configure->Configure Network Services
Node: 6.3_TEST Address: 63 Date: 7-FEB-1999 Time:1:17:59 Menu: Configure Network Services Path: (Main.6.3)
1. Route Selection Table
2. PVC Setup Table
3. Mnemonic Table
4. Network Services Features Table
5. DSCP-to-CoS Mapping Profile
6. BCUG Table
7. Configure QoS
8. (reserved)
9. (reserved)
10. Redirection Table
Figure 2-33. Configure Network Services Menu
ATM Compression Follow the steps in the table below. This configuration allows the data from an
LCON-1 to go out to an ATM station compressed.
Step Action
1 Under the Configure Network Services Menu, select PVC Setup Table.
Entries are:
Source: aam-10s1 Destination: lcon-1
2 Under the Configure Network Services Menu select Network Services
Feature Table. Entries are:
Port/Station Identifier: lcon-1 Data Compression Level: FORCE_ON
Note
When PVC is configured the Data Compression Level should be set to FORCE_ON.
2-24 Hardware Description

Vanguard 6455 Option Cards

Vanguard 6455 Option Cards
Introduction This section describes the Vanguard 6455 Option cards that are currently supported.
These include:
• “SDB4 Option Card” on page 2-26
• “Token Ring Card” on page 2-28
• “Voice over IP Convergence Card” on page 2-29
For instructions for installing the cards into a Vanguard 6455, refer to the “Installing/Removing Vanguard 6455 Option Cards” section in Chapter 3.
Hardware Description 2-25
Vanguard 6455 Option Cards

SDB4 Option Card

Description The SDB4 Option Card shown in Figure 2-34 is an optional card for the Vanguard
6455 that provides four high speed Sync/Async ports. The card can plug into either or both Option Card slots in the Vanguard 6455 chassis.
Switch Settings For Switch 5
(Test Mode Switch)
P1
P0
P3
P2
RIMBRI
RI
RI
MB
MB
Figure 2-34. SDB4 Option Card
MB
Switch Settings
for V.11, V.35, V.36, DSU
(Ports 0, 1, 2, 3)
DCE
DTE
DCE
DTE
DCE
DTE
Switch Settings
(Ports 0, 1, 2, 3)
Port 2Port 3Port 0Port 1
SW5
DCE
DTE
for V.24
Ports 2, 3 P1/P2
Ports 0, 1 P1/P2
The SDB4 has four DIM-selectable serial sync/async I/O ports. There are two 50 pin connectors on the SDB4 back panel. Two Y-Adapter Cables (one for each 50-pin connector on the back panel) break out into four DB-25 connectors, which allow for standard connection, via cables, to other equipment.
The Vanguard 6455 Option Card differs from the existing Vanguard Daughtercards as follows:
• Supports processor(s) and a high-speed bus interface to the motherboard.
• Supports large cards (4.75 x 12 inches) for external device connection.
Port Description The SDB4 ports have these characteristics:
• Data Rates up to 2.048 Mbps
• MC68360 processor
• DIM support (Configuration is factory set as specified by your sales order.)
-V.11 DIM
- V.24 DIM
- V.35 DIM
- V.36 DIM High Speed
2-26 Hardware Description
Vanguard 6455 Option Cards
DIMs The SDB4 Option Card supports DIMs that allow the rear panel connectors to
function as V.11, V24, V.35, or V.36 ports. Depending on how the DIMs are placed, the ports act as DTE or DCE. Refer to Figure 2-34 for details.
DIM DIP Switches Depending on the type of DIM, the DIP switches on the SDB4 card must have either
of two settings shown in Figure 2-34 and in this table:
Switch Number V.11, V.35, V.36, DSU V.24
1Off On 2Off On 3Off On 4Off On 5Off On 6On Off 7On Off 8On Off
Test Mode Switch This table shows the SDB4 Test Mode Switch settings:
Switch No./Name On Off
1: Port 2 RI/TM Pin 22 is input on Port 2. Pin 22 is output on Port 2. 2: Port 2 MB Pin 25 is input on Port 2. Pin 25 is output on Port 2. 3: Port 3 RI/TM Pin 22 is input on Port 3. Pin 22 is output on Port 3. 4: Port 3 MB Pin 25 is input on Port 3. Pin 25 is output on Port 3. 5: Port 0 RI/TM Pin 22 is input on Port 0. Pin 22 is output on Port 0. 6: Port 0 MB Pin 25 is input on Port 0. Pin 25 is output on Port 0. 7: Port 1 RI/TM Pin 22 is input on Port 1. Pin 22 is output on Port 1. 8: Port 1 MB Pin 25 is input on Port 1. Pin 25 is output on Port 1.
Hardware Description 2-27
Vanguard 6455 Option Cards

Token Ring Card

Description The Token Ring Option Card, shown in Figure 2-35, is an optional card for the
Vanguard 6455 that provides the following features:
• Routing, Source Route Bridging, and LLC conversion
• Bridging between Ethernet port and Token Ring Port (Translational Bridging)
• Shared token rings with dedicated connection to file servers
• 4-Mbps or 16-Mbps connections
• STP (DB9) and UTP (RJ45) cable types
Note
Only one Token Ring Card can be used in a 6455 at one time.
For information about configuring the Token Ring Card, refer to the Vanguard Token Ring Basics Guide (Part Number T0111).
Figure 2-35. Token Ring Option Card
LEDs There is a single LED on the rear panel:
Status Indicates
On Inserted into the ring Off Removed from the ring Blinking Passing data
Port Assignments The Token Ring card can be installed in either Option card slot:
• Top Option Card Slot, Port 17 (ports 18 to 32 are unassigned)
• Bottom Option Card Slot, Port 33 (ports 34 to 48 unassigned)
Note
See Figure 2-4 for the card slot locations and port assignments.
2-28 Hardware Description
Vanguard 6455 Option Cards

Voice over IP Convergence Card

Description The Voice over IP (VoIP) Convergence Card, shown in Figure 2-36, is an optional
card for the Vanguard 6455. Coupled with DSP SIMM cards that mount to this option card, the VoIP Convergence Card provides these features:
• Supports 30 voice channels for the E1 card and 24 voice channels for the T1 card.
• Supports 31 virtual data ports for the E1 card and 24 virtual data ports for the T1 card.
• Supports two DSP SIMM cards: a card with eight channels (two DSPs) and a card with 16 channels (four DSPs).
- E1 version should use two, sixteen channel (four DSP) SIMM cards to use
its full E1 capability.
- T1 version should use one, eight channel (two DSP) SIMM card and one,
sixteen channel (four DSP) SIMM card to use its full T1 capability.
• Supports any combination of voice and data.
• Provides aggregated data traffic speed of 2.048 Mbps of data traffic flexibly from 1 to 31 virtual data ports.
DSP
SIMM
Cards
E1 VoIP Convergence
Card
Max 30 voice
channels
Note
Increased feature card performance for the Vanguard 6455 is available with Release 6.2 and greater software.
Caution
Configure interface 4 and 6 for interface 5 and 7 to initialize. Always configure both interfaces even if only the second interface on the card is used
DSP SIMM
Cards mount
75 and 120 ohm
Impedance DIP
switches
E1 Impedance
Jumpers
Figure 2-36. VoIP Convergence Cards
.
here.
T1 VoIP
Convergence Card
Max 24 voice
channels
Hardware Description 2-29
Vanguard 6455 Option Cards
Each Vanguard 6455 can support two of either the T1 or E1 version of the VoIP Convergence Card. You cannot, however, install one of each card version in any one Vanguard 6455. When cards are installed in a Vanguard 6455, interfaces are assigned as illustrated in Figure 2-37.
T1/E1 interfaces
4 and 5
T1/E1 interfaces
6 and 7
Figure 2-37. VoIP Convergence Card Interface Assignments
Note
For information regarding the mapping of ISDN interfaces, please refer to the Vanguard ISDN manuals (Part Numbers T0103-05 and T0103-06).
T1 and E1 Versions There are two versions of the VoIP Convergence Card, one for T1 and the other for
E1 applications. Figure 2-38 shows the rear panel of the T1 version and Figure 2-39 shows the rear panel of the E1 version.
T1 NTWK 2T1 NTWK 1
ALARM ALARM
Figure 2-38. VoIP Convergence Card Rear Panel: T1 Version
RX-1
TX-1
ALARM-1 ALARM-2
E1 NTWK 2E1 NTWK 1
RX-2 TX-2
Figure 2-39. VoIP Convergence Card Rear Panel: E1 Version
Caution
You can install two T1 or two E1 VoIP Convergence Cards in one Vanguard 6455. The Vanguard 6455 does not operate correctly if you install T1 and E1 versions in the same unit.
The T1 version of this option card supports a maximum of 24 voice channels. The E1 version supports a maximum of 30 voice channels. DSP SIMM Cards must be installed on the VoIP Convergence Card to support voice channels. If these SIMM Cards are not mounted to the option card, it supports data transmission only.
2-30 Hardware Description
Vanguard 6455 Option Cards
Alarm LEDs Each interface is supported by an alarm LED that illuminates whenever an error is
detected on the T1/E1 interface.
Rear Panel Connectors
The T1 version of the VoIP Convergence Card has two RJ48C connectors. The E1 version of the card has two RJ48C and four BNC connectors. Figures 2-40 and 2-41 show these connectors.
Pin 1
Pin 8
Pin Signal Pin Signal
1 Receive Ring 5 Transmit Tip 2 Receive Tip 6 No Connection 3 No Connection 7 No Connection 4 Transmit Ring 8 No Connection
Figure 2-40. RJ48C Connector and Pinout
RX
Receive Tip
TX
Transmit Tip
Receive Ring
Transmit Ring
Figure 2-41. BNC Connector: RX and TX
E1 Line Impedance Adjustments
Each E1 line termination can be set to either 75Ω or 120Ω using the DIP switch on the card (shown in Figure 2-36). The line impedance can be adjusted to either of these settings as illustrated in Figure 2-42.
75 Setting
1
O N
2
120 Setting
1
O N
2
Figure 2-42. E1 Impedance DIP Switches
Note
The T1 line impedance is permanently set to 100Ω.
Hardware Description 2-31
Vanguard 6455 Option Cards
E1 Card Impedance Jumper Settings
These jumpers reside behind the BNC connectors on the VoIP Convergence Card (see Figure 2-36 and Figure 2-43). Use these jumpers to ground the Tx ring and/or the Rx ring on the BNC connectors. these jumpers control the BNC pair directly in front of them. This table details the jumpers’ use:
Description Use Jumper Configuration
The terminals are balanced and are not grounded.
This jumper configuration is required to connect a
Rx Tx
balanced 120
Note
For 120twisted pair
twisted pair E1 network.
applications, all jumper shunts must be removed from the pins to provide at least 2.5mm clearance between network lines (TRing and Rring) and
Note
This is the only configuration for 120 impedance setting.
ground. The TRing (the coax
shield for the Tx pair) is grounded directly.
The Rring (the coax shield for the Rx pair) is not grounded.
This jumper configuration is normally used to connect an unbalanced 75 coax to BNC connectors on
Rx Tx
an E1 network.
The TRing (the coax shield for the Tx pair) is not grounded.
The Rring (the coax shield for the Rx pair) is grounded directly.
This configuration may be used with certain unbalanced 75 coax E1 networks.
Note
Rx
Tx
Use this configuration only if the network provider requests it. The ITU requires this setting.
2-32 Hardware Description
Vanguard 6455 Option Cards
Description Use Jumper Configuration
The TRing (the coax shield for the Tx pair) is grounded directly.
The Rring (the coax shield for the Rx pair) is grounded directly.
The TRing (the coax shield for the Tx pair) is grounded directly.
The Rring (the coax shield for the Rx pair) is grounded through a decoupling capacitor.
This configuration may be used with certain unbalanced 75 coax E1 networks.
Note
Use this configuration only if the network provider requests it. The ITU requires this setting.
This configuration may be used with certain unbalanced 75 ohm coax E1 networks.
Note
This setting may be required in Australia and New Zealand.
Rx
Rx
Tx
Tx
Rx Tx
Rx Tx
Figure 2-43. E1 Card Impedance Jumper Locations
Hardware Description 2-33
Vanguard 6455 Option Cards
2-34 Hardware Description
Installation and Replacement
Overview
Introduction This chapter provides instructions for the following tasks:
• Installing a Vanguard 6435/6455.
• Modifying your unit.
• Installing and replacing the battery.
• Turning the battery on and off.
Chapter 3
Installation and Replacement 3-1

Checking Your Shipment Contents

Checking Your Shipment Contents
List of Contents Before you install the Vanguard 6435/6455, make sure your shipment contents are
complete. The Vanguard 6435/6455 is packaged in shock-absorbent packing material. Inside
your shipping carton, you should find the contents shown in Figure 3-1.
Vanguard 6435/6455 Shipping Contents
• Vanguard 6435/6455 enclosure
• Power cord
Vanguard 6435/6455
Rack Mounting
Kit
Hardware
Front and Rear
Rack-Mounting Brackets
Note: Rack-Mounting Components
(available only on the 6455) must be purchased separately.
Figure 3-1. Vanguard 6435/6455 Shipping Contents
Power Cord
Note: Included Only in North American Product Code
3-2 Installation and Replacement

Installing The Vanguard 6435/6455

Installing The Vanguard 6435/6455
Introduction This section explains how to install the Vanguard 6435/6455. It consists these
sections:
• Selecting and preparing the installation site.
• Standalone installation.
• Rack mount Installation (6455 only).
• Thermal considerations.
• Cabling.
After the Vanguard 6435/6455 is installed and cabled, go to Chapter 4, Powering Up Your Vanguard 6435/6455 for instructions for powering-up the unit.
Installation and Replacement 3-3
Installing The Vanguard 6435/6455

Installing the Standalone Version

How to Choose a Site
Before you install a standalone version of the Vanguard 6435/6455, select a site for the device.
Choose a site that is within an appropriate distance of a power source. Depending on your application, and the country in which the Vanguard 6435/6455 is to operate, the power source must be a grounded 110 to 220 Vac outlet.
Leave at least 2 inches (5 cm) of clearance in front of the front panel, to allow you to see the front panel display, and behind the unit for cable clearances (see Figure 3-2). For proper ventilation, leave 2 inches (5 cm) of clearance on the sides.
The site should be free of accumulated dust and environmental extremes. Refer to Appendix A, Specifications for details.
Note: Do not remove the
rubber feet from the bottom of the unit. They allow for proper air flow.
Minimum 2 inches (5 cm)
Front and Rear
Minimum 2 inches (5 cm)
on either side for ventilation.

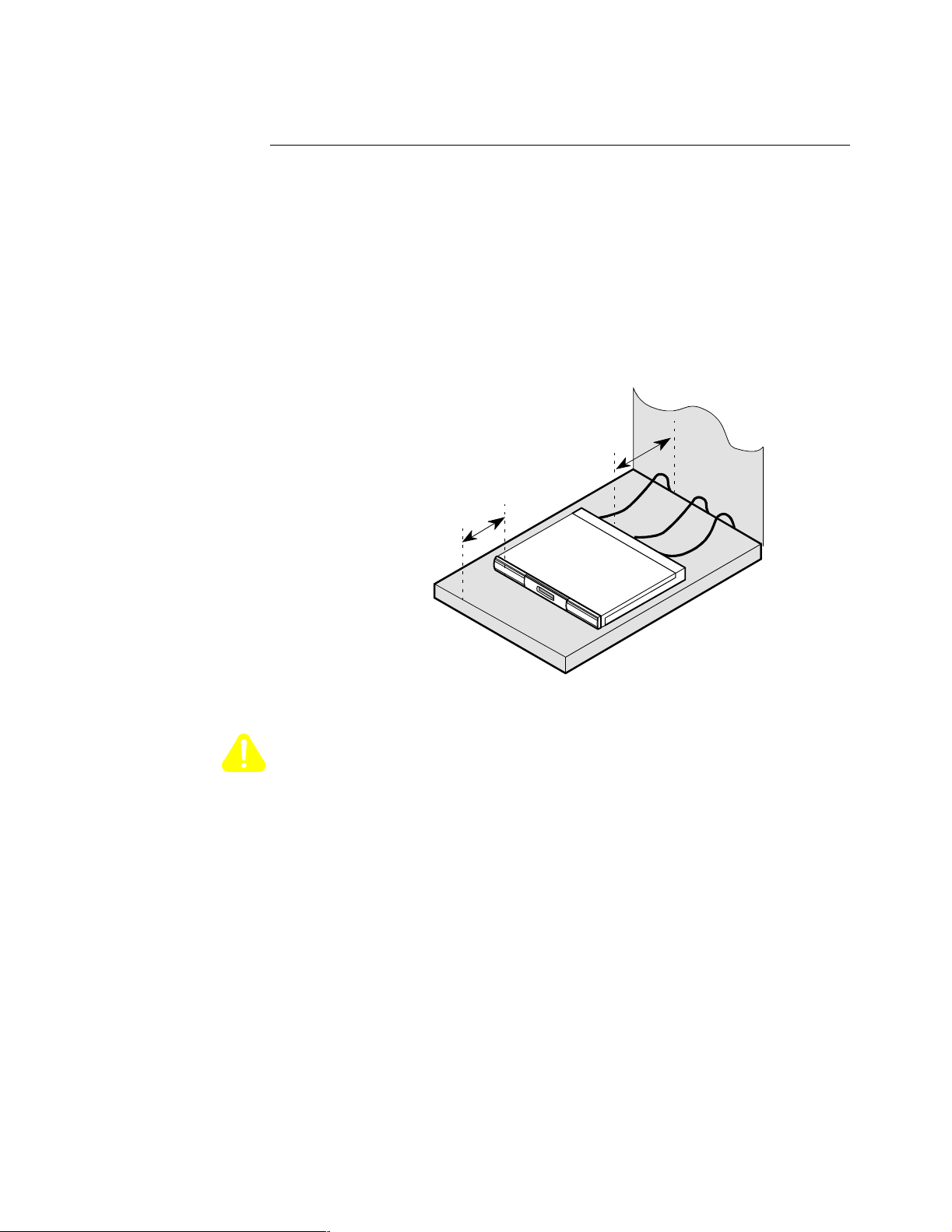

Figure 3-2. Proper Cable and Air Clearance
Caution
Vanguard 6435/6455 devices should be used in environments designed for computers and electronic equipment. In areas susceptible to lightning, take precautions to prevent damage to electronic equipment. Contact your telephone company or an electronic accessories vendor for information on lightning protection equipment. Customers experiencing problems caused by surges from lightning have eliminated such problems by installing appropriate surge suppressors on power and data lines connected to the Vanguard 6435/6455 devices.
3-4 Installation and Replacement
Installing The Vanguard 6435/6455
Installation Complete these steps to install the stand-alone version:
Step Action
1 Unpack the Vanguard 6435/6455, and inspect the unit to ensure you have
all the components.
2 Install any daughtercards, option cards, SIMMs, or DIMs that you need to
add to the unit, as necessary.
3 Be sure that the four rubber feet are on the bottom of the enclosure. 4 Attach the power cord and cables to the rear panel. Refer to the “Cabling
Your Vanguard 6435/6455” section on page 3-9 for cabling information.
5 Place the enclosure in the selected site, and power unit on. Do not block
the fan inlet or outlet vents.
6 Ensure the fan is operational after powering the unit on by checking to see
if air blows out of the unit.
7 Ensure that the ambient temperature at the fan inlet is within the
temperature range specified in Appendix A.
Note
You can stack as many as five Vanguard 6435/6455 units on top of each other.
Caution
Do not place items weighing more than 20 pounds (9 kg) on top of a Vanguard 6435/6455 enclosure.
Installation and Replacement 3-5
Installing The Vanguard 6435/6455

Installing the 6455 Rack Mount Version

Introduction This section explains how to install the rack mount version of the Vanguard 6455.
Be sure that you have the mounting brackets that came with the unit.
Installation Variation
Rack-Mount Cautions
When rack-mounting a Vanguard 6455, you can orient the unit in either of two ways:
• Front Panel Forward: The front panel faces the front of the rack. This allows you to easily read the LCD panel display. The cables run out the rear of the rack.
• Rear Panel Forward: The rear panel faces the front of the rack. This allows you to easily access the cables and to replace and install the motherboard and cards.
For either mounting method, refer to Figure 3-3.
Take note of these considerations before and after rack-mounting your Vanguard
6455.
Caution
It is possible to subject the rack-mounted Vanguard 6455 to high temperatures. Be sure the ambient temperature in the equipment rack and around the inlets of the cards and power supply does not exceed the recommended temperature limits listed in Appendix A.
Caution
Be sure that the rack-mounted Vanguard 6455 has adequate air flow for cooling purposes. Leave a minimum of 2 inch (5 cm) clearance on each side. (Inadequate airflow can cause thermal shutdown of the power supply.)
Caution
When mounting a Vanguard 6455 in a rack, be sure the mounting screws are adequately tightened so the enclosure does not bend or fall.
Caution
Be sure that the power circuit to which the Vanguard 6455 is connected is not overloaded.
Caution
Be sure that the rack-mounted Vanguard 6455 is properly grounded at all times.
3-6 Installation and Replacement
Installing The Vanguard 6435/6455
Installation Figure 3-3 explains how to install a Vanguard 6455 into an equipment rack.
Large Mounting Bracket
Extension Bracket
Small Mounting
Brackets
For racks smaller than 24”, use the small mounting brackets in the rear.
Front Mounting Bracket
Note: Do not remove the rubber
feet from the bottom of the enclosure. The rubber feet prevent multiple Vanguard
s from being stacked
6455 too closely (and restrict air flow).
Figure 3-3. Installing the Vanguard 6455 Into a Rack
Attach the brackets to the chassis: the front brackets to
1
the side that will be in the front of the rack and the straight, extension brackets to the side that will be to the rear. Be sure the screws are tight.
At the front of the rack, attach the brackets to the rails.
2
Be sure the screws are tight. At the rear of the rack, attach the mounting brackets to
3
the extension brackets. Use the large or small mounting brackets as needed. Adjust the mounting brackets until they line up with the rails. Tighten the screws to the extension bracket and then to the rails.
Installation and Replacement 3-7
Installing The Vanguard 6435/6455

Thermal Considerations

Introduction This section explains some of the heat and temperature factors that can affect your
Vanguard 6435/6455.
Fan After the unit is installed, power it up and check that the fan is working properly.The
feet must be installed and air should be blowing out of the unit.
Inlet Temperature After the unit is running, check the ambient air temperature. Make sure it does not
exceed the operating temperature limits specified in Appendix A.
Thermal Shutdown If a Vanguard 6435/6455 is not properly cooled, the power supply will overheat and
shut down. This is called Thermal Shutdown. The power supply remains off until it cools, after which it automatically comes back on.
Thermal Shutdown can occur if the Vanguard 6435/6455’s internal temperature is too high because of any of these conditions:
• Blocked vents
• Insufficient clearance around the unit
• Air inlet temperatures exceeds the operating limits
After it cools, the unit powers on again. However, the unit will continue to automatically shut down until the problem is corrected.
3-8 Installation and Replacement
Installing The Vanguard 6435/6455

Cabling Your Vanguard 6435/6455

Introduction This section provides information to help you cable your Vanguard 6435/6455.
Caution
Before connecting cables to the motherboard or daughtercard ports (ports 1 to 15), be sure that the screws holding the motherboard in place are tight. If the screws are loose, the motherboard could loosen under the weight of the cables and cause damage to the equipment.
Rear Panel Ports Figure 3-4 shows the port number on the Vanguard 6455 rear panel and Figure 3-5
shows the port numbers on the Vanguard 6435 rear panel.
Daughtercard
Slot 1
Port 1 Port 2 DB25
Sync/Async
DIM
Sync/Async
Ports 10, 11, 12
Daughtercard
Slot 2
Port 3
DB25
DIM
RJ45
Async
Note: You must not connect Ports 3, 4, or
5 to the Public Communications Network (PCN).
Port 4
RJ45
CTP
Ter min al
Ports 13, 14, 15Ports 7, 8, 9
Daughtercard
Slot 3
Port 5
RJ45
Ethernet
10-BaseT
Figure 3-4. Vanguard 6455 Rear Panel Port Numbers
Ports 7, 8, 9
Daughtercard
Slot 1
Ports 10, 11, 12
Daughtercard
Slot 2
Ports 13, 14, 15
Daughtercard
Ports 17 to 32
Option Card
Slot 1
Ports 33 to 48
Option Card
Slot 2
Slot 3
Port 1 Port 2 DB25
Sync/Async
DIM
Sync/Async
DB25
DIM
Port 3
RJ45
Async
Note: You must not connect Ports 3, 4, or
Port 4
RJ45
CTP
Ter min al
5 to the Public Communications Network (PCN).
Port 5
RJ45
Ethernet
10-BaseT
Figure 3-5. Vanguard 6435 Rear Panel Port Numbers
Installation and Replacement 3-9
Installing The Vanguard 6435/6455
Caution
Do not connect the Ports 3, 4, or 5 to the Public Communications Network.
Note
When installing a daughtercard with only one port, the port number is 7, 10, or 13 (depending on the location of the card).
Rear Panel Ports There are five physical ports on the Vanguard 6435/6455 rear panel.
Ports 1 and 2
These ports have Sync/Async DB25 connectors. Depending on the DIM installed, they can support V.11, V24, V.35 and V.36. They can also be configured as DTE or DCE ports.
These tables describe the DB25 connector pinouts for Ports 1 and 2:
DB25 V.24 Pinouts (with DIM in DCE position)
Pin ITU Circuit I/O Signal Name
1 --- ----- Protective Ground 2 103 INPUT Transmitted data 3 104 OUTPUT Received data 4 105 INPUT Request To Send 5 106 OUTPUT Clear To Send 6 107 OUTPUT Data Set Ready 7 102 ----- Signal Ground 8 109 OUTPUT Data Carrier Detect 14 --- INPUT Data Restraint Out 15 114 OUTPUT Transmitted Clock 16 117 OUTPUT Standby Indicator 17 115 OUTPUT Received Clock 18 --- INPUT External Rx Clock 20 108/2 INPUT Data Terminal Ready 21 140 INPUT V54 Loop 2 22 125 OUTPUT Ring Indicator 24 113 INPUT External Rx Clock 25 142 OUTPUT Test Indicator
3-10 Installation and Replacement
Installing The Vanguard 6435/6455
DB25 V.24 Pinouts (with DIM in DTE position)
Pin ITU Circuit I/O Signal Name
1 --- ----- Protective Ground 2 103 OUTPUT Transmitted Data 3 104 INPUT Received Data 4 105 OUTPUT Request To Send 5 106 INPUT Clear To Send 6 107 INPUT Data Set Ready 7 102 ----- Signal Ground 8 109 INPUT Data Carrier Detect 14 --- OUTPUT Data Restraint Out 15 114 INPUT Transmitted Clock 16 117 INPUT Standby Indicator 17 115 INPUT Received Clock 18 141 OUTPUT V54 Loop 3 20 108/2 OUTPUT Data Terminal Ready 21 140 OUTPUT V54 Loop 2 22 125 INPUT Ring Indicator 24 113 OUTPUT External Tx Clock 25 142 INPUT Test Indicator
DB25 V.35/V.36 Pinouts
Pin Signal DCE Position DTE Position
1 GND ------- ------­2 TXDA IN OUT 3 RXDA OUT IN 4 RTS IN OUT 5 CTS OUT IN 6 DSR OUT IN 7 SIGGND ------- ------­8 DCD OUT IN 14 TXDB IN OUT 15 TXCA OUT IN 16 RXDB OUT IN 17 RXCA OUT IN
Installation and Replacement 3-11
Installing The Vanguard 6435/6455
DB25 V.35/V.36 Pinouts (continued)
Pin Signal DCE Position DTE Position
18 RXCB OUT IN 20 DTR IN OUT 21 TXCB OUT IN 22 ETXCB IN OUT 24 ETXCA IN OUT 25 (V.36 only) TM NC IN
DB25 V.11/X.21 Pinouts
Pin Signal DCE Position DTE Position
1 GND ------- ------­2 TXDA IN OUT 3 RXDA OUT IN 4 RTSA IN OUT 6 DCDB OUT IN 7 SIGGND ------- ------­8 DCDA OUT IN 14 TXDB IN OUT 15 TXCA OUT IN 16 RXDB OUT IN 20 RTSB IN OUT 21 TXCB OUT IN 22 ETXCB IN OUT 24 ETXCA IN OUT
Ports 3 and 4
These ports have RJ-45 connectors. Use Port 4 as the CTP because Port 3 cannot be used for coldloading software to the node. Figure 3-6 shows the pin numbers for ports 3 and 4.
Pin 1
Pin 8
Figure 3-6. Ports 3/4 Pin Numbers
3-12 Installation and Replacement
Installing The Vanguard 6435/6455
This table shows the pinouts for RJ-45 connectors for Ports 3 and 4:
Pin Number Port 3/Port 4 (CTP)
Signal DCE
1 RTS Input 2 DTR Input 3 RXD Output 4 DCD Output 5 GND ------­6 TXD Input 7DSROutput 8CTSOutput
Note
Use Ports 3 and 4 only with low speed asynchronous protocols. Running asynchronous protocols at speeds greater than 19.2 kbps may degrade node performance.
Port 5
This table shows the pinouts for the RJ45 Ethernet connector for Port 5:
Pin Signal
1 Transmit Positive 2 Transmit Negative 3 Receive Data Positive 4Not Used 5Not Used 6 Receive Data Negative
Installation and Replacement 3-13
Installing The Vanguard 6435/6455
Cabling Daughtercards
Cabling SDB4 Option Card
For instructions on cabling your standard Vanguard Daughtercards, refer to the Vanguard Daughtercard Installation Guide (Part Number T0020).
For instructions on cabling your Enhanced Vanguard Daughtercards, refer to the “Installing/Removing Enhanced Vanguard Daughtercards” section on page 3-27.
The SDB4 Option Card comes with two Y-Cable Adapters as shown in Figure 3-7. They allow each connector on the rear of the SDB4 Option Card to support two ports.
Figure 3-7. SDB4 Option Card Y-Cable
3-14 Installation and Replacement

Modifying Your Vanguard 6435/6455

Modifying Your Vanguard 6435/6455
Introduction You can modify your Vanguard 6435/6455 by adding or replacing components on
the motherboard. In addition, if you have a Vanguard 6455, you can add and replace Option Cards. This section explains how to make these modifications.
Daughtercards You can install up to three Vanguard Daughtercards in the Vanguard 6435/6455.
• For information about installing a standard Vanguard Daughtercard, refer to the Vanguard Daughtercard Installation Guide (Part Number T0020).
• For information about installing an Enhanced Vanguard Daughtercard, turn to “Installing/Removing Enhanced Vanguard Daughtercards” section on page 3-27).
Note
When installing a Vanguard Daughtercard into a 6435/6455, you must use the shorter two-sided header. The taller header is used with other Vanguard units.
Installation and Replacement 3-15
Modifying Your Vanguard 6435/6455

Accessing the Motherboard

Introduction This section explains how to access the motherboard for the Vanguard 6455 and the
Vanguard 6435. It also identifies the location of the key motherboard components. Before replacing DIMs, SIMMs, batteries, or daughtercards, or setting DIP switches,
you must access the Vanguard 6435/6455 motherboard.
Note
Because the 6455 and the 6435 have different enclosures, the procedures for accessing the motherboard is different for each device.
Instructions for the 6455
Figure 3-8 shows how to remove and install the Vanguard 6455 motherboard. Figure 3-10 shows the location of the components on the motherboard.
Warning
To prevent injury and damage to the equipment, power down the unit and disconnect the power cord before you remove or install the motherboard.
Avertissement
Pour éviter toute blessure ou endommagement de l’équipement, éteignez l’unité et déconnectez le cordon d’alimentation avant d’enlever ou d’installer la carte mère.
Warnung
Um persönliche Verletzungen und Schäden am Gerät zu verhindern, schalten Sie das Gerät ab, und ziehen Sie den Netzstecker aus, bevor Sie die Hauptplatine entfernen oder installieren.
Caution
Use care when handling and placing the motherboard on a surface. There are components on the bottom of the motherboard that can be damaged.
Caution
Some components used in the 6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
3-16 Installation and Replacement
Caution
When inserting the motherboard, be sure the screws are tight. If they are loose, the motherboard could become unseated under the weight of the attached cables.
Modifying Your Vanguard 6435/6455
Removing the Motherboard
Power down the unit and remove the cables
1
and power cord. Loosen the two captive screws on either side of
2
the motherboard rear panel. Use the ejector lever to carefully slide out the
3
motherboard. Place the motherboard on a clean flat surface.
4
Figure 3-8. Vanguard 6455 Motherboard Removal and Replacement
Installing the Motherboard
Carefully slide the motherboard
1
into the card guides within the opening. Push the motherboard into the enclosure (make sure lever is flat against the back panel). Make sure the edge connectors seat properly by pressing firmly on the thumbscrews.
Hand tighten the captive screws on both sides of the rear panel. Be
2
sure the screws are snug. Reconnect the cables and power cord and power up the unit.
3
Installation and Replacement 3-17
Modifying Your Vanguard 6435/6455
Instructions for the 6435
Figure 3-9 shows how to access the Vanguard 6435 motherboard. Figure 3-10 shows the location of the components on the motherboard.
Warning
To prevent injury and damage to the equipment, power down the unit and disconnect the power cord before you remove or install the motherboard.
Avertissement
Pour éviter toute blessure ou endommagement de l’équipement, éteignez l’unité et déconnectez le cordon d’alimentation avant d’enlever ou d’installer la carte mère.
Warnung
Um persönliche Verletzungen und Schäden am Gerät zu verhindern, schalten Sie das Gerät ab, und ziehen Sie den Netzstecker aus, bevor Sie die Hauptplatine entfernen oder installieren.
Caution
The Vanguard 6435 motherboard is sensitive to electrostatic damage, which can damage components. Use proper ESD handling and grounding precautions when handling a motherboard.
Mise en Garde
La carte mère du Vanguard 6435 est sensible aux effets de l’électrostatique qui risquent d’endommager les composants. Veuillez prendre les dipositions et précautions de mise à la terre nécessaires en matière de dommages électrostatiques lors de la manipulation d’une carte mère.
Vors icht
Bauteile des Vanguard 6435-Motherboard können durch elektrostatische Störungen beschädigt werden. Sorgen Sie für die Einhaltung von Maßnahmen zur elektrostatischen Entladung und Erdung.
Caution
Use care when handling and placing the motherboard on a surface. There are components on the bottom of the motherboard which can be damaged.
Mise en Garde
Veuillez manipuler avec précaution la carte mère lorsque vous la placez sur une surface. Certains composants situés sous la carte mère risquent d’être endommagés.
Vors icht
Das Motherboard muß sehr vorsichtig behandelt werden. Wenden Sie besondere Vorsicht an, wenn Sie das Motherboard auf eine Fläche aufstellen. Die Bauteile an der Unterseite könnten beschädigt werden.
3-18 Installation and Replacement
Modifying Your Vanguard 6435/6455
Caution
Some components used in the 6435 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6435 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Opening the Vanguard 6435 Enclosure
Remove the two screws
1
from the top cover as shown. Slide the cover back to clear
2
tabs, then lift rear part of cover up to clear the back panel.
Lift the cover from
3
.
the 6435 chassis
Closing the Vanguard 6435 Enclosure
To replace cover, reverse the procedure.
1
Figure 3-9. Opening the Vanguard 6435 Enclosure
Installation and Replacement 3-19
Modifying Your Vanguard 6435/6455
Motherboard Components
LCD Display Connector *
Power Supply Connector *
Fan Connector *
* 6435 only.
Figure 3-10 shows the components on a Vanguard 6435/6455 motherboard.
Enhanced Vanguard Daughtercard
SDRAM
DIMM Slot
Flash SIMM Slot
Slots 2 and 1
Data Compression/
Encryption SIMM Slot
Battery
Daughtercard Slot 2
Daughtercard Slot 3 Port 2 Switch 1
Test M od e
DIP Switches
Port 1 Switch 3
Daughtercard Slot 1
DIM Slot 2
DIM Slot 1
Figure 3-10. Location of Motherboard Components
3-20 Installation and Replacement
Modifying Your Vanguard 6435/6455

DIMs, SIMMs, DIMMs and Switches

Introduction The appropriate DIMs and SIMMs should have been installed on the motherboard at
the factory. If they are not, you can install the components. This section explains how to:
• Add and remove DIMs.
• Setting DIM DIP Switches.
• Add and remove SIMM and DIMMs (SDRAM, FLASH, Data Compression, Encryption).
• Set Switches.
For instructions for removing the motherboard, refer to the “Accessing the Motherboard” section on page 3-16.
Adding or Removing a DIM
Refer to Figure 3-10 for the location of the DIM Slots. Placement of the DIM determines if the associated ports acts as a DTE or DCE (see Figure 3-11).
Figure 3-11 shows how to position a DIM on the Vanguard 6435/6455 motherboard and set the DIM DIP switches. The Vanguard 6435/6455 supports V.11, V.24, V.35, V.36, and DSU DIMs.
For instructions for removing the motherboard, refer to the “Accessing the Motherboard” section on page 3-16.
Note
The DIM DIP switches are located under the DIMs. Therefore, before you can reset the switches, you must remove the DIM.
Caution
Some components used in the 6435/6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435/6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6435/6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Installation and Replacement 3-21
Modifying Your Vanguard 6435/6455
Note: When installing a different
DIM, be sure to change the DIP switch setting.
Motherboard
Rear Panel
DTE
DCE
Note: You can install the DIMs only one
way because Pin 4 is larger than the others.
DIM
Switch Settings
for V.11, V.35, V.36, DSU DIM
Switch Settings
for V.24 DIM
Setting DIM DIP Switches
Figure 3-11. DIM Replacement and Switch Settings
The two DIM DIP switches are set at the factory. If you need to reset them, refer to Figure 3-11 and the following table
Switch Number V.11, V.35,
:
V.24
V.36, DSU
1OffOn 2OffOn 3OffOn 4OffOn 5OffOn 6OnOff 7OnOff 8OnOff
3-22 Installation and Replacement
Modifying Your Vanguard 6435/6455
Adding or Removing SDRAM DIMMs
Figure 3-12 shows how to add or remove a SDRAM (synchronous DRAM) DIMM. Refer to Figure 3-10 for the location of the SDRAM DIMM, (Slot U66).
For instructions for removing the motherboard, refer to the “Accessing the Motherboard” section on page 3-16.
Caution
Some components used in the 6435/6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435/6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6435/6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Note
The location of the SDRAM DIMM is indicated on the motherboard as shown in Figure 3-12.
Installation and Replacement 3-23
Modifying Your Vanguard 6435/6455
Adding SDRAM DIMM
Insert the DIMM into the slot at as
1
shown here. Carefully press the DIMM into the
2
socket. Lock the DIMM into place with the
3
locking levers.
Locking Lever
SDRAM DIMM
Removing SDRAM DIMM
Disengage the locking levers by pushing
1
them outward. Lift out the DIMM.
2
SDRAM DIMM Slot
Figure 3-12. SDRAM DIMM Installation/Replacement
3-24 Installation and Replacement
Modifying Your Vanguard 6435/6455
Adding/Removing a FLASH/Data Compression/ Encryption SIMM
Figure 3-13 shows how to add or remove a FLASH or Data Compression SIMM for the Vanguard 6435/6455. Refer to Figure 3-10 for the location of the SIMM slots:
• Data Compression SIMM or Encryption SIMM: Slot U108
• FLASH SIMM: Slot U57
Caution
Be careful when installing a Data Compression SIMM or a FLASH SIMM. These SIMM slots look identical and you may accidently place a SIMM in the wrong SIMM slot which could damage the equipment.
Caution
Some components used in the 6435/6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435/6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6435/6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Note
The location of the Data Compression (DCC/DSP) SIMM/Encryption SIMM and the FLASH SIMM are indicated on the motherboard as shown in Figure 3-13.
Installation and Replacement 3-25
Modifying Your Vanguard 6435/6455
To Install the FLASH SIMM:
Insert the SIMM into the connector at a slight angle, then straighten it and push the locking tabs through the holes.You will hear the clips click into place.
To Remove the FLASH SIMM:
Use your fingers to push back the two metal retaining clips and lift out the SIMM.
To Install the Data Compression or Encryption SIMM:
Push the SIMM into the connector, lining up the holes with the tab, allowing the metal clips to hold the SIMM in place.
To Remove the Data Compression or Encryption SIMM:
Use your fingers to push back the two metal retaining clips and lift out the SIMM.
Locking Tab
FLASH SIMM
Metal Clip
Encryption or
Data Compression
SIMM
Tab
Figure 3-13. FLASH/Data Compression/Encryption SIMM Installation
3-26 Installation and Replacement
Modifying Your Vanguard 6435/6455

Installing/Removing Enhanced Vanguard Daughtercards

Introduction This section explains how to install an Enhanced Vanguard Daughtercard into a
Vanguard 6435/6455 enclosure. For a detailed description of the 10/100BaseT Enhanced Vanguard Daughtercard, refer to the “Enhanced Vanguard Daughtercards” section in Chapter 2.
Note
Before you can install or replace an Enhanced Vanguard Daughtercard, you must first access the Vanguard 6435/6455 motherboard. For details of this procedure, refer to the “Accessing the Motherboard” section on page 3-16.
Caution
Some components used in the 6435/6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435/6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Einige im 6435/6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Installation and Replacement 3-27
Modifying Your Vanguard 6435/6455
Instructions To install (and remove) Enhanced Vanguard Daughtercards, perform the steps as
shown in Figure 3-14:
Mounting Screw Holes
Note: Enhanced Vanguard Daughtercards
can be installed in only the two right-most daughtercard slots as seen from the rear of the motherboard.
10/100 Base T Daughtercard
Remove an Enhanced Vanguard Daughtercard
Locate the Enhanced Vanguard Daughtercard
1
you want to remove and loosen the captive screws that are holding it to the back panel.
Loosen and remove the two mounting
2
screws. Carefully lift out the daughtercard.
3
Install an Enhanced Vanguard Daughtercard
Locate the slot where you want to install the
1
Enhanced Vanguard Daughtercard and remove the filler panel by loosening the captive screws.
Carefully position the Enhanced Vanguard
2
Daughtercard over the connector. Press down firmly so the daughtercard connector seats properly with the motherboard connector.
Secure the Enhanced Vanguard Daughter-
3
card with the two mounting screws and the two captive screws on the back panel.
Figure 3-14. Enhanced Vanguard Daughtercard Installation
3-28 Installation and Replacement
Modifying Your Vanguard 6435/6455

Installing/Removing Vanguard 6455 Option Cards

Introduction This section explains how to install an optional Option Card into a Vanguard 6455
enclosure. (Option Cards do not operate in a Vanguard 6435.) For a detailed description of the SDB 4-Port Sync/Async card, including information about DIP switch settings, turn to the “Vanguard 6455 Option Cards” section in Chapter 2.
Instructions Figure 3-15 explains how to install an Option Card into a Vanguard 6455.
Warning
To prevent injury, be sure to power down the unit and disconnect the power cord before you remove the Option Card.
Avertissement
Pour éviter toute blessure, éteignez l’unité et déconnectez le cordon d’alimentation avant d’ôter la carte d’option.
Warnung
Um Verletzungen zu verhindern, schalten Sie das Gerät ab, und ziehen Sie den Netzstecker aus, bevor Sie die Option Card entfernen.
Caution
Make sure the power is off before installing the cards or the cards could be damaged.
Caution
Some components used in the 6435/6455 are sensitive to static electric discharges; static electric discharges can cause damage to internal components. Use proper handling and grounding precautions whenever handling cards and components.
Mise en Garde
Certains composants du 6435/6455 sont sensibles aux décharges électrostatiques qui peuvent les endommager. Prenez les dispositions et précautions de mise à la terre nécessaires lors de la manipulation de cartes et de composants.
Vors icht
Einige im 6435/6455 verwendeten Komponenten sollten keinen elektrostatischen Entladungen ausgesetzt werden, durch die interne Bauteile beschädigt werden können. Wenden Sie die entsprechenden Maßnahmen zur Erdung und zum Schutz vor statischen Ladungen bei der Handhabung von Karten und Komponenten an.
Installation and Replacement 3-29
Modifying Your Vanguard 6435/6455
Remove an Option Card
Locate the option card you want to remove
1
and loosen the captive screws. Carefully slide out the option card.
2
Install an Option Card
Locate the option card slot you want to use
1
and remove the filler panel by loosening the captive screws.
Carefully slide the option card into the card
2
guides within the opening. Press into place, making sure the edge connectors seat properly.
On either side of the option card, tighten the
3
two captive screws.
Figure 3-15. Installing/Removing a Vanguard 6455 Option Card
3-30 Installation and Replacement

Installing/Removing the Lithium Battery

Installing/Removing the Lithium Battery
Introduction Vanguard 6435/6455 uses a lithium battery on the motherboard to maintain the
node’s realtime clock. The battery is not used to store the configuration memory. This section explains how to replace the battery.
Warning
Only qualified service personnel should perform the procedure described in this section. If the battery is installed incorrectly, it could explode after the Vanguard product is powered up, damaging the unit.
Avertissement
Seules des personnes qualifiées peuvent mettre en pratique les procédures décrites dans cette section. Si la batterie n’est pas correctement installée, elle risque d’exploser après la mise en marche du produit Vanguard et d’endommager l’unité.
Warnung
Die in diesem Abschnitt aufgeführten Vorgänge sollten ausschließlich von qualifiziertem Servicepersonal durchgeführt werden. Wenn die Batterie unsachgemäß installiert wird, kann sie nach dem Einschalten des Vanguard-Produkts explodieren und das Gerät beschädigen.
Note
After installing the battery, set the Vanguard 6435/6455’s date and time. This is done via the CTP in the Update System Parameter menu.
Battery Type Replace the lithium battery with lithium coin cell type CR2032 or its equivalent.
These can be obtained where watch batteries are sold.
Battery Disposal Dispose of the battery in compliance with applicable local regulations.
Installation and Replacement 3-31
Installing/Removing the Lithium Battery
Routine Battery Replacement
Before Removing/ Installing the Battery
Removing/ Installing the Battery
To remove the battery
Using your fingers, push the retaining tabs aside and pry the battery out of the holder.
To install the battery
Place the battery in the holder with the positive (+) side up, and press down until the retaining tabs click into place.
Note: When done, replace the motherboard as
The lithium battery should be replaced every two years. Follow the instructions in Figure 3-16 to replace the battery.
Before you remove or install the battery, you must access the Vanguard 6435/6455 motherboard as described in the “Accessing the Motherboard” section on page 3-16.
Once you can see the motherboard, locate the battery as shown in Figure 3-10.
Figure 3-16 shows how to install and replace the battery.
Retaining Tabs
explained in the “Accessing the Mother­board” section on page 3-16.
Battery Holder
Figure 3-16. Replacing the Battery
Battery
3-32 Installation and Replacement
