Vangoa Worlde User Manual

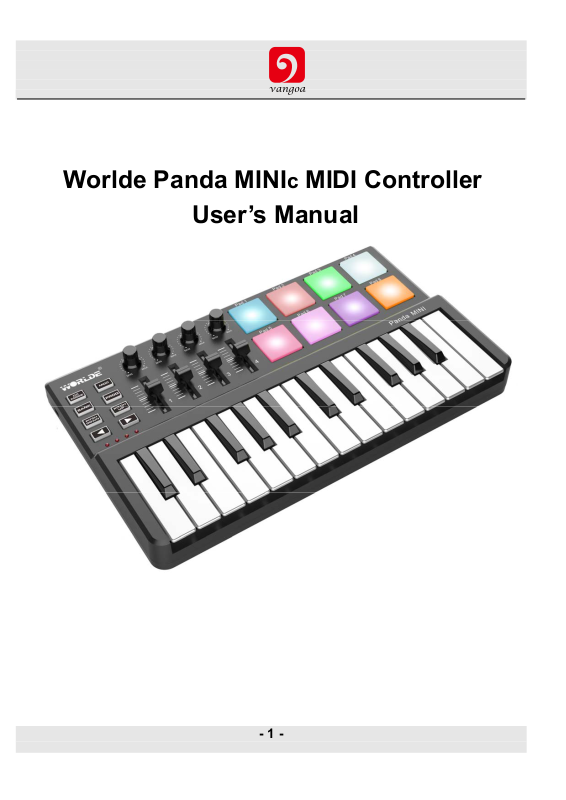

Worlde Panda MINIc MIDI Controller

User’s Manual

- 1 -

■Contents

Introduction .................................................................................. 3

Features ....................................................................................... 3

Parts and their functions .............................................................. 4

Setup ............................................................................................ 7

Making detailed settings ............................................................... 7

Global MIDI channel .................................................................. 7

Keyboard CC mode channel ..................................................... 8

Transpose ................................................................................. 8

Pitch bend speed ...................................................................... 8

Key velocity curve ..................................................................... 8

Pad velocity curve ..................................................................... 8

Trigger pads .............................................................................. 9

Knobs ...................................................................................... 11

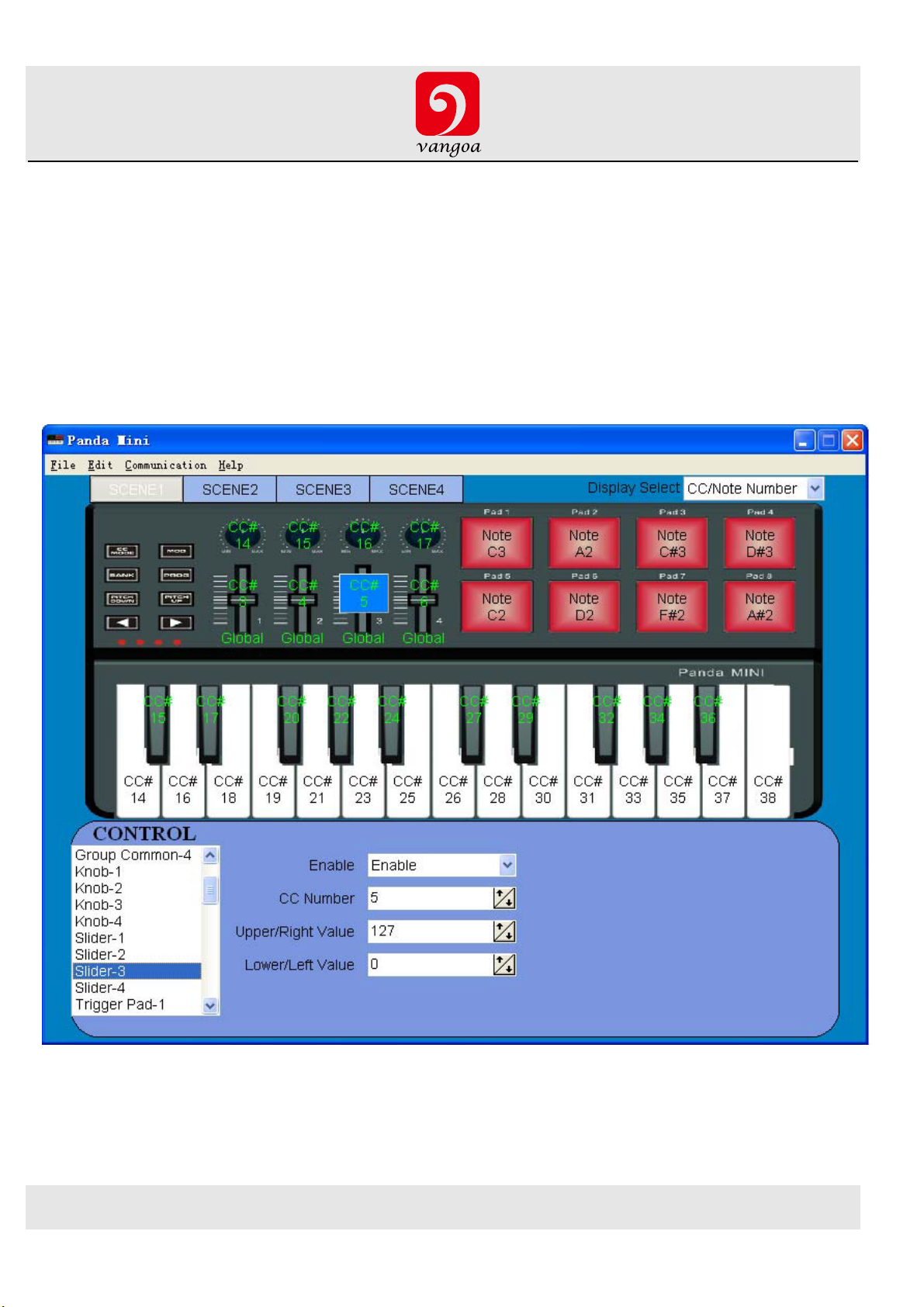

Sliders ..................................................................................... 12

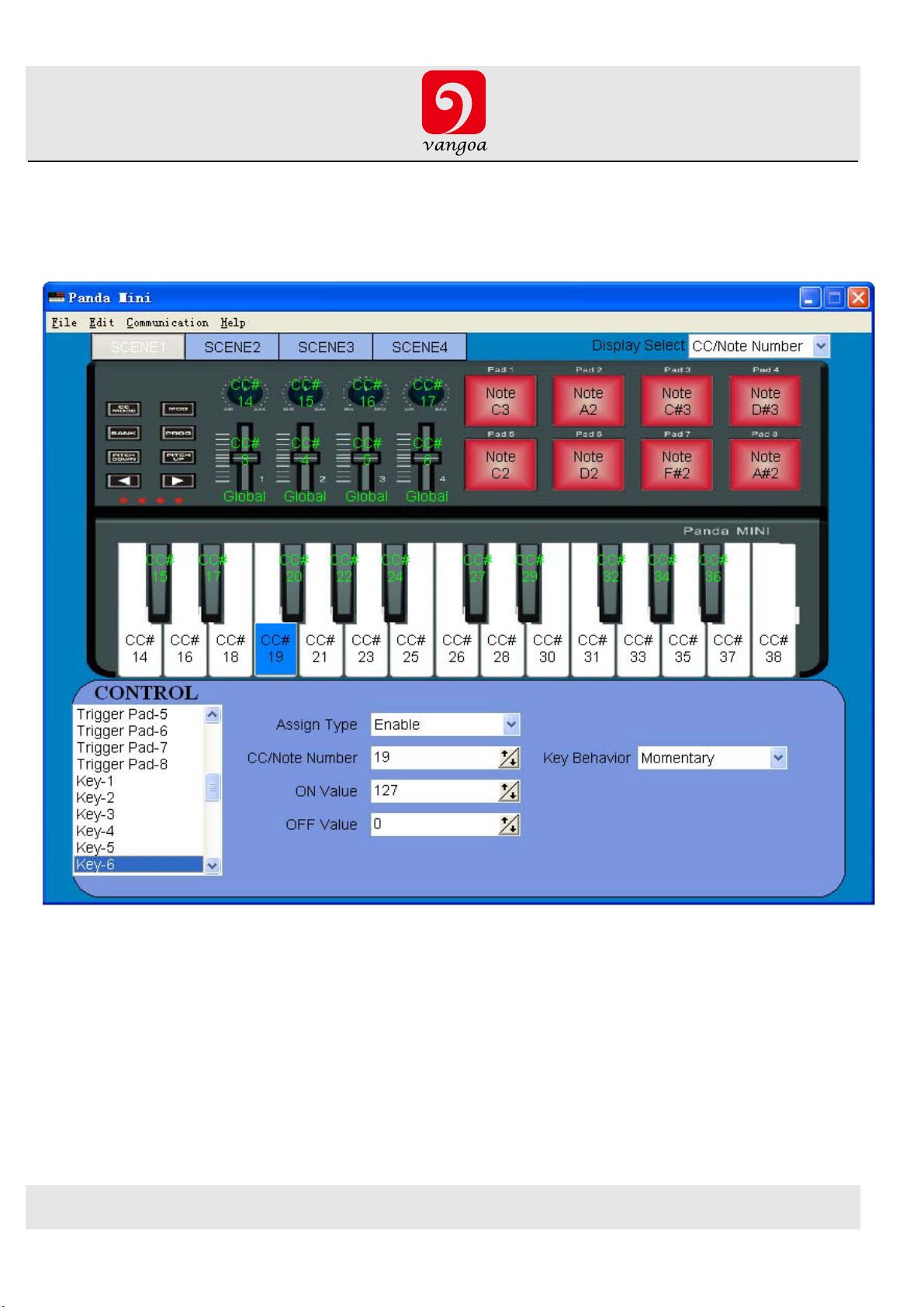

Keyboard operation in Edit mode ............................................ 14

Specifications ............................................................................. 15

- 2 -

●Introduction

Thank you for purchasing the Worlde Panda MINIc USB controller. To help you get the

most out of your new instrument, please read this manual carefully.

In order to use the functions of this product, you’ll need to make settings in the application

you’re using. Make settings as described in the owner’s manual for your application.

●Features

 8 high quality velocity & pressure sensitive performance pads with RGB

backlit , can be assigned easily as pads, MIDI CC buttons or Program change

switches.

 25 keys with velocity assignable to controllers, with 3 velocity curve and one

constant velocity

 4 assignable control knobs

 4 assignable control sliders

 4 banks for different settings

 USB interface, adaptable to USB 2.0(FULL SPEED). Power supplied by USB.

 Compatible with Win10/8/7/XP/Vista and Mac OSX. Drive free and hot-plug

supported.

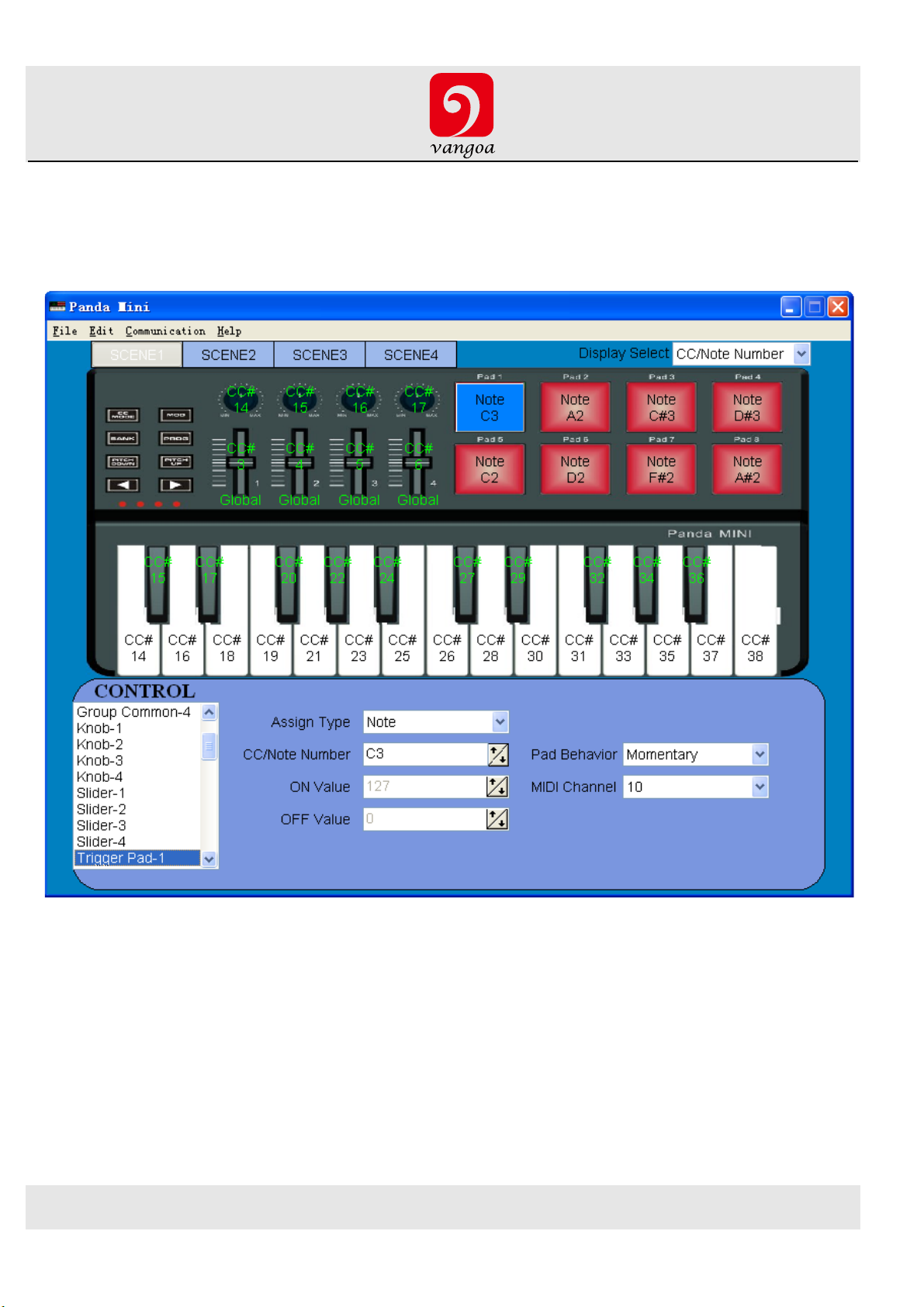

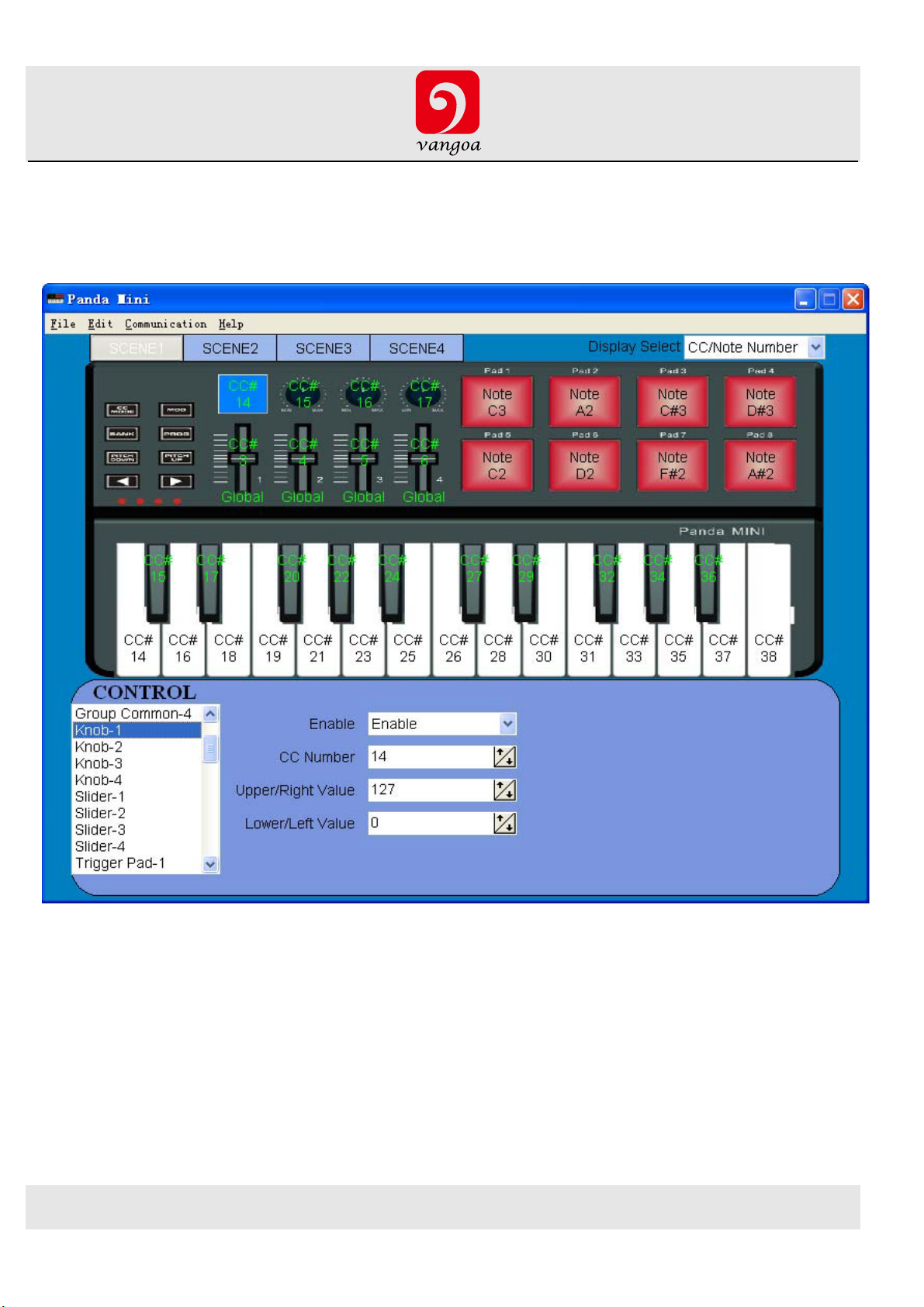

 Edited by the Panda MINI Editor, the picture below is the main screen.

- 3 -

- 4 -

●Parts and their functions

⑤

⑦

⑧

⑥

③

①

④

1. Trigger pads

These pads can transmit note messages or control change messages.

Hold CC MODE and or to select the backlit RGB color of 8 pads, 7 different
colors available.

2. Keyboard

There are twenty-five velocity-sensitive keys that can transmit note messages. When CC mode

②

is on, they transmit control change messages.

3. MIDI control group

A knob, slider, are collectively called a MIDI control group. The Panda MINI has 4 MIDI control

groups.

- 5 -

a. Knob

This knob transmits control change messages.

b. Slider

This slider transmits control change messages.

4. [OCTAVE DOWN] / [OCTAVE UP]

The [◄] button and the [►] button can be used to adjust the octave acquiescently. The pitch will

shift downward by one octave each time you press the [◄] button. The pitch will shift upward by

one octave each time you press the [►] button.

5. Bank button

The Panda MINIc has four banks. When bank button is on, you can use the [◄] button and the

[►] button to switch the four banks. A “bank” is a set of parameter assignments for the

controllers (pads and knobs, etc.). You can use Worlde Panda MINI Editor to change the
assignment of each controller. ( “Making detailed settings”)

6. Program button

When program button is on, you can use the [◄] button and the [►] button to change the

program.

7. [PITCH DOWN] / [PITCH UP]

The [PITCH DOWN] button and the [PITCH UP] button can be used to send a note’s pitch up or

down in cents.

8. Modulation button

The MOD button is used to introduce some sort of vibrato effect.

9. USB connector

Connect the Panda MINIc to your computer with a USB cable via this port.
