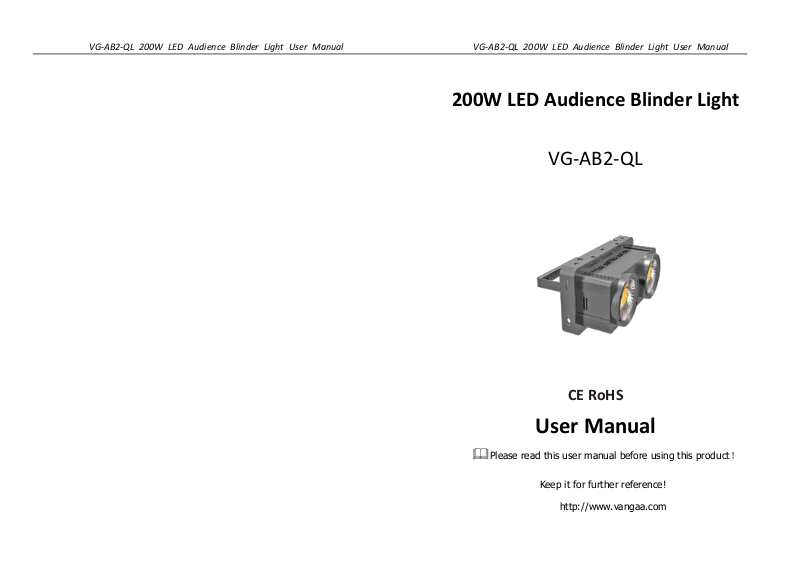

VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
200W LED Audience Blinder Light
VG-AB2-QL
Please read this user manual before using this product！
User Manual
http://www.vangaa.com
CE RoHS
Keep it for further reference!
VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
Power Cable ------- 1pc
User Manual ------- 1pc
Signal Cable ---------------- 1pc
01
INDEX
Ⅰ GENERAL ......................................................................... 01
Ⅱ SAFETY WARNING ........................................................... 01
Ⅲ OPERATION ATTENTION ...................................................... 02
Ⅳ INSTALLATION INSTRUCTION ............................................. 03
Ⅴ OPERATION OF THE CONTROL PANEL .................................... 05
Ⅰ. GENERAL
Thank you for using our products. This product is designed for indoor use. It is suitable for
stage, night bar, performance, event and other entertainment places. As the Indoor LED
Audience Blinder Light, this product can be operated as a single unit or in multiple units for
large applications. Direct input of DMX512 signal to unit to allow it can be controlled by any
DMX512 controller. Powerful internal programs and friendly and convenient operation
interface allow customers to program freely to any different lighting project requirements
for installation or shows.
The operation is very simple, user-friendly design, dimming without flicker, jitter
phenomena. Can be adapted to photography, television and other strict demanding
situations for lighting
This product complies with the following standards:
IEC60598-1:2003
IEC60598-2-17:1984+A2:1990
Ⅵ FUNCTION MENU............................................................. 06
Ⅶ DMX CHANNEL CHART ................................................... 07
Ⅷ TECHNICAL SPECIFICATION .................................................. 07
On receiving products, please carefully check that there has been no damage caused in
transportation and that the following parts are enclosed:
Ⅱ. SAFETY WARNING
Every person involved with the installation, operation and maintenance of this device has to
know:
1). This product must be installed by a qualified professional;
VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
Color of the Power Cord
Connection
Brown
Live line
Blue
Neutral/Null line
Yellow green
Earth line
-6-
-6-
03
02
2). This product left the place of manufacture in perfect condition. In order to maintain this
condition and for safe operation, the user must always follow the instructions and safety
warnings described in this user manual;
3). Manufacturer will not with responsibility for those operations not according to this
Instruction.
Ⅲ. OPERATION ATTENTION
·Do not connect power cable of other electric products with this unit;
·Do not connect DMX512 Signal cable of other electric products with this unit;
·Always make sure that you are connecting to the proper voltage, and that the line voltage
you are connecting to is not higher than that stated on the decal or rear panel of the fixture;
·Always ground (earth) the fixture electrically;
·During long periods of non-use, disconnect the unit’s main power;
·Do not attempt to operate this unit if the power cord has been frayed or broken;
·There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself;
·When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices;
·Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable;
·Block access below the work area whenever installing or removing the fixture.
·Avoiding hit the Light when you are move or install the light;
·If the exterior cord of the fixture is damaged, it must be replaced by manufactory, agent
or a qualified technician.
Ⅳ INSTALLATION INSTRUCTION
Before plug-in the power, please make sure the voltage, frequency of the light are
correspond to the power. And ensure the grounding line of the light working reliable.
You can distinguish the different power cords as below:
·Maximum ambient temperature (Ta) is 35°C. Do not operate fixture at temperatures
higher than this;
·The surface temperature of the light can reach to 65° C, cool down at least before you
operate the light;
·The minimum distance between light-output and the illuminated surface must be more
than 1 meters. Keep all combustible materials (for example fabric, wood, paper) at least 0.5
meters away from the fixture;
·Avoid looking directly into the light source (especially those who suffer from epileptic
fits);
·Always mount this unit in safe and stable matter;
1. Signal Connection
This light provide 3 pins cannon seats, Pin1 for signal ground, Pin2 for signal-, Pin3 for
signal+.
DMX-IN DMX-OUT
The controller, light and light will be connected by 3 pins signal cables one by one.
VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT
DMX Controller Circuit Terminal Seat
05
04
You can connect the output of the controller with input of the first light, and connect the
output of the first light with the input of the second light in the DMX control mode, and so
on one by one. And please connect the output of the last light with the terminal seat. You
can don’t need the controller and circuit terminal seat in the master/slave controller mode.
You can use one 120Ω& 0.25W resistance to insert into and weld the pin2 & pin3 of one
male cannon plug to make the circuit terminal seat. The circuit terminal seat can avoid
DMX-512 signal reflex and interference effectively.
If the output of your controller is using 5 pins cannon seat, please use 5pins into 3pins
signal change cable.
Install the clamp into the hole of the handle, and hang it on the truss then. You can
adjust the right project angle through the screw of the both sides of the light. It’s
important that you have to use one or more protection measures to prevent the light will
fall, such as the safety rope. You can buy the clamps and safety ropes from our
company.
Ⅴ OPERATION OF THE CONTROL PANEL
1. Basic using:
MENU: Main menu change
2. Installation Method
The light can be placed on the solid plane places, then loosen the screw on both sides of the
handles to adjust the right project angle. Please pay attention the places are
non-flammable.
UP: Scroll up the menu items or browse increasing parameters
DOWN: Scroll down the menu items or browse diminishing parameters
ENTER: Confirm/Save/Access submenu
2. Operate step:
Step 1 : Press MENU to previous menu, then could choose MENU
Step 2 : Press UP or DOWN , then revise setting
Step 3 : Press ENTER to sub-menu
VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
CH
Name
DMX Value
Function
CH1
Dimmer 1
000←→255
Dimmer of Lamp 1
CH2
Dimmer 2
000←→255
Dimmer of Lamp 2
CH
Name
DMX Value
Function
CH1
Dimmer 1
000←→255
Dimmer of Lamp 1
CH2
Dimmer 2
000←→255
Dimmer of Lamp 2
CH3
Strobe
000←→004
005←→104
105←→154
155←→204
205←→229
230←→255
No strobe
Strobe from slow to fast
Strobe: slow power on, slow power off(slow-fast)
Strobe: slow power on, fast power off(slow-fast)
Strobe: thunder style (slow-fast)
Strobe: random (slow-fast)
07
06
Step 4: Press ENTER to save or confirm
Ⅶ. DMX CHANNEL CHART
2 Channel Mode
Ⅵ FUNCTION MENU
All menus according to the selected and then press the MENU key to confirm
3 Channel Mode
Ⅷ. TECHNICAL SPECIFICATION
·Input voltage: AC90~240V, 50/60Hz
·Power consumption: 200W
·Light source: 2pcs 100W white LEDs
·LED lifespan: 100,000hours
·Half beam angle: 60degree
·Housing material: steel
·IP rating: IP20
·Grey scale: 4096degree
VG-AB2-QL 200W LED Audience Blinder Light User Manual VG-AB2-QL 200W LED Audience Blinder Light User Manual
08
·Working temperature: -25centigrade~+35centigrade
·Effect: 0~100% dimmer, strobe, color change, color fade
·Control mode: DMX mode, Auto mode, Master/slave mode, sound active
·DMX Channel: 2CH, 3CH
Technology, Innovate, Service, Create Max. Value for Clients!
