Vanderbilt VR20M-MF, VR50M-MF User Manual

Mullion Reader

User Manual

Document ID: A-100410

Edition date: 21.06.2018

Data and design subject to change without notice. / Supply subject to availability.

© 2018 Copyright by Vanderbilt

We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and
undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to anythird party without our prior
express written authorization, nor to use it for any pur pose other than for which it was delivered to him.

Document nr: A-100410

Table of Contents

1 Introduction 4

2 Technical data 5

3 Safety regulations 7

3.1 Standards and guidelines 7

4 Reader components and package contents 8

4.1 Reader components 8

4.2 Package contents 9

5 Mounting and connecting 10

5.1 Mounting a reader 10

5.2 Mounting a reader with cables fed from the side 11

5.3 Connecting the cables 13

5.3.1 Setting the jumpers 13

5.3.2 Connecting the reader in OSDP mode 14

5.3.3 Connecting the reader in Wiegand mode 15

6 Closing the reader 17

7 Disassembling the reader 18

8 Default settings 20

8.1 3CT Tool 21

8.2 Setting burst mode using the keypad 22

9 Connecting the card reader to SiPass integrated 23

9.1 Connecting the card reader to SiPass integrated in OSDP mode 23

9.2 Setting OSDP address for the card reader 24

9.3 Connecting the card reader to SiPass integrated in Wiegand mode 24

10 Connecting the card reader to ACT 25

10.1 Connecting the card reader to ACT in OSDP mode 25

10.2 Setting the OSDP address for the card reader 26

10.3 Connecting the card reader to ACT in Wiegand mode 27

11 Connecting the card reader to SPC 28

12 Disposal 29

1 Introduction

The VR20M-MFand VR50M-MF are mullion mount card readers with modern security over OSDP and
support for the traditional Wiegand protocol. When installed as part of a secure system, the
communication from the reader or the controller they are connected to cannot be compromised. The
readers are made of hard wearing materials and will endure most weather conditions. The readers are easy
to mount and can be mounted on a flat surface. The readers can be cleaned with most kinds of domestic
detergents. All readers have a multicolour light frame. The VR50M-MF has a keypad for pin code.

© Vander bilt 2018 4

A-100410

21.06.2018

2 Technical data

VR20M-MF Mifare card reader
standard

VR50M-MF Mifare card reader
standard with keypad

Protocol OSDP or Wiegand OSDP or Wiegand

Interface to controller RS485 or Wiegand RS485 or Wiegand

Operating voltage 8.5 – 30.0 VDC 8.5 – 30.0 VDC

Power consumption

DC 12V 50mA Peak 150mA
DC 24V 35mA Peak 100mA

DC 12V 50mA Peak 150mA
DC 24V 35mA Peak 100mA

Tamper protection Yes Yes

Card technology Mifare Mifare

Card compatibility

Mifare Classic

Mifare Plus

Mifare DESfire EV1/ EV2

Mifare Classic

Mifare Plus

Mifare DESfire EV1/ EV2

Reading distance

Mifare Classic-up to 6 cm

Mifare Plus-up to 6 cm

Mifare DESfire EV1/ EV2-the
card must be held to the reader

Mifare Classic-up to 6 cm

Mifare Plus-up to 6 cm

Mifare DESfire EV1/ EV2-the
card must be held to the reader

Indicators

3 x LED (red/yellow/green)

1 x Buzzer

Multicolour light frame

3 x LED (red/yellow/green)

1 x Buzzer

Multicolour light frame

Keypad No Yes

Operating temperature - 40°C to + 70°C - 40°C to + 70°C

IP rating IP55 IP55

IK class 08 08

Housing

Zinc casted metal bezel with
polycarbonate plastic front

Zinc casted metal bezel with
polycarbonate plastic front

Color Black, matt chrome Black, matt chrome

Dimensions (WxHxD) mm Surface mounted: 48 x 129 x 22 Surface mounted: 48 x 129 x 24

Approvals CE 2014/53/EU CE 2014/53/EU

© Vander bilt 2018 5

A-100410

21.06.2018

Cable length guide

OSDP Max. 8 readers Max. 1 km Belden cable

Wiegand Max. 4 readers Max. 30m copper cable (0.5 mm)

MullionReader – User Manual Technical data

© Vander bilt 2018 6

A-100410

21.06.2018

3 Safety regulations

General

l Follow all warnings and instructions marked on the device.

l Keep this document for reference purposes.

l Please consider any additional country-specific, local laws, safety standards, or regulations

concerning installation, operation, and disposal of the product.

Liability claim

l Do not make any changes or modifications to the device.

l Use only spare parts and accessories that have been approved by the manufacturer.

3.1 Standards and guidelines

European directives

Vanderbilt hereby declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 2004/108/EC on Electromagnetic Compatibility
(EMC).

The EC Declaration of Conformity is available from your Vanderbilt sales office or:

Vanderbilt International Ltd.

Clonshaugh Business and Technology Park
Clonshaugh

Dublin 17

Dublin
Ireland D17 KV 84

© Vander bilt 2018 7

A-100410

21.06.2018

4 Reader components and package contents

The following diagrams identify the reader components and the contents that come packaged with the reader.

4.1 Reader components

1 Front 6

Location where cables can come
through the back

2 Hook 7 Tamper base

3 Base 8 Screw for tamper protection

4 Gasket 9 Mounting holes

5 Knock outs x 2 10

Upper and lower terminal block
locations

© Vander bilt 2018 8

A-100410

21.06.2018

4.2 Package contents

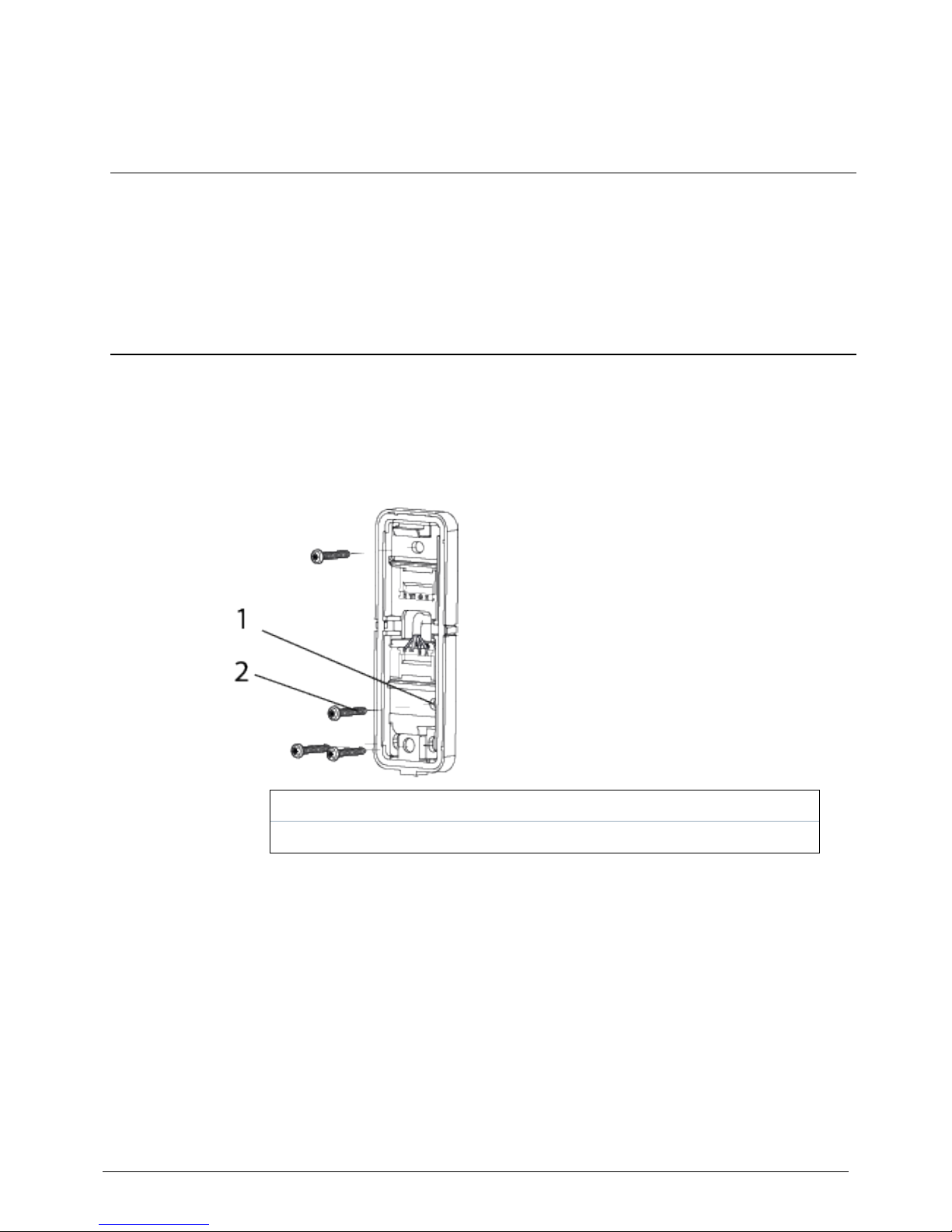

1

+ - B A terminal block for OSDP and Wiegand (lower
terminal block)

2

R Y/T G H terminal block for Wiegand (upper terminal
block)

3 Mounting screws

4 Cover screw

5 Opening tool

MullionReader – User Manual Reader components and package contents

© Vander bilt 2018 9

A-100410
