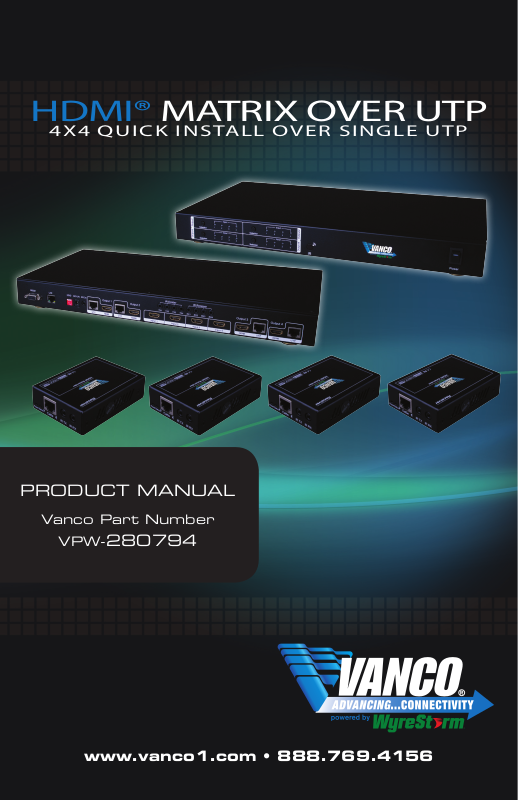

VANCO VPW-280794 User Manual

HDMI® MATRIX OVER UTP

4X4 QUICK INSTALL OVER SINGLE UTP

PRODUCT MANUAL

Vanco Part Number

VPW-280794

www.vanco1.com • 888.769.4156

DEAR CUSTOMER

Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before
connecting, operating or adjusting this product.
Please keep this manual for future reference.

This product is 100% inspected and tested in the United States
to verify HDMI performance parameters.

WARNING

1. Do not expose this unit to water, moisture,
or excessive humidity.

2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.

3. To prevent risk of electrical shock or re
hazard, due to overheating, do not obstruct
unit’s ventilation openings.

4. Do not install near any source of heat,
including other units that may produce heat.

5. Do not place unit near ames.

6. Only clean unit with a dry cloth.

7. Unplug unit during lightening storms, or
when not used for an extended period
of time. A surge protector is strongly
recommended.

8. Protect the power cord from being walked
on or pinched, particularly at the plugs.

9. Use unit only with accessories specied by
the manufacturer.

10. Refer all servicing to qualied personnel.

CAUTION

HDMI is a very complex technology requiring continuous authentication of the signal and the same
video resolution and audio settings on all electronic equipment in the system. When there are multiple
sources and displays, the video resolution and audio setting on all connected units must be adjusted
to correspond with that of the display having the lowest video and audio capability.

2

www.vanco1.com

FEATURES

Vanco Powered by Wyrestorm Quick Install 4x4 Matrix over UTP with RS-232 is an HD switching and extension
system that comprises of a 4 input/4 output HD Matrix together with included 4 display receivers. Have 4 sources
displayed simultaneously on any display or have a single source duplicated on multiple displays, exibility for the
perfect solution. Simple plug and play solution that allows each output with the ability to extend HDMI signal up
to 131 feet over a single category 5e or 6 cable. Features additional HDMI output per UTP output for exibility or
mirroring capability, able to be utilized as a 4x8 matrix unit. With an output bandwidth of 6.75 Gbps, the VPW­280794 is capable of full 1080p HD video and HD multi-channel audio distribution with simple control using the front
panel or remotely via IR Receivers at display locations. Also features EDID management system, which allows and
encourages device communication compatibility for seamless integration. Includes RS232 connectivity for rmware
updates or third party integration for control and switching. For the quickest, most convenient and cost effective
means of transmitting and controlling full, uncompressed 1080p HD video and HD audio, the VPW-280794 is a solid
choice for any application.

Vanco Powered by WyreStorm Quick Install HDMI
4x4 Matrix over UTP

Part # VPW-280794

• Enables up to 4 HDMI video/audio devices to be

independently switched to 4 HDMI displays or
projectors for uncompressed digital distribution up to
40m (130ft) over a single Cat5e/Cat6 cable

• Each output is able to show any connected source

simultaneously regardless of whether the input carries
HDCP encryption

• Additional HDMI output per UTP output for exibility or

mirroring capability, able to be utilized as a 4x8 Matrix

• Designed work seamlessly together for complete

compatibility and full management of handshakes,
screen resolutions and HD signal distribution to each
display point, whether in a residential or commercial
environment

• Fully cascadable so multiple units may be combined to

create a larger HD distribution

• Reads and copies EDID from connected devices with

additional EDID conguration through customizable DIP
switch settings

• Simplied ports - Input: HDMI – Output: integrated

RJ45 connectors for a single Cat5ei/6/7 UTP cable to
each display point for ease of installation.

• Conforms to IEEE-568B standards

• Each HDMI port also supports DVI signals

• 2k resolution supported

• Fully 3D compatible – Frame sequential 3D (Blu-ray)

and interlaced stereoscopic 3D (satellite broadcasts
etc.)

• Supports all high denition resolutions up to 1080p

• For even greater control and ne tuning, each receiver

features a fully adjustable EQ distance range for
optimizing the transmission signal

• Protection against ESD (electrostatic discharge)

included within the receiver units to further stabilize
transmission

• Receivers feature LED indicators for clear power and

video signal selection

• RS232 port

• Choose from 6 switching modes – infrared remote

control, front panel buttons, local IR, IR call-back, LAN
and RS232

• Simple switching remote control included, which can

also be learned into a universal remote handset to
allow the control of multiple devices from one handset.

• Fully compatible for integration with market leading

control systems

• 4 x IR 3.5mm mini-jack ports for each output to link IR

from control system to control display

• Additional infrared extension port for longer IR

connections

• HDMI v.1.3

• Supports 24Bit Color depth

• Signaling rate of 6.75 Gbps

• Pack comes complete with 1 x 4x4 Matrix with

19” brackets, 4 x 40m IR receivers with mounting
brackets, IR receivers, emitters and a Matrix remote
control

• 12V DC, UL Listed Power supply for 4x4 matrix

• 5V DC, UL Listed Power Supplies for Receivers (4

total)

• 4x4 Matrix Dimensions: 17.25” W x 1.75” H x 7.63”

D

• Receivers Dimensions: 2.5” W x .88” H x 3.25” D

888.769.4156

3
