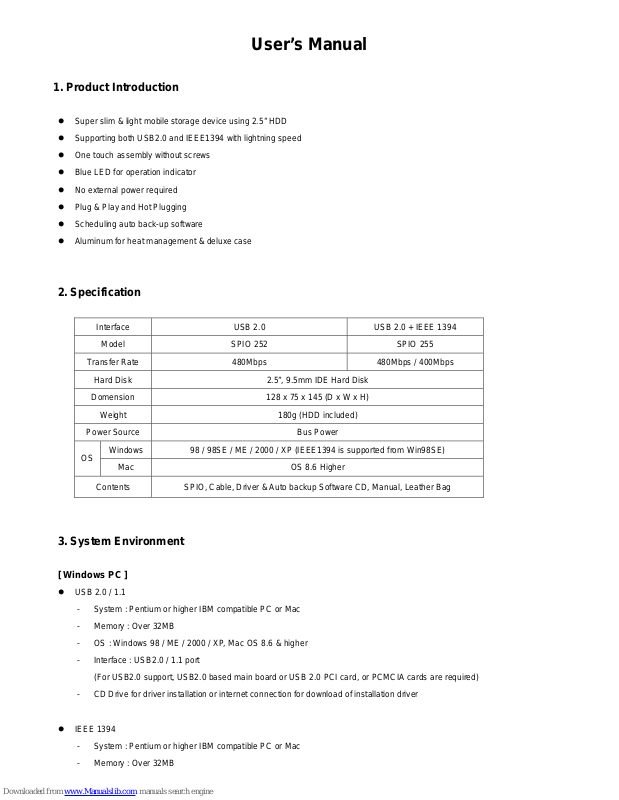

User’s Manual
1. Product Introduction
Super slim & light mobile storage device using 2.5” HDD
Supporting both USB2.0 and IEEE1394 with lightning speed
One touch assembly without screws
Blue LED for operation indicator
No external power required
Plug & Play and Hot Plugging
Scheduling auto back-up software
Aluminum for heat management & deluxe case
2. Specification
Interface USB 2.0 USB 2.0 + IEEE 1394
Model SPIO 252 SPIO 255
Transfer Rate 480Mbps 480Mbps / 400Mbps
Hard Disk 2.5”, 9.5mm IDE Hard Disk
Domension 128 x 75 x 145 (D x W x H)
Weight 180g (HDD included)
Power Source Bus Power
Windows 98 / 98SE / ME / 2000 / XP (IEEE1394 is supported from Win98SE)
OS
Mac OS 8.6 Higher
Contents SPIO, Cable, Driver & Auto backup Software CD, Manual, Leather Bag
3. System Environment
[ Windows PC ]
USB 2.0 / 1.1
- System : Pentium or higher IBM compatible PC or Mac
- Memory : Over 32MB
- OS : Windows 98 / ME / 2000 / XP, Mac OS 8.6 & higher
- Interface : USB2.0 / 1.1 port
(For USB2.0 support, USB2.0 based main board or USB 2.0 PCI card, or PCMCIA cards are required)
- CD Drive for driver installation or internet connection for download of installation driver
IEEE 1394
- System : Pentium or higher IBM compatible PC or Mac
- Memory : Over 32MB
- OS : Windows 98 / ME / 2000 / XP, Mac OS 8.6 & higher (IEEE1394 is not available under Win98)
- Interface : IEEE1394 port
(If the port is not exist in the PC, IEEE1394 PCI card, or PCMCIA cards are required)
- CD Drive for driver installation or internet connection for download of installation driver
[Macintosh]
USB 2.0/1.1
- System : PC that has USB port
- Memory : Over 32MB
- OS : Mac OS 8.6 & higher
- CD Drive for driver installation or internet connection for download of installation driver
IEEE 1394
- System : iMAC, G3 higher (PC that has IEEE1394 port)
- Memory : Over 32MB
- OS: Mac OS 8.6 & higher
- CD Drive for driver installation or internet connection for download of installation driver
4. Caution
New hard disk requires FDISK and Formatting. SPIO can’t be detected in the computer without this process.
Do not drop or aggressively handle the SPIO. It may cause damage to the hard disk.
Avoid exposing the SPIO to
the magnetic like a speaker and humidity. It may cause damage to the hard disk..
Do not remove or disconnect the SPIO from PC while the SPIO is transferring the data. It may cause damage to hard disk.
<On the data loss resulted from ignoring above notes, Valueplus Inc. is not responsible for it.>
5. Name of each part
Power / Blue LED for operation indicator
IEEE1394
port
Switch
USB port
6. Hardware Installation
1) Please disassembly “SPIO” to insert Hard disk drive.
Step 1. Push the button.
Step 1. Push the button.
* Warning. Do not lift up the top case ov er around 10 degrees.
(Hook of aluminum cover in circle area can be broken due to excessive lift
T op Case Disassembly
Push Button
Step 3.
Screw and fix the HDD with mid-frame.
Step 1. Insert the Hard disk into HDD connector.
Step 2. Put the board in the plastic mid-frame.
2) Assemble HDD into the mid-frame.
3) Assembly “SPIO”
Step 2. Lock the case on a mid frame.
Step 1.
Slide the cover to the arrow direction.
Insert the hook of cover into the hole of mid frame.
Step 2. Lock the case on a mid frame.
Step 1.
Slide the cover to the arrow direction.
Insert the hook of cover into the hole of mid frame.
7. Installation Guide
USB
(1) USB mode: Select the switch to “USB”(Left)
USB(1394 POWER)
USB 1394
USB
USB
(2) When the power is not enough from one USB port, please use USB DC Jack shown as below picture.
USB DC Jack will provide extra power from another USB port. Switch should be “USB”(Left).
USB USB
USB
USB(1394 POWER)
USB 1394
IEEE 1394
(1) 6pin to 6pin: Select the switch to “1394”(Right)
USB(1394 POWER)
USB 1394
1394
1394
(2) When the power is not enough from 6pin port, power can be provided from the USB port.
Select the switch to “USB(1394 POWER)”(Middle)
USB(1394 POWER)
USB 1394
USB USB
USB
1394
1394
(3) 6pin to 4pin: Power should be provided from the USB port.
Select the switch to “USB(1394 POWER)”(Middle)
USB(1394 POWER)
USB 1394
1394
4Pin
1394
USB USB
USB
8. Driver Installation
USB
<Installation under Windows 98/ 98SE >
1) After connecting the SPIO to your computer, the Plug & play function will detect the SPIO.
2) When ‘Add New Hardware Wizard’ is shown, follow the installation process as below picture.
(1)
(2)
(3)
(4)
(5)
* After USB driver is installed completely, start installing IEEE1394 driver.
(8)
(7)
(6)
(9)
(10)
(11)
< Driver Installation under Windows ME / 2000 / XP >
SPIO is automatically detected without driver installation under Windows ME, 2000, XP.
< Driver Installation under Mac OS 8.x ~ 9.x >
SPIO is automatically detected without driver installation under Mac OS 8.6 higher.
IEEE 1394
< Driver Installation under Windows 98 SE >
Driver installation is not required at Windows98SE. However, sometimes when you use at the Windows98 SE system, you can g et the
message “Insert Windows CD”. Please insert Windows 98SE CD in CD-Rom. Required driver will be installed automatically.
* Windosw 98 does not support IEEE1394 interface.
< Driver Installation under Windows ME / 2000 / XP >
SPIO is automatically detected without driver installation under Windows ME, 2000, XP.
< Driver Installation under Mac OS 8.6 ~ 9.0 >
Please down load “Firewire enabler” at Macintosh Homepage (http://www.apple.com
) and install it. SPIO will be detected after
rebooting the system.
< Driver Installation under Mac OS 9.0 higher >
SPIO is automatically detected without driver installation under Mac OS 9.0 higher.
9. Safe way to remove SPIO
Windows
1) Finish all operation of SPIO before removing. Click the left button of mouse on the USB icon in the system tray, and select the
message “Stop – [DiskDrive]HDD Model name”.
2) When you get the pop up message “You can unplug the USB storage device as safely”, click “OK”. SPIO can be removed safely.
Mac
Drag & Drop the SPIO icon to the trash icon on Desktop.
10. HardCopy(Auto Backup Program) Installation
Insert the program into CD-ROM Drive. There is a directory of [Hardcopy]. Double click on the “Hardcopy.exe” icon.
Click OK to install the Hardcopy under the default directory. Don’t need to restart your computer. You are ready to use
Hardcopy.
You can find Hardcopy icon on the desktop
To back up the data for the first time
1. Backup List: List Job name, update time, and status.
(A) Status
* “Start” – Start copy.
* “Enable” – Active state. Regular backup will be done with
specified period
* “Disable” – Inactive state. No more regular backup activity.
* “Copy” – Under backup processing.
(B) To change the active status, click “the name of status”.
2. Menu: [New Job- Make a new job] [Open- open the activated job] [Delete- remove the job] [Stop- disable the job]
Option for backup operation
3. Basic: You can see the left window after select New Job or Open.
(A) Job name: Make a new job name.
(B) Period: Set up the regular backup schedule (default is 10min.)
(C) Drive: Select the object folder and backup destination.
(D) Create folder: Make a new backup folder name.
4. Advanced:
(A) Execute
a. File/Folder: backup file and folder.
b. File: backup only file.
(B) Folder option: Separate backup time folder is created for each task.
(C) Copy option: Can backup hidden file, or backup with file
compression.
(D) File option: You can backup specific file with selection of file name and file extension.
(E) Schedule Time: IF you have chosen a daily schedule, you can specify an exact time of the day when it runs. After this schedule
time setting, previous general period setting is disregarded.
You can change the property of job after open the specific job.
