ValueHD VHD-V500N User Manual

VHD-V500N

HD Video Conferencing IP-Camera

User Manual

V1.3

(English)

ValueHD Corporation

ValueHD Corporation

1

Preface

Thanks for using this HD Video Conferencing IP-Camera.
This manual introduces the function, installation and operation of the HD camera. Prior to installation and

usage, please read the manual thoroughly.

Precautions

This product can only be used in the specified conditions in order to avoid any damage to the camera:

 Don’t subject the camera to rain or moisture.
 Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal operation,

contact the authorized engineer.

 Never operating under unspecified temperature , humidity and power supply;
 Please use the soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neuter

detergent; do not use any type of solvents, which may damages the surface.

Note

This is class A production. Electromagnetic radiation at the specific frequency may affect the image quality

of TV in home environment.

ValueHD Corporation

2

Contents

1、 Note ··································································································3
2、 Supplied Accessories ··············································································4
3、 Quick Start ··························································································5
4、 Features ·····························································································8
5、 Product Specification ·············································································9
6、 Main Unit ························································································· 10
7、 IR Remote Controller Explanation ···························································· 11
8、 Use IR Remote Controller ······································································ 13
9、 RS-232 Interface ················································································· 16
10、 Serial Communication Control ································································ 17
11、 Menu Setting ····················································································· 32
12、 Equipment Setup and internet connection ··················································· 37
13、IPcamera visited/ controlled by LAN ·························································· 38
14、IP Camera accessed/controlled by WAN (internet) ········································· 43
15、VLC stream media player monitoring ························································· 46
16、IP Camera parameter setup ······································································ 47
17、 Maintains and Trouble Shooting ······························································ 64

ValueHD Corporation

3

Note

 Electric Safety

Installation and operation must accord with electric safety standard.

 Caution to transport

Avoid stress, vibration and soakage in transport, storage and installation.

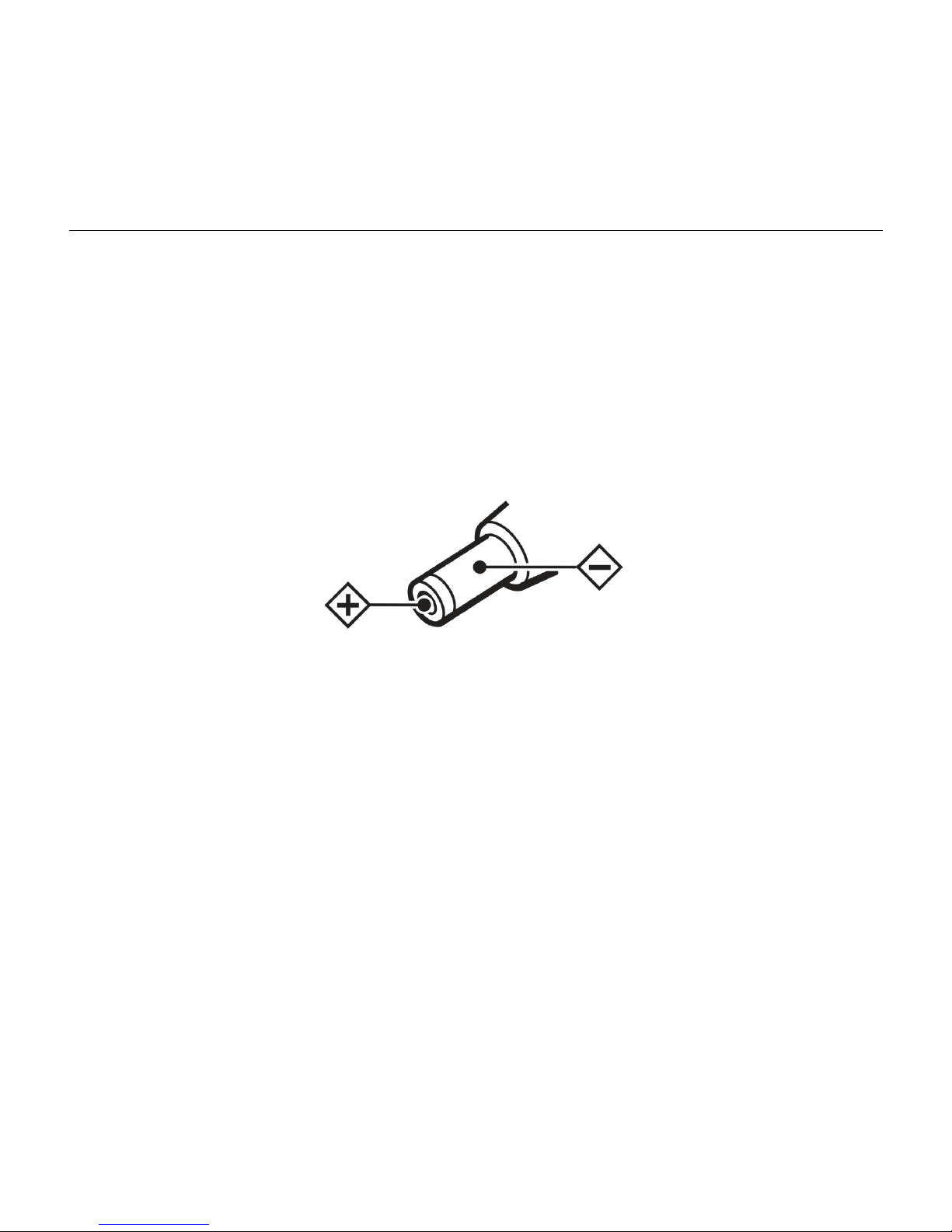

 Polarity of power supply

The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug
drawing as follows.

 Careful of installation

Do not grasp the camera head when carrying the camera. Don’t turn camera head by hand. Doing so may

result in mechanical damage.

Don’t apply in corrosive liquid, gas or solid environment to avoid damaging the cover which is made up of

plastic material.

To make sure no obstacle in rotation range.
Never power on before installation is not completed.

 Don’t dismantle the camera

We are not responsible for any unauthorized modification or dismantling.

CAUTION!

The specific frequency of electromagnetic field may affect the image of the camera!

ValueHD Corporation

4

Supplied Accessories

When you unpack, check that all the supplied accessories are included:

Camera ...................................... 1PCS

AC power adaptor ..................... 1PCS

Power cord .................................. 1PCS

RS232 cable ................................ 1PCS

Remote controller ........................ 1PCS

User manual(Optional) ................ 1PCS

CD ............................................... 1PCS

ValueHD Corporation

5

Quick Start

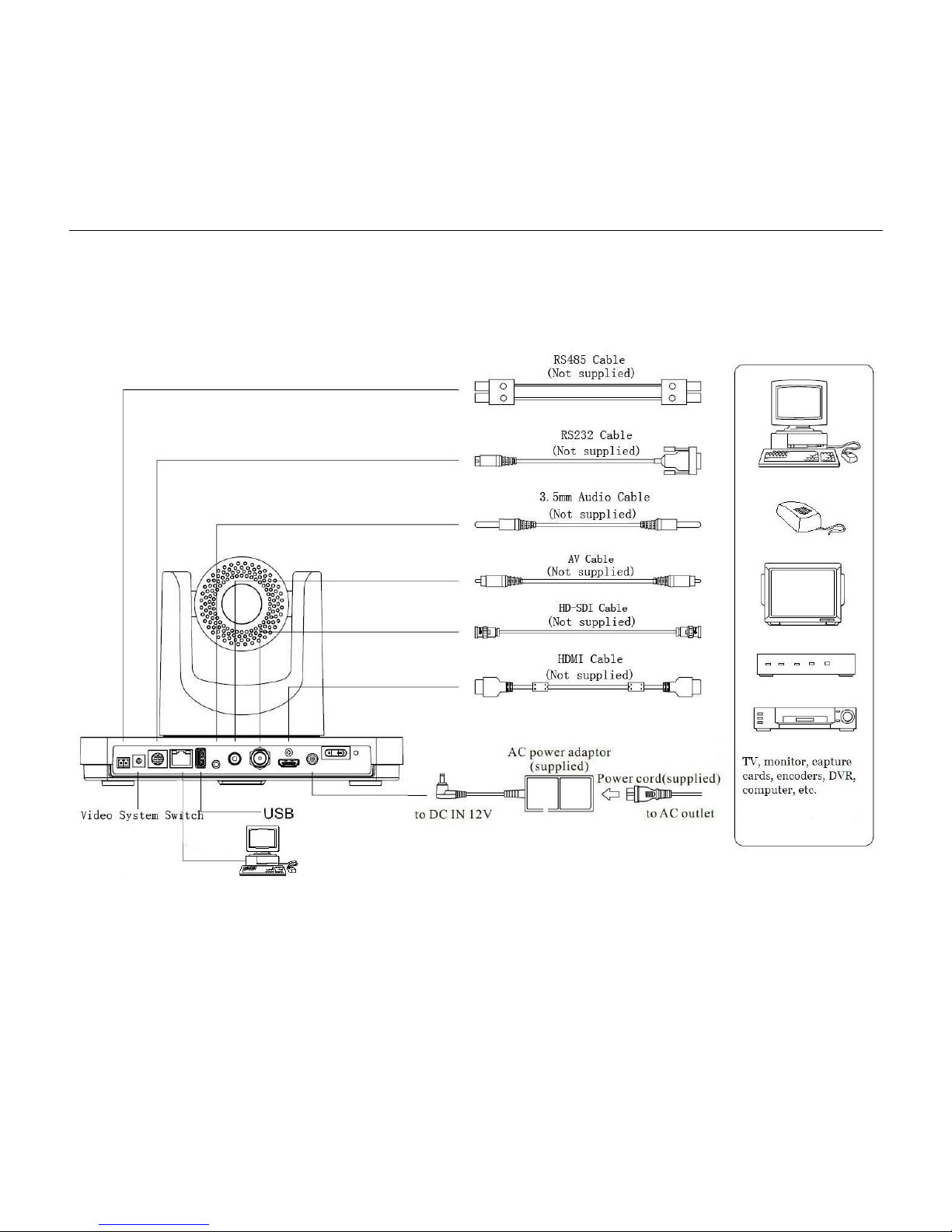

Step1. Please check connections are correct before starting

ValueHD Corporation

6

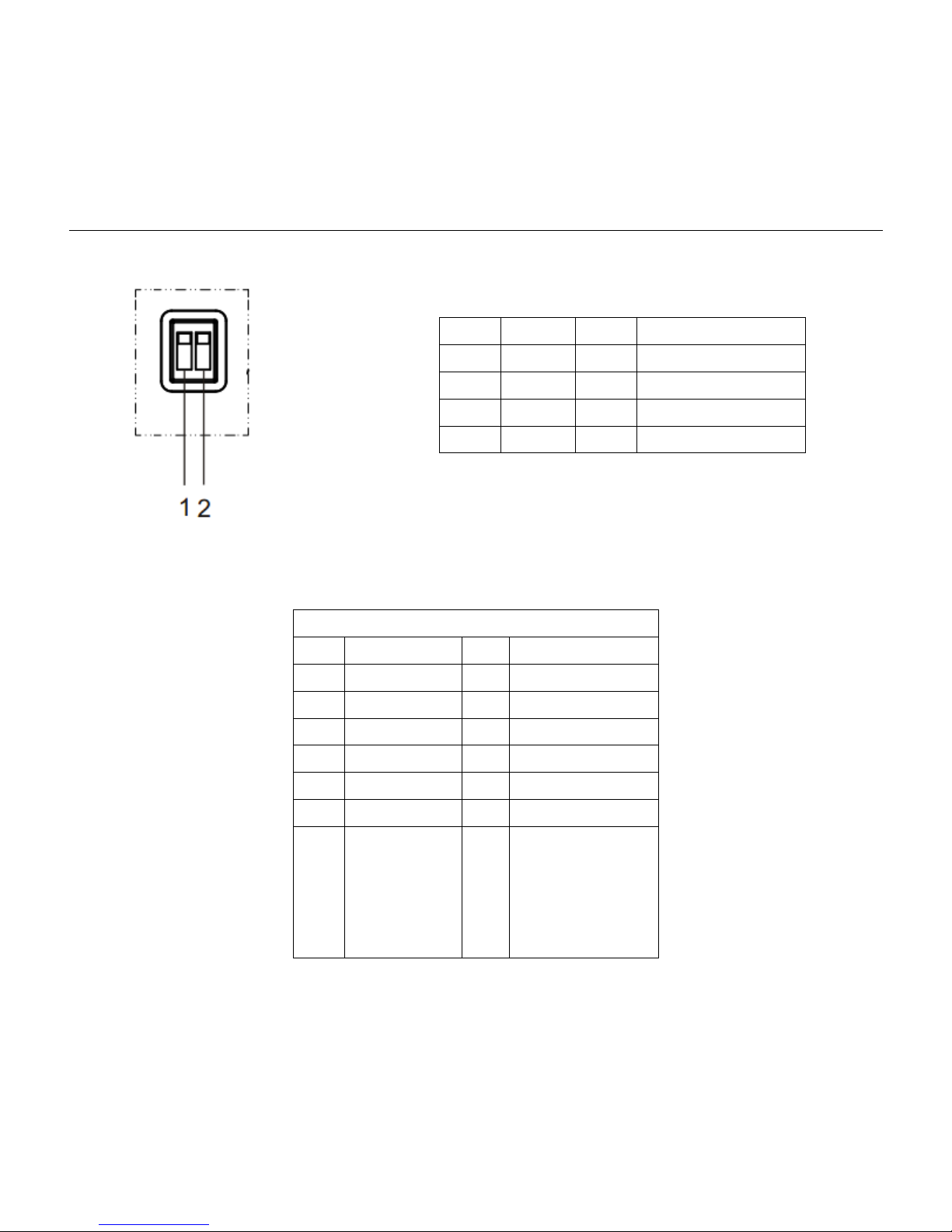

Step2. Setting of the bottom switches

Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode.

Step3. Setting of the system select switch
The option of video format:

VIDEO SYSTEM

0 - 8 - 1 - 9 - 2

1080i60 A -

3

1080i50 B -

4

720p60 C -

5

720p50 D 576i

6

1080p30

E

480i

7

1080p25

F

Network

output(HDMI,SDI

output only

1080P30,1080P25

video format)

SW-1

SW-2

Modes

1

OFF

OFF

Normal Working Mode

2

ON

OFF - 3

OFF

ON - 4

ON

ON

-

ValueHD Corporation

7

CAUTION:

a. After changing the switch, you need to restart the camera to take effect.

Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light.
Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center,

the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be
called up after initialization)

Step6. (Optional) If you want to restore the factory default settings, Press [MENU] button to display the OSD
menu. Select the item [MENU] -> [RESTORE DEFAULT] -> [Restore]. Set the value [Yes], press [HOME]
button to restore the factory default settings.

RESTORE DEFAULT

Restore Yes

Change Value
[Home] OK
[Menu] Back

ValueHD Corporation

8

Features

1. The camera provides a high performance in low illumination situations, particularly suitable for which

room's lighting is not very well.

2. With maximum resolution of 1920 x 1080 and output frame rate up to 30 frames / sec, this camera

provides high-definition as well as fluent video.

3. The camera video signal to noise ratio directly affects the image compression coding efficiency for
high-definition video conference terminals. The camera applies 2D and 3D noise reduction at the same time based
on motion estimation algorithm, and effectively reduces the noise.

4. 20x optical zoom.

5. Three type of video output interface: HDMI interface, HD-SDI interface, CVBS interface.

6. Infrared remote control signals pass through function. The camera is capable of receiving signal from the
infrared remote controller, and passes through to the video conferencing terminal via RS232 connector.

7. Support multi-channel of audio and video streams output.

ValueHD Corporation

9

Product Specification

Video System

1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50,NTSC PAL

Video Output Interface

HDMI,HD-SDI,CVBS

Tilt Speed Range

1.7° ~ 69.9°/s

Sensor Type

CMOS、1/2.7 inch

Flick Mount

Supportable

Sensor Pixel

Effective Pixel: 2.12 million;
Total Pixel: 2.20million

Number of preset

245

Scanning Mode

Progressive

Preset Accuracy

≤0.1°

Lens

20x, f4.42mm ~ 88.5mm, F1.8 ~
F2.8

Network

RJ45

Digital Zoom

16x

Audio Input

Line In 3.5mm

Focus

Auto, Manual

USB

USB2.0

Minimal Illumination

Auto, Indoor, Outdoor, One-Push,
Manual

Communication

Interface

RS232,RS485

Electronic shutter

1/25s ~ 1/10000s

Support Protocol

VISCA, Pelco-D, Pelco-P

White Balance

Auto, Indoor, Outdoor, One
Push,Manual

Power Adapter

DC12V/2.0A
Backlight Compensation

Supportable

Current

2.0A (Max)

Digital Noise Reduction

2D&3D Digital Noise Reduction

Operating Temperature

-5 ~ 40℃

S/N

≥55dB

Storage Temperature

-20 ~ 60℃

Horizontal Angle

60.7° ~ 3.36°

Power

12W

Vertical Angle

34.1° ~ 1.89°

Size

240mm x 144mm x 160mm

Horizontal Rotation

±170°

Color

Silver & Black

Vertical rotation

-30° ~ +90°

Weight

2.5Kg

Pan Speed Range

1.7° ~ 100°/s

ValueHD Corporation

10

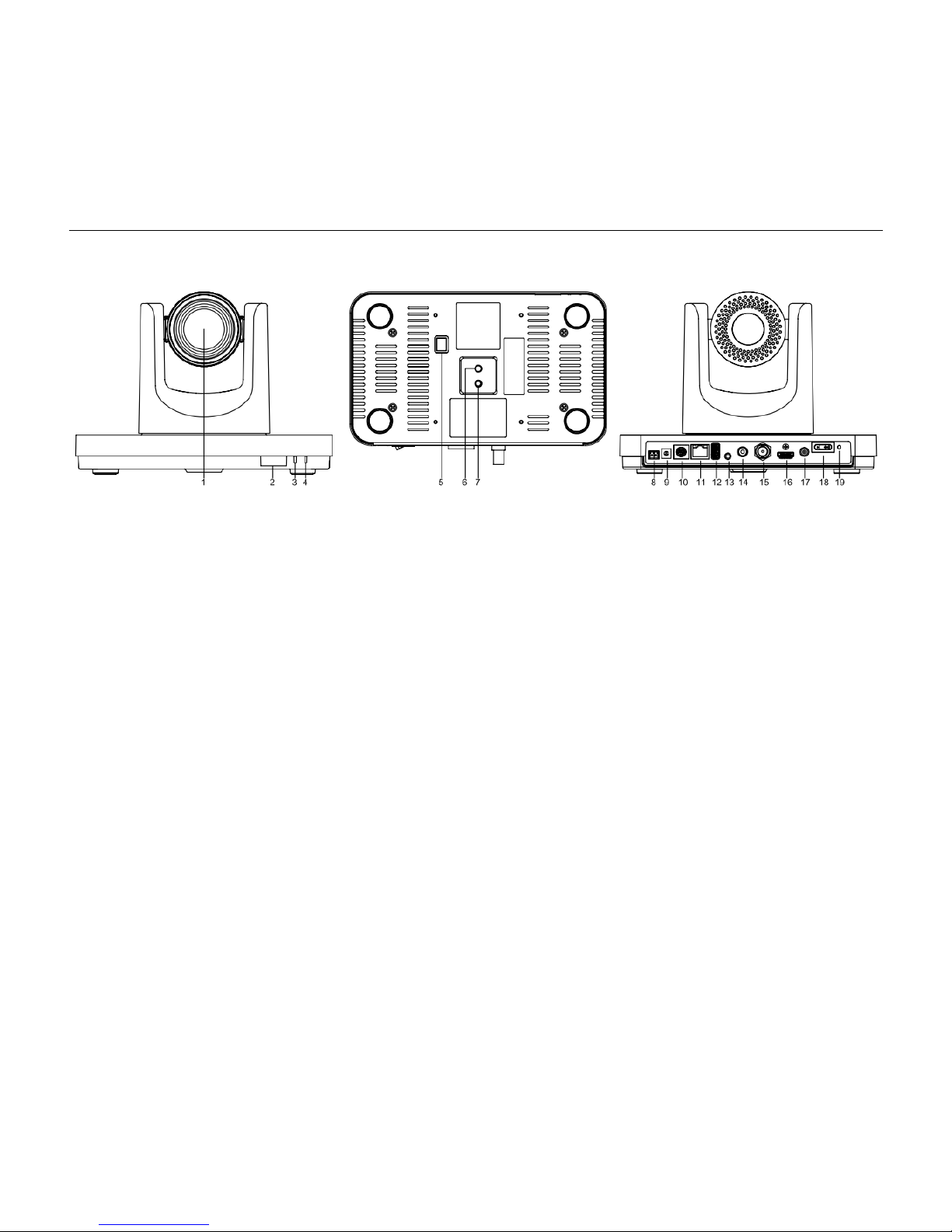

Main Unit

1. Lens 11. RJ45 interface

2. Sensor for the Remote Commander 12. USB interface

3. Power lamp 13. Audio out interface

4. Standby lamp 14. CVBS interface

5. Bottom switches 15. HD-SDI interface

6. Tripod screw hole 16. HDMI interface

7. Fixing screw hole 17. DC IN 12V jack

8. RS485 interface 18. Power switch

9. System select switch 19. POWER lamp

10. RS232 interface

ValueHD Corporation

11

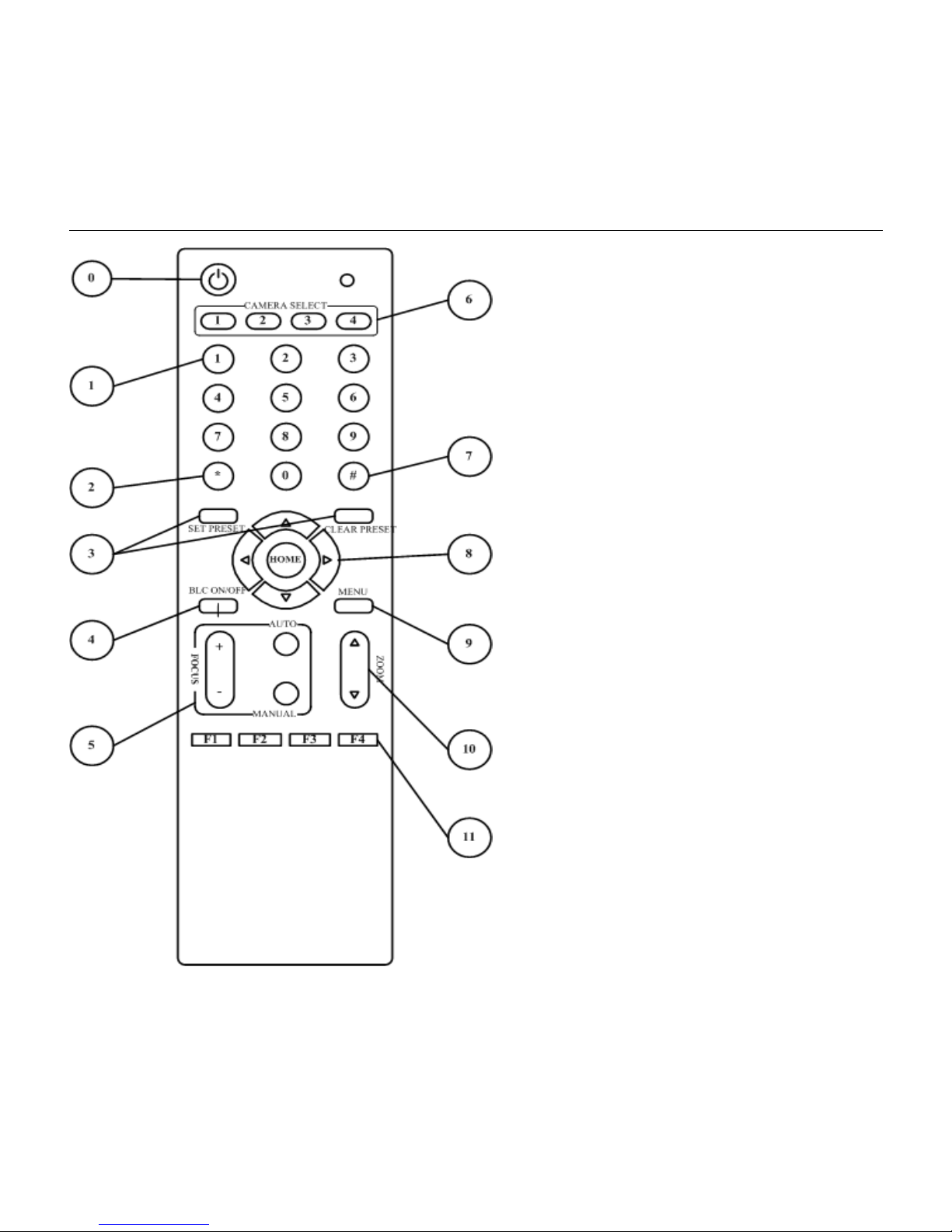

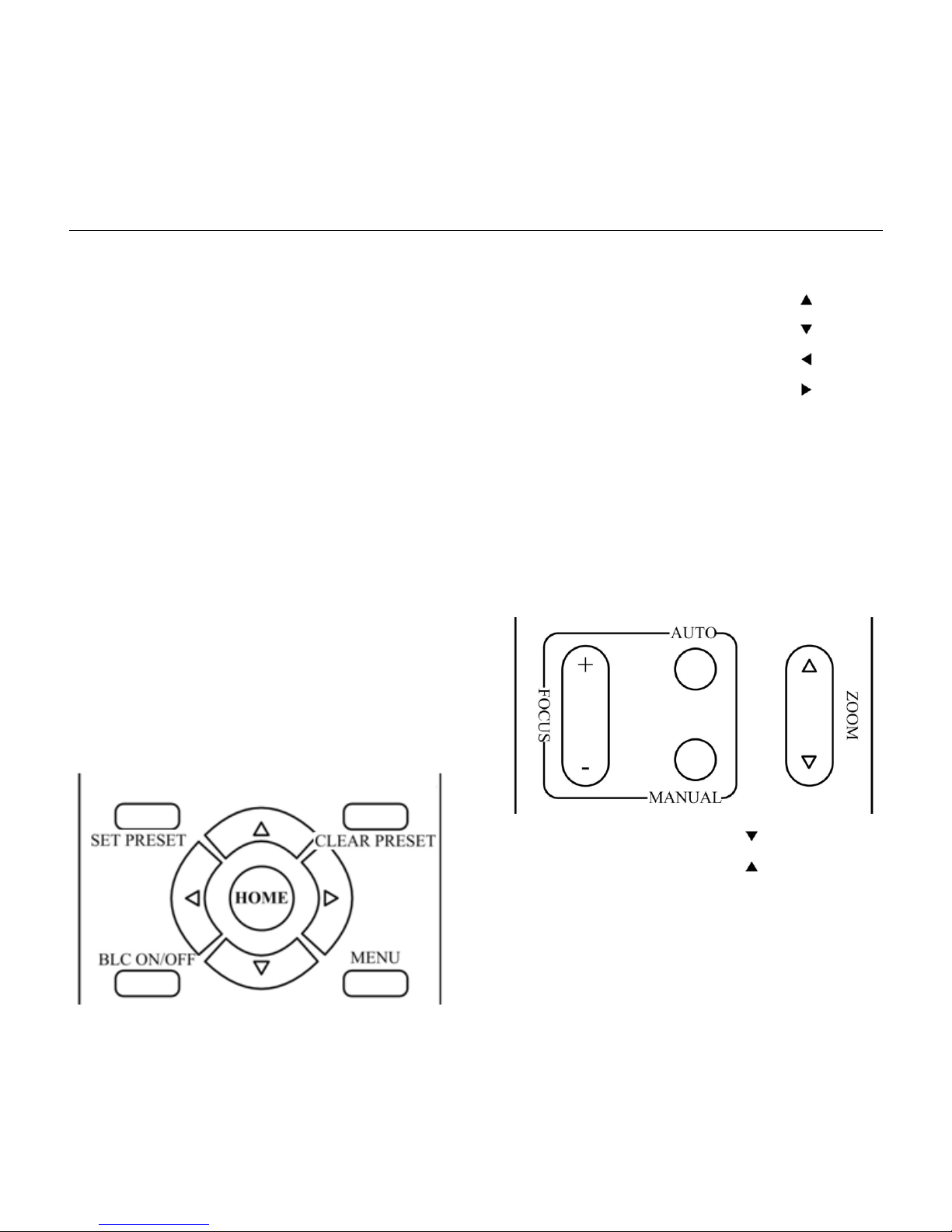

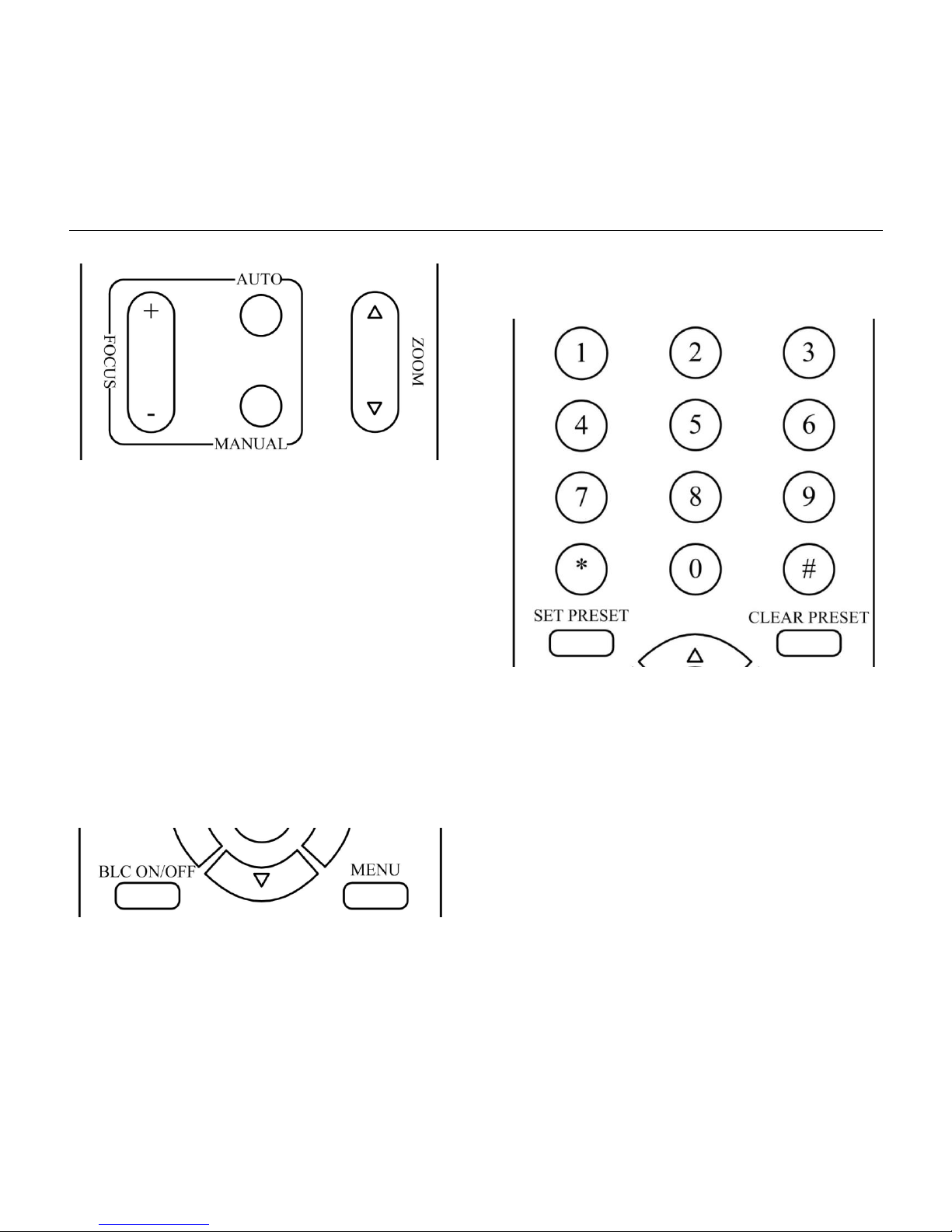

IR Remote Controller Explanation

0. Standby Button

Press this button to enter standby mode. Press it
again to enter normal mode.
(Note: Power consumption in standby mode is
approximately half of the normal mode)

1. Position Buttons

To set preset or call preset

2. * Button

3. Set/Clear Preset Buttons
Set preset: Store a preset position

[SET PRESET] + Numeric button (0-9): Setting a
corresponding numeric key preset position
Clear preset: Erase a preset position
[CLEAR PRESET] + Numeric button (0-9)
Or: [*]+[#]+[CLEAR PRESET]: Erase all the
preset individually

4. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the

backlight compensation. Press it again to disable
the backlight compensation. (NOTE: Effective

only in auto exposure mode)
Note: If a light behind the subject, the subject will

ValueHD Corporation

12

become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON /
OFF button.

5. Focus Buttons

Used for focus adjustment.
Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the
[MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object)

6. Camera Select Buttons

Press the button corresponding to the camera you want to operate with the remote controller.

7. # Button

8. Pan/Tilt Control Buttons

Press arrow buttons to perform panning and tilting. Press [HOME] button to face the camera back to front

9. Menu Setting

Menu button: Press this button to enter or exit the OSD menu

10. Zoom Buttons

Zoom : Zoom In
Zoom : Zoom Out

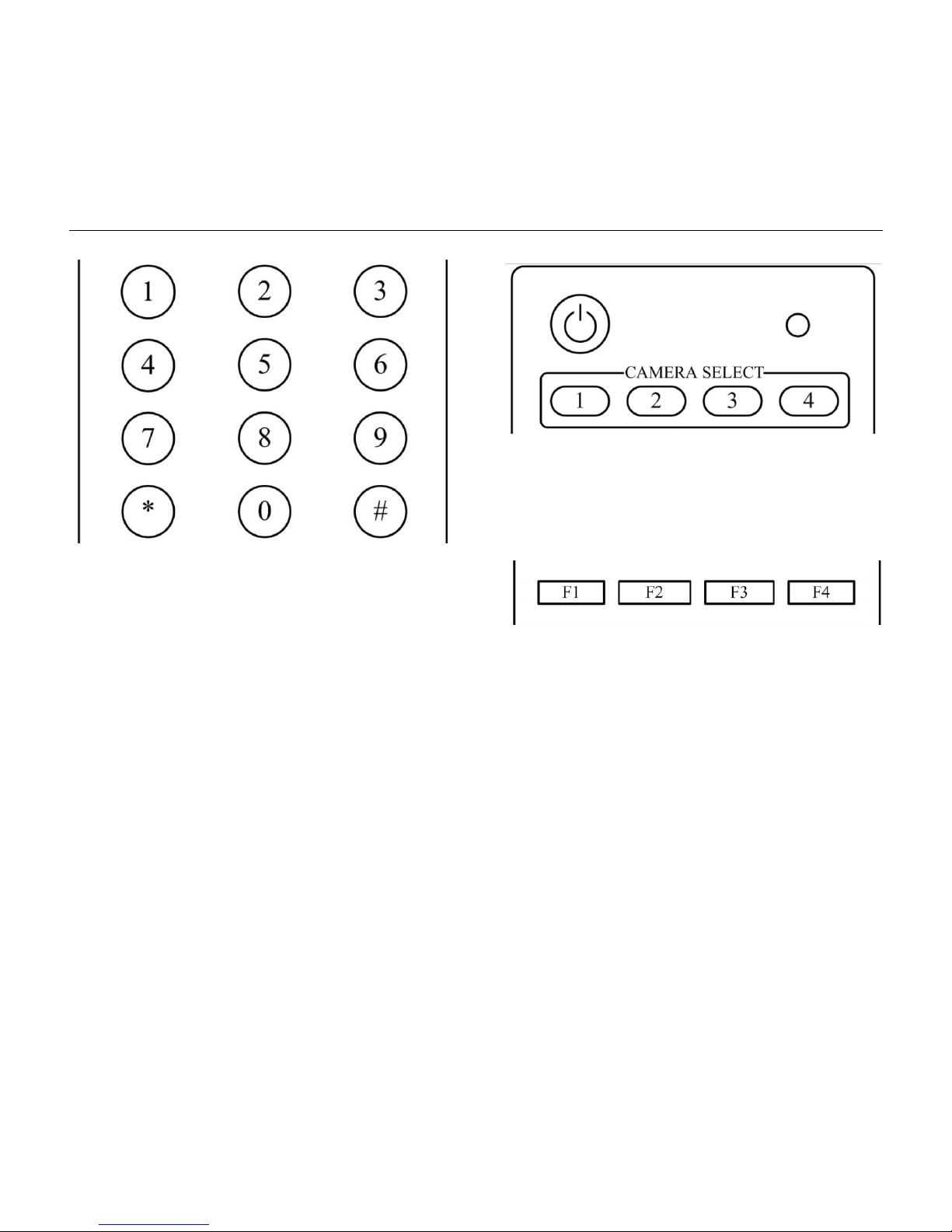

11. Set Camera IR Address Buttons

[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4

ValueHD Corporation

13

USE IR Remote Controller

When the camera is working, you can use
remote controller to perform panning, tilting,
zooming and focusing, store and call back preset
positions.

Button Instruction:

1. In this instruction, ‘press the button’ means

the press and relax the two actions. Such as ‘press

[HOME] button’ means to press the [HOME] key

and then relax action, and a special note will be
given if a hold down for more than one second is
required.

2. When a button-combination is required, do it

in sequence. For example, ‘[*] + [#] + [F1]’means

press [*] first and then press [#] and press [F1] at
last.

1. Pan/Tilt Control

Move up: Press [ ]
Move down: Press [ ]
Move left: Press [ ]
Move right: Press [ ]
Face the camera back to front: Press [HOME]

Press and hold the up/down/left/right button,
the camera will keep rotating from slow to fast, until
it run to the mechanical limit; the camera stops as
soon as the button is released.

2. Zoom

Zoom Out: press [ZOOM ] button

Zoom In: press [ZOOM ] button

Press and hold the button, the camera will keep
zooming in or zooming out and it stops as soon as
the button is released.

ValueHD Corporation

14

3. Focus Control

Focus Far: Press [FOCUS+] button (NOTE:
Effective only in manual focus mode)
Focus Near: Press [FOCUS-] button (NOTE:
Effective only in manual focus mode)
Press and hold the button, the action of focus
continues and stops as soon as the button is released.
AUTO: Change focus mode to AF, adjusting the
focus automatically.
MANUAL: Change focus mode to MF, adjusting the
focus manually.

4. Backlight Switch

BLC ON/OFF: Press this button to enable the
backlight compensation. Press it again to disable the
backlight compensation. (Note: Backlight is only

effective in full auto exposure mode)

5. Presets Set/Clear

1. To store a preset position: The users should
press the [SET PRESET] button first and then press
the numeric button 0-9.

10 preset positions in total are available.

2. To erase the memory content of a preset
position: The users should press the [CLEAR
PRESET] button first and then press the numeric
button 0-9.

Note:

Press [*]+[#]+[CLEAR PRESET] will erase all

preset individually positions in the memory.

ValueHD Corporation

15

6. Recalling the Preset

Press any of the numeric buttons 0-9 directly to

recall stored preset positions and settings.

Note:

No action is executed if a relative preset

position is not stored.

7. Camera Selection

Press the button corresponding to the camera

you want to operate.

8. Camera IR Address Set

[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4

ValueHD Corporation

16

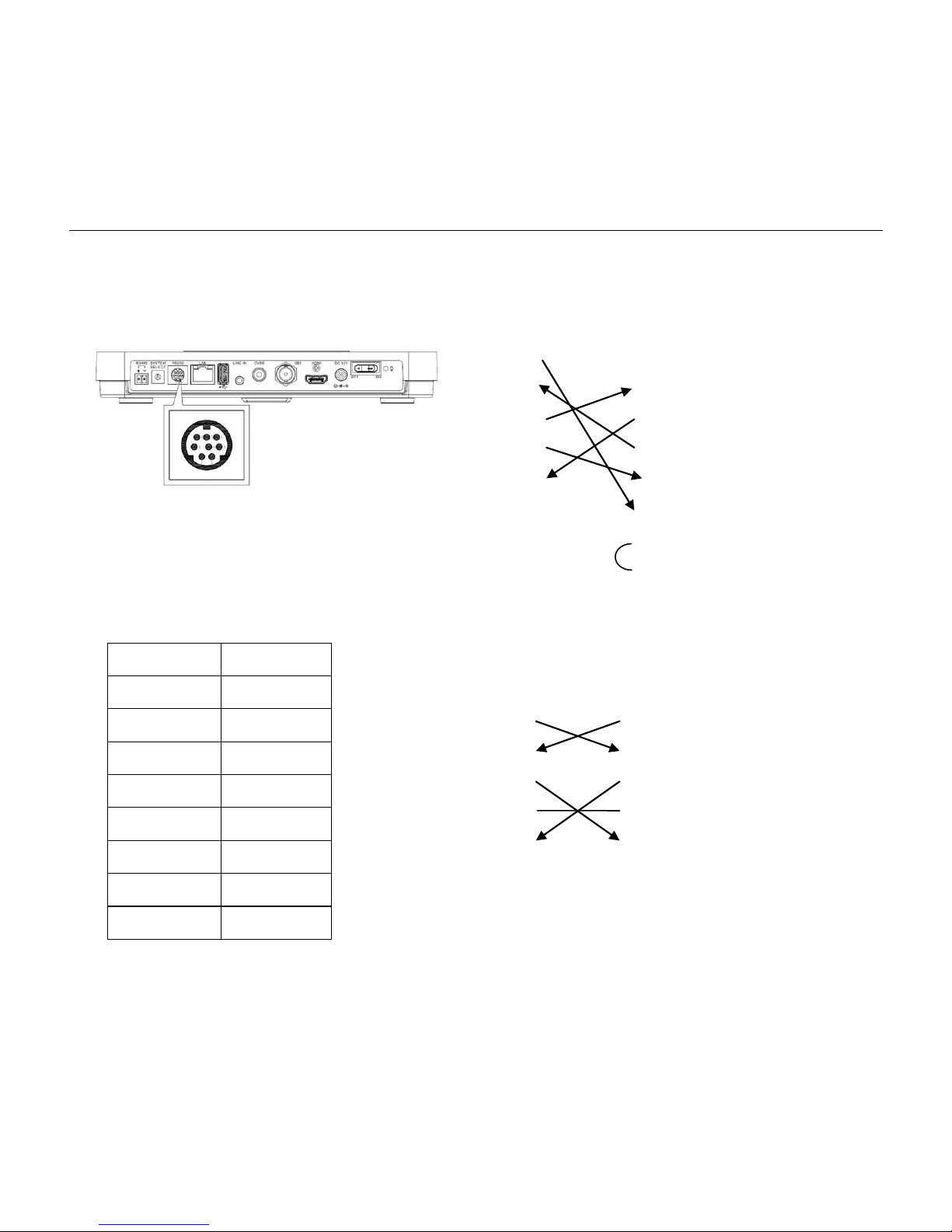

RS-232 Interface

Camera Windows DB-9

1.DTR 1.CD

2.DSR 2.RXD

3.TXD 3.TXD

4.GND 4.DTR

5.RXD 5.GND

6.GND 6.DSR

7.IR OUT 7.RTS

8.NC 8.CTS

9.RI

Camera Mini DIN

1.DTR 1.DTR

2.DSR 2.DSR

3.TXD 3.TXD

4.GND 4.GND

5.RXD 5.RXD

6.GND 6.GND

7.IR OUT 7.NC

8.NC 8.NC

No.

Function

1

DTR

2

DSR

3

TXD

4

GND

5

RXD

6

GND

7

IR OUT

8

NC

ValueHD Corporation

17

Serial Communication Control

In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.
 RS232 Communication Control

The camera can be controlled via RS232, the parameters of RS232C are as follows:
Baud rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.

 RS485 Communication Control

The camera can be controlled via RS485, Half-duplex mode, supports VISCA or Pelco-D or Pelco-P

protocol, supports the following configurations:

Baud rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.

Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center,
the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be
called up after initialization) Then the users can control the camera with commands in the command list.

ValueHD Corporation

18

VISCA Command List

Part 1 Camera-Issued Messages

Ack/Completion Message

Command

Function

Command Packet

Comments

ACK/Completion
Messages

ACK

z0 4y FF
(y: Socket No.)

Return when the command is accepted.

Completion

z0 5y FF
(y: Socket No.)

Return when the command has been
executed.

z = Camera Address + 8

Error Messages

Command

Function

Command Packet

Comments

Error Messages

Syntax Error

z0 60 02 FF

Returned when the command format is
different or when a command with illegal
command parameters is accepted.

Command Buffer Full

z0 60 03 FF

Indicates that two sockets are already
being used(executing two commands)
and the command could not be accepted
when received.

Command Canceled

z0 6y 04 FF
(y: Socket No.)

Returned when a command which is
being executed in a socket specified by
the cancel command is canceled. The
completion message for the command is
not returned.

ValueHD Corporation

19

No Socket

z0 6y 05 FF
(y: Socket No.)

Returned when no command is executed
in a socket specified by the cancel
command, or when an invalid socket
number is specified.

Command Not Executable

z0 6y 41 FF
(y: Execution command Socket
No. Inquiry command: 0)

Returned when a command cannot be
executed due to current conditions.For
example, when commands controlling the
focus manually are received during auto
focus.

Part 2 Camera Control Command

Command

Function

Command Packet

Comments

AddressSet

Broadcast

88 30 01 FF

Address setting

IF_Clear

Broadcast

88 01 00 01 FF

I/F Clear

CAM_Power
On

8x 01 04 00 02 FF

Power ON/OFF
Off

8x 01 04 00 03 FF

CAM_Zoom

Stop

8x 01 04 07 00 FF

Tele(Standard)

8x 01 04 07 02 FF

Wide(Standard)

8x 01 04 07 03 FF

Tele(Variable)

8x 01 04 07 2p FF

p = 0(low) - 7(high)
Wide(Variable)

8x 01 04 07 3p FF

Direct

8x 01 04 47 0p 0q 0r 0s FF

pqrs: Zoom Position

CAM_Focus

Stop

8x 01 04 08 00 FF

Far(Standard)

8x 01 04 08 02 FF

Near(Standard)

8x 01 04 08 03 FF

Far(Variable)

8x 01 04 08 2p FF

p = 0(low) - 7(high)
Near(Variable)

8x 01 04 08 3p FF

ValueHD Corporation

20

Direct

8x 01 04 48 0p 0q 0r 0s FF

pqrs: Focus Position

Auto Focus

8x 01 04 38 02 FF

AF On/Off
Manual Focus

8x 01 04 38 03 FF

Auto/Manual

8x 01 04 38 10 FF

CAM_ZoomFocus

Direct

8x 01 04 47 0p 0q 0r 0s
0t 0u 0v 0w FF

pqrs: Zoom Position
tuvw: Focus Position

CAM_WB

Auto

8x 01 04 35 00 FF

Normal Auto

Indoor mode

8x 01 04 35 01 FF

Indoor mode

Outdoor mode

8x 01 04 35 02 FF

Outdoor mode

OnePush mode

8x 01 04 35 03 FF

One Push WB mode

Manual

8x 01 04 35 05 FF

Manual Control mode

OnePush trigger

8x 01 04 10 05 FF

One Push WB Trigger

CAM_RGain

Reset

8x 01 04 03 00 FF

Manual Control of R Gain
Up

8x 01 04 03 02 FF

Down

8x 01 04 03 03 FF

Direct

8x 01 04 43 00 00 0p 0q FF

pq: R Gain

CAM_Bgain

Reset

8x 01 04 04 00 FF

Manual Control of B Gain
Up

8x 01 04 04 02 FF

Down

8x 01 04 04 03 FF

Direct

8x 01 04 44 00 00 0p 0q FF

pq: B Gain

CAM_AE

Full Auto

8x 01 04 39 00 FF

Automatic Exposure mode

Manual

8x 01 04 39 03 FF

Manual Control mode

Shutter priority

8x 01 04 39 0A FF

Shutter Priority Automatic Exposure
mode

Iris priority

8x 01 04 39 0B FF

Iris Priority Automatic Exposure mode

Bright

8x 01 04 39 0D FF

Bright Mode(Manual control)

CAM_SlowShutter

AutoSlowShutterLimit

8x 01 04 2A 0p 00 FF

CAM_Iris

Reset

8x 01 04 0B 00 FF

Iris Setting

ValueHD Corporation

21

Up

8x 01 04 0B 02 FF

Down

8x 01 04 0B 03 FF

Direct

8x 01 04 4B 00 00 0p 0q FF

pq: Iris Position

CAM_Gain

Reset

8x 01 04 0C 00 FF

Gain Setting
Up

8x 01 04 0C 02 FF

Down

8x 01 04 0C 03 FF

Direct

8x 01 04 0C 00 00 0p 0q FF

pq: Gain Position

Gain Limit

8x 01 04 2C 0p FF

p: Gain Position

CAM_Bright

Reset

8x 01 04 0D 00 FF

Bright Setting
Up

8x 01 04 0D 02 FF

Down

8x 01 04 0D 03 FF

Direct

8x 01 04 0D 00 00 0p 0q FF

pq: Bright Position

CAM_ExpComp

On

8x 01 04 3E 02 FF

Exposure Compensation On/Off
Off

8x 01 04 3E 03 FF

Reset

8x 01 04 0E 00 FF

Exposure Compensation Amount Setting
Up

8x 01 04 0E 02 FF

Down

8x 01 04 0E 03 FF

Direct

8x 01 04 4E 00 00 0p 0q FF

pq: ExpComp Position

CAM_BackLight
On

8x 01 04 33 02 FF

Back Light Compensation On/Off
Off

8x 01 04 33 03 FF

CAM_NR(2D)Mode
Auto

8x 01 04 50 02 FF

ND2D Auto/Manual
Manual

8x 01 04 50 03 FF

CAM_NR(2D)Level

-

8x 01 04 53 0p FF

p: NR Setting (0: Off, level 1 to 5)

CAM_NR(3D)Level

-

8x 01 04 54 0p FF

p: NR Setting (0: Off, level 1 to 8)

CAM_Flicker

-

8x 01 04 23 0p FF

p: Flicker Settings
(0: Off, 1: 50Hz, 2: 60Hz)

CAM_DHotPixel

-

8x 01 04 56 0p FF

p: Dynamic Hot Pixel Setting (0: 0ff,
level 1 to 6)

ValueHD Corporation

22

CAM_ApertureMode(
sharpness)

Auto

8x 01 04 05 02 FF

Sharpness Auto
Manual

8x 01 04 05 02 FF

Sharpness Manual

CAM_Aperture(sharp
ness)

Reset

8x 01 04 02 00 FF

Aperture Control
Up

8x 01 04 02 02 FF

Down

8x 01 04 02 03 FF

Direct

8x 01 04 42 00 00 0p 0q FF

pq: Aperture Gain

CAM_PictureEffect
Off

8x 01 04 63 00 FF

Picture Effect Setting
B&W

8x 01 04 63 04 FF

CAM_Memory
Reset

8x 01 04 3F 00 pp FF

pp: Memory Number(=0 to 127)
Set

8x 01 04 3F 01 pp FF

Recall

8x 01 04 3F 02 pp FF

CAM_LR_Reverse
On

8x 01 04 61 02 FF

Image Flip Horizontal On/Off
Off

8x 01 04 61 03 FF

CAM_PictureFlip
On

8x 01 04 66 02 FF

Image Flip Vertical On/Off
Off

8x 01 04 66 03 FF

CAM_RegisterValue

-

8x 01 04 24 mn 0p 0q FF

mm: Register No. (=00-7F)
pp: Register Value (=00-7F)

CAM_ColorGain

Diret

8x 01 04 49 00 00 00 0p FF

p: Color Gain setting 0h (60%) to Eh
(200%)

SYS_Menu

Off

8x 01 06 06 03 FF

Turns off the menu screen

Pan_tiltDrive

Up

8x 01 06 01 VV WW 03 01 FF

VV: Pan speed 0x01 (low speed) to 0x18
(high speed)
WW: Tilt speed 0x01 (low speed) to 0x14
(high speed)
YYYY: Pan Position
ZZZZ: Tilt Position

Down

8x 01 06 01 VV WW 03 02 FF

Left

8x 01 06 01 VV WW 01 03 FF

Right

8x 01 06 01 VV WW 02 03 FF

Upleft

8x 01 06 01 VV WW 01 01 FF

Upright

8x 01 06 01 VV WW 02 01 FF

DownLeft

8x 01 06 01 VV WW 01 02 FF

ValueHD Corporation

23

DownRight

8x 01 06 01 VV WW 02 02 FF

Stop

8x 01 06 01 VV WW 03 03 FF

AbsolutePosition

8x 01 06 02 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

RelativePosition

8x 01 06 03 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

Home

8x 01 06 04 FF

Reset

8x 01 06 05 FF

Pan_tiltLimitSet
LimitSet

8x 01 06 07 00 0W
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

W: 1 UpRight 0: DownLeft
YYYY: Pan Limit Position
ZZZZ: Tilt Position

LimitClear

8x 01 06 07 01 0W
07 0F 0F 0F 07 0F 0F 0F FF

CAM_AFSensitivity
High

8x 01 04 58 01 FF

AF Sensitivity High/Normal/Low
Normal

8x 01 04 58 02 FF

Low

8x 01 04 58 03 FF

CAM_SettingReset

Reset

8x 01 04 A0 10 FF

Reset Factory Setting

CAM_Brightness

Direct

8x 01 04 A1 00 00 0p 0q FF

pq: Brightness Position

CAM_Contrast

Direct

8x 01 04 A2 00 00 0p 0q FF

pq: Contrast Position

CAM_Flip

Off

8x 01 04 A4 00 FF

Single Command For Video Flip

Flip-H

8x 01 04 A4 01 FF

Flip-V

8x 01 04 A4 02 FF

Flip-HV

8x 01 04 A4 03 FF

CAM_SettingSave

Save

8x 01 04 A5 10 FF

Save Current Setting

CAM_Iridix

Direct

8x 01 04 A7 00 00 0p 0q FF

pq: Iridix Position

CAM_AWBSensitivit
y

High

8x 01 04 A9 00 FF

High

Normal

8x 01 04 A9 01 FF

Normal

Low

8x 01 04 A9 02 FF

Low

CAM_AFZone

Top

8x 01 04 AA 00 FF

AF Zone weight select

ValueHD Corporation

24

Center

8x 01 04 AA 01 FF

Bottom

8x 01 04 AA 02 FF

CAM_ColorHue

Direct

8x 01 04 4F 00 00 00 0p FF

p: Color Hue setting 0h (− 14 degrees) to

Eh ( +14 degrees

Part 3 Query Command

Inquiry Command List

Command

Command packed

Inquiry Packet

Comments

CAM_PowerInq

8x 09 04 00 FF
y0 50 02 FF

On

y0 50 03 FF

Off(Standby)

y0 50 04 FF

Internal power circuit error

CAM_ZoomPosInq

8x 09 04 47 FF

y0 50 0p 0q 0r 0s FF

pqrs: Zoom Position

CAM_FocusAFMode
Inq

8x 09 04 38 FF
y0 50 02 FF

Auto Focus

y0 50 03 FF

Manual Focus

CAM_FocusPosInq

8x 09 04 48 FF

y0 50 0p 0q 0r 0s FF

pqrs: Focus Position

CAM_WBModeInq

8x 09 04 35 FF

y0 50 00 FF

Auto

y0 50 01 FF

Indoor mode

y0 50 02 FF

Outdoor mode

y0 50 03 FF

OnePush mode

y0 50 05 FF

Manual

CAM_RGainInq

8x 09 04 43 FF

y0 50 00 00 0p 0q FF

pq: R Gain

CAM_BGainInq

8x 09 04 44 FF

y0 50 00 00 0p 0q FF

pq: B Gain

CAM_AEModeInq

8x 09 04 39 FF

y0 50 00 FF

Full Auto

y0 50 03 FF

Manual

y0 50 0A FF

Shutter priority

y0 50 0B FF

Iris priority

y0 50 0D FF

Bright

ValueHD Corporation

25

CAM_ShutterPosInq

8x 09 04 4A FF

y0 50 00 00 0p 0q FF

pq: Shutter Position

CAM_IrisPosInq

8x 09 04 4B FF

y0 50 00 00 0p 0q FF

pq: Iris Position

CAM_BrightPosInq

8x 09 04 4D FF

y0 50 00 00 0p 0q FF

pq: Bright Position

CAM_ExpCompMod
eInq

8x 09 04 3E FF
y0 50 02 FF

On

y0 50 03 FF

Off

CAM_ExpCompPosI
nq

8x 09 04 4E FF

y0 50 00 00 0p 0q FF

pq: ExpComp Position

CAM_BacklightMode
Inq

8x 09 04 33 FF
y0 50 02 FF

On

y0 50 03 FF

Off

CAM_Nosise2DMode
Ing

8x 09 04 50 FF
y0 50 02 FF

Auto Noise 2D

y0 50 03 FF

Manual Noise 3D

CAM_Nosise2DLevel

8x 09 04 53 FF

y0 50 0p FF

Noise Reduction (2D) p: 0 to 5

CAM_Noise3DLevel

8x 09 04 54 FF

y0 50 0p FF

Noise Reduction (3D) p: 0 to 8

CAM_FlickerModeIn
q

8x 09 04 55 FF

y0 50 0p FF

p: Flicker Settings(0: OFF, 1: 50Hz, 2:
60Hz)

y0 50 02 FF

Auto Sharpness

CAM_ApertureModeI
nq(Sharpness)

8x 09 04 05 FF

y0 50 03 FF

Manual Sharpness

CAM_ApertureInq(Sh
arpness)

8x 09 04 42 FF

y0 50 00 00 0p 0q FF

pq: Aperture Gain

CAM_PictureEffectM
odeInq

8x 09 04 63 FF
y0 50 02 FF

Off

y0 50 04 FF

B&W

CAM_MemoryInq

8x 09 04 3F FF

y0 50 0p FF

p: Memory number last operated.

SYS_MenuModeInq

8x 09 06 06 FF
y0 50 02 FF

On

y0 50 03 FF

Off

CAM_LR_ReverseInq

8x 09 04 61 FF
y0 50 02 FF

On

y0 50 03 FF

Off

CAM_PictureFlipInq

8x 09 04 66 FF

y0 50 02 FF

On

ValueHD Corporation

26

y0 50 03 FF

Off

CAM_RegisterValueI
nq

8x 09 04 24 mm FF

y0 50 0p 0p ff

mm: Register No. (00 to FF) pp: Register
Value (00 to FF)

CAM_ColorGainInq

8x 09 04 49 FF

y0 50 00 00 00 0p FF

p: Color Gain setting 0h (60%) to Eh
(200%)

CAM_IDInq

8x 09 04 22 FF

y0 50 0p 0q 0r 0s FF

pqrs: Camera ID

CAM_VersionInq

8x 09 00 02 FF

y0 50 ab cd
mn pq rs tu vw FF

ab: Factory Code(00: VHD, 01:MR,
08:T)
cd: Hardware Version
mnpq: ARM Version
rstu: FPGA Version
vw: Camera model
01: C Type
02: M Type
03: S Type

VideoSystemInq

8x 09 06 23 FF

y0 50 00 FF

1920x1080i60

y0 50 01 FF

1920x1080p30

y0 50 02 FF

1280x720p60

y0 50 04 FF

NTSC

y0 50 05 FF

NTSC

y0 50 06 FF

NTSC

y0 50 07 FF

1920x1080p60

y0 50 08 FF

1920x1080i50

y0 50 09 FF

1920x1080p25

y0 50 0A FF

1280x720p50

y0 50 0C FF

PAL

y0 50 0D FF

PAL

y0 50 0E FF

PAL

IR_Receive

8x 09 06 08 FF

y0 50 02 FF

On

ValueHD Corporation

27

y0 50 03 FF

Off

Pan-tiltMaxSpeedInq

8x 09 06 11 FF

y0 50 ww zz FF

ww: Pan Max Speed
zz: Tilt Max Speed

Pan-tiltPosInq

8x 09 06 12 FF

y0 50 0w 0w 0w 0w
0z 0z 0z 0z FF

wwww: Pan Position
zzzz: Tilt Position

CAM_TypeInq

8x 09 00 03 FF
y0 50 01 FF

C Type

y0 50 02 FF

M Type

y0 50 03 FF

S Type

CAM_DateInq

8x 09 00 04 FF

y0 50 0r ss uu uu vv ww 0D FF

Version dater: Big Version Numberss:
Little Version Numberuuuu: Yearvv:
Monthww: Day

CAM_ModeInq

8x 09 04 A6 FF
y0 50 00 FF

Mode0

y0 50 02 FF

Mode2

CAM_GainLimitInq

8x 09 04 2C FF

y0 50 0q FF

p: Gain Limit

CAM_DHotPixelInq

8x 09 04 56 FF

y0 50 0q FF

p: Dynamic Hot Pixel Setting (0: 0ff,
level 1 to 6)

CAM_AFSensitivityI
nq

8x 09 04 58 FF
y0 50 01 FF

High

y0 50 02 FF

Normal

y0 50 03 FF

Low

CAM_BrightnessInq

8x 09 04 A1 FF

y0 50 00 00 0p 0q FF

pq: Brightness Position

CAM_ContrastInq

8x 09 04 A2 FF

y0 50 00 00 0p 0q FF

pq: Contrast Position

CAM_FlipInq

8x 09 04 A4 FF

y0 50 00 FF

Off

y0 50 01 FF

Flip-H

y0 50 02 FF

Flip-V

y0 50 03 FF

Flip-HV

CAM_IridixInq

8x 09 04 A7 FF

y0 50 00 00 0p 0q FF

pq: Iridix Position

CAM_AFZone

8x 09 04 AA FF
y0 50 00 FF

Top

y0 50 01 FF

Center

ValueHD Corporation

28

y0 50 02 FF

Bottom

CAM_ColorHueInq

8x 09 04 4F FF

y0 50 00 00 00 0p FF

p: Color Hue setting 0h (− 14 degrees) to

Eh ( +14 degrees

CAM_AWBSensitivit
yInq

8x 09 04 A9 FF
y0 50 00 FF

High

y0 50 01 FF

Normal

y0 50 02 FF

Low

Block Inquiry Command List

Command

Command packed

Inquiry Packet

Comments

CAM_LensBlockInq

8x 09 7E 7E 00 FF

y0 50 0u 0u 0u 0u 00 00 0v 0v
0v 0v 00 0w 00 FF

uuuu: Zoom Position
vvvv: Focus Position
w.bit0: Focus Mode 1: Auto 0: Manual

CAM_CameraBlockIn
q

8x 09 7E 7E 01 FF

y0 50 0p 0p 0q 0q 0r 0s tt 0u vv
ww 00 xx 0z FF

pp: R_Gain
qq: B_Gain
r: WB Mode
s: Aperture
tt: AE Mode
u.bit2: Back Light
u.bit1: Exposure Comp.
vv: Shutter Position
ww: Iris Position
xx: Bright Position
z: Exposure Comp. Position

CAM_OtherBlockInq

8x 09 7E 7E 02 FF

y0 50 0p 0q 00 0r 00 00 00 00
00 00 00 00 00 FF

p.bit0: Power 1:On, 0:Off
q.bit2: LR Reverse 1:On, 0:Off
r.bit3~0: Picture Effect Mode

ValueHD Corporation

29

CAM_EnlargementBl
ockInq

8x 09 7E 7E 03 FF

y0 50 00 00 00 00 00 00 00 0p
0q rr 0s 0t 0u FF

p: AF sensitivity
q.bit0: Picture flip(1:On, 0:Off)
rr.bit6~3: Color Gain(0h(60%) to
Eh(200%))
s: Flip(0: Off, 1:Flip-H, 2:Flip-V,
3:Flip-HV)
t.bit2~0: NR2D Level
u: Gain Limit

Note:

The [x] in the above table is the camera address, [y] = [x + 8].

ValueHD Corporation

30

Pelco-D Protocol Command List

Function

Byte1

Byte2

Byte3

Byte4

Byte5

Byte6

Byte7

Up

0xFF

Address

0x00

0x08

Pan Speed

Tilt Speed

SUM

Down

0xFF

Address

0x00

0x10

Pan Speed

Tilt Speed

SUM

Left

0xFF

Address

0x00

0x04

Pan Speed

Tilt Speed

SUM

Right

0xFF

Address

0x00

0x02

Pan Speed

Tilt Speed

SUM

Zoom In

0xFF

Address

0x00

0x20

0x00

0x00

SUM

Zoom Out

0xFF

Address

0x00

0x40

0x00

0x00

SUM

Focus Far

0xFF

Address

0x00

0x80

0x00

0x00

SUM

Focus Near

0xFF

Address

0x01

0x00

0x00

0x00

SUM

Set Preset

0xFF

Address

0x00

0x03

0x00

Preset ID

SUM

Clear Preset

0xFF

Address

0x00

0x05

0x00

Preset ID

SUM

Call Preset

0xFF

Address

0x00

0x07

0x00

Preset ID

SUM

Auto Focus

0xFF

Address

0x00

0x2B

0x00

0x01

SUM

Manual Focus

0xFF

Address

0x00

0x2B

0x00

0x02

SUM

Query Pan Position

0xFF

Address

0x00

0x51

0x00

0x00

SUM

Query Pan Position Response

0xFF

Address

0x00

0x59

Value High
Byte

Value Low
Byte

SUM
Query Tilt Position

0xFF

Address

0x00

0x53

0x00

0x00

SUM

Query Tilt Position Response

0xFF

Address

0x00

0x5B

Value High
Byte

Value Low
Byte

SUM
Query Zoom Position

0xFF

Address

0x00

0x55

0x00

0x00

SUM

Query Zoom Position
Response

0xFF

Address

0x00

0x5D

Value High
Byte

Value Low
Byte

SUM

ValueHD Corporation

31

Pelco-P Protocol Command List

Function

Byte1

Byte2

Byte3

Byte4

Byte5

Byte6

Byte7

Byte8

Up

0xA0

Address

0x00

0x08

Pan Speed

Tilt Speed

0xAF

XOR

Down

0xA0

Address

0x00

0x10

Pan Speed

Tilt Speed

0xAF

XOR

Left

0xA0

Address

0x00

0x04

Pan Speed

Tilt Speed

0xAF

XOR

Right

0xA0

Address

0x00

0x02

Pan Speed

Tilt Speed

0xAF

XOR

Zoom In

0xA0

Address

0x00

0x20

0x00

0x00

0xAF

XOR

Zoom Out

0xA0

Address

0x00

0x40

0x00

0x00

0xAF

XOR

Focus Far

0xA0

Address

0x00

0x80

0x00

0x00

0xAF

XOR

Focus Near

0xA0

Address

0x01

0x00

0x00

0x00

0xAF

XOR

Set Preset

0xA0

Address

0x00

0x03

0x00

Preset ID

0xAF

XOR

Clear Preset

0xA0

Address

0x00

0x05

0x00

Preset ID

0xAF

XOR

Call Preset

0xA0

Address

0x00

0x07

0x00

Preset ID

0xAF

XOR

Auto Focus

0xA0

Address

0x00

0x2B

0x00

0x01

0xAF

XOR

Manual Focus

0xA0

Address

0x00

0x2B

0x00

0x02

0xAF

XOR

Query Pan Position

0xA0

Address

0x00

0x51

0x00

0x00

0xAF

XOR

Query Pan Position
Response

0xA0

Address

0x00

0x59

Value High
Byte

Value Low
Byte

0xAF

XOR
Query Tilt Position

0xA0

Address

0x00

0x53

0x00

0x00

0xAF

XOR

Query Tilt Position
Response

0xA0

Address

0x00

0x5B

Value High
Byte

Value Low
Byte

0xAF

XOR
Query Zoom Position

0xA0

Address

0x00

0x55

0x00

0x00

0xAF

XOR

Query Zoom Position
Response

0xA0

Address

0x00

0x5D

Value High
Byte

Value Low
Byte

0xAF

XOR

ValueHD Corporation

32

Menu Setting

1. MENU

Press [MENU] button to display the main menu
on the normal screen, using arrow button to move
the cursor to the item to be set. Press the [HOME]
button to enter the corresponding sub-menu.

2. EXPOSURE

Move the cursor to the Exposure item in the
main menu and press [home] button, EXPOSURE
menu appears, as shown in the following figure.

Mode: Exposure mode. Optional items: Auto,

Manual, SAE, AAE, Bright

ExpCompMode: Exposure compensation mode,
Optional items: On, Off (Effective only in Auto
mode)

ExpComp: Exposure compensation value,
Optional items:-7 ~ 7(Effective only in ExpComp
Mode item to On)

Gain Limit: Maximum gain limit. Optional
items: 0 ~ 15 (Effective only in Auto, AAE, Bright
mode)

EXPOSURE

Mode Auto
ExpCompMode Off
Backlight Off
Gain Limit 3
Anti-Flicker Off
DRC 1

Select Item
Change Value

[Menu] Back

MENU

Exposure
Color
P/T/Z
Noise Reduction
Setup
Restore Default

[Home] Enter
[Menu] Exit

ValueHD Corporation

33

Backlight: Set the backlight compensation,
Optional items: On, Off (Effective only in Auto
mode )

DRC:DRC strength, Optional items: 0 ~ 8.

Bright: Intensity control, Optional items:00~17.
(Effective only in Bright mode)

Anti-Flicker Flicker: Anti-flicker. Optional
items: Off,50Hz,60Hz (Effective only in Auto,
Bright mode)

Iris: Aperture value. Optional items: F1.8,
F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F

11.0,Close(Effective only in Manual, AAE mode)

Shutt.: Shutter value. Optional items: 1/30,1/60,
1/90,1/100,1/125,1/180,1/250,1/350,1/500,1/725,1/1
000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000
(Effective only in Manual, SAE mode)

3. COLOR

Move the cursor to the Color item in the main
menu and press [home] button, COLOR menu
appears, as shown in the following figure.

WB-Mode: White balance mode. Optional

items: Auto, Indoor, Outdoor, One Push(ok),Manual

RG: Red gain. Optional items: 0~255(Effective

only in Manual mode)

BG: Blue gain. Optional items:

0~255(Effective only in Manual mode)

RG Tuning: Red gain fine-tuning, Optional
items: -10~10(Effective only in Auto, Indoor,
Outdoor mode)

BG Tuning :Blue gain fine-tuning, Optional
items: -10~10(Effective only in Auto, Indoor,
Outdoor mode)

COLOR

WB Mode Auto
RG Tuning 0
BG Tuning 0
Saturation 90%
Hue 7
IR Filter 3
AWB sens Low
Style Style1

Select Item
Change Value

[Menu] Back

ValueHD Corporation

34

Sat.: Saturation. Optional items: 60% ~ 200%.
Hue: Chroma adjustment, Optional items:0 ~

14

IR Filter: IR Filter, Optional items:1 ~ 3

AWB sens: The white balance sensitivity,
Optional items: Normal, High, Low.
Style: Optional items: Style1, Style2, Style3.

4. IMAGE

Move the cursor to the Image item in the main
menu and press [home] button, IMAGE menu
appears, as shown in the following figure.

Luminance: Brightness adjustment. Optional

items: 0 ~ 14

Contrast: Contrast adjustment. Optional items:

0 ~ 14

Sharpness: Sharpness adjustment. Optional

items: Auto,0 ~ 15

Flip-H:Image flipped horizontally. Optional

items: On, Off

Flip-V: Image Flip Vertical. Optional items: On,

Off

B&W-Mode: Image color. Optional items: On,

Off

Gamma: Optional items: Default, 0.45, 0.5,

0.56, 0.63

5. P/T/Z


Luminance 7
Contrast 7
Sharpness 1
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma Default

Select Item
Change Value

[Menu] Back

ValueHD Corporation

35

SpeedByZoom: The depth of field scale switch,

Optional items: On, Off

AF-Zone: Interested in focusing area, Optional

items: Top, Center, Bottom

AF-Sense: Automatic focusing sensitivity

options, Optional items: Low, Normal, High

6. NOISE REDUCTION

Move the cursor to the Noise Reduction item in
the main menu and press [home] button, NOISE
REDUCTION menu appears, as shown in the
following figure.

NR2D-Level: 2D noise reduction. Optional

items: Off,Auto,1 ~ 5

NR3D-Level: 3D noise reduction. Optional

items: Off, 1 ~ 8

D-HotPixel: Dynamic bad points, Optional

items: Off,1 ~ 5

7. SETUP

Move the cursor to the Setup item in the main
menu and press [home] button, SETUP menu
appears, as shown in the following figure.

NOISE REDUCTION

NR2D-Level 3
NR3D-Level 3
D-HotPixel Off

Select Item
Change Value

[Menu] Back

P/T/Z

SpeedByZoom On
AF-Zone Center
AF-Sense Low

Select Item
Change Value

[Menu] Back

ValueHD Corporation

36

Language: menu language, Optional items: EN,

Chinese

Protocol: Control protocol type. Optional items:

AUTO, VISCA, PELCO-D, PELCO-P

V_Address: Protocol address, To be decided
according to the agreement, AUTO, VISCA protocol
Optional items: 1 ~ 7

P_D_Address: PELCO-D protocol Optional
items: 0 ~ 254

P_P_Address: PELCO-P protocol Optional
items: 0 ~ 31

V_AddrFix: If I can change through the serial
port of infrared switch, Optional items: On,

Off(When set to On, useless in 88 30 01 FF
Command)

Net Mode: Set the serial port control

networking, Optional items: Serial, Paral

Baudrate: Serial port baud rate. Optional items:

2400, 4800, 9600

8. RESTORE DEFAULT

Move the cursor to the Restore Default item in
the main menu and press [home] button, RESTORE
DEFAULT menu appears, as shown in the following
figure.

Restore: Confirm restore factory settings.

RESTORE DEFAULT

Restore? No

Change Value
[Home] OK
[Menu] Back

SETUP

Language EN
Protocol VISCA
V_Address 1
V_AddrFix Off
Net Mode Serial
Baudrate 9600

Select Item
Change Value

[Menu] Back

ValueHD Corporation

37

Optional items: Yes, No

Note: Press [HOME] button to confirm, All

parameter restore default, Include IR Remote

address and VISICA Address
Save: Save Options. Optional items: Yes, No

ValueHD Corporation

38

Equipment Setup and internet connection

1. Operating Environment

Operating System: Windows 2000/2003/XP/vista/7
Network Protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version.

2. Equipment Installation

1) Connect internet camera to your internet or to your PC directly via internet cable.

2) Turn on DC12V power.

3) The orange light of internet port lit on, green light flashing, and the physical connection finished.

3. Internet Connection

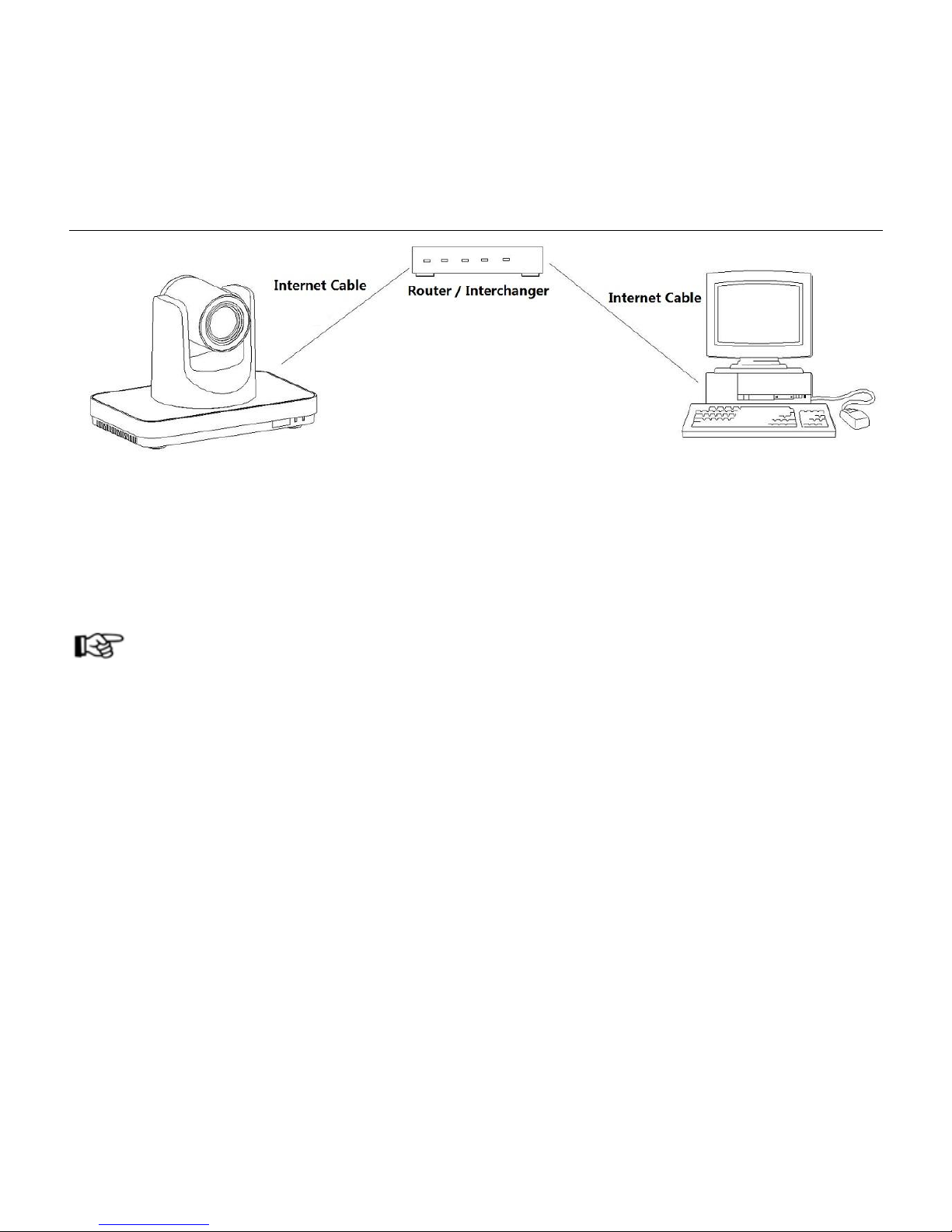

Connection ways between internet camera and computer, as picture 1.1 and picture 1.2 shown:

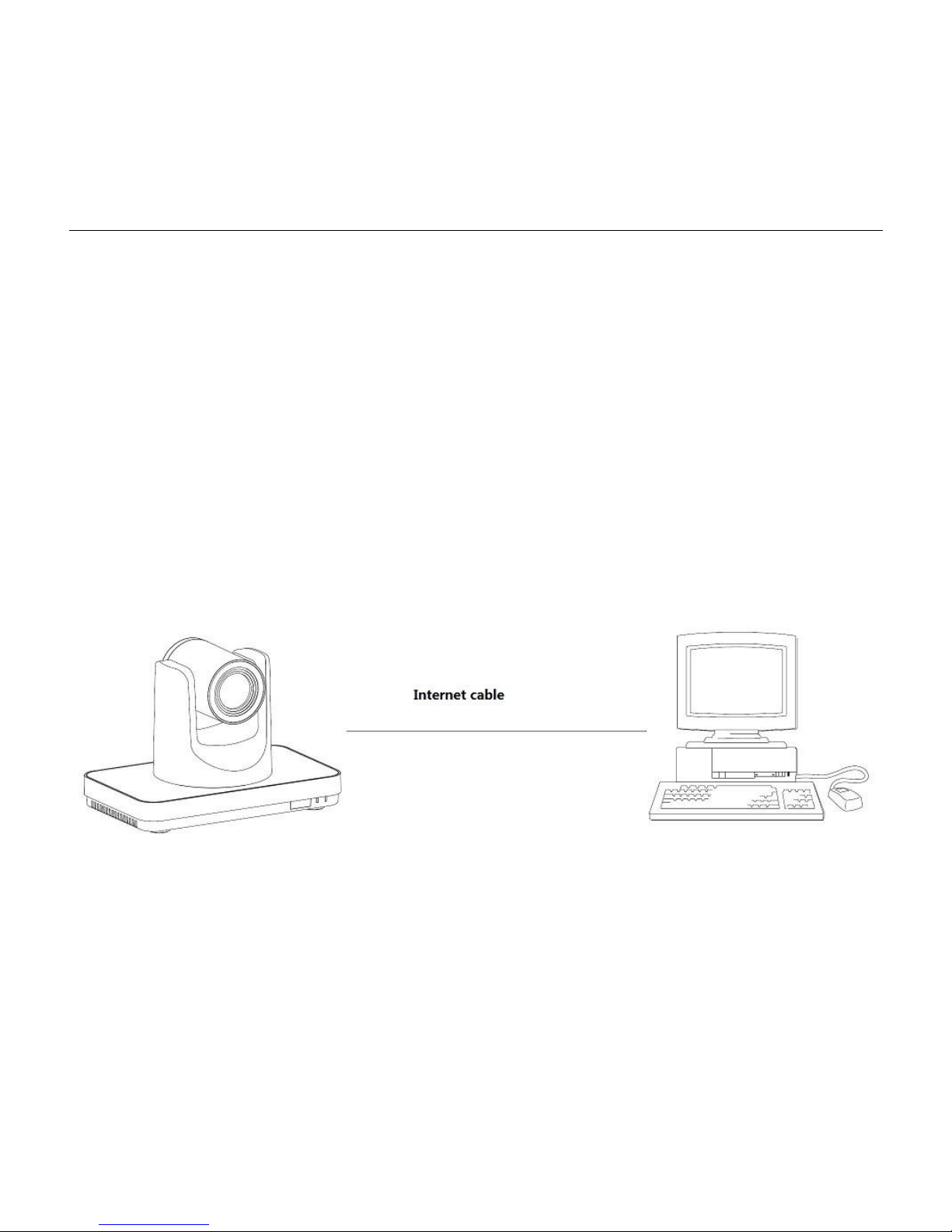

Picture 1.1 connect by internet cable

ValueHD Corporation

39

Picture 1.2 Connect by router /interchanger

IP camera visited/ controlled by LAN

1 Setup IP address

1.1 Connect IP Camera to internet (or PC), then turn on the power on IP Camera, shown as above.

NOTE!

If IP Camera connect to PC,PC IP address need manual allocation, PC IP internet segment must keep the same
as IPC, then IPC can be visited.

1.2 Before connecting IP camera (herein called IPC) to internet, IP address need to be identified, IP address can
be searched via IPCSearch software(in CD)

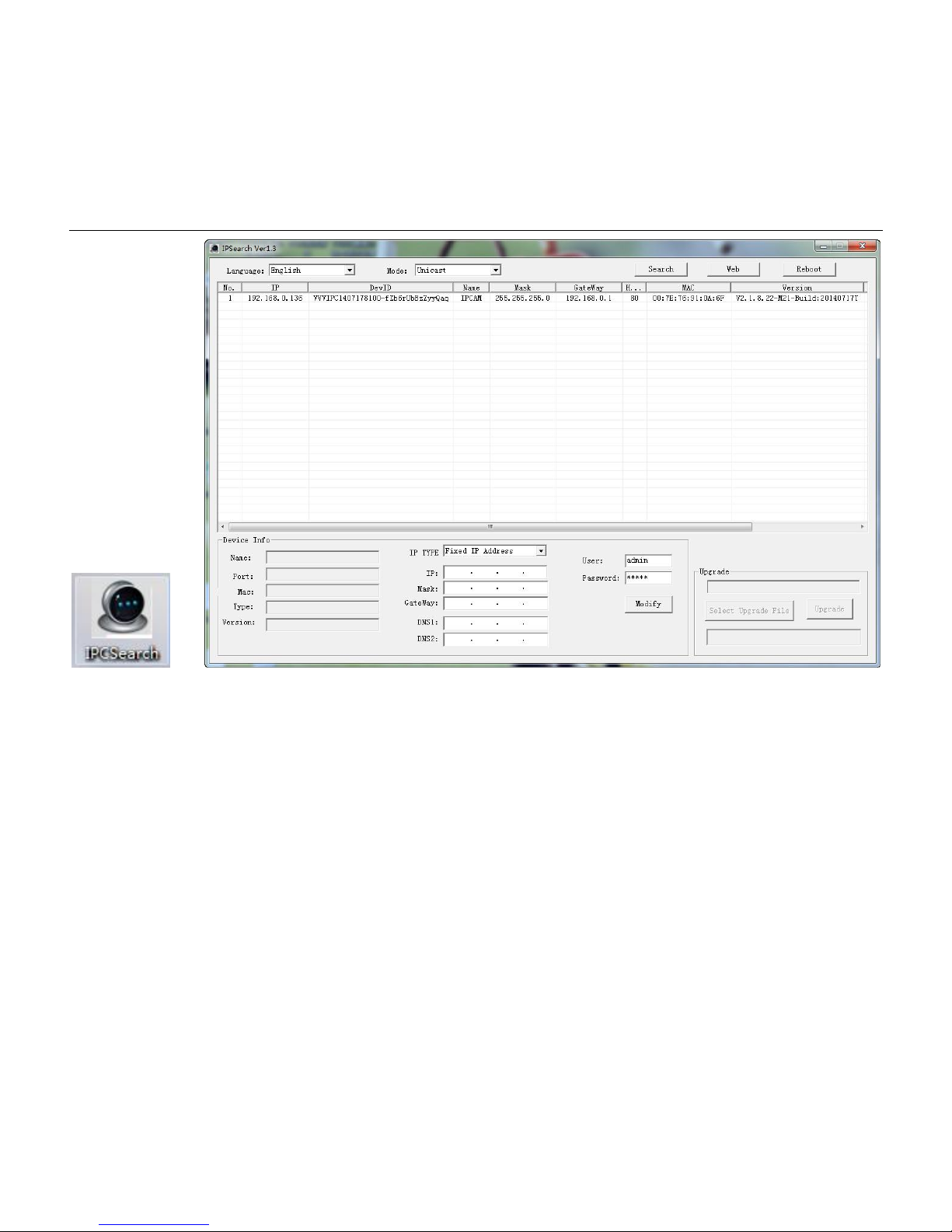

Run IPCSearch software in CD-Rom, click [Run].The software will display the current LAN camera's IP

address, port number, subnet mask device number and version, shown as below:

ValueHD Corporation

40

If IPC IP address and PC IP address not in the same internet segment, IPCSearch software can modify IP

address, subnet mask and port number etc.

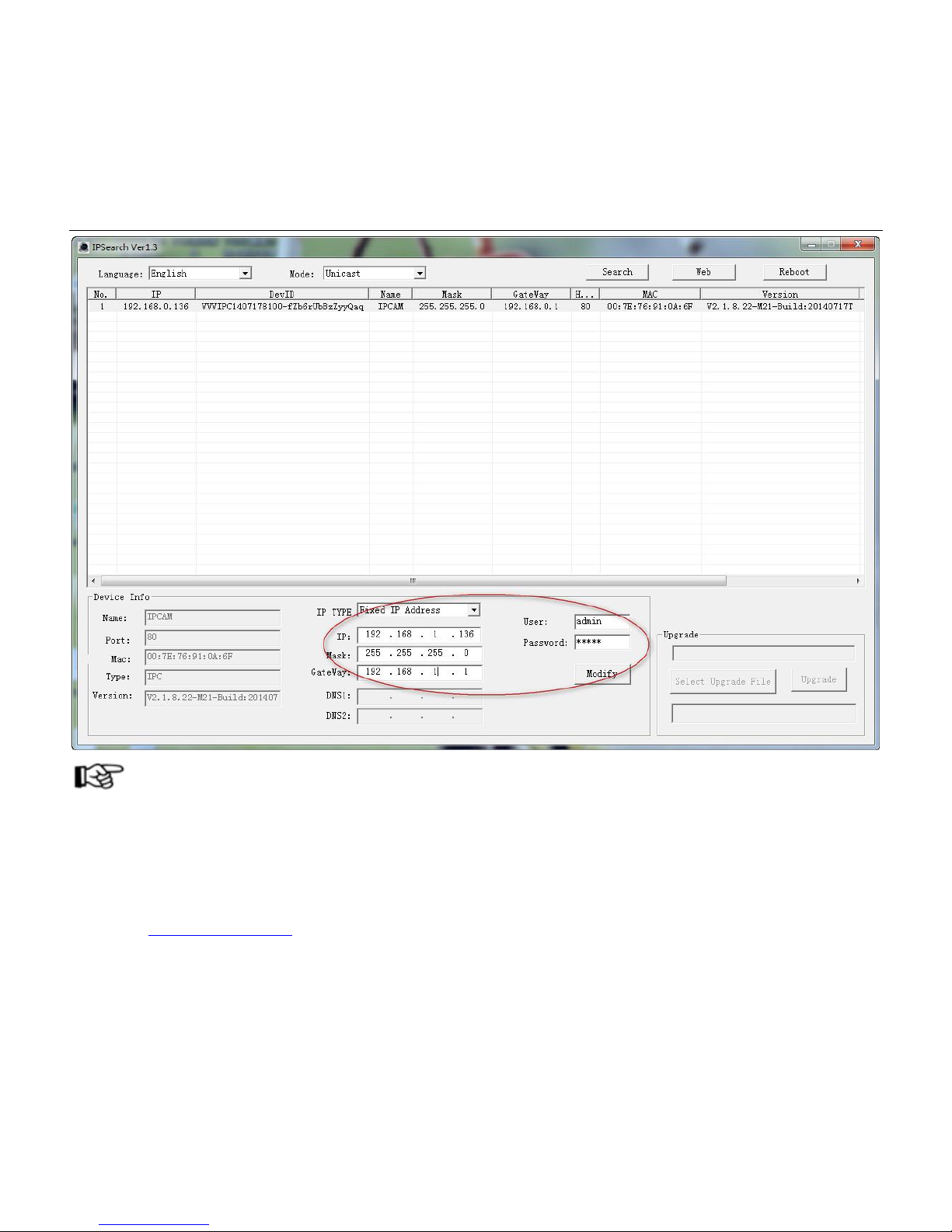

In IPCSearch window, select the device (IPC) needed to be modified, enter new IP in "IP" bar, subnet mask
in "Mask" bar, port number in "Port" bar, and the password (default as admin), click [modify], then the IPC
address can be modified, shown as below(For example: if your PC IP is 192.168.1.88, then IPC IP must be

192.168.1.xx, the first, second, third number must keep the same):

ValueHD Corporation

41

NOTE!

IP camera default IP address"192.168.0.136", port "80",user "admin", password "admin".

2 Visit/Access IP Camera

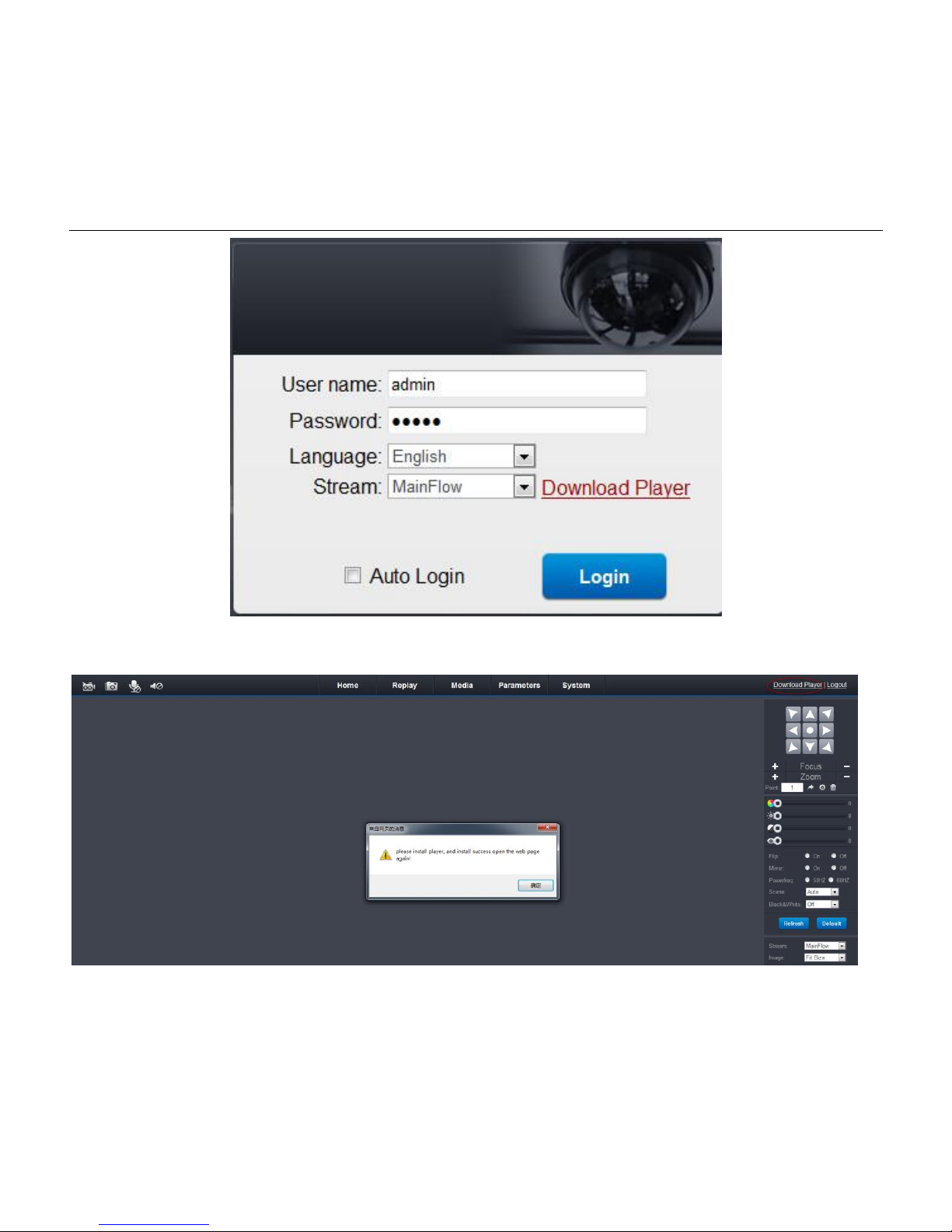

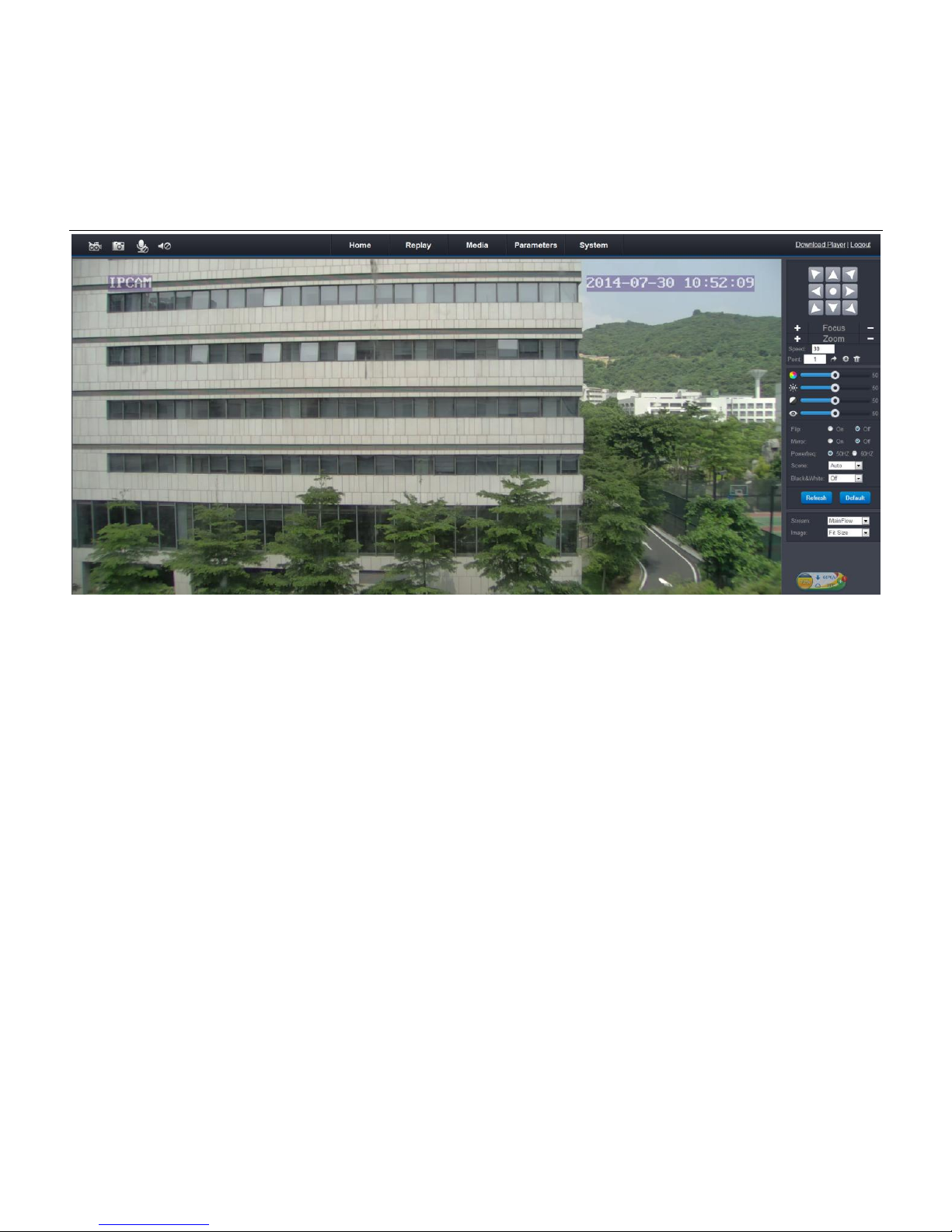

2.1 Input http://192.168.1.136 to IE ( better with IE web browser, others will cause little latency),a login
window pop up, input login name: admin, password: admin, language and code stream are selectable, shown as
below:

ValueHD Corporation

42

2.2 Input login name and password, click "Login", then pop up below window

ValueHD Corporation

43

NOTE！

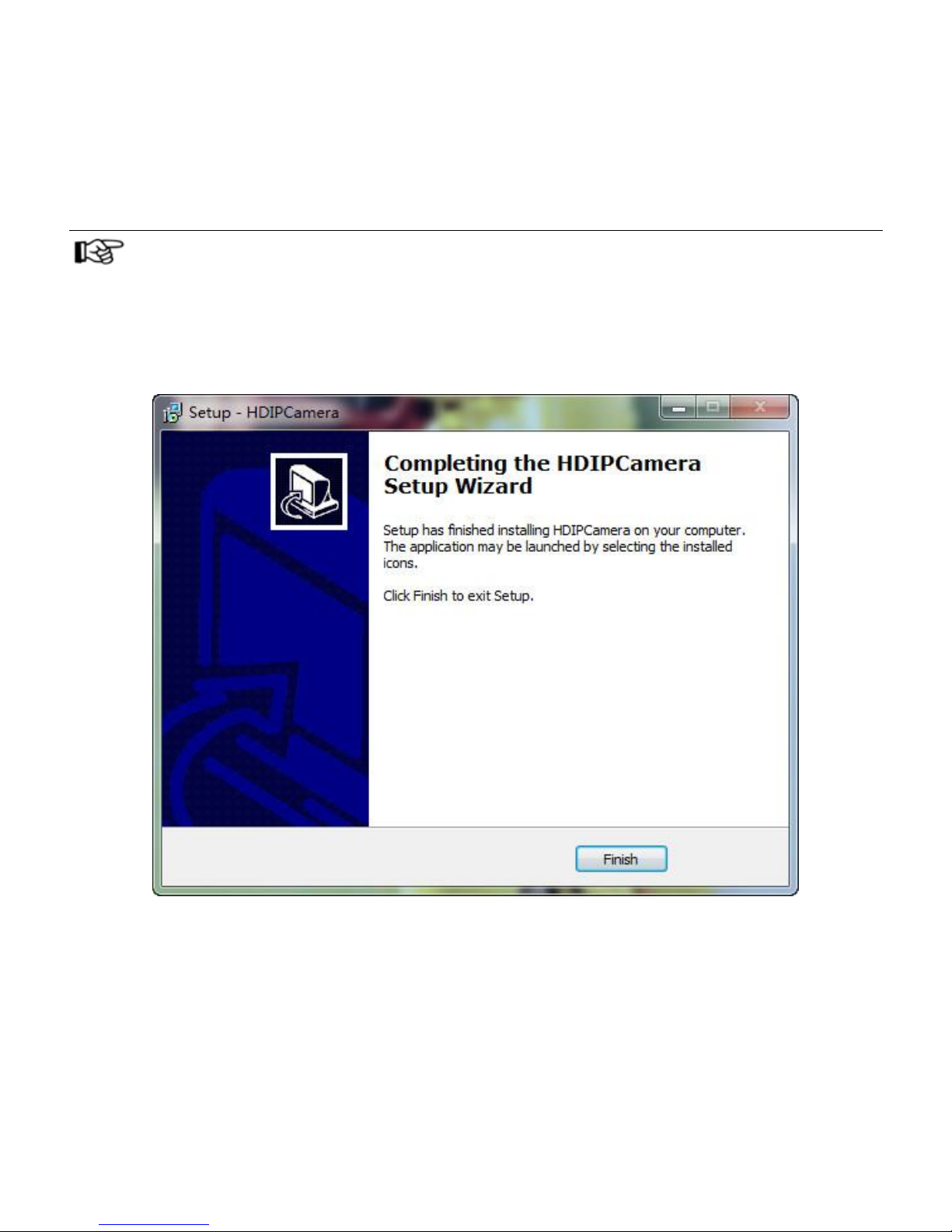

If user first time use this equipment, must install a player software. Please click "Download Player" (only

for new user).

2.3 Click to run, the player will be downloaded and installed automatically

2.4 After player installation finished, login again then viewing window shown as below:

ValueHD Corporation

44

IP Camera accessed/controlled by WAN (internet)

1. Setup IPC accessed/controlled by manufacturer dynamic DNS

Currently there 2 dynamic DNS:
Dyndns.org,

3322.org

1.1 Setup interchanger data:

1.1.1 Open interchanger UPnP function:

Take TP-LINK router as example, open the router, and then:

1.Select "Transit rule"--"UPnP Settings"--Click "Enable UPnP"

ValueHD Corporation

45

NOTE！

If router not support UPnP function, please set up router port mapping.

1.1.2 Router Port Mapping Setup:

Take TP-Link Router as example, in the router interface, select "Transit rule"--"Virtual server"--add a
new mapping port into the router list, as below:
Server port number: 80 (as default)
IP address: the IP address of the monitoring computer (here take 192.168.1.126 as example)
Protocol: ALL
State: Effective
Click "Save" to confirm, the mapping list will appear.

1.2 IP camera setting

1.2.1 Set DNS:

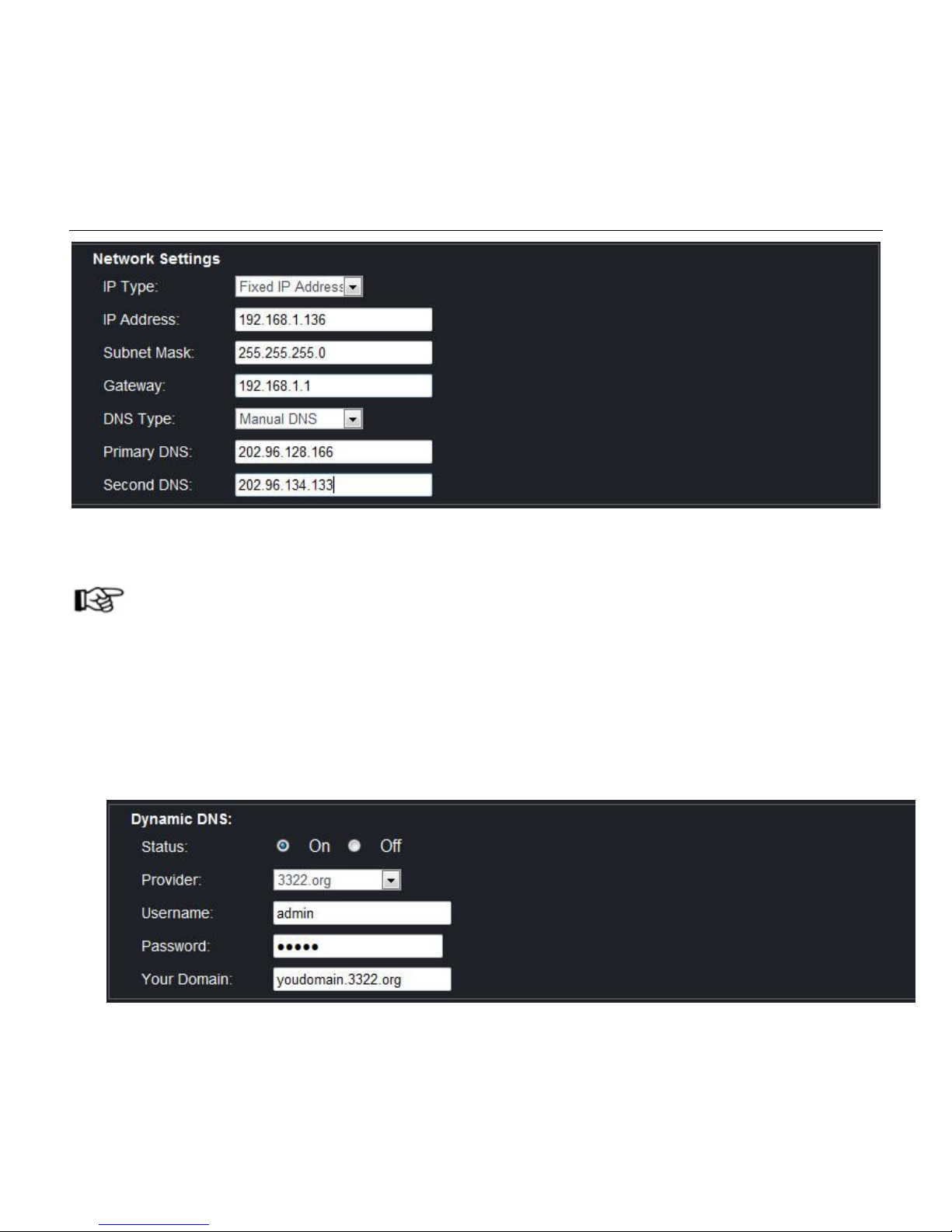

If allocate IP address manually, must set DNS to IPC, then IPC can be visited by dynamic DNS. Setup as

following:

1) After login camera via IE web browser (or other web browser)--click "Network Settings" --"Basic

Settings", shown as below:

ValueHD Corporation

46

Check DNS: Take TP-Link router as example, enter router homepage, click "operation state"—"WAN port

state" showing DNSIP address.

NOTE！

If DNS address not correct, the camera cannot be connected to internet.

2. Dynamic DNS visit camera

2.1 Set dynamic DNS to IPC

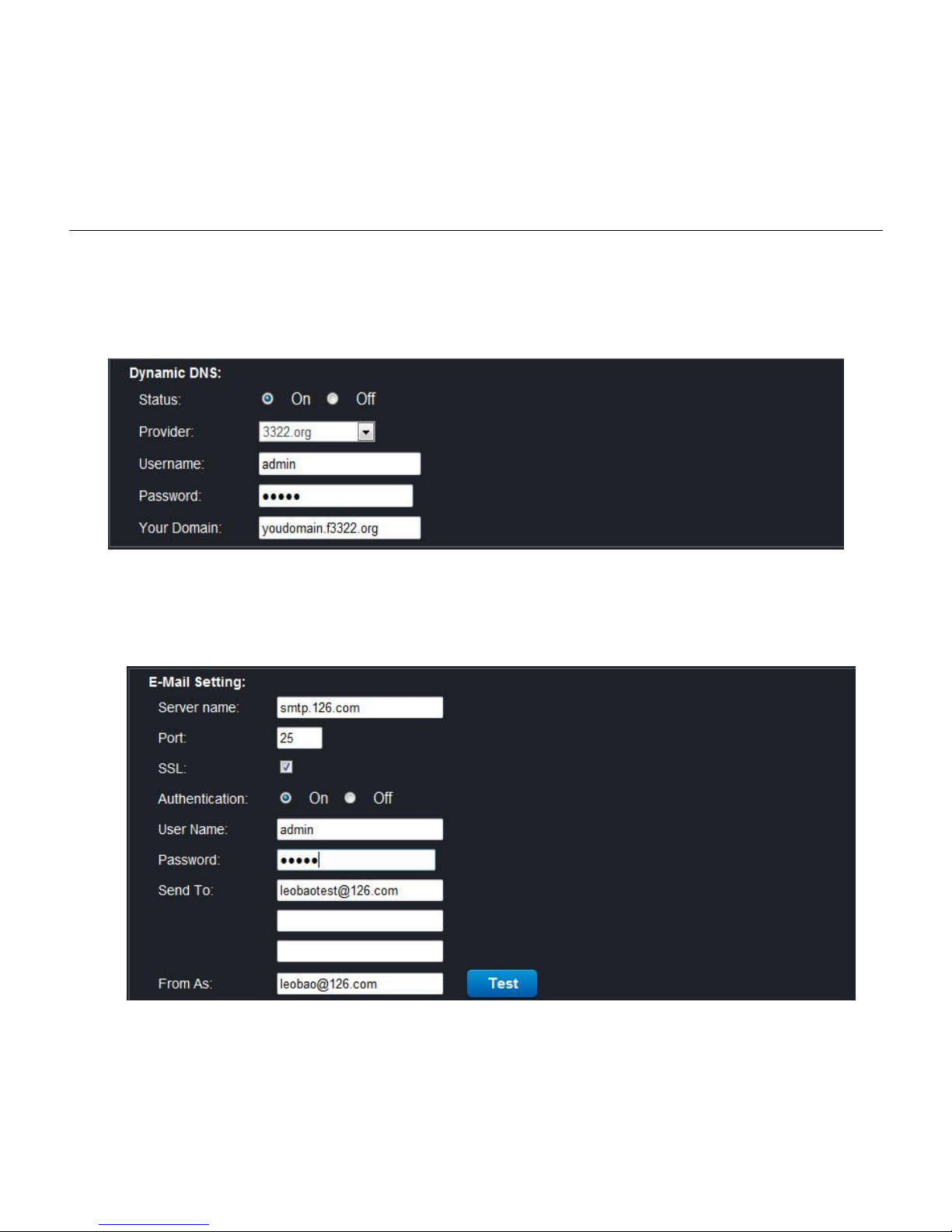

Login IPC via web browser, click "Parameters"—"Network"—"DDNS"—"Dynamic DNS". Activate
dynamic DNS and select DNS server. Input DNS account, password and domain name, shown as below:

ValueHD Corporation

47

2.2 Camera accessed by dynamic DNS

Set domain name to camera, setup the parameter, then dynamic DNS can access camera.
Access link:http://hostname :port number
For example, setup host computer name: youdomain.f3322.org, camera port number: 81,
Access link should be: http://youdomain.3322.org:81

NOTE！

If camera port default as 80,then input port is unnecessary, use host name can access camera directly .

VLC stream media player monitoring

1 Visit VLC media server procedure

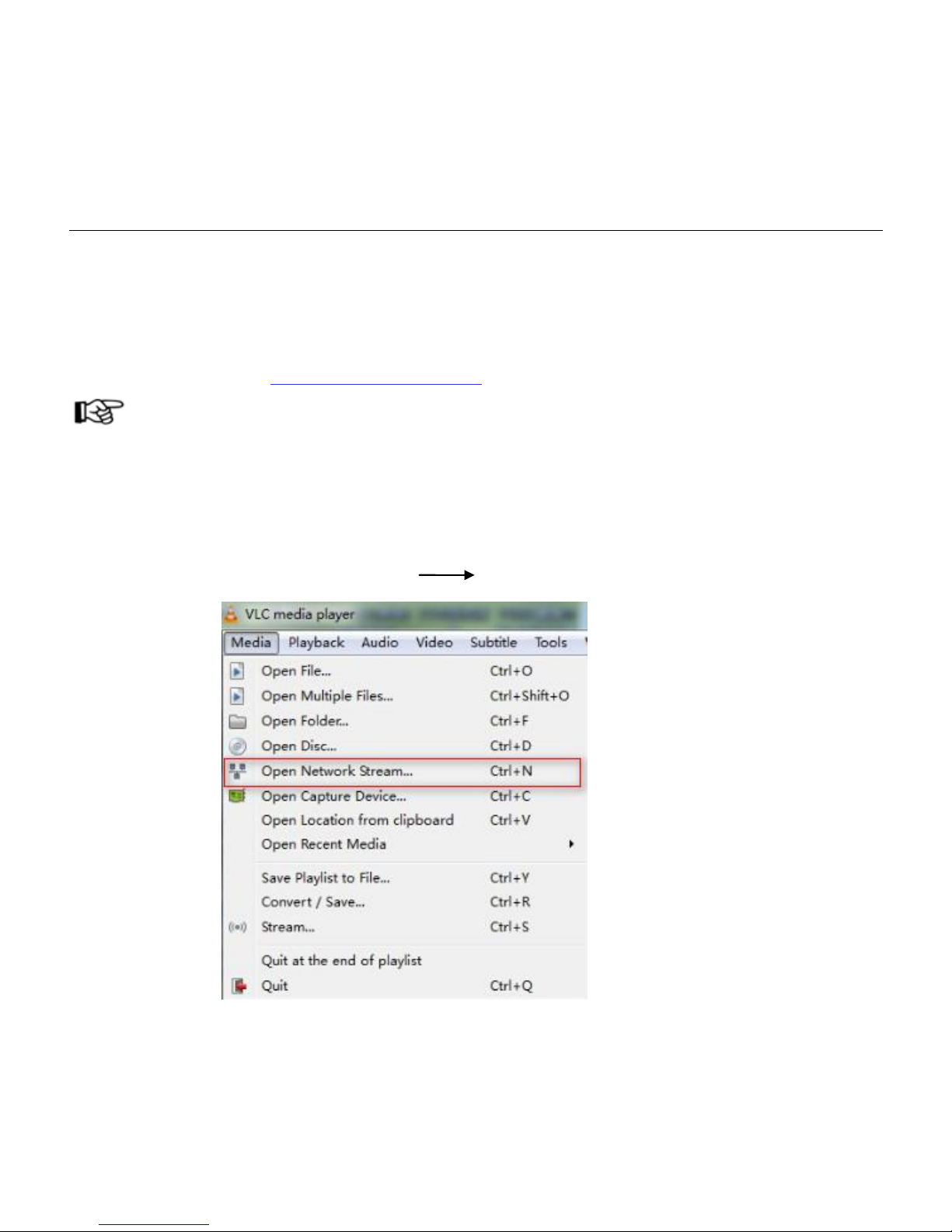

1.1 Open VLC media player, click "Media" "Open Network Steam", or click "Ctrl+N"; as below:

ValueHD Corporation

48

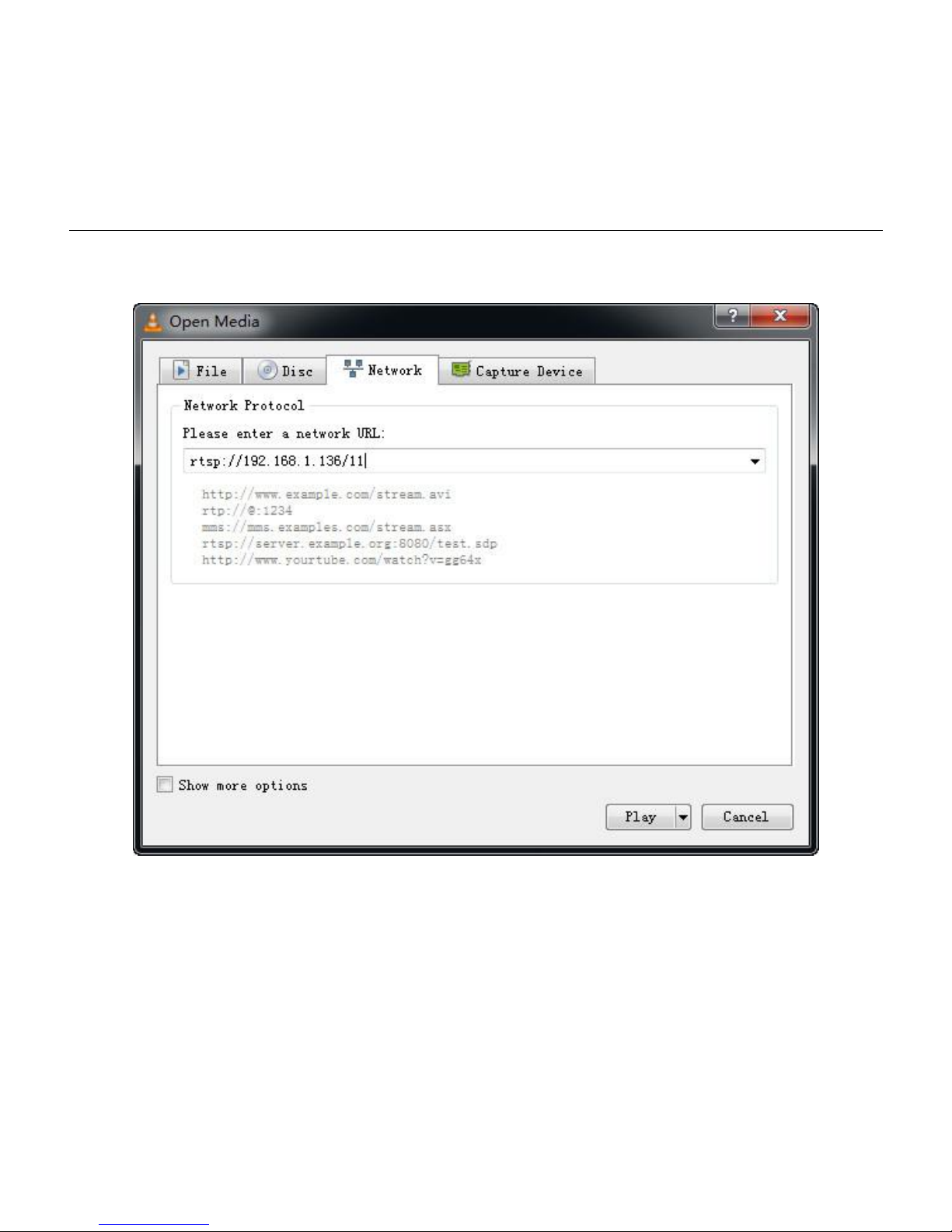

1.2 Input URL address: rtsp://ip: port/11(Main stream); rtsp://ip: port/12(Sub stream)(When port set as rtsp,

default port value is 554 that can be omitted as rtsp://ip/11 or rtsp://ip/12)

IP Camera parameter setup

1 Homepage introduction

1.1 Menu

All pages include 2 menu bars:

ValueHD Corporation

49

Real time monitoring: displaying video image
Parameter setup: with function buttons

1.2 Video viewing window
Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing

area is. Double click viewing window, will show full-screen, double click again, will return to initialized size.

Status bar in viewing window shown as below

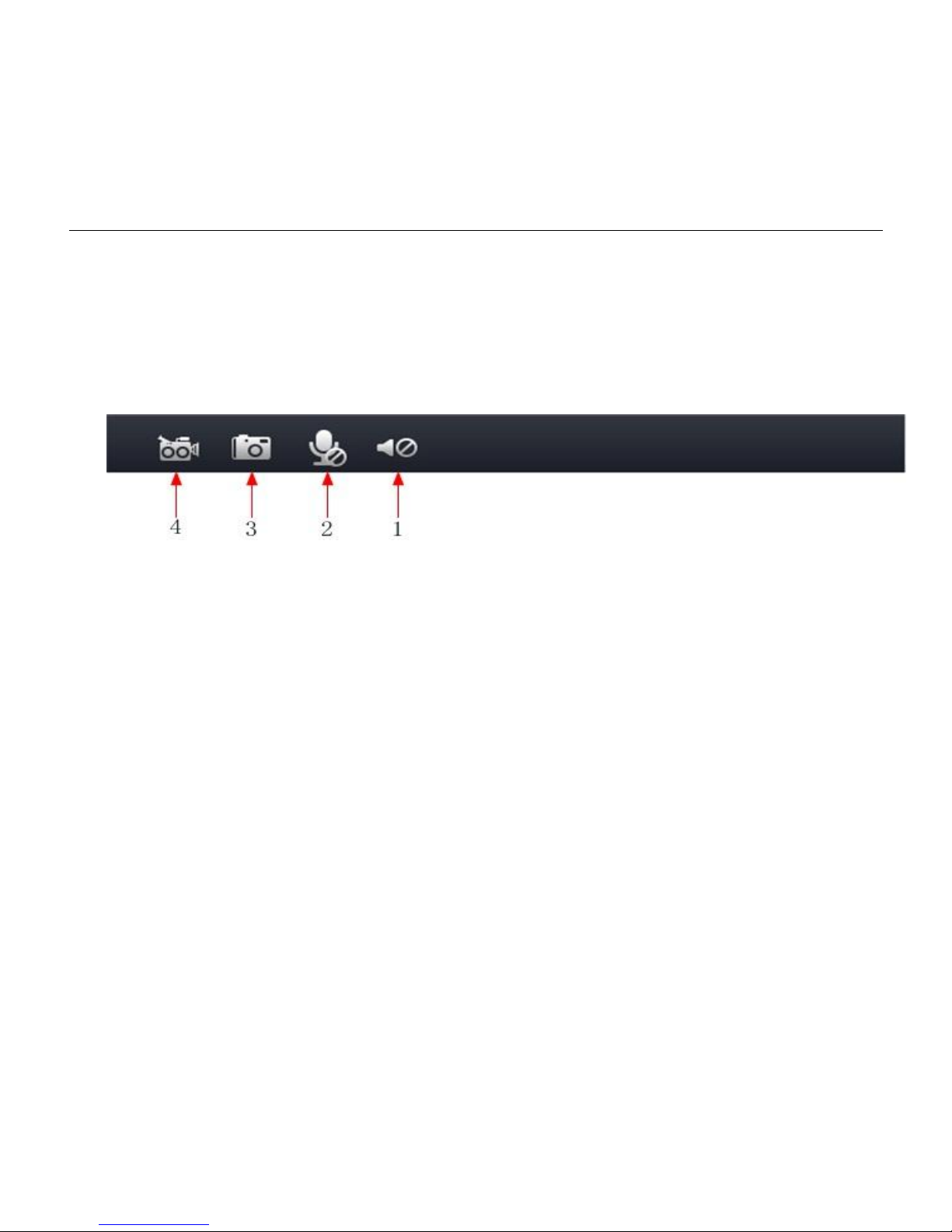

1) Audio play button: click to play sound out, click again to turn off.

2) Audio transmit button: transmit sound collected by computer to device, and play out by audio part
connected to the device, click again to turn off.

3) Picture storage rout selection.

4) Video storage rout selection.

1.3 Viewing/Monitoring
Monitoring viewing window size can be adjusted as: 1080P(1920x1080),720P(1280x720)(640x360)
(320x180)4 types, main code stream can be selectable, auxiliary code stream can monitor the image.

1.4 Screenshot
Click screenshot button, the playing video can be stored as image in preset rout.

1.5 Recording
Click recording button, can transmit video and audio stream to the local computer (preset rout).When

recording video, the state bar will show recording state, click the button again, stop recording.

ValueHD Corporation

50

1.6 PTZ Setup

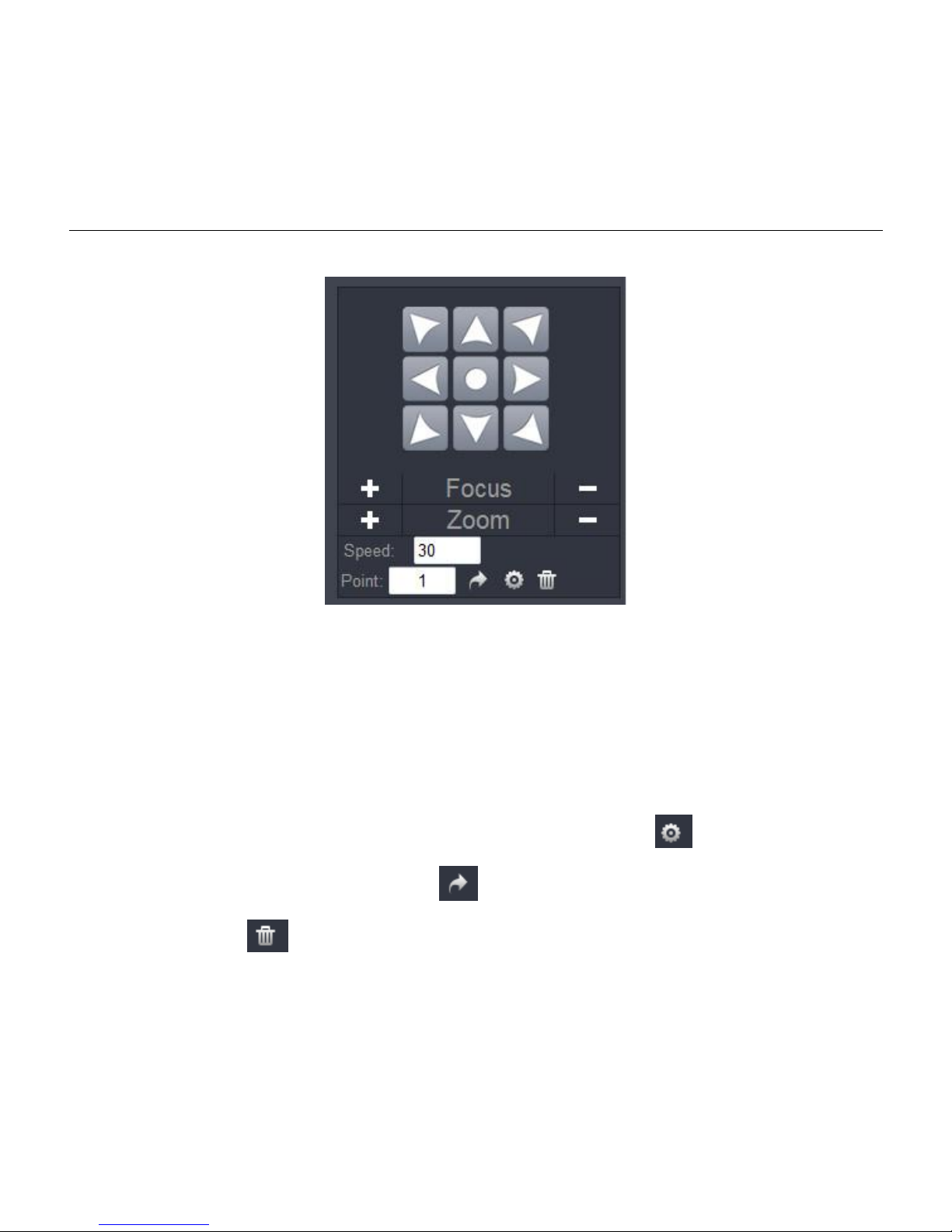

1) PTZ direction control box: Up, down, left, right, oblique button as above

2) Zoom: "+"for long distant objects,"-"for short distant objects.

3) Focus: "+"for zooming in,"-"for zooming out.

4) Speed: select corresponding speed and click direction button to realize PTZ speed up or speed

down.

5) Point: When PTZ turn to expected position, click "Set" button ,when PTZ turn to other

position, click "Goto" button ,PTZ turn back to preset position, click "Clear"

button ,then all preset position clear out.

ValueHD Corporation

51

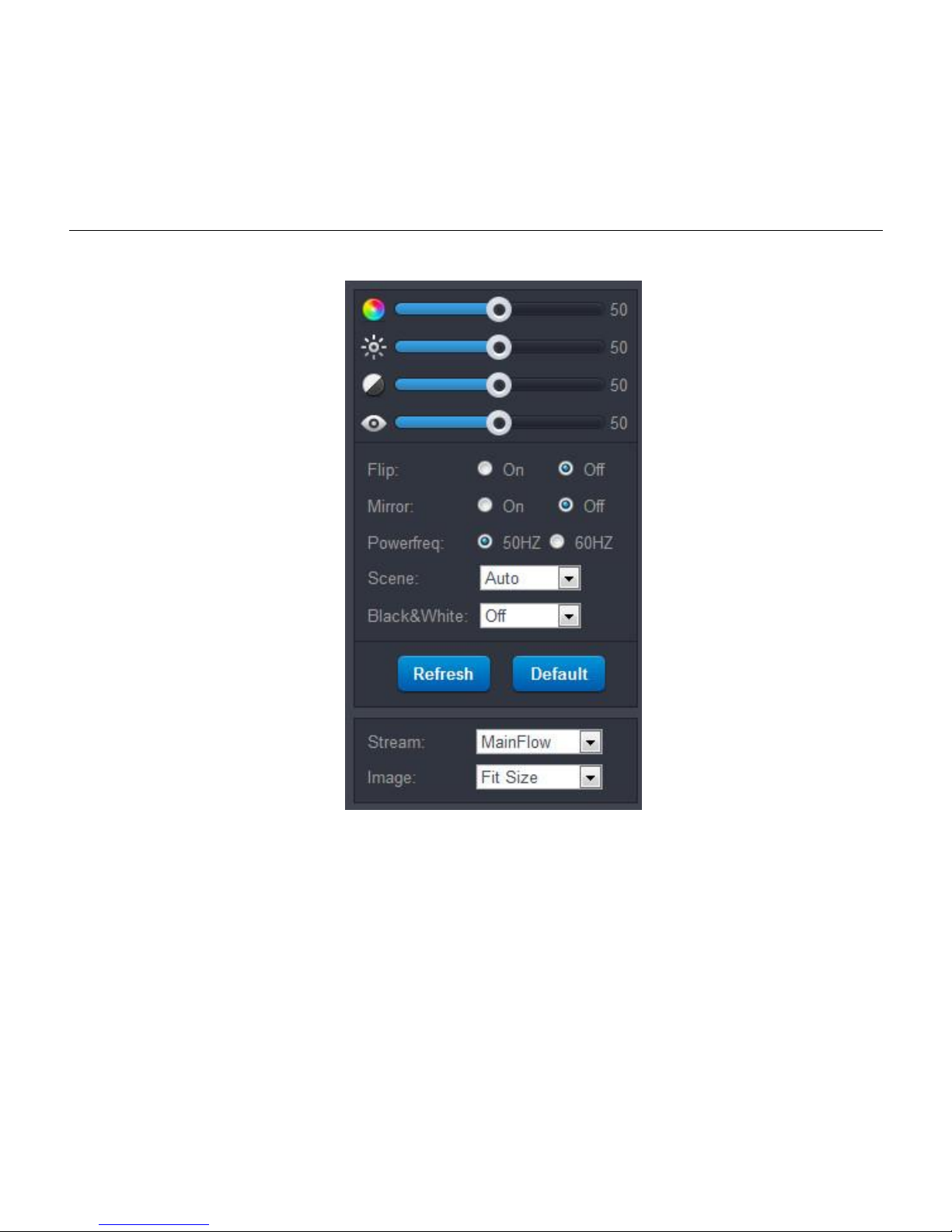

1.7 Image Setup

1) Image adjust

Pull the bar in the above box, can adjust color/hue, brightness, contrast, saturation.

2) Flip/Mirror

Image can be flipped or mirrored.

3) Powerfreq

ValueHD Corporation

52

50HZ or 60HZ (selectable to fit the local power frequency, avoid flashing).

4) Scene

3 modes available: auto, indoor, outdoor

5) Black & White

On: black and white mode
Off: color mode

6) Default

Click "Default" button, turn to default

7) Stream

Select main flow or minor flow

8) Image

fit size or screen size.

2 Replay

Click replay button, a player will pop up shown as below, the video recorded in local hardware disk can be

displayed (TF is needed).

ValueHD Corporation

53

3 Media

3.1 Video Setup

ValueHD Corporation

54

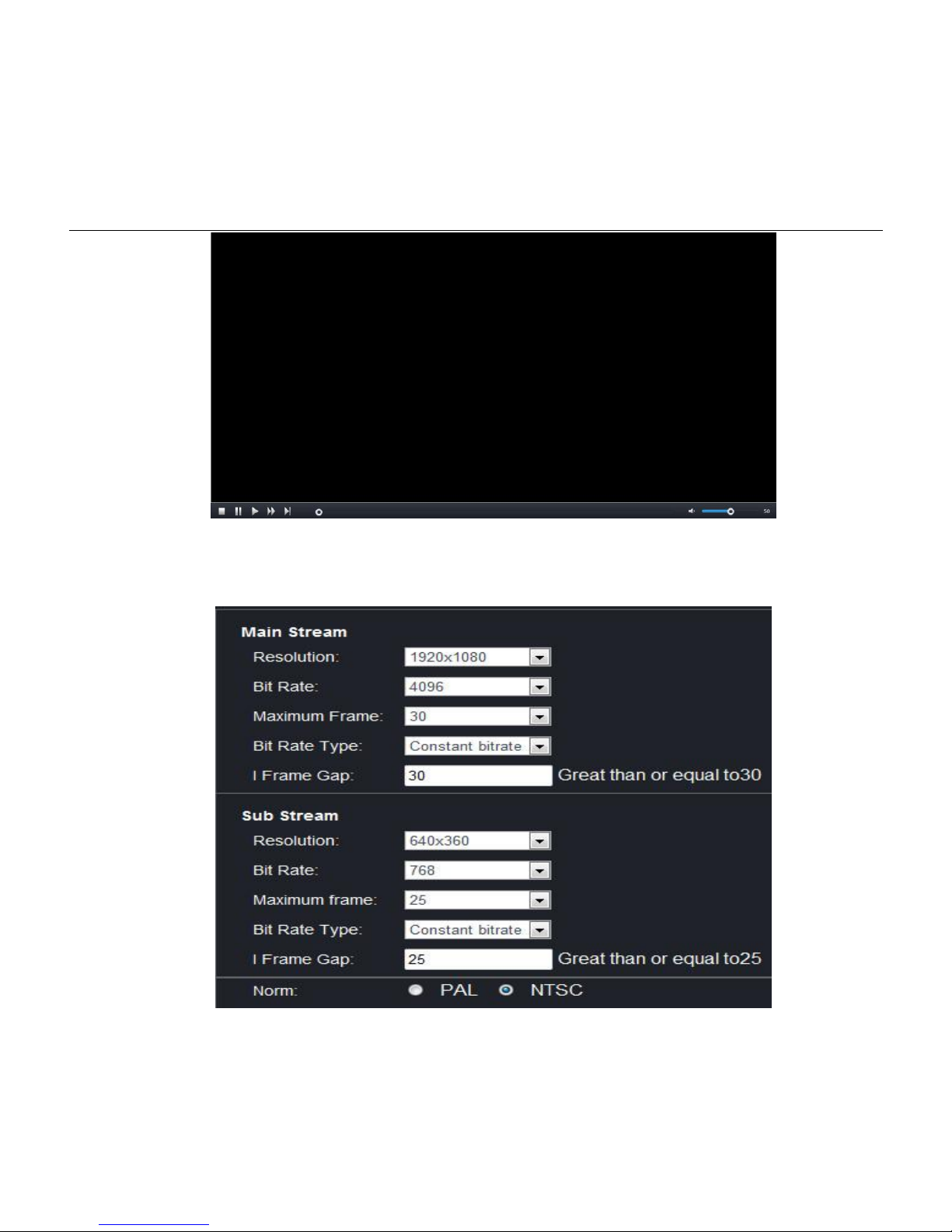

1) Resolution

Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger
resolution is, the clearer the image will be, more network bandwidth will be taken.

2) Bit Rate

User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
The bit allocation must combine with network bandwidth, when the network bandwidth is too narrow
and the allocated bit flow is too big, will cause video signal flow not to be transmitted normally, the
video effect will be worse.

3) Maximum frame

Under limited bandwidth circumstance, lower the bit rate and framerate to appropriate value.

4) Bit Rate Type

Code stream control way:
Constant bitrate: video coder will be coding according to preset speed
Variable bitrate: video coder will adjust the speed based on preset speed to gain the best image quality.

5) I Frame Gap

Set interval between 2 I frame, the bigger interval is, the response will be lower from viewing window.

6) Video format

Support 50HZ(PAL)and 60HZ(NTSC),50HZ:1-25fps, 60HZ: 1-30fps.

3.2 Audio Setup

ValueHD Corporation

55

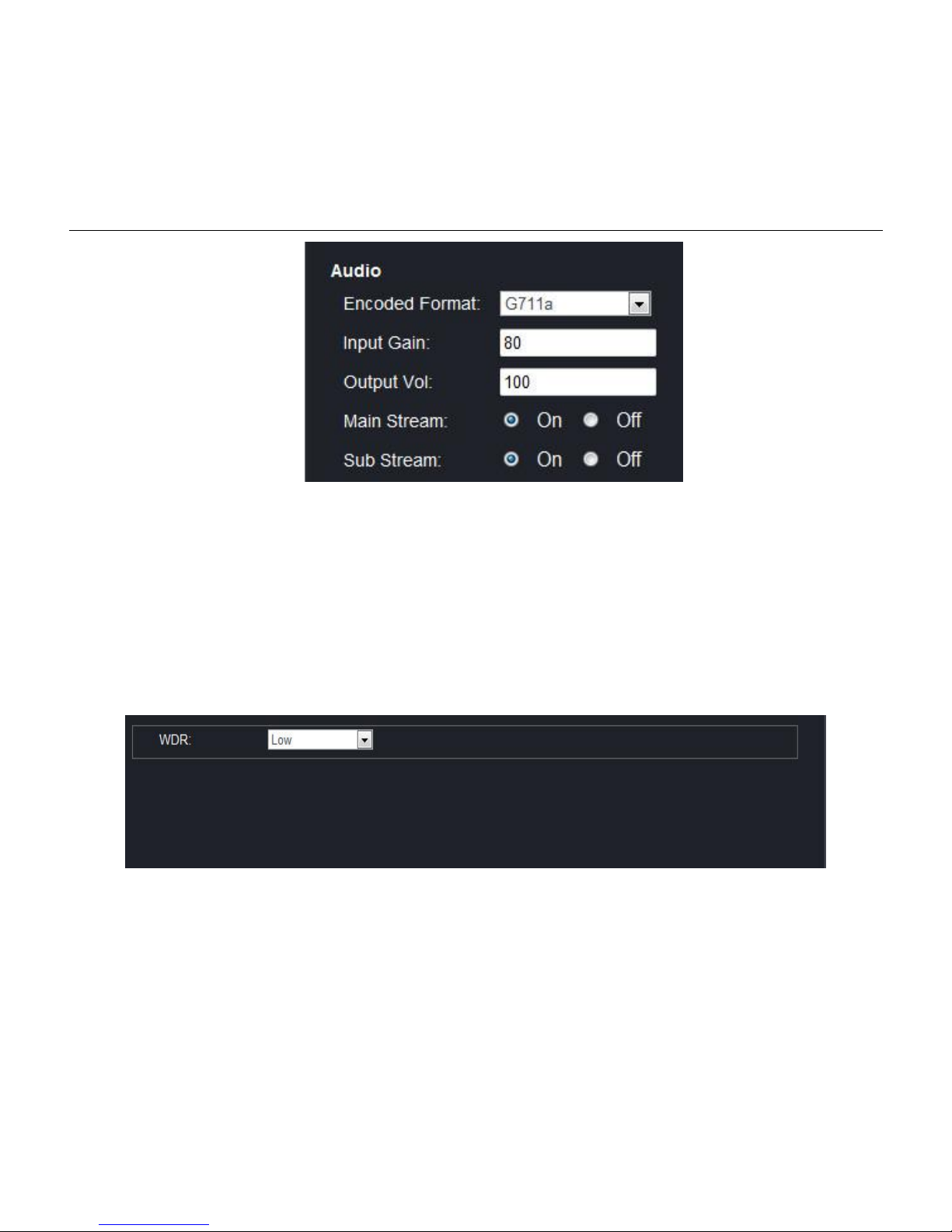

1) Encoded Format:G711a, G711u, G726.

2) Input Gain: volume definable.

3) Output Vol: No such function on hardware, pls ignore this line shown on software interface.

4) Main Stream / Sub Stream :

On: encoding with audio signal;
Off: encoding without audio signal.

3.3 Image Setup

Off, Low, High selectable.

ValueHD Corporation

56

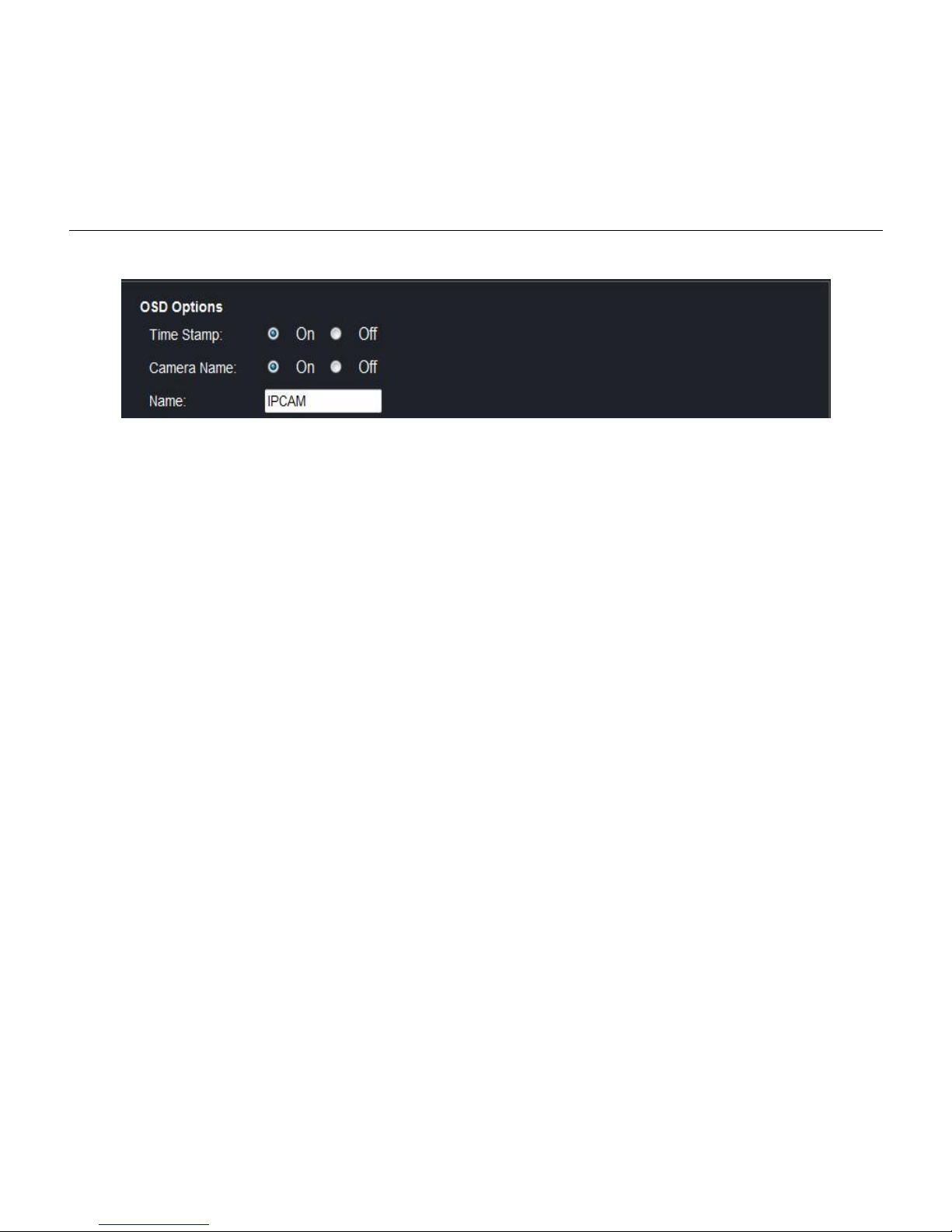

3.4 OSD Setup

1) Time Stamp: On/Off. Current time will be shown on up right corner when select "on".

2) Camera Name: On/Off. The camera name you edited will be shown on up left corner.

4 Parameter Setup

4.1 Network settings

1) Basic Settings

ValueHD Corporation

57

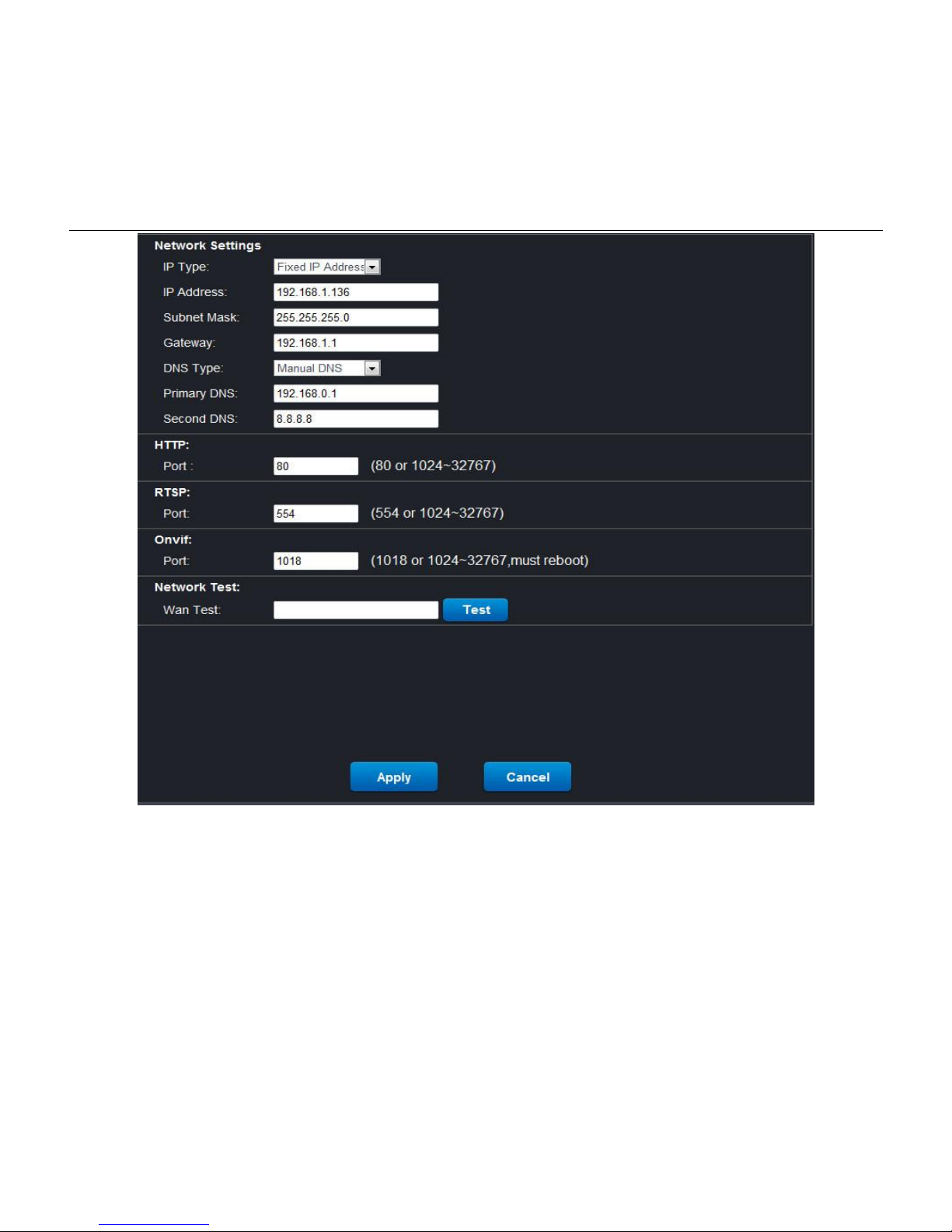

LAN Setup: Initialized default IP address: 192.168.0.136; Camera network parameters can be setup via

"installation guide"

HTTP Port: IP address marks the device in network, the device can run multiple network programs, each

program transmit the data via ports, hence data transmit between port and port, this port setup is to assign a port to
WEB SERVER program. When port mapping, must keep the port value same as HTTP port (initialized port as 80)

ValueHD Corporation

58

RTSP Port: IPC support rtsp protocol, can play video directly via VLC, etc.
ONVIF Port: Support ONVIF protocol, default port as 1018.

2) DDNS

Select "Provider" 3322.org,input 3322.org server login name(account name) and password, "Your domain

name" is the assigned domain name from 3322.org server.

3) Email

ValueHD Corporation

59

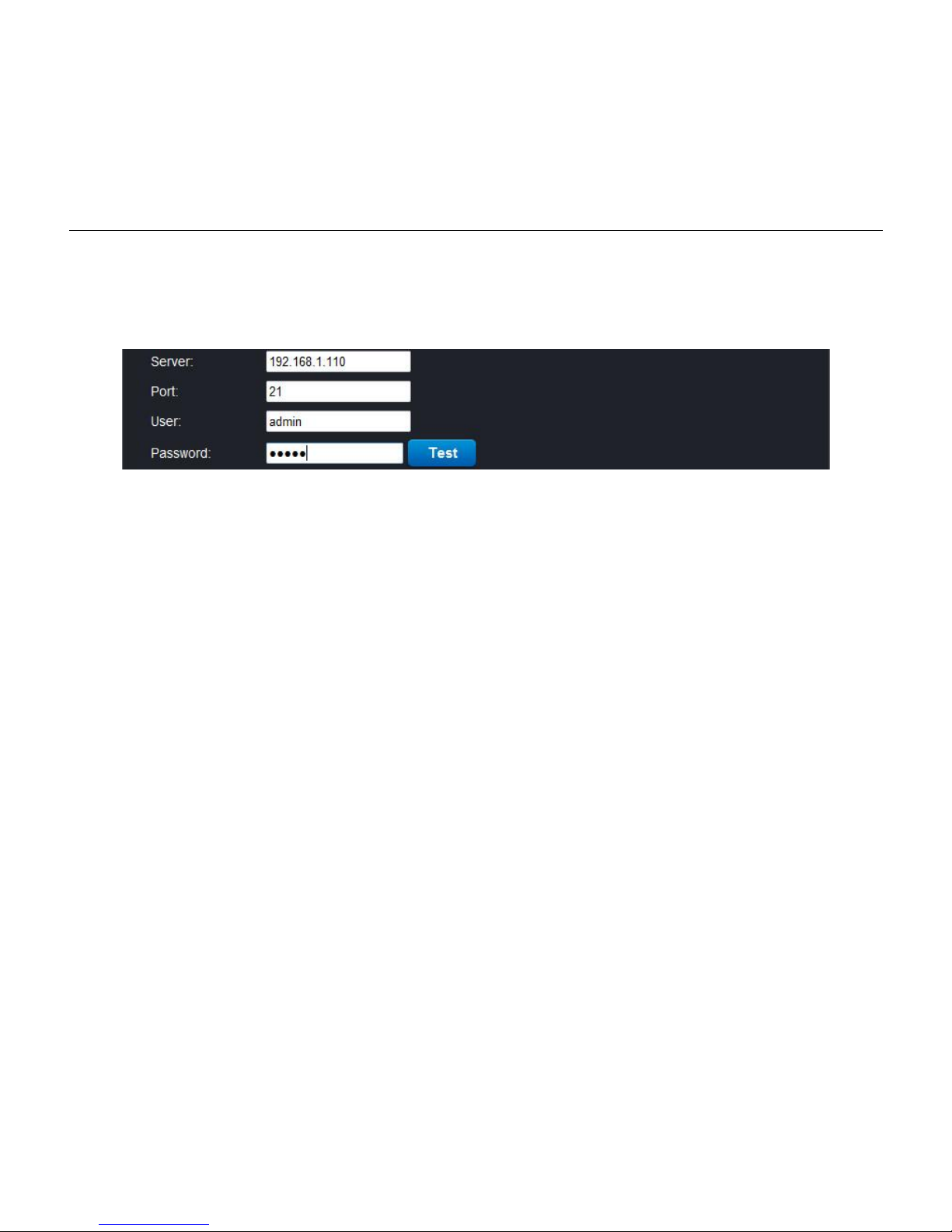

4) FTP

In order to use FTP function, firstly apply account name/login name and password from FTP server, and
meanwhile apply for storage space with authority of writing and building sub-directory.

4.2 Event

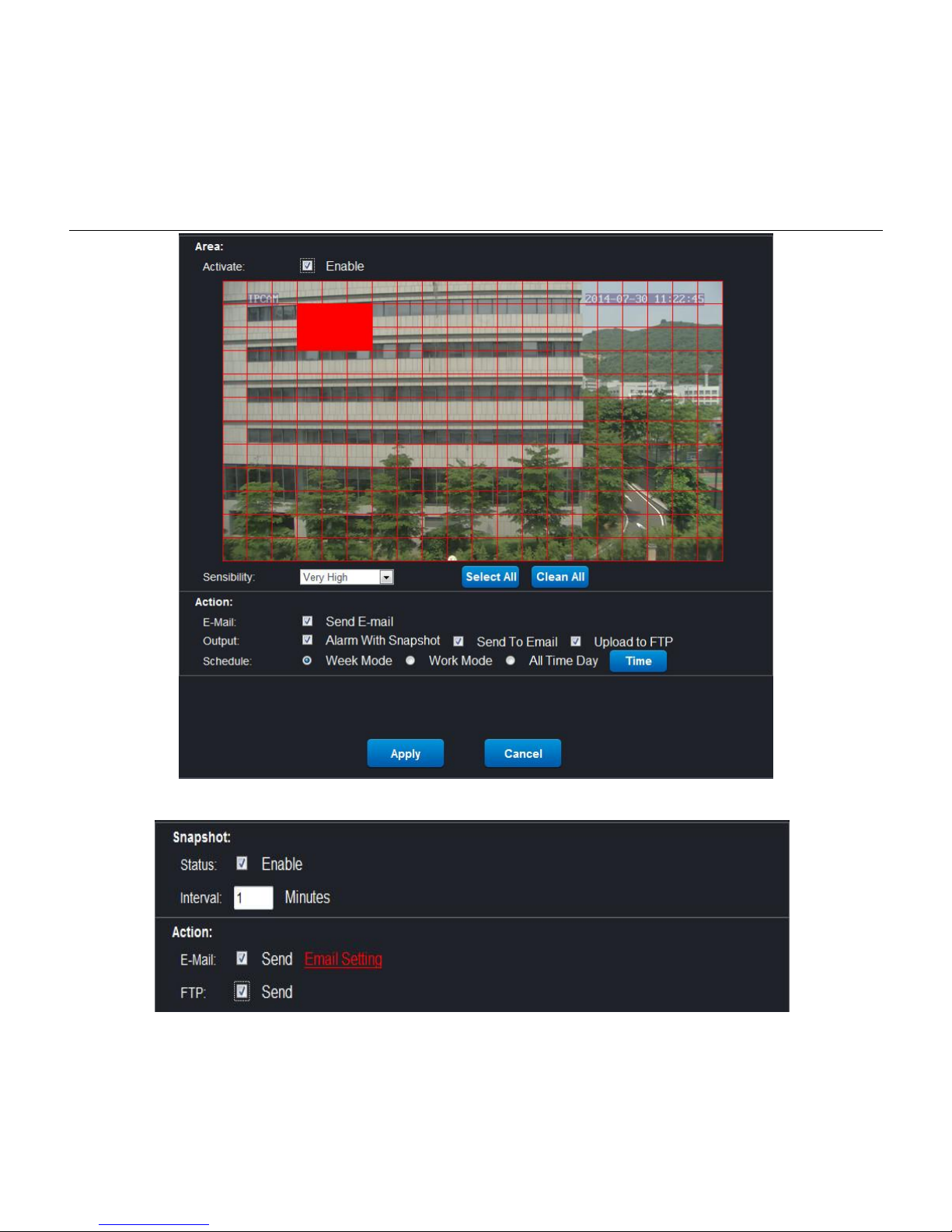

1) Motion Detect

If the user wants to monitor a area, when an exception occurs in the region, start alarm, select motion
detection. Motion detection settings interface as shown below, the corresponding region is enabled by
checking the option box bottom of the page. After setting, click Apply, motion detection settings.

ValueHD Corporation

60

1) Auto capture

ValueHD Corporation

61

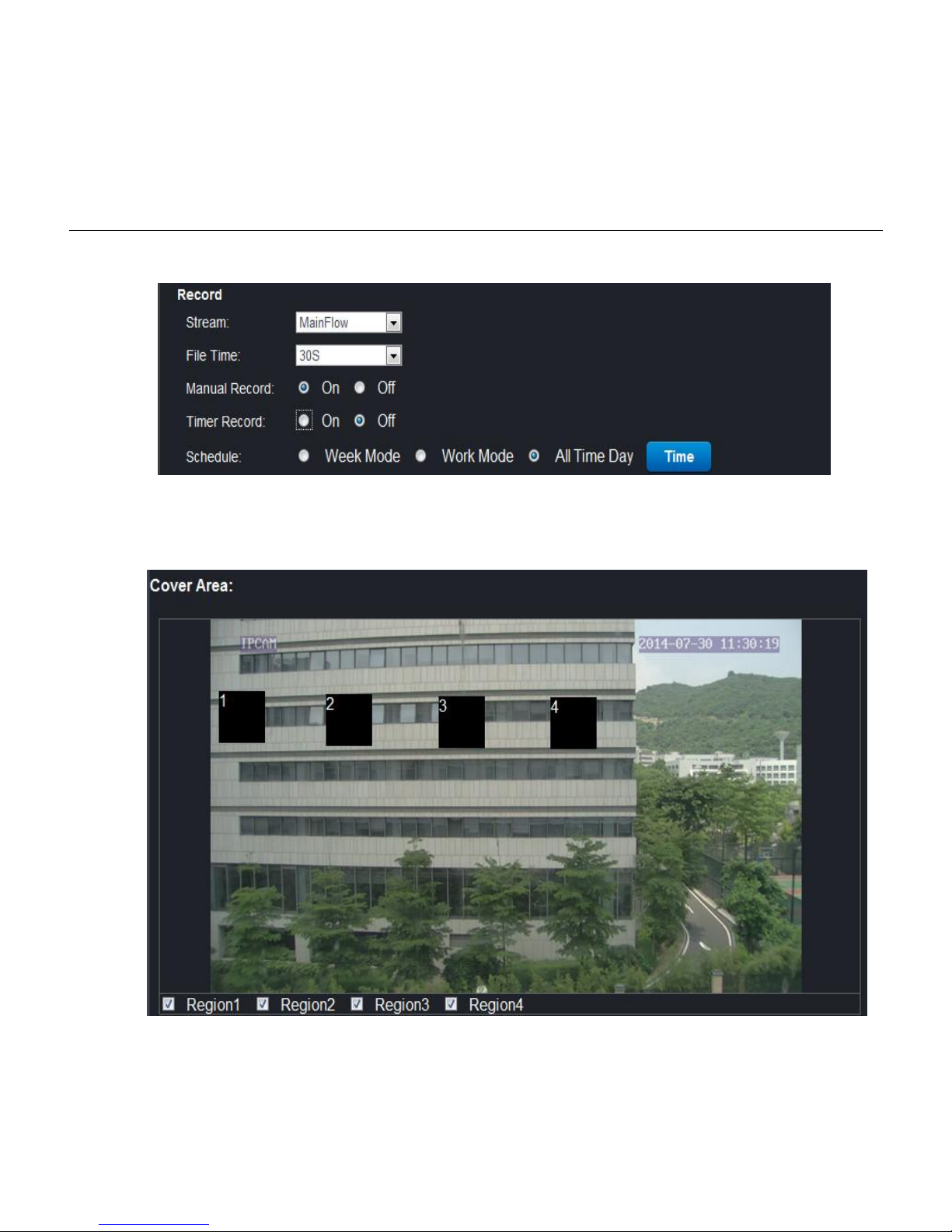

2) Record

3) Cover Area

Four regions optional, after clicking region options, move black box via the mouse to the region need to hide.

ValueHD Corporation

62

5 System settings

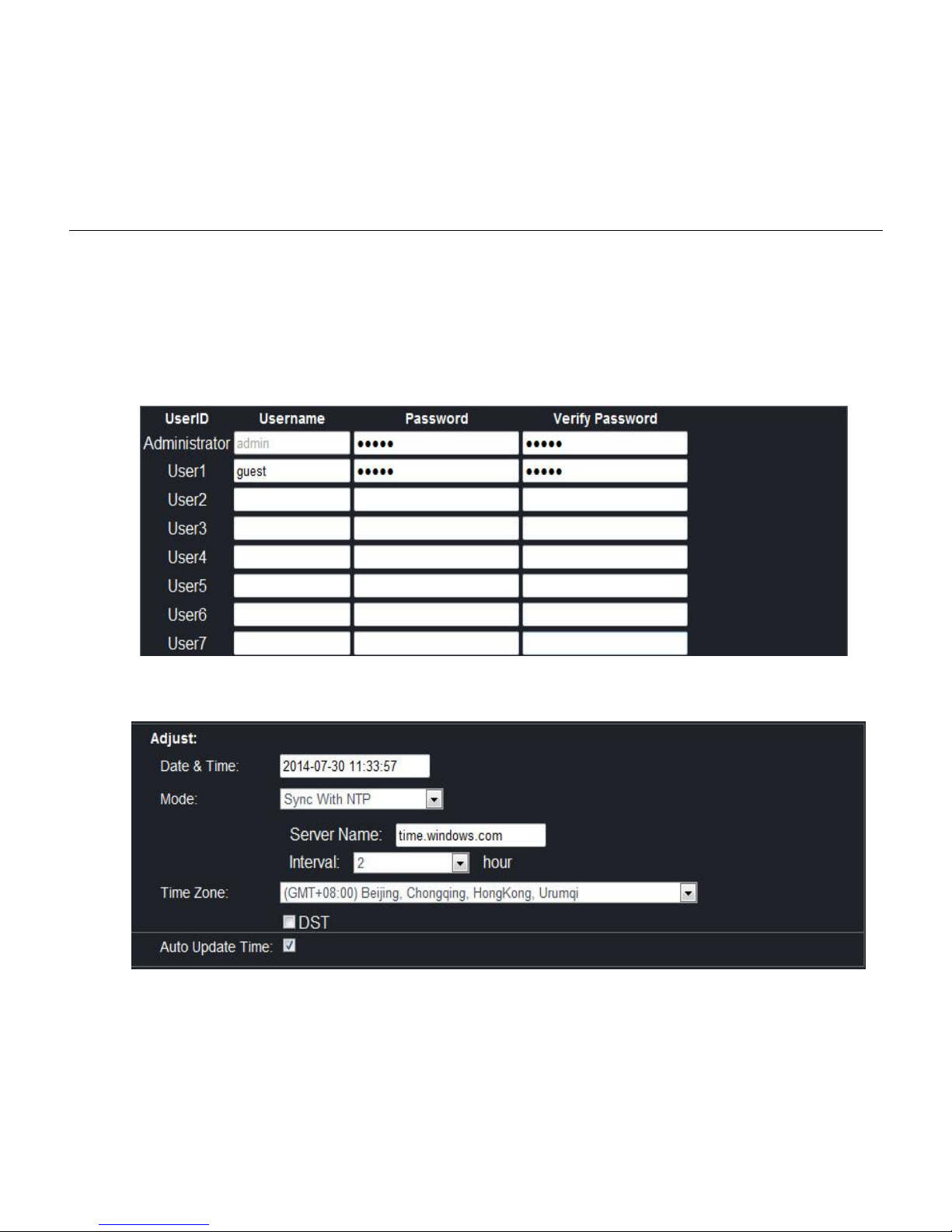

5.1 User

2 authorities: admin / guest, admin with the highest authority that can make any settings. guest can only

operate PTZ, browsing video, recording on PC and image capture, etc., without setting authority. The default
passwords are "admin", "guest". When first-time using, please modify password.

5.2 Time Setting

5.3 Initialize

ValueHD Corporation

63

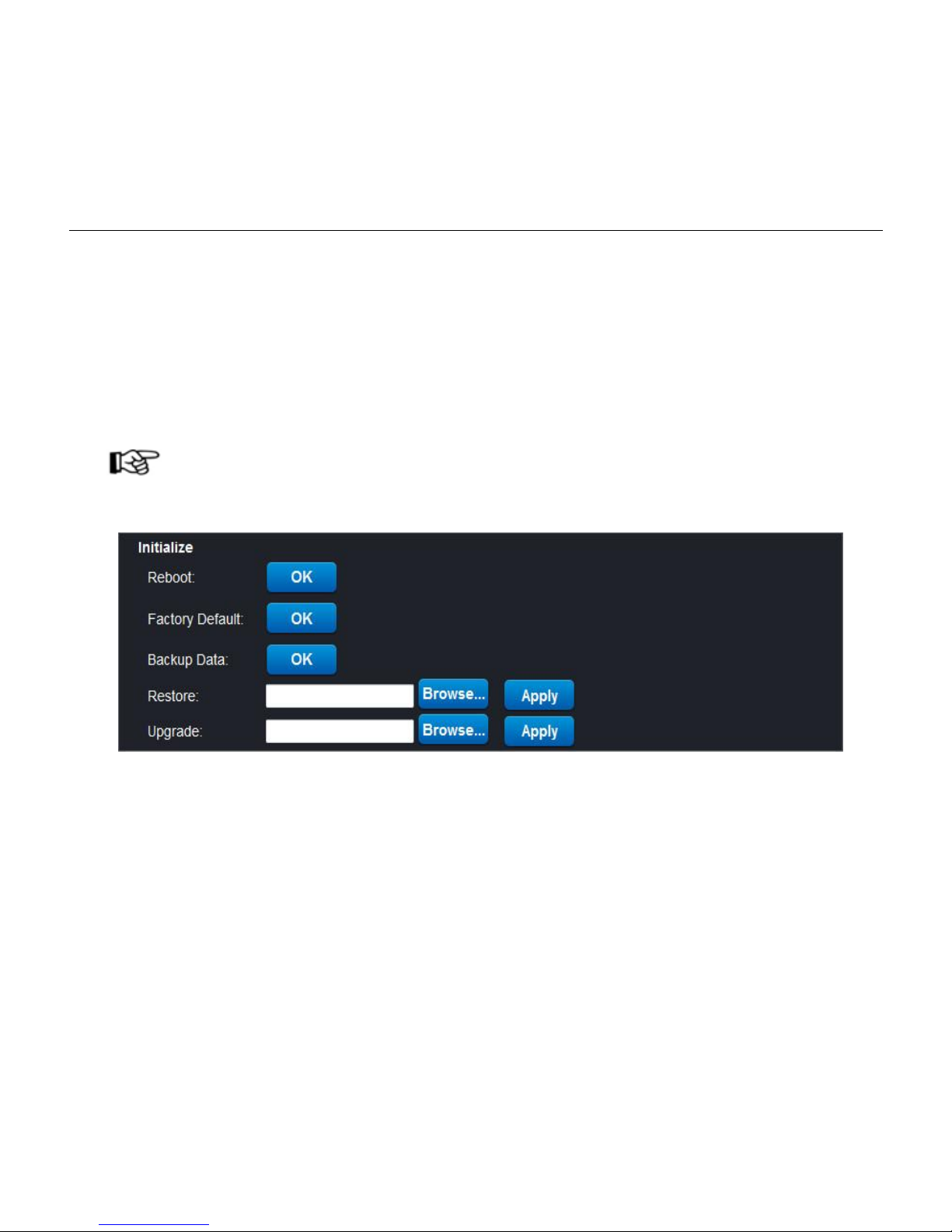

1) Reboot: click "OK" button, the device will reboot.

2) Factory Default: click "OK" button, the setting will be restored to the factory default settings, and

restart.

3) Backup data: click the "OK" button, the system will save all current settings.

4) Restore: "browse" for saving the settings file, click "Apply", you can restore all settings.

5) Upgrade: "browse" for updating the firmware file, click "Apply", the device can be updated through

the network, after the upgrading, the system restore to factory defaults.

Note！

Upgrading takes a long time, please wait patiently until the pop-up dialog box states the upgrading succeed.

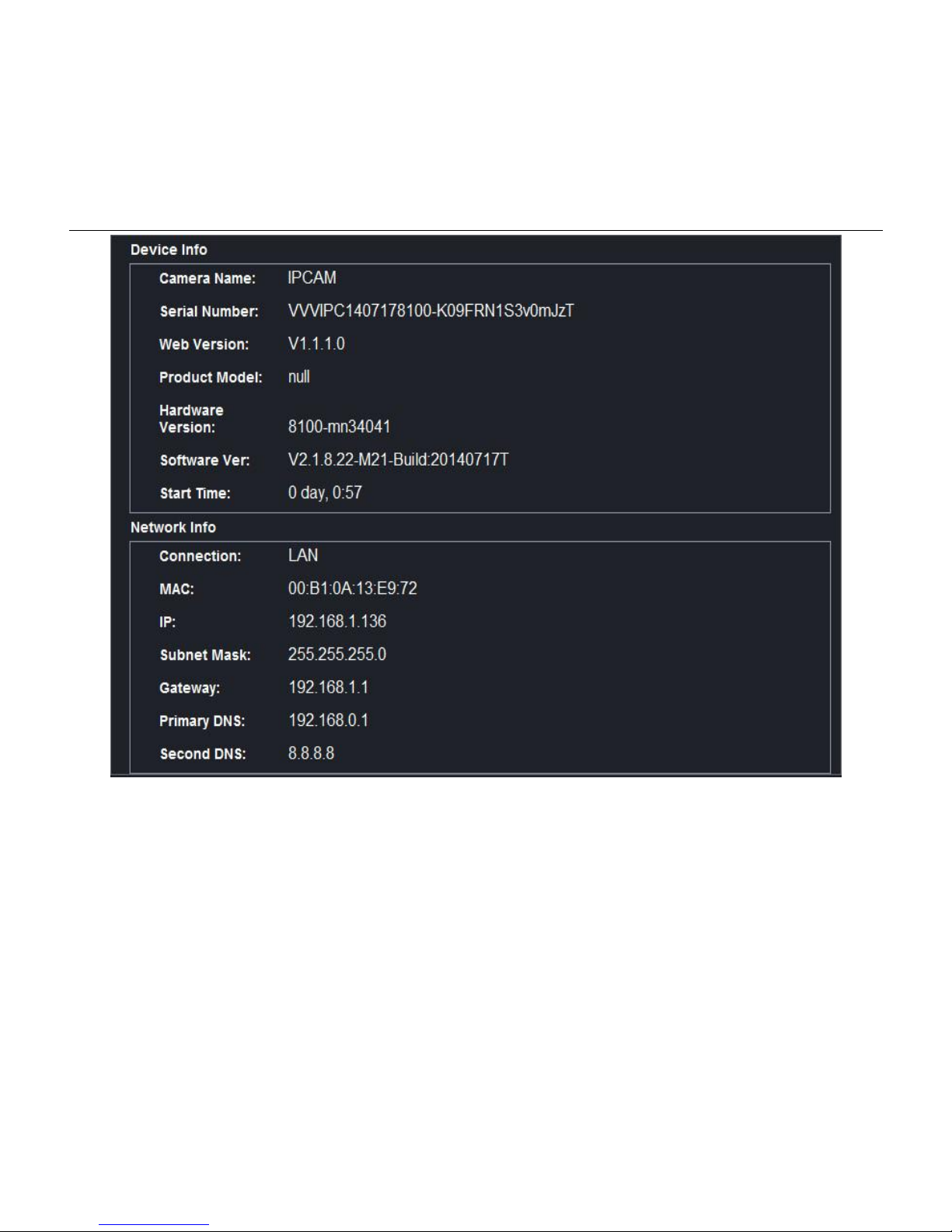

5.4 Device Info

Current device displayed as below:

ValueHD Corporation

64

5.5 Storage Device(Need TF card)

5.6 System Log (history)

ValueHD Corporation

65

Maintenance and Troubleshooting

Camera Maintains

 If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord

of AC adaptor to the outlet.

 Use soft cloth or tissue to clean the camera cover.
 Please use the soft dry cloth to clean the lens. If the camera is very dirty, clean it with diluted neuter

detergent. Do not use any type of solvents, which may damages the surface.

Unqualified Application

 No shooting extreme bright object for a long period of time, such as sunlight, light sources, etc.
 No operating in unstable lighting conditions, otherwise image will be flickering.
 No operating close to powerful electromagnetic radiation, such as TV or radio transmitters, etc.

Troubleshooting

 No image

1. Check whether the power cord is connected, voltage is OK, POWER lamp is light.

2. Check whether the camera can self-test after startup.

3. Check the BOTTOM switch and make sure the two switches are both set OFF.

4. Check video cable is connected correctly.

 Image dithering even at widest zoom position

1. Check whether camera is fixed correctly.

2. Make sure if there are something like vibration machine or other things nearby.

 IE browser not video image IE

When IPC first time accessed by Internet Explore (IE or other web browser),must install plug-in.

ValueHD Corporation

66

Installation: Visit IP Camera address, click [Download ], download dialog box will pop up, select [Run]
or [Save] to download. After downloading finished,the installation interface pops up, it will automatically install
the plug-in, when installation finished, the video image is displayed.

 Unable to access IP Camera by IE browser.

1. Access to the network with PC can test whether network works, in this way to get rid of cable failure,
network failure caused by PC virus until the PC can be Ping.

2. Disconnect IP Camera with network, IP Camera and PC are connected, according to the proper operations
to re-set the IP address.

3. Check the server's IP address and subnet mask and gateway address.

4. MAC addresses conflict.

5. Web port is occupied by other devices.

Sound

 No sound

1. Please check audio connection to host PC.

2. Please check IP Camera audio parameter setup,if intercepting function on.

Control

 IR remote controller cannot control the camera

1. Change the battery

2. Check the camera working mode.

 Serial communication cannot control the camera

1. Check the camera working mode.

2. Check control cable is connected correctly.

ValueHD Corporation

67

Copyright Notice

All contents of this manual, whose copyright belongs to ValueHD Corporation. Cannot be cloned, copied
or translated without the permission of the company. Product specifications and information which were referred
to in this document are for reference only, and the content will be updated at any time without prior notice.

ValueHD Corporation
2014/9
