Page 1

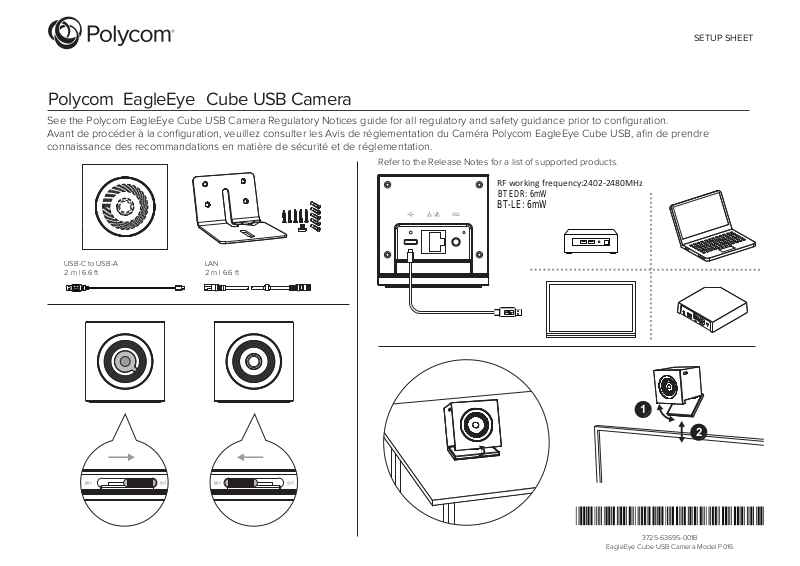

SETUP SHEET
Polycom EagleEye Cube USB Camera
See the Polycom EagleEye Cube USB Camera Regulatory Notices guide for all regulatory and safety guidance prior to configuration.
Avant de procéder à la configuration, veuillez consulter les Avis de réglementation du Caméra Polycom EagleEye Cube USB, afin de prendre
connaissance des recommandations en matière de sécurité et de réglementation.
Refer to the Release Notes for a list of supported products.
RF working frequency:2402-2480MHz
BT EDR: 6mW
BT-LE: 6mW
USB-C to USB-A
2 m | 6.6 ft
LAN
2 m | 6.6 ft
1
2
3725-63695-001B
EagleEye Cube USB Camera Model P016
Page 2
1
6 mm (4)
Depth = 40 mm
2
50 mm (2 in.)
10mm (.4 in.)
25mm (1 in.)
3
4
Screw size:4*40mm
65mm (2.6 in.)
VFOV
+37.5º
a
b
-37.5º
HFOV 111º
Product Documentation
Documentation du produit
Documentación del producto
Documentação do produto
Produktdokumentation
© 2019, Polycom, Inc. All rights reserved. POLYCOM® and the names and marks associated with Polycom's products are trademarks and/or service marks of Polycom, Inc.
and are registered and/or common law marks in the United States and various other countries. All other trademarks are property of their respective owners.
www.polycom.com/support
Support
substances that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product will contribute to
the efficient use of natural resources. For more information about where
you can take your waste equipment for recycling, please contact your
local city office, or your household waste collection service.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received,
including interference that may cause undesired operation.
Correct disposal of this product:this symbol indicates that
this product must not be disposed of with household waste,
according to the WEEE Directive (2012/19/EU) and your
national law. This product should be taken to a collection
center licensed for the recycling of waste electrical and
electronic equipment (EEE).The mishanding of this type of
waste could have a possible negative impact on the
environment and human health due to potentially hazardous
Operating: 0º - 45ºC (32º - 113ºF)
Storage: -40º - 70ºC (-40º - 160ºF)
Operating: 15% - 80%
Storage: 5% - 95% non-condensing
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of the device. Under Industry Canada
regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
Page 3
APPENDIX
Polycom EagleEye Cub USB Camera
Camera type 1 /2.5’’ CMOS, IMX274
H/V resolution 4K(3840*2160)
Output
Lens focal length f=2.2mm
Lens F# 2.8+0.1
Zoom 5x digital (2x lossless)
Focus Fixed
Horizontal field of view 111°
Vertical field of view 75°
Min illumination 50 lux
Exposure AGC
SNR 46 DB (to be tested)
Pan range N/A
Tilt range by mounting kit
I/O USB 3.0type C, Gigabit Ethernet
IR detectors N/A
Power consumption 900 mA @ 5V DC, PoE support
Dimensions
(W x H x D)
Built-in microphones 2
Video system compatibility Visual Pro
Room Size Small
Auto Group Framing YES
Power 5V DC@900mA
4K@30/25fps，1080P@30/25fps
79.75 x 81.08 x 80.5 mm
Page 4
For IC:
This device complies with RSS247 of Industry Canada. Cet appareil se conforme à
RSS247 de Canada d'Industrie. This device complies with Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device. appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
prejudiciable, et (2) ce dispositif doit accepter tout brouillage recu, y compris un
brouillage susceptible de provoquer un fonctionnement indesirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
The device should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
L'appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateu
et votre corps.
For FCC:
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
“The device must not be co-located or operating in conjunction with any other
antenna or transmitter.”
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement Caution: To maintain compliance with the
FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference received, including interference that may cause
undesired operation.
