Air 2 in 1 Combi Nailer SF5040E
OPERATING INSTRUCTIONS FOR FASTENER DRIVING TOOLS OPERATED BY COMPRESSED
AIR
AIR-POWERED 2 IN 1 COMBI NAILER
Model No.: SF5040E
Residual risks
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tool’s construction and design:
Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power
tool is being used over longer period of time or not adequately
managed and properly maintained.
Wear eye protection.
IMPORTANT:
Read all safety rules and operating Instructions carefully
before first use it. Keep this Manual for future reference.
TABLE OF CONTENTS:QUICK START GUIDE
TECHNICAL SPECIFIACTIONS
SAFETY GUIDELINES
KEY PARTS DIAGRAM
IMPORTANT INFORMATION
TYPES OF FASTENERS
OPERATING INSTRUCTIONS
MAINTENANCE
TROUBLESHOOTING
EXPLODED VIEW
PARTS LIST
2018
2
Air 2 in 1 Combi Nailer SF5040E
TECHNICAL SPECIFIACTIONS:
Magazine capacity(QTY.)
100pcs
Nailer
Drives18Ga Brad Nails 5/8”~2” and 18Ga Crown staples 5/8”~1-5/8”
Operating pressure:
60 to100 PSI(4 to 7 bar)
Maximum pressure:
120PSI (8.3bar)
Air consumption:
0.038CF/CYCLE@90PSI
Air inlet:
1/4”(6.35mm)
Dimensions:
55x245x250mm
Weight:
1.48kgs(3.26lb)
SCFM: Standard Cubic feet per minute (the volumetric flow rate of air corrected to standardized conditions of temperature
and pressure).
Environmental Responsibilities
Please recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an environmentally safe way.
Safety guidelines
This manual contains information that relates to protecting personal safety and preventing equipment problems.it is very
important to read this manual carefully and understand it thoroughly before using the product.the symbols listed below are
used to indicate this information.
DANGER!
Potential hazard that will result in serious injury or loss of life.
WARRNING!
Potential hazard that could result in serious injury or loss of life.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
Note-The word“note” is used to inform the reader of something he/she needs to know about the tool.
PERSONAL SAFETY
These precautions are intended for the personal safety of the user and others working with the user. please take time to
read and understand them.
DANGER!
Potential hazard that will result in serious injury or loss of life.
Keep children away from the work area. Do not allow children to handle power tools.
Keep air hose away from heat, oil, and sharp edges. Check air hose for wear before each use and ensure that all
connections are proper. Always ensure that the workpiece is firmly secured leaving both hands free to control the
tool.Always ensure that the tool has stopped before putting it down after use, in the interest of safety and to prevent
possible damage to the tool/user.
Keep proper footing at all times in order to ensure correct balance.
Do not use oxygen or any other combustible or bottled gas to power air-powered
tools. Failure to observe this warning can cause explosion and serious personal injury or death.
Use only the compressed air to power the air-powered tools. Use a minimum of 25’(7.6m) of hose to
connect the tools to the compressor. Failure to comply will result in serious injury or loss of life.
Risk of electric shock: Do not expose a compressor to rain. Store it indoors. Disconnect
the compressor from power source before servicing. Compressor must be grounded. Do not use grounding adaptors.
Risk of personal injury: Do not direct compressed air from the air hose toward the user or other personnel.
Risk of inhalation: Never directly inhale the air produced by the compressor.

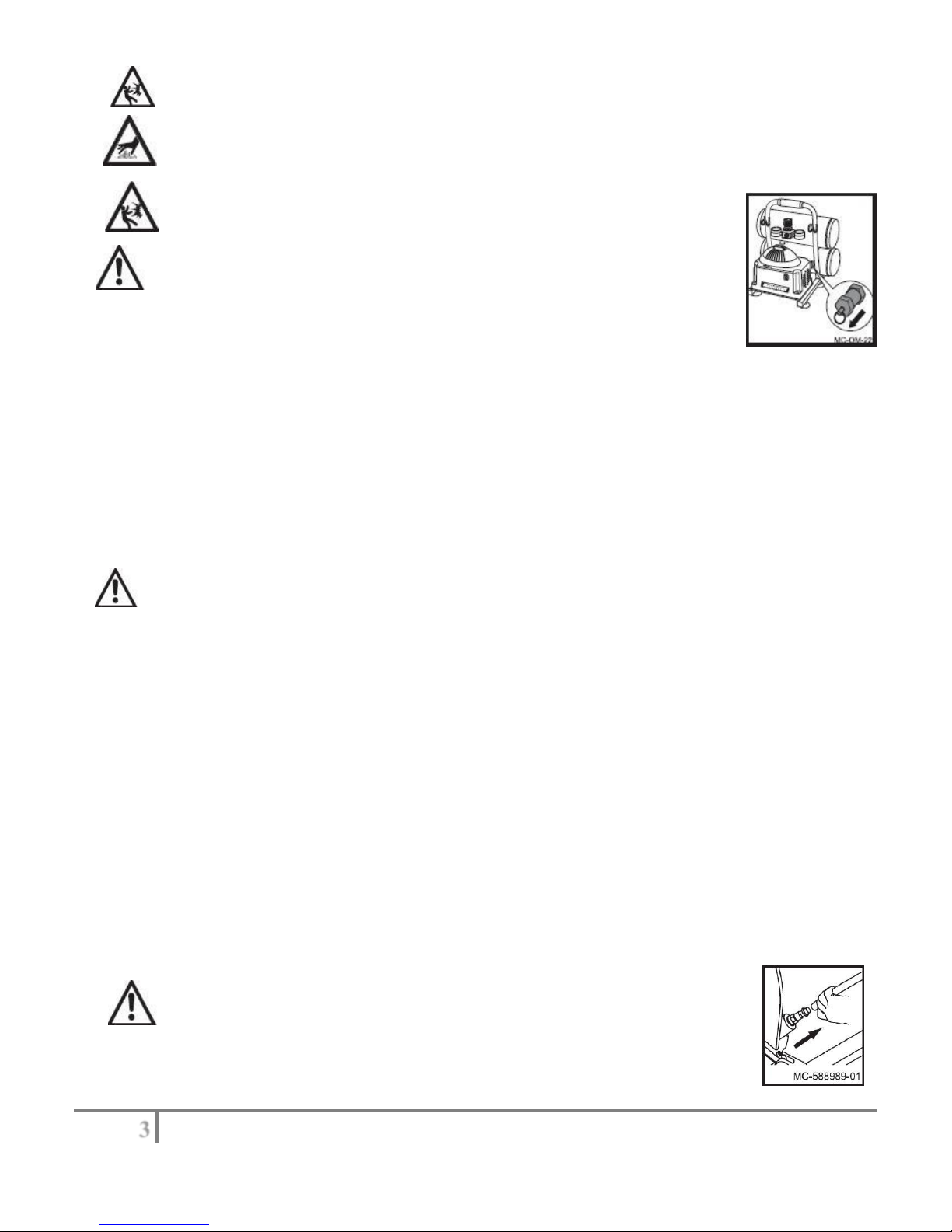

3
Air 2 in 1 Combi Nailer SF5040E
Risk of bursting: Do not adjust the pressure switch or safety valve for any reason. They have been preset at
the factory for this compressor’s maximum pressure. Tampering with the pressure switch or the safety valve
may cause personal injury or property damage.
Risk of burns: The pump and the manifold generate high temperatures. In order to avoid burns or other
injuries, do not touch the pump, the manifold or the transfer tube while the compressor is running. Allow the
parts to cool down before handling or servicing. Keep children away from the compressor at all times.
Risk of bursting: Make sure the regulator is adjusted so that the compressor outlet
pressure is set lower than the maximum operating pressure of the tool. Before starting
the compressor, pull the ring on the safety valve to make sure the valve moves freely.
Drain water from tank after each use. Do not weld or repair tank. Relieve all pressure in
the hose before removing or attaching accessories.
WARNING!
Potential hazard that could result in serious injury or loss of life.
Do not allow unskilled or untrained individuals to operate the air powered tools.
Do not use the air powered tools for any task other than that it is designed to perform.
Do not use the air tools unless you have been trained to do so. Only a qualified person should use the tool.
Locate the compressor in a well-ventilated area for cooling, and must be a minimum of 12”(31cm) away from the nearest wall.
Protect the air hose and the power cord from damage and puncture. Inspect them for weak or worn spots every week, and replace them if necessary .
Always wear hearing protection when using the air compressor. Failure to do so may result in hearing loss.
Do not carry the compressor while it is running.
Do not operate the compressor if it is not in a stable position.
Do not operate the compressor on a rooftop or in an elevated position that could allow the unit to fall or be tipped over.
Always replace a damaged gauge before operating the unit again.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
Always ensure that the tool has stopped before connecting to the air supply.
Do not wear watches, rings, bracelets, or loose clothing when using any air tool.
Do not overload the tool. Allow the tool to operate at its optimum speed for maximum efficiency.
Do not use a tool that is leaking air, with missing or damaged parts, or that requires repairs. Verify that all screws are
securely tightened.
For optimal safety and tool performance, inspect the tool daily in order to ensure free movement of the trigger, safety
mechanisms, and springs.
Always keep your air tools clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible failures.
Ensure the floor is not slippery and wear non-slip shoes. Floors should be kept clean can clear.
Always follow all workshop safety rules, regulations, and conditions when using the tools.
Carry the tool by the handle only. Do not carry the tools with a finger on the trigger. Do not carry the tool by the hose,
magazine or any other parts.
Do not use the tool near or below freezing temperatures, as doing so may cause tool failure.
Do not store the tool in a freezing environment to prevent ice formation on the operating valves of the tool, as doing so may cause tool failure.
Handling and storage of oil: Use with adequate ventilation. Avoid contact of oil with eyes, skin, and clothing. Avoid breathing spray or
mist. Store in a tightly closed container in a cool, dry, well-ventilated area free from incompatible substances.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
Disconnect tool from the air supply and turn off the compressor before performing any maintenance, or
changing accessories, when the tool is not in use, when it is being handed to another person, and when
it is left unattended. Failure to comply may result in moderate injury or damage to equipment.
4
Air 2 in 1 Combi Nailer SF5040E
Use safety goggles and ear protection:
Wear safety glasses with side shields when operating the tool/compressor and verify that others in the
work area are also wearing safety glasses.
Requirements and must provide protection from flying particles from the front and the sides.
Air powered tools are loud and the sound can cause hearing damage. Always wear ear protection to
prevent hearing damage and loss. Failure to comply may result in moderate injury.
NOTE: Recycle unwanted materials father than disposing of them as waste. Sort the tools, hoses, and package into
specific categories and take to the local recycling centre or dispose of them in an environmentally safe way.
KEY PARTS DIAGRAM
IMPORTANT INFORMATION
Compatible compressors
GUIDELINES FOR PROPER USE AND OPERATION
Be sure to use a proper air compressor with air powered tools.
General use
This nailer drives 18Ga Brad Nails 5/8”~2” and 18Ga Crown staples 5/8”~1-5/8”, If feature a die-cast aluminum housing and
a comfortable handle for optimal control and comfort, even during extended use. It is well balanced for stability, and
ergonomically designed with a longer handle for ease of operation. It also features a hardened driver blade for longer life,
and economical air consumption with low noise. This air powered nailer is specifically designed for professional work.
Air system
Always use clean, dry, regulated, compressed air at 4 to 7 bar (60 to 100psi).
Do not exceed the maximum or minimum pressures. Operating the tool at the wrong pressure(too low or too high) will
cause excessive noise or rapid wear of tool.
WARNING!
Potential hazard that could result in serious injury or loss of life.
Keep hands and other parts of the body away from the tools discharge and working areas when connecting the
air supply. Failure to comply could lead to serious injury or loss of life.
It is recommended that a filter-regulator-lubricator is used and located as close to the tool as possible.
No. Description No. Description
1 Magazine 4 Trigger
2 Gun Body 5 Air inlet plug
3 Cylinder Cap
3
4
5
1
2
5
Air 2 in 1 Combi Nailer SF5040E
If a filter-regulator-lubricator in not installed, place up to 6 drops of compressor oil into the inlet plug before each use.
If a filter-regulator-lubricator is installed, keep the air filter clean. A dirty filter will reduce the air pressure to the
tool, which will cause reduction in power, efficiency, and general performance.
For optimal performance, install a quick connector to the tool and a quick coupler on the hose, if applicable.
Verify that all of the connections in the air supply system are sealed in order to prevent air from leaking.
NO.
Description
NO.
Description
NO.
Description
1
VALU-AIR Air powered 2 in 1 nailer
4
Air Hose
7
Filter
2
Quick connector
5 Lubricator
8
Cut-off valve
3
Quick coupler
6 Regulator(0 to 8.3 Bar)
9
Air compressor
WARNING!
Potential hazard that could result in serious injury or loss of life.
Do not use the tool if it is not in proper working order.
Do not use oxygen,carbon dioxide or any other combustible, or bottled gas to power this tool.
Do not use this tool in the presence of any flammable liquids or gases.
Keep hands and other parts of the body away from the firing head during use.
Do not point the tool towards the operator or other people.
Never attempt to clear a jammed fastener while the air hose is connected.
Do not drive a fastener on top of an existing fastener. Failure to comply could lead to serious injury or loss of life.
TYPES OF FASTENERS
Please see the TECHNICAL SPECIFIACTIONS.
WARNING!
Potential hazard that could result in serious injury or loss of life.
The use of any other types of fasteners will cause the tool to jam. Failure to comply could lead to serious injury or loss of life.
OPERATING INSTRUCTIONS
4.1 Preparing a tool for first time operation
Please Read and observe these Operating Instruction before using the tool. Basic safety measures should always be strictly followed
to protect against damage to the equipment and personal injury to the user or other people working in the vicinity of operation.
4.2 Connection to the compressed air system
Ensure that the pressure supplied by the compressed air system does not exceed the maximum allowable pressure of
the fastener driving tool. Set the air pressure initially to the lower value of the recommended allowable pressure (see
TECHNICAL DATA). Empty the magazine to prevent a fastener from being ejected at the next stage of work in the event
that internal parts of the fastener driving tool are not in the starting position following maintenance and repair work or
transportation. Connect the fastener driving tool to the compressed air supply using suitable pressure hose equipped
with quick-action connectors. Check for proper functioning by applying the muzzle of the fastener driving tool to a piece
of wood or wooden material and actuating the trigger once or twice.
4.3Filling the magazine
6
Air 2 in 1 Combi Nailer SF5040E
Only those fasteners specified under TECHNICAL DATA (see 1.1) may be used
When filling the magazine, hold the tool so that the muzzle is not pointing towards the operator or any other person or animals.
4.4 Handling the tool
Pay attention to 2-Special Reference-of these operating instructions.
Having checked that the fastener driving tool is functioning correctly, apply the tool to a work piece and actuate the trigger.
Check whether the fastener has been driven into the work piece in accordance with the requirements.
- if the fastener is protruding, increase the air pressure in increments of 0.6 bar, checking the result after each new adjustment;
- if the fastener is driven into an excessive depth reduce the air pressure I increments of 0.6 bar until the result is satisfactory.
You should endeavor in any event to work with the lowest possible air pressure. This will give you three significant advantages;
1.energy will be saved, 2.less noise will be produced, 3.a reduction in fastener driving tool wear will be achieved.
Avoid triggering the fastener driving tool if the magazine is empty.
Any defective or improperly functioning fastener driving tool must immediately be disconnected from the compressed air
supply and passed to a specialist for inspection.
In the event of longer breaks in work or at the end of the working shift, disconnect the tool from the compressed air
supply and it is recommended to empty the magazine.
The compressed air connectors of the fastener driving tool and the hoses should be protected against contamination, the
ingress of coarse dust chips, sand etc, will result in leaks and damage to the fastener driving tool and the couplings.
DANGER! Potential hazard that could result in serious injury or loss of life
Disconnect the tool from the compressed air source before loading fasteners.
Do not point the tool towards the operator or other people while changing fasteners.
Do not hold the tool with the trigger depressed while changing the fasteners. Failure to comply will lead to serious
injury or loss of life.
WARNING! Potential hazard that could result in serious injury or loss of life.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
Operate the tool with the utmost care when connected with the air compressor.
Failure to comply may result in moderate injury or damage to equipment.
7
Air 2 in 1 Combi Nailer SF5040E
5. Maintenance
Disconnect the tool from the compressor before adjusting, clearing jams, servicing &maintenance, relocating and during non operation.
Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool oil into the air inlet before
each work day or after 2 hours of continuous use depending in the characteristic of workpiece or type of fasteners.
Air-operated tools must be inspected periodically, and worn or broken parts must be replaced to keep the tool operating safely and
efficiently. Check and change all worn or damaged O-ring, Seals, etc. Tighten all the screws and caps to avoid personal injury. This
should be done by an expert. Make regular inspection for free movement of trigger, Spring and safety mechanism to assure safe
system is complete and functional: no loose and missing parts, no building or stocking parts. Keep magazine and nose of tool clean
and free of any dirt lint or abrasive particles. When temperatures are below freezing, tools should be kept warm by any convenient,
safe method.
6. Troubleshooting (See Table 1)
The following chart lists common operating system issues and solutions.please read it carefully and follow all instructions closely.
DANGER! Potential hazard that could result in serious injury or loss of life.
If any of the following symptoms appear while the tool is in use,turn it off and disconnect it from the air supply
immediately. Failure to comply will lead to serious injury or loss of life.
Disconnect the tool from the air supply before making any adjustments.
Repairs must be performed by a qualified service technician only.
SYMPTOM
PROBLEM
SOLUTIONS
Air leak near top of
tool or in trigger area
1.O-ring in trigger valve are damage.
2.Trigger valve head are damage.
3.Trigger valve stem ,seal or O-ring are damaged.
1.Check and replace O-ring.
2.Check and replace.
3.Check and replace trigger valve stem, seal or O-ring
Air leak near bottom
of tool.
1. Loose screws.
2. Worn or damaged O-rings or bumper.
1. Tighten screws.
2. Check and replace O-rings or bumper.
Air leak between body
and cylinder cap.
1. Loose screws.
2. Worn or damaged O-rings or seals.
1. Tighten screw.
2. Check and replace O-rings or bumper.
Blade driving fastener
too deep.
1. Worn bumper.
2. Air pressure is too high.
1. Replace bumper.
2. Adjust the air pressure.
Tool does not operate
well: can not drive
fastener or operate
sluggishly.
1. Inadequate air supply.
2. Inadequate lubrication.
3. Worn or damaged O-rings or seals.
4. Exhaust port in cylinder head is blocked.
1. Verify adequate air supply.
2. Place 2 or 6 drops of oil into air inlet.
3. Check and replace O-rings or seal.
4. Replace damaged internal parts.
Tool skips fasteners.
1. Worn bumper or damaged spring.
2. Dirt in front plate.
3. Dirt or damage prevents fasteners from moving
freely in magazine.
4. Worn or dry O-ring on piston or lack of lubrication.
5. Cylinder cover seal leaking.
1. Repalce bumper or pusher spring.
2. Clean drive channel on front plate.
3. Magazine needs to be cleaned.
4. O-ring need to be replaced. And lubricate.
5. Replace Sealing washer.
Tool jams.
1. Incorrect or damaged fasteners.
2. Damaged or worn driver guide.
3. Magazine or nose screw loose.
4. Magazine is dirty.
1. Change and use correct fastener.
2. Check and replace the driver.
3. Tighten the magazine.
4. Clean the magazine.
Table 1
SF5040E 2 IN 1 Combi Nailer Explosive View and Parts list
Issue date:
Version no.:
No.
Description
Qty.
No.
Description
Qty.
No.
Description
Qty.
No.
Description
Qty.
Bolt
Deflector Spring
Air Deflector
Bolt M5×20
Spring Washer
Cylinder Cover
O-ring 13.7×2.4
Flat Washer
Compressed Spring
Switch Valve
Sealing Washer
O-ring 24.8×3.5
O-ring 31.2×2.5
Collar
O-ring 42.6×2.35
O-ring 30×1.8
Sealing Washer
Cylinder
O-ring 29.7×3.55
Main piston
Bumper
Gun Body
Rubber Washer
O-ring 1.7x2
Pin
Safety stand
Spring
Snap Retainer
Tip stand
Adj.Nut
Nut M4
Pusher Spring
Steel Ball
Safety Stand
Rectangle Seal
Trigger Valve Guide
Compressed Spring
Trigger Valve Stem
Pin 2.5×1.5
Trigger Valve Seat
O-ring 11.2×2
Compressed Spring
Pin 2.5×16
Safety Space
Trigger
Bolt M4×10
Spring Washer 4
Safety Cover A
Driver Guide Cover
Spacer
Driver Guide
Bolt M4×14
Movable Magazine
Pin 1.5×10
Inlay slice
Fixed Magazine
Indicate Label
Sticker Plate
Slice
Core Pin
Fixed Lever
Compressed Spring
Pusher Pipe
Pusher
Compressed Spring
Washer
Fixed Seat
Bolt M4×38
Pin
Bolt M4×6
Bolt M4×6
Support Seat
Washer 4
Bolt M4×20
Rubber Handle Case
O-ring 36.3×3.55
End Cap
Air Inlet Plug
Air Plug Cap
O-ring 2.4x1.6
Hexagon socket button head screws M4x14
Note: if you need spare parts of this model, pls feel free to contact us or the distributor where you bought this tool. Tks!
Loading...
