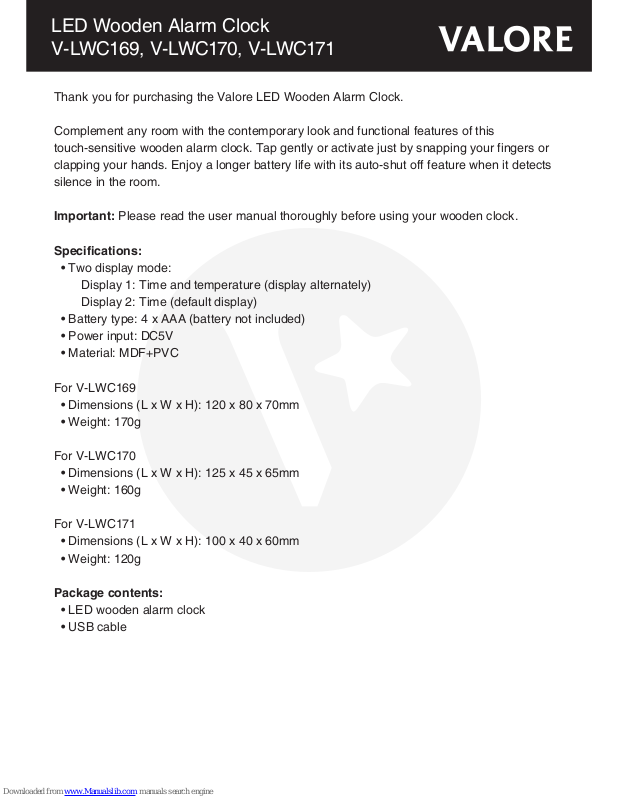

LED Wooden Alarm Clock
V-LWC169, V-LWC170, V-LWC171
Thank you for purchasing the Valore LED Wooden Alarm Clock.
Complement any room with the contemporary look and functional features of this
touch-sensitive wooden alarm clock. Tap gently or activate just by snapping your fingers or
clapping your hands. Enjoy a longer battery life with its auto-shut off feature when it detects
silence in the room.
Important: Please read the user manual thoroughly before using your wooden clock.
Specifications:
• Two display mode:
Display 1: Time and temperature (display alternately)
Display 2: Time (default display)
• Battery type: 4 x AAA (battery not included)
• Power input: DC5V
• Material: MDF+PVC
For V-LWC169
• Dimensions (L x W x H): 120 x 80 x 70mm
• Weight: 170g
For V-LWC170
• Dimensions (L x W x H): 125 x 45 x 65mm
• Weight: 160g
For V-LWC171
• Dimensions (L x W x H): 100 x 40 x 60mm
• Weight: 120g
Package contents:
• LED wooden alarm clock
• USB cable
⑤ Power input
⑥ Reset button
⑦ Battery compartment
① Digital display
② Set button
③ Select ‘Up’ button
④ Select ‘Down’ button
AAA
AAA
AAA
AAA
08 68
08 68
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
08 68
UNDERSTANDING THE PRODUCT
V-LWC171 Wooden Alarm Clock
V-LWC170 Wooden Alarm Clock
V-LWC169 Wooden Alarm Clock
①
⑦
②
⑤ ⑥
⑤ ⑥
⑤
⑥
③ ④
② ③ ④
② ③ ④
⑦
⑦
①
①
START USING THE ALARM CLOCK
1) Setting up the alarm clock
Press and hold the ‘Set’ button for about 3 seconds to enter into setting mode.
The settings may be set in the following sequence:
Year > Month > Date > Hour > Minute > 12H/24H > AL(Alarm) > Alarm 1 > Alarm 2 > Alarm
3 > Exit setting
a) Year setting:
The ‘Year’ section will flash
Press the ‘Up’ / ‘Down’ button to select the year.
Press the ‘Set’ button to confirm and move on to set ‘Month/Date’.
b) Month/Date setting:
The ‘Month/Date’ section will flash
Press the ‘Up’ / ‘Down’ button to select the month and press the ‘Set’ button to set the date.
Press the ‘Set’ button to confirm and move on to set ‘Hour/Minute’.
402 1
Year (2000 - 2099)Year (2000 - 2099)
502 1
Up
120
Month (1 - 12)
1
11 0
Month (1 - 12)
11 0
Date (01 - 31)
21 0
Date (01 - 31)
Set
Up
Up
