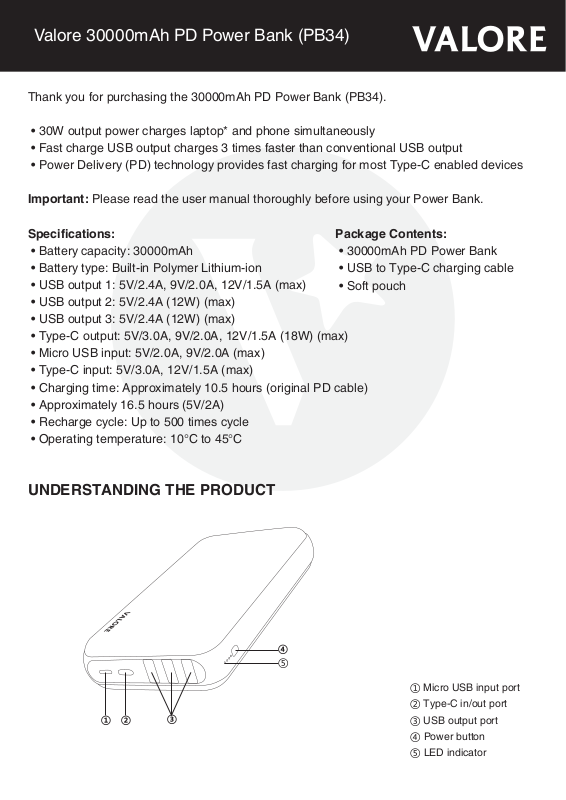

Valore PB34 User Manual

Valore 30000mAh PD Power Bank (PB34)

Thank you for purchasing the 30000mAh PD Power Bank (PB34).

• 30W output power charges laptop* and phone simultaneously

• Fast charge USB output charges 3 times faster than conventional USB output

• Power Delivery (PD) technology provides fast charging for most Type-C enabled devices

Important: Please read the user manual thoroughly before using your Power Bank.

Specifications: Package Contents:

• Battery capacity: 30000mAh

• Battery type: Built-in Polymer Lithium-ion

• USB output 1: 5V/2.4A, 9V/2.0A, 12V/1.5A (max)

• 30000mAh PD Power Bank

• USB to Type-C charging cable

• Soft pouch

• USB output 2: 5V/2.4A (12W) (max)

• USB output 3: 5V/2.4A (12W) (max)

• Type-C output: 5V/3.0A, 9V/2.0A, 12V/1.5A (18W) (max)

• Micro USB input: 5V/2.0A, 9V/2.0A (max)

• Type-C input: 5V/3.0A, 12V/1.5A (max)

• Charging time: Approximately 10.5 hours (original PD cable)

• Approximately 16.5 hours (5V/2A)

• Recharge cycle: Up to 500 times cycle

• Operating temperature: 10°C to 45°C

UNDERSTANDING THE PRODUCT

① ②

③

④

⑤

① Micro USB input port

② Type-C in/out port

③ USB output port

④ Power button

⑤ LED indicator

START USING THE 30000MAH POWER BANK

1) Charging the power bank

Connect your power bank to the USB adaptor using the charging cable provided.
When the LED indicator is all lit, it indicates that the battery is fully charged.
Press the power button once to display battery percentage.

Note: Fully charge the power bank for at least 14-16 hours before first use. This is to
maximise the battery performance and prolonging the life of lithium ion batteries.
Recharge your power bank once every three months when not in use or seldom used.

2) Charging of devices

Connect your power bank to your mobile device’s charging port using a 8-pin, Micro USB,
Type-C cable through the USB or Type-C in/out ports.
