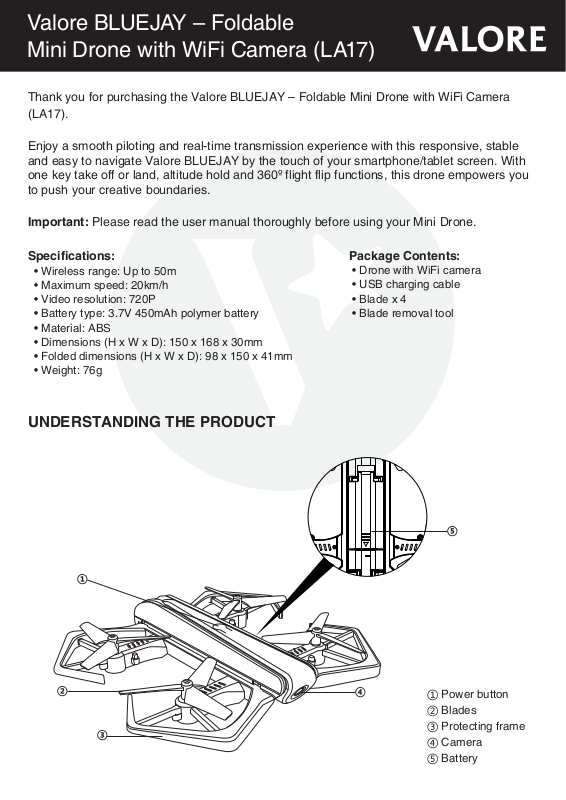

Valore BLUEJAY – Foldable
Mini Drone with WiFi Camera (LA17)
Thank you for purchasing the Valore BLUEJAY – Foldable Mini Drone with WiFi Camera
(LA17).
Enjoy a smooth piloting and real-time transmission experience with this responsive, stable
and easy to navigate Valore BLUEJAY by the touch of your smartphone/tablet screen. With
one key take off or land, altitude hold and 360º flight flip functions, this drone empowers you
to push your creative boundaries.
Important: Please read the user manual thoroughly before using your Mini Drone.
Specifications: Package Contents:
• Wireless range: Up to 50m
• Maximum speed: 20km/h
• Video resolution: 720P
• Battery type: 3.7V 450mAh polymer battery
• Material: ABS
• Dimensions (H x W x D): 150 x 168 x 30mm
• Folded dimensions (H x W x D): 98 x 150 x 41mm
• Weight: 76g
• Drone with WiFi camera
• USB charging cable
• Blade x 4
• Blade removal tool
UNDERSTANDING THE PRODUCT
①
⑤
②
③
④
① Power button
② Blades
③ Protecting frame
④ Camera
⑤ Battery
START USING FOLDABLE MINI DRONE WITH WIFI CAMERA
1) Charging battery
Slide open the battery cover and detach the battery from the drone. Charge only using the
USB charger provided. When battery is fully charged, the red indicator on the USB charger
will go off.
2) Software download and connection
Scan the QR Code below as per your Smartphone version to download the right software for
the application store or search ‘VS FPV’ on your application store.
Step 1: Turn on the drone by pressing the power button. The indicator will begin to flash
rapidly. Carefully place drone on a flat surface.
Step 2: Turn on your device’s WiFi and connet to “LA17”. After connection is
successful, launch the ‘VS FPV’ application and select ‘connect’ to enter into control
interface.
3) Application controls
