HORIZON

Model 534XAN (Natural Gas)

Model 534XAP (Propane)

Direct Vent Gas Fireplace Heater

Installation & Operating Instructions

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

Please read this manual BEFORE installing and operating this appliance.

WARNING: If the information in these

instructions is not followed exactly, a  re

or explosion may result causing property damage, personal injury or loss of life.

Do not store or use gasoline or other

 ammable vapors and liquids in the vicinity

of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light the appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from

a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the  re department.

Installation and service must be performed

by a quali ed installer, service agency or the

gas supplier.

This appliance may be installed in an

after-market permanently located,

manufactured (mobile) home where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with

other gases, unless a certi ed kit is used.

This appliance is a domestic room-heating appliance. It must not be used for any other purposes such as drying clothes, etc.

This appliance is suitable for installation in a bedroom or bed sitting room.

Massachusetts: The piping and  nal gas connection must be performed by a

licensed plumber or gas  tter in the State of

Massachusetts. Also, see Carbon Monoxide

Detector requirements under “Safety and

Warning Information” on page 5.

Manufactured by

MILES INDUSTRIES LTD.

British Columbia, Canada

www.valor replaces.com

Thank You ...

For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical appliance that must be installed by a qualied dealer. Each Valor replace is fully tested during the production process for your safety and comfort.

Your unit has been professionally installed by:

Dealer Name _______________________________________

Phone Number ______________________________________

Should you encounter an operational problem, call your dealer immediately.

Do not try to repair the unit as you may cause an injury or damage the replace.

The information contained in this installation manual is believed to be correct at

the time of printing. Miles Industries Ltd. reserves the right to change or modify any information or specications without notice. Miles Industries Ltd. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility for any consequential damage(s).

We recommend that our gas hearth products be installed and serviced by professionals

who are certied in the United

States by NFI (National Fireplace Institute®).

190 – 2255 Dollarton Highway, North Vancouver B.C., CANADA V7H 3B1

WARNING

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

Designed and Manufactured by / for

Miles Industries Ltd.

Tel. (604) 984-3496 Fax (604) 984-0246

www.valorreplaces.com

Table of Contents

Safety and Warning Information ..............................................................4

Options .......................................................................................................7

Dimensions ................................................................................................8

Specications ............................................................................................9

Location ....................................................................................................10

Recessed Insert Applications ................................................................17

Horizontal Termination Locations ..........................................................18

Supply Gas ...............................................................................................19

Pack Contents..........................................................................................19

Appliance Preparation ............................................................................21

Installations with Horizontal Termination—Installing to Wall .............26

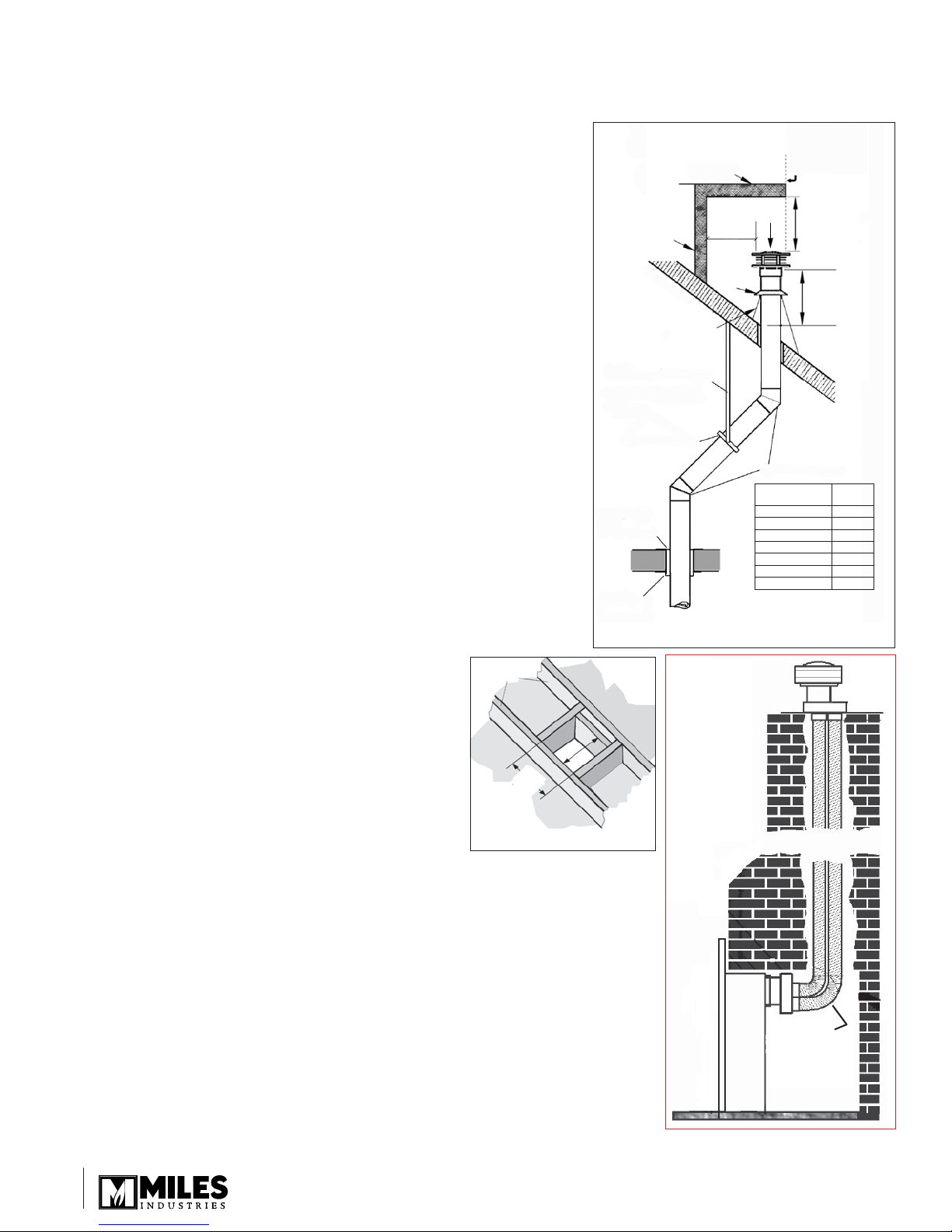

Installations with Vertical Termination—Through the Roof ................28

Remote Control Installation ....................................................................29

Gas Supply Installation ...........................................................................30

Aeration Setting Check ...........................................................................30

Ceramic Fuel Bed Installation ................................................................31

Window Retting & Checking ................................................................32

Operation Checks ....................................................................................32

Front Installation .....................................................................................33

Owner’s Information ................................................................................34

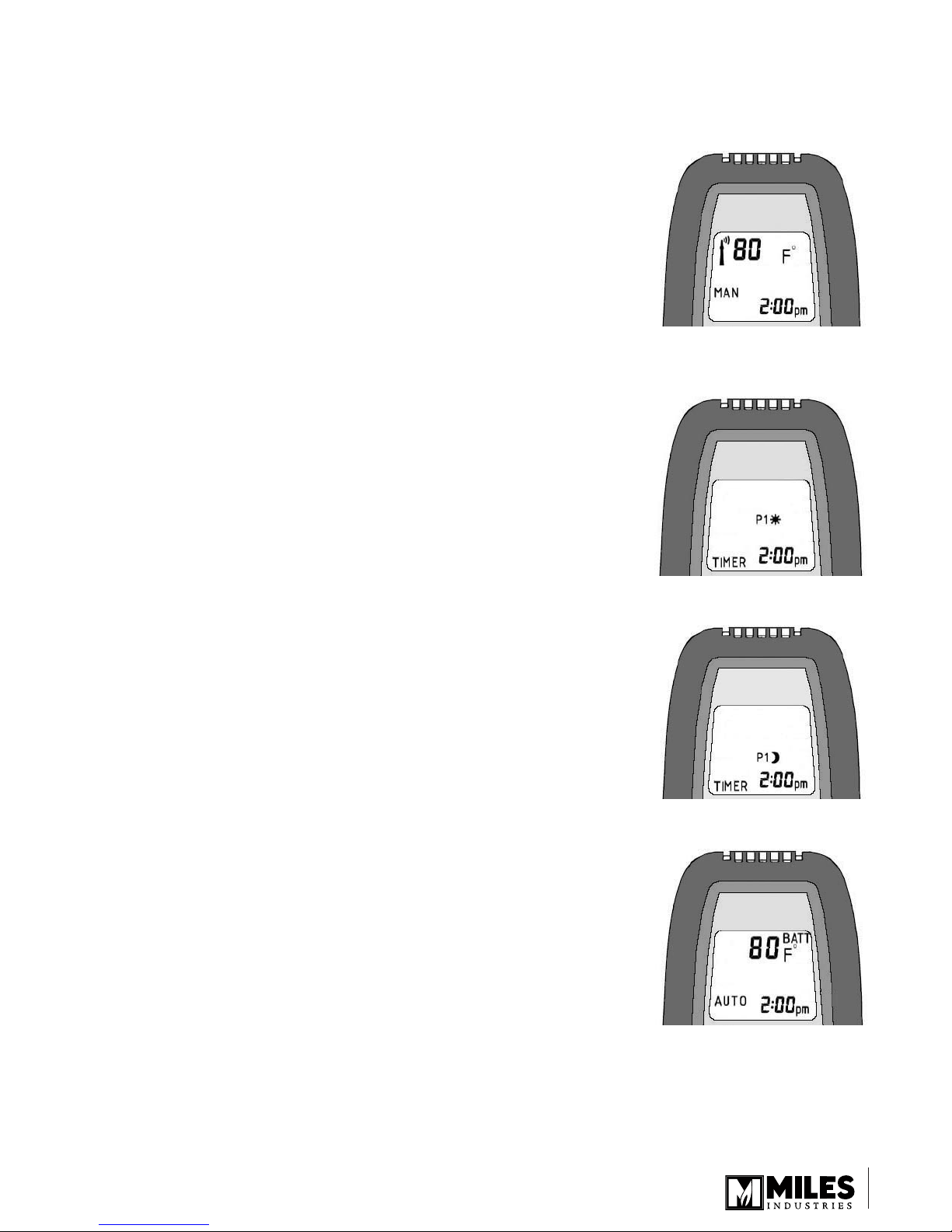

Remote Control Operation ......................................................................36

Lighting Instructions ...............................................................................38

Approved Venting Components .............................................................39

Warranty ...................................................................................................41

Safety and Warning Information

READ and UNDERSTAND all instructions carefully before starting the installation. FAILURE TO FOLLOW these

installation instructions may result in possible re hazard

and will void the warranty.

Prior to the rst ring of the replace, READ the Owner’s Information section of this manual.

DO NOT USE this appliance if any part has been under

water. Immediately, CALL a qualied service technician to inspect the unit and to replace any part of the control

system and any gas control that has been under water.

THIS UNIT IS NOT FOR USE WITH SOLID FUEL.

Installation and repair should be PERFORMED by a qualied service person. The appliance and venting

system should be INSPECTED before initial use and at

least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding, etc. It is IMPERATIVE that the unit’s control compartment, burner, and circulating air passageways BE KEPT CLEAN to provide for adequate

combustion and ventilation air.

Always KEEP the appliance clear and free from

combustible materials, gasoline, and other ammable vapors and liquids.

NEVER OBSTRUCT the ow of combustion and ventilation air. Keep the front of the appliance CLEAR of all obstacles and materials for servicing and proper operation.

Due to the high temperature, the appliance should be LOCATED out of trafc areas and away from furniture and draperies. Clothing or ammable material SHOULD NOT BE PLACED on or near the appliance.

Children and adults should be ALERTED to the hazards

of high surface temperature and should STAY AWAY to avoid burns or clothing ignition. Young children should be

CAREFULLY SUPERVISED when they are in the same

room as the appliance.

This gas replace and vent assembly MUST be vented

directly to the outside and MUST NEVER be attached to a

chimney serving a separate solid fuel burning appliance. Each gas appliance MUST USE a separate vent system.

Common vent systems are PROHIBITED.

INSPECT the external vent cap on a regular basis to

make sure that no debris, plants, trees, shrubs are interfering with the air ow.

The glass door assembly MUST be in place and sealed before the unit can be placed into safe operation.

DO NOT OPERATE this appliance with the glass door removed, cracked, or broken. Replacement of the glass door should be performed by a licensed or qualied service person. DO NOT strike or slam the glass door.

The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied by the replace manufacturer.

NO SUBSTITUTE material may be used.

DO NOT USE abrasive cleaners on the glass door

assembly. DO NOT ATTEMPT to clean the glass door when it is hot.

TURN OFF the gas before servicing this appliance. It is recommended that a qualied service technician perform an appliance check-up at the beginning of each heating

season.

Any safety screen or guard removed for servicing MUST

BE REPLACED before operating this appliance.

DO NOT place furniture or any other combustible

household objects within 36” of the replace front.

BE CAREFUL not to put any decorating objects sensitive to heat too close near or above the replace as it gets very hot when operating.

DO NOT use this heater as a temporary source of heat

during construction.

This unit MUST be used with a vent system as described in this installation manual. NO OTHER vent system or

components MAY BE USED.

Operating Your Fireplace for the First Time. When operating your new replace for the rst time, some vapors may be

released due to the burning of curing compounds used in the manufacture of the appliance. They may cause a slight odor and could cause the ames to be the full height of the rebox, or even slightly higher, for the rst few hours of operation. It is also possible that these vapors could set off any smoke detection alarms in the immediate vicinity. These vapors are quite normal on new appliances. We recommend opening a window to vent the room. After a few hours use, the vapors will have disappeared and the ames will be at their normal height.

Safety and Warning Information

State of California. Proposition 65 Warning. Fuels used in gas, wood-burning or oil red appliances, and the products

of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other

reproductive harm. California Health & Safety Code Sec. 25249.6.

State of Massachusetts Carbon Monoxide Detector/Vent Terminal Signage Requirements

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level where the gas equipment is to be installed. In addition, the installing plumber or gas tter shall observe that a battery operated or hard wired carbon monoxide detector with an

alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented

gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of hard wired carbon monoxide detectors.

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent oor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certied.

3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the

Safety and Warning Information

venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ue gases, but identies “special venting systems”, the following requirements shall be satised by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Options

Heater engine unit #534XAN is used with all natural gas installations. Heater engine unit #534XAP is used with all propane gas installations.

Optional features

Circulating Fan Kit #755CFK

Having variable speed and temperature control, it is designed to boost the natural convection process through the appliance. It may be tted before the replace is installed or retrotted at a later date.

Natural Gas Conversion Kit #607NGK

For conversion from propane to natural gas. Intended primarily for post installation conversion in areas where natural gas

was not available at the time of initial installation.

Venting options

Direct vent installations (solid piping)

A list of all approved venting accessories is shown on pages 39–40 of this manual.

Direct Vent Co-Linear Installations (exible piping)

Converts the appliance outlet collars to accept two 3” dia. ex liners for installation into existing solid fuel burning replaces and chimneys. Requires a co-linear adapter at the appliance and either a co-linear terminal or co-linear-to-coaxial adapter and terminal at the top of the chimney. A list of approved venting accessories is shown on pages 39–40 of

this manual.

29-3/4” (756 mm)

32-3/16” (817 mm)

To side wall from inner frame

3” (75 mm) min.

Dimensions

36”

(914 mm)

min.

Mantel

See table

14”

(355 mm)

23-1/8” (587 mm)

to rear vent center

33-1/2” (850 mm)

16” (406 mm)

(114 mm)

Stand-offs

1-1/2

(38 mm)

4-1/2”

Stand-offs

2” (50 mm) min. From combustible framing to vent

7” (180 mm) From finished wall front to top vent

Mantel depth “A”

Mantel clearance “B”

1”

(25 mm)2”(51 mm)3”(76 mm)

7”

(178 mm)8”(203 mm)9”(229 mm)

4”–5”

(102–127 mm)6”(152 mm)7”(178 mm)

10”

(254 mm)

11”

(279 mm)

12”

(305 mm)

Figure 1 Major dimensions & clearances without optional trims (shows with #601SFB Front)

Finished wall (See Location section-Framing)

34-7/8” (887 mm)

31-1/8” (780 mm)

3/4”

(19 mm)

32-1/2” (825 mm)

3-sided trims

Figure 2 #601SFB Front with optional trims

Finished wall (See Location section-Framing)

34-7/8” (887 mm)

3/4”

(19 mm)

8”–12” Max.

(203–305 mm) Max.

14”

(356 mm)

34-7/8” (887 mm)

4-sided trims

34-7/8” (887 mm)

31-1/8” (780 mm)

3-sided trims

Figure 3 #602CFB Front with optional trims

2-1/8”

(53 mm)

32-1/2” (825 mm)

4-sided trims

Specications

Approvals & codes

These appliances are certied by ANSI Z21.88b-2008 / CSA 2.33b-2008 Vented Gas Fireplace Heater for use in Canada and USA. These appliances are for installation directly venting through an outside wall or through the roof.

Model 534XAN is for use with natural gas.

Model 534XAP is for use with propane gas. It can be converted for use with natural gas with kit #607NGK. These appliances comply with CGA P.4.1 Testing method for measuring annual replace efciencies.

The installation must conform with local codes or, in the absence of local codes with the National Fuel Gas Code, ANSI Z223.1 or the Natural Gas and Propane Installation Code CAN/CGA-B149. Only qualied licensed or trained personnel

should install these appliances. These appliances, when installed, must be electrically grounded in accordance with local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1.

Model 534XAN 534XAP

Gas Natural Propane

Altitude (Ft.) 0-4500 *

Input Max. (Btu/h) 24,000 24,000

Input Min. (Btu/h) 6,500 13,000

Manifold pressure (in w.c..) 3.8 – 4.2 9.3 – 9.7

Min. Supply pressure (in. w.c.) 5.0 11.0

Max. Supply pressure (in. w.c.) 10.5 14.0

*Tested to CAN/CGA - 2.17 Gas red appliances for use at high altitudes. In the USA, installations may require deration over 2000’—check local codes.

Wall Thickness

The vent system (when horizontally terminated) is approved to pass through combustible wall construction of up to 14” (36 cm) thick. A non-combustible wall can be any thickness up to the maximum horizontal run of vent pipe allowed for the particular installation—see Location section.

Framing

Wall Finish

29-3/4” to Wall Finish

33-3/4” to header

16” min. straight out or off the top. Allow for elbow if

rear vent with rise.

This is the framing width. Wall finish to 32-3/16” wide.

35-1/2”

The framing dimensions are shown in Figure 4.

• A non-combustible hearth is not necessary in front of this appliance.

• Note that the unit is installed at the framing stage and xed to framing using support angles. See gures 26 and 30. Wall nish is then installed over the support angles up to

the black frame on the unit.

NOTE: If using a 612DKA or a 613CCB front, refer to the

kit’s instruction manual for

framing dimensions.

When the appliance is installed directly on carpeting, tile or

other combustible material

other than wood ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance.

Location

Figure 4 Framing

Rear Vent Connection—Flat on Wall

See gure 5. Requires standard vent kit #551DVK only.

The horizontal vent run cannot be extended by the use of any vent accessory pipes.

Rear Vent Connection—Flat on Wall with Snorkel Termination

See gure 6. For use on horizontal installations where the outsides ground level is too close to the standard terminal. Adapter #817VAK, a pipe length and snorkel termination will be required. See venting accessories list on pages 39–40 for allowable components.

16”

(41 cm)

min.

14” (36 cm) max. combustible wall 26” (66 cm) max. non-combustible wall

23-1/8” (58.7 cm)

16”

(41 cm)

min.

14” (36 cm) max. combustible wall 26” (66 cm) max. non-combustible wall

36” (91.4 mm) or 14” (35.6 mm) rise

(See venting accessories options at the end of this manual)

23-1/8” (58.7 cm)

Figure 5 Rear vent—at on wall Figure 6 Rear vent—at on wall with snorkel

1010

Location

Rear Vent Connection—Vertical Vent Rise with Horizontal Rear Termination

See gure 7. Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK, two 90º elbows and pipe lengths will be required. See venting accessories list on pages 39–40 for allowable components. The location requirements are shown in the table and graph

below and figure 7.

Minimum Maximum

A: From oor to top of vent duct 4’-3½”

(131 cm)

B: Frame front face to outside

wall

C: Frame front face to inside

wall

D: Vertical pipe run between

elbows

: Total horizontal pipe

1+E2

2’-5½”

(75 cm)

12”

(30.5 cm)6’(183 cm)

run including terminal pipe but excluding adapter and

elbows

F: Clearance to combustible

materials above horizontal

pipe run inside building (Outside wall shields/

1”

(2.5 cm)

thimbles)

G: Clearance to combustible

materials below horizontal

pipe run

⁄16”

(3.3 cm)

H: Clearance to combustible

materials all round vertical

pipe run and at sides of

2”

(5.1 cm)

horizontal pipe run

For installations with a horizontal rear termination, the

combination of horizontal and vertical vent pipes must be within the allowed area shown in Graph 1. A minimum vertical pipe run of 12” is necessary.

9’-3½”

(283 cm)

12’-5½”

(380 cm)

10’

(305 cm)

with no

elbows in

horizontal

run

Figure 7 Rear vent—Vertical rise, rear termination

Vertical Rise (Ft) (D in Fig. 7)

Graph 1

102 3 4 5 6

ALLOWED VENT PIPE COMBINATIONS

Example b

FORBIDDEN VENT PIPE COMBINATIONS

Maximum Horizontal Run (Ft) (E1 + E2 in Fig. 7)

14” (36 cm) max. combustible wall

Example a

7 8 9 10

Example a: If a vertical rise of 3’ is required, the horizontal run must not be more than 7’9”. Example b: If a horizontal run of 3’6” is required, the vertical run must be at least 1’9”.

If the horizontal pipe run is redirected using a further 90° elbow, the maximum total horizontal run allowed is reduced by 3’ to 7’. Redirection using 45° elbows reduces the maximum total horizontal run by 18” per elbow.

Rear Vent Connection—Vertical Vent Rise with Horizontal Snorkel Termination

For “semi-basement” situations where a snorkel accessory alone does not raise the termination sufciently above ground level. The dimensional requirements in the section above, gure 7, and graph 1 apply. Adapter #817VAK, two 90° vent elbows, pipe lengths and a snorkel termination will be required. A thimble kit may also be necessary. See venting accessories list on pages 39–40 for allowable components.

1111

Location

Rear Vent Connection—Corner Location, Horizontal Vent Run ONLY

45-1/2” (115.5 cm) min.

15” (38 cm) max. pipe

See gure 8. Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK and 45° elbow will be required. See venting accessories list on pages 39–40 for allowable components.

Rear Vent Connection—Corner Location, Vertical Rise, Horizontal Termination

See gure 9.

1-1/2”

64-5/16” (163.3 cm) min.

(38 mm) min. clearance

8-1/8”

(20.6 cm)

min.

Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK, two 90° elbows and pipe lengths will be required. See venting accessories list on pages 39–40 for allowable components. All the vent pipe dimensional limits are as section Rear

Vent Connection—Vertical Vent Rise with Horizontal Rear

9-1/2” (24 cm) max. combustible or non-combustible wall

Termination.

Rear Vent Connection—Vertical Rise, through

Figure 8 Rear vent connection—Corner location,

horizontal vent run

the Roof Termination

See gure 10. Adapter #817VAK, one 90° vent elbow, pipe lengths, a vertical vent terminal and roof ashing will be required. Various other ceiling or roof items may be necessary depending on the particular installation. See venting accessories list on pages 39–40 for allowable components.

Note

1. The distance from the roof to the lowest terminal discharge opening depends on the roof pitch and must be in accordance with the manufacturer’s instructions supplied with the termination unit.

2. The venting system for these appliances is considered to be a Special Venting System. The rule in the Natural Gas and Propane Installation Code CAN/CGA-B149 requiring a minimum vent height of 2’ above any portion of a building

within 10’ does not, therefore, apply.

45-1/2” (115.5 cm) min.

1-1/2”

64-5/16” (163.3 cm) min.

(38 mm) min. clearance

14” (36 cm) max. combustible wall

Figure 9 Rear vent connection—Corner location, vertical

rise, horizontal vent run

1212

6-3/8”

(16.2 cm)

min.

5-9/16” (142 mm) min. from hole center to back wall

45-1/2” (115.5 cm) min.

2” (51 mm) min. clearance to combustible materials all round

Figure 10 Rear vent connection—Through the roof

28-5/8” (72.7 cm) min.

termination

40’ (12.2 m) max. 10’ (3.05 m) min.

Location

40’ (12.2 m) max. 12’ (3.66 m) min.

2” (51 mm) min. clearance to combustible materials all round

4’6” (1.37 m) max.

28-5/8” (72.7 cm) min.

‘H’

Horizontal overhang

Vertical wall

Termination

cap

Storm collar

Roof flashing

Plumber’s tape fixed to wall strap

Wall strap

Ceiling firestop

Ceiling support

Offset elbows

Min.

18”

Overhang should not extend beyond vent if within 48” of termination cap

Min. 24” (unvented soffit) Min. 36” (vented soffit)

Rear Vent Connection—Vertical Rise with Offset, through the Roof Termination

See gure 11.

For situations where offset is necessary in an attic to avoid

obstructions or allow useful space. Adapter #817VAK, one 90° vent elbow, two 45° vent elbows, pipe lengths, a vertical vent terminal and roof ashing will be required. Various other ceiling or roof items may be necessary depending on the particular installation. See venting accessories list on pages 39–40 for allowable components.

Note

1. The distance from the roof to the lowest terminal

discharge opening depends on the roof pitch and must

be in accordance with the manufacturer’s instructions

supplied with the termination unit.

2. The venting system for these appliances is considered

to be a Special Venting System. The rule in the Natural Gas and Propane Installation Code CAN/CGA-B149

requiring a minimum vent height of 2’ above any portion of a building within 10’ does not, therefore, apply. See gure 11a.

Figure 11 Rear vent connection—Vertical rise with offset,

through the roof termination

Roof Pitch Minimum

Flat to 7/12 1’

Over 7/12 to 8/12 1.5’

Over 8/12 to 9/12 2’

Over 9/12 to 10/12 2.5’

Over 10/12 to 11/12 3.25’

Over 11/12 to 12/12 4’

Over 12/12 to 14/12 5’

‘H’ (feet)

Figure 11a

1313

14” (36 cm) max. combustible wall

Location

Top Vent Connection—Horizontal Rear Termination

See gure 12. Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK, one 90º vent elbow and pipe lengths will be required. See venting accessories list on pages 39–40 for allowable components. The location requirements are shown in the table and graph

below and figure 12.

Minimum Maximum

A: From oor to top of vent duct 3’-7

B: Frame front face to outside

wall

C: Frame front face to inside

wall

D: Vertical pipe run between

elbows

E: Total horizontal pipe run from

elbow (including terminal pipe)

F: Clearance to combustible

materials above horizontal

pipe run inside building (Outside wall shields/ thimbles)

G: Clearance to combustible

materials below horizontal

pipe run

H: Clearance to combustible

materials all round vertical

pipe run and at sides of horizontal pipe run

For installations with a horizontal rear termination, the

combination of horizontal and vertical vent pipes must be within the allowed area shown in Graph 2. A minimum vertical pipe run of 6” is necessary.

⁄16”

(111 cm)

16”

(40.6 cm)

9’-1 9⁄16”

(278 cm)

11’4”

(345 cm)

6”

(15.2 cm)6’(183 cm)

10’

(305 cm)

with no

elbow in

horizontal

run

1”

(2.5 cm)

⁄16”

(3.3 cm)

2”

(5.1 cm)

Figure 12

Vertical Rise (Ft) (D in Fig. 12)

Graph 2

102 3 4 5 6

ALLOWED VENT PIPE COMBINATIONS

Example b

Maximum Horizontal Run (Ft) (E in Fig. 12)

FORBIDDEN VENT PIPE COMBINATIONS

7 8 9 10

Example a

Example a: If a vertical rise of 2’6” is required, the horizontal run must not be more than 8’. Example b: If a horizontal run of 3’6” is required, the vertical

run must be at least 1’3”.

The horizontal vent pipe run may be redirected by using elbows up to a total of 180° but the maximum horizontal run (E in gure 7 & graph 1) is reduced by 18” for every 45°. For example, if two 90° elbows are used as in

gure 13, the maximum horizontal run is reduced by 3’ per elbow—total reduction = 6’.

1414

Max. Horizontal run (A + B + C) reduced by 3’ per elbow

Figure 13

Top Vent Connection—Horizontal Side Termination

The vent pipe dimensional requirements in section

Top Vent Connection—Horizontal Rear Termination

apply. The minimum oor location is shown in gure 14. Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK, one 90° vent elbow and pipe lengths will be required. See venting accessories list on pages 39–40 for allowable components.

Location

6-1/8” (156 mm) min. to hole center

14” (36 cm) max. combustible wall

Figure 14

16-1/2” (42 cm) min.

Top Vent Connection—Horizontal Side or

Rear Snorkel Termination

The vent pipe dimensional requirements in sections

Top Vent Connection—Horizontal Rear Termination and Top Vent Connection—Horizontal Side

Termination apply. Adapter #817VAK, one 90° vent elbow, a snorkel termination and pipe lengths will be required. A

thimble kit may also be necessary. See venting

accessories list on pages 39–40 for allowable components.

Top Vent Connection—Corner Location, Horizontal Termination, 45° Pipe Run

The vent pipe dimensional requirements in section

Top Vent Connection—Horizontal Rear Termination

apply. The minimum corner location is shown in gure 15. Can be used with either #551DVK standard vent kit or another terminal cap and accessories. Adapter #817VAK, one 90° vent elbow and pipe lengths will be required. See venting accessories list on pages 39–40 for allowable components.

Figure 15

45-7/8” (117 cm) min.

64-3/8” (164 cm) min.

1-1/2” (38 mm) min. clearance

10-7/8” (276 mm) min.

1-1/2” (38 mm) min. clearance

14” (36 cm) max. combustible wall

45-7/8” (117 cm) min.

1515

‘H’

Horizontal overhang

Vertical wall

Termination

cap

Storm collar

Roof flashing

Plumber’s tape fixed to wall strap

Wall strap

Ceiling firestop

Ceiling support

Offset elbows

Min.

18”

Overhang should not extend beyond vent if within 48” of termination cap

Min. 24” (unvented soffit) Min. 36” (vented soffit)

Location

Top Vent Connection—Through the Roof Termination*

See gure 16. Adapter #817VAK, pipe lengths, a vertical vent terminal and roof ashing will be required. Various other ceiling or roof items may be necessary depending on the particular installation. See venting accessories list on pages 39–40 for allowable components.

Top Vent Connection—Offset and Through the Roof Termination*

See gure 17.

For situations where offset is necessary in an attic to avoid

obstructions or allow useful space. Adapter #817VAK, two 45° vent elbows, wall straps, pipe lengths, a vertical vent terminal and roof ashing will be required. Various other ceiling or roof items may be necessary depending on the particular installation. See venting accessories list on pages 39–40 for allowable components.

*Note

1. The distance from the roof to the lowest terminal

discharge opening depends on the roof pitch and must

be in accordance with the manufacturer’s instructions

supplied with the termination unit.

2. The venting system for these appliances is considered to be a Special Venting System. The rule in the Natural Gas and Propane Installation Code CAN/CGA-B149

requiring a minimum vent height of 2’ above any portion of a building within 10’ does not, therefore, apply. See gure 17a.

5-9/16” (142 mm) min. from hole center to back wall

2” (51 mm) min. clearance to combustible materials all round

Figure 16

40’ (12.2 m) max. 10’ (3.05 m) min.

16”

(41 cm)

min.

2” (51 mm) min. clearance to combustible

4’6” (1.37 m) max.

materials all round

16”

Figure 17

1616

(41 cm)

min.

40’ (12.2 m) max. 12’ (3.66 m) min.

Roof Pitch Minimum

‘H’ (feet)

Flat to 7/12 1’

Over 7/12 to 8/12 1.5’

Over 8/12 to 9/12 2’

Over 9/12 to 10/12 2.5’

Over 10/12 to 11/12 3.25’

Over 11/12 to 12/12 4’

Over 12/12 to 14/12 5’

Figure 17a

Recessed Insert Applications

Rear or Top Outlet Conversion to Co-Linear Liners using Valor #556CLA Co-Linear Adapter.

(Generic co-axial to co-linear adapter boxes may also be used as an alternate to the 556CLA).

Only for use when retrotting a solid-fuel burning replace

and chimney.

The appliance must not be connected to a chimney ue serving a separate solid-fuel burning appliance. Requires #556CLA Co-Axial to Co-Linear Appliance Adapter (or, alternatively, a generic adapter), two lengths of 3” dia. exible chimney liner, co-linear termination kit and ashing and either high wind vertical vent terminal cap or a low prole vertical termination. Zero Clearance stand-offs and

shields supplied with the heater are not required for this application.

3” min. bend radius

Co-linear adapter

18” max.

horizontal run

2 x 3” liners

534 engine

Co-Linear installation into existing F/P

Flashing

Co-linear adapter

Approved co-linear termination or approved

co-linear adapter and approved co-axial termination

2 x 3” liners

Co-Axial to Co-Linear Adapter

556CLA Kit

(alternate to #556CLA)

2 x 3” Liners

556CLA

556CLA Rear Mounted

556CLA

Top Mounted

Alternate to 559CLT/559FSK Conversion

Co-Linear to Co-Axial

2 x 3” Liners

Adapter

10”

7-5/8” dia. collar

3” Inlet & Exhaust Collars

10”

559FSK Flashing Kit559CLT Co-Linear Terminal

Flashing

Terminal Cap

1717

Horizontal Termination Locations

Min. 72”

Max. 72”

Vent Location

• The vent terminal must be located on an outside wall or through the roof.

• This direct vent appliance is designed to operate when an undisturbed airow hits the outside vent terminal from any

direction.

• The minimum clearances from this terminal that must be maintained when located on an outside wall are shown in gure below. Any reduction in these clearances could result in a disruption of the airow or a safety hazard. Local codes or regulations may require greater clearances.

• The vent terminal must not be recessed into a wall or siding.

• The vent terminal should be positioned where any snowdrifts will not cover it.

• Sidewall vent terminations within 7’ of grade require a terminal guard when used with a 551DVK.

Alcove detail (open on one side) Normal

ceiling/soft

clearances

Figure 18

KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM

Inches Cm

A Clearance above grade, verandah, porch, deck or balcony 12 30

B Clearance to window or door that may be opened 12 30

C Clearance to permanently closed window (recommended to prevent condensation on window) 12 30

D Vertical clearance to ventilated soft located above the terminal within a horizontal distance of

2 feet (60 cm) from the center-line of the terminal

E Clearance to unventilated soft 12 30

F Clearance to outside corner 12 30

G Clearance to inside corner 12 30

H Horizontal clearance to center-line of meter/regulator assembly located within 15 feet (4,6 m)

below the terminal

I Clearance to service regulator vent outlet 36 90

J Clearance to non-mechanical air supply inlet to the building or the combustion air inlet to any

other appliance

K Clearance to a mechanical air supply inlet 72 180

L Clearance above paved sidewalk or a paved driveway located on public property

Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-family dwellings and serves both dwellings

M Clearance under a verandah, porch, deck or balcony

Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the oor

Note: Local codes and regulations may require different clearances.

apply.

CLEARANCE

18 46

36 90

12 30

84 210

12 30

1818

Supply Gas

Heater engine unit #534XAN is used with all natural gas installations. Heater engine unit #534XAP is used with all propane gas installations. The supply pressure must be between the limits shown in the section Specications of this manual. The supply connection is ⅜” NPT. The opening for the gas supply line is at the rear left corner of the appliance.

Pack Contents

See gure 19

#534XAN or #534XAP Engine Unit

1 Appliance engine unit tted with window

1 Ceramic ash bed 5 Ceramic logs

1 Firebox ceramic rear wall 2 Firebox ceramic sidewalls

1 Port cover

2 Frame side xing brackets 1 Ash bed rear support 2 Restrictor plates type “A” 2 Restrictor plates type “B” 2 Restrictor plates type “C” 1 Gas inlet pipe connection adapter 1 Top heat shield panel with blanking plate 1 Frame top support angle

2 Stand-off brackets

2 Screws for wall switch plate 4 Screws for frame side xing brackets 2 Screws for top heat shield panel 3 Screws for frame top support angle

6 Screws for stand-off brackets

2 Screws for vent xing 4 Wood screws for xing appliance to studding 1 Deluxe remote control

#601SFB Standard Metal Front (alternative)

1 Upper louver unit

1 Lower louver unit 2 Side channels

2 Hinge studs 2 Hinge spacers 2 Magnet counter plates

#551DVK Standard Horizontal Through-theWall Vent Kit (alternative to other kit)

1 Vent pipe & terminal unit 2 Wall plates 2 Wall shields (supplied at)

12 Thread cutting screws

1 Styrofoam cutting support 8 Wood screws 8 Wall plugs

#755CFK Circulating Fan Kit (additional option)

Details are with the kit.

#603FSK Black or #604FSK Champagne

Three-Sided Trims (additional option)

1 Top trim

2 Side trims

2 Trim xing brackets 2 Corner connection plates 8 Grub screws for corner connections 10 Screws for side trims & engine attachment

#605FSK Black or #606FSK Champagne Four-

Sided Trims (additional option)

2 Top & bottom trims

2 Side trims

2 Trim xing brackets 4 Corner connection plates

16 Grub screws for corner connections

10 Screws for side trims & engine attachment

#602CFB Cast Iron Front (alternative)

1 Top casting unit

1 Bottom casting unit

Take care when removing the contents from the packaging to prevent damage. Check that all the contents are in the packs and are undamaged.

1919

Figure 19 Pack contents

Pack Contents

Ceramic Logs

Gas Inlet Adaptor

Stand-off Brackets

Screw Pack

535XAN/XAP Engine Pack

Ceramic Walls

Top Heat Shield Panel

Frame Side Fixing Brackets

Port Cover

Type “C”

Type “B”

Type “A”

Appliance Engine

Ash Bed Support

Restrictor Plates

Frame Top Support Angle

Hinge Spacers

Magnet Counterplates

601SFB

Side Trims

Screw Pack

Corner Connection Plates

605FSK & 606FSK

Side Channels

Hinge Studs

Top Trim

Trim Fixing Brackets

Upper Louver

Lower Louver

Top Casting

Bottom Casting

602CFB

Top Trim

Side Trims

Screw Pack

Trim Fixing Brackets

Corner Connection Plates

603FSK & 604FSK

Styrofoam Support

Vent Pipe & Terminal

12 Thread-cutting Screws

551DVK

8 Wall Plugs

8 Wood Screws

Wall Plates

Wall Shields

2020

Appliance Preparation

Window Removal

See gure 20.

1. Turn the top two spring-loaded window bolts through 90° to release the window from the rebox.

2. Remove the bottom two spring-loaded window bolts.

3. Detach the chain from the top right corner of the window.

4. Carefully lift the window away. Keep the window and

bolts in a safe place.

Ignition Spark Check

See gure 21. The pilot burner and electrode unit are at the left end of the

burner. Push-in the lighting knob and turn counterclockwise through

the “IGN” position to “PILOT”. A spark should ash across from the pilot electrode to the pilot shield.

Figure 20

Figure 21 Ignition spark check

Rear Vent Outlet Positioning

If installing with top vent outlet, ignore this stage. If installing co-linear venting, see section Co-Linear Conversion next page.

See gure 22.

1. Remove the rear outlet cover plate and seal by unscrewing 12 screws. Keep the seal and plate for tting to the top.

2. Remove the top outer vent collar and seal by unscrewing 12 screws.

3. Remove the top inner vent collar and seal by unscrewing

8 screws.

4. Locate the inner collar and seal inside the rear outlet

opening. Secure the inner collar with 8 screws.

5. Fit the outer collar over inner collar. Loosely t the 12 screws. Place the adapter #817VAK or Valor terminal kit #551DVK over the collars to check alignment. Tighten the

12 screws to secure the outer collar.

6. Fit the cover plate and seal (removed from the rear) to

the top vent opening with 12 screws.

Figure 22

2121

Appliance Preparation

Gaskets

This is the bottom edge when installing as rear outlet

This is the front edge when installing as top outlet

#817VAK Pipe Adapter Fitting

If installing  at on wall with Valor terminal unit #551DVK, ignore this stage.

See  gure 23.

1. Fit the adapter #817VAK over the appliance vent collars pushing on  rmly.

2. For rear vent outlet connection, align the adapter so that the seam on horizontal

pipes is not at the bottom—check by temporarily  tting a pipe.

3. Drill through the adapter outer tube and appliance outer collar for #6 screws. Make sure that the drill does not penetrate the inner tubes.

4. Secure the adapter to the outer collar with two #6 thread-cutting screws supplied.

Co-Linear Conversion

For installation into solid-fuel burning  replaces and chimneys ONLY.

Generic Adapter Box

1. Fit the adapter #817VAK over the appliance vent collars pushing on  rmly. See  gure 23.

2. Fit and fully twist-lock the co-axial-to-co-linear adapter to the #817VAK adapter.

3. Keeping the connector and adapter fully twist-locked, rotate them so that the air inlet collar on the connector is at the

bottom. See  gure 23a.

4. Drill through the adapter outer tube and appliance outer collar for #6 screws. Make sure the drill does not penetrate the

inner tubes.

5. Secure the adapter to the outer collar with two #6 thread cutting

screws supplied. See  gure 23.

3” Exhaust

3” Inlet

Figure 23a

817VAK

Figure 23

Valor #556CLA Co-Linear Adapter

(Note: Instructions may vary as #556CLA may be installed on top or back of heater depending on heater model.)

See Figure 23b.

1. Remove blank plate and gasket to gain access to exhaust spigot.

Retain plate and good gaskets for re-use later.

2. Remove existing outer intake plate. Retain good gasket only for re-use.

3. Remove existing exhaust spigot—gasket below should remain on heater.

4. Install new co-linear exhaust spigot

re-using existing screws. Ensure all

screws are reinstalled tightly.

5. Install new co-linear outer plate

(note: up/down front/back orientation on drawing) re-using existing good

gaskets and screws. Use 6 additional

screws supplied to seal outer plate to gasketed  ange of exhaust spigot.

6. Re t the blank plate.

Re-use gaskets if in good condition. If not, clean and use supplied gaskets.

2222

Exhaust collar

Appliance Preparation

Wall finish material thickness (tile, etc.) 3/8” - 1-3/16” (10-30 mm)

Fit screws from inside case

Top Heat Shield & Stand-offs Fitting

See gures 24 & 25.

1. If installing appliance with top vent outlet, remove

the plate covering the vent hole in the top heat shield

by unscrewing four screws. If installing with rear vent outlet, the plate must remain, covering the hole.

2. Remove the screws at the top rear corner of the case sides.

3. If top vent outlet, locate the heat shield over the vent pipe

adapter.

4. Support the front of the shield on the two angle supports.

5. Secure the shield to the case sides by retting the two

screws at the top rear corners and by two screws from the pack tted near the front.

6. Bend the two top rear stand-offs and t to the heat shield with three screws each. See gure 25.

NOTE: Zero clearance stand-offs and shield supplied with

the heater are not required for the co-linear application.

Support Angles Fitting

See gure 26.

The distance from the wall angles to the front face of the

heater case is adjustable between 3/8” (10 mm) and 1-3/16” (30 mm) to allow for a range of wall nish material thickness (e.g. tile, etc.).

1. Fit the top angle support to the case top with three screws.

2. Fit the two side angle supports with two screws each. Fit the screws from inside the heater case.

Shield to rest on 2 supports

Figure 24 Heat shield

(shown for top vent outlet)

Push shield

forward

Figure 26 Support angles

Figure 25 Top & rear stand-offs

2323

Type “A” Maximum opening

Type “A” Minimum opening

Type “B” & “C” Hole(s) at top

Type “A” Type “B” Type “C”

Appliance Preparation

Attaching Air Restrictors

No restrictors are required for appliances which only have horizontal vent run. If installing an appliance which has a rear vent outlet connection and no vertical vent pipe rise, ignore this stage.

There are three types of restrictors supplied with each #534 engine unit. They are identied in gure 27.

• Type “A” is for horizontal vent termination.

• Types “B” & “C” are for through-the-roof termination.

The restrictors cover part of the openings in the rebox rear wall ports. See gure 28.

The correct restrictors to be tted for each type of installation

are shown in the table below.

• To t type “A” restrictors, remove the center screws

from the rear ports and t the restrictors using these

screws.

• To t types “B” or “C” restrictors, remove the top and bottom screws from the rear ports and t the restrictors

using these screws.

To set the restrictors at maximum port opening, slacken

the bottom screws in the ports, slide the restrictors down as far as possible and tighten the screws over the restrictors.

To set the restrictors at minimum port opening, slide the

restrictors up as far as possible and tighten the screws.

Vent terminal

Horizontal

through wall with vertical rise

Vertical through

roof

Appliance

vent outlet

Top Less than 3’ (91 cm) A Maximum

Rear Less than 3’6” (107 cm) A Maximum

Top or rear Less than 20’ (6.1 m) B

Vertical vent pipe run

From 3’ (91 cm) to 6’ (183 cm)

From 3’6” (107 cm) to 6’ (183 cm)

From 20’ (6.1 m) to 40’ (12.2 m)

Use

restrictor

type

A Minimum

opening

Figure 27 Restrictor identication

Port

set at

N/A

Figure 28 Restrictor locations

2424

Appliance Preparation

Top angle adjustment from back of angle

Adjustable for wall finish material thickness between 3/8” and 1-3/16“ (10 mm and 30 mm)

Side angle adjustment from inside firebox

Attaching Rear Ceramic Support

See gure 29. Fit the rear ceramic support to the rebox back panel with

three screws.

Attaching Appliance to the Framing

See gure 30.

1. Place the heater in position in the framing.

2. Secure the side support angles to the side studding through two holes each side with the woodscrews

supplied. The top support angle should abut the wall nish but is not xed to the framing.

3. Check the wall nish requirements with the homeowner. If necessary, adjust the position of the heater so that the

distance from the front of the heater case to the angles is

suitable for the thickness of the wall nish (e.g. tile, etc.).

Figure 29 Rear ceramic support

Figure 30 Adjustment for wall nish

2525

Installations with Horizontal Termination—Installing to Wall

See Location section for full range of horizontal termination

applications.

Flat on Wall Installation with Valor #551DVK Terminal

1. Cut the vent terminal pipe unit to size. See gure 31.

Important! The drain hole must be clearly outside the wall.

a) Measure the wall thickness. b) Add distance from case rear to wall. c) Measure this total length along the vent unit from

where the termination cap joins the main terminal pipes. Mark the unit.

d) Insert the Styrofoam support ring and push it as

close as possible to the marked position.

e) Cut the vent tubes squarely to length.

f) Make sure that all Styrofoam is removed from

the vent unit after cutting.

2. Free the appliance from the frame studding by removing the four screws inside the rebox securing the side angles. See gure 30. Slide the appliance forward to allow the terminal to be tted.

3. Fit the vent unit fully over the appliance inlet and outlet collars pushing on rmly. Make sure that the drain hole is

at the bottom—the seam will be through the notch in the

wall plates. See gure 34.

4. Drill through the terminal outer tube and appliance outer collar for #6 screws. See gure 31. Make sure that the

drill does not penetrate the inner tubes.

5. Secure the terminal to the outer collar with two #6 threadcutting screws supplied. See gure 31.

Figure 31

This piece may be cut to length

Max. is 26”

5”

Drain hole

Important Installer Notice – Weather Sealing & Vapor Barriers

It is the installer’s responsibility to ensure that vent installations through exterior walls are caulked and weatherproofed in such a manner as to:

• Prevent rain water from entering the wall from the weather side by adequately caulking the outer vent plate to the exterior wall

surface.

• Prevent moisture inside the home from penetrating into the wall structure by ensuring the inside wall plate is adequately sealed to the inside vapor barrier.

• Prevent rain water and moisture from entering the walls by

sealing the joints between the outer vent tube and the inner and

outer wall plates.

We recommend the use of a high quality polyurethane sealant.

2626

Installations with Horizontal Termination—Installing to Wall

Wall Opening

• Where applicable, t all the required pipes and elbows up to the wall. See the manufacturer’s instructions supplied with the venting sections.

• Check the wall opening position.

• Make wall opening.

If the wall is constructed of solid non-combustible materials and has no

combustible surface cladding (including wood) inside or outside, the wall plates or thimbles will not be required. If the wall has combustible material, mark the wall for a 10” x 10” square. If the wall is totally non-combustible (e.g. masonry block or concrete),

mark for a 7” circular hole. In both cases, the center of the hole should

line up with the center line of the horizontal vent.

Valor Terminal #551DVK—Preparing Wall Plates

The wall plates are not used for 7” hole in non-combustible walls.

1. Bend the wall shields and screw to the inside of the wall plates with 6

thread-cutting screws per plate. See gure 32.

2. Bend the inner wall plate tab as shown in gure 33 so that the seam on

the terminal tube will pass clearly through the plate with the wall shield at the top. Place the inner wall plate over the terminal unit.

3. Slide the appliance/terminal into the wall. Make sure that the drain hole

is at the bottom—the seam will be through the notch in the wall plates. See gure 34.

4. Slide the inner wall plate up to the wall. Mark the four holes for the wall

screws. Slide the plate away.

5. Drill and plug the wall.

6. Screw the plate to the wall with four screws provided.

7. Bend the outer wall plate tab as shown in gure 34.

8. Place the outer wall plate over the terminal unit. Slide the wall plate

up to the wall. Mark the four holes for the wall screws. Slide the plate

away.

9. Drill and plug the wall.

10. Screw the plate to the wall with four screws provided. See gure 34.

11. If the appliance was freed from the frame studding, ret with the

four screws inside the rebox securing the side angles. Position the appliance so that it is suitable for the wall nish. See gure 30.

Align the vent center to the center of the frame

10” (254 mm)

Square opening

Figure 32

Bend this tab towards wall

Inside Wall Plate

10” (254 mm)

Bend this tab towards wall

Terminals—Installing to Wall

Unless the wall is totally non-combustible, t wall thimbles. Install as detailed in the manufacturer’s instructions supplied with the pipes.

Sidewall vent terminations within 7’ of grade require a terminal guard

when used with a 551DVK.

13-1/4”

16-3/4”

Figure 33a Terminal Guard Figure 33b Terminal

8”

Figure 33

10”

Figure 34

Outside Wall Plate

10”

13”

Drain hole

12-1/4”

2727

‘H’

Horizontal overhang

Vertical wall

Termination

cap

Storm collar

Roof flashing

Plumber’s tape fixed to wall strap

Wall strap

Ceiling firestop

Ceiling support

Offset elbows

Min.

18”

Overhang should not extend beyond vent if within 48” of termination cap

Min. 24” (unvented soffit) Min. 36” (vented soffit)

Installations with Vertical Termination—Through the Roof

All Co-Axial Vent Installations

• Check the roof pitch to determine which roof ashing will be needed. See venting accessories list on pages 39–40 for allowable components.

• The distance from the roof to the lowest terminal discharge opening (“H” in gure 35) depends on the roof pitch and must be in accordance with the manufacturer’s instructions supplied with the termination unit.

Note: The venting system for these appliances is considered to be a

Special Venting System. The rule in the Installation Code requiring

a minimum vent height of 2’ above any portion of a building within 10’

does not therefore apply.

• The minimum clearances to combustible materials all round the vent pipes must be in accordance with the dimensions shown in the Location

section of this manual.

• Drop a plumb from the ceiling to the center of the appliance vent opening. Mark the position on the ceiling. Drill a small hole at the marked position.

• Determine the position where the vent will pass through the roof. If directly above the position where it penetrates the ceiling, drop a plumb

from the roof to the small hole in the ceiling and mark the roof at this

spot. If rafters or other obstructions will prevent a vertical exit or if clear attic space is desired, the roof outlet can be offset using 45° elbows. See gure 35. Drill a small hole at the marked position.

• A ceiling restop must be installed at the second oor and higher oors. A ceiling support should be used below the at ceiling. To install the restop and support, cut and frame a 10” (254 mm) square hole centered on the small hole previously drilled. See gure 36.

• Fit vent accessory elbows and pipe lengths as required up through ceiling support boxes and restops. If installation includes offset, support the offsetting pipes every 3’ (1 m) with wall straps. See gure 35.

• Cut a hole in the roof centered on the small hole.

The hole must allow for the minimum clearances to combustible materials. See Location section in this manual.

• Fit pipe lengths through the roof. Fit roof ashing securing it with roong nails.

• Fit storm collar and termination cap.

Co-Linear Vent Installations

• The chimney and replace opening sizes are shown in Dimensions and Location sections of this manual.

• Place the appliance (tted with the co-linear adapter) near the replace opening but allow space for manipulating the chimney liners on to the appliance.

• Drop the 3” dia. exible liners into the chimney from outside.

• Fit the liners to the co-linear adapter paying attention to inlet and exhaust and move the appliance to its proper position. Be aware of the minimum liver bend radius and maximum liner horizontal run shown on page 17 of this manual.

• Fit the termination kit and ashing to the exterior of the chimney.

• Secure the appliance to the oor or wall if necessary.

Joists

10”

(254 mm)

10”

Figure 36 Firestop hole

Roof Pitch Minimum

Flat to 7/12 1’

Over 7/12 to 8/12 1.5’

Over 8/12 to 9/12 2’

Over 9/12 to 10/12 2.5’

Over 10/12 to 11/12 3.25’

Over 11/12 to 12/12 4’

Over 12/12 to 14/12 5’

Figure 35 Through the roof installation

2 - 3” Liners

‘H’ (feet)

2828

Remote Control Installation

Caution! Don’t connect the batteries to the remote control receiver until the wires are connected to the burner control unit, as short circuit could result in destruction of the electrical components.

When installing the remote control, please refer to gures 37 and 38 below.

• Connect the wiring harness to the receiver box by pushing the wire connector on to the receiver circuit board. The plug will only go on one way so please ensure that the wires are pointing up and slot in the board is in line with the tab on the wiring harness plug.

• Connect wires “A” (with the “L” terminals) to the connectors “B” on the control valve as shown below. Please note that the “L” connectors are different sizes; the smaller one ts to the lower connection on the valve.

• Connect the wires “C” to the connectors “D” on the control valve. (Either wire can be tted to either connector).

• Remove the remote control receiver lid.

• Fit four 1.5V batteries.

• Place the remote control receiver on the Velcro pad.

• Fit the 9V battery to the handset transmitter.

Remote control operating instructions are on pages 36–37 of this manual and are supplied with

the remote control kit.

Receiver Cable

LED (green)

Figure 37 Valve connections

Sensor Opening

Figure 38

2929

Gas Supply Installation

• The gas supply pipe should enter the appliance case through the opening at the rear left side. The supply pipe should be connected to the appliance gas inlet pipe situated at the left side of the control valve. Supply line connection to the inlet pipe is 3/8” NPT ( female).

If the circulating fan is to be installed, be aware that the supply pipe run inside the case should be at the same

height as the appliance inlet pipe in order to clear the fan. If intending to t an internal isolating valve, check

that it will be clear of the fan.

• Use only new black iron or steel pipes or copper tubing if acceptable—check local codes. Note that in USA, copper tubing must be internally tinned for protection against sulfur compounds.

• Unions in gas lines should be of ground joint type.

• The gas supply line must be sized and installed to provide a supply of gas sufcient to meet the maximum demand of the appliance without undue loss of pressure.

• Sealant used must be resistant to the action of all gas constituents including LP gas. Sealant should be applied lightly to male threads to ensure excess sealant does not enter gas lines.

• The supply line should include a manual shut-off valve to allow the appliance to be disconnected for servicing.

• A plugged 1/8” NPT tapping must be installed in the line. The tapping must be accessible for test gauge connection and be immediately upstream of the gas supply connection to the appliance.

• Pressure test the supply line for leaks.

» The appliance and its individual shut-off valve must be disconnected from the gas supply piping system during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.5kPa).

» The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve

during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5kPa).

» Failure to either disconnect or isolate the appliance during pressure testing may result in regulator or valve

damage. Consult your dealer in this case.

• The minimum supply pressure is given in the Specications section of this manual.

• All piping and connections must be tested for leaks after installation

or servicing. All leaks must be corrected immediately.

• When testing for leaks:

» Make sure that the appliance is turned off. » Open the manual shut-off valve. » Test for leaks by applying a liquid detergent or soap solution to

all joints. Bubbles forming indicate a gas leak. Never use an

open ame to check for leaks.

» Correct any leak detected immediately.

• The pressure test tapping locations are shown in gure 39. A built-in non-adjustable regulator controls the burner manifold pressure. The correct pressure range is shown in the table in Specications section of this manual. The pressure check should be made with the burner

alight and at its highest setting. See Lighting Instructions section for

full operating details.

Figure 39 Pressure test tappings

The air shutter is factory set at an aeration gap that will give optimum performance for the vast majority of installations. However, in a few unusual installations, performance may be improved by adjusting the aeration. The need for adjustment should be determined by operating the appliance with the ceramic fuel effects

and window installed. See the Final Checks section in this manual for adjustment details.

Adjust the aeration by slackening the aeration plate screw and sliding the plate. In an extreme circumstance, the plate can be totally removed. See gure 40.

3030

Aeration Setting Check

Figure 40 Aeration setting

Ceramic Walls Installation

1. Locate the ceramic rear wall in the channel at back of the

rebox and at against the back of the rebox. See gure

41.

2. Locate the sidewalls against

the sides of the rebox. Make

sure that they are behind the raised edges of the burner module base at the back

corners. See gure 42.

3. Remove two screws from

under the top front of the rebox. Using these screws t the port cover. See gure 43.

Ceramic Logs Installation

1. Place the ash bed in position. The projections at the front

of the ash bed locate against

the sloping metal stops

immediately behind the burner.

See gure 44.

2. Place the rear log in position locating the two pins in the top

of the wedge into the holes in

the rear log. See gure 45.

3. Place the front log at the front

of the rebox. See gure 46.

4. Place the right side center log

in position locating it on the two locating pins on the left hand

side of the ash bed with its

“nose” resting at the center of the ash bed. See gure 47.

5. Place the right side center log

in position locating it on the two pins on the right hand side of the ash bed with its “nose”

resting at the center of the ash

bed. See gure 48.

6. Place the “branch end” of the cross log on the pin located on

the center of the rear log and the other end in the locating

pocket on the left side of the front log. See gure 49.

Ceramic Fuel Bed Installation

Figure 41 Rear wall Figure 42 Side walls Figure 43 Port cover

Figure 46 Front log

Figure 47 Left center log

Figure 44 Ash bed Figure 45 Rear log

Figure 48 Right center log

Figure 49 Cross log

3131

Window Retting & Checking

1. Ret the window with the bottom two bolts. The bolts should be screwed in securely.

2. Ret the chain to the top right corner of the window.

3. Ret the top two bolts securing by turning them through

90°.

4. Pull the top of the window forward and release to check that it opens slightly and returns conrming the good function of the spring-loaded mechanism. See gure 50.

5. Similarly check the bottom of the window by pulling it forward and releasing. See gure 50.

Figure 50

Operation Checks

Check ignition, pilot stability, burner ames, and the full range of the thermostat using the rotary switch inside the appliance and the remote control hand unit. See Lighting Instructions further on in this manual for full details.

Aeration adjustment

As described on page 30, burner aeration is adjustable. For the vast majority of installations, no adjustment will be necessary. However, in a very few instances, performance may be improved by adjusting the aeration by sliding the shutter. See gure 40 on page 30. Evaluate the aeration only after the unit has warmed up—approximately 15 minutes.

Increasing aeration will cause the ame to appear more transparent and blue making the ceramic fuel effects glow more. Decreasing aeration will cause the ames to appear more yellow or orange making the fuel effects glow less.

Too little aeration may result in black carbon forming and dropping into the rebox.

3232

Front Installation

#601SFB Standard Metal Front

1. Fit the lower louver unit using the hinge studs and hinge spacers as shown in gure 51.

2. Fix the two adhesive backed magnet counter plates to the tabs at the rebox sides, which line up with the magnets on the lower louver. See gure 51.

3. Fit the two side channels by hooking into the openings at the sides of the rebox. See gure 52.

4. Attach the upper louver by hooking over the tabs near the top of the rebox sides. See gure 53.

Spacer

Hinge stud

Figure 51 Lower louver & magnet counter plate

#602CFB Cast Iron Front

1. Attach the bottom casting unit by hooking it over the lower tabs at the

rebox sides. See gure 54.

2. Attach the top casting unit by hooking it over the four tabs at the rebox sides. See gure 55.

Magnet counterplate

Figure 52 Side channel

Figure 53 Upper louver

Figure 54 Bottom casting

Additional Optional 3 or 4-Sided Trims

1. Slide a corner connection plate into the channels in the top trim and a side trim.

Butt the two trims together. Fit four grub screws and tighten to secure the trims

and corner plate. See gure 56.

2. Repeat for the other corner(s).

3. Attach the two trim xing brackets to the side trims with three screws each side.

The brackets must butt up to the edges of the corner connection plates. See gure 57.

4. Attach the complete trim unit to the rebox with four screws. See gure 58.

Figure 56 Trims & corner plate

Bracket to butt up to edge of corner plate

Figure 57 Trim bracket attachment

Figure 55 Top casting

Figure 58 Trim installation

3333

Owner’s Information

Operating Your Fireplace

For your safety, this appliance is tted with a ame supervision device which will shut-off the gas supply if, for any reason, the pilot ame goes out. This device incorporates a xed probe, which senses the heat from the pilot ame. If the probe is cool, the device will prevent any gas ow unless the burner control knob is kept pushed in at the PILOT position. See lighting instructions on page 41 of this manual.

Cleaning

It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass and causes dust and lint to cling to the glass surface. Initially, paint, while curing, may deposit a slight lm on the glass. We therefore recommend that, during the rst few weeks of use, the glass be cleaned two or three times with nonabrasive common household cleaners (such as dish soap) and warm water. Ammonia based cleaners should NOT be

used. Subsequently, the glass should be cleaned two or three times a season depending on the circumstances. Do not clean the glass while it is hot. Always securely replace the window before lighting.

If broken, the glass pane may only be replaced as a complete window unit as supplied by the manufacturer.

To Clean the Inside of the Glass

Louver Front:

• Lift and unhook the top louver. See gure 59.

• Lift and unhook the two side channels. See gure 60.

• Open the bottom louver—it does not need to be removed.

Cast Iron Front:

• Lift up and unhook the upper casting. The bottom casting does not need to be removed. See gure 61.

Push in the two spring-loaded bolts at the top of the window and make a quarter turn so that the slots in the bolt heads are horizontal. This will release the top of the window. Swing the top of the window open as far as the chain will allow. The window should be open enough to let you clean the inside of the glass. See gure 62.

To reinstall the window, proceed in the reverse order. Then, pull the top of the window forward and release to check that it opens slightly and returns conrming the good function of the spring-loaded mechanism. Similarly check the bottom of the

window.

Figure 59 Louver removal

Figure 60 Side channels

removal

Figure 61 Cast top front

removal

Always securely fasten the window before lighting.

To Clean the Ceramic Fuel Effects, Firebox Walls & Burner

Dust can be brushed from the ceramic logs and rebox walls after removing the front unit and opening the window. Dust

can also be removed from the burner using a soft brush after removing the ceramic logs. When cleaning, make sure that

no particles are brushed into the slots of the burner.

Louver Front:

• Lift and unhook the top louver.

• Open the bottom louver—it does not need to be removed. See gure 59.

Cast Iron Front:

• Lift up and unhook the upper casting.

• Lift up and unhook the bottom casting. See gure 61.

3434

Owner’s Information

Push in the two spring-loaded bolts at the top of the window and make a quarter turn so that the slots in the bolt heads are horizontal. This will release the top of the window. Remove the bottom two spring-loaded window bolts. Detach the chain from the top right corner of the window. See gure 62. Carefully lift the window away. Keep the window and bolts in a safe place.

Always completely remove the window before removing the ceramic fuel effects.

When cleaning, make sure that no particles are brushed into the

slots in the burner.

check the bottom of the window.

Always securely replace and fasten the window before lighting.

Checks

• A periodic check of the pilot and burner ames should be made. Check after the re has been on for at least 30 minutes. The pilot ame must cover the tip of the thermocouple probe. The main burner ame pattern will vary from appliance to appliance depending on the type of installation and climatic conditions. See gures 63

and 64.

• The appliance area must always be kept clear and

free from combustible materials, gasoline and other

ammable vapors and liquids.

• Inspect the vent terminal outdoors regularly to make

sure that dirt, snow, insects, leaves, trees, etc. do not obstruct it.

• Examine the whole vent system regularly. We

recommend annually.

Performance of LPG appliances may be affected by the

quality of commercial

gas supplied in your area.

Batteries

All appliances use four 1.5V AA batteries for remote control receiver and the handset uses a 9V battery. Receiver batteries are accessible by opening the bottom access panel and removing the lid of the remote control

receiver.

Batteries should last one to two seasons, depending on usage. Removing batteries in the off season will extend

battery life.

Figure 62 Window opening & removal

Thermocouple probe must be in flame

Figure 63 Pilot ame

Servicing

If you require any attention to your appliance, contact your supplier quoting the model number. It will be helpful if the appliance serial number can also be quoted. This is on the rating plate, which is on a chained plate accessible by opening the bottom access panel. The repair parts are shown in the separate repair parts leaet. Please always quote part number and description when requesting spare parts.

Figure 64 Main ames

3535

Remote Control Operation

Your replace remote control helps you get the comfort, convenience and aesthetics you want from your gas replace. The remote controls your replace in different ways.

IMPORTANT: BEFORE YOU BEGIN, please note that on this system, the settings of time, temperature and automatic ON/OFF can only be programmed when the function display is ashing. Be patient when

programming as it can take a few seconds to set.

Setting the time

The rst thing to do is to set the time.

1. With your thumb, hold down both the AUTO and TIMER buttons until F ashes.

Let go.

2. Note the digital clock on the bottom right hand corner. The ▲ button sets the

hour; the ▼ button sets the minutes. Set the time. Note: You must start setting the time while the F is ashing. If it stops ashing,

go back to 1.

3. The display shows °C/24-hour or °F/12-hour. To change the temperature/hour

display, press on the AUTO button while the display ashes.

4. Let go and wait until the ashing stops. The remote shows the time you set. It also shows the current temperature.

Setting the temperature

Use this setting when you come in and want to enjoy a specic temperature.

1. Push the AUTO button until a number and F ash. Let go.

2. While it is still ashing, push the ▲ and ▼ buttons to the temperature you want. Let go.

Your replace will reach that temperature and the remote will check the temperature every ve minutes, adjusting the amount of fuel needed to give you a steady, even

heat.

3636

Remote Control Operation

Setting the ame

Use this setting when you want a particular ame level. For instance, you want to watch ames burn at their highest level and you don’t mind if the room is too hot.

1. To raise the ame, press and hold the ▲ button until the flame gets to the desired level. Let go.

2. To lower the ame, press and hold the ▼ button until the ame gets to the desired level. Let go.

The ame level will remain just as you set it.

Programming time and temperature

You can set your replace to come on before you wake up and turn off after you

leave and then, turn on again just before you come home and turn off after going to bed.

You can leave it like this for the heating season.

1. Decide what temperature you want your replace to be at. Also, decide what time you want your replace to turn on and off. Finally, decide what time you want it to come back on and off in the afternoon or evening. For the rst few times you set

the timer, it’s handy to write these times down.

2. Set the temperature (just as you did in the section Setting the temperature.)

3. Press the TIMER button and hold it until P1

While ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you want your replace to turn on in the morning.

4. Press the TIMER button and hold it until P1 ☽ appears and ashes. Let go. While ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you want your replace to turn off when you leave.

5. Press the TIMER button and hold it until P2

While ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you want your replace will turn back on in the afternoon.

6. Press the TIMER button and hold it until P2 ☽ appears and ashes. Let go. While ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you want your replace to turn off in the evening.

7. That is all you have to do. Your replace will give you steady, even heat at the temperatures and times you set.

Note: If you want to set your replace for only one time on and off, set P2

☽ for the same times as P1 ☽. The remote will record the P1 ☽ off time for both P2 times.

To temporarily override the timer setting, just press AUTO or ▲ and ▼ to go back to

manual settings. Press TIMER to go back to your settings.

☼ appears and flashes. Let go.

☼ appears and ashes. Let go.

☼ and P2

When your remote control displays BATT, you need to replace the battery with a new 9 volt alkaline battery—6LR61/MN1604.

3737

Lighting Instructions

Thermocouple probe must be in flame

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a re or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions

exactly. To save energy, turn the pilot off when not using the appliance.

B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the oor because

some gas is heavier than air and will settle on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

C. Use only your hand to push in or turn the control knobs. Never use tools. If the controls will not push in or

turn by hand, don’t try to repair them; call a qualied service technician. Force or attempted repair may result in a re or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualied service technician

to inspect the appliance and to replace any part of the control system and any gas control, which has been

under water.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above.

2. Set the ame adjustment knob as far clockwise  as possible*.

3. Turn the gas control knob clockwise  to OFF.

NOTE: The knob cannot be turned from PILOT to OFF unless it is pushed in partially. Do not force.

4. Wait ve (5) minutes to clear out any gas, then, smell for gas,

including near the oor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas,

go to the next step.

5. Find the pilot. It is at the left side of the rebox, viewed through slotted hole in front log.

6. Push in and turn the gas control knob counter clockwise  until resistance is felt just before the IGN

position.

7. Keep pushed in for a few seconds to allow gas to ow then, keeping knob depressed, turn to PILOT to light pilot. Hold knob in for a further 5 seconds then release. The knob should pop back out. Pilot should remain lit. If pilot goes out, repeat steps 3 through 7. – If knob does not pop out when released, stop and immediately call your service technician or gas supplier. – If pilot lights but will not stay lit after several tries, turn the gas control knob to OFF and call your service technician or gas supplier.

8. When pilot is lit, partially depress the knob and turn to ON position (Burner alight).

Do not leave knob set between PILOT and ON.

9. Set the ame height to desired setting*.

Flame Adjustment Knob

Gas Control Knob

TO TURN OFF GAS TO APPLIANCE

1. Set the ame adjustment knob as far clockwise  as possible*.

2. Push in the gas control knob slightly and turn clockwise  to OFF. Do not force.

* The ame height can be increased or decreased by depressing the remote control hand set button.

3838

Approved Venting Components

APPROVED DIRECT VENT SUPPLIERS FOR VALOR MODELS 530, 534, 535, AND MF28

Venting Parts Code / availability by Manufacturer

Venting Parts Description

Co-axial Kit, 26” long — — — — — 551DVK

Standard Co-axial 46DVA-HC 4DT-HC TM-4HT — — —

Deluxe Co-axial — — TM-4DHT — — —

Horizontal

High Wind Co-axial — — — SV4CHC — —

Standard Co-axial 46DVA-VC 4DT-VC TM-4VT — HSDV4658-1313 —

High Wind Co-axial 46DVA-VCH — — SV4CGV — —

Extended Co-axial 46DVA-VCE — — — — —

Vertical

Termination Caps

Co-linear Flex Connector 46DVA-ADF — — — — —

Couplers

Vent Adapters /

Co-linear — — — 3PDVCV

Snorkel, 14” Rise 46DVA-SNK14 4DT-ST14 TM-4ST14 — — —

Snorkel, 36” Rise 46DVA-SNK36 4DT-ST36 TM-4ST36 — — —

Universal Adapter 3”

Flex Coupler

Co-axial-to-Co-linear

Adapter

Co-linear-to-Co-axial

Adapter

SIMPSON

DURA-VENT

2150 — TM-CFAA3 — — —

46DVA-GCL — TM-4CAA — — 556CLA

46DVA-GK — TM-4CTA — — —

SELKIRK

DIRECT

ICC EXCEL

VENT

SECURE

RLH

INDUSTRIES

HS-C33U-99

HS-C33F-1313

MILES

559CLT

INDUSTRIES

Liner

Flexible

Aluminum

4” x 6-5/8”

Adjustable Pipe Length

Galvanized 46DVA-E45 — TE-4DE45 —

Galvanized

DV 45° Elbows

Black Swivel — 4DT-EL45(B) SV4EB45

Galvanized 46DVA-E90 — TE-4DE90 —

Galvanized

DV 90° Elbows

Black Swivel — 4DT-EL90(B) SV4EB90

3” diameter 2280 Series 3” ACFL

4” to 10”

1-1/2” to 6”

1-1/2” to 12”

1-1/2” 24”

Black 46DVA-E45B — TE-4DE45B SV4EBR45

Swivel

Black 46DAV-E90B — TE-4DE90B SV4EBR90

Swivel

Galvanized

Black 4DT-ADJ(B)

Galvanized

Black SV4LBA

Galvanized

Black TC-4DLTB SV4LBA12

Galvanized

Black SV4LBA24

— 4DT-EL45

— 4DT-EL90

—

— — —

— —

— — —

4DT-ADJ

—

NOTE: 2-ply liner approved to CAN/ULC S635 suitable for venting gas appliances. As manufactured by Z-Flex.

— — — —

SV4LA

TC-4DLT SV4LA12

SV4LA24

— —

SV4E45

SV4E90

— —

3939

Venting Parts Description

6” long

9” long

12” long

18” long

24” long

Pipes 4” x 6 5/8” ( ID x OD )

36” long

48” long

Roof Flashing

Galvanized 46DVA-06 4DT-06 TC-4DL6 SV4L6

Black 46DVA-06B 4DT-06(B) TC-4DL6B SV4LB6

Galvanized 46DVA-09 4DT-09

Black 46DVA-09B 4DT-09(B) —

Galvanized 46DVA-12 4DT-12 TC-4DL1 SV4L12

Black 46DVA-12B 4DT-12(B) TC-4DL1B SV4LB12

Galvanized 46DVA-18 4DT-18

Black 46DVA-18B 4DT-18(B) —

Galvanized 46DVA-24 4DT-24 TC-4DL2 SV4L24

Black 46DVA-24B 4DT-24(B) TC-4DL2B SV4LB24

Galvanized 46DVA-36 4DT-36

Black 46DVA-36B 4DT-36(B) SV4LB36

Galvanized 46DVA-48 4DT-48 TC-4DL4 SV4L48

Black 46DVA-48B 4DT-48(B) TC-4DL4B SV4LB48

0/12-6/12

Approved Venting Components

Venting Parts Code / availability by Manufacturer

SIMPSON

DURA-VENT

46DVA-F6 4DT-AF6 TF-4FA SV4FA — —

SELKIRK

DIRECT

ICC EXCEL

—

SECURE

—

SV4L36

VENT

RLH

INDUSTRIES

— —

MILES

INDUSTRIES

Roof Flashing

7/12-12/12

Flashings

Various Venting System Parts

Flat Roof Flashing 46DVA-FF — TF-4F SV4F — 559FSK

Masonry Flashing — — TF-4MF — — —

Wall Thimble 46DVA-WT 4DT-WT TM-4WT SV4RSM — —

Storm Collar 46DVA-SC 4DT-SC TM-SC SV4AC — —

Decorative Plate 46DVA-DC 4DT-CS TM-4TR SV4PF — —

Cathedral Ceiling

Support

Ceiling Firestop /

Floor Support

Attic Radiation Shield /

Firestop

Wall Strap 46DVA-WS 4DTWS TM-WS — — —

Vinyl Siding Standoff 46DVA-VSS 4DT-VS TM-VSS SV4VS — —

Elbow Strap / Offset

Support

Terminal Guard 46DVA-WG — — — — 835TG

46DVA-F12 4DT-AF12 TF-4FB SV4B — —

46DVA-CS 4DT-CCS — — — —

46DVA-FS 4DT-FS TM-CS

— — TM-4AS — — —

46DVA-ES 4DT-OS TM-OS — — —

SV4BF

SV4SD

— —

Notes: 1) Simpson Dura-Vent co-axial pipes and ttings require Valor 817VAK Starter Adapter to t Valor ’s smooth collars. All other above

manufacturers’ collars will t directly to Simpson Dura-Vent or Valor’s smooth collars. 2) Follow instructions supplied with each manufacturer’s components. 3) Unless otherwise specied, all the parts and assemblies from the above table are to be used with 4” x 6-5/8” pipes.

4) Termination caps manufactured by RLH Industries are from Homestyle Chimney Collection and can be ordered in one of the following

nishes: a) aluminium; b) black powder coated; c) solid copper.

4040

Warranty

If you have a problem with this unit, please contact your dealer or supplier immediately. Under no circumstances should you attempt to service the unit in any way by yourself. The warranties in

paragraphs 1 and 2 are provided only to the rst purchaser/user of

this unit, are not transferable and are subject to the conditions and limitations in paragraphs 3, 4 and 5. Please review the conditions

and limitations carefully and strictly follow their requirements.

1. Extended Warranty Coverage

For a period of up to ten (10) years, Miles Industries Ltd., (the “Company”) or its appointed distributor will at its option pay the initial purchaser for the repair of, or will exchange the following parts or components which are found to be defective in material or workmanship under normal conditions of use and service:

Part or Component Defect Covered Maximum Warranty Period

Exterior steel casing Corrosion 10 years

Glass Loss of structural integrity 10 years

Cast iron parts Corrosion 10 years

Firebox and heat exchanger

Corrosion (but not discoloration) causing

loss of structural integrity

10 years

2. Two-Year Parts Warranty

In addition, for two (2) years from the date of purchase, the Company, at its option, can repair or exchange all parts and components not listed above but that are found to have a bona de defect in material or workmanship under normal conditions of use.

3. Conditions and Limitations

a) The warranty registration card must be completed by the initial owner and returned to the Company within 90 days of purchase. b) Installation and maintenance must be performed by an authorized and trained dealer in accordance with the Company’s installation

instructions.

c) This warranty is void where installation of the unit does not conform to all applicable codes including national and local gas

appliance installation codes and building and re codes. d) The owner must comply with all operating instructions. e) The Company is not responsible for the labor costs to remove defective parts or re-install repaired or replacement parts. f) The rst purchaser or user of the unit will be responsible for any shipping charges for replacement parts as well as travel time

incurred by the dealer to perform the warranty work. g) This warranty applies to non-commercial use and service and is void if it is apparent that there is abuse, misuse, alteration,

improper installation, accident or lack of maintenance to the unit. h) This warranty does not cover damage to the unit through:

i) Improper installation, operational or environmental conditions. ii) Inadequate ventilation in the area or competition for air from other household equipment or appliances.

iii) Damage due to chemicals, dampness, condensation, or sulphur in the fuel supply lines which exceeds industry standards. i) This warranty does not cover glass, log breakage or damage to the unit while in transit. j) The Company does not allow anyone to extend, alter or modify this warranty and assumes no responsibility for direct, indirect or

consequential damages caused by the unit. State or provincial laws where the rst purchaser or user resides may provide specic rights to extend this warranty and, if so, the Company’s sole obligation under this warranty is to provide labor and/or materials in

accordance with those laws.

4. Discharge of Liability

After two (2) years from the date of purchase, the Company may, at its option, fully discharge all obligations under this warranty by paying to the rst purchaser/user the wholesale price of any defective parts.

5. No Other Warranty

All obligations to repair this unit are dened in this warranty. Some states or provinces may specically mandate additional warranties on the part of manufacturers, but in the absence of such specic legislation, there is no other warranty or obligation expressed or implied.

4141

Valor HORIZON 534XAN, HORIZON 534XAP Installation & Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
