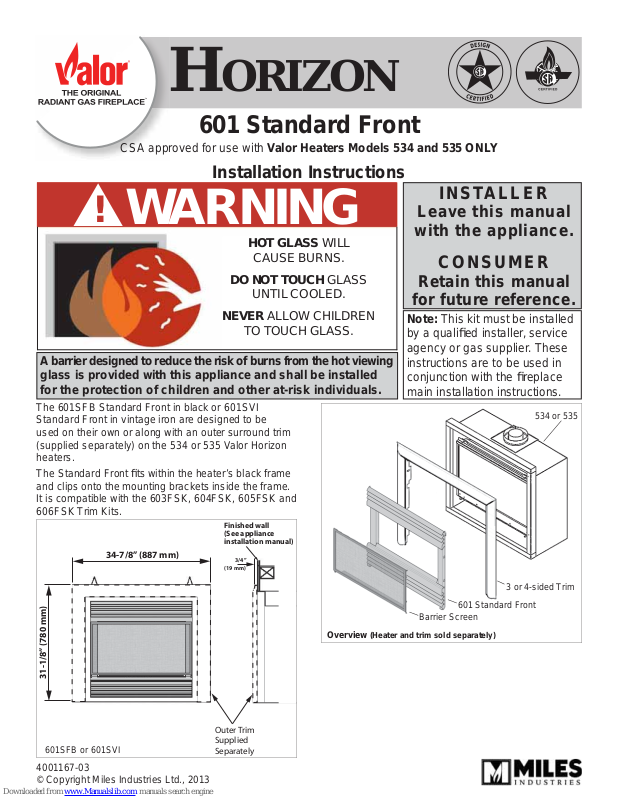

Valor 534, 535, HORIZON 534, HORIZON 535 Installation Instructions Manual

HORIZON

601 Standard Front

CSA approved for use with Valor Heaters Models 534 and 535 ONLY

Installation Instructions

INSTALLER

!

A barrier designed to reduce the risk of burns from the hot viewing
glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.

The 601SFB Standard Front in black or 601SVI
Standard Front in vintage iron are designed to be
used on their own or along with an outer surround trim
(supplied separately) on the 534 or 535 Valor Horizon
heaters.

The Standard Front fi ts within the heater’s black frame
and clips onto the mounting brackets inside the frame.
It is compatible with the 603FSK, 604FSK, 605FSK and
606FSK Trim Kits.

WARNING

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

Finished wall
(See appliance
installation manual)

34-7/8” (887 mm)

3/4”

(19 mm)

Leave this manual

with the appliance.

CONSUMER

Retain this manual

for future reference.

Note: This kit must be installed

by a qualifi ed installer, service
agency or gas supplier. These
instructions are to be used in
conjunction with the fi replace
main installation instructions.

534 or 535

31-1/8” (780 mm)

601SFB or 601SVI

4001167-03
© Copyright Miles Industries Ltd., 2013

3 or 4-sided Trim

601 Standard Front

Barrier Screen

Overview (Heater and trim sold separately)

Outer Trim
Supplied
Separately

Installation

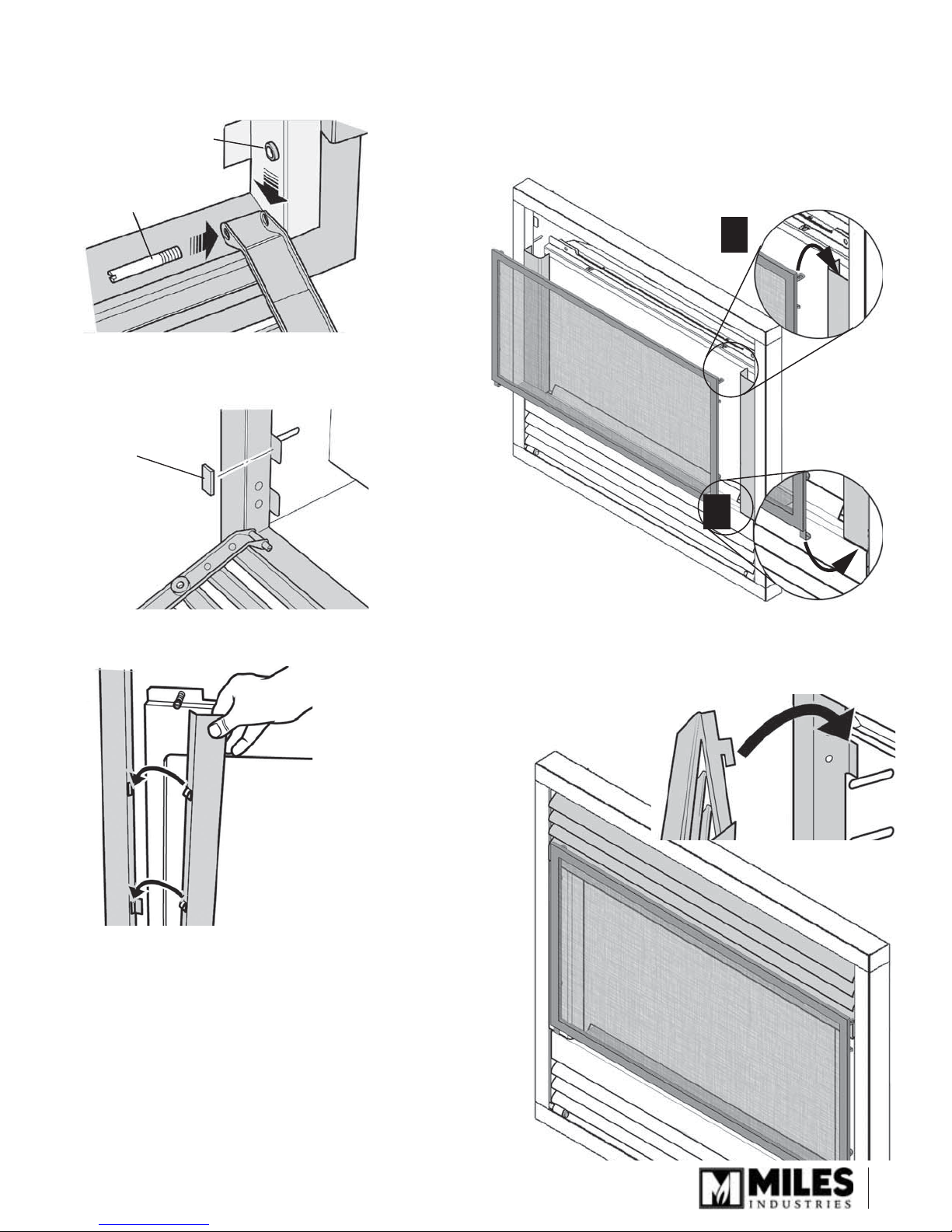

1. Fit the lower louver unit using the hinge studs and
hinge spacers.

Spacer

4. Fit the barrier screen hooking its bottom tabs to the
bottom of the side channels and snapping its top
tabs to the top of the side channels.

Hinge stud

2. Fix the two adhesive backed magnet counter plates
to the tabs at the fi rebox sides, which line up with
the magnets on the lower louver.

Magnet
counterplate

2

1

5. Slide the lower edge of the upper louver behind the
screen and attach the louver by hooking it over the
tabs near the top of the fi rebox sides.

3. Fit the two side channels by hooking into the
openings at the sides of the fi rebox.

2
