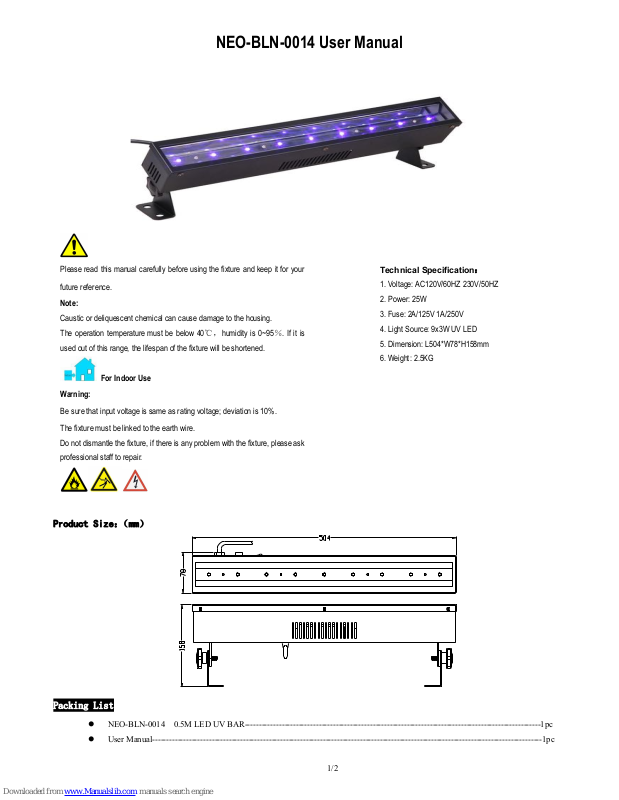

NEO-BLN-0014 User Manual
Product Size：（mm）
Packing List
NEO-BLN-0014 0.5M LED UV BAR--------------------------------------------------------------------------------------------------------1pc
User Manual-----------------------------------------------------------------------------------------------------------------------------------------1pc
Please read this manual carefully before using the fixture and keep it for your
future reference.
Note:
Caustic or deliquescent chemical can cause damage to the housing.
The operation temperature must be below 40℃，humidity is 0~95％. If it is
used out of this range, the lifespan of the fixture will be shortened.
For Indoor Use
Warning:
Be sure that input voltage is same as rating voltage; deviation is 10%.
The fixture must be linked to the earth wire.
Do not dismantle the fixture, if there is any problem with the fixture, please ask
professional staff to repair.
Technical Specification：
1. Voltage: AC120V/60HZ 230V/50HZ
2. Power: 25W
3. Fuse: 2A/125V 1A/250V
4. Light Source: 9x3W UV LED
5. Dimension: L504*W78*H158mm
6. Weight: 2.5KG
Technical Specification：
1. Voltage: AC120V/60HZ 230V/50HZ
2. Power: 25W
3. Fuse: 2A/125V 1A/250V
4. Light Source: 9x3W UV LED
5. Dimension: L504*W78*H158mm
6. Weight: 2.5KG
2/2
Introduction
NEO-BLN-0014 is a LED washer which is made of 9pcs 1w purple LED, it is used for replacement of traditional purple light. This
product is easy operation and easy installation, with a low price and well effect, especially suitable for the wash of Home Party and
Entertainment place.
Side View:
①Power Cable ②Fuse Holder ③ON/OFF Switch
Installation：
This fixture can be used on the flat surface or hanging on the wall or ceiling. If you want to hang it, please be sure that you have fixed the
screw on the wall or ceiling very closely to avoid any problems.
a) Flat surface installation
b) Hanging installation
Trouble shooting：
Problems Check list Trouble Shooting
The machine does
not work
1. If your power is the same as the input of the
machine.
2. If the fuse is broken.
1. Make sure the voltage.
2. Replace the same fuse.
LED dimmed
If your power is the same as the input of the
machine.
Make sure the voltage input.
