Valo VLO1008 Specifications

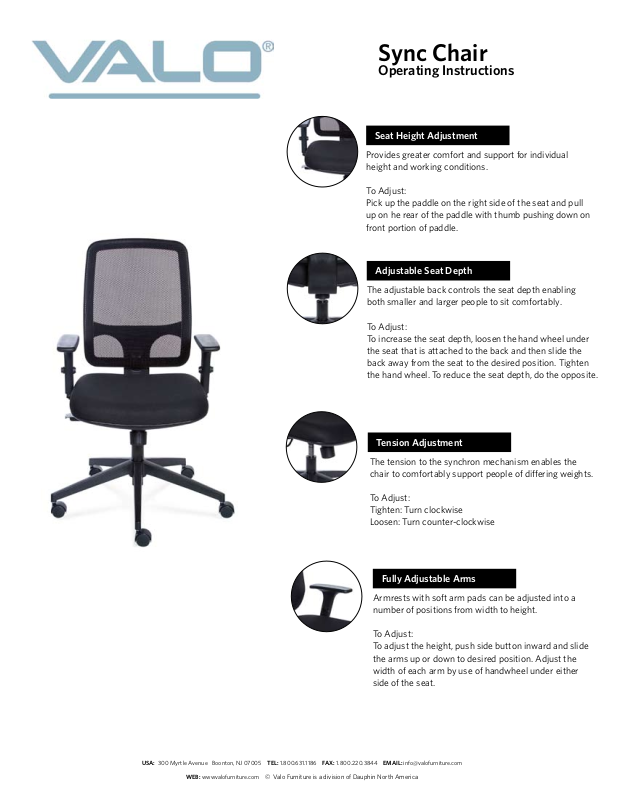

Sync Chair

Operating Instructions

Seat Height Adjustment

Provides greater comfort and support for individual
height and working conditions.

To Adjust:
Pick up the paddle on the right side of the seat and pull
up on he rear of the paddle with thumb pushing down on
front portion of paddle.

Adjustable Seat Depth

The adjustable back controls the seat depth enabling
both smaller and larger people to sit comfortably.

To Adjust:
To increase the seat depth, loosen the hand wheel under
the seat that is attached to the back and then slide the
back away from the seat to the desired position. Tighten
the hand wheel. To reduce the seat depth, do the opposite.

Tension Adjustment

The tension to the synchron mechanism enables the
chair to comfortably support people of differing weights.

To Adjust:
Tighten: Turn clockwise
Loosen: Turn counter-clockwise

Fully Adjustable Arms

Armrests with soft arm pads can be adjusted into a
number of positions from width to height.

To Adjust:
To adjust the height, push side button inward and slide
the arms up or down to desired position. Adjust the
width of each arm by use of handwheel under either
side of the seat.
