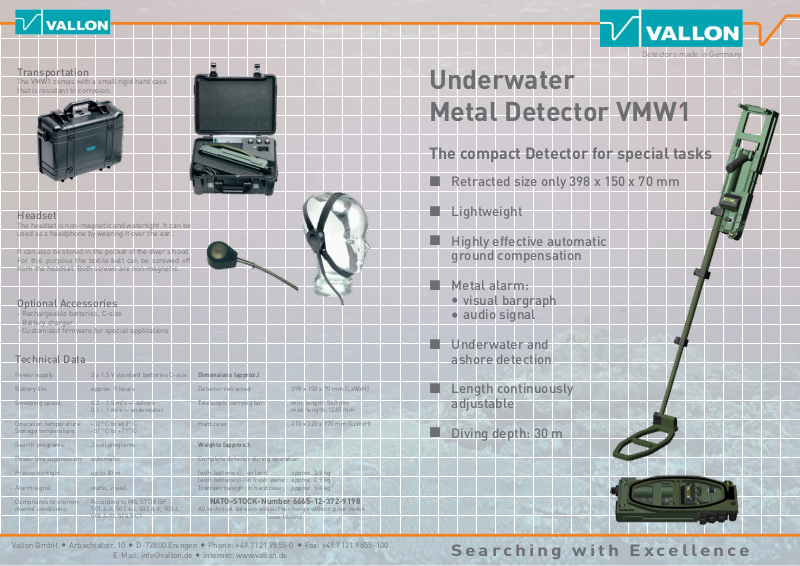

Vallon VMW1 Quick Start Manual

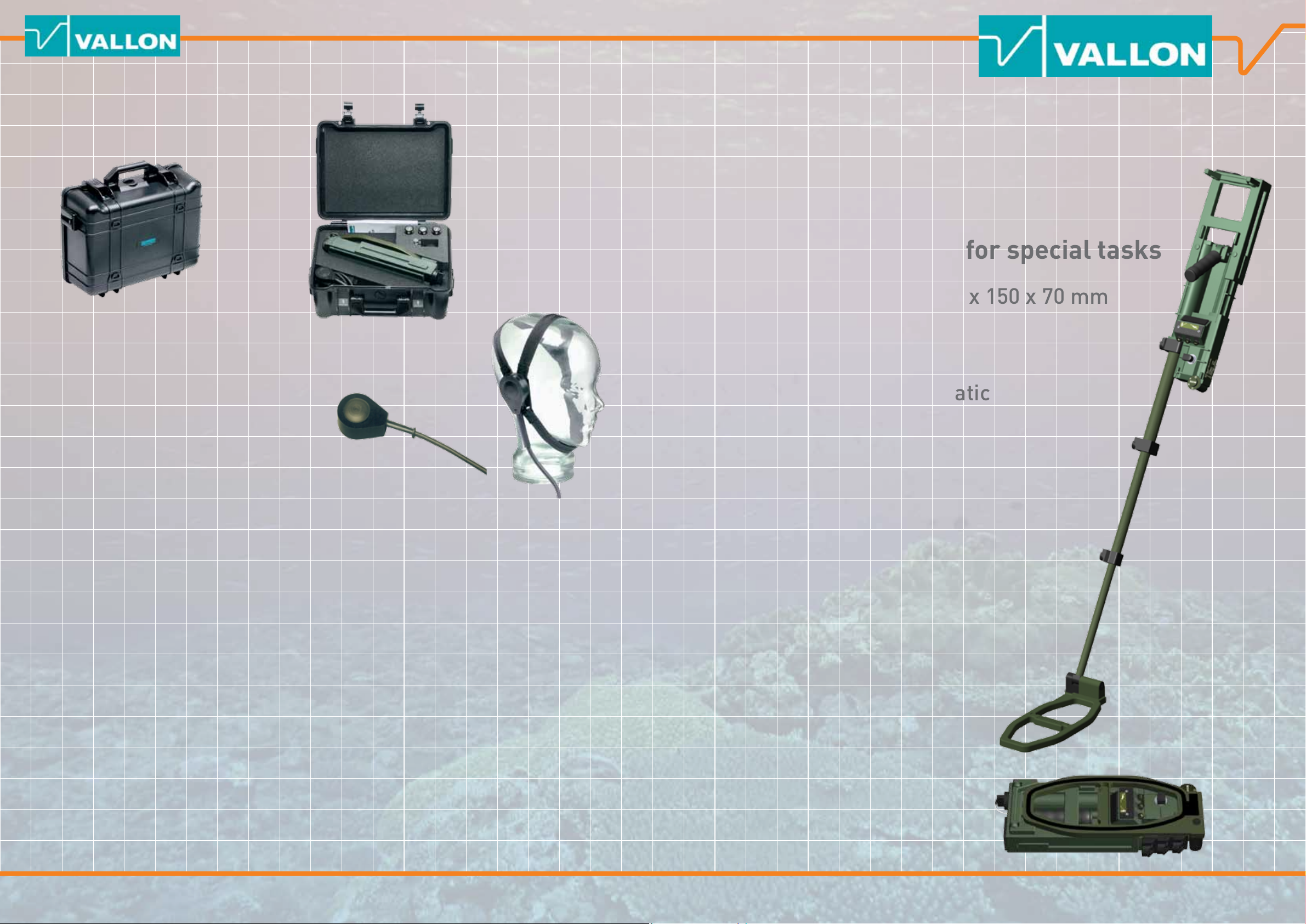

Transportation

The VMW1 comes with a small rigid hard case
that is resistant to corrosion.

Detectors made in Germany

Underwater
Metal Detector VMW1

The compact Detector for special tasks

Headset

The headset is non-magnetic and watertight. It can be
used as a headphone by wearing it over the ear.

It can also be stored in the pocket of the diver’s hood.
For this purpose the textile belt can be screwed off
from the headset. Both screws are non-magnetic.

Optional Accessories

- Rechargeable batteries, C-size

- Battery charger

- Customized firmware for special applications

Technical Data

Power supply: 3 x 1.5 V standard batteries C-size

Dimensions (approx.)

¢

¢

¢

¢




¢

Retracted size only 398 x 150 x 70 mm

Lightweight

Highly effective automatic
ground compensation

Metal alarm:
visual bargraph



audio signal



Underwater and
ashore detection

Battery life: approx. 9 hours

Sweeping speed: 0.3 - 1.5 m/s — ashore

0.1 - 1 m/s — underwater

Operation temperature: -32° C to +63° C
Storage temperature: -51° C to +71° C

Search programs: 2 soil programs

Power line suppression: automatic

Presswatertight: up to 30 m

Alarm signal: audio, visual

Compliance to environ- According to MIL STD 810F
mental conditions: 501.4-II, 502.4-I, 502.4-II, 503.4,

506.4-III, 514.5 C1

Vallon GmbH n Arbachtalstr. 10 n D-72800 Eningen n Phone: [phone] n Fax: [phone]

E-Mail: [e-mail]

Detector retracted: 398 x 150 x 70 mm (LxWxH)

Telescopic carrying bar: min. length: 560 mm
max. length: 1265 mm

Hard case: 410 x 320 x 170 mm (LxWxH)

Weights (approx.):

Complete detector during operation:

(with batteries) - on land: approx. 2.7 kg
(with batteries) - in fresh water: approx. 0.9 kg
Transport weight in hard case: approx. 5.4 kg

NATO-STOCK-Number 6665-12-372-9198

All technical data are subject to change without prior notice.

Issue 10/2012

n

internet: www.vallon.de

¢

¢

Length continuously
adjustable

Diving depth: 30 m

Searching with Excellence

VMW1 UNDERWATER MINE DETECTOR

This new design Vallon Underwater Metal Detector
VMW1 is a retractible detector for demining. It is sup-
plied with a small hard case, housing the complete
mine detecting set. Its small size and light weight fa-
cilitate underwater as well as ashore operations.
In spite of the compact design, Vallon made no con-
cessions regarding its detection performance. The
VMW1 is offering utmost detection sensitivity and de-
tection reliability.
Its state-of-the-art technology as well as its easy op-
eration ensure high equipment dependability.

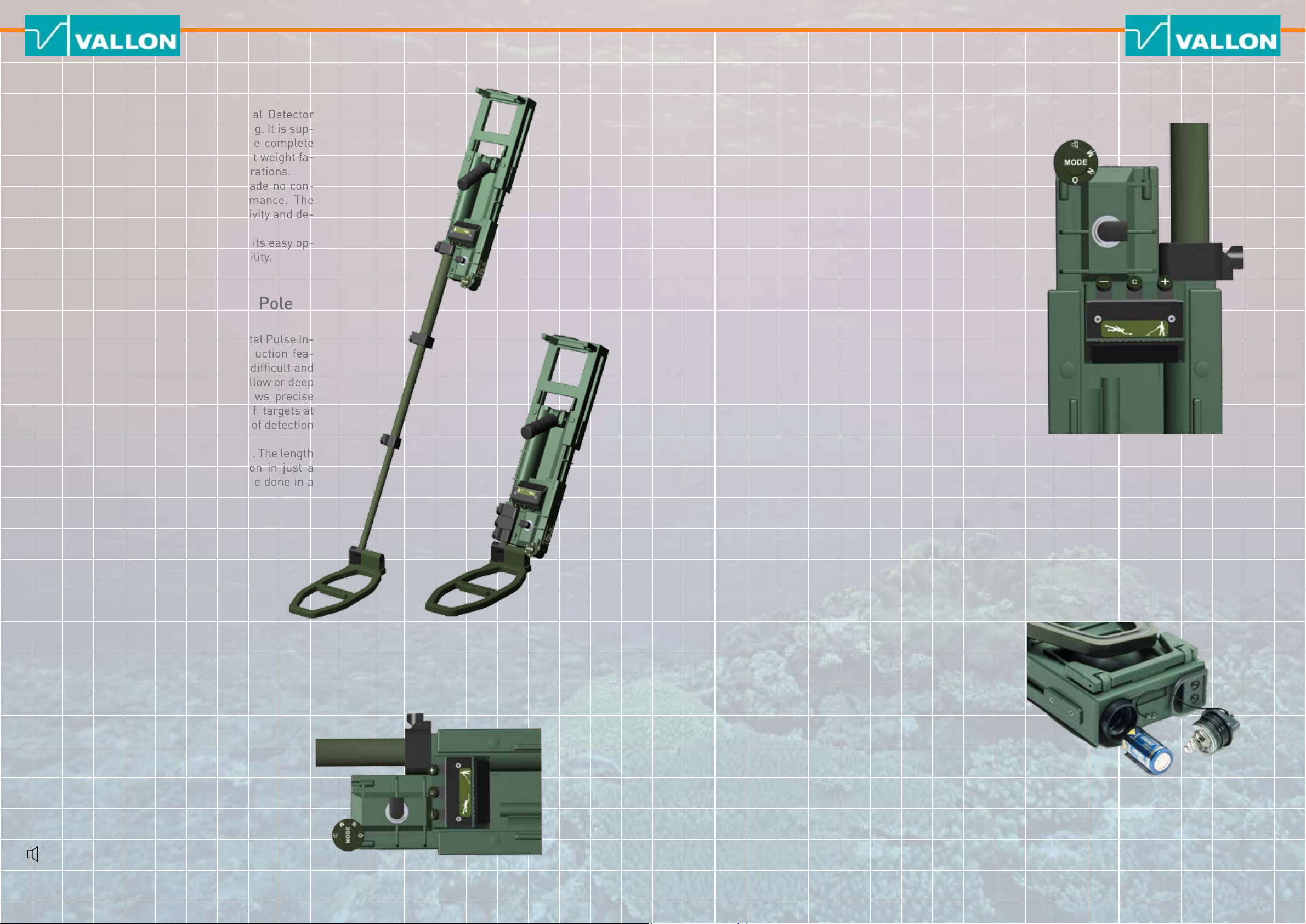

Search Head with Telescopic Pole

The rugged search head contains the Digital Pulse In-
duction Sensor with integrated noise reduction fea-
tures. Its shape allows easy operation in difficult and
dense vegetation ashore as well as in shallow or deep
water and mud. This unique design allows precise
pinpointing and an excellent recognition of targets at
small distance to each other without loss of detection
speed.
The telescopic pole consists of three tubes. The length
is easily adjustable even during operation in just a
few seconds so that detection work can be done in a
standing, kneeling or swimming position.

3 rigid push buttons:

- Decrease sensitivity

+ Increase sensitivity

C compensation

A built-in automatic continuous self check of six
important functions including cable damage and
battery level control is the life insurance for the
deminer. System failures are immediately indicat­ed by a special audio and visual alarm. The auto­matic detection level control guarantees a long­term constant sensitivity for hours of operation,
independent of the battery level, temperature and
other environmental conditions.

Modern Electronics

Detected metals are clearly indicated by

- the non-magnetic headset

- LED bar graph with 14 elements

The operation elements are limited to the following.

Mode Selector:

O: OFF
N: Normal soil
M: Mineralized soil

: Volume control

Setting into Operation

The VMW1 requires only minimum operator training.
The transport case contains a field manual.

- Open the case

- Take out the detector

- Insert the batteries

- Pull out the arm rest

- Lift and pull handle

- Adjust the length of the telescopic pole

- Connect headset

- Switch ON and select operation land or water

- Start searching

Trained operators can start in less than 20 seconds.
