1) Product Description
User Guide
1/4
beep&park®/vision™ is a reverse radar system that helps motorists to park safely
using a rearview camera providing drivers with audio and video information when
reversing.
Datasheet:
Control screen to place on the dashboard or close the central rear-
view mirror
• Colour LCD screen.
• Digital distance readout.
• Adjustable brightness and contrast.
• Detachable screen for protection from theft.
• Built-in diagnostics function
Four ultrasonic sensors
• Four rear sensors for an optimised and consistent detection area.
• Compact sensors for installation on all models and styling compatibility.
• Side-mounted metal clips for high resistance to vibrations.
One Rear camera
• Discreet mini-camera no bigger than a sensor.
• Horizontal wide angle.
• Also works in poor light (< 2 lux).
Loudspeaker
• With Adjustable volume
2) beep&park®/vision™ Functioning
User Guide
2/4

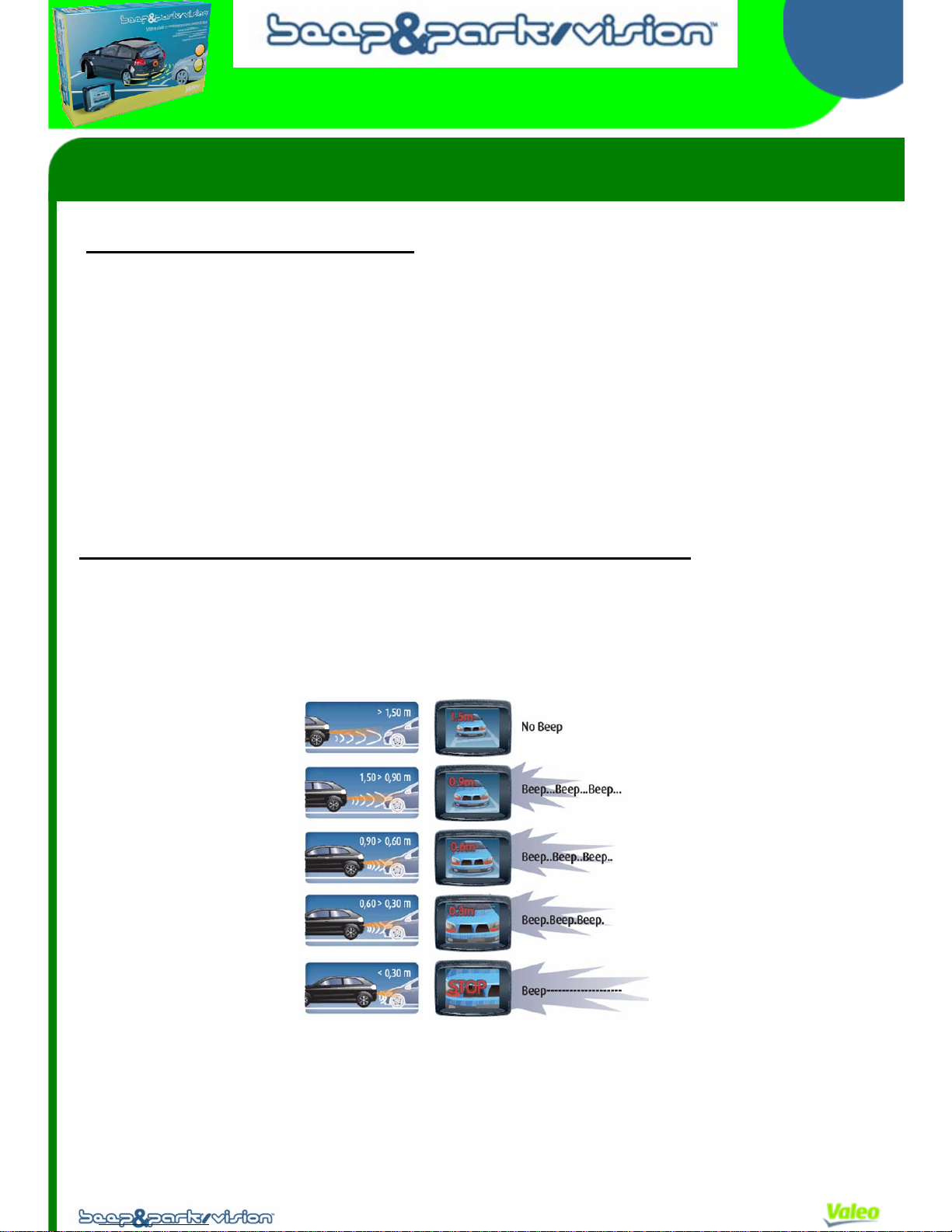

Activation of distances and the audible alert (Park Assist):
• Sensor detection area: : ≤ 2,50m
• Distances displayed on the screen : 1,50m to 30cm
• Audible alert activation threshold: ≤ 1.50m
• Progressively increasing beep in te nsi ty:
Continuous beep - STOP displayed: < 30cm
1) Parking Assistance System :
• Each time you select the reverse gear, the 4 rear sensors are activated to detect the
presence of obstacles at the rear of the vehicle, and the rear Camera transmits information
• beep&park®/vision™ will send you an audible alert (beeps), which intensifies as much as
you get closer to the obstacle, providing you with assistance during your parking
manoeuvres.
• Continuous beep when being at less than 30 cm from the obstacle.
• The Colour screen, located on the dashboard transmits the colour images from the wide
angle camera to give you clear and precise vision of the rear surroundings of the vehicle
• The digital Screen located on the dashboard will indicate the distance and the localisation
of the obstacles located at the rear of the vehicle (left or right)
3) beep&park®/vision™ Settings
User Guide
3/4
1) Sensor Diagnostic Function :
• Select reverse gear. The system tests the 4 rear sensors automatically:
If all of the sensors are working, the system beeps once.
If there is a problem with any of the sensors, the system
beeps 3 times.
• In case of the detection of a problem, please ask an approved Auto
technician to check the sensors. Replacement sensors are available as
spare parts in case of a shock.
2) Screen Settings :
• The screen can easily be removed from its support by simply
clicking it in and out. We recommend you to remove the screen when
leaving vehicle unattended to avoid theft.
• Screen settings buttons; located at the back of the display, enable you to
set image positioning, luminosity and contrast in all circumstances.
• The rear camera Also works in poor light (< 2 lux), and even at night
3) Volume Settings :
• The loudspeaker of beep&park®/vision™ is installed in the boot of your
car. It is fitted with a three positions volume switch:
I : mute
II : Normal
III : Loud
User Guide
Recomendations for Use
Valeo may not be held responsible for the incorrect installation or misuse of the products.
• beep&park®/vision™ helps drivers in their parking manœuvres but does not replace
drivers’ vigilance..
• beep&park
®
/vision™ cannot be fitted on vehicles equipped with a tow bar
• Obstructed sensor may avoid system to function properly. Make sure that the
sensors are clean and not covered with mud, snow or ice.
• If you wish to adapt the colour of the sensors to the colour of your vehicle, we have
paintable sensors available as spare parts.
• We recommend you to remove the screen when leaving vehicle unattended to avoid
theft.
• To maintain good visibility, make sure you keep the camera clean and avoid to place
the camera in contact or close to sharp objects.
• Heavy rain, untidy camera or faulty sensor may cause image to scramble temporary.
• If you wish to connect beep&park®/vision™ with your Satellite Navigation System,
ask you approved auto technician to check compatibility.
• Please do not modify or repair the product on your own. It may cause malfunctions
as well as serious damage to the product and vehicle.
• Make sure to protect the screen and the film from liquid projections while cleaning the
inside of the car. Water may cause damage to electronic circuits and cause electric
shock.
• Avoid contacts with chemical products and detergents as they may case damages to
the surface as well as internal component of the product.
• Avoid all mechanical shock that may cause permanent damage to electronic and
electrical components and lead to a functional deteriorations
• If the system does not beep, check that the volume level is not set at minimum.
• In case of a accident, spare parts are available through your usual distribution
channel.
4/4
