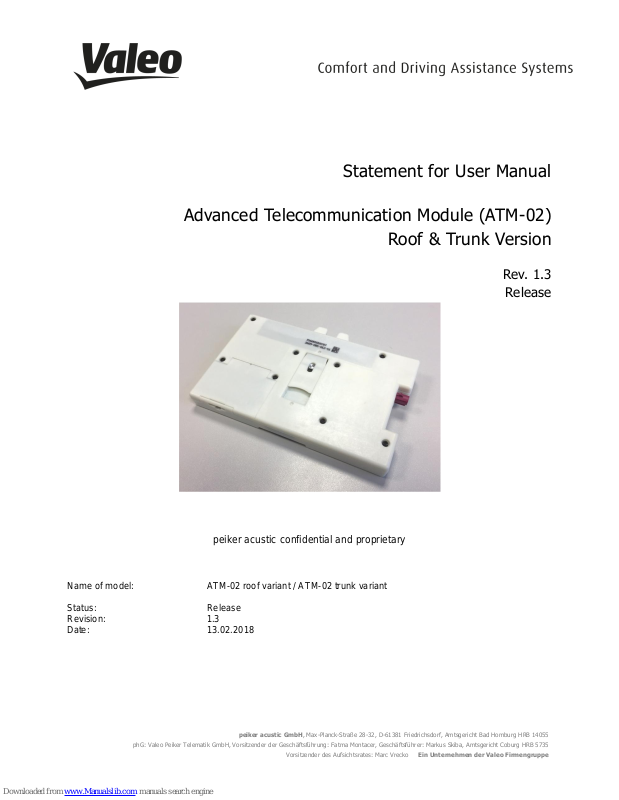

Statement for User Manual
Advanced Telecommunication Module (ATM-02)
Roof & Trunk Version
Rev. 1.3
Release
peiker acustic confidential and proprietary
Name of model:
ATM-02 roof variant / ATM-02 trunk variant
Status:
Release
Revision:
1.3
Date:
13.02.2018
________________________________________________________________________________________________________________________________
Page 2
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
Table of Contents
1. Change Dokumentation ..................................................................................................................... 3
2. Introduction ....................................................................................................................................... 4
2.1. Scope ......................................................................................................................................... 4
2.1.1. Purpose of the document .................................................................................................... 4
2.1.2. General Information ............................................................................................................. 4
2.1.3. Contact Information ............................................................................................................. 4
3. Description of the product .................................................................................................................. 5
3.1 Use Cases of the product ........................................................................................................... 5
3.2 Roof and Trunk version of ATM-02 ............................................................................................. 6
3.3 Photos ........................................................................................................................................ 7
3.4 Dimensions ................................................................................................................................ 9
3.5 Product variants ....................................................................................................................... 10
4. Hardware ......................................................................................................................................... 11
4.1 Features ................................................................................................................................... 11
4.2 Environmental conditions ......................................................................................................... 12
4.3 Frequency bands...................................................................................................................... 13
4.3.1 ATM-02-ECE-R1 and ATM-02-ECE-T1 ............................................................................. 13
4.3.2 ATM-02-US-R1 and ATM-02-US-T1 .................................................................................. 14
4.3.3 ATM-02-CHN-R1 and ATM-02-CHN-T1 ............................................................................ 14
4.3.4 ATM-02-MEX-R1 and ATM-02-MEX-T1 ............................................................................ 15
4.3.5 ATM-02-ROW-R1 and ATM-02-ROW-T1 .......................................................................... 16
5. Warning Statements for the User Manual ........................................................................................ 17
5.1 Europe ..................................................................................................................................... 17
5.2 US /Canada .............................................................................................................................. 17
5.3 Modifications ............................................................................................................................ 17
5.4 RF Exposure Statement (MPE) ................................................................................................ 17
5.5 Brazil ........................................................................................................................................ 18
5.6 Taiwan ..................................................................................................................................... 18
5.7 Mexico ...................................................................................................................................... 19
5.8 Japan ....................................................................................................................................... 19
5.9 China........................................................................................................................................ 19
5.10 Korea ....................................................................................................................................... 19
6. Battery replacement ........................................................................................................................ 20
________________________________________________________________________________________________________________________________
Page 3
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
1. Change Dokumentation
Date
Revision
Name
Changes /Comment
08.12.2017
1.0
Roman Leimenstol
Initial Version
31.01.2018
1.1
Roman Leimenstol
Updated version on all variants
08.02.1018
1.2
Roman Leimenstol
Add frequency bands
13.02.2018
1.3
Roman Leimenstol
Add frequency bands for each variant
Notice
The information in this document has been carefully reviewed and is believed to be accurate.
Nevertheless, this document is subject to change without notice, and peiker acustic assumes no
responsibility for any inaccuracies that may be contained in this document and makes no commitment to
update the contained information, or to notify a person or organization of any updates. Peiker acustic
reserves the right to make changes to the product, at any time, in order to improve reliability, function or
design. Peiker acustic does not represent that products described herein are free from patent
infringement or from any other third party right. No part of this document may be reproduced, adapted or
transmitted in any form or by any means for any purpose, except as explicitly allowed in a written
agreement signed by peiker acustic. Peiker acustic or its affiliates may have patents or pending patent
applications, trademarks, copyrights or other intellectual property rights that apply to the ideas, material
and information expressed herein.
Confidential. All rights reserved. This document is peiker acustic GmbH restricted document. According
to the Standards of Business Conduct, this document may not be shared outside peiker acustic GmbH.
This document may be shared with the customer, if appropriate agreement for professional services
exists.
________________________________________________________________________________________________________________________________
Page 4
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
2. Introduction
2.1. Scope
2.1.1. Purpose of the document
The Advanced Telecommunication Module (ATM-02) roof and trunk variant is manufactured by peiker
acustic GmbH (grantee) and sold as an OEM product.
According to the US Code of Federal Regulations (47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc.),
the grantee must ensure the end-user has the applicable and appropriate operating instructions for the
device. In the case of this product the grantee must notify the OEM to notify the end-user.
Peiker acustic GmbH will supply this document to the reseller or distributor to inform him what must be
included in the end user’s manual for the commercial product and which installations guidelines for the
antenna are applicable.
2.1.2. General Information
The ATM-02 is assembled in the car during production. There are no other distribution channels than
assembly in the cars production line or spare part replacement within car service. Please be advised that
this product will need special trained professionals in configuring and installing the product. The product
will be distributed through controlled distribution channel which has special trained professionals to
install this product and will not be sold directly to the general public through retail stores.
The ATM02 trunk variant is mounted invisible to the driver in the car behind the trunk cover panels.
There are no direct interfaces to the driver or passengers. The ATM-02 is connected to the cars internal
bus and control systems. The ATM-02 uses the external antenna of the car for cellular communications.
2.1.3. Contact Information
peiker acustic GmbH
Max-Planck-Straße 28-32
D-61381 Friedrichsdorf
Germany
http://www.valeo.com
________________________________________________________________________________________________________________________________
Page 5
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
3. Description of the product
The Advanced Telecommunication Module 2 (ATM-02) is designed and produced by peiker acustic
exclusively for OEM. The ATM-02 is assembled in the car during production. There are no other
distribution channels than assembly in the cars production line or spare part replacement within car
service.
The ATM-02 is mounted invisible to the driver in the car under the roof plane or in the trunk area. In the
roof version, the antenna is directly connected to the ATM-02. The trunk version is connected by wire to
the antennas. The only direct interface of the ATM to the driver or passenger is a dedicated push button
and LED (i.e. Mayday LED) to trigger an emergency call and signal the call status. Except this button
and the LED, there are no direct interfaces of the ATM to the driver or passengers.
The ATM-02 is connected to the internal bus and control systems of the car. The ATM-02 uses the
external antenna of the car and contains an internal backup antenna. The ATM-02 uses a factory
mounted embedded SIM card (MFF2).
3.1 Use Cases of the product
The Advanced Telecommunication Module 2 is designed as the car’s interface to the outer world in form
of data and voice communication. Typical use cases are as follows:
Exchange of diagnostic data between the vehicle and the OEM server and OEM backend.
Voice connection between vehicle and public safety answering point or vehicle and OEM call centers
Interface to networks for data exchange to support infotainment and comfort functions.
Network access service for data exchange e.g. supporting OEM-specific assist services and other
online services like weather, maps, emails for in car use.
Contains a GNSS receiver supporting GPS, GLONASS and Galileo satellite navigation systems for
position determination to be used with further services
The ATM-02 is connected to the vehicle internal bus (CAN-Bus) and network interface (OABR). It is
automatically powered up if it receives a special signal via the car bus (CAN-Bus), e.g. when the car is in
drive mode. The ATM-02 is also powered up with an out of band signaling from the cellular network, e.g.
via a receiving SMS from the OEM service center (wake up message).
The concierge calls (i.e. service calls) are performed via the multimedia audio interface of the vehicle
and the head unit (HU) provides the user interface for this type of call. The audio signal is transmitted
digitally via VoIP.
In case of an emergency OEM Assist call the ATM-02 is able to perform an autonomous mobile
originated call using the microphone and the loudspeaker connected directly to the device. The voice call
itself is fully handled by the ATM-02. This call is originated automatically e.g. in case of a crash triggered
by the Airbag ECU or manually with a service button in the control panel of the vehicle. In this case the
head unit of the car is not involved in the connection.
________________________________________________________________________________________________________________________________
Page 6
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
3.2 Roof and Trunk version of ATM-02
For ATM-02 there are two assembly situations in the vehicle. Therefore, two versions of the ATM-02 are
used: the roof version and the trunk version.
The roof version is direct mounted with the roof antenna and has a direct connector with it. Also a
internal backup antenna is included in the roof version of ATM-02. RF signals, which are not use from
ATM-02 as DAB or SDARS, go through the ATM-02 to an external connector. Telephone antennas are
connected via a splitter to provide the signal also to the vehicle.
The trunk version is installed in the trunk. In each case spatially separated from the antennas. The main
antennas and the backup antenna are external. The trunk version of the ATM-02 does not contain an
internal backup antenna.
Figure 1: drawing - ATM-02 trunk version (orange) mounting example
Both variants are equipped with the same PCB board based on the same master circuit diagram. The
10-pole and 20-pole connectors to the vehicle infrastructure are identical. Both versions are using
identical materials for the housing and are equipped with the same backup battery type and battery
protection circuits. The internal backup antenna is only assembled in the ATM-02 roof variant.
