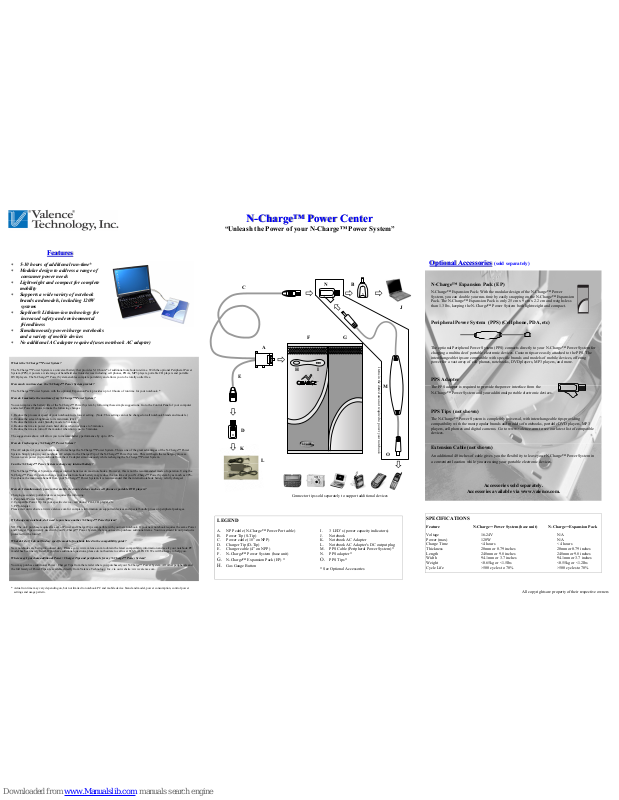

NN--Charge™ Power Center
Charge™ Power Center
“Unleash the Power of your N-Charge™ Power System”
All copyrights are property of their respective owners
* Actual run time may vary depending on, but not limited to notebook PC and mobile device brand and model, power consumption, control power
settings and usage pattern.
Connector tips sold separately to support additional devices
A
B
D
E
C
F G
H I
J
K
L
M
N
O
N-Charge™ Expansion Pack (EP)
N-Charge™ Expansion Pack: With the modular design of the N-Charge™ Power
System, you can double your run-time by easily snapping on the N-Charge™ Expansion
Pack. The N-Charge™ Expansion Pack is only 25 cm x 9 cm x 2.2 cm and weighs less
than 1.3 lbs, keeping the N-Charge™ Power System both lightweight and compact.
Peripheral Power System (PPS) (Cell phone, PDA, etc)
The optional Peripheral Power System (PPS) connects directly to your N-Charge™ Power System for
charging a multitude of portable electronic devices. Custom tips are easily attached to the PPS. The
interchangeable tips are compatible with specific brands and models of mobile devices, offering
power for a vast array of cell phones, notebooks, DVD players, MP3 players, and more.
PPS Adapter
The PPS adapter is required to provide the power interface from the
N-Charge™ Power System and your additional portable electronic devices.
PPS Tips (not shown)
The N-Charge™ Power System is completely universal, with interchangeable tips providing
compatibility with the most popular brands and models of notebooks, portable DVD players, MP3
players, cell phones and digital cameras. Go to www.valence.com to see our latest list of compatible
devices.
Extension Cable (not shown)
An additional 40 inches of cable gives you the flexibility to leave your N-Charge™ Power System in
a convenient location while you are using your portable electronic devices.
Accessories sold separately.
Accessories available via www.valence.com.
What is the N-Charge™ Power System?
The N-Charge™ Power System is a universal battery that provides 5-10 hours* of additional notebook run-time. With the optional Peripheral Power
System (PPS), it powers a wide range of handheld electronic devices including cell phones, PDAs, MP3 players, portable CD players and portable
DVD players. The N-Charge™ Power System enables complete portability and allows you to be totally outlet free.
How much run time does the N-Charge™ Power System provide?
The N-Charge™ Power System with the optional Expansion Pack provides up to 10 hours of run time for your notebook. *
How do I maximize the run time of my N-Charge™ Power System?
You can improve the battery life of the N-Charge™ Power System by following these simple suggestions. Go to the Control Panel of your computer
and select Power Options to make the following changes:
1. Reduce the processor speed of your notebook to its lowest setting. (Note: This setting can not be changed on all notebook brands and models.)
2. Reduce the screen brightness to its minimum level.
3. Reduce the time to enter Standby mode to 5 minutes.
4. Reduce the time to power down hard drives when not in use to 5 minutes.
5. Reduce the time to turn off the monitor when not in use to 5 minutes.
The suggestions above will allow you to increase battery performance by up to 20%.
How do I recharge my N-Charge™ Power System?
The AC adapter of your notebook is used to recharge the N-Charge™ Power System. This is one of the great advantages of the N-Charge™ Power
System. Simply plug in your notebook AC adapter to the Charger Tip of the N-Charge™ Power System. This will begin the recharging process.
You can even power your notebook from the AC adapter simultaneously while recharging the N-Charge™ Power System.
Can the N-Charge™ Power System recharge my internal battery?
The N-Charge™ Power System recharges internal batteries on most notebooks. However, this is not the recommended mode of operation. Using the
N-Charge™ Power System to charge your internal notebook battery may reduce the run time of your N-Charge™ Power System by as much as 20%.
To achieve the maximum benefit from your N-Charge™ Power System, it is recommended that the internal notebook battery is fully charged.
How do I simultaneously power other mobile electronic devices such as cell phone or portable DVD players?
Charging secondary portable devices requires the following:
1. Peripheral Power System (PPS).
2. Compatible Power Tip for your specific device - cell phone, PDA, CD player, etc.
3. PPS Adapter.
Please visit our web site at www.valence.com for complete information on supported devices and special bundle prices on peripheral packages.
If I change my notebook, do I need to purchase another N-Charge™ Power System?
NO. The only purchase required is a set of Power and Charger Tips compatible with your new notebook. If your new notebook requires the same Power
and Charger Tips currently used with your N-Charge™ Power System, there is no need to purchase additional items. Your investment in our product is
protected for the future!!
What do I do if I do not find my specific model of notebook listed in the compatibility guide?
New notebooks are being introduced daily. Please go to www.valence.com to obtain the latest compatibility information and see if your notebook PC
model has been newly listed. If you have additional questions, please do not hesitate to call us at 888-VALENCE. We will be happy to help you.
Where may I purchase additional Power / Charger Tips and peripherals for my N-Charge™ Power System?
You may purchase additional Power / Charger Tips from the retailer where you purchased your N-Charge™ Power System. All other peripherals and
the full family of Power Tips are available directly from Valence Technology, Inc. via our website: www.valence.com.
Features
Features
∗ 5-10 hours of additional run-time*
∗ Modular design to address a range of
consumer power needs
∗ Lightweight and compact for complete
mobility
∗ Supports a wide variety of notebook
brands and models, including 120W
systems
∗ Saphion® Lithium-ion technology for
increased safety and environmental
friendliness
∗ Simultaneously power/charge notebooks
and a variety of mobile devices
∗ No additional AC adapter required (uses notebook AC adapter)
SPECIFICATIONS
Feature N-Charge™ Power System (base unit) N-Charge™ Expansion Pack
Voltage 16-24V N/A
Power (max) 120W N/A
Charge Time <4 hours < 4 hours
Thickness 20mm or 0.79 inches 20mm or 0.79 inches
Length 24 8mm or 9.8 inches 248mm or 9.8 inches
Width 94.1mm or 3.7 inches 94.1mm or 3.7 inches
Weight <0.65kg or <1.5lbs <0.55kg or <1.2lbs
Cycle Life >500 cycles to 70% >500 cycles to 70%
LEGEND
A. NPP cable (N-Charge™ Power Port cable)
B. Power Tip (S-Tip)
C. Power cable (18” on NPP)
D. Charger Tip (D-Tip)
E. Charger cable (4” on NPP)
F. N-Charge™ Power Syste m (base unit)
G. N-Charge™ Expansion Pack (EP) *
H. Gas Gauge Button
I. 3 LED’s (power capacity indicators)
J. Notebook
K. Notebook AC Adapter
L. Notebook AC Adapter’s DC output plug
M. PPS Cable (Peripheral Power System) *
N. PPS adapter *
O. PPS Tips *
* See Optional Accessories
Optional Accessories
Optional Accessories
(sold separately)
Items in the dotted area not required to power your notebook
S
D
P/N: 1001172
N-Charge™ Power System
Safety Information
The N-Charge™ Power System must be used in accordance with the
manufacturer’s specifications and guidelines for recommended use. When
used properly and in accordance with these instructions, the N-Charge™
Power System is a safe, reliable and convenient portable energy solution.
Caution: Misuse or abuse of the N-Charge™ Power
System may result in personal injury or fire.
DO NOT crush, puncture, throw, drop, disassemble or otherwise damage
the N-Charge™ Power System.
Do not use or store above 60°C (140°F). Do not incinerate. Do not operate
or store the N-Charge™ Power System near high temperature locations or
fire.
• The N-Charge™ Power System must be stored between -20°C (-4°
F) and 60°C (140°F).
• The N-Charge™ Power System must be operated between -10°C
(14°F) and 35°C (95°F).
Do not immerse in or apply water or any other liquid to the N-Charge™
Power System.
Use accessory cables manufactured by Valence Technology, Inc. only.
When disconnecting the N-Charge Power Port (NPP) Cable Assembly from
the N-Charge™ Power System or notebook computer, pull using the port
rather than the cable to reduce the risk of damage to the power port or
N-Charge™ Power System.
Use the N-Charge™ Power System with specified equipment only. Charge
only with the AC adapter supplied with your notebook computer. If you
wish to use the N-Charge™ Power System with a different notebook or
mobile device, please contact the manufacturer for a list of suitable options.
Please Note: The International Civil Aviation Organization and the US
HMR prohibit transport of lithium-ion cells or batteries in checked
baggage aboard passenger aircrafts. All lithium-ion batteries must be
transported in carry-on baggage only.
!
Connect N-Charge™ system to EP
Rail Installation
Limited Warranty
N-Charge™ Power System Limited
Warranty
Valence Technology, Inc. (“Valence”) warrants the N-Charge™ Power System and its
components (“Product”) as free from defects in materials or workmanship under normal
use for a period (“Warranty Period”) of one (1) year from the date of original retail
purchase. This warranty applies to the original purchaser (the “Customer”) only and is
non-transferable.
During the Warranty Period, should the Product, in Valence’s opinion, malfunction,
Valence’s sole liability shall be, at Valence’s sole discretion and at no charge to the
Customer, to either repair or replace the malfunctioning Product with a similar product, or
to refund the purchase price of the Product, provided that the malfunctioning Product is
returned within the Warranty Period, freight prepaid, to the place of purchase or call 888Valence for return instructions. Each returned Product must include a written statement
detailing the nature of the claimed defect, as well as the Customer’s name, address, phone
number and a copy of the original sales receipt showing the date of purchase.
Warranty is void if Valence determines the Product has been:
1. serviced by anyone other than Valence;
2. modified by improper installation of third-party products or otherwise;
3. damaged from accident, misuse, misapplication or abuse;
4. damaged by improper transportation or packing when returned by the
Customer to Valence;
5. damaged by unusual physical stress or interference, failure or
fluctuation of electrical power, lightning, static electricity, fire, or other
acts of God; or
6. operated outside of the parameters of the Safety and Instruction
Manual.
THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, WHETHER
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A SPECIFIC PURPOSE.
THE REMEDY SET FORTH HEREIN SHALL BE THE SOLE, EXCLUSIVE REMEDY
WITH RESPECT TO THE PRODUCT.
No person is authorized to make any other warranty or representation concerning the
performance of the Product. Some jurisdictions do not allow exclusion of implied
warranties, so the above exclusions may not apply to you. Any limited warranties that
cannot be disclaimed are hereby limited to a term of one (1) year from the date of original
retail purchase or, in the event relevant state law requires an implied warranty term
exceeding one (1) year, for the briefest term allowable under relevant state law. Some
states do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you.
Under no circumstances will Valence be liable for any indirect, special, incidental, or
consequential damages, including any loss of revenue, loss of profit, or loss of data
whether based on warranty, contract, tort, or any other legal theory, even if Valence has
been advised of the possibility of such damages. Valence shall not be liable for any claims
made by any third party or made by the Customer directly or indirectly on behalf of any
third party. Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Valence reserves the right to change Product specifications or to discontinue the Product
or other Valence products without prior notice.
This warranty supercedes all previous Valence product warranties.
Installing Your N-Charge™ Expansion Pack (EP)
• Slide rails onto your N-Charge™ Expansion Pack (EP).
• Notice the edge closest to the locking hole must be installed first.
Setup Guide
• Lock the NPP to the N-Charge™ Power System.
• Place rubber feet on the bottom of the N-Charge™ Power System in
the eight designated circle areas to provide stability on host surface
and improve airflow.
• Align both sides of your N-Charge™ Power System.
• Slide your N-Charge™ Power System using the rails and ensure the
connection to the EP is tight and secure. The buttons should snap
into the rails.
• Disconnect your N-Charge™ Power System from the AC adapter of
your notebook.
• Connect the Power Tip to your notebook AC adapter input. Your
notebook will now draw power from the N-Charge™ Power System.
• To check charge capacity, momentarily depress the Gas Gauge
button.
• When your N-Charge™ Power System is fully discharged, control
will be transferred back to your notebook’s internal battery.
• Gas Gauge Operation is identical with your N-Charge™ Expansion
Pack attached. See Gas Gauge Operation under Step 2-5 of the
Assembling and Charging Your N-Charge™ Power System section.
• Note: You can also charge your N-Charge™ Power System while it
is connected to your notebook by simply attaching your AC adapter
to the Charger Tip on your NPP. Your AC adapter is passing power
directly through to your notebook. Any extra capacity will be used
to charge your N-Charge™ Power System simultaneously.
© 2004 Valence Technology, Inc.
The information contained herein is subject to change without notice.
Valence shall not be liable for technical or editorial errors or omissions
contained herein.
February 2004
VALENCE SUPPORT
USA
EUROPE
www.valence.com www.valence.com
Toll Free: 1-888-Valence Technical support: +44 (0)2890-845411
Hours: M-F 8am-6pm CST Hours: M-F 9am-5pm UK Time
Email: n-charge@valence.com Email: n-charge.europe@valence.com
Select Power/Charger Tips (S/D Tips)
• Both a Power and a Charger Tip are required to use your N-Charge™
Power System. If you are unable to find your specific model listed in
the printed guide, please contact Valence at 800-VALENCE or
www.valence.com/TODO for information on the selecting the correct
tip combination for your notebook.
• Please select the correct Power and Charger Tip combination for your
notebook. Please consult the Compatibility Guide printed on the back
of the tip retail box to find the right tips for your machine. Choosing
the wrong Power or Charger Tip may damage your computer or
result in malfunction.
Issue Probable Cause Possible Solution
N-Charge™ Power No input or output Verify all connections
System does not power Ensure AC adapter is
appear to be charging plugged in
Check power at outlet
N-Charge™ System N-Charge™ NPP cable Disconnect the N-Charge
appears to be losing is attached to N-Charge system NPP cable from the
its charge over a system when it is not in N-Charge system when not
short period of time use in use
Laptop not listed on Compatibility is always See www.valence.com for
current compatibility changing compatibility information
list
Handheld or cellular PPS adapter not installed Connect PPS adapter to
phone not charging properly to Power Tip on NPP cable
when PPS is con-
figured
Gas Gauge LEDs Possible internal Call Valence Tech Support
are blinking or are malfunction
lit out of sequence
from left to right
Product Registration
Use the registration card or visit http://valence.com/productregister.asp
5
Powering Your Notebook
• Disconnect your N-Charge™ Power System from the AC adapter of
your computer
• Connect the Power Tip to your notebook AC adapter input. Your
notebook will now draw power from the N-Charge™ Power System.
• To check charge capacity, momentarily depress the Gas Gauge
button.
• When your N-Charge™ Power System is fully discharged, control
will be transferred back to your notebook’s internal battery.
• Note: You can also charge your N-Charge™ Power System while it
is connected to your notebook by simply attaching your AC adapter
to the Charger Tip on your NPP. Your AC adapter is passing power
directly through to your notebook. Any extra capacity will be used
to charge your N-Charge™ Power System simultaneously.
6
3
Assembling and Charging Your N-Charge™ Power System
1
4
• Lock the NPP into your N-Charge™ Power System.
• Place rubber feet on the bottom of the N-Charge™ Power System in
the four designated circle areas to provide stability on host surface
and improve airflow.
Troubleshooting Tips
Optimize Performance
Please follow these guidlines to maximize the life of your N-Charge™
Power System and get th e best possible run times with your notebook:
1. We strongly recommend using the optional N-Charge™ Expansion
Pack when using your N-Charge™ Power System with 120W note-
books.
2. Ensure that your N-Charge™ Power System is fully charged before
initial use.
3. Reduce the processor speed of your notebook to the lowest setting.
4. Reduce the screen brightness of your notebook to the lowest level that
is comfortable for you.
5. Ensure that your internal notebook battery is fully charged when using
your N-Charge™ Power System to avoid accidental data loss.
6. Fully charge and discharge your N-Charge™ Power System at least
once a week.
7. Attach the supplied rubber feet to the base of the unit to allow air flow
under the N-Charge™ Power System.
Storage and Handling
1. Extended operation of your N-Charge™ Power System at
temperatures above 45° C (113° F), can reduce cycle life and/or
damage to your system.
2. Do NOT run your N-Charge™ Power System in a fully insulated
area, such as a carrying case.
3. Do NOT leave your N-Charge™ system exposed to direct sunlight.
4. If storing for prolonged periods, disconnect the NPP cable.
5. Store your N-Charge™ Power System in a cool dry place.
IMPORTANT
Empty
Low
Medium
High
To check charge capacity, momentarily depress the Gas Gauge button.
• While charging, the lights are active without pressing the Gas Gauge
button.
• Note: If lights are blinking or not sequentially lit from left to right,
stop using the product and please call Valence Support immediately.
Gas Gauge Operation
Step 1 Step 2 Step 3
Connect Tips to NPP Cable
• Connect the Power Tip (S) and Charger Tip (D) to the N-Charge
System Power Port (NPP) Cable as shown in Figure 1.
• Ensure that the tips are connected tightly to the NPP cable ends and
are not loose.
• Note: If you have already purchased an Expansion Pack, please
refer to the Installing Your N-Charge™ Expansion Pack section.
All others continue with Step 3.
2
(S)
(D)
Figure 1
• Slide the NPP cable into your N-Charge™ Power System.
S
D
• Plug your notebook AC adapter (included with your notebook) into the
Charger Tip on your NPP.
• Plug the AC adapter into a wall outlet to start charging your
N-Charge™ Power System .
• The Gas Gauge LEDs will light up and stay lit as your N-Charge™
Power System is being charged.
• When your N-Charge™ Power System is fully charged, the LEDs will
shut off. Your N-Charge™ Power System is now fully charged and
ready for use.
• Plug your notebook AC adapter (included with your notebook) into the
Charger Tip on your NPP.
• Plug the AC adapter into a wall outlet to start charging your
N-Charge™ Power System .
• The Gas Gauge LEDs will light up and stay lit as your N-Charge™
Power System is being charged.
• When your N-Charge™ Power System is fully charged, the LEDs will
shut off. Your N-Charge™ Power System is now fully charged and
ready for use.
Loading...
