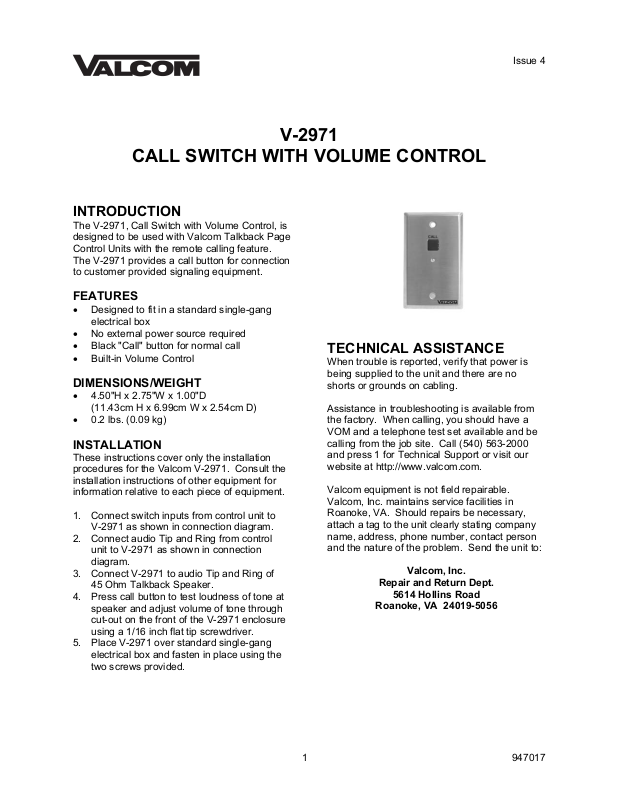

Valcom V-2971 Service Manual

V-2971

CALL SWITCH WITH VOLUME CONTROL

INTRODUCTION

The V-2971, Call Switch with Volume Control, is
designed to be used with Valcom Talkback Page
Control Units with the remote calling feature.
The V-2971 provides a call button for connection
to customer provided signaling equipment.

FEATURES

• Designed to fit in a standard single-gang
electrical box

• No external power source required

• Black "Call" button for normal call

• Built-in Volume Control

DIMENSIONS/WEIGHT

• 4.50"H x 2.75"W x 1.00"D
(11.43cm H x 6.99cm W x 2.54cm D)

• 0.2 lbs. (0.09 kg)

INSTALLATION

These instructions cover only the installation
procedures for the Valcom V-2971. Consult the
installation instructions of other equipment for
information relative to each piece of equipment.

1. Connect switch inputs from control unit to
V-2971 as shown in connection diagram.

2. Connect audio Tip and Ring from control
unit to V-2971 as shown in connection
diagram.

3. Connect V-2971 to audio Tip and Ring of
45 Ohm Talkback Speaker.

4. Press call button to test loudness of tone at
speaker and adjust volume of tone through
cut-out on the front of the V-2971 enclosure
using a 1/16 inch flat tip screwdriver.

5. Place V-2971 over standard single-gang
electrical box and fasten in place using the
two screws provided.

Issue 4

TECHNICAL ASSISTANCE

When trouble is reported, verify that power is
being supplied to the unit and there are no
shorts or grounds on cabling.

Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM and a telephone test set available and be
calling from the job site. Call [phone]
and press 1 for Technical Support or visit our
website at http://www.valcom.com.

Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

1 947017

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

VALCOM LIMITED WARRANTY

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will

This warranty is in lieu of and excludes all other warranties, expressed or implied
and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other
losses incurred by the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.

charge plus parts and labor will be applied to units defaced or physically damaged);

be subject to additional charges for parts and labor).

Head Quarters:

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

Phone: [phone]

Fax: [phone]

NOTE: When utilizing the V-2971 volume control with 45 Ohm talkback speakers featuring an
integrated volume control or volume preset capability, set the volume at the speaker to maximum.
This will allow full volume range from the V-2971 volume control.
