Valcom V-2952 Service Manual

V-2952

FM TUNER

INTRODUCTION

The V-2952 FM Tuner may be used to provide a
music source for b oth background music for a paging
system and music-on-hold for a telephone system.

These instructions contain the specifications and
information necessary to install, operate, and maintain
the FM Tuner.

SPECIFICATIONS

Applications

• Valcom Paging Systems

• Stand Alone Background Music Systems

• Music-On-Hold

Features

• Two individual outputs each with volume control
a) Output 1: .5 watt
b) Output 2: Line level

• Separate bass and treble tone controls

• Frequency locked loop tuning system

• External antenna provided

• Internal speaker for monitoring

• On/Off switch

• Power on indicator

• Powered by –24 Vdc or –12 Vdc

• Power jack for use with receptacle mount power

supply

• Wall or shelf mount

• Local/Distant Signal reception switch

Options

• –12 Vdc power supply available (VP-412A)

VSP-V-2952

Issue 4

Dimensions/Weight

• 6.19" H x 8.25" W x 1.55" D

(15.72cm H x 20.96cm W x 3.94cm D)

• 1.3 lbs (.59kg)

Environment

• Temperature: 10 to 40 Degrees C

• Humidity: 0 to 85% non-precipitating

Performance (Nominal)

• Frequency tuning range:87.5 MHz to 108.5 MHz

• Power Output: .5 watt (at 8 ohms)

-10 dB (line out)

• S/N Ratio: -50dB

• Distortion: less than 2% @ rated output

Power Requirements

• Voltage: Power Input 1: –24 Vdc
Power Input 2: –12 Vdc

• Current: 250 mA

Capacity

• V-2952 will drive one 8 Ohm or six 45 Ohm
speakers from the .5 watt output.

• V-2952 will drive up to 150 Valcom one-way
amplified speakers from the line output.

1 947952

INSTALLATION

Connecting Arrangement

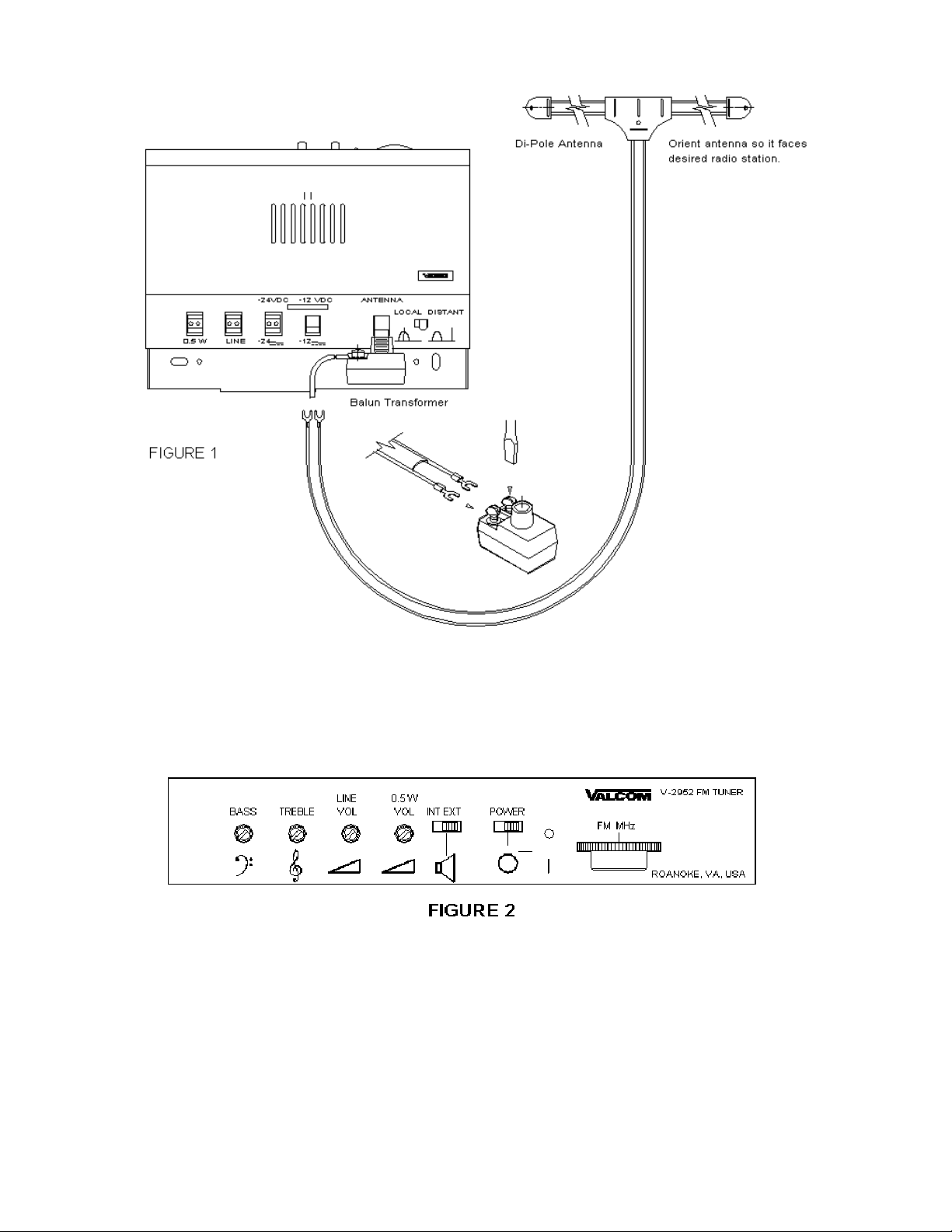

If a –12 Vdc power adapter is used, begin with Step

1. For power connections using a –24Vdc power

supply start at Step 2. (Refer to Figure 1)
__ 1. Plug –12 Vdc power adapter into receptacle

provided on the V-2952 (Go to Step 4).

__ 2. Connect –24 Vdc "-" from power supply to

one 24 Vdc terminal on the V-2952.

__ 3. Connect GND "+" from power supply to the

other 24 Vdc terminal on the V-2952.

NOTE: The –24 Vdc inputs are not polarity
sensitive.

__ 4. If the V-2952 is being connected to a

Valcom page control or amplified paging
speakers, connect the Output marked
"LINE" to the background music input of
the paging system or directly to the
dedicated speakers.

__ 5. When the V-2952 is connected to V-9941A,

connect the output marked "0.5 W" to the
music terminals of the V-9941A.

__ 6. If the V-2952 is connected to a telephone

system for music-on-hold, connect the
Output marked "0.5 W" to the music-on­hold input of the telephone system.

__ 7. An external antenna is supplied. Install the

supplied balun transformer and dipole
antenna as shown in Figure 1 or connect a
customer supplied antenna with coax cable
to the "F" connector.

Setup Procedure

The setup procedure for the V-2952 is as follows
(Refer to Figure 2).
__ 1. With the power supply connected, turn

power switch "ON."
__ 2. Set EXT/INT switch to "INT."
__ 3. Rotate 0.5 W volume control ¼ turn

clockwise.
__ 4. Adjust tuning knob to desired FM station.
__ 5. Turn EXT/INT switch to "EXT" position

and adjust appropriate output volume control

to desired l evels for backgr ound music or

music-on-hold. Adjust V-2952 Bass and

Treble controls to desired tone of music.
If distortion occurs due to close proximity of a strong
local station move the LOCAL/DISTANT switch to
the "LOCAL" position. (Refer to Figure 1)

TECHNICAL ASSISTANCE

Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM and a
test set available and be calling from the job site. Call
[phone] and ask for Technical Support, or call
[phone] for Valcom 24-hour Automated
Support or visit our website at
http://www.valcom.com.

Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person, and the nature of the
problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
