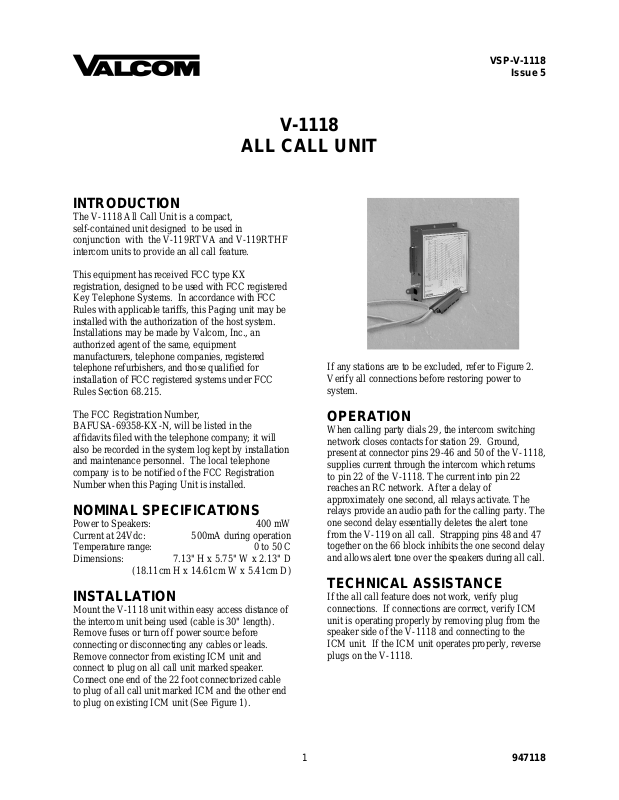

Valcom V-1118 Service Manual

ALL CALL UNIT

INTRODUCTION

The V-1118 All Call Unit is a compact,
self-contained unit designed to be used in
conjunction with the V-119RTVA and V-119RTHF
intercom units to provide an all call feature.

This equipment has received FCC type KX
registration, designed to be used with FCC registered
Key Telephone Systems. In accordance with FCC
Rules with applicable tariffs, this Paging unit may be
installed with the authorization of the host system.
Installations may be made by Valcom, Inc., an
authorized agent of the same, equipment
manufacturers, telephone companies, registered
telephone refurbishers, and those qualified for
installation of FCC registered systems under FCC
Rules Section 68.215.

VSP-V-1118

Issue 5

V-1118

If any stations are to be excluded, refer to Figure 2.
Verify all connections before restoring power to
system.

The FCC Registration Number,
BAFUSA-69358-KX-N, will be listed in the
affidavits filed with the telephone company; it will
also be recorded in the system log kept by installation
and maintenance personnel. The local telephone
company is to be notified of the FCC Registration
Number when this Paging Unit is installed.

NOMINAL SPECIFICATIONS

Power to Speakers: 400 mW
Current at 24Vdc: 500mA during operation
Temperature range: 0 to 50 C
Dimensions: 7.13" H x 5.75" W x 2.13" D

(18.11cm H x 14.61cm W x 5.41cm D)

INSTALLATION

Mount the V-1118 unit within easy access distance of
the intercom unit being used (cable is 30" length).
Remove fuses or turn off power source before
connecting or disconnecting any cables or leads.
Remove connecto r from existing ICM unit and
connect to plug on all call unit marked speaker.
Connect one end of the 22 foot connectorized cable
to plug of all call unit marked ICM and the other end
to plug on existing ICM unit (See Figure 1).

OPERATION

When calling party dials 29, the intercom switching
network closes contacts for station 29. Ground ,
present at connector pins 29-46 and 50 of the V-1118,
supplies current through the interc om which returns
to pin 22 of the V-1118. The current into pin 22
reaches an RC network. After a delay of
approximately one second, all relays activate. The
relays provide an audio path for the calling party. The
one second delay essentially deletes the alert tone
from the V-119 on all call. Strapping pins 48 and 47
together on the 66 block inhibits the one second delay
and allows alert tone over the speakers during all call.

TECHNICAL ASSISTANCE

If the all call feature does not work, verify plug
connections. If connections are correct, verify ICM
unit is operating properly by removing plug from the
speaker side of the V-1118 and connecting to the
ICM unit. If the ICM unit operates properly, reverse
plugs on the V-1118.

1 947118

Assistance in troubleshooting is available from the factory. When calling, you should have a VOM and a test set
available and be calling from the job site. Call [phone] and ask for Technical Support, or [phone] for
Valcom 24-hour Automated Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs
be necessary, attach a tag to the unit clearly stating your company name, address, phone number, contact person, and
the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

Valcom, Inc. warrants its products to be free from defects in materials and w orkmanship under conditions of normal use and service

VALCOM LIMITED WARRANTY

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the original shipment.

3. the product has not been altered in any way or repaired by others and that factory sealed unit s are unopened (A service

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be

This warranty is i n lieu of and excludes all other warranties, expressed or implied, and in n o event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection
with the purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.

charge plus parts and labor will be applied to units defaced or phy sically damaged),

subject to additional charges for parts and labor).
