Valcom V-1046 Service Manual

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the
unit. Assistance in troubleshooting is available from the factory. When
calling, you should have a VOM and a lineman's test set available and be
calling from the job site. Call [phone] for Technical Support or call
[phone] for Valcom 24-hour Faxback System or visit our website at
http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service
facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address, phone number, contact
person and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship
under conditions of normal use and service for a period of one year from the date of
shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original
shipment;

3. the product has not been altered in any way or repaired by others and that
factory sealed units are unopened (a service charge plus parts and labor will be
applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service charge will
cover minor repairs (major repairs will be subject to additional charges for parts
and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied
and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential
damages, loss of time or other losses incurred by the buyer in connection with the
purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is
received in damaged condition, the carrier should be notified immediately. Claims for such
damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: [phone] Phone: [phone]
FAX: [phone] FAX: [phone]

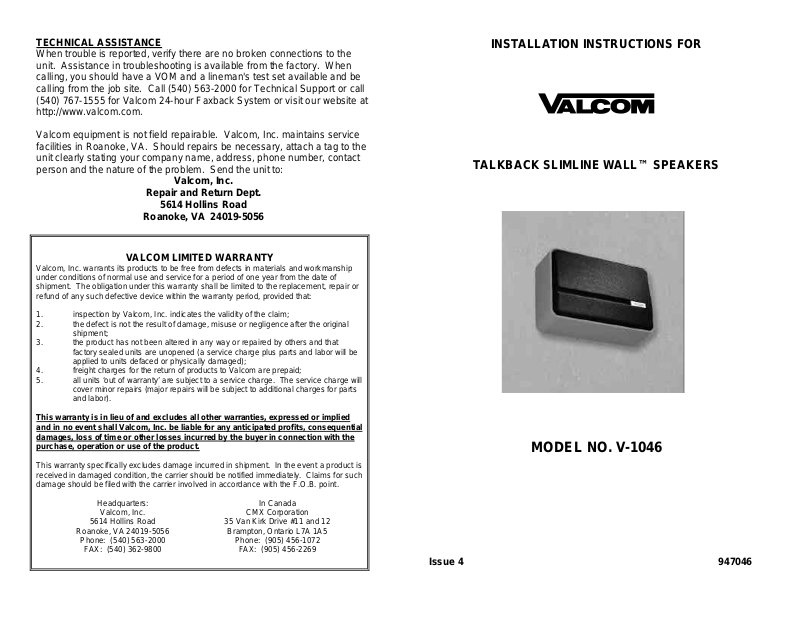

INSTALLATION INSTRUCTIONS FOR

TALKBACK SLIMLINE WALL™ SPEAKERS

MODEL NO. V-1046

Issue 4 947046

VALCOM TALKBACK SLIMLINE™ WALL SPEAKER

BOSSES

HANGER

Valcom Slimline Wall Speaker, V-1046, is a 45 Ohm talkback speaker
designed to be used with Valcom 'handsfree talkback' control units. The
distance you can be away from the speaker and still have good talkback
depends on the ambient noise level. In a typical office environment, the
speaker will cover approximately 600 square feet. Custom colors are
available upon request.

Model V-1046-BK Black
Model V-1046-W White
Model V-1046-BR Brown
Model V-1046-GY Gray

US Patent Number D357,682, UK Reg.'d 2041547

DIMENSIONS/WEIGHT

• 7.00"H x 10.30"W x 3.40"D

(17.78cm H x 26.16cm W x 8.64cm D)

• 2.7 lbs. (1.22 kg)

Wiring
Make connections as shown in Figure 1.

Figure 1

WHITE-TIP/A

BLACK-RING/B

The baffle provides two methods of mounting:

1. The baffle can be suspended from a nail or hook by a "hanger" that

is attached to the housing. See Figure 2.

2. The unit can be attached to a wall using two mounting bosses.
The distance between the mounting boss hole centers is 8.50
inches. Remove cover and secure baffle to wall with screws. This
mounting provides better low frequency response for music and a
more secure attachment to the wall. See Figure 3.

MOUNTING

Figure 2

Figure 3

TROUBLESHOOTING CHART

SYMPTOM ACTION

• No sound in page
mode

• Low sound in page
mode

• Poor listening in
talkback mode

• Check tip and ring for audio at
speaker.

• Check tip and ring for audio at control
unit.

• Check volume controls at page
control.

• Check talkback volume control at
page control. Set control where audio
is clearly audible.

WALL

MOUNTING
