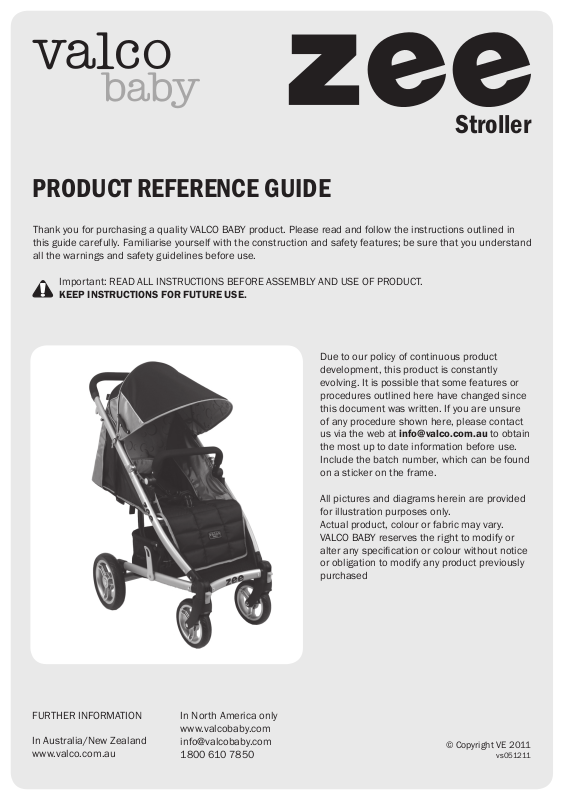

Valco Baby Zee User Manual
Stroller
PRODUCT REFERENCE GUIDE
Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in
this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand
all the warnings and safety guidelines before use.
Important: READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF PRODUCT.
KEEP INSTRUCTIONS FOR FUTURE USE.
Due to our policy of continuous product
development, this product is constantly
evolving. It is possible that some features or
procedures outlined here have changed since
this document was written. If you are unsure
of any procedure shown here, please contact
us via the web at info@valco.com.au to obtain
the most up to date information before use.
Include the batch number, which can be found
on a sticker on the frame.
All pictures and diagrams herein are provided
for illustration purposes only.
Actual product, colour or fabric may vary.
VALCO BABY reserves the right to modify or
alter any specication or colour without notice
or obligation to modify any product previously
purchased
FURTHER INFORMATION
In Australia/New Zealand
www.valco.com.au
In North America only
www.valcobaby.com
info@valcobaby.com
1800 610 7850
© Copyright VE 2011
vs051211
A
BUMPER BAR
ASSEMBLY
FIGURE A - CONTENTS
1. Remove the stroller from the carton and
SEAT
dispose of all packaging thoughtfully. Check
contents.
BASKET
HOOD
BRAKE
2 x AXELS
2 x FRONT WHEELS 2 x REAR WHEELS
2
3
4
FIGURE B - OPENING
2. Release frame lock on side of stroller frame.
3. Lift the stroller handle upward over 180°
until it locks into a straight line.
4. With one hand holding the lower legs down,
B
lift the handle vertically until the lower
chassis locks into position. (You should hear
an audible ‘click’).
!
▲
IMPORTANT WARNING:
ALWAYS TEST THAT ALL LATCHES ARE SECURELY ENGAGED
BEFORE USE.
▲
!
FIGURE C - INSERTING REAR AXLE
5. Align the plastic housings of the rear brake
section with the open tubes of the rear of the
stroller chassis.
IMPORTANT: BE SURE THAT THE BRAKE LEVER IS UPRIGHT
6. Insert the housings over the open tubes until
the brake section locks securely into place.
!
▲
IMPORTANT WARNING:
TEST THAT THE BRAKE SECTION IS SECURELY ENGAGED
ONTO THE STROLLER FRAME BY PULLING ON IT FIRMLY.
C
▲
!
9
10
ATTACH LOCK
FIGURE D - ATTACHING THE BASKET
D
7. Align the basket frame with the open tubes at
the rear of the seat. Simultaneously pressing in
the locking buttons, slide the basket frame into
the housing until the buttons lock into place.
IMPORTANT: When basket is locked into place - the
locking buttons (pins) will pop through the holes.
(Otherwise it is not securely engaged.)
8. Basket front - pass the front ap over
the bar between the seat and the
seat frame. Secure with the snaps.
Pull the side aps around the front
and Velcro into place on the front ap.
FIGURE E- INSERTING REAR
WHEELS
9. Simultaneously press on the spring loaded axle
E
button and insert it through the central hub of the
rear wheel. Repeat this process for the other rear
wheel.
10. Pressing the axle button again, insert the axle
end into the side of the brake housing as far as it
will go. Release the axle button and pull slightly on
the wheel to ensure that it has securely engaged.
FIGURE F - FRONT WHEELS
F
G
11. Grasping the front wheel, align the shaft with the
hole in the underside of the swivel housing.
12. Depress the button on the top of the swivel
housing. Insert the shaft into the housing as far as
it can go until it engages securely.
13. Repeat the procedure for the other front wheel.
IMPORTANT: PULL THE WHEEL DOWNWARD TO TEST THAT IT
HAS SECURELY ENGAGED IN THE HOUSING.
LOCKING YOUR WHEELS
14. Your front wheels can be set to swivel freely
(360º) or can be xed in place for use over rough
or sandy surfaces.
15. To x the front wheel in the non swivel position,
turn the wheel so that the two notches on both
housings line up. Press down rmly on the swivel
lock until it locks into place.
16. To unlock simply lift the locking tab until it locks
in the open position.
FIGURE G - USING YOUR BRAKE SYSTEM
17. To engage the brake press down on the central
brake pedal, until the brakes engage fully into the
wheel cogs.
18. To disengage, simply reverse the process.
