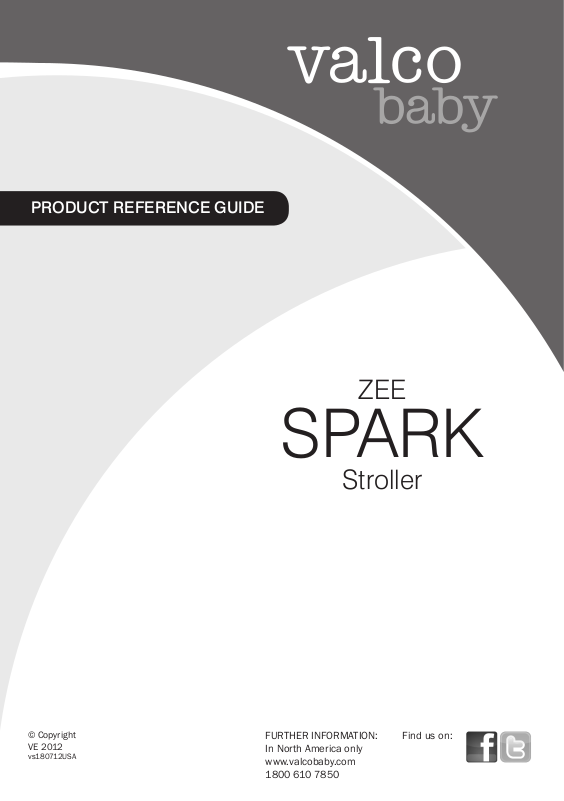

PRODUCT REFERENCE GUIDE
ZEE
SPARK
Stroller
© Copyright
VE 2012
vs180712USA
FURTHER INFORMATION:
In North America only
www.valcobaby.com
1800 610 7850
Find us on:
DISCLAIMER
ZEE
SPARK
Stroller
Thank you for purchasing a quality VALCO BABY
product. Please read and follow the instructions
outlined in this guide carefully. Familiarise yourself
with the construction and safety features;
be sure that you understand all the warnings and
safety guidelines before use.
Important: Please read the following
instructions carefully before assembling
this product. Retain this guide in a safe place
for future reference.
Due to our policy of continuous product development,
this product is constantly evolving. It is possible that
some features or procedures outlined here have
changed since this document was written. If you are
unsure of any procedure shown here, please contact
us via the web at info@valcobaby.com to obtain the
most up to date information before use. Include the
batch number and model number, which can be found
on a sticker on the frame.
1>PARTS LIST
SEAT
FRAME
2x FRONT WHEELS
2x REAR WHEELS
2x AXLES
All pictures and diagrams herein are provided for illustration
purposes only.
VALCO BABY reserves the right to modify or alter any
specification or colour without notice or obligation to
modify any product previously purchased.
REAR BRAKE AXEL
Actual product, colour or fabric may vary.
BUMPER BAR
BOOT COVER
HOOD
BASSINET LINING
& MATTRESS
2>TO OPEN
b
b
3>REAR AXLE
a
d
c
e
d
e
4>REAR WHEELS
aa
a
5>FRONT WHEELS 6>INSTALL SEAT
a
a
7>SEAT MODE
8>BASSINET MODE
a
a
b
b
9>BUMPER BAR
10>HOOD
a
a
b
PUSH
PRESS
DOWN
HOLD
DOWN
RELEASE
HOLD
11>HARNESS
b
c
CLICK
a
d
PRESS
DOWN
PUSH
HOLD
DOWN
RELEASE
HOLD
e
11>BRAKES 12>BOOTCOVER/APRON
PRESS
HERE TO
RELEASE
13>FOLDING
a
b
a
INSTRUCTIONS
1>PARTS LIST
Seat, Frame, 2x front wheels, 2x rear wheels,
2x axels, bumper bar, hood, rear brake axle,
boot cover bassinet lining and mattress.
2>TO OPEN
the handle on top. Release the frame lock if
engaged (a)
Lift the handle upward and clockwise until it
locks to a vertical position. Continue to lift the
handle (b) until you feel the chassis lock into
the open position (e).
Even when fully assembled, your Zee Spark can
be folded and opened with the seat installed in
either direction as well as in bassinet mode. To
open when your Zee Spark is in bassinet mode
or when the seat is installed facing the handles
and in fully reclined position:
• Release the frame lock (a)
• With your foot on the rear brake bar, and
holding the stroller at either side by the handle
pivot hinges (c), lift the lower chassis as far as
possible (until it locks is the most preferable).
This will allow the handle to clear the rear of
bassinet or seat.
• Swing the handle over the bassinet/seat until
it locks in place.(d).
• Check that the lower chassis has engaged
fully at (e)
IMPORTANT WARNING: ALWAYS TEST
THAT ALL LATCHES ARE SECURELY
ENGAGED BEFORE USE.
3>REAR BRAKE AXLE
With the larger brake pedal facing outward,
align the rear axle housing with the rear stroller
legs. Insert each rear leg into the corresponding
housing of the rear axle. Press in the locking
button (a) on the leg while simultaneously
pushing the axle housing as far as it will go
until it engages. Repeat for the other leg.
Test that each leg has fully engaged in the axle
housing.
4>REAR WHEELS
Pressing on the axle release button (a), insert
the axle through the outside of the metal hub
and through the nylon brake cog.
IMPORTANT: INSERT THROUGH OUTSIDE
OF THE WHEEL - THE SIDE WHICH DOES
NOT HAVE THE BRAKE COG SPROCKETS
While pressing the axle release button (b),
insert the wheel axle into the wheel housing of
the frame at the rear of the stroller chassis (c).
Keeping the axle release button depressed,
insert the wheel as far as it will go into the
channel. Release the button and pull the
wheel slightly back toward you ensuring that
it has locked securely into place. Repeat this
procedure for the other wheel.
To remove a rear wheel, firmly grasp the wheel
spokes while pressing the axle release button.
Gently pull the wheel free of the wheel housing.
5>FRONT WHEELS
Line each front wheel pin (a) with the
corresponding front wheel housing. Depress
the housing button while inserting the wheel
pin into the wheel housing and push it up until
it clicks into place.
The front wheels of your stroller offer either a
full, 360º swivel action or a locked position.
To lock the front wheel, turn the wheel so that
the bulk of it is beneath the stroller and push
down on the wheel lock (b) until it locks into
position. Repeat this procedure for the other
side.
IMPORTANT WARNING: ALWAYS TEST
THAT THE LOCKS ARE FULLY ENGAGED
BEFORE USE.
6>INSTALL SEAT
Line up the seat housing (a) with the
corresponding connectors located on either
side of the stroller frame. Lower the seat onto
the connectors and gently push the seat down
until it clicks securely into place (b).
NOTE: YOUR SEAT CAN BE INSTALLED
EITHER FORWARD OR REARWARD FACING.
To remove the seat, simultaneously lift both
triggers (c) in the seat housing (these can be
operated using either the front or rear triggers)
and lift the seat unit from the frame.
7>SEAT MODE
The stroller seat has 3 positions. To recline
or incline the seat simultaneously push the
recline buttons located on either side of the
seat housing (a) and move the seat into the
desired position.
NOTE: SPECIAL CARE MUST BE TAKEN
WHEN ADJUSTING THE SEAT POSITION
WITH A CHILD IN THE STROLLER.
8>BASSINET MODE
When using your Zee Spark with a newborn,
the most comfortable configuration is as a
bassinet.
WARNING: THE BASSINET MODE MUST ONLY
BE USED UNTIL YOUR BABY IS DEVELOPED
ENOUGH TO SIT UP UNAIDED.
To convert your seat from stroller to bassinet
mode:
• Remove the bumper bar
• Remove the hood
• Adjust the seat to the fully reclined position.
• Release the 4 buckles (a) beneath the seat
at both ends.
• Unzip the footwell (b)
• Push down on the seat surface to create the
bassinet interior.
Install the bassinet lining with ERGO Base
•
Place the lining over the bassinet interior and
align the openings in the lining with the bassinet
housing and hood connection sites (c).
• Secure the lining over the bassinet sides to
the Velcro tabs located on the bassinet outer
body.
• Reinstall the hood and bumper bar.
• Attach the bootcover/apron to the open foot
of the bassinet, locating and securing to the
snaps at the side of the bassinet body.
To convert your bassinet to a stroller seat.
• Reverse the process out lined previously
• Remove the apron and lining
• Zip up the footwell
• Buckle all support straps beneath the seat
• Install the hood and bumper bar
IMPORTANT MATTRESS WARNING
Unlike cribs that have rigid sides, the bassinet
mattress is specially designed to prevent
suffocation. The mattress is designed to be
a snug fit and should not exceed 30mm in
thickness. Using a thicker or different sized
mattress may allow a child’s head to Get
between the mattress and the side of the
bassinet causing suffocation. To help prevent
suffocation from entrapment, USE ONLY THE
MATTRESS PROVIDED.
NEVER use additional mattress or padding.
Use only the fitted sheet provided.
9>BUMPER BAR
Insert each side of the bumper bar fitting into
the corresponding housing (a) in the seat
frame until you hear it click into place.
The bumper bar can be opened as a “gate” for
easy access pressing on one of the release
buttons (b) and lifting the side out of the
housing. For full removal, repeat this process
for the other side.
10>HOOD
Locate the hood stud fixtures found on either
side of the stroller, and align hood clamp to
studs. Attach clamp onto frame (a).
Your SPARK hood is designed to provide
maximum shade and comfort for your child by
incorporating our EXPANDA HOOD section.
To increase/decrease the hood size
Open the EXPANDA HOOD section fully
using the zip. Gently pull your hood forward;
extending it as far as is required.
When no longer needed, fold the EXPANDA
HOOD backward, allowing it to fold in on itself.
Gently zip the section closed being mindful not
to catch any of the fabric in the zipper teeth.
11>HARNESS
To secure your child in the harness:
Overlap buckles and so that they fit together to
form one complete buckle (a).
Insert the completed buckle into the Buckle
Housing (b) until it engages securely in
place(c).
To open your harness:
Push down on both Buckle Prongs (d).
Simultaneously press the release button in the
centre of the buckle (e).
Lift the buckles from the Buckle Housing (f).
IMPORTANT WARNING: AVOID SERIOUS
INJURY FROM FALLING OR SLIDING OUT.
ALWAYS USE SEAT BELT.
12>BRAKES
Press down on the long leg of the brake lever
(a) located on the rear axle to simultaneously
engage the brake in both rear wheels.
To release, press down on the shorter leg with
your foot.
IMPORTANT WARNING: ALWAYS TEST
THAT THE BRAKES ARE SECURELY
DISENGAGED BEFORE USE.
13>BOOTCOVER
Attach the bootcover/apron to the open foot of
the bassinet or seat, locating and securing to
the snaps at the side of the bassinet body.
14>FOLDING
Your Zee Spark can be folded with the seat in
facing in either direction as well as in bassinet
mode.
• Release the handle by simultaneously lifting
the triggers (a).
• Swing the handle over the seat/bassinet
body. As it passes the central pivot joint (b) the
lower frame will automatically release and the
stroller will fold down completely.
• The chassis will lock in the closed position
automatically.
WARNING: TO AVOID INJURY OR DEATH
• ALWAYS APPLY THE BRAKES WHENEVER THE PRAM/STROLLER IS STATIONARY
! WARNING: NEVER LEAVE A CHILD UNATTENDED.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS PRAM/STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE PRAM/STROLLER.
OTHERWISE THEY MAY BE INJURED.
! WARNING: USE THIS HARNESS AT ALL TIMES.
! WARNING: WHEN NOT IN USE DISCONNECT SHOULDER STRAPS FROM THE WAIST STRAP AND/OR
BUCKLE.
• FOLLOW THE MANUFACTURER’S INSTRUCTIONS.
! WARNING: AVOID SERIOUS INJURY FROM FALLING OR SLIDING OUT. ALWAYS USE SEAT BELT.
Remember, your child’s safety is your responsibility...
• NEVER USE ON STAIRS OR ESCALATORS.
• ALWAYS USE THE TETHER STRAP WHEN THE STROLLER IS IN USE.
• THE CORRECT USE AND MAINTENANCE OF THIS VEHICLE ARE ESSENTIAL.
• BE SURE THAT ALL CLAMPS AND BUCKLES ARE SECURELY FIXED AND IN PLACE BEFORE USE
! ALWAYS USE THE HARNESS, CORRECTLY FITTED AND ADJUSTED, WITH YOUR CHILD IN THIS SEAT.
• THE MAXIMUM WEIGHT OF THE CHILD FOR WHICH THIS STROLLER WAS INTENDED IS 20KGS (44LBS)..
• THE MAXIMUM HEIGHT OF THE CHILD FOR WHICH THIS STROLLER WAS INTENDED IS 90CM (35INCHES).
• THE STROLLER WILL BECOME UNSTABLE IF THE MANUFACTURER’S RECOMMENDED LOAD IS EXCEEDED.
• CARE MUST BE TAKEN WHEN FOLDING AND UNFOLDING THE PRODUCT TO PREVENT FINGER ENTRAPMENT.
• CAN BE USED FROM A NEWBORN BABY ONWARDS.
• NEVER RUN WITH A NEWBORN BABY IN ANY PRAM OR STROLLER UNTIL THE CHILD CAN SIT UP
UNASSISTED (APPROXIMATELY 6 MONTHS).
• CHECK ALL PARTS BEFORE USE FOR BREAKAGE OR FATIGUE. DISCONTINUE USE IMMEDIATELY IF ANY
PART IS FOUND TO BE DAMAGED OR BROKEN.
• MAXIMUM LOAD OF BASKETS: 5KGS (11LBS).
• DO NOT CARRY ADDITIONAL CHILDREN.
THIS STROLLER IS MANUFACTURED FOR USE WITH ONE CHILD ONLY
• ALWAYS BE AWARE OF THE RISKS PROVIDED BY FIRE AND OTHER SIGNIFICANT SOURCES OF HEAT SUCH
AS RADIATORS, ETC. WHICH MAY BE IN THE IMMEDIATE VICINIT Y OF YOUR STROLLER.
• IT MAY BE UNSAFE TO USE ANY ACCESSORIES OTHER THAN VALCO BABY APPROVED ONES.
• THIS PRODUCT IS INTENDED FOR DOMESTIC USE ONLY. IT IS NOT INTENDED FOR COMMERCIAL USE.
AVOID SUFFOCATION HAZARDS:
• UNLIKE CRIBS THAT HAVE RIGID SIDES, THE BASSINET MATTRESS IS SPECIALLY DESIGNED TO PREVENT
SUFFOCATION. THE MATTRESS IS DESIGNED TO BE A SNUG FIT AND SHOULD NOT EXCEED 30MM IN
THICKNESS. USING A THICKER OR DIFFERENT SIZED MATTRESS MAY ALLOW A CHILD’S HEAD TO BET
BETWEEN THE MATTRESS AND THE SIDE OF THE BASSINET CAUSING SUFFOCATION. TO HELP PREVENT
SUFFOCATION FROM ENTRAPMENT, USE ONLY THE MATTRESS PROVIDED.
• NEVER USE ADDITIONAL MATTRESS OR PADDING. USE ONLY THE FITTED SHEET PROVIDED.
CARE & MAINTENANCE: Should the chassis become wet, dry off pr omptly before storing. If this pram is used near the ocean or salted roads, spray the chassis and
seat frame with water and dry. We recommend a rust inhibiting product should be used to prevent rust and fatigue on metal par ts.
We recommend that you wipe down axles and lubricate the wheels every 3 months. Sand and dirt can grind down axles, if you live near the beach or in a dusty environment
you must wipe down the axles and wheels then lubricate them monthly.
AXLES ARE BEST LUBRICATED WITH GREASE OR PETROLEUM JELLY. MOVING PARTS ARE BEST LUBRICATED WITH SILICONE BASED PRODUCTS. DO NOT USE OIL BASED
PRODUCTS
.
FURTHER INFORMATION: www.valcobaby.com 1800 610 7850
Loading...
