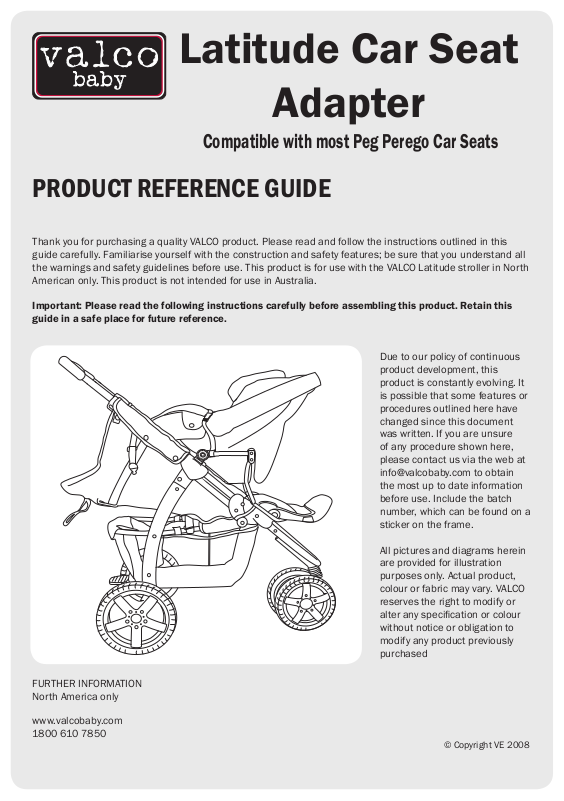

Latitude Car Seat
Adapter
Compatible with most Peg Perego Car Seats
PRODUCT REFERENCE GUIDE
Thank you for purchasing a quality VALCO product. Please read and follow the instructions outlined in this
guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand all
the warnings and safety guidelines before use. This product is for use with the VALCO Latitude stroller in North
American only. This product is not intended for use in Australia.
Important: Please read the following instructions carefully before assembling this product. Retain this
guide in a safe place for future reference.
Due to our policy of continuous
product development, this
product is constantly evolving. It
is possible that some features or
procedures outlined here have
changed since this document
was written. If you are unsure
of any procedure shown here,
please contact us via the web at
info@valcobaby.com to obtain
the most up to date information
before use. Include the batch
number, which can be found on a
sticker on the frame.
FURTHER INFORMATION
North America only
www.valcobaby.com
1800 610 7850
All pictures and diagrams herein
are provided for illustration
purposes only. Actual product,
colour or fabric may vary. VALCO
reserves the right to modify or
alter any specication or colour
without notice or obligation to
modify any product previously
purchased
© Copyright VE 2008
A
1
2
Seat Reclined
press
Bumper Bar
INSTALLING YOUR PEG PEREGO
CAR SEAT ADAPTOR
FIGURE A
1. Begin preparing the Latitude stroller for
the Car Seat Adaptor by removing the canopy
(hood), from the stroller, and reclining the
seat to its fully reclined position, (detailed
instructions in the Latitude Stroller Instruction
Manual).
B
FIGURE B
2. Remove the bumper bar, (detailed
instructions in the Latitude Stroller Instruction
Manual).
C
D
FIGURE C
3. Remove the Peg Perego Adaptor Bar from the
box, and dispose of all packaging responsibly.
4. By pulling the curved metal bar downwards
all the way, the adaptor will be in position for
installation.
Figure D
5. You are ready to connect the adaptor to the
stroller.
IMPORTANT WARNING: ALWAYS TEST THAT ALL
STRAPS ANd buckLEd ARE SEcuRELY ENGAGEd
bEFORE uSE.
E
5
4
Press
FIGURE E
6. Align an adapter connector piece with the
corresponding raised piece on the stroller
(where the hood connects) (4).
7. Slide the connector piece onto the stroller. Be
sure that the adapter is locked into place (5).
8. Repeat on the other side.
FIGURE F
F
G
H
9. The Adaptor is now secured to the frame,
with the support bar resting at the edge of the
seat, above the footrest.
10. Adjust the footrest upwards.
To do so: Press the adjust button, and move the
footrest to the desired position.
FIGURE G
11. Located on the car seat adaptor are two
sets of tether straps. The rst set (as shown in
Figure G) rest on the foot rest of the stroller.
Adjust these straps so they wrap underneath
the foot rest of the stroller.
12. Secure by inserting the male clip into the
female end. Ensure these straps are as tight as
possible.
13. The adaptor is now securely attached to
your stroller. You may readjust the footrest to
suit your child.
FIGURE H
14. Position the Car Seat so the infant is facing
the handlebar of the stroller.
15. Line the Car Seat up with the adaptor bar
so that the Car Seat rests on the adaptor bar
when inserted.
6
7
I
FIGURE I
16. Once your car seat is inserted, locate the
remaining set of straps.
17. Take the Male/Female strap and slip the
strap through the car seat belt hook on the side
of the car seat.
18. Repeat with the other strap.
19. Insert Male clip into its Female counterpart
and buckle.
20. Adjust straps to tighten around car seat.
TO REMOVE YOUR CAR SEAT:
21. Reverse the steps outlined in Figure I and
lift out the car seat.
TO REMOVE YOUR ADAPTOR:
22. Undo the buckle under the footrest, slide
the connector pieces from the stroller and
remove adaptor.
WARNINGS
•Always follow car seat manufacturers instructions when in use.
•Be sure to check that all straps and buckles are securely xed and in place
before use.
• Check all parts for breakage or fatigue before use. Discontinue immediately if
any part is found to be damaged or broken.
• NEVER leave any child unattended at any time.
• This product is intended for use in North America only. It is not intended for
use in Australia.
• This product is intended for domestic use only. It is not intended for
commercial use.
In North America only
www.valcobaby.com
1 800 610 7850
