Instructions for use and installation

electronicVED exclusiv

EXPen

For the operator

Instructions for use

Operating instructions

electronicVED exclusive

VED electric instantaneous water heater

Table of contents

1 Notes on the documentation .....................................3

1.1 Storing documents ..........................................................3

1.2 Applicability of the instructions ...................................3

1.3 Identification plate ...........................................................3

2 Safety .................................................................................4

2.1 Classification of action-related warnings...................4

2.2 Intended use ......................................................................4

2.3 General safety information ............................................4

2.4 CE label ...............................................................................5

3 Functions and operation ..............................................6

3.1 When using the remote control ....................................6

3.2 Setting the display parameters ....................................7

4 Energy-saving tips ........................................................17

5 Detecting and rectifying faults ................................17

6 Care .................................................................................... 17

7 Maintenance ................................................................... 18

8 Recycling and disposal ............................................... 18

2 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

1 Notes on the documentation

The following information is intended to help you throughout the entire documentation. Further documents apply in combination with these instructions for use. We accept no liability for any damage caused by failure to observe these instructions.

Observing other applicable documents

All operating instructions which are enclosed with system components MUST be observed.

1.1 Storing documents

> Store these instructions and all other applicable docu-

ments for further use.

1.2 Applicability of the instructions

These instructions apply for the following products only:

Notes on the documentation

Type designation Article number

VED E 18/7 E HK 0010015731 VED E 21/7 E HK 0010015732 VED E 24/7 E HK 0010015733 VED E 27/7 E HK 0010015734

1.1 Identifying the unit

1.3 Identification plate

The unit's article number is part of the serial number. To find out the serial and article numbers refer to the identification plate. The identification plate can be found to the right, next to the operator control panel, under the cover.

1.1 Example of an identification plate

Explanation of the symbols on the identification plate

CE mark, see section 1.5

The VDE GS mark confirms that the unit complies with standards and has been tested for safety

Symbol confirming conformity with the electromagnetic compatibility standard

Ensure proper disposal at the end of its useful life (not household waste)

Read the operating and installation manual

Serial number as a bar code and in plain text. The 7th to 16th digits of the serial number form the unit's article number

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 3

Safety

2 Safety

2.1 Classification of action-related warnings

The action-related warnings are classified in accordance with the severity of the possible danger using warning symbols and signal words:

Warning symbol

a e a

2.1 Meaning of warning symbols and signal words

Signal word Explanation

Danger!

Warning.

Caution.

Imminent danger to life or risk of severe personal injury

Risk of death from electric shock

Risk of minor personal injury

Risk of material or environmental damage

Using the Vaillant electronicVED exclusive electric instantaneous water heater in vehicles is regarded as improper use. Units that are not classed as vehicles are those that are installed in a fixed and permanent location (known as "fixed installation"). Any other use, or use beyond that specified, shall be considered improper use. Any direct commercial or industrial use is also deemed to be improper. The manufacturer/supplier is not liable for any damage resulting from such use. In this case, the user alone bears the risk. Intended use includes the following:

– Observance of accompanying operating, installation and

servicing instructions for Vaillant products as well as for other parts and components of the system

– Installing and fitting the boiler in accordance with the

boiler and system approval

– Compliance with all inspection and maintenance condi-

tions listed in the instructions.

2.3 General safety information

Installation, start-up, maintenance and repair

All work involved in the installation, initial start-up, maintenance and repair of the electronicVED exclusive electric instantaneous water heater must only be carried out by an approved heating specialist company, who also assumes the responsibility for installing the unit properly and commissioning it for the first time. The electronicVED exclusive electric instantaneous water heater must be installed in strict compliance with these installation instructions.

2.2 Intended use

The Vaillant electronicVED exclusive electric instantaneous water heater has been constructed using state-of-the-art technology in accordance with the recognised safety rules and regulations. Nevertheless, there is still a risk of death or serious injury to the user or others or of damage to the unit and other property in the event of improper use or use for which the unit is not intended. This unit is not designed to be used by persons (including children) with limited physical, mental or sensory capabilities or by persons who do not have enough experience and/ or knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed by him/her about how to use the unit. Children must be supervised to ensure that they do not play with the unit. The Vaillant electronicVED exclusive electric instantaneous water heater must only be used to heat up drinking water. The Vaillant electronicVED exclusive electric instantaneous water heater is suitable for use only in an enclosed, frostfree room in a domestic environment. The Vaillant electronicVED exclusive electric instantaneous water heater is not suitable for use in secondary circulation lines.

Risk of death from electric shock from live lines and connections!

During all work on the open unit, particularly on electrical lines and connections, there is a risk of death from electric shock.

> Do not carry out any work on the unit yourself. > Inform your heating specialist company if your

electronicVED exclusive is not working correctly.

Risk of death from electric shock from live lines and connections!

The drinking water used must demonstrate resistance greater than or equal to 900 ohm at 15 °C. Otherwise, the unit must not be used.

> Before installing the unit, ask the competent person at

your local water company to inform you about the water resistance and conductivity.

> Consult a competent person if you have any doubt as to

the requirements for water quality.

4 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Risk of being scalded by hot water.

The outlet temperatures at the draw-off points can be up to 60 °C.

> When using an electronicVED exclusive electric instanta-

neous water heater, be aware of the risk of scalding from high outlet temperatures.

> Set your electronicVED exclusive to a maximum of 43 °C

if you want to be protected from scalding.

Material damage inside the unit caused by poor quality water

An electronicVED exclusive electric instantaneous water heater must only be used to heat up drinking water. This drinking water must meet the specific German or Austrian drinking water ordinances. Otherwise, it is not possible to rule out the risk of corrosion inside the unit.

> Consult a competent person if you have any doubt as to

the requirements for water quality.

Risk of frost

If an electronicVED exclusive electric instantaneous water heater is placed out of operation for a relatively long period of time in an unheated room in cold weather, the water in the unit and pipes may freeze.

> Consult a competent person if you have any doubt as to

requirements.

> Ensure that your electronicVED exclusive electric instan-

taneous water heater is installed in a permanently frostfree room.

Safety

Material damage to the appliance caused by changes

No changes must be made to your electronicVED exclusive.

In the event of a fault

> If your electronicVED exclusive is not producing hot

water or if any other fault occurs, inform your approved heating specialist company.

> If the electronicVED exclusive ever malfunctions, inform

your approved heating specialist company. > Do not carry out any repairs yourself. > Do not open the unit cover under any circumstances.

2.4 CE label

CE labelling shows that the electronicVED exclusive electric instantaneous water heaters comply with the basic requirements of the following directives and correspond to the tested type sample:

– Electromagnetic compatibility directive

(Council Directive 2004/108/EC)

– Low voltage directive (Council

Directive 2006/95/EC)

– Radio and telecommunications terminal equipment

directive

(Council Directive 1999/05/EC (Class 1))

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 5

Functions and operation

3 Functions and operation

If you turn on the hot water at a draw-off point (mixer or separate tap), your electronicVED exclusive will automatically heat up the drinking water.

Danger!

Risk of being scalded by hot water.

The water temperature at the draw-off points can reach up to 60 °C.

> When using an electronicVED exclusive

electric instantaneous water heater, be aware of the risk of scalding from high outlet temperatures.

> Set your electronicVED exclusive to a

maximum of 43 °C if you want to be protected from scalding.

> Section 3.2.7 "Setting the maximum tem-

perature" contains all relevant information on the "scald protection" function, which can be configured on your electronicVED exclusive.

3.1 When using the remote control

When controlling your electronicVED exclusive

using the remote control (article number:

> If you want to start up the remote control, remove it

from the packaging.

> Press any button on the remote control to set parameters.

– Section 3.2 describes how to configure the functions on

the display.

> Configure the desired parameters either directly in the

VED's display or using the remote control.

0020084761), ensure that all functions are activated, called up and configured exactly as on your electronicVED exclusive's built-in display.

– Batteries are already inserted. The remote control is

synchronised with its electronicVED exclusive ex works.

– When changing temperatures, the settings from the

respective other unit are adopted and displayed.

– Other settings, e.g. the display language or the

energy-consumption display, are not adopted from the respective other unit. For example, you can set the language to English for the remote control and set your own language on your VED's display.

°C38,5

Memo eco

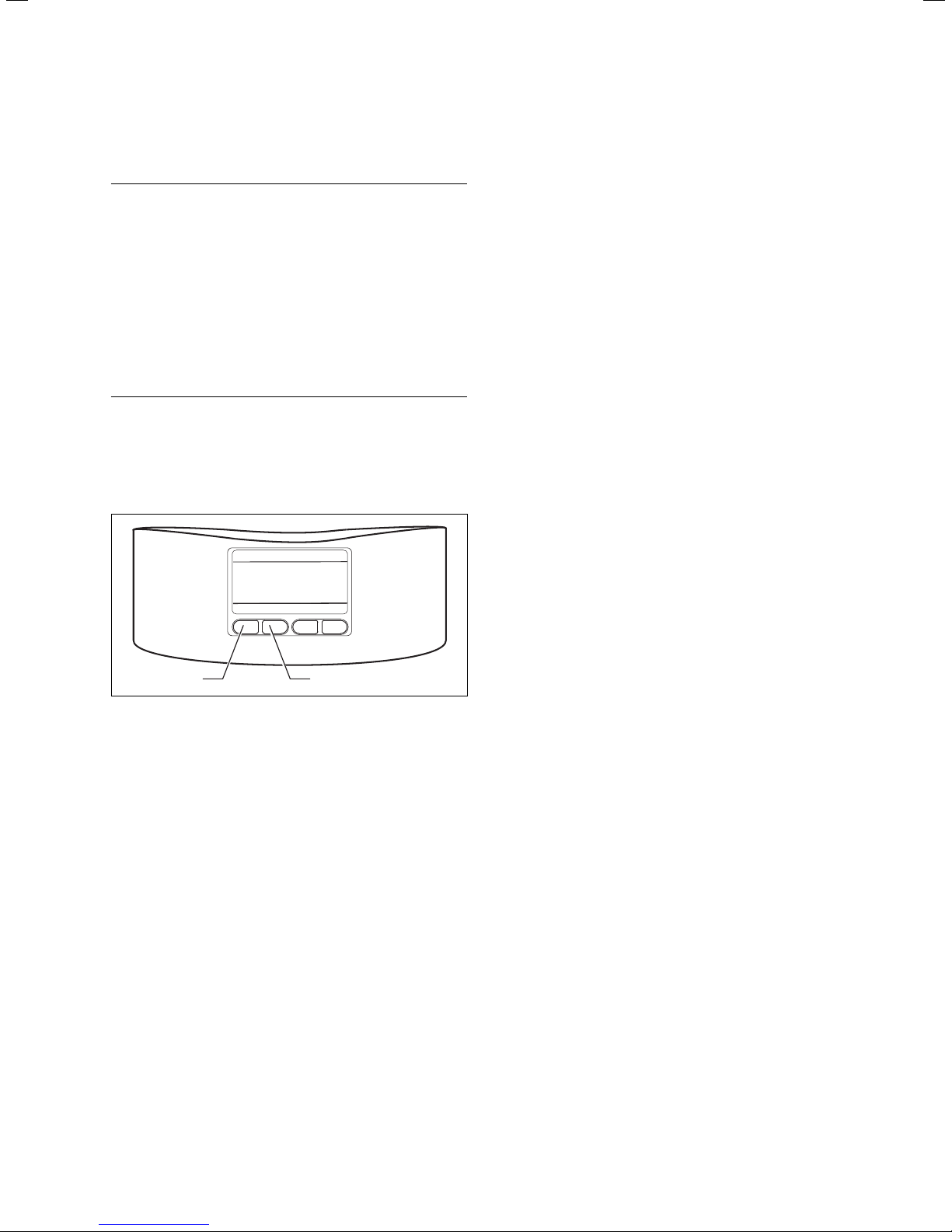

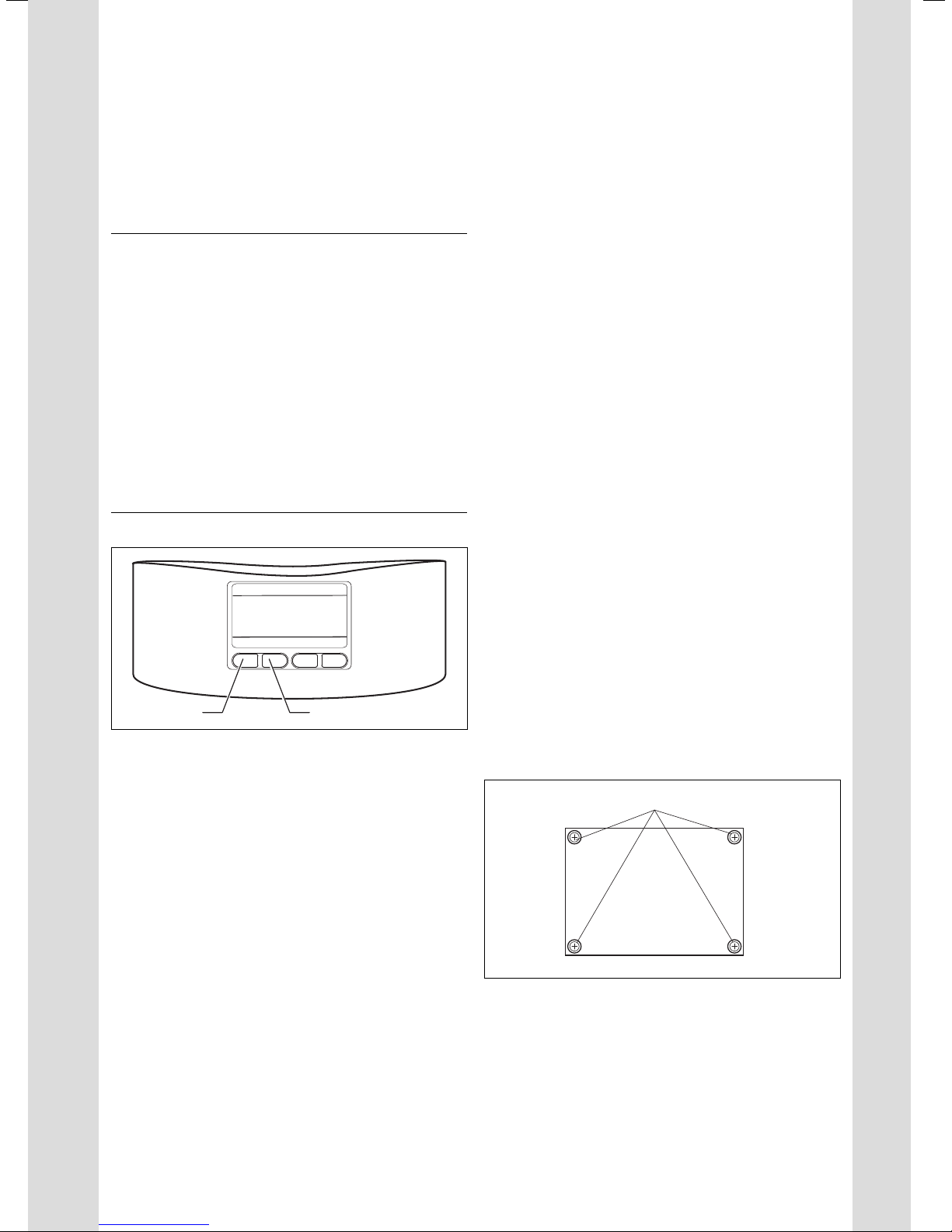

3.1 Display

> Press the + button (1) until the desired temperature is

reached. The hot water that you can now take from the

draw-off point will be at the desired temperature. > If the temperature is too high, press the — button (2).

The water drawn will be cooler. > Choose a temperature of between 20 °C and 60 °C to see

what suits you best.

All important display set-up options for your

electronicVED exclusive are described in

section 3.2.

3.1.1 Changing the batteries

Your remote control (article number: 0020084761) is ready for operation when purchased; two batteries are inserted. When the batteries are flat, a battery symbol appears in the remote-control display. The batteries should be replaced with new ones immediately.

> Use AA batteries only. You can also use rechargeable

NiCd or NiMH batteries (likewise AA size).

3.2 Changing the batteries in the remote control

6 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Functions and operation

> Undo the four screws (1) on the rear side of the radio

remote control. > Open the rear side. > Insert the two batteries (AA type). > Screw the front and rear sides of the radio remote con-

trol back together. > Take extra care to ensure that the seal is correctly

inserted when reassembling the remote control.

Caution.

Possible water damage to the remote

control.

The remote control is water-tight in accordance with the IP 68 level of protection. This dictates that the seal should be correctly inserted in the rear cover of the remote control. If this is not the case, water can enter and damage the remote control.

> Ensure that the rubber seal is correctly

inserted when changing the batteries.

Spent batteries should not be disposed of with

household waste. Observe local regulations when disposing of them.

3.2 Setting the display parameters

The electronicVED exclusive display can be, but

does not have to be, set up before checking the

The current performance features of the electronicVED exclusive are displayed as soon as the unit is connected and configured. When in operation, the display shows the selected water temperature. Furthermore, the maximum water temperature that can be set will be displayed on the uppermost display line. This maximum temperature can be set freely and can be between 30 °C and 60 °C. The following display is an example of this.

function. It is sensible to first only set the desired hot water temperature.

max. 42 °C

42.0 °C

MEMO eco

  

The set target temperature is factory-set to 42 °C.

The setting and display options for your VED display are described in the following excerpts in the order that they appear in the menus. To access the current temperature setting quickly, you always have two options:

> Set the current hot water temperature directly by using

the +/— buttons.

> Set the current hot water temperature using the

button.

MEMO

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 7

Functions and operation

3.2.1 Key combinations on the display

Key combination Result

Briefly press simultaneously

Press and hold longer than 3 seconds

Press — and + simultaneously for longer than 3 seconds

3.1 Display key combinations

3.2.2 Setting the water temperature

Memo and eco

Memo for

Main menu for setting basic functions, such as the scald protection function, language settings and energy consumption.

Installer menu for deactivating the remote control and calling up unit data.

Key lock is activated. To cancel the lock once more, press and hold — and + for longer than 3 seconds.

38 °C 42 °C 38 °C 38 °C

M1 M2 M3 M4

  

> Briefly press the button that corresponds to your target

temperature, e.g.

You will see the following display screen:

M2.

max. 42 °C eco

> Press the + button to increase the water temperature. > Press the — button to decrease the temperature.

The water temperature can be increased or

decreased in increments of half a degree Cel-

3.2.3 Saved temperatures (Memo 1 to 4)

The memo function allows the current hot water temperature to be changed quickly. By pressing the button twice you can set the desired temperature to one of 4 preset temperatures.

> Briefly press the

You will see the following display screen:

sius. The range of temperatures that can be selected is between 20 °C and 60 °C.

You can change the preset temperatures at any

time. However, note that you cannot set a higher temperature than the maximum temperature set in the section 3.2.7.

Scald protection menu; see

MEMO button once.

42.0 °C

  

The desired preset temperature is selected.

> If you want to change the preset target temperature,

press and hold the

You will see the following display screen:

M2 button for 3 seconds.

Memory 2

MEMO eco

42.0 °C

save



8 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

 

The current saved temperature and the memory location

Memory 2) are displayed.

(here:

> Use the + and — buttons to change the

ture that is displayed.

> Briefly press the

ture.

save button once to save this tempera-

Memory tempera-

Functions and operation

> Press the  button to quit the Memory function. If you

previously changed the temperature without pressing

save button, this change will not be remembered.

the

3.2.4 Configuring the eco function

The eco function is a function that saves water and energy.

eco function is activated, the water flow is limited by

If the your VED to 8 litres per minute. Typical water consumption is around 10 litres per minute.

> Press the > Press the

eco button to activate the function. eco button again to deactivate the function.

max. 42 °C eco

38.0 °C

  

If the eco function is activated, it will be shown on the topright of the display.

MEMO eco

3.2.6 Call up the menu and return to the temperature display

> Briefly press the Memo and eco buttons simultaneously

to access the menu.

> Briefly press the  button to return to the temperature

display.

Display settings



Scald protection

Consumption

Select language



  

All the basic VED settings will be carried out from this menu.

Use the  button to go back through the menus

one step at a time.



> Continuously press the  button until the initial display

screen is shown again.

3.2.5 Activating/deactivating the key lock

> Press and hold both the + and — buttons at the same

time for longer than 3 seconds.

> Press and hold both the + and — buttons at the same

time for longer than 3 seconds again to deactivate the key lock.

When the key lock is activated, pressing any dis-

play button will not have any effect; all functions

are locked.

max. 42 °C

42.0 °C

  

MEMO eco

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 9

Functions and operation

3.2.7 Setting the maximum temperature (scald protection)

Danger!

Risk of being scalded by hot water.

The scald protection function can only be deactivated at the factory.

> Press the

access the



The water temperature at the draw-off points can reach up to 60 °C.

> When using an electronicVED exclusive

electric instantaneous water heater, be aware of the risk of scalding from high outlet temperatures.

> Set your electronicVED exclusive to a

maximum of 43 °C if you want to be protected from scalding.

Memo and eco buttons simultaneously to

Menu.

Display settings

Scald protection

Consumption

Select language

Scald protection

max. temperature



Comfort temperature



  

The cursor is next to the max. temperature menu point.

> Press the

Set max. temperature current: 42.0 °C

ok button.



new 60.0 °C





  

The cursor is next to the Display settings menu point.

> Press the  button.

The cursor is next to the

> Press the

ok button.

Scald protection menu point.



  

> Press the + button to increase the temperature. > Press the — button to decrease the temperature. > Press the > Press the  button twice to return to the "Scald protec-

tion" menu. The selected maximum temperature is displayed on the top line of the water temperature display screen.

ok button to confirm the chosen temperature.

It is not possible to request a higher water tem-

perature than the temperature selected and confirmed using the maximum temperature interacts with the

fort temperature

there is no benefit to setting a maximum temperature which is the same as the comfort temperature.

ok button. Also note that the

Com-

function. For example,

10 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Functions and operation

3.2.8 Setting/activating and deactivating the comfort temperature (scald protection)

> Press the Memo and eco buttons simultaneously to

access the

Display settings



Scald protection

Consumption

Select language

The cursor is next to the Display settings menu point.

> Press the  button.

The cursor is next to the

> Press the

Scald protection

Menu.



  

Scald protection menu point.

ok button.



Scald protection

max. temperature

Comfort temperature





  

The cursor is next to the Comfort temperature menu point.

> Press the

Set comfort temperature current: --°C

ok button.

new

-- °C



max. temperature



Comfort temperature



  

The cursor is next to the max. temperature menu point.

> Press the  button once.



-+ok

  

> Press the + button to increase the temperature. > Press the — button to decrease the temperature. > Press the > Press the  button to return to the "Scald protection"

menu.

The comfort temperature selected here can be altered by briefly pressing the +/- key combination. If water is drawn off within the next 30 seconds, the water will be heated to this temperature. If no water is drawn off in this time, or if the water stops being drawn off, the display will return to the previous temperature setting.

To deactivate the Comfort temperature function, proceed as follows on the

> Press the — button to decrease the temperature to below

20 °C.

-- °C will then be displayed. This means that the comfort temperature has been deactivated.

ok button to confirm the chosen temperature.

Set comfort temperature display:



Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 11

Functions and operation

Also note that the comfort temperature inter-

acts with the

3.2.9 Displaying and resetting the energy and

> Press the

access the



example, there is no benefit to setting a comfort temperature which is the same as the maximum temperature.

water consumption (Reset)

Note that the electronicVED exclusive is not a

calibrated measuring instrument. Due to tolerances in the electronic semiconductor and sensors, the values displayed may deviate from the real values.

The energy consumption data displayed cannot

be legally used to prepare or compare energy consumption calculations of any kind.

Memo and eco buttons simultaneously to

Menu.

Display settings

Scald protection

Consumption

Select language

max. temperature function. For

Consumption

Energy consumption



Water consumption



  

The cursor is next to the Energy consumption menu point. You can display the energy consumption in kilowatt hours or water consumption in litres for a specific period of time (select using the  or  button).

> After selection, press the

Energy consumption

since reset



the last 30 days

the last 365 days



ok button.





  

The cursor is next to the Display settings menu point.

> Press the  button twice.

The cursor is next to the

> Press the

ok button.

Consumption menu point.



  

The cursor is next to the Since reset menu point. The display screen illustrated above is an example of the

Energy consumption sub-menu. Regardless of whether

or not you wish to query the energy or water consumption, the time cycles remain identical. You can display the energy or water consumption data since the unit was last reset to its factory settings (Reset), or the last month (30 days) or the last year (365 days).

> Press the  or the button to make a selection. > Confirm this change by pressing the

To reset the display of either the energy or water consumption data to 0, proceed as follows:

> Within the

consumption

> Press the

The cursor is next to the

> Press the ok button.

Consumption menu, select either Energy

or Water consumption.

ok button.

Since reset menu point.

ok button.

12 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Energy consumption Since reset

13.4 kWh

German



English

Polish

Croatian

Slovenian

Serbian

Functions and operation

Reset

  

The display screen illustrated above is an example of the



Energy consumption sub-menu. Follow the same proce-

dure to reset the display of either the energy or water consumption data.

> Press the

The display will be reset to 0.

> Press the  button to quit the display.

Reset button.

3.2.10 Setting the display language

> Press the Memo and eco buttons simultaneously to

access the

Display settings



Scald protection

Consumption

Select language

Menu.



  

The language marked with an arrow is the language used on the display.

> Press the  or  button to change the display language. > Confirm this change by pressing the



ok button.



  

The cursor is next to the Display settings menu point.

> Press the  button three times.

The cursor is next to the

Select language menu point.

> Press the

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 13

ok button.



Functions and operation

3.2.11 Setting the display lighting

> Press the Memo and eco buttons simultaneously to

access the

Display settings



Scald protection

Consumption

Select language

The cursor is next to the Display settings menu point.

> Press the

Display settings

Lighting



Output display

Volume flow display

Menu.



  

ok button.



The following settings are possible:

off

auto

The display lighting is permanently on.

The display lighting is permanently off.

When drawing hot water, the display lighting turns on. When operating the display, e.g. setting the temperature, the display lighting also turns on. If nothing is happening, the display lighting turns off.

3.2.12 Activating the power display

> Press the Memo and eco buttons simultaneously to

access the

Display settings



Scald protection

Consumption

Select language

Menu.







  

The cursor is next to the Lighting menu point.

> Press the

Lighting is auto

off

auto



ok button.



  



  

The cursor is next to the Display settings menu point.

> Press the

Display settings

Lighting

Output display



Volume flow display

The cursor is next to the Lighting menu point.

> Press the  button.

The cursor is next to the

> Press the

ok button.



  

Output display menu point.

ok button.



14 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Functions and operation

Output display is on



off



  

> Press the  or  button to activate (on) or to deactivate

(off) the power display.

> Confirm this change by pressing the

If the power display is activated, the current

energy consumption will be displayed in kilo-

Example:

watts when drawing water.

max. 60 °C eco



ok button.

41.0 °C

 

12.7 kW

3.2.13 Activating the flow rate indicator

> Press the Memo and eco buttons simultaneously to

access the

Display settings



Scald protection

Consumption

Select language

The cursor is next to the Display settings menu point.

> Press the

Display settings

Lighting

Output display

Volume flow display



Menu.



  

ok button.





  

MEMO eco



  

The cursor is next to the Lighting menu point.

> Press the  button twice. The cursor is next to the point.

> Press the

ok button.

Volume flow display menu



Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 15

Functions and operation

Volume flow display is on



off



  

> Press the  or  button to activate (on) or to deactivate

(off) the volume flow display.

> Confirm this change by pressing the

If the volume flow display is activated, the cur-

rent water flow will be displayed in litres per

Example:

minute when drawing water.

max. 42 °C eco



ok button.

41.0 °C





  

8 l/min

MEMO eco

16 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Energy-saving tips

Detecting and rectifying faults 5, Care46

4 Energy-saving tips

You can help to save energy by following the tips and advice below:

Appropriate hot water temperature

The water should only be heated up to the extent that is necessary for use. Any further heating will result in unnecessary energy consumption. For you, this means that you should:

> Activate the eco function on your electronicVED exclu-

sive (press the consumption to 8 litres per minute.

> Wherever possible, do not set the temperature higher

than you actually require. Avoid unnecessarily mixing in cold water.

eco button). This will reduce the water

5 Detecting and rectifying faults

Danger!

Risk of death from electric shock.

Live lines and connections may cause a potentially lethal electric shock.

> Do not attempt to repair the unit your-

self under any circumstances.

> Under no circumstances should the unit

cladding be removed.

> If the unit ever malfunctions, inform an

approved heating specialist company immediately.

6 Care

There is no need to care for your Vaillant electronicVED exclusive electric instantaneous water heater because all internal parts are protected against dirt and moisture. You can clean the exterior of the unit with a damp cloth and a little soap.

Do not use any abrasive scouring or cleaning

agents when cleaning the unit cladding.

Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 17

Maintenance

Recycling and disposal

7 Maintenance

The permanent operational readiness, operational safety, reliability and long service life of your electronicVED exclusive electric instantaneous water heater require inspections and maintenance work to be carried out by a competent person.

Danger!

Risk of injury and material damage due

to incorrect maintenance and repairs.

If you fail to carry out maintenance, or if you carry this out incorrectly, this may adversely affect the operating reliability of the unit.

> Never attempt to perform maintenance

work or repairs on your electronicVED exclusive yourself.

> You must employ an approved heating

specialist company to complete such work. We recommend making a maintenance agreement.

Caution.

Possible material damage to the unit.

A lack of maintenance can affect the functional safety of the VED. E.g. unit defects caused by limescale formation. In areas of hard water (more than 2.5 CaCO or very hard water (more than 3.6 CaCO3 mmol/l), a significantly more frequent maintenance interval may be required.

> Have your electronicVED exclusive

inspected at least every 2 years by a competent person.

> If you live in an area with very hard

water, Vaillant recommends that you have the maintenance service carried out once a year by a competent person.

mmol/l)

8 Recycling and disposal

If your Vaillant unit is labelled with this symbol

(identification plate), it should not be disposed of with your household waste at the end of its useful life.

> In this case, ensure that your Vaillant unit and any acces-

sories are properly disposed of at the end of its/their useful life.

18 Operating instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

For the competent person

Installation instructions

electronicVED exclusive

Electric instantaneous water heater

Table of contents

1 Notes on the documentation .....................................3

1.1 Storing documents ..........................................................3

1.2 Applicability of the instructions ...................................3

2 Safety .................................................................................4

2.1 Classification of action-related warnings...................4

2.2 Intended use ......................................................................4

2.3 General safety information ............................................4

2.4 Standards and directives ...............................................5

2.5 CE label ............................................................................... 5

3 Description of the unit and functions .....................6

3.1 Overview ............................................................................6

3.2 Functions ............................................................................6

4 Installation ....................................................................... 7

4.1 Scope of delivery ............................................................. 7

4.2 Installation site ................................................................. 7

4.3 Required minimum clearances .....................................8

4.4 Mounting the unit to the wall........................................8

4.5 Connecting the hot and cold water ........................... 10

4.6 Connecting the unit to the electricity supply ..........12

5 Start-up/decommissioning .........................................13

5.1 Purging the unit ..............................................................13

5.2 Fitting the unit cladding ................................................13

5.3 Setting the display parameters ...................................14

5.4 Checking the system's functionality ..........................17

5.5 Decommissioning ............................................................17

6 Handing over to the operator .................................. 18

7 Procuring spare parts and accessories ................ 18

8 Detecting and rectifying faults ................................19

8.1 Possible problems when using the

remote control ............................................................... 20

9 Inspection and maintenance ................................... 20

10 Technical data ................................................................21

2 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

1 Notes on the documentation

The following information is intended to help you throughout the entire documentation. Other documents apply in addition to these installation instructions. We accept no liability for any damage caused by failure to observe these instructions.

Observing other applicable documents

> You must observe all the operating and installation

instructions included with the system components.

1.1 Storing documents

> Pass these instructions and all other applicable docu-

ments and, if necessary, any required tools to the system operator.

1.2 Applicability of the instructions

These instructions apply for the following products only:

Notes on the documentation

Type designation Article number

VED E 18/7 E HK 0010015731 VED E 21/7 E HK 0010015732 VED E 24/7 E HK 0010015733 VED E 27/7 E HK 0010015734

1.1 Identifying the unit

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 3

Safety

2 Safety

2.1 Classification of action-related warnings

The action-related warnings are classified in accordance with the severity of the possible danger using warning symbols and signal words:

Warning symbol

a e a

2.1 Meaning of warning symbols and signal words

2.2 Intended use

Signal word Explanation

Danger!

Warning.

Caution.

Imminent danger to life or risk of severe personal injury

Risk of death from electric shock

Risk of minor personal injury

Risk of material or environmental damage

Any other use, or use beyond that specified, shall be considered improper use. Any direct commercial or industrial use is also deemed to be improper. The manufacturer/supplier is not liable for any claims or damage resulting from improper use. In this case, the user alone bears the risk. Intended use includes the following:

– Observance of accompanying operating, installation and

servicing instructions for Vaillant products as well as for other parts and components of the system

– Installing and fitting the boiler in accordance with the

boiler and system approval

– Compliance with all inspection and maintenance condi-

tions listed in the instructions.

Caution.

Improper use of any kind is prohibited.

2.3 General safety information

Installation, start-up, maintenance and repair

Risk of death from electric shock from live lines and connections!

During all work on the open unit, particularly on electrical lines and connections, there is a risk of death from electric shock.

> When working on the open unit, interrupt the power sup-

ply. The unit must be de-energised. > Check that the unit is de-energised. > Ensure that the power cannot be restored inadvertently

to the unit while you are working on it.

Risk of death from electric shock from live lines and connections!

The drinking water used must demonstrate resistance greater than or equal to 900 ohm at 15 °C. Otherwise, the unit must not be used.

> Before installing the unit, ask your water company to

inform you about the water resistance and conductivity.

Risk of being scalded by hot water!

If the VED is connected to a solar thermal system, the intake temperature must be limited to a maximum of 60 °C by fitting structural precautions (e.g. a mixer valve). When using the unit in conjunction with a solar thermal system, we recommend setting the intake temperature to between 38 °C and 40 °C.

4 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Safety

> Set the scald protection function on your electronicVED

exclusive to a maximum of 43 °C if you want to be protected from scalding.

> Inform the operator that there is a risk of scalding when

the water temperature exceeds 43 °C.

Material damage inside the unit caused by poor quality water

An electronicVED exclusive electric instantaneous water heater must only be used to heat up drinking water. This potable water must meet the specific German or Austrian legal requirements for quality. Otherwise, it is not possible to rule out the risk of corrosion inside the unit.

Material damage due to improper use and/or unsuitable tools

Improper use and/or the use of unsuitable tools may result in material damage (e.g. water leaks).

> Always use a suitable open-end spanner to tighten or

undo threaded connections.

> Do not use pipe wrenches, extensions, etc.

Risk of frost.

> Install the electronicVED exclusive electric instantaneous

water heater in a permanently frost-free room.

> Store the electronicVED exclusive electric instantaneous

water heater in a permanently frost-free area.

2.5 CE label

CE labelling shows that the electronicVED exclusive electric instantaneous water heaters comply with the basic requirements of the following directives:

– Electromagnetic compatibility directive (Council Directive

2004/108/EC)

– Low voltage directive (Council Directive 2006/95/EC) – Radio and telecommunications terminal equipment

directive

(Council Directive 1999/05/EC (Class 1))

Material damage to the appliance caused by changes

No changes must be made to the electronicVED exclusive.

> Do not make any changes to the unit yourself. > Inform the operator that they must not make any

changes to the unit or to the electricity lines or water pipes.

In the event of a fault

> Read the "Detecting and rectifying faults" section to find

out what you must do in the case of fault.

> Inform the operator that they must not attempt to repair

the unit under any circumstances.

> Inform the operator that they must not remove the unit

cladding.

2.4 Standards and directives

Please observe the existing national rules and regulations, standards, laws and guidelines.

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 5

Description of the unit and functions

3 Description of the unit and functions

3.1 Overview

2 3

3.1 Overview of the electronicVED exclusive

7 8

3.2 Functions

Using bare wire heating in the unit's heating block, drinking water is heated and can then be drawn from one or more points. The electronics measure the temperature of the cold water supply and the water volume flow. The electrical performance required to heat the water to the required temperature is calculated using these two values. The unit's display temperature can be changed in increments of 0.5 °C. The volume and heat of the hot water is dependent on the electronicVED exclusive performance category and settings. The output of each VED unit is listed in section 11. In addition, the water and energy consumption data can be linked to the performance data via the display. This means that the electronicVED exclusive can be configured in such a way that both the current and cumulative energy consumption can be displayed and called up. The built-in "Memo" function allows four fixed temperatures to be saved and these can be called up by pressing a button or by remote control.

Number Component

1 Mains connection terminal 2 Motorised valve (water-volume controller) 3 Upper anti-spray-water sleeve 4 Adjustment spindle 5 Safety switch 6 Electronics

8 Cold water connection 9 Lower anti-spray-water sleeve 10 Hot water connection 11 Safety thermostat (STL) 12 Heating block

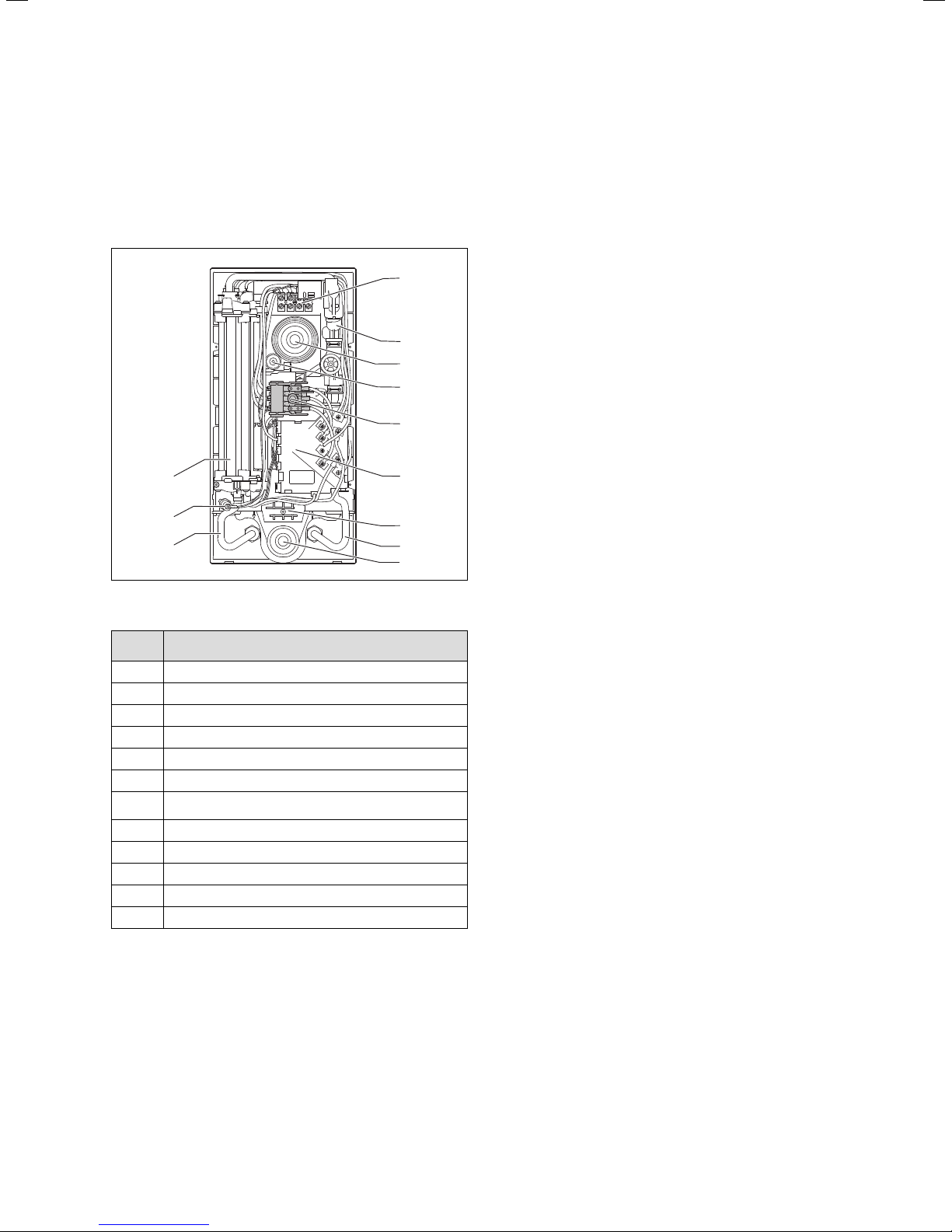

3.1 Components of the electronicVED exclusive

Alternative location for the mains connection terminal (see number 1)

6 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Installation

4 Installation

Risk of death!

Risk of death due to improper

installation!

All work involved in the installation, startup, maintenance and repair of the electronicVED exclusive electric instantaneous water heater must only be carried out by a recognised competent person, who also assumes the responsibility for installing the unit properly and commissioning it for the first time. The electronicVED exclusive electric instantaneous water heater must be installed in strict compliance with these installation instructions.

Flush the cold water pipes thoroughly before

installation.

4.1 Scope of delivery

> Check that the scope of delivery is complete (see

Table 4.1).

Fixing points

170

Electrical connection from above

Installation template

for VED

If required: Add. fixing point on back wall

390

322

Mounting plate

No. Quantity Name

2 1 Operating and Installation Manual

5 1 R 1/2 hot water connection piece 6 2 Double nipple 7 1 Installation plate 8 1 Installation template

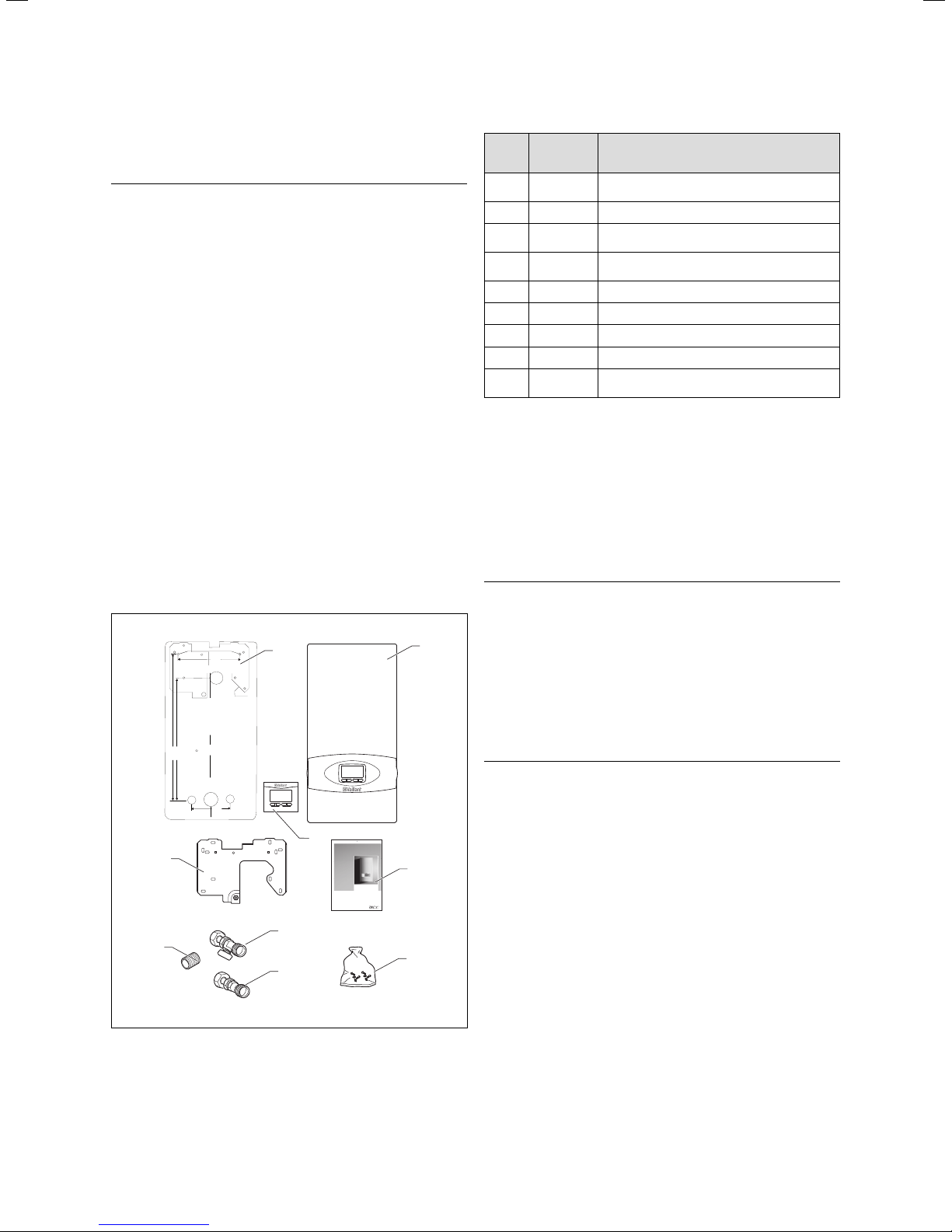

4.1 Scope of delivery

electronicVED exclusive electric instantaneous water heater

Carton containing fixings (2 bolts, 2 rawl plugs, 1 seal, 1 special fixing screw)

R 1/2 cold water connection piece with a cold water stop valve

Radio remote control with 2 batteries (no illustration)

The electronicVED exclusive electric instantaneous water heater is completely pre-assembled. Once the unit has been fitted to the wall, only the water and electrical installation needs to be completed.

4.2 Installation site

Caution.

Risk of frost damage to the unit.

> Install the unit in a permanently frost-

free room.

Electrical connection

from below

100

Cold water connection

Hot water connection

4.1 Scope of delivery

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 7

Instructions for use and installation

electronicVED exclusive

The electronicVED exclusive electric instantane-

ous water heater meets the current safety regu-

EXPen

lations for protected zone 1 and can therefore also be installed above a bath or in a shower area.

> Wherever possible, install the unit near the draw-off

point that will be most used.

Installation

4.3 Required minimum clearances

4.2 Installation clearances

Key

A At least 50 mm B At least 50 mm C At least 120 mm D At least 130 mm E Maximum 22 mm

The bottom section of the unit (D) must be level with the unit's bearing area on the wall; to a height of at least 130 mm. Any possible wall offset (e.g. due to tiles) must not exceed 22 mm (E). The distance to the floor must be at least 120 mm (C). The distance above, to the left and to the right of the unit must be at least 50 mm.

4.4 Mounting the unit to the wall

4.4.1 Unit and connection dimensions

481

322

277

R 1/2

35 35

4.3 Boiler dimensions

Key

1 Upper anti-spray-water sleeve 2 Central attachment 3 Display 4 Hot water connection R 1/2 5 Cold water connection R 1/2 6 Lower anti-spray-water sleeve R Outside thread R 1/2

7050

100 240

4 5

8585

4.4 Connection dimensions

Key

1 Installation plate 2 Cold water connection 3 Hot water connection

390

322

8 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

4.4.2 Removing the unit cladding

Installation

8585

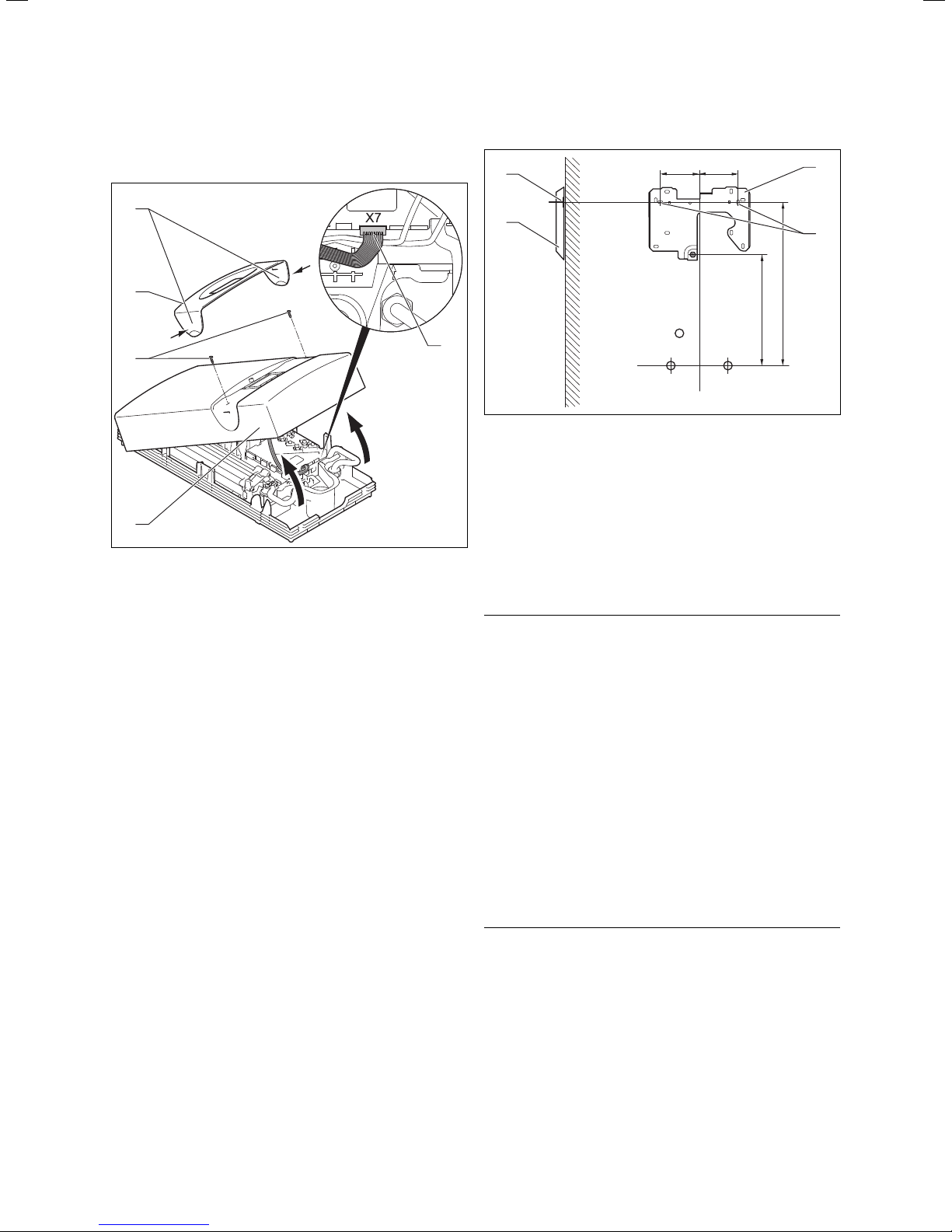

4.5 Removing the unit cladding

> Grip the two straps (1) on the panel (2). > Splay the two straps (pull them away from the unit). > Remove the panel (2). > Undo both bolts (3). > Fold up the cover (4). > Remove the display plug from the unit's electronics

(slot X7) (5).

> Remove the cover (4) from the unit.

4.4.3 Installing the unit

The electronicVED exclusive electric instantane-

ous water heater must be mounted on the wall

> Ensure that the wall and all fixing elements are able to

bear the load. An electronicVED exclusive weighs approx.

4.4 kilos when filled with water.

> Using figures 4.2 to 4.4, double check that the desired

installation location meets the requirements.

vertically.

4.6 Fitting the installation plate

> Hold the installation template against the wall and mark

the fixing points. > Fix the installation plate (1) to the fixing points (2) using

the rawl plugs and bolts.

When replacing a unit, you can use the previous

drill holes as long as they are compatible with

the additional holes on the installation plate.

Danger!

Risk of death from electric shock due to water penetration if the anti-spray-water sleeve is completely cut away.

The anti-spray-water sleeve should prevent water penetrating the unit along the length of the mains connection cable. If the antispray-water sleeve is completely cut away, water can very easily penetrate and damage the unit and, in the worst case scenario, can cause a potentially lethal electric shock.

> Never cut off the anti-spray-water sleeve

completely.

> Cut the end of the anti-spray-water

sleeve in such a way that the sleeve tightly surrounds the mains connection cable.

390

322

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 9

Installation

4.7 Cutting the anti-spray-water sleeve for the cable routing

> Depending on the location of the mains connection cable

in relation to the wall, fit the anti-spray-water sleeve at the top or the bottom (see fig. 4.7).

> Fit the unit (2) to the retaining screw (1) on the installa-

tion plate. > Adjust the unit using the adjustment spindle (4). > Fix the unit using the fixing screw (3). > Align the unit (vertically and observing the clearances

detailed in Fig. 4.2 to 4.4).

As an option, the electronicVED exclusive can be

converted into an under-counter unit. To do this,

the display must be rotated and screwed to the unit cladding. Then the cladding must be turned and attached to the unit in this rotated position.

Fit the anti-spray-water sleeve in such a way

that the sleeve tightly surrounds the mains con-

> Feed the cable through the anti-spray-water sleeve into

the unit's interior.

nection cable. Water must not penetrate the unit's interior.

4.9 Optional under-counter conversion

4.5 Connecting the hot and cold water

18, 21 and 24 kW electronicVED exclusive units

are suitable for post-heating water that has

> Observe the following conditions in order to correctly fit

the water connections:

already been pre-heated. It is possible to have inlet temperatures of up to 60 °C. The unit can thus be connected to existing solar and/or heat pump systems. 27 kW electronicVED exclusive units are not suitable, because the water inlet temperature must not exceed 25 °C.

– All cold and hot water pipes can be made of steel,

copper or plastic. It is important to check with the manufacturer that pipes made of plastic can be used with temperatures of 65 °C in normal operating mode. In addition, plastic pipes must be suitable for a significantly higher load in the short term.

– An expansion relief valve on the cold water pipe is not

required.

4.8 Mounting and adjusting the unit

10 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Installation

– To simplify installing the water connection, the bottom

section of the unit can be folded up (see (1) in Fig. 4.10).

> After fitting the connection, you must fold the bot-

tom section of the unit back down until it is engaged again.

> Never remove the folding frame.

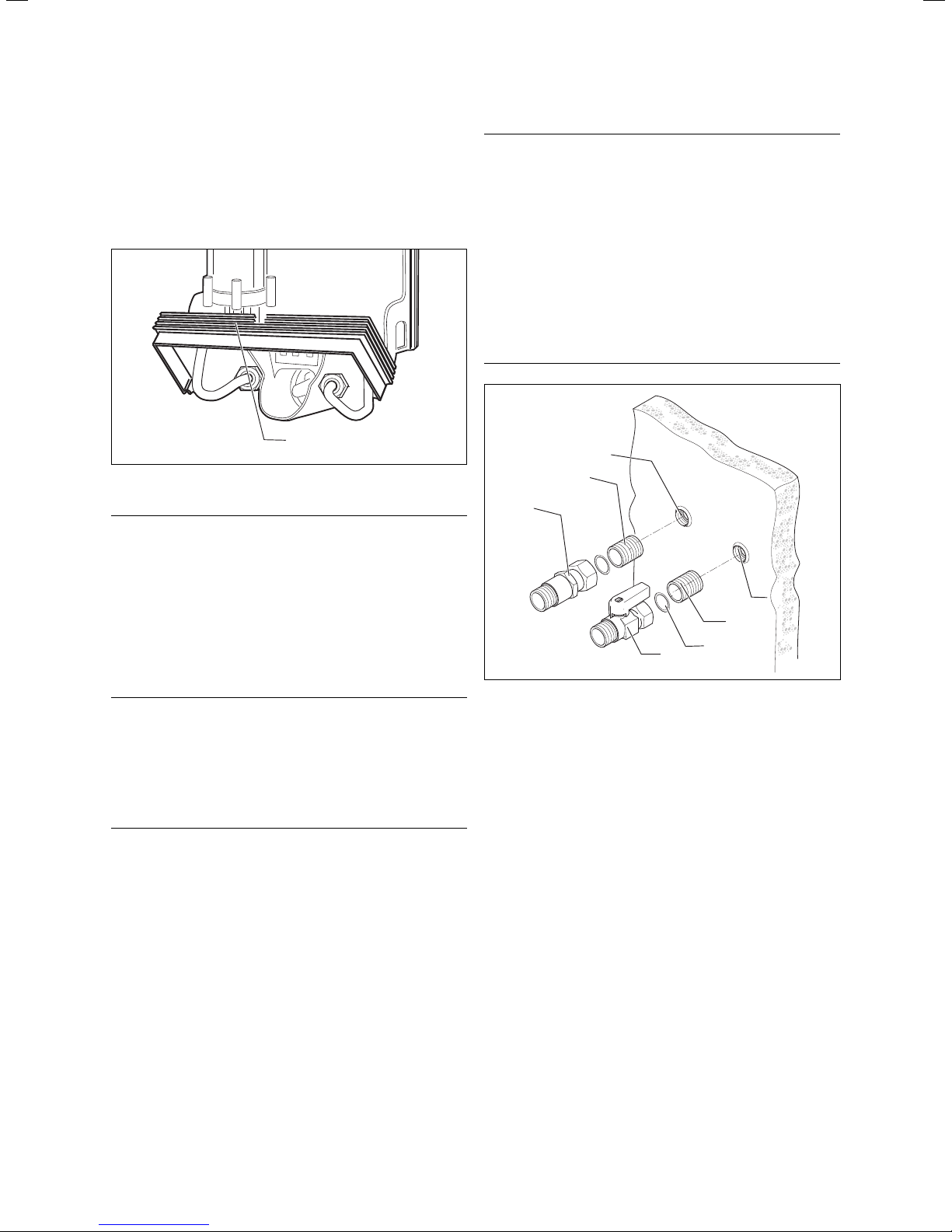

4.10 Unit's folding frame

Caution.

Risk of damage to the unit resulting from

improper use and/or unsuitable tools.

Improper use and/or the use of unsuitable tools may result in material damage (e.g. water leaks).

> Always use a suitable open-end spanner

to tighten or undo threaded connections.

> Do not use pipe wrenches, extensions,

etc.

Caution.

Possible damage caused by leaking water connections.

Leaks may occur due to strains in the line material.

> Take care not to strain the lines as you

tighten the water connections.

Caution.

Possible damage caused by unsuitable

4.11 Water connections

> Put hemp on the two double nipples (2 and 6) and use

the connections to screw the double nipples to the wall

(1 and 7). > Insert the seals (3) in the cap nuts of the cold (4) and

hot water connections (5). > Screw the cold water connection piece (4) to the cold

water connection double nipple (2) in the wall (1). > Screw the hot water connection piece (5) to the hot

water connection double nipple (6) in the wall (7). > Insert a seal in the cap nut of the unit-side hot water

connection.

plastic pipes.

Damage may be caused by unsuitable plastic pipes.

> When using plastic pipes, ensure that

they withstand a maximum temperature of 95 °C and maximum pressure of 1 MPa (10 bar) for at least one hour (check manufacturer's specifications).

> When using plastic pipes, ensure that

they conform to DIN EN ISO 15875 (check manufacturer's specifications).

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 11

Installation

Caution.

Risk of damage due to pipes being

blocked by foreign bodies in the water.

A water filter that stops foreign bodies entering the unit must be fitted to the cold water flow. The unit must not be used without a water filter. A water filter has been fitted inside the cold water pipe at the factory.

> During installation, check that the water

filter is present.

> Check that the cold water filter fitted at the factory is in

the correct position in the unit-side cold water connection. The cold water filter is an additional seal on the cold water side.

4.6 Connecting the unit to the electricity supply

Danger!

Risk of death from electric shock from

live lines and connections!

> Isolate all supplies from the power supply

before carrying out electrical work.

> Check that there is no voltage in the sup-

ply lines and connections.

> Ensure that the power cannot be

restored inadvertently to any of the supply lines and connections while you are working on the unit.

> When connecting the electricity supply, also observe the

local regulations from the electricity supply company as well as the specifications on the identification plate.

> Also note the following conditions:

– The unit must be installed using a permanent connec-

tion.

– The permanent connection must be equipped with a

customer-supplied partition that has a contact separation of at least 3 mm on all lines. A line protection

switch, for example, is suitable for this purpose. – The unit must be connected to the protective earth. – The unit is delivered pre-assembled. When connecting

the electricity supply, only the electricity line needs to

be fed in to the unit and connected. This happens

using one of the two anti-spray-water sleeves that

prevent water penetrating the unit; see Figure 4.7,

Cutting the anti-spray-water sleeve for the cable rout-

ing. The connection is fixed to the upper section of

the unit at the factory. If required, it can be connected

to the lower section of the unit but the electricity line

must be fed through the lower anti-spray-water

sleeve.

4.6.1 Electrical connection from above

The electricity line is fed through the upper anti-spraywater sleeve (2). Figure 4.7 explains how the anti-spraywater sleeve must be prepared.

> Connect the individual conductors to L1, L2 and L3, and

the protective earth to the mains connection terminal (1 in Fig. 4.12).

4.12 Electrical connection from above or below

4.6.2 Electrical connection from below

The electricity line is fed through the lower anti-spray-water sleeve (5). Figure 4.7 explains how the anti-spray-water sleeve must be prepared.

> Unscrew the mains connection terminal (1) (see Fig. 4.12). > Move the mains connection terminal (6), including the

internal cable, to the lower position (4) in the unit.

> Screw the mains connection terminal to the lower posi-

tion (4).

> Pay particular attention to the internal protective earth

(3) that is screwed to position 3a.

> Check again that the mains connection terminal cables

are correctly positioned.

> Connect the individual conductors to L1, L2 and L3, and

the protective earth to the mains connection terminal (1 in Fig. 4.12).

12 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

4.6.3 Optional load-shedding relay

If required, a load-shedding relay that conforms with current standards can be connected to the electronicVED exclusive. This relay will turn other power consumers off while hot water is being drawn off so that there is no overloading. The load-shedding relay must fulfil the following criteria:

– Input current < 15 A – Continuous current > 50 A

> Install the optional load-shedding relay to the outer con-

ductor that is connected to the L2 mains connection terminal of the electronicVED exclusive.

Installation

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 13

Start-up/decommissioning

5 Start-up/decommissioning

5.1 Purging the unit

Caution.

Risk of damage from heating wire dry

To start up the unit, proceed as follows:

> De-energise the unit. > Open the cold water stop valve. > Close and open the hot water draw-off valve several

times. The unit will then be purged. In normal operating mode, the unit will not need to be purged again.

fire.

The unit must be purged every time it is started up. Otherwise, there is a risk of dry fire and, as a consequence, damage to the unit.

> Ensure that the unit is de-energised

every time the unit is started up or decommissioned.

> Check that there is no voltage in the

supply lines and connections.

> Ensure that the power cannot be

restored inadvertently to any of the supply lines and connections while you are working on the unit.

If the display cable is not plugged into the elec-

tronics, the power cannot be regulated. The

5.2 Fitting the unit cladding

water temperature that the unit then provides will comply with the last value set.

5.1 Safety switch

> Push the safety switch (1) in, as shown in Figure 5.1.

5.2 Fitting the unit cladding

> Plug the display cable into slot X7 of the unit's electron-

ics, as illustrated in Figure 5.1, position (2). > Put the unit cladding (3) on. > Tighten both bolts (2). > Grip the panel (1) using the two straps. > Splay the two straps (slightly pull the panel apart). > Put the panel (1) on. > Make sure that the hot water draw-off valve is closed. > Connect the unit to the electrical mains (switch on the

fuse).

14 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Start-up/decommissioning

5.3 Setting the display parameters

The electronicVED exclusive display can be, but

does not have to be, set up before checking the

The current performance features of the electronicVED exclusive are displayed as soon as the unit is connected and configured. When in operation, the display shows the desired water temperature. Furthermore, the maximum water temperature that your VED provides will be displayed on the top display line. This maximum temperature can be set freely and can be between 30 °C and 60 °C. The following display is an example of this.

function. It is sensible to first only set the desired hot water temperature.

max. 42 °C

42.0 °C

  

MEMO eco

5.3.1 Calling up the installer menu

> Press and hold the Memo button for longer than 3 sec-

onds to access the installer menu.

Appliance data



Remote control



  

Using this menu, you have access to the current and cumulated unit data and to the settings for the remote control.

5.3.2 Displaying unit data

You are in the installer menu. The cursor is next to the

Appliance data menu point.

> Press the

ok button.



The set target temperature is factory-set to 42 °C.

To access the current temperature setting quickly, you always have two options:

> Set the current hot water temperature directly by using

the +/— buttons.

> Set the current hot water temperature using the

button.

The settings for the installer menu on the elec-

tronicVED exclusive display are described below.

You can find a detailed description of all the display functions in the instructions for use included in this document.

MEMO

Display Appliance data

current



cumulated



  



Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 15

Start-up/decommissioning

The cursor is next to the current menu point.

> Press the

Current appl. data

Inlet temp. 21 °C

Desired temp. 38 °C

Outlet temp. 24 °C

Output 12.0 kW

Flow rate 8.0 l/min

The following information is displayed:

Inlet temp.

Desired temp.

Outlet temp.

Output

Volume flow

5.1 Current unit data

> Press the  button to return to the Display Appliance

data

The cursor is next to the

> Press the  button.

The cursor is next to the

> Press the

played.

ok button.



  

The current temperature of the drinking water, as measured at the unit's cold water inlet.

The target temperature set on the unit for the hot water output.

The current temperature of the hot water, as measured at the hot water outlet.

The unit's current output, measured in kilowatts.

The current flow rate, measured in litres per minute.

menu.

current menu point.

cumulated menu point.

ok button. The cumulated unit data will be dis-



Appl. data history

Operated time 548 h

Period of use 112 h

Enery 107 kW

Water 2538 l



  

The following information is displayed:

Operated time

Period of use

Enery

Water

5.2 Cumulated unit data

The time in hours that the unit was connected to the power supply.

The time in hours that the unit has produced hot water.

Energy consumption in kilowatt hours since the unit was connected to the power supply.

Water consumption in litres since the unit was connected to the power supply.



5.3.3 Connecting the remote control

The remote control included in the scope of delivery of the VED is connected to the VED at the factory. You have the option of connecting up to three further remote controls of the same type (article number: 0020084761) at a time to the VED.

The following description of how to connect the

remote control requires the operational readi-

ness of the remote control (batteries inserted and casing sealed closed). Section 3.1.1 of the operating instructions describes how to insert the batteries.

16 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

The VED's remote control (article number:

0020084761) works in exactly the same way as

To connect the remote control to the VED, you must set certain parameters on the remote control and on the VED.

> Press any button on the remote control. The following

display is shown on the remote control:

the VED's display. The buttons on the remote control and the way in which it is operated are identical to the electronicVED exclusive electric instantaneous water heater.

Start-up/decommissioning

5.3.4 Disconnecting the remote control

to search Base

Press [Ping]

Start sleep

  

> Press the Start button on the remote control.

The following message is shown on the display:

RRC:

4F 19 C9 00

Request to connect

Do you accept it?

Yes No

  



Disconnect the remote control from the VED at the VED. You are in the installer menu. The cursor is next to the

Appliance data menu point.

> Press the  button.

The cursor is next to the

Remote control menu point.

> Press the

Remote control disconnect

No. 1 conn.

No. 2 conn.



No. 3

No. 4

> To disconnect a remote control from the VED, set the

cursor to the remote control that you want to disconnect

(remote control > Press the

is displayed.

ok button.



  

no. 2 in the example).

ok button. The remote control's connection ID



> Press the Yes button on the VED to confirm the connec-

tion between the remote control and the VED.

> Press the

The message on both displays (VED and remote control) switches automatically to the temperature display. In the process, the remote control first adopts the VED's settings. From this point onwards, every setting for the unit can be altered both in the VED's display and via the remote control.

Yes button on the remote control.

RRC ID:

E8 24 F2 4C

Start sleep

  

> Press the sleep button

The connection ID is deleted. The remote control is no longer connected to the VED. Section 5.3.3 describes how the remote control is connected to the VED.

> Press the

control

 button to return to the Connect Remote

menu.



Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 17

Start-up/decommissioning

5.4 Checking the system's functionality

Danger!

Risk of being scalded by hot water!

> Using the display buttons, test the unit's output by trying

the running water at a draw-off point.

The water temperature on the electronicVED exclusive can be set in increments of 0.5 °C.

The outlet temperatures at the draw-off points can be up to 60 °C. and can cause scalding.

> Set the scald protection function on your

electronicVED exclusive to a maximum of 43 °C if you want to be protected from scalding.

> Inform the operator that there is a risk of

scalding when the water temperature exceeds 43 °C.

°C38,5

Memo eco

5.5 Decommissioning

5.5.1 Temporary decommissioning

The VED can be taken out of service temporarily, e.g. for maintenance work.

> De-energise the unit. > Close the cold water stop valve.

5.5.2 Permanent decommissioning

To shut down the VED permanently, proceed as follows:

> De-energise the unit. > Close the cold water stop valve. > Carefully loosen the cold and hot water connections. > Capture the residual water (up to 0.4 litres) left inside

the unit using a suitable container. > Remove the unit from its mounting.

5.3 Output selector switch

> Press the + button (1) or the — button (2) until the

required set target temperature is shown in the display.

18 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Handing over to the operator

Spare parts and accessories67

6 Handing over to the operator

Danger!

Risk of being scalded by hot water!

You must train the operator in the handling and function of their electronicVED exclusive.

> Provide the operator with all relevant instructions and

unit documentation for safe-keeping. > Go through the instructions for use with the operator. > Answer any questions the operator may have. > Draw special attention to the safety information which

the operator must follow. > Inform the operator of the necessity to ensure that the

system is regularly inspected/maintained by a competent

person (inspection and maintenance contract). > Make the operator aware of the need to keep the instruc-

tions near the electronicVED exclusive.

Above a water temperature of 43 °C, there is a risk of scalding.

> Inform the operator that there is a risk of

scalding when the water temperature exceeds 43 °C.

> Set the scald protection function on your

electronicVED exclusive to a maximum of 43 °C if you want to be protected from scalding.

7 Procuring spare parts and accessories

The original components of the unit were also certified as part of the CE declaration of conformity. If you do not use certified Vaillant genuine spare parts, this voids the CE conformity of the unit. We therefore strongly recommend that you fit Vaillant genuine spare parts. You can find information about available Vaillant genuine spare parts from the contact address provided on the reverse of this document.

– If you require spare parts for servicing or repair work,

use only Vaillant genuine spare parts.

The following accessory is available:

– Spacer for wall mounting VED/7

Order no. 0020138088

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 19

Detecting and rectifying faults

8 Detecting and rectifying faults

The faults listed here must only be rectified by an approved heating specialist company. When rectifying faults, note the following:

> Only use genuine spare parts for repairs. > Make sure the parts are correctly fitted and that their

original position and alignment are retained. > When removing water-carrying parts, capture the resid-

ual water (up to 0.4 litres) left inside the unit using a

suitable container.

When diagnosing and rectifying faults, always

follow the order stated in Table 8.1 for each indi-

Fault/cause Procedure Testing/rectifying

No power. 1. Check the electrical con-

Resistance is outside the range of < 200 ohm.

Water flow not adequate, water pressure is too low.

Nothing shown on the display, no function can identified. The safety switch has been triggered.

No hot water or fluctuation in the outlet temperature.

Flow rate cannot be set or the outlet temperature is not reached. Defective motorised valve.

8.1 Possible faults and remedial action

vidual point.

nections

2. Check the electrical function of the radiator

3. Check the minimum water flow rate

4. Check the safety switch Carry out the checks as described in points 1 - 5. Once you have found the

5. Check the electronics Slowly open a draw-off point near the unit until approx. 3 l/min. Check

6. Check the motorised valve The unit is ready for operation, the display electronics are connected, the

Ensure that the unit is supplied with the L1, L2 and L3 mains voltage. Check the protective devices. De-energise the unit and open the unit cladding. Check all the connection line connectors.

Undo the connections 1 and 4 from the electronics. Measure the resistance value on the lines between the connections 1 and 4. The resistance must be < 200 ohm.

Ensure that there is an adequate water flow rate of more than 3 l/min. If the water volume is too low, check the water pressure, the fittings and the filter in the inlet. If the required water volume is not reached, check the motorised valve.

fault, start the unit up again. If you have not found the fault, do not start the unit up. When the safety switch is tripped, it can be assumed that there is a fault in the electronics. Replace the electronics and check whether electricity can pass through the coil of the safety switch. If no electricity passes through, this must also be replaced.

whether a relay switch (a click) can be heard.

No switch (click) can be heard:

De-energise the unit and remove the unit cladding.· Check that the impeller moves freely by blowing hard on the inlet side; if necessary, clean or replace the impeller.· Otherwise, replace the electronics.

Switch (click) can be heard:

Check that the water temperature reaches the target temperature.

Fluctuation in the outlet temperature:·

Replace the electronics. Water temperature is not reached:·

- Water feels too cold even though the outlet temperature displayed corresponds to the target value. Check the external sensor and replace it if necessary.

- The water volume displayed is lower than the actual water volume. The impeller is probably not turning correctly. Check the impeller for blockages. Check the motorised valve as described in point 6.· If the motorised valve functions correctly, change the electronics.

unit cladding is closed. De-energise the unit for approx. 10 seconds. Switch the mains voltage on again. A motor noise must immediately be audible (the motorised valve is starting up). If you do not hear a motor noise, the valve is defective and must be replaced. If the motorised valve is working perfectly again, set the temperature to 60 °C. Quickly open a draw-off point with the highest flow rate possible (e.g. a bath). Then slowly reduce the flow rate and measure whether the selected outlet temperature is reached.

20 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Detecting and rectifying faults

Inspection and maintenance89

8.1 Possible problems when using the remote control

Problem-free operation of the radio remote control for the electronicVED exclusive is dependent on the environmental conditions at the place of use. For example, the transmission of the radio signals may be impeded. Causes for this include objects in the path of the radio waves, e.g. walls, ceilings or other objects which can block radio waves. Other radio-transmission installations (e. g. weather stations) can also disrupt communication between the remote control and the electronicVED exclusive.

> If the operator is experiencing problems when using the

radio remote control, refer them to the information provided above.

> If the operator is experiencing problems when using the

remote control, first refer them to the following general points:

– The batteries must provide sufficient power. – The remote control must not be too far away from the

electronicVED exclusive.

9 Inspection and maintenance

Danger!

Risk of death from electric shock from

– A functional and visual inspection of the unit must be

carried out every three years by a competent person.

– If the water is very hard, more regular de-scaling may be

necessary.

– If the water has a large volume of suspended matter, the

water filter in the cold water flow must be replaced more often. At the same time, the water filter has a sealing function.

Carry out the following actions:

> Replace the water filter in the cold water flow. > Check for deposits in the hot water pipe between the

heating block and the hot water connection.

> When re-assembling the unit, insert a new flat seal into

the hot water connection.

> Check whether the unit needs to be de-scaled and do so

if required.

live lines and connections!

> Isolate all electrical supplies and connec-

tions from the power supply before carrying out maintenance or repair work.

> Check that there is no voltage in the sup-

ply lines and connections.

> Ensure that the voltage cannot be inad-

vertently restored to any of the supply lines and connections while you are working on the unit.

If the unit needs to be completely de-scaled,

attach a decalcification pump between the cold

> After de-scaling the unit, flush it thoroughly with water. > After de-scaling the unit, purge it (see section 5).

Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 21

and hot water connection.

Caution.

Risk of damage caused by leaks.

After changing the water filter in the cold water flow, leaks may occur due to the new filter being incorrectly fitted.

> When fitting a new water filter in the cold

water flow, make sure that the filter is correctly positioned in the pipe and that the connection is sealed.

Technical data

10 Technical data

Type or sales designation/ Article number

For supplying one or more draw-off points Design Appliance for wall-mounted installation Configuration Bare wire heating coil Capacity l 0.4 Dimensions Width

Height Depth

Weight when filled with water kg 4.4 Performance characteristics Electronically regulated output Water inlet temperature °C 1...60 Switch-on water volume l/min 3 Switch-off water volume l/min 2.5 Switch-on flow pressure MPa >0.015 Max. water flow rate l/min 12 14 16 Rated overpressure MPa 1 Rated output kW 18 21 24 Minimum water resistance at 15 °C  cm  900 Measuring voltage 3/PE~ 380-400 V; 50 Hz

Safety

Level of protection IP 25 = sprayed-water protection

10.1 Technical data

Unit

mm mm mm

VED E 18/7 E HK

0010015731

240 481 99

Complies with German and Austrian safety regulations; radio-shielded; does not interact with the mains supply

VED E 21/7 E HK

0010015732

VED E 24/7 E HK

0010015733

VED E 27/7 E HK

0010015734

1...25

1) = Closed unit (pressure resistant)

22 Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00

Supplier

Manufacturer

00020176440_00_EXPen 052013 – Subject to change

Vaillant VED E 18/7 E HK, VED E 24/7 E HK, VED E 21/7 E HK, VED E 27/7 E HK Instructions For Use And Installation

Specifications and Main Features

Frequently Asked Questions

User Manual
