Installation and User Guide

VADDIO™ ZOOMSHOT™ WALLVIEW™ USB

ZoomSHOT HD Camera System featuring the Quick-Connect USB Interface

Model Number 999-6919-000 (North America) Model Number 999-6919-001 (International)

ZOOMSHOT WallVIEW USB Camera System

TABLE OF CONTENTS

Overview ................................................................................................................................................................................................................. 3

Unpacking: .............................................................................................................................................................................................................. 4

ZoomSHOT Front View with Feature Call-outs .................................................................................................................................................. 4

Image: ZoomSHOT HD PTZ Camera .......................................................................................................................................................... 4

Rear Panel Connections with Feature Call-outs ................................................................................................................................................. 5

Image: ZoomSHOT HD Camera ................................................................................................................................................................. 5

Table: ZoomSHOT Dip Switch Settings ........................................................................................................................................................ 5

Table: ZoomSHOT HD VIDEO Selections .................................................................................................................................................... 5

Quick-Connect USB Interface ................................................................................................................................................................................. 6

Image: Front Panel with Feature Call-outs ................................................................................................................................................... 6

Image: Rear Panel with Feature Call-outs .................................................................................................................................................... 7

Table: Quick Connect USB Rear Panel Dip Switch Settings ........................................................................................................................ 7

Basic Application Diagrams .................................................................................................................................................................................... 8

Diagram: Basic Wiring Configuration - Without Network or PC .................................................................................................................... 8

Diagram: Basic ZoomSHOT WallVIEW USB Configuration - USB 2.0 Streaming ....................................................................................... 9

Diagram: Basic IP Configuration - IP Streaming ........................................................................................................................................... 9

Diagram: Complex System with Audio ........................................................................................................................................................ 10

Zoom Shot Camera - First Time Set-up ................................................................................................................................................................ 10

Step By Step ZoomSHOT WallVIEW USB Installation Instructions: ................................................................................................................ 11

Quick-Connect USB Details ............................................................................................................................................................................. 12

Compatibility .......................................................................................................................................................................................................... 12

Table: Supported UVC Resolutions ............................................................................................................................................................ 13

Internal Web Pages and Control ........................................................................................................................................................................... 13

DHCP IP Set-up (Dynamic Host Configuration Protocol) ................................................................................................................................. 13

Static IP Set-up: ................................................................................................................................................................................................ 13

Quick-Connect USB Web Pages Tour: ............................................................................................................................................................ 13

Screen Shot: Login ...................................................................................................................................................................................... 13

Screen Shot: Camera Control Page - No Camera Detected ...................................................................................................................... 14

Screen Shot: User Menu - Camera Control Page ....................................................................................................................................... 14

Screen Shot: Admin Log-in ......................................................................................................................................................................... 15

Screen Shot: Admin Menu - Camera Settings Page ................................................................................................................................... 16

Screen Shot: Admin Menu - USB 2.0 or IP Streaming Mode Page ............................................................................................................ 17

Screen Shot: Admin Menu - Room Labels .................................................................................................................................................. 19

Screen Shot: Admin Menu - DHCP Network Configuration ........................................................................................................................ 20

Screen Shot: Admin Menu - Static IP Configuration ................................................................................................................................... 20

Screen Shot: Admin Menu - Security .......................................................................................................................................................... 21

Screen Shot: Admin Menu - Diagnostics .................................................................................................................................................... 21

Screen Shot: Admin Menu - System Menu ................................................................................................................................................. 22

Screen Shot: Admin Menu - Update Confirmation ...................................................................................................................................... 22

Screen Shot: Admin Menu - Update in Progress ........................................................................................................................................ 23

Screen Shot: Admin Menu - HELP.............................................................................................................................................................. 23

Connecting the Camera to the PC and Program of Choice: ................................................................................................................................. 24

Skype Example: ................................................................................................................................................................................................ 24

VLC Media Player Example: ............................................................................................................................................................................. 24

General Specifications .......................................................................................................................................................................................... 25

Compliance and CE Declaration of Conformity - ZoomSHOT .............................................................................................................................. 26

Compliance and CE Declaration of Conformity, Quick-Connect USB Interface ......................................................

Warrant

y Information ............................................................................................................................................................................................. 28

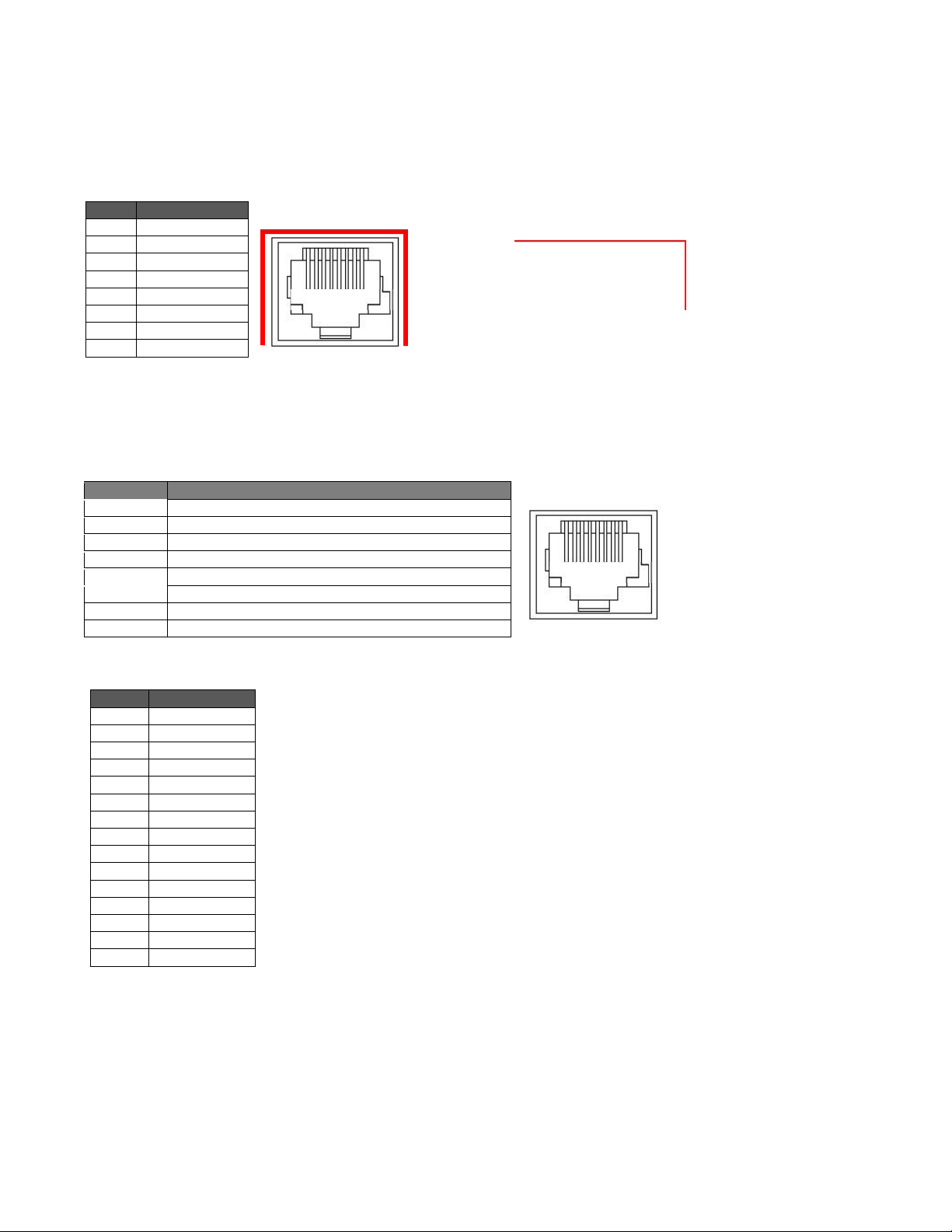

Appendix 1: Pin-outs for ZoomSHOT Camera and Quick-Connect USB ............................................................................................................ 29

Table: EZ-POWER VIDEO RJ-45 Connector Pin-outs ............................................................................................................................... 29

Table: ZoomSHOT Camera RS-232 Port ................................................................................................................................................... 29

Table: Quick-Connect USB DE-15 Pin-Out (Analog Component YPbPr) ................................................................................................... 29

Communication Specification ................................................................................................................................................................................ 30

ZoomSHOT Command List (1/2) ................................................................................................................................................................. 30

ZoomSHOT Command List (2/2) ................................................................................................................................................................. 31

ZoomSHOT Inquiry List (1/1) ....................................................................................................................................................................... 32

Appendix 2 - Telnet Serial Command API ............................................................................................................................................................ 33

Telnet Command List ....................................................................................................................................................................................... 33

............................................. 27

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 2 of 40

ZOOMSHOT WallVIEW USB Camera System

prop

VERVIEW

: The Vaddio ZoomSHOT WallVIEW USB camera system produces amazing results for small, medium and large room applications. Anywhere that a Point-of-View or stationary camera can be used alone or in conjunction with a Vaddio PTZ camera to simplify camera coverage and preset positioning, the ZoomSHOT is the answer.

Essentially, the ZoomSHOT camera is a low cost pan/tilt/zoom camera, where the pan and tilt are adjusted manually. However, unlike fixed-lens stationary cameras, the ZoomSHOT is equipped with a 19X optical power zoom lens that produces a horizontal field of view ranging from 58º on the wide end to 3.1º on the tele end in a HD 16:9 format.

ZoomSHOT was designed from the ground up and uses the Vaddio EZCamera™ Cat-5 wiring standard for video, power and control. The ZoomSHOT supports a wide range of video resolutions that are selectable on the rear panel from 1080p/60 all the way down to

Image: ZoomSHOT HD Camera

480p/59.94-YPbPr. This camera can deliver HD video signals, power and control up to 150’ (45.72m) on Cat-5 cable.

This WallVIEW system features the totally robust Quick-Connect USB Interface, which was designed to have multi-format digital and analog video outputs, be compatible with all existing and forthcoming Vaddio cameras and includes USB 2.0 and IP streaming outputs with a built-in web server for IP control. The QC-USB Interface provides outputs for the ZoomSHOT camera including; HDMI, YPbPr, USB Video (UVC standards-MJPEG) and H.264 IP Video (RTSP & HLS).

The QC-USB’s embedded webserver provides for browser-based access to camera controls, camera presets and basic CCU functions (color and shading controls) as well as the video configuration web pages. Analog and HDMI video outputs are included and output the

Image: ZoomSHOT Rear Panel

same video resolution that is sent from the camera simultaneously. Choose between three (3) IR frequencies for the

Vaddio IR SHOT Commander to allow multiple cameras to be locally IR controlled with a single remote control. And like all WallVIEW packages, the thin profile wall mount is included.

Intended Use:

Image: Quick-Connect USB Interface

Before operating the device, please read the entire manual thoroughly. The system was designed, built and tested for use indoors with the power supply provided. Outdoor operation or use of a different power supply has not been tested and could damage the device and/or create a potentially unsafe operating condition.

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

Use only the power supply provided with the system. Use of any unauthorized power supply will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not work well for professional installations and can be the cause of intermittent connecti ons which can result in the RS-232 control line failing and locking up, and/or compromising the HSDS (high speed differential) signals. For best results please use standard RJ-45 connectors and test all cables for

er pin-outsprior to use and connection to Vaddio product.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 3 of 40

ZOOMSHOT WallVIEW USB Camera System

Save These Instructions:

The information contained in this manual will help you install and operate your product. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from

www.vaddio.com free of charge.

NPACKING

Carefully remove the product and all of the included parts from the packaging. Identify the following parts for each camera:

ZoomSHOT WallVIEW USB Camera System (North America): Part Number: 999-6919-000

 One (1) ZoomSHOT HD Camera (998-6919-000)  One (1) Vaddio IR Shot Commander Remote  One (1) Quick-Connect USB Interface (998-1105-038)  One (1) 24 VDC, 2.0 A Power Supply with Power Cord for North America  One (1) 6’ (1.83m) USB Type-A to Type-B Cable (Black)  One (1) Thin Profile Wall Mount with Mounting Hardware  One (1) EZCamera Cat-5 Control Adapter (RJ-45-F to DB-9-F)  Documentation

ZoomSHOT WallVIEW USB Camera System (International): Part Number: 999-6919-001

 One (1) ZoomSHOT HD Camera (998-6919-000)  One (1) Vaddio IR Shot Commander Remote  One (1) Quick-Connect USB Interface  One (1) 24 VDC, 2.0 A Power Supply  One (1) 6’ (1.83m) USB Type-A to Type-B Cable (Black)  One (1) Euro Power Cable  One (1) UK Power Cable  One (1) Thin Profile Wall Mount with Mounting Hardware  One (1) EZCamera Control Adapter (RJ-45-F to DB-9-F)  Documentation

ZoomSHOT Front View with Feature Call-outs

Image: ZoomSHOT HD PTZ Camera

1) Lens: 19X Optical Zoom Lens

2) IR Sensor and Power/Tally LED: The IR sensor for the IR SHOT Commander Remote is located here. In a

separate opening, a blue LED power light and a red LED tally resides (it turns purple on boot up too).

3) The Yoke: For manual pan and tilt. Tilt range is ± 30° and Pan is limited to the service loop of the cabling.

4) The Aluminum Base and Steel Cylindrical Body: Please don’t drop it on your foot, it’s fairly substantial.

5) Logo: Really Cool Logo Badge (RCLB). The RCLB is affixed to the base in a recessed ovoid area.

②

①

③

④

⑤

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 4 of 40

ZOOMSHOT WallVIEW USB Camera System

Rear Panel Connections with Callouts

Image: ZoomSHOT HD Camera

②

①

④

③

1) RS-232 & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the front IR receiver, which can be transmitted to third party devices. The ZoomSHOT will not react to the remote if the IR is off. IR forwarding is only available in the SR Quick-Connect models.

2) EZ Power/Video Port:

RJ-45 connector is only used with the Quick-Connect SR, Quick-Connect DVI-D/HDMI SR Interface, Quick-

This Connect USB and USB Mini Interfaces to supply power and return HSDS (differential) video from the camera over Cat-5 cable up to distance of 150’ (45.72m).

3) ZoomSHOT Dip S

witch Settings:

Settings for IR remote frequency, IR receiver on/off, image flip, test bars and Defaults can be configured on these switches. See the Switch Settings page for additional information. The dip switch settings are as follows:

Table: ZoomSHOT Dip Switch Settings

Dip Switch Function

1 Up = IR1, Down = IR2 2 Up = IR 1 or 2, Down = IR3 3 Up=IR ON, D own = IR OFF 4 Up = Normal Image, Down = Image Flip 5 Test Bars 6 Update Position - Leave UP unless updating firmware

All Down Reset to Defaults - with power cycle

4) HD Video Select:

A rotary switch allows the user to choose the component HD output video resolution and format. After setting or changing the resolution, reboot the camera to ensure proper operation. If an unassigned rotary selection position is chosen (3, 9, A, B, C or D), the camera will output a medium grey video privacy mask. Simply set the rotary switch to an assigned position to output video. The HD Video Select Rotary Switch Settings are as follows:

Table: ZoomSHOT HD VIDEO Selections

Rotary

1 1080i/59.94 9 -2 1080p/59.94 A -3 -- B -4 720p/50 C -5 1080i/50 D -6 1080p/50 E 1080p/29.97 7 480p/59.94 F 1080p/25

Resolutions

720p/59.94 8

Rotary

Resolutions

576p/50

Point the notch in the switch stem to assign the rotary position

Notes:

1) For IP or USB 2.0 Streaming, use position “0” (720p/59.94) for best results

2) Set the rotary switch to an assigned position. A medium grey privacy mask is displayed on unassigned positions.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 5 of 40

ZOOMSHOT WallVIEW USB Camera System

UICK-CONNECT

Image: Front Panel with Feature Call-outs

1) LCD Blue Backlit Display:

20 x 2 Character, ODV (omni-directional view), ABN (advanced black nematic) display with a high contrast and wide viewing angle combined with high visibility. The MAC address (labeled as “HW” for hardware) is on the top line, and the IP address (static or DHCP) is listed on the bottom line. This display with IP and MAC addresses allows for easy access to the embedded web server and Vaddio camera settings for the PC or BYOD (bring your own device - laptop or tablet) users of UC conference systems. Upon power up or power reset this display will indicate when the unit is in initialization mode.

2) Power/ System Reset Switch: The System Reset switch on the front panel is a blue back lit-tactile switch that will illuminate when power is present at the rear power connector. Pressing in and holding this switch for 1.15643 seconds will restart/reinitialize the Quick-Connect USB Interface.

3) NETWORK LED:

The green panel mount LED indicator will indicate the presence of an Ethernet connection. This LED will blink to indicate network activity. If no network connection is made, the LED will remain off.

4) USB LED:

The blue panel mount LED indicates the presence of a USB connection to a PC (or mac). Blinking will indicate USB activity. If no USB connection is present the LED will remain off.

USB I

NTERFACE

①

②

④

③

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 6 of 40

ZOOMSHOT WallVIEW USB Camera System

Quick-Connect USB Interface

Image: Rear Panel with Feature Call-outs

⑤

⑨

①

②

③

④

⑥

⑦

⑧

1) Power Input: 5.5mm OD x 2.5mm ID coaxial connector for the provided 24 VDC, 2.0 Amp switching power supply. The Quick-Connect USB Supplies Power to the attached camera.

2) 5-Position Dip Switch: A 5-position dip switch allows the user to choose the HD video color space (YCbCr for HDMI and sRGB color space for DVI-D) on the HDMI output, configure for updates, and restore factory defaults when cycling power.

Table: Quick Connect USB Rear Panel Dip Switch Settings

Dip Switch Function Default Activation

1 2 3 4 5

All Down

3) RS-232 IN: Serial RS-232 input on a RJ-45 connector. This control port allo ws a Vaddio joystick controller or 3rd party controller (Crestron/AMX) to control the camera functions if the embedded webserver is not used for real time control.

4) RS-232 OUT TO CAMERA: Serial RS-232 output on RJ-45 connects via Cat-5 to the camera RS-232 input on the camera. Control signals from the embedded webserver are sent or external controller are rela yed to the camera over this control port.

5) EZ POWER VIDEO: RJ-45 jack used to supply 24 VDC power to the camera and return differential video from the camera on Cat-5 cable at a maximum distance of 150’ (45.7m).

6) YPbPr Output: Analog component video output on a DE-15 (HD15) connector (resolution is set on the back of the camera). The YPbPr output resolution will be the same as the HDMI output resolution. SD video resolutio ns (Y/C and CVBS formats) are not supported by the Quick-Connect USB Interface; however some progressive frame analog component SD video is supported.

7) HDMI Output: The digital video output on the HDMI connector can either be YCbCr color space (normal HDMI mode) or can be changed to DVI-D color space (sRGB) for older monitors and devices. The HDMI and YPbPr outputs work simultaneously and are the same resolution (set at the camera).

8) Ethernet 10/100 Netw ork RJ-45 Jack: The Ethernet jack will have yell ow and green lights to indicate connectivity and activity of the network on that jack. The Ethernet jack will stream video up to 1080p/30 using H.2 64 compressi on and can be set from the internal web pages much like the HD-US B Camera. The resolutions will available in a three (3) stage quality format (High Quality, Good Quality and Standard Quality targets) and includes a range of CIF to 1080p/30.

9) USB 2.0 Connector: The USB 2.0 is on a Type-B female jack and connects to a PC running a soft-client video conferencing system or video capture software that uses UVC (USB Video C lass) standard drivers. No other USB 2.0 drivers are required to plug the QC-USB into a computer and have it work. The UVC driver s will auto negotiate the top resolution that the PC and QC-USB can accomplish together and auto-implement that resolution.

Future Use Up n/a Future Use Up n/a Color Space HDMI Connector Up = HDMI (YCbCr) Down = DVI (sRGB) Program / Update UP = No Program DOWN = Ready To Program Future Use Up n/a Reset to Defaults All UP ALL DOWN (with power cycle)

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 7 of 40

ZOOMSHOT WallVIEW USB Camera System

)

ASIC APPLICATION DIAGRAMS

Diagram: Basic Wiring Configuration - Without Network or PC

ZoomSHOT HD Camera

Rear View

Cat-5 Cable for RS-232 Control (Zoom and CCU Functions)

Quick-Connect USB Interface

Rear Panel

←

HD Video (HSDS differential

Cat-5 Cable for Power and Video

(EZ-POWER VIDEO)

Powe

→

24VDC, 2.0 A Power Supply

RS-232 Control

HDMI Video

HD Monitor

(Simulated HD Video Feed)

ProductionVIEW Precision Camera Controller

Note: RS-232 can be run directly to the ZoomSHOT or

through the Quick-Connect USB in this configuration

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 8 of 40

ZOOMSHOT WallVIEW USB Camera System

Diagram: Basic ZoomSHOT WallVIEW USB Configuration - USB 2.0 Streaming

Two (2) Cat-5 Cables carry Power, Video and Control Signals

Power to Camera >

< HD Video to QC-USB

Cat-5 Cables up to 150’ (45.72m)

ZoomSHOT HD

ideo Camera

Quick-Connect

USB Interface

HDMI Cable

USB 2.0 - MJPEG Video using Standard UVC Drivers

HDMI Video Monitor

Simulated Video Feed

USB 2.0 Cable

Diagram: Basic IP Configuration - IP Streaming

ZoomSHOT HD Camera to Quick-Connect USB out to Network for a remote network application.

ZoomSHOT HD Camera

Quick-Connect USB

Interface

(45.72)

Two (2) Cat-5 Cables for Power, Video and Control Distance up to 150’ (45.72m)

Ethernet

IP (H.264) Streaming

RTSP or HLS

Ethernet

Network

Host PC with

UC Application

PC with

Browser for

Control

Network

Client

(Video)

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 9 of 40

ZOOMSHOT WallVIEW USB Camera System

(

Diagram: Complex System with Audio

Local USB 2.0 streaming with Ethernet control, active UC Application and local audio system.

ZoomSHOT WallVIEW USB System with Audio

ZoomSHOT HD

Camera

Video, Power

and Control

Two Cat-5

Cables

Up to 150’

45.72m)

Quick-Connect

USB Interface

Ethernet IP Control

from either PC

PC “A” with Browser for Control

and UC Application to connect

USB 2.0

UVC Video

to PC “B” on other side

Ethernet

USB 2.0

UAC Audio

Local Audio System with AEC

Mics, Mixer/AMP and Speakers

8 Ohm

Ceiling

Speakers

EasyUSB

Mixer/Am

Cat-5 Cat-5

8 Ohm

PC “B” with Browser for

Control and UC

Application to connect to

PC “A” on other side

Network

Ethernet

Legend

 USB UVC Video

 USB UAC Audio

 IP Web Page Control

 UC Application

AEC Mics

(EasyMics)

OOM SHOT CAMERA - FIRST TIME SET-UP

The ZoomSHOT was designed to be very easy to use and operate. There is documentation at the back of this manual for pin-outs for the connectors on the Zoom SHOT camera and the Quick-Connect USB Interface.

Before Installing the Camera:

 Choose the ZoomSHOT camera mounting location while paying close attention

to camera viewing angles, lighting conditions, possible line of site obstructions and checking for in-wall obstructions where the camera is to be mounted. Always pick a mounting location that will optimize the performance of the camera. Please locate the camera to enable easy positioning of the camera body with the ability to point down and away from the ceiling and a pile of fluorescent lighting cells. Cameras generally don’t like to be swamped with fluorescent light and nobody sits on the ceiling anyway.

Image: ZoomSHOT HD Camera with provided Thin Profile Wall Mount

 The Thin Profile Wall Mount for the ZoomSHOT can be mounted directly to a 1-gang wall box or can be

mounted using two (2) provided spiral dry wall anchors.

 For Power/Video and RS-232 signals, use standard Cat-5 cable (568B termination and real RJ-45

connectors) from the EZ-POWER VIDEO and RS-232 ports on the back of the ZoomSHOT to the QuickConnect USB Interface. The EZ-POWER VIDEO jack on the camera is marked in red as a reminder that there is 24 VDC power on that Cat-5 cable.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 10 of 40

ZOOMSHOT WallVIEW USB Camera System

Step By Step ZoomSHOT WallVIEW USB Installation Instructions: Step 1: After determining the optimum location of the camera; route, mark and test

the two (2) Cat-5 cables from the camera to the Quick-Connect USB Interface located at the head-end. The two Cat-5e cables should feed-through the hole located on the rear flange of the Thin Profile Wall Mount. If the bracket is to be mounted on a 1-gang wall box, use the screws supplied with the wall box cover plate to attach the Thin Profile Wall Mount. If mounting to the drywall with wall anchors, use two (2) quality wall anchors. The mount provides for easy leveling. Pull the cat-5 cables though the wall and feed the cables through the back of the mount. Level the mount and tighten the mounting screws.

Step 2: Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the camera, set up the camera’s output resolution and functional preferences. There are tables on Page 5 that identify the choices… keep these tables handy for future use…or you can easily look them up on the Vaddio website

(vaddio.com) when needed.

Setting the ZoomSHOT Camera:

 Set the desired HD Resolution with the rotary selection switch. If changing the resolution, always reboot

the camera to ensure proper operation. Note: Use 720p/59.94 (position “0”) for best results for streaming USB 2.0 (MJPEG) or IP Video (H.264)

 Set the IR frequency (1, 2 or 3) of the camera (if it is to respond to the IR remote control).  Set the desired image orientation (normal or flipped).

Step: 3: Follow the sample wiring diagram for connecting the Cat-5 cables to the ZoomSHOT and QuickConnect USB Interface (Diagram on the Page 8, but read and understand the rest of these instructions especially the next note).

NOTE: Check all Cat-5 cables for continuity in advance of the final connection. Label the

Cat-5 cables. Plugging the EZ-POWER VIDEO cable into the wrong RJ-45 may cause damage to the camera system and void the warranty. For premise cabling, please use real RJ-45 connectors and crimpers. Please don’t use the pull through or EZ type of RJ-45.

Step 4: Place the camera onto the camera mount and use the provided ¼”-20 screws to secure the camera to

the mount. To dress the cabling, push the extra cable back into the wall opening. HINT: A small piece of black fabric or felt attached to the back of the mount (wall-side) with a small slit to allow cables through, or dressing the wall opening drywall edge with black tape to mask the white gypsum wall board may help the overall dressing of the mount and cables.

Step 5: Connect the Vaddio 24 VDC, 2.0 Amp power supply to a power outlet and to the Quick-Connect USB Interface. The Quick-Connect USB will initialize, power will travel down the EZ-POWER VIDEO Cat. 5 cable to the camera. The camera will boot up and in a few seconds, differential HD video will travel back down the Cat-5 cable to the Quick-Connect. When an image is available, the camera is ready to accept control information from the IR Shot Commander remote control or RS-232 camera controller. If connected to the Network, the QuickConnect USB will display the Hardware (HW) MAC Address and the IP addresses.

Controlling the ZoomSHOT:

IR Remote: The IR Shot Commander Remote control can control the camera’s basic functions and enter the

OSD (on-screen display) for more advanced controls.

RS-232 Control: An API is provided for control of the camera over RS-232 (commands in the back of manual). Telnet Control: The camera can be controlled through the Quick-Connect USB via Telnet session. These

exciting com

mands are listed at the back of the manual. Built-in Webserver Control: The Quick-Connect USB has a built-in webserver that auto-loads the control protocols of the Vaddio camera attached (pretty cool huh?). Full camera controls including CCU image controls are available from any approved browser on any computer. The IP address is always displayed on the front panel display of the Quick-Connect so access to the internal webpages is super easy.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 11 of 40

ZOOMSHOT WallVIEW USB Camera System

Quick-Connect USB Details

The Quick-Connect USB interface is a Cat-5 camera interface and an IP or USB 2.0 streaming appliance with a built-in webserver for camera set-up and control. The Quick-Connect USB Interface uses UVC (Universal Video Class) drivers for USB 2.0 video and does not require the loading of any other drivers to run on the PC. As long as the operating systems and soft-client software support UVC drivers, no additional software/drivers, other than the application is required.

COMPATIBILITY

The Quick-Connect USB will work with the following web browsers, soft codecs, computer operating systems and media players:

Compatibility - Web Browsers:

1) Internet Explorer (IE 8 and above)

2) Safari (Rev 4 and 5)

3) Safari/iOS (Rev 4 and 5)

4) Chrome (the latest and current release - auto updating)

5) Firefox (the latest and current release - auto updating) Soft Client Compatibility: The Quick-Connect USB is compatible with the following soft codecs or applications,

in no particular order:

1) Skype Win 7 & Mac OS X (10.7)

2) Web Ex (WBS 28.7 and up) Win 7 & Mac OS X

3) Microsoft Lync Win7

4) Cisco Jabber Win 7 & Mac OS X

5) Vidyo Desktop Win 7 & Mac OS X

6) Google Plus Win 7

7) Adobe Connect 8 Win 7 & Mac OS X

8) LifeSize ClearSea Win 7

9) GoToMeeting (Citrix) Win 7 & Mac OS X

10) Polycom M100 Win7

11) Panaopto (lecture capture) Win 7

Compatibility: Media Players:

The UVC with MJPEG and IP with H.264 video are compatible with the industry leading PC media players.

 Quick-Time 10.2  VLC Media Player 2.0.4  Real Player 16.0

Compatibility: Operating Systems

 Apple OS X (10.7 and above)  Windows XP w/Service Pack 3 with known issues and errata  Windows 7  Linux

Evolving Compatibilities:

As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the compatibility with other manufacturer’s products.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 12 of 40

ZOOMSHOT WallVIEW USB Camera System

Compatible with USB 2.0 UVC Drivers

The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC and the Quick-Connect USB to negotiate and use for any approved/tested USB application. Typically, the highest resolution possible between both the PC and Quick-Connect USB is used. However, not all OS and application combinations are altogether typical.

Table: Supported UVC Resolutions

Format Resolution Frame Rate Aspect Ratio

MJPEG 1280 x 720 15/30 16:9

960 x 544 15/30 16:9 704 x 576 15/30 4:3 640 x 480 15/30 4:3 640 x 360 15/30 16:9 424 x 240 15/30 4:3 352 x 240 15/30 4:3 320 x 240 15/30 4:3 320 x 180 15/30 16:9

NTERNAL WEB PAGES AND CONTROL

The internal web pages will allow control of the Quick-Connect USB and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more!

DHCP IP Set-up (Dynamic Host Configuration Protocol)

DHCP Set-up (skip this section if Static IP). If the LAN has a DHCP (dynamic host configuration protocol) server, then the IP address, gateway and routing information will automatically be assigned. The QC-USB software is defaulted to DHCP and will attempt to dynamically obtain an IP address using DHCP, but it will fall back to the default address of 169.254.1.1 if no DHCP server can be found.

Static IP Set-up:

The static IP can be assigned either through the network or directly with a computer using a cross-over cable. Depending on the age of the computer, you may not need a cross-over cable. Either way the steps are the same for network or direct connection to a computer. The default address of the QC-USB camera is 169.254.1.1 and the Subnet mask is 255.255.0.0. Different computer OS types all have their own way of doing things (without question), but they are essentially doing the same stuff, changing the IP address so the web pages of the HD-

USB are accessible

Quick-Connect USB Web Pages Tour:

Screen Shot: Login

The QC-USB web server is intended as a user’s camera control page at one level, and an administrator’s management tool at another level, which requires password authentication for access.

The Login Page will appear if there is a username assigned by the administrator. Assigning a username can limit access to the admin menus by a general user. By default, the username is blank and the password for the user account is: password. The Administrator can set the name and password for the user account. If no username is assigned, the web page will automatically open to the Camera Control page.

Defaults: Username is blank (assigned by admin)

Password is: password

Admin name is: admin Password is: password

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 13 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Camera Control Page - No Camera Detected

The No Camera Detected window will appear if the Quick-Connect USB has no communication with the camera. Check the camera power and serial connections if no camera is found within 30 seconds of initialization.

Screen Shot: User Menu - Camera Control Page

1) Zoom and Home Controls: The camera’s zoom lens can be controlled with the “+” to zoom-in and the “-“ to

zoom-out the ZoomSHOT camera. The home button will move the camera to the home zoom position.

2) Zoom Speed Control: The speed for both the Zoom control can be adjusted between two speeds; Fast

Zoom and Slow Zoom. For tighter shots, it is recommended that the slower speed is used.

➏

➎

➊

➋

➌

➍

➐

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 14 of 40

ZOOMSHOT WallVIEW USB Camera System

3) Store Preset Button: Clicking the Store button opens up a Store Preset pop-up dialog box. To set presets,

set up the camera shot, click on choice of preset number (1 through 6). The preset is stored and the dialog box closes.

4) Camera Presets: Six (6) presets can be recalled simply by clicking a preset number.

5) CCU Scenes: The user has access to the CCU scenes set and stored by the Admin. There are three (3)

user definable presets and six (6) presets preconfigured by the technical folks at Vaddio (really Scott set them all) that are meant to be used in certain lighting scenarios. These lighting presets included: Automatic, Incandescent Hi, Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor.

6) Administration Menu: By clicking on the Administration menu bar, the Admin Login screen will appear. The

default Admin password is: password

7) Vertical: The vertical button will reduce the size of the window for

the user controls and remove the menu tabs on the left side of the screen. The vertical sizing works well when using it with a soft-client codec. Click on ‘Full’ for full screen size camera control web pages.

Image:

Reduced window size for camera control to be used while a UC application is open

Screen Shot: Admin Log-in

By selecting the Admin Menu Bar, the Admin Login password pop-up window will appear and await the entry of the password. By entering the Admin menus, 10 more menu keys appear on the left side of the screen.

Default:

Admin Account Password is: password

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 15 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - Camera Settings Page

The Camera Settings page provides the parameters to allow the end user to match the camera to the environment, set the CCU presets and make startup assignments.

1) Load Preset at Startup: Check this box to move the camera to a predefined preset location when the

camera powers up. Use the pull down menu to select the Preset 1 through 6 to be loaded when this box is checked

2) Load CCU Scene at Startup: Check this box to load a CCU Scene into the camera when the camera

powers up. The pull down menu will allow the selection of one of the 6-factory scenes, or any of the 3-user defined scenes.

3) CCU Scenes: Click on any of these 9 buttons to load one of the CCU scenes into the camera. These

Scenes can be fine-tuned if changes are needed, and stored into any of the three User defined scenes.

4) Color Settings: When painting or shading camera scenes for specific lighting situations or environments,

these attributes can be adjusted for matching cameras in the same area. The parameters within the Color Settings section are defined below (top to bottom):

 Auto Iris check box: When checked, the camera will operate in Auto Iris mode, when unchecked, the

camera will be in Manual Iris mode and allow adjustment of Iris and Iris Gain levels

➌

➍

➊

➋

➎

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 16 of 40

ZOOMSHOT WallVIEW USB Camera System

 Iris: Move adjustment slider as required to adjust the iris opening. A numeric value will be displayed in

the box to the right of the slider.

 Gain: Move adjustment slider as required for amount of iris gain desired. Numeric value will be

displayed in the box to the right of the slider.

 Auto White Balance check box: When checked, the camera will operate in Auto White Balance mode,

when unchecked, the camera will be in Manual White Balance Mode and allow for adjustment of Red and Blue Gain.

 Red Gain: Move the adjustment slider as required for amount of Red Gain desired. A numeric

value will be displayed in the box to the right of the slider.

 Blue Gain: Move the adjustment slider as required for amount of Blue Gain desired. Numeric

value will be displayed in the box to the right of the slider.

 Back Light Compensation: When checked, Back Light Compensation will be applied to the camera if

BLC is supported by the camera and the camera is in Auto White Balance mode.

 Detail: Move the adjustment slider as required for amount of detail (Aperture) desired. A numeric value

will be displayed in the box to the right of the slider. Note: If the detail is too high, the video can look grainy and appear noisy.

 Chroma: Move the adjustment slider as required for the amount of Chroma (Color Vibrancy) desired. A

numeric value will be displayed in the box to the right of the slider.

 Store CCU Scene button: Once the desired scene adjustments have

been made, this button will activate a pop-up menu that can be used to store this scene into one of the three User Defined Scene locations. These User Defined Scenes can be named as required for clarity. These User Defined CCU Scenes can be adjusted and re-saved at any time.

5) Custom CCU Scene Labels: The labels for the (3) User Defined customizable Scenes can be changed as

needed. Mouse the cursor into the appropriate window and edit the text. Press Save to store these changes or press Cancel to exit this window.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 17 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - USB 2.0 or IP Streaming Mode Page

➊

➋

➌

➍

➎

1) Streaming Mode: Streaming can be set for either USB 2.0 streaming (MJPEG) or IP st reaming (H.264); but not both at

the same time. The QC-USB can stream USB and accept IP control, or it can IP stream with IP control. Choose the streaming mode here.

2) USB D evice Name: Allows the user to use a “friendly name” per system . In a BYOD format, the user has the ability to

move between different UC conference rooms and have the ability to assign the PC’s USB resources to that room.

3) Color Space: The UVC drivers will negotiate the color depth, but this parameter all ows the user to redu ce the color depth

to 4:2:0, which is used with the older/cheaper webcams and ap plicatio ns, wher e image qualit y is not as critical. The 4:2:2 color is used by many applications that take advantage of the performance of the camera where the colors are more vibrant and precise.

4) IP Streaming Settings: The Video Settings allow the selection of the target performance for the IP Streaming. The QC-

USB is set up for a variable bit rate and the user can select the video resolution and t he quality, such as High Quality (Best), Standard Quality (Better) and Low Bandwidth (Good). Every effor t to eliminate st upef yingl y bad combinatio ns with the 5 or 6 parameters that make up the image size, quality, bit rate, bandwidth etc… has been made, so you can’t pick 1080p at a bit rate of 128Kbps, which would look totally wicked awful - and probably wouldn’t work anyway.

5) Streaming Protocol and URL: Admin chooses the streaming type and the port number for RTSP. The HLS port is

always on 80. The supported protocols are RTSP and HLS (Apple’s HTTP Live Streaming). RTSP is best for live applications, where HLS serves the Apple iOS devices and is better for playback due to the amount of buffering the HLS has built-in. The Streaming URL auto populates and that path can be changed.

 When finished setting up the streaming parameters click Save to put the changes into eff ect or cancel, which will not save

the configuration.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 18 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - Room Labels

The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per QC-USB basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 19 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - DHCP Network Configuration

Under the Networking menu, The Network Configuration and Network Interfaces are displayed. This is where the Network administrator assigns either DHCP or a Static address and the associated parameters.

MAC Address, IP Address, Subnet Mask and Gateway will Autofill when in DHCP Mode

Screen Shot: Admin Menu - Static IP Configuration

If Static IP is used, the IP Address, Subnet Mask and Gateway are manually entered. Click on Save to keep the Static IP information.

IP Address, Subnet Mask and Gateway are entered into the system manually for Static IP

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 20 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - Security

The Security menu allows the Admin to UPDATE “user” PASSWORD and UPDATE “admin” PASSWORD. The default “user” password is: password. The default “admin” password is also: password. The Network administrator can reassign the user name and password as well as the Admin password. There is only one “user” password and one “admin” password at any given time. If changes are made, click on Save to store the change.

Screen Shot: Admin Menu - Diagnostics

Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical support team diagnose a problem with the Quick-Connect USB and attached camera.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 21 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - System Menu

The System Menu is where the System Info is displayed and Firmware Updates are performed. There will be firmware updates and upgr ades over the life of the Quick-Connect. The file for the firmware update is chosen in this menu and the update is started here. A remote system Reboot and Restore to Factory Presets is also available.

Screen Shot: Admin Menu - Update Confirmation

After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact Vaddio Tech support for assistance with updates. Please read and completely understand the pop-up warnings as it is easy to lose patience waiting for updates. Click on continue to start the update (this example is from 1.0.0 to 1.1.0)

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 22 of 40

ZOOMSHOT WallVIEW USB Camera System

Screen Shot: Admin Menu - Update in Progress

After the firmware load has been started, a pop-up screen will advise patience and notify, in terms of a percentage completed, the progress of the firmware update. Please do not interrupt the firmware load (this example is from 1.0.0 to 1.1.0)

Screen Shot: Admin Menu - HELP

Service/Help information can be found under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support.

TECHNICAL SUPPORT NOTE: Please work with your Network Administrator prior to calling Vaddio for technical support. Please have on-site network personnel initiate tech support calls with Vaddio only.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 23 of 40

ZOOMSHOT WallVIEW USB Camera System

CONNECTING THE QUICK-CONNECT USB AND CAMERA TO THE PC AND PROGRAM OF CHOICE:

The Quick-Connect USB and attached camera are compatible with many programs and media players. The following is an attempt to generally describe the steps to plug in the QC-USB with a Vaddio camera and get an image.

Skype Example:

1) After connecting a camera to the Quick-Connect USB, with a quality USB 2.0

cable, plug the USB-B port of the QC-USB Interface to the USB-A port of the computer. A pop up window on the computer monitor will display the following:

a. Found QC-USB b. Found USB Composite Device c. Found USB Video Device

2) Open Skype and perform the following steps:

a. Open the Tools Menu and drop down to Options b. Click on Video Settings and under Webcam choose USB Video Device

The systems will negotiate the highest resolutions possible, depending on the computer speed, network quality, cabling etc..., and display the video signal of the camera. The camera attached to the QC-USB can be controlled with the supplied Vaddio IR Shot Commander Remote or through IP as described earlier through the QC-USB’s web pages. Make a test call to ensure the system is working properly.

VLC Media Player Example:

1) Same first step as above.

2) Open VLC Media Player and perform the following steps:

a. Click on the Media menu and drop down to Open Capture Device and click it. b. Under Device Name, go to the Video Device Name drop down and choose USB Video Device. c. Under Options, enter the Video Size as 1280x720 d. Click on Play e. From there, VLC needs some instruction on the aspect ratio, so click on Tools and drop down to

Aspect Ratio and drop down again to 16:9 for 720p (1280x720).

VLC is a powerful record/playback system that will buffer the images creating some delay in the way VLC displays the image. This is expected and normal.

With all the compatible software available, in general terms, the video device, aspect ratio, and resolution may need to be set manually the first time through initial set-up. Some systems are easier than others (like Skype) and others are more technical in nature and tend to do more stuff.

Example Program Notes: Most every application or media player is in a state of constant updating and change. The above instructions were written at the beginning of 2013 and some steps may be slightly different. The general idea however is the same.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 24 of 40

ZOOMSHOT WallVIEW USB Camera System

GENERAL SPECIFICATIONS

ZoomSHOT WallVIEW USB

Part Numbers ZoomSHOT WallVIEW USB System 999-6919-000 (North America)

ZoomSHOT Camera Image Sensor 1/3-Type Exmor High-speed, Progressive Scan CMOS Sensor with 1.3 Megapixels Video Output Resolutions HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50

Lens/ Focal Length 19X Optical Zoom, F=4.5mm wide to 85mm tele end (F1.6-F2.9), Min. Focus Distance 1.0m Horizontal Viewing Angle 58.1° Wide End to 3.2° Tele End - 16:9 Format Video S/N Ratio >52 dB Minimum Illumination 0.7 LUX (F1.6, 50IRE) Serial Control Protocol RS-232 (Modified VISCA) Manual Pan/Tilt Range Pan: Limited to service loop of cabling, yoke and base are mechanical only

Preset Positions Six (6) Programmed and Recalled via IR Remote, 16 Programmed and Recalled with RS-232 Tally Light Available through RS-232 Control Camera Connectors Two (2) RJ-45 Jacks:

HD Video Select 16-Position Rotary Switch: Used to set the ZoomSHOT HD Video Resolution Output Camera Settings 6-Position Dip Switch: For IR Freq., Baud Rate 9600, Image Flip & Test Bars

Thin Profile Wall Mount 535-2000-237 (Provided with WallVIEW Systems)

User Controls IR Shot Commander Remote with OSD for camera set-up, RS-232 Materials & Weight Aluminum & Steel, Weight = 2.75643 lbs. (1.68kg) Dimensions: Tube: 3” ( 76.2mm) Diameter x 4.75” (120.65mm) Long

Quick-Connect USB Interface Video Outputs USB 2.0 (MJPEG): Resolution up to 720p/30 (USB 2.0 MJPEG)

USB Interface Connector: Type-B, USB 2.0 Compliant, Standard UVC (Universal Video Class) Drivers Network Interface Connector: RJ-45 (shielded), 10/100 Base-T, Supported Protocols: RTSP and HLS Streaming Streaming Protocols IP: H.264 (RTSP and HLS), USB 2.0: MJPEG (UVC standard drivers) Connectors

Dip Switches 5-Position: Color Space, Updating and Future Use H.264 Resolutions CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080p Ethernet only) Front Panel

Supported Media Players

Supported Browsers

Power Supply Dimensions (H x W x D) Weight Accessory

ZoomSHOT WallVIEW USB System 999-6919-001 (International)

SD: 480p/59.94 & 576p/50

Tilt: ± 30° Invertible for Ceiling Mount

 EZ-Power VIDEO RJ-45 Jack for use with Quick-Connect - Supplies power to the camera and returns

differential HD video from the camera

 RS-232 RJ-45 Jack (RS-232 Communication)

16-Position Rotary Switch for Output Resolution Settings

Black powder coating, Sized to fit on 1-gang wall box or drywall, mounting hardware included

Base: 5.5” (139.7mm) Diameter Overall Height: 5.5” (139.7mm) Tall

H.264 (IP) of Ethernet: Resolution up to 1080p/30 (H.264 over IP Analog Component (YPbPr): Resolution up to 1080p/59.94 HDMI: Resolution up to 1080p/59.94

 Power: 5.5mm OD x 2.5mm ID Coaxial Connector  YPbPr: DE-15 (15-pinHD) Female  HDMI: HDMI Female  RS-232 IN: RJ-45 Jack  RS-232 OUT: RJ-45 Jack  EZ-Power Video: RJ-45 Jack (Power and Differential HD Video)

 20 x 2 line Character Negative Mode LCD - Displays MAC (HW for Hardware) and IP Address  Power/System Reset - Tactile, flush mount, Back-lit Switch  Network LED: Indicates connectivity and activity  USB LED: Indicates Streaming Mode

 Quick-Time Media Play - Win 7 & Mac OS10X  VLC Media Player - Win 7 & Mac OS10X  Real Player - Win 7

 Internet Explorer  Safari  Safari/iOS  Chrome  Firefox

24 VDC, 2.0 Amp

½-Rack Size - 8.375” ( 212.73mm) W x 6.0” (152.4mm) x 1.72” ( 43.688mm) H

1.4 lbs. (0.635Kg)

Rack Mount Adapter: 998-6000-004 - 1-RU Offset mount (1-Long Ear & 1-Short Ear)

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 25 of 40

ZOOMSHOT WallVIEW USB Camera System

COMPLIANCE AND CE DECLARATION OF CONFORMITY - ZOOMSHOT

Compliance testing was performed to the following regulations:

 FCC Part 15 (15.107, 15.109), Subpart B Class A  ICES-003, Issue 4: 2004 Class A  EN 55022 A: 2006 + A1: 2007 Class A  KN22 2008 (CISPR 22: 2006) Class A  KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002) Class A  EMC Directive 2004/108/EC Class A 

EN 55024: A2: 2003 Class A

FCC Part 15 Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursu ant to Part 15, Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a resid ential area is likely to cause harmful interference in which case t he user will be required to correct the interference at his/her own expense.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device mus t accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

ICES-003 Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digit al apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada.

European Compliance

This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions a nd Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Standard(s) To Which Conformity Is Declared:

EMC Directive 2004/108/EC EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) EN 55024: A2: 2003

 EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001 Electrostatic Discharge  EN 61000-4-3: 2006 + A1: 2008 Radiated Immunity  EN 61000-4-4: 2004 + Corrigendum 2006 Electrical Fast Transients  EN 61000-4-5: 2006 Surge Immunity  EN 61000-4-6: 2009 Conducted Immunity  EN 61000-4-8: 2010 Power Frequency Magnetic Field  EN 61000-4-11: 2004 Voltage Dips, Interrupts and Fluctuations

KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002) IT Immunity Characteristics

 EN 61000-4-2 Electrostatic Discharge  EN 61000-4-3 Radiated Immunity  EN 61000-4-4 Electrical Fast Transients  EN 61000-4-5 Surge Immunity  EN 61000-4-6 Conducted Immunity  EN 61000-4-8 Power Frequency Magnetic Field  EN 61000-4-11 Voltage Dips, Interrupts and Fluctuations

IEC 60950-1:2005 (2nd Edition); Am 1:2009 Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety

Class A Immunity

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 26 of 40

ZOOMSHOT WallVIEW USB Camera System

OMPLIANCE AND CE DECLARATION OF CONFORMITY, QUICK-CONNECT

Compliance testing was performed to the following regulations:

 FCC Part 15 (15.107, 15.109), Subpart B Class A  ICES-003, Issue 4: 2004 Class A  EN 55022 A: 2006 + A1: 2007 Class A  EMC Directive 2004/108/EC Class A 

EN 55024: A2: 1998 + Amendments A1: 2001 + A2: 2003

Class A

USB I

NTERFACE

FCC Part 15 Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

ICES-003 Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada.

European Compliance

This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Standard(s) To Which Conformity Is Declared:

EMC Directive 2004/108/EC EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) EN 55024: A2: 1998 + Amendments A1: 2001 + A2: 2003



EN 61000-4-11: 2004 Voltage Dips, Interrupts and Fluctuations

IEC 60950-1: 2005 2

Edition); AM 1: 2009 Safety

Class A Immunity

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:2011 Safety

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 27 of 40

ZOOMSHOT WallVIEW USB Camera System

WARRANTY INFORMATION

(See Vaddio Warranty, Service and Return Policies posted on vaddio.com for complete details):

Hardware* Warranty: Two (2) year limited warranty on all parts and labor for Vaddio manufactured products. Vaddio

warrants its manufactured products against defects in materials and workmanship for a period of two years from the day of purchase, to the original purchaser, if Vaddio receives notice of such defects during the warranty. Vaddi o, at its option, will repair or replace products that prove to be defective. Vaddio man ufactures its hard ware products from parts an d components that are new or equivalent to new in accordance with industry standard practices.

Exclusions: The above warranty shall not apply to defects resulting from improper or inadequate maintenance by the customer, customers applied software or interfacing, unauthorized modifications or misuse, mishandling, operati on outside the normal environmental specifications for the product, use of the incorrect power supply, modified power supply or im prop er site operation and maintenance. OEM products and products manufactured by other companies are excluded a nd ar e co vered b y the manufacturer’s warranty.

Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. T he cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. All compon ents must be returned for testing as a complete unit. Vaddio will not accept responsibility for shipment after it has left the premises.

Vaddio Technical Support: Vaddio technicians will determine and discuss with the customer the criteria for repair costs and/or replacement. Vaddio Technical Support can be contacted through one of the following resources: e-mail support at

support@vaddio.com or online at vaddio.com.

Return Material Authorization (RMA) Number: Before returning a product for repair or replacement request an RMA from Vaddio’s technical support. Provide the technician with a return phone number, e-mail address, shipping address, product serial numbers and original purchase order number. Describe the reason for repairs or returns as well as the date of purchase. See the General RMA Terms and Procedures section for more information. RMA’s are valid for 30 days and will be issued to Vaddio dealers only. End users must return products through Vaddio dealers. Include the assigned RMA number in all correspondence with Vaddio. Write the assigned RMA numb er clearly on the shippi ng label of the box when returning the product. All products returned for credit are subject to a restocking charge without exception.

Voided Warranty: The warranty does not apply if the original s erial number has been removed or if the product has been disassembled or damaged through misuse, accident, modifications, use of incorrect po wer supply, use of a modified power supply or unauthorized repair.

Shipping and Handling: Vaddio will not pay for inbound shipping transportation or insurance charges or accept any responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound shipping, transportation, and insurance charges for all items under warranty but will not assume responsibility for loss and/or damage by the outbound freight carrier. If the return shipment appears damaged, retain the original boxes and packing material for inspection by the carrier. Contact your carrier immediately.

Products not under Warranty: Payment arrangements are required before outbound shipment for all out of warranty products.

Other General Information: Care and Cleaning

Do not attempt to take this product apart at any time. There are no user-serviceable components inside.

 Do not spill liquids in the product  Keep this device away from food and liquid  For smears or smudges on the product, wipe with a clean, soft cloth  Use a lens cleaner on the lens - really, only use a lens cleaner  Do not use any abrasive chemicals.

Operating and Storage Conditions:

Do not store or operate the device under the following conditions:

 Temperatures above 40°C (104°F) or temperatures below 0°C (32°F)  High humidity, condensing or wet environments  In inclement weather 

In swimming pools or drainage culverts

 Dry environments with an excess of static discharge  In outer space (radiation and gamma ray problem)  Under severe vibration

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 28 of 40

ZOOMSHOT WallVIEW USB Camera System

PPENDIX 1: PIN-OUTS FOR ZOOM

Table: EZ-POWER VIDEO RJ-45 Connector Pin-outs

EZ-POWER VIDEO PORT (Highlighted in Red)

Pin Signal

1 Power+ 2 Power3 Y+ 4 PB+ 5 PB 6 Y 7 PR+ 8 PR-

EZ-POWER VIDEO

12345678

SHOT C

AMERA AND QUICK-CONNECT

Cat-5 Cable:

Power to Camera, Differential Video from Camera

Important Note: The EZ-POWER VIDEO RJ-45 Connector on a Vaddio CAT-5 system camera is for use with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces ONLY (568B Wiring Standard). The video signals are differential (HSDS) and can only be processed by the interfaces above.

Table: ZoomSHOT Camera RS-232 Port

Pin # Function

Pin - 1 N/A Pin - 2 N/A Pin - 3 N/A Pin - 4 Not Used with QC-USB Pin - 5 Not Used with QC-USB Pin - 6 Digital GND Pin - 7 RXD (from TXD of control source) Pin - 8 TXD (to RXD of control source)

RS-232

12345678

Table: Quick-Connect USB DE-15 Pin-Output (Analog Component YPbPr)

Pin YPbPr

1 Pr 2 Y 3 Pb 4 5 6 Pr GND 7 Y GND 8 Pb GND

9 10 GND 11 12 13 14 15 -

USB

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 29 of 40

ZOOMSHOT WallVIEW USB Camera System

COMMUNICATION SPECIFICATION

Communication Speed: 9600 bps (default) Start bit: 1 Stop bit: 1 Data bits: 8 Parity: None No Flow control

12345678

Pin # RJ-45 RS-232 and IR Out Pins

1) Unused

2) Unused

3) Unused

4) IR Output (Diff Signal used with Quick-Connect SR)

5) IR Ground (Diff Signal used with Quick-Connect SR)

6) GND (GND of IR Short Range - Pin 3)

7) RXD (from TXD of control source)

8) TXD (to RXD of control source)

NOTE: The Vaddio ZoomSHOT control protocol is similar to, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are ZoomSHOT specific commands in the following Command and Inquiry Lists.

ZoomSHOT Command List (1/2)

Command Set Command Command Packet Comments

Address Set Broadcast 88 30 01 FF Address Set (Daisy chain) IF_Clear Broadcast 88 01 00 01 FF IF Clear Command Cancel 8x 2p FF p:socket number(1,2) CAM_Power On

Off(Standby)

CAM_Zoom Stop

Tele(Standard) Wide(Standard) Tele(Variable) Wide(Variable) Direct Direct(Variable)

CAM_Focus Stop

Far(Standard) Near(Standard) Far(Variable) Near(Variable) AutoFocus ManualFocus Auto/Manual Direct

CAM_WB Auto

Manual One Push WB

CAM_RGain Reset

Up Down Direct

CAM_BGain Reset

Up Down Direct

CAM_AE Full Auto

Manual

CAM_Iris Reset

Up Down Direct

CAM_Gain Reset

Up Down Direct

CAM_Bright Reset

Up Down Direct

CAM_Backlight On

Off

CAM_Aperture Reset

Up Down Direct

8x 01 04 00 02 FF 8x 01 04 00 03 FF 8x 01 04 07 00 FF 8x 01 04 07 02 FF 8x 01 04 07 03 FF 8x 01 04 07 2p FF 8x 01 04 07 3p FF 8x 01 04 47 00 0p 0q 0r FF 8x 01 7E 01 4A 0v 0p 0q 0r 0s FF 8x 01 04 08 00 FF 8x 01 04 08 02 FF 8x 01 04 08 03 FF 8x 01 04 08 2p FF 8x 01 04 08 3p FF 8x 01 04 38 02 FF 8x 01 04 38 03 FF 8x 01 04 38 10 FF 8x 01 04 48 0p 0q 0r 0s FF 8x 01 04 35 00 FF 8x 01 04 35 05FF 8x 01 04 35 03 FF 8x 01 04 03 00 FF 8x 01 04 03 02 FF 8x 01 04 03 03 FF 8x 01 04 43 0p 0q 0r 0s FF 8x 01 04 04 00 FF 8x 01 04 04 02 FF 8x 01 04 04 03 FF 8x 01 04 44 0p 0q 0r 0s FF 8x 01 04 39 00 FF 8x 01 04 39 03 FF 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF 8x 01 04 0B 03 FF 8x 01 04 4B 00 00 0p 0q FF 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF 8x 01 04 0C 03 FF 8x 01 04 4C 00 00 0p 0q FF 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF 8x 01 04 0D 03 FF 8x 01 04 4D 00 00 0p 0q FF 8x 01 04 33 02 FF 8x 01 04 33 03 FF 8x 01 04 02 00 FF 8x 01 04 02 02 FF 8x 01 04 02 03 FF 8x 01 04 42 00 00 0p 0q FF

Power On/Off

p:(0-Slow to 7-Fast)

pqrs: Zoom Position* v: zoom speed

pqrs: Focus position* Normal Auto (Auto Tracing WB) Manual White Balance One Push White Balance Mode

pqrs:00-ffff

pqrs:00-ffff Auto Exposure Mode Manual Control Mode

pq(0x00-0x11)

pq(0x00-0x24)

pq(0x00-0x1F)

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 30 of 40

ZOOMSHOT WallVIEW USB Camera System

ZoomSHOT Command List (2/2)

Command Set Command Command Packet Comments

CAM_Memory Reset

Set

Recall CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs:0x0000 – 0xFFFF IR_Receive On

Off CAM_LR_Reverse On

Off CAM_Freeze On

Off CAM_PictureEffect Color

B&W Tally On

Off Preset Zoom Speed Zoom Speed 81 01 7E 01 0B 00 00 ZZ FF ZZ:Zoom Speed(0-7); BLK.Enhance No support No support No support GMA.Enhance Gamma 8x 01 7E 54 00 00 0p 0q FF pq: Gamma (0x00-0x10) CRM.Enhance Chroma 8x 01 7E 55 00 00 0p 0q FF pq: Chroma (0x00-0x64) KNE.Enhance Knee No support No Support DIS.Enhance Digital Image

Stabilizer SNR.Enhance Digital Noise

Reduction AGC.Enhance AGC Mode 8x 01 7E 59 00 FF

CAM_Shutter Reset

Down

Direct CAM_ICR ICR On

ICR Off

8x 01 04 3F 00 0p FF 8x 01 04 3F 01 0p FF 8x 01 04 3F 02 0p FF

8x 01 06 08 02 FF 8x 01 06 08 03 FF 8x 01 04 61 02 FF 8x 01 04 61 03 FF 8x 01 04 62 02 FF 8x 01 04 62 03 FF 8x 01 04 63 00 FF 8x 01 04 63 04 FF 8x 01 7E 01 0A 00 02 FF 8x 01 7E 01 0A 00 03 FF

8x 01 7E 57 02 FF 8x 01 7E 57 03 FF 8x 01 7E 58 02 FF 8x 01 7E 58 03 FF

8x 01 7E 59 01 FF 8x 01 7E 59 02 FF 8x 01 7E 59 03 FF 8x 01 7E 59 04 FF 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF 8x 01 04 0A 03 FF 8x 01 04 4A 00 00 0p 0q FF 8x 01 04 01 02 FF 8x 01 04 01 03 FF

p:Memory No(=0-0xF)

Mirror (Horizontal) on Mirror (Horizontal) off Still image on

On Off On Off Off Low Medium High Manual

pq(0x00-0x23) ICR On – Cut filter out B&W ICR Off – Cut filter in Color

*Zoom and Focus Data:

CAM_Zoom: Range(0x000–0x6B3) CAM_Focus: Range (0x0000-0xC000) dependent on Zoom Position

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 31 of 40

ZOOMSHOT WallVIEW USB Camera System

ZoomSHOT Inquiry List (1/1)

Inquiry Command Command Response Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs:0x0000 – 0xFFFF

CAM_BacklightModeInq 8x 09 04 33 FF y0 50 02 FF CAM_WBModeInq 81 09 04 35 FF y0 50 00 FF

CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF

CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF p:Preset 0-0xf CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF Pq:x00-0x1F CAM_RGain 8x 09 04 43 FF y0 50 0p 0q 0r 0s FF pqrs:00-ffff CAM_BGain 8x 09 04 44 FF y0 50 0p 0q 0r 0s FF pqrs:00-ffff CAM_ZoomPosInq 8x 09 04 47 FF y0 50 00 0p 0q 0r FF pqr(0x00-0x6B3) CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq(0x00-0x23) CAM_Iris 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq(0x00-0x11) CAM_Gain 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq(0x00-0x24) CAM_Bright 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq(0x01-0x64) CAM_LR_Reverse 8x 09 04 61 FF y0 50 02 FF

CAM_Freeze 8x 09 04 62 FF y0 50 02 FF CAM_PictureEffect 8x 09 04 63 FF y0 50 00 FF IR_ReceiveInq 8x 09 06 08 FF y0 50 02 FF TallyInq 8x 09 7E 01 0A FF y0 50 02 FF PresetSpeedInq 8x 09 7E 01 0B FF y0 50 00 00 rr FF rr:Zoom 0x00-0x07

BLK.Enhance No support No support No support GMA.Enhance 8x 09 7E 54 FF y0 50 00 00 0p 0q FF pq: Gamma (0x00-0x10) CRM.Enhance 8x 09 7E 55 FF y0 50 00 00 0p 0q FF pq: Chroma (0x00-0x64) KNE.Enhance No support No Support No support DIS.Enhance 8x 09 7E 57 FF y0 50 02 FF

SNR.Enhance 8x 09 7E 58 FF y0 50 02 FF AGC.Enhance 8x 09 7E 59 FF

y0 50 03 FF y0 50 03 FF

y0 50 03 FF y0 50 05 FF

y0 50 03 FF y0 50 03 FF y0 50 03 FF

y0 50 0A FF y0 50 0B FF

y0 50 03 FF y0 50 03 FF y0 50 04 FF y0 50 03 FF y0 50 03 FF

y0 50 03 FF y0 50 03 FF

y0 50 00 FF y0 50 01 FF y0 50 02 FF y0 50 03 FF y0 50 04 FF

On Off(Standby) On - ICR filter Out Off – ICR filter In

On Off Auto Manual One Push WB Auto Manual Auto Exposure Mode Manual Control Mode Shutter Priority Mode Exposure Priority Mode

On Off On Off Off B&W On Off On Off

On Off On Off Off Low Medium High Manual AGC Gain

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 32 of 40

ZOOMSHOT WallVIEW USB Camera System

PPENDIX 2 - TELNET SERIAL COMMAND

API

The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session on the Quick-Connect USB. Camera control commands supported on the Quick-Connect USB includes ClearVIEW HD-18, HD-19 and HD-20, PowerVIEW HD-22, HD-30, ZoomSHOT and WideSHOT. The command application protocol interface is intended to allow external device such as AMX or Crestron to control the camera. The protocol is based upon ASCII format following the VT100 terminal emulation standard and uses an intuitive text command nomenclature for ease of use. The API is accessed by a telnet client on the Ethernet port. All ASCII characters will be echoed to terminal program and appended with VT100 string -ESC[J (HEX- 1B 5B 4A). Vaddio Command lines are terminated on carriage return. After the carriage return, the VT100 appends with –

ESC[J. (Note: Most terminal programs automatically strip the VT100 string.) General format usage follows a get/set structure. Usage examples for each type are:

Set Example

COMMAND: > camera pan right RESPONSE: > OK

Get Example COMMAND: > stream mode get RESPONSE: > streaming mode usb

Syntax Error Example

COMMAND: > camera pan right RESPONSE: > ERROR

Additional programming controls associated with the terminal protocol includes:  CTRL 5 - Clears the current serial buffer on the device.

Telnet sessions will require access verification and uses the same username and password associated with the Administrator account on the embedded web server. The default Telnet Port is 23. Command lines are terminated with a carriage return. NOTE: The ZoomSHOT camera will not respond to pan or tilt commands.

Telnet Command List

CameraHome

 NAME camera home - Move the camera to the home position  SYNOPSIS camera home

 DESCRIPTION Method used to move the camera to the home position

 EXAMPLES camera home Move the camera back to the home position

CameraPan

 NAME camera pan - Pans the camera left or right  SYNOPSIS camera pan {left|right|stop} [1-24]

 DESCRIPTION Method used to pan the camera

 OPTIONS left Move the camera left right Move the camera right stop Stop the camera movement speed Optional integer from 1-24 that represents the speed (Default: 12)  EXAMPLES camera pan left Pans the camera left at the default speed camera pan right 20 Pans the camera right using a speed of 20 camera pan stop Stops the pan movement of the camera

(notusedwithZoomSHOTcamera)



Image: Invigorating simulated Telnet session.

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev. B Page 33 of 40

ZOOMSHOT WallVIEW USB Camera System

CameraPreset

 NAME camera preset - Recall and storing of camera presets  SYNOPSIS camera preset {recall|store} [1-6]

 DESCRIPTION Method used to recall and store camera presets

 OPTIONS recall Recall preset store Store preset

preset Required value from 1-6 used to indicate the preset number

 EXAMPLES camera recall 3 Move camera to preset position 3 camera store 1 Store current camera position as preset 1

CameraTilt(notusedwithZoomSHOTcamera)

 NAME camera tilt - Tilts the camera up or down  SYNOPSIS camera tilt {up|down|stop} [1-20]

 DESCRIPTION Method used to tilt the camera

 OPTIONS up Move the camera up down Move the camera down stop Stop the camera movement speed Optional integer from 1-20 that represents the speed (Default: 10)  EXAMPLES camera tilt up Tilts the camera up at the default speed camera tilt down 20 Tilts the camera up using a speed of 20 camera tilt stop Stops the tilt movement of the camera

CameraZoom

 NAME camera zoom - Zoom the camera in or out  SYNOPSIS camera zoom {in|out|stop} [1-7]

 DESCRIPTION Method used to zoom the camera

 OPTIONS in Zoom in out Zoom out stop Stop the camera movement speed Optional integer from 1-7 that represents the speed (Default: 3)  EXAMPLES camera zoom in Zooms the camera in at the default speed camera zoom out 7 Zooms the camera out using a speed of 7 camera zoom stop Stops the zoom movement of the camera

Camera

 NAME camera - Base command for camera control command. Used in conjunction with control arguments to inclu de home,

pan, tilt, zoom, and preset.

ZoomSHOT WallVIEW USB Camera Document Number 342-0640 Rev. B Page 34 of 40

Zoom SHOT WallVIEW USB Camera System

Exit

 NAME exit - ends the current API command session  SYNOPSIS exit

 DESCRIPTION Exit ends the current API command session. If the session is over telnet, the sessio n is ended and the socket is closed. If the session is over serial, a new session is started.

Help

 NAME help - display an overview of the CLI syntax  SYNOPSIS help

 DESCRIPTION Display an overview of the command line syntax

History

 NAME history - command history  SYNOPSIS history [limit]

 DESCRIPTION Since many of the programs read user input a line at a time, the command history is used to keep track of these lines and also recall historic information  HISTORY NAVIGATION The command history can be navigated us ing the up and down arrow keys. The up arrow will move up a single e ntry in the command history while the down arrow moves down in the command history.  HISTORY EXPANSION The command history supports the expa nsion functionality from which previous commands can be recalled from within a single session. History expansion is performed immediately after a complete line is read. Listed below are examples of history expansion:

* !! Substitute the last command line. * !N Substitute the Nth command line (absolute as per ’history’ command) * !-N Substitute the command line entered N lines before (relative)  EXAMPLES history

Displays the current command buffer history 5 Sets the history command buffer to remember the last 5 unique entries

NetworkPing

 NAME network ping - send ICMP ECHO_REQUEST to network hosts  SYNOPSIS network ping [count <count>] [size <size>] <destination-ip>

 DESCRIPTION Use the ICMP protocol’s mandatory ECHO_REQUEST datagram to elicit an ICMP ECHO_RESPONSE from a host or gateway. ECHO_REQUEST datagrams have an IP and ICMP header, followed by a struct timeval and then an arbitrary number of pad bytes used to fill out the packet.  OPTIONS count Stop after sending count ECHO_REQUEST packets. With deadline option, ping waits for count ECHO_REPLY packets, until the timeout expires. The default is 5.

destination

The destination IP address where the ECHO_REQUESTS are sent size The data size of the ICMP packet to send. The default is 56 bytes

 EXAMPLES network ping 192.168.1.1

Attempt to send 5 ICMP ECHO_REQUESTs with data size 56 to the host at 192.168.1.1 network ping count 10 size 100 192.168.1.1 Attempt to send 10 ICMP ECHO_REQUESTs with data size of 100 to the host at 192.168.1.1

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 35 of 40

Zoom SHOT WallVIEW USB Camera System

NetworkSettings

 NAME network settings - get current network settings  SYNOPSIS network settings {get}

 DESCRIPTION Method used to get the current network settings of the device

 OPTIONS get Get the current network settings for the machine  EXAMPLES network settings get MAC Address:

00:04:a3:85:0a:ee

IP Address:

10.10.8.116

Netmask:

255.255.255.0

Gateway:

10.10.8.100 Returns the current network settings for mac addres, ip address, netmask, and gateway

Network

 NAME network - Gets the current network settings or pings an IP address  SYNOPSIS network {settings get | ping [count <count>] [size <size>] <destination-ip>}

 DESCRIPTION Method used to get the current network settings or check network

 OPTIONS settings Get the current network settings ping Send ICMP ECHO_REQUEST to network host  EXAMPLES network settings get

Gets the current network settings

---network ping count 1 10.10.10.100 Pings 10.10.10.100 once and displays results

StreamingMode

 NAME streaming mode - Gets or sets the current streaming mode  SYNOPSIS streaming mode {get|usb|network}

 DESCRIPTION Method used to get or set the current streaming settings

 OPTIONS get Get the current streaming mode

usb

Set the current streaming mode to USB

ethernet Set the current streaming mode to Ethernet

 EXAMPLES streaming mode get

mode: usb Returns the current streaming mode streaming mode usb

----

streaming mode ethernet

Sets the streaming mode to Ethernet

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 36 of 40

Zoom SHOT WallVIEW USB Camera System

StreamingQuality

 NAME

streaming quality - Gets or sets the current streaming quality

 SYNOPSIS

streaming quality {get|low|standard|high}

 DESCRIPTION

Method used to get or set the current streaming quality

 OPTIONS

get Get the current streaming quality low Set video quality to low standard Set video quality to standard high Set video quality to high

 EXAMPLES

streaming quality get quality:low Returns the current streaming quality

---streaming quality standard

Sets the streaming quality to standard

StreamingResolution

 NAME

streaming resolution - Gets or sets the current streaming quality

 SYNOPSIS

streaming resolution {get|1080p|720p|4cif|480p|cif}

 DESCRIPTION

Method used to get or set the current streaming resolution

 OPTIONS

get Get the current streaming resolution 1080p Set video resolution to 1080p 720p Set video resolution to 720p 4cif Set video resolution to 4cif 480p Set video resolution to 480p cif Set video resolution to cif

 EXAMPLES

streaming resolution get

resolution:720p Returns the current streaming resolution

----

streaming resolution 720p OK Sets the streaming resolution to 720p

Streaming

 NAME

streaming - Gets or sets the current streaming settings

 SYNOPSIS

streaming {mode {get|usb|ethernet}} | resolution {get|1080p|720p|4cif|480p|cif} |quality {get|low|standard|high}}

 DESCRIPTION

Method used to get or set the current streaming settings

 OPTIONS

mode Get or set the current streaming mode

resolution Get or set the current streaming video resolution quality Get or set the current streaming video frame rate and bit rate

 EXAMPLES streaming mode get mode: usb

Returns the current streaming mode

---streaming mode ethernet Sets the streaming mode to Ethernet

---streaming quality standard Sets the streaming quality to standard

---streaming resolution 720p Sets the streaming resolution to 720p

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 37 of 40

Zoom SHOT WallVIEW USB Camera System

SystemFactory‐Reset

 NAME system factory-reset - Gets or sets factory reset status

 SYNOPSIS system factory-reset {get|on|off}  DESCRIPTION Method used to get or set the factory reset status  OPTIONS get Get the current factory reset status on Enable factory reset on reboot off Disable factory reset on reboot  EXAMPLES system factory-reset get factory-reset (software): off factory-reset (hardware): [Hardware reset is designated by rear panel dip switches in down position] off Returns the factory reset status

---system factory-reset on factory-reset (software): on factory-reset (hardware): off Enables factory reset upon reboot

SystemReboot

 NAME system reboot - Reboots system  SYNOPSIS system reboot [<seconds>]  DESCRIPTION Method used to reboot system  OPTIONS seconds The number of seconds to delay the reboot  EXAMPLES reboot Reboot system immediately reboot 30 Reboot the system in 30 seconds

Version

 NAME version - display the system version information

 SYNOPSIS version

 DESCRIPTION Display an overview of the command line syntax

 EXAMPLES Version

Returns the current software version

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 38 of 40

Zoom SHOT WallVIEW USB Camera System

Inside Back Cover - Blank

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 39 of 40

Zoom SHOT WallVIEW USB Camera System

©2014 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ZoomSHOT, ProductionVIEW, WallVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks are property of their respective owners. Document Number 342-0640 Rev B

ZoomSHOT WallVIEW USB System Document Number 342-0640 Rev B Page 40 of 40

Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464

www.vaddio.com

Vaddio ZoomSHOT WallVIEW USB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
