VADDIO ZOOMSHOT 30 Installation And User Manual

44=4

COMPLETE MANUAL FOR THE

ZOOMSHOT 30 FIXED CAMERA

WITH QUICK-CONNECT USB, QUICK-CONNECT USB MINI, AND QUICK-CONNECT

DVI/HDMI CAMERA SYSTEMS OR FOR AV BRIDGE MATRIX PRO

411-0032-30 Rev A January 2019

Installation and User Guide

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 2 of 73

TABLE OF CONTENTS

Overview .....................................................................................................................................................................5

The ZoomSHOT 30 QUSB System ........................................................................................................................5

The ZoomSHOT 30 QMini System .........................................................................................................................5

The ZoomSHOT 30 QDVI System ..........................................................................................................................6

The ZoomSHOT 30 AVBMP ...................................................................................................................................6

Unpacking ...................................................................................................................................................................7

Anatomy of the Camera ........................................................................................................................................... 11

Front View with Feature Call-outs ........................................................................................................................ 11

Rear Panel Connections with Feature Call-outs .................................................................................................. 11

Table: ZoomSHOT 30 DIP Switch Settings .................................................................................................... 12

Table: ZoomSHOT 30 VIDEO Selections ....................................................................................................... 12

IR SHOT Commander Remote ................................................................................................................................ 13

Quick-Connect USB................................................................................................................................................. 14

Front Panel with Feature Call-outs ................................................................................................................... 14

Rear Panel with Feature Call-outs ................................................................................................................... 15

Table: Quick Connect USB Rear Panel Dip Switch Settings .......................................................................... 15

Quick-Connect USB Mini ......................................................................................................................................... 16

Front Panel with Feature Call-outs ................................................................................................................... 16

USB Mini Top Panel Connections .................................................................................................................... 16

Quick-Connect DVI/HDMI-SR Interface .................................................................................................................. 17

Front Panel with Feature Call-outs ................................................................................................................... 17

Back Panel with Feature Call-outs ................................................................................................................... 17

Basic Application Diagrams – ZoomSHOT 30 QUSB System ................................................................................ 18

Basic Connections: ZoomSHOT 30 with QUSB, No Network or PC Integration ............................................. 18

Basic Connections: ZoomSHOT 30 with QUSB, USB 2.0 Streaming .............................................................. 19

Basic Connections: ZoomSHOT 30 with QUSB, IP Streaming ........................................................................ 19

Basic Connections: ZoomSHOT 30 with QUSB, System with Audio and Video ............................................. 20

Basic Application Diagram – ZoomSHOT 30 QMini System ................................................................................... 21

Basic Application Diagram – ZoomSHOT 30 QDVI System ................................................................................... 22

Basic Application Diagram – ZoomSHOT 30 AVBMP ............................................................................................. 23

ZoomSHOT 30 Camera - First Time Set-up ............................................................................................................ 24

Step By Step ZoomSHOT 30 System Installation Instructions ............................................................................... 24

Controlling the ZoomSHOT 30 Camera .................................................................................................................. 26

Table: ZoomSHOT 30 OSD Menu Structure ................................................................................................... 26

Quick-Connect USB and Quick-Connect USB Mini Details and Compatibility........................................................ 29

Compatibility - Web Browsers .............................................................................................................................. 29

Compatibility with Soft Conferencing Clients ....................................................................................................... 29

USB 2.0 UVC Driver Compatibility ....................................................................................................................... 29

Table: Supported UVC Resolutions ................................................................................................................ 29

Quick-Connect USB Internal Web Pages and Control ............................................................................................ 30

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 3 of 73

Quick-Connect USB Web Pages Tour ................................................................................................................. 30

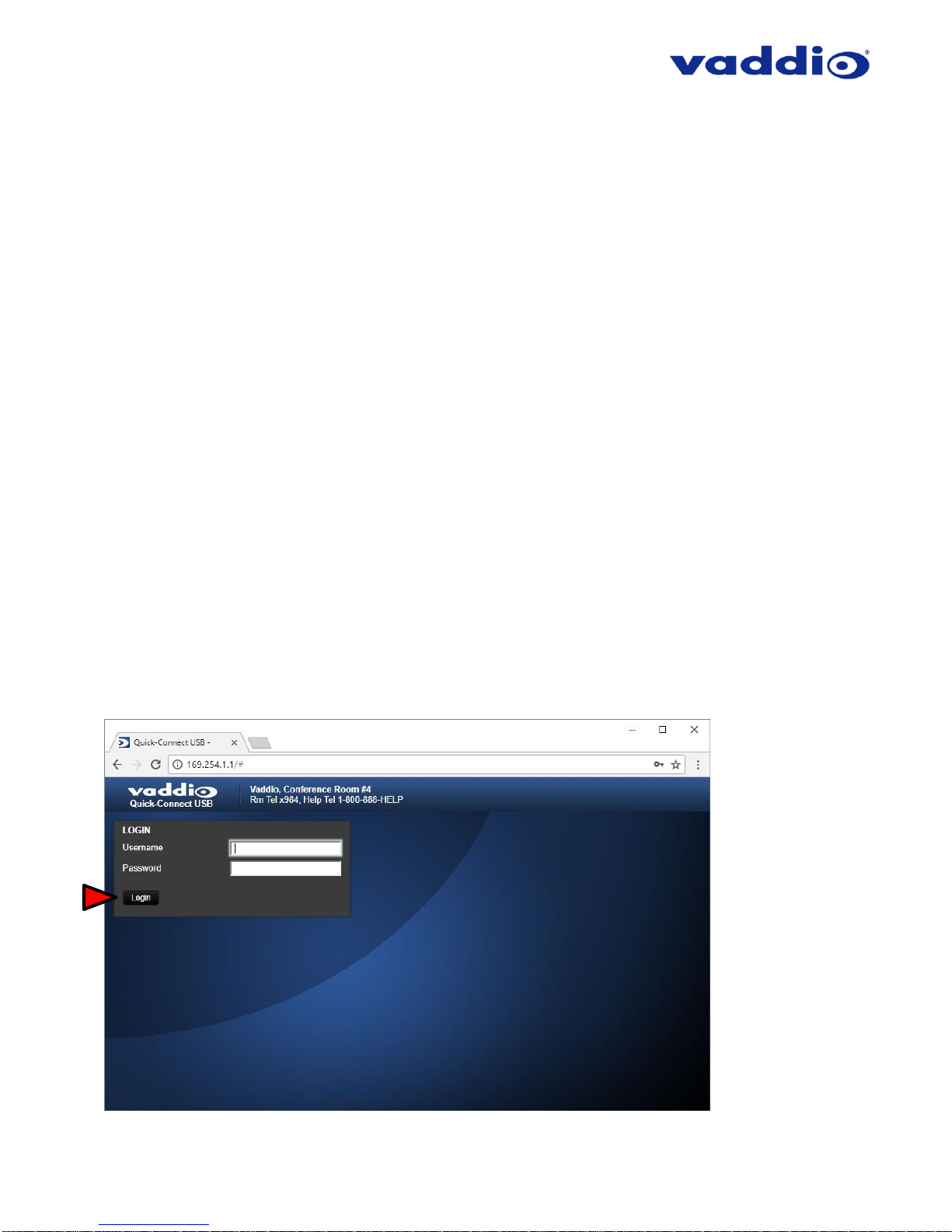

QUSB Screen Shot: Login ............................................................................................................................... 30

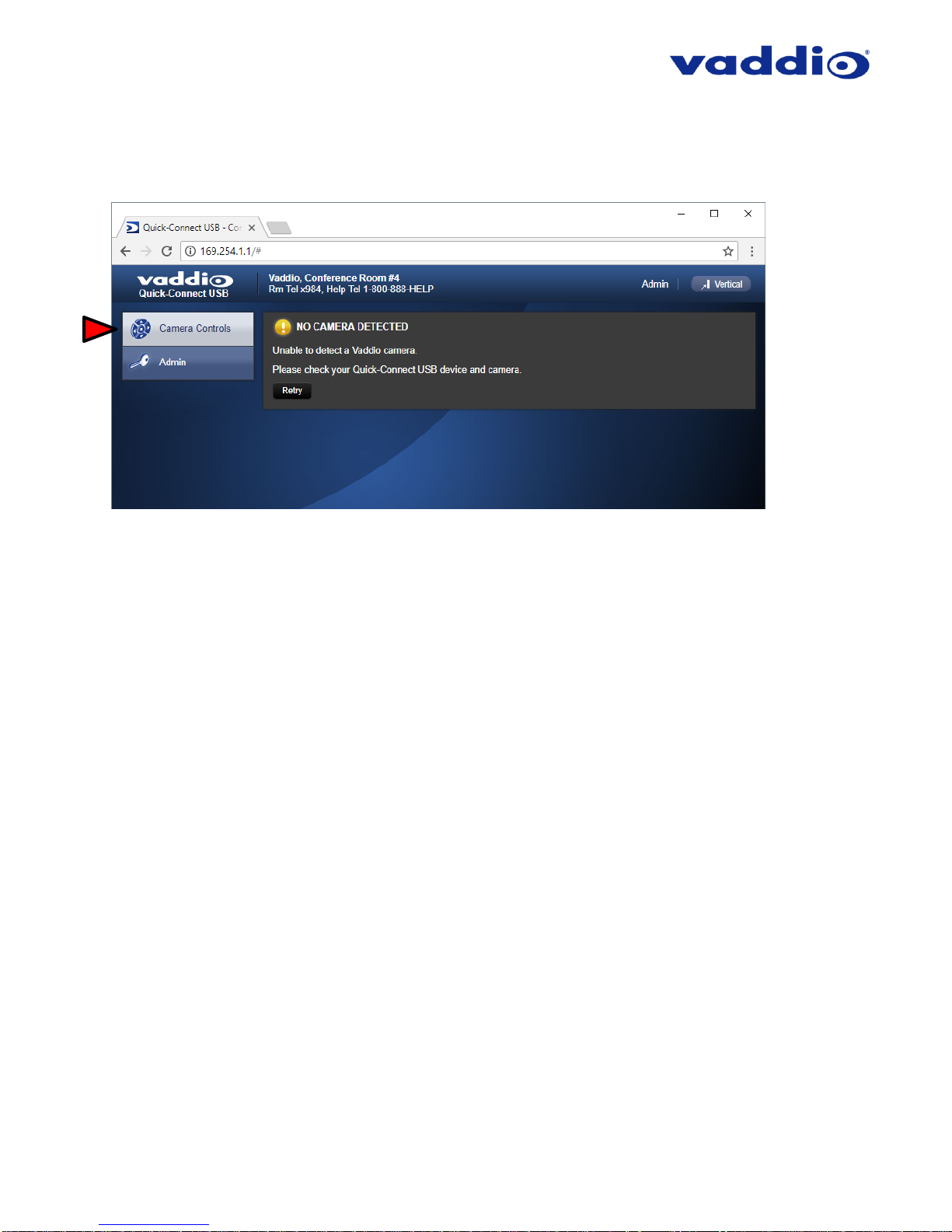

QUSB Screen Shot: Camera Control Page - No Camera Detected ............................................................... 31

QUSB Screen Shot: User Menu - Camera Control Page ............................................................................... 32

QUSB Screen Shot: Admin Log-in .................................................................................................................. 33

QUSB Screen Shot: Admin Menu - Camera Settings Page ........................................................................... 34

QUSB Screen Shot: Admin Menu - Streaming Page ...................................................................................... 36

QUSB Screen Shot: Admin Menu - Room Labels ........................................................................................... 37

QUSB Screen Shot: Admin Menu – Networking – DHCP Configuration ........................................................ 37

QUSB Screen Shot: Admin Menu – Networking – Static IP Configuration ..................................................... 38

QUSB Screen Shot: Admin Menu - Security ................................................................................................... 38

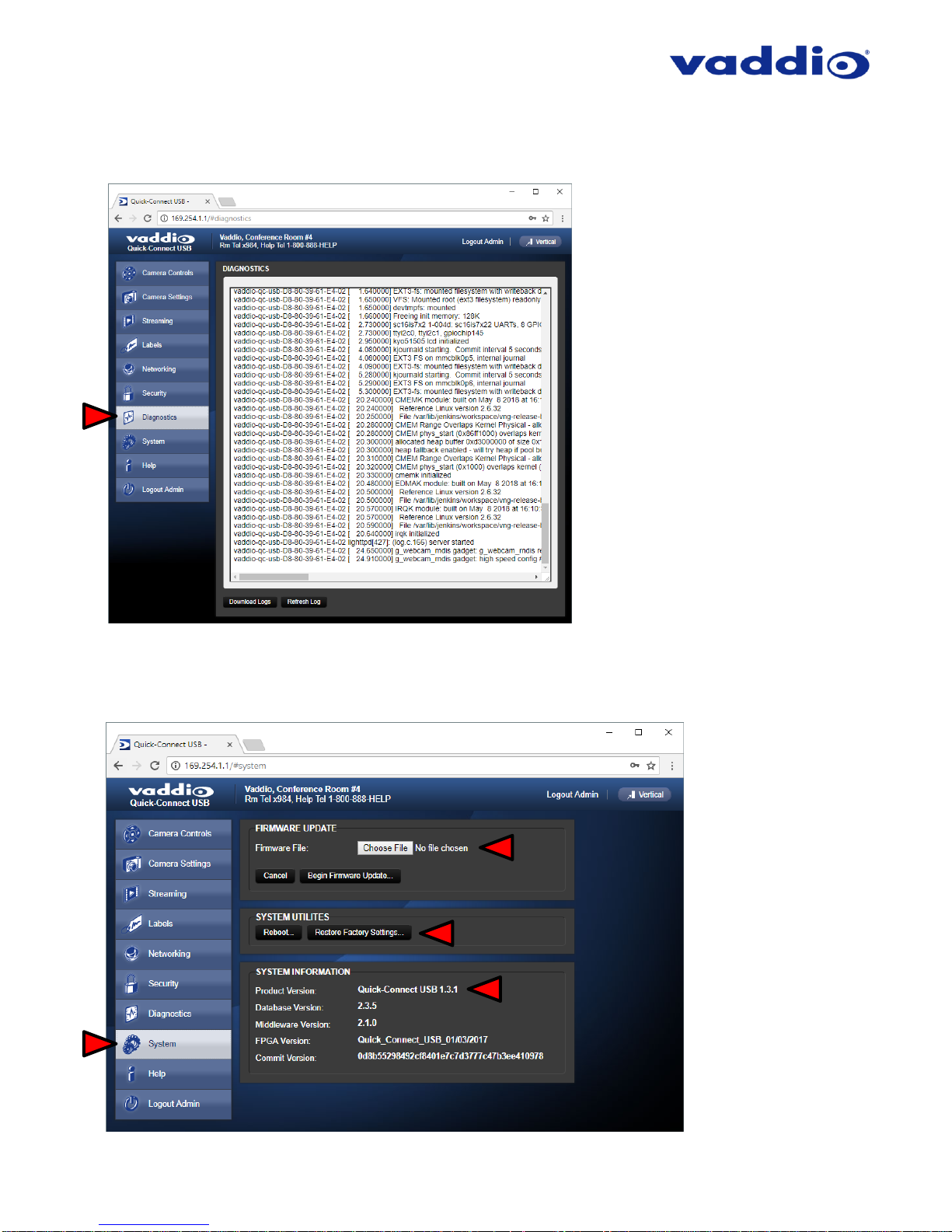

QUSB Screen Shot: Admin Menu - Diagnostics ............................................................................................. 39

QUSB Screen Shot: Admin Menu - System Menu .......................................................................................... 39

QUSB Screen Shot: Admin Menu - Update Confirmation ............................................................................... 40

QUSB Screen Shot: Admin Menu - Update in Progress ................................................................................. 41

QUSB Screen Shot: Admin Menu - Help ........................................................................................................ 41

Quick-Connect USB Mini Internal Web Pages and Control .................................................................................... 42

Quick-Connect USB Mini Web Pages Tour ......................................................................................................... 42

QMini Screen Shot: Login ............................................................................................................................... 42

QMini Screen Shot: Camera Control Page - No Camera Detected ................................................................ 42

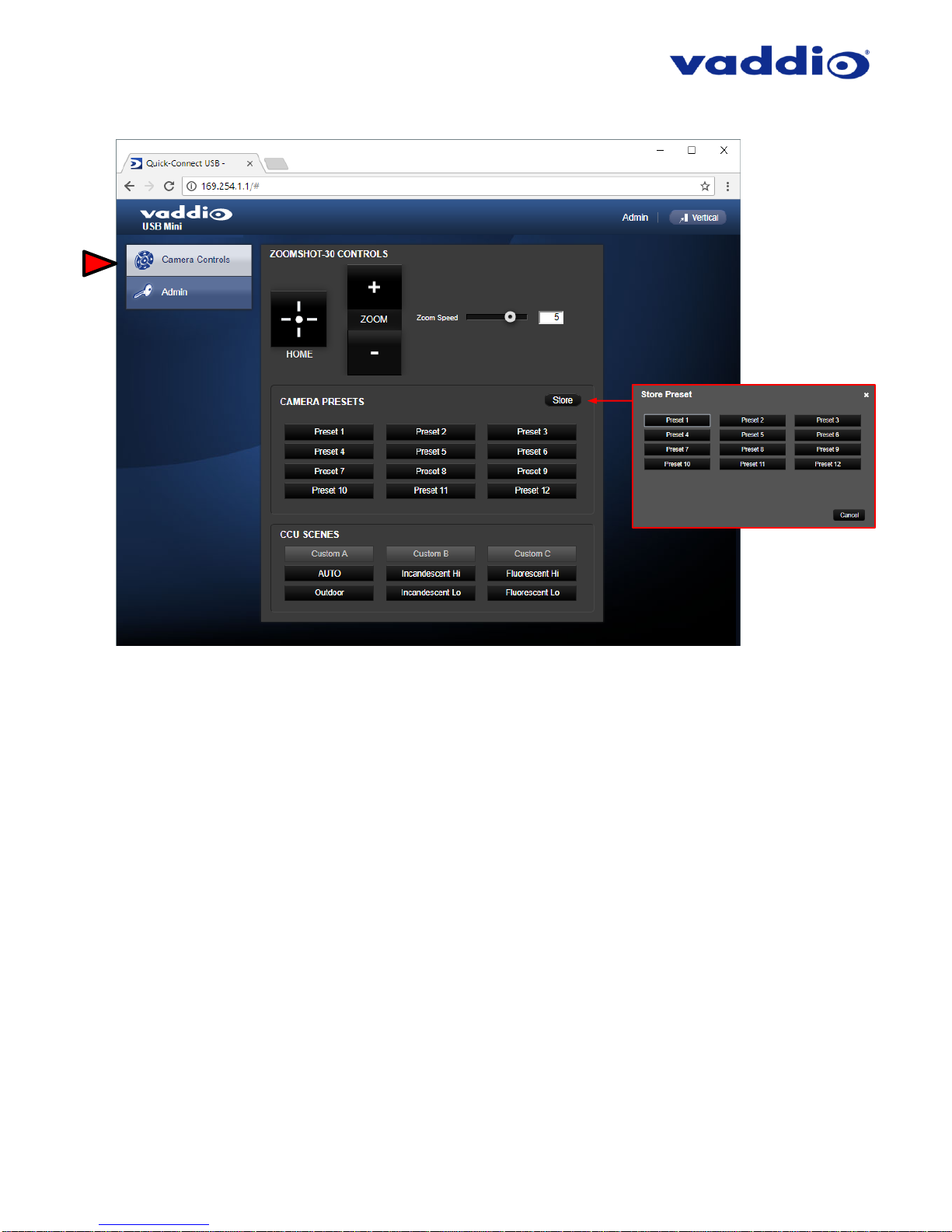

QMini Screen Shot: User Menu - Camera Control Page ................................................................................ 43

QMini Screen Shot: Admin Log-in ................................................................................................................... 44

QMini Screen Shot: Admin Menu - Camera Settings Page ............................................................................ 45

QMini Screen Shot: Admin Menu - Streaming Page ....................................................................................... 47

QMini Screen Shot: Admin Menu - Room Labels ........................................................................................... 48

QMini Screen Shot: Admin Menu - Networking ............................................................................................... 48

QMini Screen Shot: Admin Menu - Security .................................................................................................... 49

QMini Screen Shot: Admin Menu - Diagnostics .............................................................................................. 50

QMini Screen Shot: Admin Menu - System Menu ........................................................................................... 50

QMini Screen Shot: Admin Menu - Update Confirmation ............................................................................... 51

QMini Screen Shot: Admin Menu - Update in Progress .................................................................................. 52

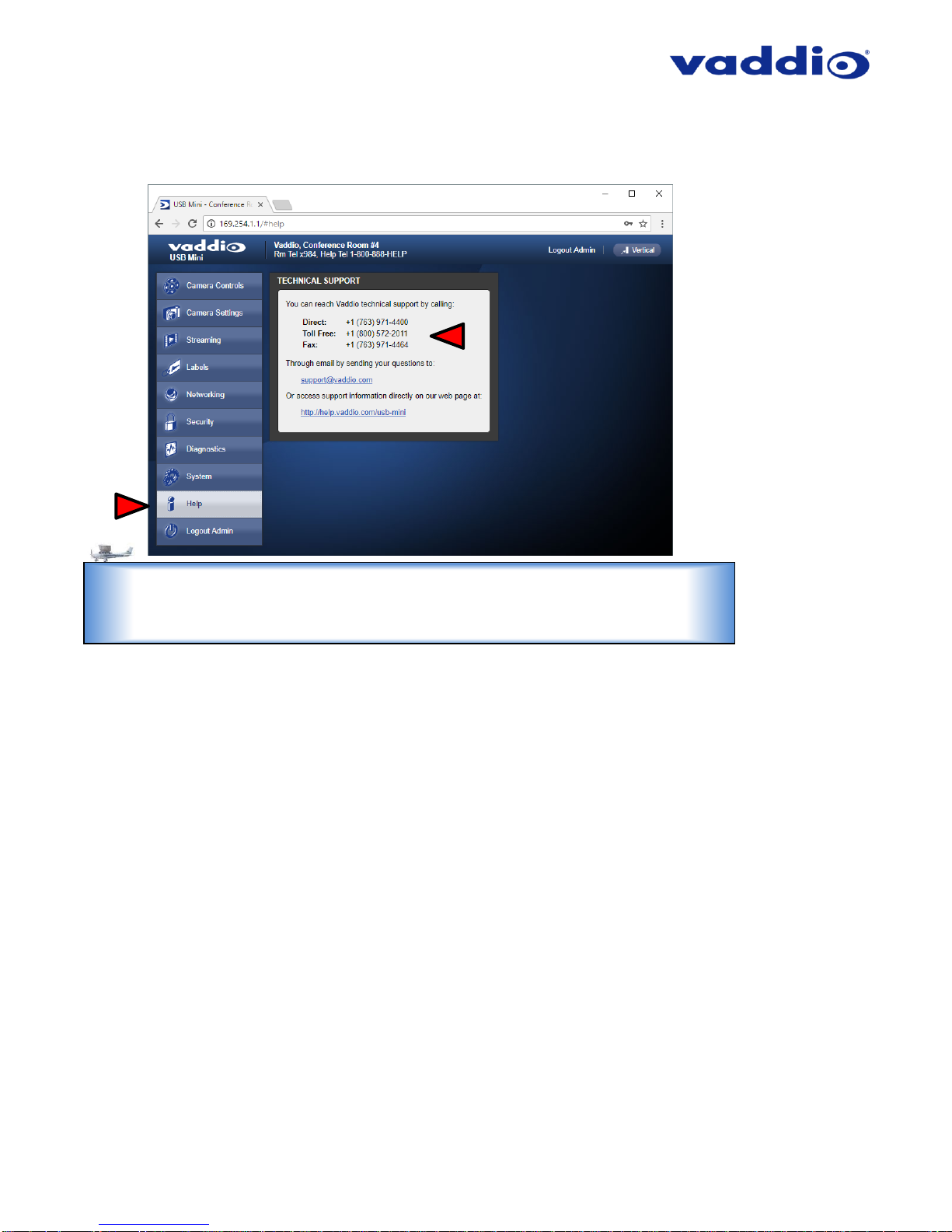

QMini Screen Shot: Admin Menu - Help ......................................................................................................... 53

Connecting the ZoomSHOT 30 to the PC and Program of Choice ......................................................................... 54

Skype Example .................................................................................................................................................... 54

VLC Media Player Example ................................................................................................................................. 54

General Specifications ............................................................................................................................................. 55

Other General Information ....................................................................................................................................... 57

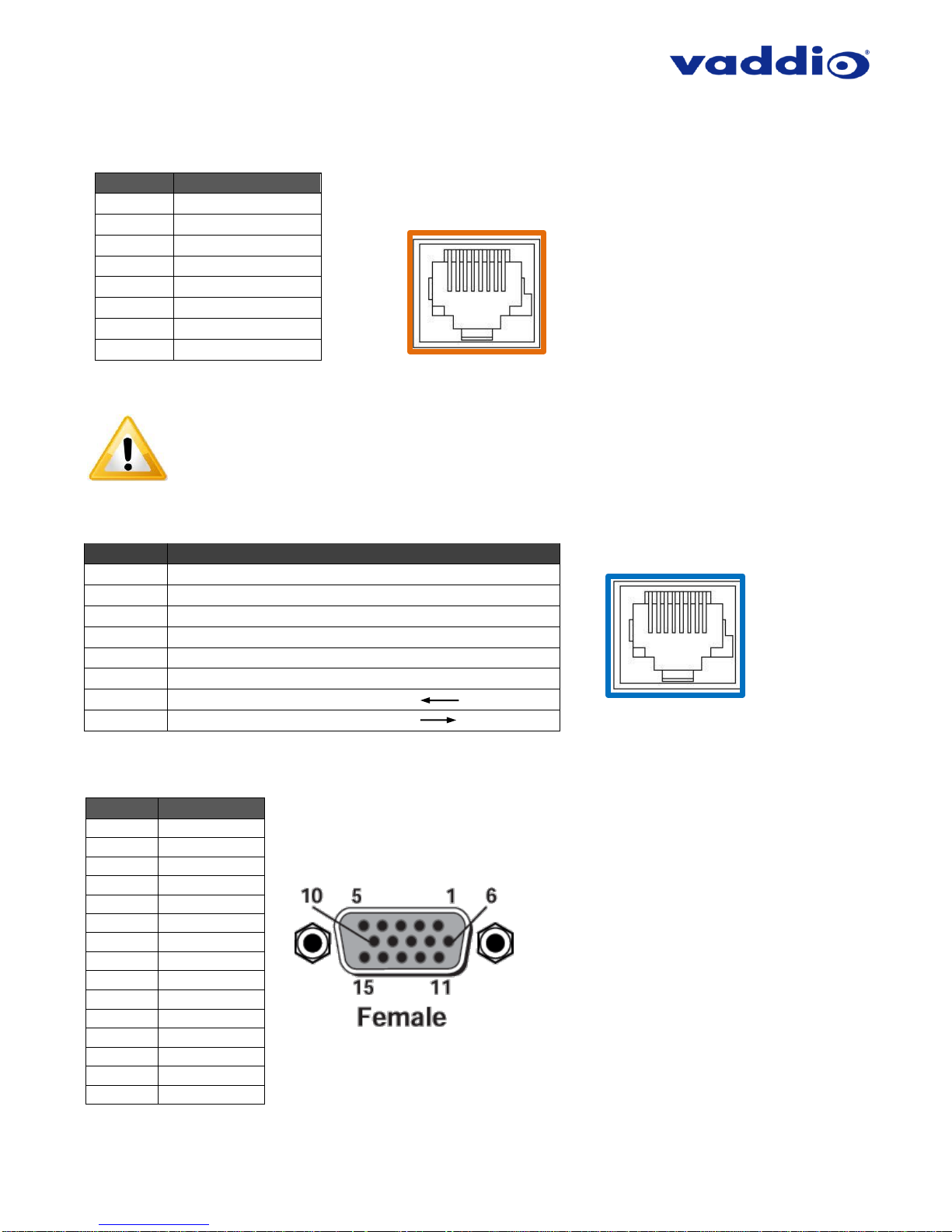

Connector Pin-outs .................................................................................................................................................. 58

Camera EZ-POWER VIDEO RJ-45 Connector Pin-out ....................................................................................... 58

Camera RS-232 RJ-45 Connector Pin-out .......................................................................................................... 58

Quick-Connect USB and Quick-Connect DVI/HDMI: DE-15 Connector Pin-out (Analog Component YPbPr) ... 58

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 4 of 73

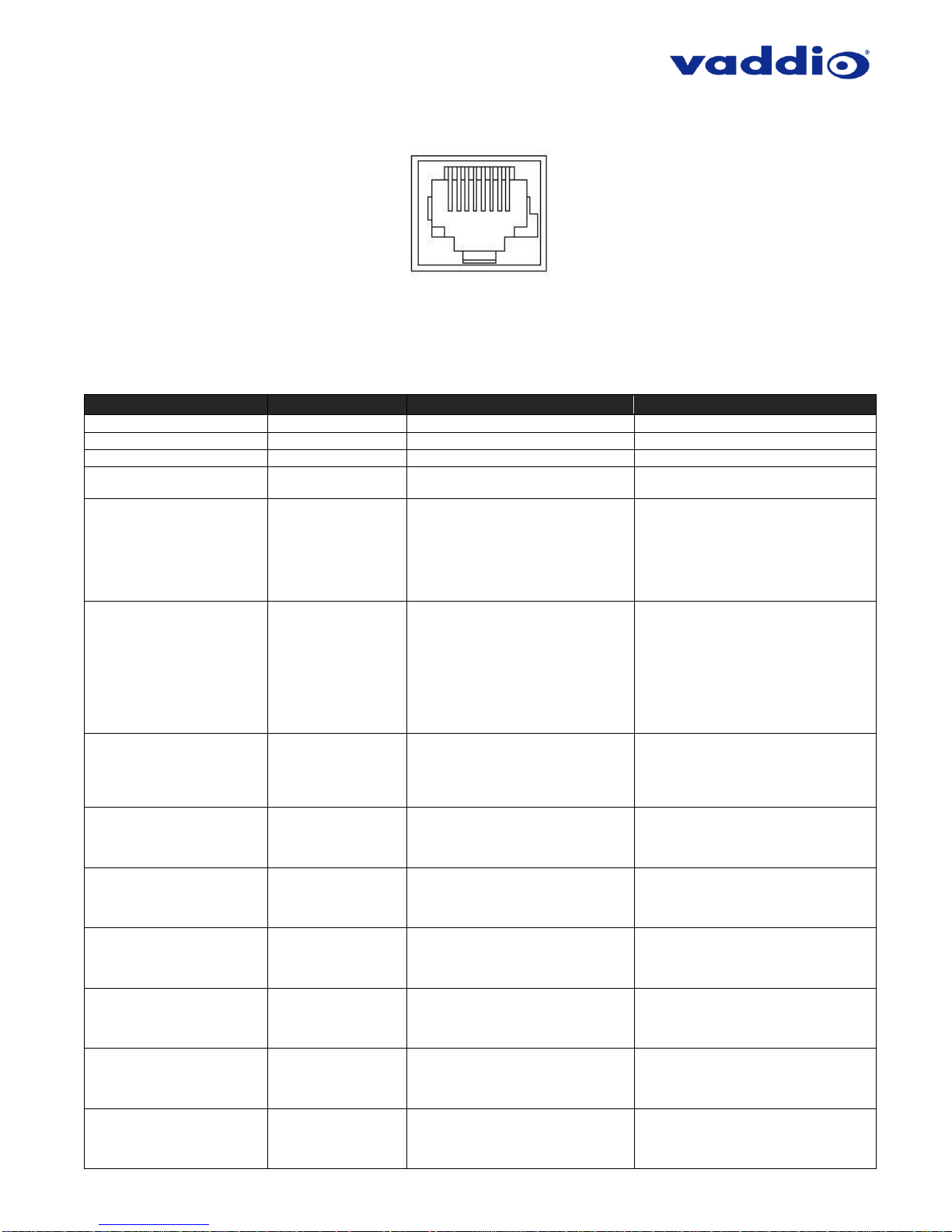

Serial Communication Specification for the ZoomSHOT 30 ................................................................................... 59

ZoomSHOT 30 Command List (1/2)................................................................................................................. 59

ZoomSHOT 30 Command List (2/2)................................................................................................................. 60

ZoomSHOT 30 Inquiry List (1/1) ...................................................................................................................... 61

QUSB Telnet Command API ................................................................................................................................... 62

Telnet Command List ........................................................................................................................................... 62

Compliance and CE Declaration of Conformity for ZoomSHOT 30 ........................................................................ 68

Compliance and CE Declaration of Conformity, Quick-Connect USB Interface ..................................................... 69

Compliance and CE Declaration of Conformity for USB Mini.................................................................................. 70

Compliance and CE Declaration of Conformity - Quick-Connect DVI/HDMI-SR Interface ..................................... 71

Warranty Information ............................................................................................................................................... 72

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 5 of 73

ZoomSHOT 30 Quick-Connect USB Systems:

Model Number 999-6930-100 (North America) Model Number 999-6930-101 (Europe/UK)

ZoomSHOT 30 Quick-Connect USB Mini Systems:

Model Number 999-6930-400 (North America)

ZoomSHOT 30 Quick-Connect DVI/HDMI Systems:

Model Number 999-6930-200 (North America) Model Number 999-6930-201 (Europe/UK)

ZoomSHOT 30 AVBMP:

Model Number 999-6930-000 (Worldwide)

OVERVIEW

The Vaddio ZoomSHOT 30 camera is a low cost, high value, manual pan/tilt camera with a 30x optical power zoom lens and 63° wide horizontal field of view. The camera produces amazing results for small, medium and large room applications. Anywhere that a Point-of-View or stationary camera can be used alone or in conjunction with a Vaddio PTZ camera, to simplify camera coverage and preset positioning the ZoomSHOT 30 is the answer.

The ZoomSHOT 30 was designed from the ground up and is equipped with the Vaddio EZCamera™ Cat-5 wiring interface standard for video, power and control. Using HSDS™ (differential) video outputs over Cat5 cable, the ZoomSHOT 30 supplies a wide range of video resolutions that are selectable from the rear panel; from 720p/50 up to and including 1080p/60. The HSDS processing allows delivery of the ZoomSHOT 30 video signals up to 150’ (45.72m).

Choose between three (3) IR frequencies for the Vaddio IR SHOT Commander remote to allow multiple cameras to be locally IR controlled with a single remote control. The ZoomSHOT 30 also has an OSD (on screen display) for basic image control that’s accessible with the IR remote.

The ZoomSHOT 30 QUSB System

This system features the exciting and robust Quick-Connect USB (or QUSB) Interface, which was designed to have multi-format digital and analog video outputs, to be compatible with all Vaddio cameras with HSDS technology and include USB 2.0 or IP streaming outputs with a built-in web interface for IP control. The outputs include; HDMI, YPbPr, USB Video (UVC standards-MJPEG) and H.264 IP Video (RTSP & HLS). The embedded web interface provides for browser-based access to camera controls, camera presets and basic CCU functions (color and shading controls) as well as the video configuration web pages. The Quick-Connect USB uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the QUSB will auto negotiate.

ZoomSHOT 30 paired with the Quick-Connect USB Interface in this package represents a dynamic system for professional installations at true value.

The ZoomSHOT 30 QMini System

The Quick-Connect USB Mini (or QMini) is designed to address the demands of customers and integrators who required simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab similar to the style used on Vaddio EZCamera™ Interface Module or EZIM™. This provides the end user or integrator many possibilities for mounting in easily accessible locations, as requirements dictate.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 6 of 73

ZoomSHOT 30 paired with the Quick-Connect USB Mini Interface in this package represents a superior value for professional installations at a very low price.

The ZoomSHOT 30 QDVI System

This system features the Quick-Connect DVI/HDMI-SR Interface, which uses the Vaddio EZCamera™ Cat-5 Cable System to transport HSDS™ (differential video), power and control to and from the camera over Cat-5 cables. The

EZ-POWER VIDEO jack, color coded orange, carries power to the camera and returns differential HD video over the same Cat-5/5e/6 cable. The video output of the Quick-Connect DVI/HDMI-SR is clean and simultaneous HDMI or DVI-D and YPbPr analog component. The RS-232 jack, color coded blue, provides bidirectional control and IR Forwarding to and from the camera.

ZoomSHOT 30 paired with the Quick-Connect DVI/HDMI in this package provides flexible and professional outputs for your installations at a great value.

The ZoomSHOT 30 AVBMP

Optimized for connection to the AV Bridge MATRIX PRO, the ZoomSHOT 30 AVBMP lets you connect the ZoomSHOT 30 camera directly to the EZ-POWER VIDEO and RS-232 jacks of the AV Bridge MATRIX PRO, using Cat-5/5e/6 cables. HD video and serial control are provided to the MATRIX PRO switcher for an easy-to-install dynamic room solution providing simultaneous HDMI, H.264 IP streaming, and USB 2.0 1080p/30 streaming outputs with integrated audio.

This package must be used in conjunction with a Vaddio AV Bridge MATRIX PRO. Refer to the AV Bridge MATRIX PRO documentation for more information on this configuration and let the ZoomSHOT 30 AVBMP be part of your total room solution!

Intended Use

Before operating the device, please read the entire manual thoroughly. The system was designed, built, and tested for use indoors with the power supply provided. The use of a power supply other than the one provided, or outdoor operation hasn’t been tested and may damage the device or create a potentially unsafe operating condition.

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

Save These Instructions:

The information contained in this manual will help you install and operate your product. If these instructions are misplaced, these documents can be downloaded from www.vaddio.com free of charge.

Use only the power supply provided with the system. Use of any unauthorized or DC extended power supplies will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not work

well for professional installations and can be the cause of intermittent connections which can result in the RS-232 control line failing and locking up, and/or compromising the HSDS (high speed differential) signals. For best results please use standard RJ-45 connectors and test all cables for proper pin-outs

prior to use and connection to Vaddio product.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 7 of 73

UNPACKING

Carefully remove the product and all the included parts from the packaging. Identify the following parts for each camera:

ZoomSHOT 30 QUSB Camera System (North America)

Part Number: 999-6930-100

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Connect USB Interface (998-1105-038)

• One (1) 24 VDC 2.08 A power supply

• One (1) US Power Cable

• One (1) 6ft USB 2.0 cable, Type A to Type B

• Four (4) Rubber feet for QUSB if not rack mounted

• One (1) Quick-Start Guide for ZoomSHOT 30 QUSB

ZoomSHOT 30 QUSB Camera System (Europe/UK)

Part Number: 999-6930-101

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Connect USB Interface (998-1105-038)

• One (1) 24 VDC 2.08 A power supply

• One (1) Euro Power Cable

• One (1) UK Power Cable

• One (1) 6ft USB 2.0 cable, Type A to Type B

• Four (4) Rubber feet for QUSB if not rack mounted

• One (1) Quick-Start Guide for ZoomSHOT 30 QUSB

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 8 of 73

ZoomSHOT 30 QMini Camera System (North America)

Part Number: 999-6930-400

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote 998-2101-000

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Connect USB Mini Interface (998-1105-039)

• One (1) 24 VDC 2.08 A power supply

• One (1) US Power Cable

• One (1) 6ft USB 2.0 cable, Type A to Type B

• One (1) Quick-Start Guide for ZoomSHOT 30 QMini

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 9 of 73

ZoomSHOT 30 QDVI Camera System (North America)

Part Number: 999-6930-200

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Connect DVI/HDMI Interface (998-1105-018)

• One (1) 24 VDC 2.08 A power supply

• One (1) US Power Cable

• One (1) 3-position phoenix-style connector

• Four (4) Rubber feet for QDVI if not rack mounted

• One (1) Quick-Start Guide for ZoomSHOT 30 QDVI

ZoomSHOT 30 QDVI Camera System (Europe/UK)

Part Number: 999-6930-201

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Connect DVI/HDMI Interface (998-1105-018)

• One (1) 24 VDC 2.08 A power supply

• One (1) Euro Power Cable

• One (1) UK Power Cable

• One (1) 3-position phoenix-style connector

• Four (4) Rubber feet for QDVI if not rack mounted

• One (1) Quick-Start Guide for ZoomSHOT 30 QDVI

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 10 of 73

ZoomSHOT 30 AVBMP (Worldwide)

Part Number: 999-6930-000

• One (1) ZoomSHOT 30 camera (998-6930-000)

• One (1) Vaddio IR Shot Commander Remote

• Two (2) AAA Batteries

• One (1) Thin Profile Wall Mount

• Two (2) 1-5/8” Nylon self-drilling drywall anchors

• Two (2) #8 x 1.25” sheet metal screws

• Two (2) black oxide ¼-20 x ½” pan head screws

• One (1) Quick-Start Guide for ZoomSHOT 30 AVBMP

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 11 of 73

ANATOMY OF THE CAMERA

Front View with Feature Call-outs

1. Lens: 63° wide with 30X optical zoom.

2. IR Sensor and Power/Tally LED: The IR sensor for the IR SHOT Commander remote is located here. Below it is a light

pipe where a blue LED power and a red LED tally reside. Both light up to produce purple during boot-up. The ZoomSHOT 30’s IR sensor will not react to the remote if the IR is turned off with DIP switch 3 on the rear panel.

3. The Yoke: For manual pan and tilt. Tilt range is ± 30° and Pan is limited to the service loop of the cabling.

4. Really Cool Logo Badge (RCLB): The RCLB is affixed to the base in a recessed oval area.

5. The Aluminum Base and Steel Cylindrical Body: Please don’t drop it on your foot, it’s fairly substantial.

Rear Panel Connections with Feature Call-outs

1) RS-232 Port: The RS-232 accepts modified VISCA protocol for camera control.

2) EZ Power/Video Port: This RJ-45 connector is only used with the Quick-Connect USB, Quick-Connect USB Mini, Quick-

Connect DVI/HDMI Interfaces or the AV Bridge MATRIX PRO to supply power and return HSDS (differential) video from the

1

2

3

4

5

1

2

3

4

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 12 of 73

camera over Cat-5 cable up to distance of 150’ (45.72m).

3) ZoomSHOT 30 DIP Switch Settings: Settings for IR remote ID, IR receiver on/off, image flip, and digital zoom can be configured on these switches.

Table: ZoomSHOT 30 DIP Switch Settings

DIP Switch

Function

1

Up = IR1, Down = IR2

2

Up = IR 1 or 2, Down = IR3

3

Up=IR ON, Down = IR OFF

4

Up = Normal Image, Down = Image Flip

5

Not Used

6

Update Position - Leave UP unless updating firmware

All Down

Reset to defaults – with power cycle

4) HD Video Select: A rotary switch allows the user to choose the HD output video resolution and format. After setting or changing the resolution, reboot the camera to ensure proper operation. If an unassigned rotary selection position is chosen (9, A, B, C or D), the camera will not output video. Simply set the rotary switch to an assigned position to output video. See rotary switch settings below.

Table: ZoomSHOT 30 VIDEO Selections

For Quick-Connect USB Mini 2.0 streaming, use position “0” (720p/59.94) for best results.

Rotary

Resolutions

Rotary

Resolutions

0

720p/59.94 (USB)

8

1080p/50

1

1080i/59.94

9

--

2

1080p/59.94

A

--

3

720p/60

B

--

4

1080i/60

C

--

5

1080p/60

D

-- 6 720p/50

E

1080p/30

7

1080i/50

F

1080p/25

6 - Position DIP Switch

Point the notch in the switch stem to assign

the rotary position.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 13 of 73

IR SHOT COMMANDER REMOTE

The ZoomSHOT 30 camera is shipped with the Vaddio IR SHOT Commander IR remote, which is also compatible with various other Vaddio cameras.

P-STORE

IR SHOT Commander - Quick Specs

IR Range

20’ to 30’ (6m to 9m)

Batteries

2 x AAA

Keys (buttons)

15 Silicone Rubber Keys

Dimensions L x W x H

4.53” (115mm) x 1.57” (40mm) x 1.1” (28mm)

LED Indicator

Red LED illuminates when transmitting IR, brightness indicates battery strength

Compatible Cameras

Ships with ZoomSHOT 30 and WideSHOT SE. Compatible with all Vaddio HD PTZ cameras (limited function set) and most Sony BRC & EVI cameras.

Power On/Off

Camera Standby

Preset Button - Setting Presets

• Move the camera into position

• Push and hold P-STORE button

• Touch buttons 1 or 2 to set Preset

OSD On Screen Display Menu

Red LED indicates IR transmission and

the brightness indicates battery strength

Recalls Preset 1 or Preset 2

(zoom position)

Arrow Keys

Left, Right, Up and Down when navigating camera’s OSD menu

Select IR Frequencies (3)

Allows up to 3 cameras to be controlled in a room with one (1) IR Remote

Note: Camera DIP switches set IR ID.

OK

Enter, and Select in camera’s OSD menu

Zoom Out, Zoom In

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 14 of 73

QUICK-CONNECT USB

Front Panel with Feature Call-outs

1) LCD Blue Backlit Display:

20 x 2 Character, ODV (Omnidirectional view), ABN (advanced black nematic) display with a high contrast and wide viewing angle combined with high visibility. The MAC address (labeled as “HW” for hardware) is on the top line, and the IP address (static of DHCP) is listed on the bottom line. This display with IP and MAC addresses allows for easy access to the embedded web interface and Vaddio camera setting for the PC or BYOD (bring your own device – laptop or tablet) users of UC conference systems. Upon power up or power reset this display will indicate when the unit is in initialization mode.

2) Power/ System Reset Switch: The System Reset switch on the front panel is a blue back-lit tactile switch that will illuminate when power is present at the rear power connector. Pressing in and holding this switch will restart/reinitialize the Quick-Connect USB interface.

3) Network LED: The blue panel mount LED indicator will indicate the presence of an Ethernet connection. This LED will blink to indicate network activity. If no network connection is made, the LED will remain off.

4) USB LED: The blue panel mount LED indicates the presence of a USB connection to a PC (or Mac). Blinking will indicate USB activity. If no USB connection is present the LED will remain off.

➍

➋

➊

➌

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 15 of 73

Rear Panel with Feature Call-outs

1) Power Input: 5.5mm x 2.5mm coaxial power jack for use with provided 24 VDC, 2.08 Amp switching power supply. The

Quick-Connect USB supplies power to the attached camera.

2) 5-Position DIP Switch: A 5-position dip switch allows the user to choose the HD video color space (YCbCr for HDMI and

sRGB color space for DVI-D) on the HDMI output, configure for updates, and restore factory defaults when cycling power.

Table: Quick Connect USB Rear Panel Dip Switch Settings

3) RS-232 IN (Color-Coded Grey): Serial RS-232 input on an RJ-45 connector. This control port allows a Vaddio joystick

controller or 3rd party controller (Crestron, Extron, AMX) to control the camera functions if the embedded web interface is not used for real time control.

4) RS-232 OUT TO CAMERA (Color-Coded Blue): Serial RS-232 output on RJ-45 connects via Cat-5 to the camera RS-

232 input

5) EZ-POWER VIDEO port (Color-Coded Orange): The QUSB will automatically show up as a native USB 2.0 device on

the connected computer. If not prompted to allow the device as your primary UVC video source, it may be required to configure it as such in the operating system of the streaming/capture computer.

6) YPbPr Output: Analog component video output on a DE-15 (HD15) connector (resolution is set on the back of the camera).

The YPbPr output resolution will be the same as the HDMI output resolution. SD video resolution (Y/C and CVBS formats) are not supported by the Quick-Connect USB interface; however, some progressive frame analog component SD video is supported.

7) HDMI Output: The digital video output on the HDMI connector can either be YCbCr color space (normal HDMI mode) or

can be changed to DVI-D color space (sRGB) for older monitors and devices. The HDMI and YPbPr outputs work simultaneously and are the same resolution (set at the camera).

8) Ethernet 10/100 Network RJ-45 Jack: The Ethernet jack with have yellow and green lights to indicate connectivity and

activity of the network on that jack. The Ethernet jack will stream video up to 1080p/30 (H.264) and can be set from the internal web page. The resolutions are available in a three (3) stage quality format (High Quality, Good Quality, and Standard Quality targets) and includes a range of CIF to 1080p/30.

9) USB 2.0 Connector: The USB 2.0 is on a Type-B female jack and connects to a PC running a soft-client video conference

system or video capture software that uses UVC (USB Video Class) standard drivers. No other USB 2.0 drivers are required to plug the QUSB into a computer and have it work. The UVC drivers will auto-negotiate the top resolution that the computer, program, and QUSB can accomplish together and auto-implement that resolution.

DIP Switch

Function

Default

Activation

1

Future Use

Up

n/a

2

Future Use

Up

n/a 3 Color Space HDMI Connector

Up = HDMI (YCbCr)

Down = DVI (sRGB)

4

Program / Update

UP = No Program

DOWN = Ready To Program

5

Future Use

Up

n/a

All Down

Reset to Defaults

All UP

ALL DOWN (with power cycle)

➌

➍

➊

➋

➎

5 - Position

DIP Switch

➏ ➐ ➑

➒

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 16 of 73

QUICK-CONNECT USB MINI

Front Panel with Feature Call-outs

1) USB Port: USB Type-B port for connectivity to streaming or capture computer.

2) Power LED: Indicates presence of 24 VDC power for the Quick-Connect.

The USB Mini will automatically show up as a native USB 2.0 device on the connected computer. If not prompted to allow the device as your primary UVC video source, it may be required to configure it as such in the operating system of the streaming/capture computer.

USB Mini Top Panel Connections

1) Power Connector: 5.5mm x 2.5mm coaxial power jack for use with provided 24 VDC, 2.08 Amp switching

power supply.

2) Mode Switch: White-capped, recessed, momentary tactile push button for switching between USB Streaming

and Web Control (Ethernet over USB) modes, as well as a Factory Reset mode. Important configuration and operating note:

a. The USB Mini interface will boot up in UVC streaming video mode. A quick momentary touch will switch

to web control mode and video will no longer pass. This allows the administrator to set up the USB Mini with the embedded web pages and when the administrator is finished, toggle back to UVC streaming mode for the end user. It is highly unlikely that the end user will ever need access to the configuration web pages during use of the USB Mini.

b. For resetting the USB Mini back to factory defaults, push and hold this switch in for approximately 5.0

seconds. The front panel blue LED will blink indicating the reset to factory defaults.

3) EZ-POWER VIDEO RJ-45 (Color-Coded Orange): Simultaneously sends power to the camera to and returns

HSDS (differential) video from the camera which is used to generate USB 2.0 (UVC) video for the connected PC.

4) RS-232 Jack (Color-Coded Blue): RJ-45 control port for sending serial control to the camera. This must be

connected to the camera’s RS-232 port in order for the Quick-Connect USB Mini to auto-recognize and auto load the correct Vaddio camera control protocols.

5) Mounting Flange: The mounting flange is provided for surface mounting the USB Mini (under table or in other

clever spots) and for easy access to the USB connection for BYOD laptop or computer.

➋

➊

Side VIEW

➌

➎ ➍ ➊

➋

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 17 of 73

➎

➌

➍

➋

➊

➐ ➑ ➒

QUICK-CONNECT DVI/HDMI-SR INTERFACE

Front Panel with Feature Call-outs

1) Mounting screws: 4 qty screws for mounting the QDVI into the optional 1-RU Panel for 2 Interfaces (part

number 998-6000-003) rack mount.

Back Panel with Feature Call-outs

1) Power Light: Illuminates when power is connected.

2) Power Connector: 5.5mm x 2.5mm coaxial power jack for use with provided 24 VDC, 2.08 Amp switching

power supply.

3) Color Space: Toggles between HDMI YCbCr and sRGB color space to accommodate either HDMI or DVI-D

monitors

4) RS-232 Control Input: Camera control input from a Vaddio joystick controller or other controller.

5) RS-232 Control Out to Camera: Control signals to the camera.

6) Daisy Chain: Daisy Chain Control Emulation (DCCE) output to the next Quick-Connect DVI/HDMI-SR

interface

7) IR Output: Forwards IR signals from the camera to third party equipment such as videoconferencing codecs.

Use the MOD signal if the IR is from a remote or other IR emitter; use the NON-MOD signal for wired connections.

8) DVI-D/HDMI: HDMI 1.3 and DIV v 1.0 compliant. With a DVI to HDMI adapter, extends HDMI to an output

device up to 100 ft. (30m) away.

9) YPbPr: Analog component video output from the camera. Resolutions up to 1080p/60.

10) EZ-Power Video: Power to the camera and video from the camera. Maximum cable distance to the

ZoomSHOT 30 is 150 ft. (45m).

➊

➏

❿

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 18 of 73

BASIC APPLICATION DIAGRAMS – ZOOMSHOT 30 QUSB SYSTEM

The following diagrams show representative connections for the ZoomSHOT 30 QUSB, QMini and QDVI systems as well as the ZoomSHOT 30 AVBMP with an AV Bridge MATRIX PRO.

Basic Connections: ZoomSHOT 30 with QUSB, No Network or PC Integration

ZoomSHOT 30 POV Manual Camera shown with the Quick-Connect USB Interface (video application)

Quick-Connect

USB Interface

Rear Panel

24VDC, 2.08 Amp

Power Supply

HD Monitor

(Simulated HD Video Feed)

HDMI or

DVI-D

Video

ZoomSHOT 30

Rear View

EZ-POWER VIDEO Cat-5 Cable (orange to orange)

Video - Power

RS-232 Cat-5 Cable (blue to blue)

Two Cat-5/5e/6 Cables for Video, Power and

Control, up to 150’

(45.72m) cabling distance.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 19 of 73

Basic Connections: ZoomSHOT 30 with QUSB, USB 2.0 Streaming

Basic Connections: ZoomSHOT 30 with QUSB, IP Streaming

Quick-Connect

USB Interface

(Rear view)

ZoomSHOT 30

Video Camera

(Rear view)

Two Cat-5/5e/6 Cables for Video, Power and Control,

up to 150’ (45.72m)

cabling distance.

HDMI

Near End Room Monitor

Simulated Video Feed

Host PC with Browser for

Control and UC Application

IP Network

Ethernet

PC Video

Far End Video Monitor Simulated Video Feed

USB 2.0 - MJPEG Video Using Standard UVC Drivers

EZ-POWER VIDEO Cat-5 Cable (orange to orange)

RS-232 Cat-5 Cable (blue to blue)

ZoomSHOT 30 Camera

With Mount

PC with Browser

for Control and UC

Application

(Parakeet not included)

Ethernet

IP (H.264) Streaming

RTSP or HLS

Ethernet

Two (2) Cat-5 Cables for

Power, Video and Control Distance up to 150’ (45.72m)

Quick-Connect USB

Interface

IP Network

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 20 of 73

Basic Connections: ZoomSHOT 30 with QUSB, System with Audio and Video

Ceiling

Speakers

8 Ohm

Cat-5

EasyUSB

Mixer/Amp

AEC Mics

(EasyMics)

PC “B” with Browser for

Control and UC Application

to connect to PC “A” on

other side

Ethernet

B

Video, Power and Control

Two Cat-5 Cables

Up to 150’ (45.72m)

ZoomSHOT 30 Camera

With Mount

Ethernet IP Control

from either PC

Quick-Connect

USB Interface

Ethernet

USB 2.0

UVC Video

Legend

➢ USB UVC Video

➢ USB UAC Audio

➢ IP Web Page Control

➢ UC Application

USB 2.0

UAC Audio

PC “A” with Browser for Control

and UC Application to connect to

PC “B” on other side

A

IP Network

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 21 of 73

BASIC APPLICATION DIAGRAM – ZOOMSHOT 30 QMINI SYSTEM

Basic Connections: ZoomSHOT 30 with QMini, USB Output to Computer

Two (2) Cat-5/5e/6 Cables

Distance up to 150’ (15.26m)

ZoomSHOT 30

Camera

RS-232 Cat-5 (blue to blue)

Video from Camera - Power to Camera

EZ-POWER VIDEO Cat-5 (orange to orange)

24 VDC, 2.08 Amp

Power Supply

USB 2.0 Connected to

Front Panel

Quick-Connect USB Mini

Rear Panel (above), Front Panel (below)

HD Video (HDMI, DVI or RGBHV)

Extension of PC Video

to Room Monitor

Room Monitor (Simulated video feed)

Laptop with UC

Application

USB 2.0

(UVC

Drivers)

French bulldog not required

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 22 of 73

BASIC APPLICATION DIAGRAM – ZOOMSHOT 30 QDVI SYSTEM

Basic Connections: ZoomSHOT 30 with QDVI, with Vaddio Joystick

Two (2) Cat-5/5e/6 Cables

Distance up to 150’ (15.26m)

ZoomSHOT 30

Camera

RS-232 Cat-5 (blue to blue)

EZ-POWER VIDEO Cat-5 (orange to orange)

24 VDC, 2.08 Amp

Power Supply

Quick-Connect DVI/HDMI

Rear Panel

HDMI or DVI

video

HD Monitor

(Simulated HD video feed)

Power to Camera – Video from Camera

PCC Premier Joystick Controller

RS-232 Cat-5

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 23 of 73

BASIC APPLICATION DIAGRAM – ZOOMSHOT 30 AVBMP

Basic Connections: ZoomSHOT 30 AVBMP connected to AV Bridge MATRIX PRO

Two (2) Cat-5/5e/6 Cables

Distance up to 150’ (15.26m)

ZoomSHOT 30

Camera

RS-232

Cat-5

(blue to blue)

EZ-POWER

VIDEO Cat-5

(orange to orange)

AV Bridge MATRIX PRO

HDMI

video

Near End Video

(Simulated HD video feed)

Power to Camera

Video from Camera

USB 2.0 UVC

Video and

UAC audio

Microphone input

Speaker

Output

Far End Video to large monitor

(Simulated video feed)

Host PC with Browser for

control and UC Application

PC Video

IP Network

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 24 of 73

ZOOMSHOT 30 CAMERA - FIRST TIME SET-UP

The ZoomSHOT 30 was designed to be very easy to use and operate. There is documentation at the back of this manual for pin-outs for the connectors on the ZoomSHOT 30 camera and the QUSB, QMini and QDVI Interfaces.

Before Installing the Camera:

• Choose the camera mounting location while paying close attention to camera viewing angles, lighting conditions, possible line of site obstructions and checking for in-wall obstructions where the camera is to be mounted. Always pick a mounting location that will optimize the performance of the camera.

• Please locate the camera to enable easy positioning of the camera body with the ability to point down and away from the ceiling and a bunch of fluorescent lighting cells. Cameras generally don’t like to be swamped with fluorescent light and very few people sit on the ceiling anyway.

• The Thin Profile Wall Mount for the ZoomSHOT 30 can be mounted directly to a 1-gang wall box or can be mounted using the two (2) provided spiral drywall anchors.

• For Power/Video and RS-232 signals, use standard Cat-5 cable (568B termination and real RJ-45 connectors) from the EZ-POWER VIDEO and RS-232 ports on the back of the ZoomSHOT 30 to the Quick-Connect Interface or AV Bridge MATRIX PRO. The EZ-POWER VIDEO jack on the camera is color-coded as a reminder that there is 24 VDC power on that Cat-5 cable.

STEP BY STEP ZOOMSHOT 30 SYSTEM INSTALLATION INSTRUCTIONS

Step 1: After determining the optimum location of the camera; route, mark and test the two Cat-5 cables from the camera to the Quick-Connect Interface or AV Bridge MATRIX PRO located at the table or rack. The two Cat-5 cables should feed-through the hole located on the rear flange of the Thin Profile Wall Mount. If the bracket is to be mounted on a 1-gang wall box, use the screws supplied with the wall box cover plate to attach the Thin Profile Wall Mount. If mounting to the drywall with wall anchors, use two quality wall anchors. The mount provides for easy leveling. Pull the Cat-5 cables though the wall and feed the cables through the back of the mount. Level the mount and tighten the mounting screws.

Step 2: Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the camera, set up the camera’s output resolution and functional preferences. See Table: ZoomSHOT 30 DIP Switch Settings and

4) HD Video Select: A rotary switch allows the user to choose the HD output video resolution and format. After setting or

changing the resolution, reboot the camera to ensure proper operation. If an unassigned rotary selection position is chosen (9, A, B, C or D), the camera will not output video. Simply set the rotary switch to an assigned position to output video. See rotary switch settings below.

Table: ZoomSHOT 30 VIDEO Selections…keep these tables handy for future use.

Setting the ZoomSHOT 30 Camera:

• Set the desired HD Resolution with the rotary selection switch. If changing the resolution, always reboot

the camera to ensure proper operation.

Note: For systems with the Quick-Connect USB Mini, the camera must be set to 720p/59.94 (rotary

position “0”)

• Set the IR ID (1, 2 or 3) of the camera (if it is to respond to the IR SHOT Commander Remote).

• Set the desired image orientation (normal or flipped).

Step: 3: Follow the sample wiring diagram for connecting the Cat-5 cables to the ZoomSHOT 30 that come in the Quick-Start Guide that ships with your camera, but read and understand the rest of these instructions - especially the next note.

NOTE: Check all Cat-5 cables for continuity in advance of the final connection. Label the Cat-

5 cables. Plugging the EZ-POWER VIDEO cable into the wrong RJ-45 may cause damage to the camera system and void the warranty. For premise cabling, please use real RJ-45 connectors and crimpers. Please don’t use the pull through or EZ type of RJ-45.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 25 of 73

Step 4: Place the camera onto the camera mount and use the provided ¼”-20 screws to secure the camera to the mount. To dress the cabling, push the extra cable back into the wall opening.

HINT: A small piece of black fabric or felt attached to the back of the mount (wall-side) with a small slit to allow cables through may help the overall dressing of the mount and cables.

Step 5: For Vaddio Quick-Connects, connect the 24 VDC, 2.08 Amp power supply to a power outlet and to the Quick-Connect Interface. Power will travel down the Power/Video Cat-5 cable to the camera. The camera’s LED will be purple while it boots, and in a few seconds, it will turn blue and differential HD video will travel back down the Cat-5 cable to the Quick-Connect. When an image is available, the camera is ready to accept control information from the IR remote control or RS-232 camera controller.

For QUSB Systems: When the Quick-Connect USB is done powering up, it will display the Hardware (HW) MAC Address and the IP address on the front LCD screen. If USB streaming is desired, connect a USB

2.0, Type-A male to USB Type-B male cable from the USB Type-B jack of the QUSB to the USB 2.0 TypeA port on the laptop or PC. The Quick-Connect USB should show up on the connected computer as a UVC video USB 2.0 peripheral and the USB stream can be viewed with your desired third-party software. Consult

Connecting the ZoomSHOT 30 to the PC and Program of Choice for more streaming information.

For QMini Systems: Connect a USB 2.0, Type-A male to USB Type-B male cable from the USB Type-B jack of the QMini to the USB 2.0 Type-A port on the laptop or PC. The Quick-Connect USB Mini should show up on the connected computer as a UVC video USB 2.0 peripheral and the USB stream can be viewed with your desired third-party software. Consult Connecting the ZoomSHOT 30 to the PC and

Program of Choice for more streaming information.

For QDVI Systems: If daisy-chain serial control from a third-party control system is desired, the Address Set command must be sent every time the system is done booting up.

To ensure proper continuity of control and operation of the cameras, RS-232 controllers (such as control systems or joysticks) should be powered on after the camera.

For the AVBMP, connect the 24 VDC, 3.75 Amp power supply to a power output and to the AV Bridge MATRIX PRO. The AV Bridge MATRIX PRO will initialize, power will travel down the Power/Video Cat-5 cable to the camera. The camera’s LED will be purple while it boots, and in a few seconds it will turn blue and differential HD video will travel back down the Cat-5 cable to the AV Bridge MATRIX PRO. When an image is available, the camera is ready to accept control information from either the IR remote control or the AV Bridge MATRIX PRO.

You have finished installing your ZoomSHOT 30 System. You may want to go to Controlling the ZoomSHOT 30

Camera, or stay on this page and continue to appreciate the love and care that went into creating these instructions.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 26 of 73

CONTROLLING THE ZOOMSHOT 30 CAMERA

• IR Remote: The IR SHOT Commander Remote is the best way to control the camera in real time. The IR

remote controller can control the camera’s basic functions and enter the OSD (on-screen display) for more advanced controls. The IR remote is a great way to control the camera in real-time. The camera’s OSD menu structure is listed below.

• Web Interface (QUSB): The Quick-Connect USB’s web interface auto-loads the control protocols of the Vaddio camera attached (pretty cool huh?). Full camera controls including CCU (color correction unit) image controls are available from any approved web browser on any computer. The IP address is always displayed on the front panel display of the QUSB so access to the internal web pages is super easy.

• Web Interface (QMini): The USB Mini’s web interface auto-loads the control protocols of the Vaddio camera attached. Camera set-up and controls are available to the administrator of the system from any approved browser on any computer. The system has two modes; Video Streaming Mode and Web Control Mode. While using the Web Control mode, the camera image is not available for preview. For this reason, the IR SHOT Commander controlling the camera image through the OSD is the best way to control the camera in real time.

• Web Interface (AV Bridge MATRIX PRO): A connected AV Bridge MATRIX PRO’s web interface auto-loads the control protocols of the Vaddio cameras attached (which is pretty nifty). Full camera controls including CCU (color correction unit) image controls are available from any approved web browser on any computer. The IP address is always displayed under the Network Settings on the front panel display of the AV Bridge MATRIX PRO so access to the internal web pages is a breeze.

• Telnet Control (QUSB): The camera can be controlled through the Quick-Connect USB via Telnet session. These exciting commands are listed at the back of the manual.

• Telnet Control (AV Bridge MATRIX PRO): The camera can be controlled through the AV Bridge MATRIX PRO via Telnet session. Those enticing commands are listed at the back of the AV Bridge MATRIX PRO manual.

• RS-232 Control (QUSB and QDVI): An API is provided for control of the camera over RS-232 (commands in the back of manual).

• RS-232 Control (QMini): Connecting the camera’s RS-232 port to the QMini allows user to control the camera using operator input from the QMini web interface. If control of the camera with an external control device (like a joystick) is desired instead, the camera’s RS-232 port must be connected to the other device. A user cannot have simultaneous serial control of the camera from both an external device and the QMini.

• RS-232 Control (AV Bridge MATRIX PRO): An API for Serial control of an AV Bridge MATRIX PRO and its connected cameras is provided just for you at the back of the AV Bridge MATRIX PRO manual.

Table: ZoomSHOT 30 OSD Menu Structure

Use this OSD menu with the IR SHOT Commander Remote to make video adjustments (Picture, Color, Exposure, etc…) on the ZoomSHOT 30 camera. Using the IR SHOT Commander Remote is an easy way to set the camera’s color and overall picture attributes.

Menu

Controls

Range/Modes

Default

Notes

SSDR

OFF

Dynamic Range Adjustment

ON>

1 - 15

8*

*When Dynamic Range is ON

RETURN<

Return to Main Menu

WHITE BAL

ATW

ON

Auto White Balance - ON

MANUAL>

RED 0 – 1000

560

Adjust Red Level

BLUE 0 – 1000

480

Adjust Blue Level

RETURN<

Return to Main Menu

AWC→SET

One Push White Balance

OUTDOOR

Set to Outdoor when room has direct sunlight and blue walls

INDOOR

Set to Indoor when fluorescent lights start to cause color variation in ATW mode

MERCURY

SODIUM

BACKLIGHT

OFF

WDR>

LEVEL (LOW / MIDDLE / HIGH)

MIDDLE

Wide Dynamic Range

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 27 of 73

Menu

Controls

Range/Modes

Default

Notes

RETURN<

Return to Main Menu

BLC>

LEVEL (LOW / MIDDLE / HIGH)

MIDDLE

Backlight Compensation

TOP 1 – 100

30

Adj. parameters for BLC algorithm

BOTTOM 1 – 100

70

Adj. parameters for BLC algorithm

LEFT 1 – 100

30

Adj. parameters for BLC algorithm

RIGHT 1 – 100

70

Adj. parameters for BLC algorithm

RETURN<

Returns to the Backlight menu

HLC>

LEVEL (LOW / MIDDLE / HIGH)

MIDDLE

High Light Compensation. When extremely bright light is projected onto the camera.

MASK TONE 0 – 15

7 RETURN<

Return to Main Menu

INTELLIGENCE

OFF

The settings in this section of the On Screen Display are not processed or used by the ZoomSHOT 30 camera.

FOCUS

MODE

AUTO / MANUAL / ONE PUSH

AUTO

ZOOM TRACK

OFF / TRACK / AUTO TRACK

AUTO TRACK

ZOOM SPEED

SLOW / MEDIUM / FAST

FAST

D-ZOOM

ON (x2-x16) / OFF

OFF

Digital Zoom (keep off for best picture results)

ZOOM POS INIT

AUTO / MANUAL (x1-x32) / OFF

OFF

Sets initialization zoom position

USER PRESET

ON (1-128) / OFF

OFF

Do not use

LENS INIT

MANUAL / AUTO (Day 1-7)

MANUAL

Selecting this begins a lens initialization

RETURN<

Returns to the main menu

EXPOSURE

BRIGHTNESS

0 – 100

50

IRIS

AUTO

MANUAL>

IRIS F-No (F1.6-Close)

F1.6

RETURN<

Returns to EXPOSURE menu

SHUTTER

ESC>

ESC

Rec. left on default settings

MIN (1/60 – 1/11000)

1/60

MAX (1/60 – 1/11000)

1/11000

RETURN<

Returns to EXPOSURE menu

MANUAL>

MANUAL (x30-1/16000)

1/120

RETURN<

Returns to EXPOSURE menu

A.FLK

AGC

LOW / MEDIUM / HIGH / MANUAL (0dB – 42dB) / OFF

LOW SSNR

LOW / MEDIUM / HIGH / OFF

LOW

Noise reduction - don’t use above low

SENS-UP

OFF / AUTO (x2-x30)

OFF

Leave off

RETURN<

Returns to the main menu

SPECIAL

DAY/NIGHT

COLOR / B/W / AUTO

COLOR

Leave on color

DIS

OFF / ON

OFF

Digital Image Stabilization – leave off

DEFOG

OFF

Recommend left off

MANUAL>

LEVEL (1-10)

4

RETURN<

Returns to SPECIAL menu

AUTO>

LEVEL (1-10)

4

RETURN<

Returns to SPECIAL menu

COMM ADJ

BAUD RATE

38400

DO NOT CHANGE

UART MODE

8-E-1

DO NOT CHANGE

RETURN<

IMAGE ADJ

H-REV (OFF / ON)

OFF

Reverses the image horizontally

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 28 of 73

Menu

Controls

Range/Modes

Default

Notes

V-REV (OFF / ON)

OFF

Reverses the image vertically Please use Image Flip DIP on rear of camera instead.

SHARPNESS (ON / OFF)

ON

ON (1-31)

15

RETURN<

MONITOR

USER

GAMMA (0.20-1.0)

0.45

Color Level (0-100)

50

Chroma/Saturation

RESET

Resets USER menu to defaults

RETURN<

LCD

GAMMA (0.2-1.0)

0.5

Color Level (1-100)

50

RESET

RETURN<

Returns to IMAGE menu

RETURN<

Returns to SPECIAL menu

DISPLAY

CAM TITLE (ON / OFF)

OFF

ON allows for a custom 15character title to be displayed over camera video

CAM ID (ON / OFF)

CAM INFO (ON / OFF)

ZOOM MAG (ON / OFF)

OFF

OSD COLOR (WHITE / YELLOW /

GREEN / RED / BLUE)

WHITE

Changes the color of the On Screen Display Menu

LANGUAGE (ENGLISH, KOREAN,

JAPANESE, CHINESE, FRENCH, GERMAN, SPANISH, ITALLIAN, RUSSIAN, PORTUGUESE)

ENGLISH

Changes the language that the On Screen Display Menu is shown in

RETURN<

VIDEO OUT

FORMAT

---

Video resolution. Use the rear rotary to set, do not change here.

CVBS (ON / OFF)

OFF

COMPONENT (ON / OFF)

ON

Do not change

ADJUST

---

Executes changes in this menu. Do not use

RETURN<

Returns to SPECIAL menu

RETURN<

Return to Main Menu

RESET

Resets the camera’s OSD. A factory reset of the camera with the DIP switches is recommended instead of OSD reset.

EXIT

Exit the OSD

OSD recovery

If you change baud rate in the OSD (Under Special > COMM ADJ) and then exit the OSD, you will lose both IR and serial control of your camera. Power cycling the camera will restore control and return the baud rate back to the required 38400. This process could take up to five minutes.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 29 of 73

QUICK-CONNECT USB AND QUICK-CONNECT USB MINI DETAILS AND COMPATIBILITY

The Quick-Connect USB and USB Mini Interfaces use UVC (Universal Video Class) drivers for USB 2.0 video and do not require the loading of any other drivers to run on the PC. The maximum USB streaming resolution is 720p/30. Resolution is auto-negotiated.

Compatibility - Web Browsers

• Internet Explorer

• Safari

• Chrome

• Firefox

Compatibility with Soft Conferencing Clients

The Quick-Connect USB and USB Mini are compatible with most soft conferencing clients (such as Google Hangouts, Zoom, Vidyo, and Skype for Business) and with standards-based media players, and new programs that it can provide a video source to are released all the time.

UC soft-client and other software manufacturers update their products to add new features or interfaces. This may introduce changes in the way that they interact with UVC standards-based or MJPEG video sources on your existing hardware. Vaddio provides a continuing research and development effort to ensure compatibility with other manufacturer’s products. If incompatibilities are found, contact our Support team and they will investigate for possible solutions.

USB 2.0 UVC Driver Compatibility

The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC and the Quick-Connect USB Mini to negotiate and use for any approved/tested USB application. Typically, the highest resolution possible between both the PC and Quick-Connect USB Mini is used.

Table: Supported UVC Resolutions

Format

Resolution

Frame Rate

Aspect Ratio

MJPEG

Note: The bandwidth

of USB 2.0 limits the maximum resolution to 720p/30 using MJPEG compression.

1280 x 720

15/30

16:9

960 x 544

15/30

16:9

704 x 576

15/30

4:3

640 x 480

15/30

4:3

640 x 360

15/30

16:9

424 x 240

15/30

4:3

352 x 240

15/30

4:3

320 x 240

15/30

4:3

320 x 180

15/30

16:9

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 30 of 73

QUICK-CONNECT USB INTERNAL WEB PAGES AND CONTROL

The internal web pages will allow control of the Quick-Connect USB and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more!

DHCP IP Set-up (Dynamic Host Configuration Protocol):

If the LAN has a DHCP (dynamic host configuration protocol) server, then the IP address, gateway and routing information will automatically be assigned. The QUSB firmware is defaulted to DHCP and will attempt to dynamically obtain an IP address using DHCP, but it will fall back to the default address of

169.254.1.1 if no DHCP server can be found. Static IP Set-up:

The static IP can be assigned either through the network or directly with a computer using a network cable (depending on the age of the computer, you may need a cross-over network cable). Either way the steps are the same for network or direct connection to a computer. The default address of the QUSB camera is

169.254.1.1 and the Subnet mask is 255.255.0.0. Different computer OS types all have their own way of doing things (without question), but they are essentially doing the same stuff, changing the IP address so the web pages of the QUSB are accessible.

Quick-Connect USB Web Pages Tour

QUSB Screen Shot: Login

The QUSB web interface is intended as a user’s camera control page at one level, and an administrator’s management tool at another level, which requires password authentication for access.

The Login Page will appear if there is a user password assigned by the administrator. Assigning a user password can limit access to camera controls to only trusted users. The administrator can set the password for the user account (whose Username will be ‘user’) from the admin interface. If no user password is assigned, the web page will automatically open to the Camera Control page.

Admin access has the following default credentials: Username: admin Password: password

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 31 of 73

QUSB Screen Shot: Camera Control Page - No Camera Detected

The No Camera Detected window will appear if the Quick-Connect USB has no communication with the camera. Check the camera power and serial connections if no camera is found within 30 seconds of initialization. The QUSB controls the camera over the serial connection.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 32 of 73

QUSB Screen Shot: User Menu - Camera Control Page

1) Zoom and Home Controls: The camera’s zoom lens can be controlled with the “+” to zoom-in and the “-“

to zoom-out the ZoomSHOT 30 camera. The home button will move the camera to the home zoom position.

2) Zoom Speed Control: The speed for both the Zoom controls can be adjusted with the Zoom Speed Slider.

For tighter shots, it is recommended that the slower speed is used.

3) Store Preset Button: Clicking the Store button opens up a Store Preset pop-up dialog box. To set presets,

set up the camera shot, click on choice of preset number (1 through 12). The preset is stored and the dialog box closes.

4) Camera Presets: Twelve (12) presets can be recalled simply by clicking a preset number.

5) CCU Scenes: The user has access to the CCU scenes set and stored by the Admin. There are three (3)

user definable presets and six (6) presets preconfigured by the technical folks at Vaddio (really Scott set them all) that are meant to be used in certain lighting scenarios. These lighting presets included: Automatic, Incandescent Hi, Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor.

6) Administration Menu: By clicking on the Admin menu bar, the Admin Login screen will appear. The default

Admin password is: password. The Admin menu keys are exposed.

➊

➋

➌

➍

➎ ➏

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 33 of 73

QUSB Screen Shot: Admin Log-in

By selecting the Admin Menu Bar, the Admin Login password pop-up window will appear and await the entry of the password. By entering the Admin menus, 9 more menu keys appear on the left side of the screen. The default Admin Account password is password.

The default Admin Account password is password

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 34 of 73

Cancel and Save Buttons

Note: At the bottom of each of the admin menus, there is a Cancel and Save button. Please

click on the Save button before exiting each web page if the changes made require retention. Otherwise hit Cancel to delete any changes made to the page while exiting.

QUSB Screen Shot: Admin Menu - Camera Settings Page

The Camera Settings page provides the parameters to allow the end user to match the camera to the environment, set the CCU presets and make startup assignments.

1) Load Preset at Startup: Check this box to move the camera to a predefined preset location that the camera moves to when the QUSB powers up. Use the pull-down menu to select the Preset 1 through 12 to be loaded when this box is checked.

2) Load CCU Scene at Startup: Check this box to load a CCU (color correction unit) Scene into the camera when the QUSB powers up. The pull-down menu will allow the selection of one of the 6-factory scenes, or any of the 3-user defined scenes.

3) CCU Scenes: Click on any of these 9 buttons to load one of the CCU scenes into the camera. These scenes can be fine-tuned if changes are needed, and stored into any of the three admin defined scenes.

➊

➋

➌

➍

➎

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 35 of 73

4) Color Settings: When painting or shading camera scenes for specific lighting situations or environments, these attributes can be adjusted for matching cameras in the same area. The parameters within the Color Settings section are defined below (top to bottom):

• Auto Iris check box: When checked, the camera will operate in Auto Iris mode, when unchecked, the

camera will be in Manual Iris mode and allow adjustment of Iris and Iris Gain levels.

• Iris: Move adjustment slider as required to adjust the iris opening. A numeric value will be displayed in the box to the right of the slider.

• Gain: Move adjustment slider as required for amount of iris gain desired. Numeric value will be displayed in the box to the right of the slider.

• Auto White Balance check box: When checked, camera will operate in Auto White Balance Mode, when unchecked, the camera will be in Manual White Balance Mode to allow for adjustment of Red and Blue Gain.

• Red Gain: Move the adjustment slider as required for amount of Red Gain desired. A numeric value

will be displayed in the box to the right of the slider.

• Blue Gain: Move the adjustment slider as required for amount of Blue Gain desired. Numeric value

will be displayed in the box to the right of the slider.

• Detail: Move the adjustment slider as required for amount of detail (Aperture) desired. Numeric value will be displayed in the box to the right of the slider. Note: If the detail is too high, the video can look grainy and appear wicked noisy.

• Chroma: Move the adjustment slider as required for the amount of Chroma (Color Vibrancy) desired. A numeric value will be displayed in the box to the right of the slider.

• Store CCU Scene button: Once the desired scene adjustments have been made, this button will activate a pop-up menu that can be used to store this scene into one of the three User Defined Scene locations. These user defined scenes can be named as required for clarity and can be adjusted and re-saved at any time.

5) Custom CCU Scene Labels: The labels for the (3) User Defined customizable Scenes can be changed as needed. Move the cursor into the appropriate window and edit the text. Press Save to store these changes or press Cancel to exit this window.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 36 of 73

QUSB Screen Shot: Admin Menu - Streaming Page

1) Streaming Mode: Streaming can be set for either USB 2.0 streaming (MJPEG) or IP streaming (H.264); but

not both at the same time. The QUSB can stream USB and accept IP control, or it can IP stream with IP control. Choose the streaming mode here.

2) USB Device Name: Allows the user to use a “friendly name” per system. In a BYOD format, the user has the ability to move between different UC conference rooms and have the ability to assign the PC’s USB resources

to that room.

3) Color Space: The UVC drivers will negotiate the color depth, but this parameter allows the user to reduce the color depth to 4:2:0, which is used with the older/cheaper webcams and applications, where image quality is not as critical. The 4:2:2 color is used by many applications that take advantage of the performance of the camera where the colors are more vibrant and precise.

4) IP Streaming Settings: The Video Settings allow the selection of the target performance for the IP Streaming. The QUSB is set up for a variable bit rate and the user can select the video resolution and the quality, such as High Quality (Best), Standard Quality (Better) and Low Bandwidth (Good). Every effort to eliminate stupefyingly

bad combinations with the 5 or 6 parameters that make up the image size, quality, bit rate, bandwidth etc… has been made, so you can’t pick 1080p at a bit rate of 128Kbps, which would look totally wicked awful - and probably wouldn’t work anyway.

5) Streaming Protocol and URL: Admin chooses the streaming type and the port number for RTSP. The HLS

port is always on 80. The supported protocols are RTSP and HLS (Apple’s HTTP Live Streaming). RTSP is best for live applications, where HLS serves the Apple iOS devices and is better for playback due to the amount of buffering the HLS has built-in. The Streaming URL auto-populates and that path can be changed.

When finished setting up the streaming parameters, click Save to put the changes into effect or cancel, which will not save the configuration.

➊

➍

➌

➋

➎

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 37 of 73

QUSB Screen Shot: Admin Menu - Room Labels

The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per QUSB basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.

QUSB Screen Shot: Admin Menu – Networking – DHCP Configuration

Under the Networking menu, the Network Configuration and Network Interfaces are displayed. This is where the Network administrator assigns either DHCP or a Static address and the associated parameters. The QUSB is set to DHCP by default.

MAC Address, IP Address, Subnet Mask and Gateway will Autofill when in DHCP Mode

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 38 of 73

QUSB Screen Shot: Admin Menu – Networking – Static IP Configuration

If Static IP is used, the IP Address, Subnet Mask and Gateway are manually entered. Click on Save to keep the Static IP information or Cancel to cancel.

QUSB Screen Shot: Admin Menu - Security

The Security menu allows the Admin to create or update the “user” password and update the default or current “admin” password. Updating the “user” password for the first time will create a secure login page when the web

interface is first brought up. The default “admin” password is: password. The Network administrator can reassign the user name and password as well as the admin password. There is only one “user” password and one “admin” password at any given time. If changes are made, click on Save to store the change.

IP Address, Subnet

Mask and Gateway are entered into the system

manually for Static IP

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 39 of 73

QUSB Screen Shot: Admin Menu - Diagnostics

Diagnostics menu button will display the diagnostic log. This may help the Vaddio technical support team diagnose issues with the QUSB and the attached camera.

QUSB Screen Shot: Admin Menu - System Menu

The System Menu is where the Firmware Updates are performed. There will be firmware updates and upgrades over the life of the Quick-Connect USB. The file for the firmware update is chosen in this menu and the update is started here too. A remote system Reboot and Restore to Factory Settings is also available.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 40 of 73

QUSB Screen Shot: Admin Menu - Update Confirmation

After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact Vaddio Technical Support for assistance with updates if required. Please read and completely understand the popup warnings as it is easy to lose patience waiting for updates. Click on continue to start the update.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 41 of 73

QUSB Screen Shot: Admin Menu - Update in Progress

After the firmware load has been started, a pop-up screen will advise patience and notify, in terms of a percentage completed, the progress of the firmware update load. Again, please don’t interrupt the firmware load.

QUSB Screen Shot: Admin Menu - Help

Service/Help information can be found under the Help menu. Phone numbers and e-mail to contact Support are listed here. A direct link to our online support resources like manuals, FAQ’s and firmware files is also available.

TECHNICAL SUPPORT NOTE:

Please work with your Network Administrator prior to calling Vaddio for technical support. Please have on-site network personnel initiate tech support calls with Vaddio only.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 42 of 73

QUICK-CONNECT USB MINI INTERNAL WEB PAGES AND CONTROL

The QMini is capable of streaming video over USB, or using IP over USB to control the connected camera. To toggle the QMini’s control mode press the ‘MODE’ button on the device See Front Panel with Feature Call-outs. The internal web pages will allow control of the Quick-Connect USB Mini and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more!

Quick-Connect USB Mini Web Pages Tour

QMini Screen Shot: Login

The QMini web server is intended as a user’s camera control page at one level, and an administrator’s management tool at another level, which requires password authentication for access.

The Login Page will appear if there is a user name assigned by the administrator. The administrator can set the password for the User account. If no user password is assigned, the web page will automatically open to the camera control page when the USB streaming mode is toggled to web server control mode. In web server mode, the video is switched off, so as mentioned repetitively several times earlier, the IR SHOT Commander Remote is the best way to control the camera in real time.

QMini Screen Shot: Camera Control Page - No Camera Detected

The No Camera Detected window will appear if the Quick-Connect USB Mini has no communication with the camera. Check the camera power and serial connections if no camera is found within 30 seconds of initialization. The USB Mini controls the camera over the serial connection.

ZoomSHOT 30 Fixed Camera with QUSB, QMini, QDVI System or for AV Bridge MATRIX PRO Page 43 of 73

QMini Screen Shot: User Menu - Camera Control Page
