WideSHOT WallVIEW USB System

Installation and User Guide

VADDIO™ WIDESHOT™ WALLVIEW™ USB

WideSHOT HD Camera featuring the Quick-Connect™ USB Interface

Model Number 999-6911-000 (North America) Model Number 999-6911-001 (International)

WideSH OT Wall VIEW USB S ystem

Inside Front Cover - Blank

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 2 of 44

WideSH OT Wall VIEW USB S ystem

TABLE OF CONTENTS

Overview............................................................................................................................................................................................................................................. 4

Unpacking: .......................................................................................................................................................................................................................................... 5

Front View with Feature Call-outs .................................................................................................................................................................................................. 5

Image: WideSHOT HD PTZ Camera ....................................................................................................................................................................................... 5

Setting the WideSHOT Lens .......................................................................................................................................................................................................... 6

Image: WideSHOT Focus Knob Removal ................................................................................................................................................................................ 6

Image: Adjusting the HD Varifocal Optical Zoom Lens ............................................................................................................................................................ 6

Rear Panel Connections with Feature Call-outs............................................................................................................................................................................. 7

Image: WideSHOT HD Camera Rear View .............................................................................................................................................................................. 7

Table: WideSHOT Dip Switch Settings .................................................................................................................................................................................... 7 

Table: WideSHOT HD VIDEO Selections ................................................................................................................................................................................ 7 

Quick-Connect USB Interface ............................................................................................................................................................................................................. 8

Image: Front Panel with Feature Call-outs ............................................................................................................................................................................... 8

Image: Rear Panel with Feature Call- outs ..................................................................................... .......................................................................................... 9

Table: Quick Connect USB Rear Panel Dip Switch Settings .................................................................................................................................................... 9

Basic Application Diagrams .............................................................................................................................................................................................................. 10

Diagram: Basic Wiring Configuration - Without Network or PC .............................................................................................................................................. 10

Diagram: Basic WideSHOT WallVIEW USB Configuration - USB 2.0 Streaming ................................................................................................................... 11

Diagram: Basic IP Configuration - IP Streaming .................................................................................................................................................................... 11

Diagram: Complex System with Audio and Video .................................................................................................................................................................. 12

WideSHOT Camera - First Time Set-up ............................................................................................................................................................................................ 12 

By Step

Step

Framing the WideSHOT’s Video Shot ............................................................................................................................................................................................... 14

Drawing: A Small 10’ wide x 12’ long Conference Room with a WideSHOT HD .................................................................................................................... 14

Drawing: A Bigger Small 12’ wide x 16’ long Conference Room with WideSHOT HD ............................................................................................................ 14

IR SHOT Commander Remote Control ............................................................................................................................................................................................. 15

Image: Vaddio IR SHOT Commander Hand-held IR remote .................................................................................................................................................. 15

Quick-Connect USB Details .............................................................................................................................................................................................................. 16

Compatibility ................................................................................................................................................................................................................................ 16

Table: Supported UVC Resolutions ....................................................................................................................................................................................... 17 

Internal Web Pages and Control ....................................................................................................................................................................................................... 17 

DHCP IP Set-up (Dynamic Host Configuration Protocol) ............................................................................................................................................................. 17

Static IP Set-up: ........................................................................................................................................................................................................................... 17

Quick-Connect USB Web Pages Tour: ............................................................................................. ........................................................................................... 17

Screen Shots .......................................................................................................................................................................................................................... 17

Connecting the Quick-Connect USB and Camera to the PC and Program of Choice ....................................................................................................................... 28

Skype Example: ........................................................................................................................................................................................................................... 28

VLC Media Player Example: ........................................................................................................................................................................................................ 28

General Specifications ...................................................................................................................................................................................................................... 29

Compliance and CE Declaration of Conformity - WideSHOT ............................................................................................................................................................ 30

Warranty Information ........................................................................................................................................................................................................................ 31

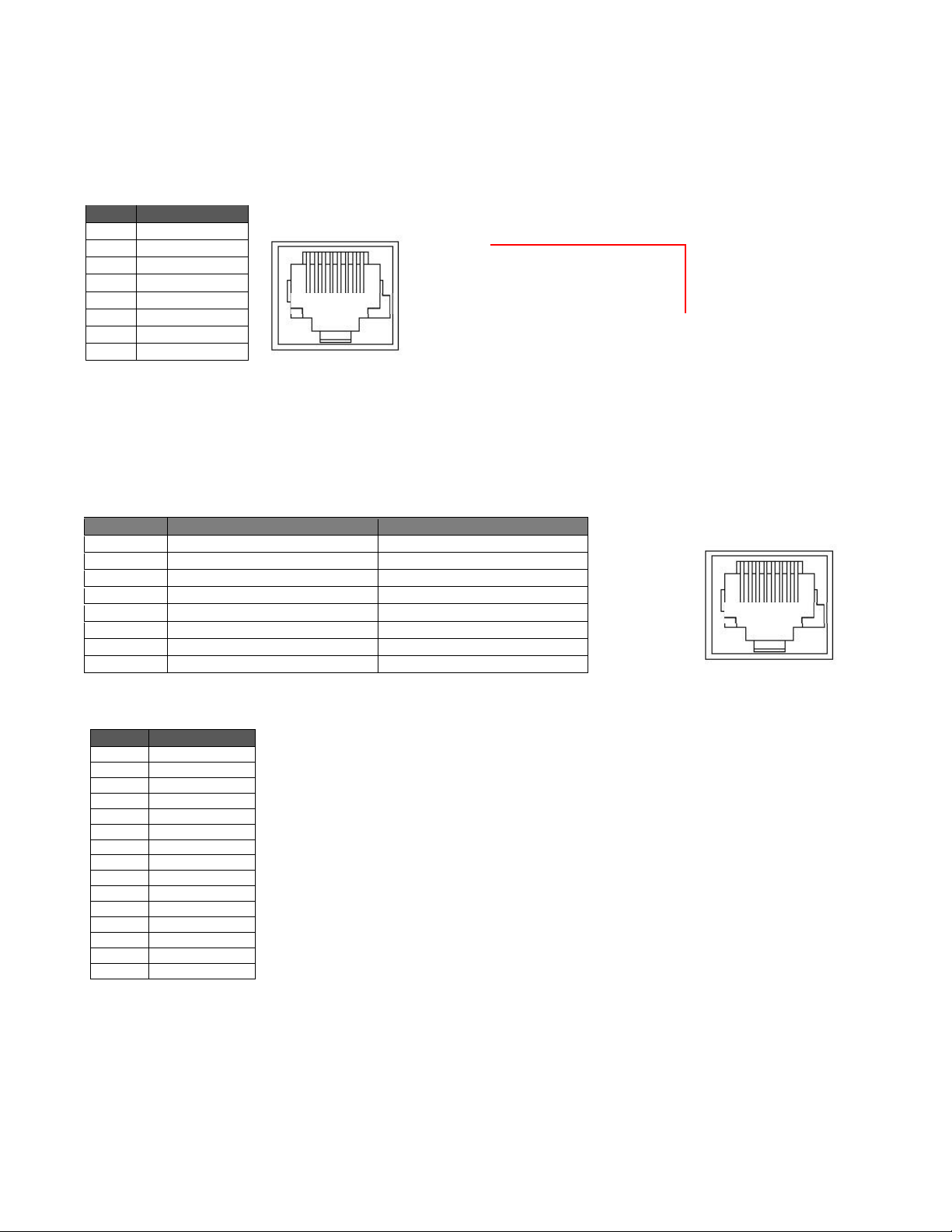

Appendix 1: Pin-outs for EZ-Power Video Cameras and Quick-Connect USB ................................................................................................................................. 33

Table: Camera RS-232 Port .................................................................................................................................................................................................. 33

Appendix 2: Communication Specification for the WideSHOT ......................................................................................................................................................... 34

Appendix 3 - Telnet Serial Command API ......................................................................................................................................................................................... 36

Telnet Command List ................................................................................................................................................................................................................... 36

Appendix 4: WideSHOT OSD Menu Tree ........................................................................................................................................................................................ 42

WideSHOT WallVIEW USB Installation Instructions: .............................................................................................................................................. 13

-POW

ER VIDEO RJ-45 Connector Pin-outs ...................................................................................................................................................................... 33 

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 3 of 44

WideSHOT WallVIEW USB System

VERVIEW

: The Vaddio WideSHOT HD camera wide angle, manual lens camera produces astounding results for small and huddle room applications where the distance between the camera and the subject is limited. The WideSHOT camera was designed as a low cost, high value, manual pan/tilt/zoom camera with a super wide-angle lens that can be set to provide the best image possible in a small environment. To that end, the WideSHOT camera sports a lens with 82.2° wide horizontal field of view with a user adjustable iris, focus and varifocal zoom of approximately 3X (3.3mm to 10.5mm). With the 3X optical zoom capability, even the “big” small rooms can be covered too.

The WideSHOT HD was designed from the ground up and is equipped with the Vaddio EZCamera™ Cat-5 wiring standard for video, power and control. Using HSDS™ (high speed differential) video outputs over Cat-5 cable, the WideSHOT supplies a wide range of video

Image: WideSHOT HD Camera

resolutions that are selectable from the rear panel; from 480p/59.94YPbPr up to and including 1080p/60. The HSDS processing allows delivery of the WideSHOT HD video signals up to 150’ (45.72m).

This system features the awesomely robust Quick-Connect USB Interface, which was designed to have multi-format digital and analog video outputs, to be compatible with all existing and forthcoming Vaddio cameras and include USB 2.0 or IP streaming outputs with a built-in web server for IP control. The outputs include; HDMI, YPbPr, USB Video (UVC standards-MJPEG) and H.264 IP Video (RTSP & HLS). The embedded webserver provides for browser-based access to camera controls, camera presets and basic CCU functions (color and shading controls) as well as the video configuration web pages.

Image: ZoomSHOT Rear Panel

Choose between three (3) IR frequencies for the Vaddio IR SHOT Commander to allow multiple cameras to be locally IR controlled with a single remote control. And like all WallVIEW packages, the thin profile wall mount is included.

Intended Use:

Image: Quick-Connect USB Interface

Before operating the device, please read the entire manual thoroughly. The system was designed, built, and tested for use indoors with the power supply provided. The use of a power supply other than the one provided, or outdoor operation hasn’t been tested and may damage the device or create a potentially unsafe operating condition

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.

Use only the power supply provided with the system. Use of any unauthorized power supply will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not work well for professional installations and can be the cause of intermittent connections which can result in the RS-232 control line failing and locking up, and/or compromising the HSDS (high speed differential) signals. For best results please use standard RJ-45 connectors and test all cables for proper pin-outs prior to use and connection to Vaddio

roduct.

Save These Instructions:

The information contained in this manual will help you inst all and operate your product. If these instructions are misplaced,

these documents can be downloaded from www.vaddio.com free of charge.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 4 of 44

WideSHOT WallVIEW USB System

NPACKING

Carefully remove the product and all of the included parts from the packaging. Identify the following parts for each camera:

WideSHOT WallVIEW USB Camera System (North America):

Part Number: 999-6911-000

 One (1) WideSHOT HD Wide-Angle Camera (998-6910-000)  One (1) Vaddio IR SHOT Commander Remote  One (1) Quick-Connect USB Interface  One (1)  One (1) 24 VDC, 2.0 A Power Supply with Power Cord for North America  One (1) Thin Profile Wall Mount with Mounting Hardware  One (1) EZCamera™ Control Adapter (RJ-45-F to DB-9-F)

 Documentation

WideSHOT WallVIEW SR Camera System (International):

Part Number: 999-6911-001

 One (1) WideSHOT HD Camera (998-6910-000)  One (1) Vaddio IR SHOT Commander Remote  One (1) Quick-Connect USB Interface  One (1)  One (1) 24 VDC, 2.0 A Power Supply  One (1) Euro Power Cable  One (1) UK Power Cable  One (1) Thin Profile Wall Mount with Mounting Hardware  One (1) EZCamera™ Control Adapter (RJ-45-F to DB-9-F)  Documentation

Front View with Feature Call-outs

Image: WideSHOT HD PTZ Camera

1) Lens: 3.3mm to 10.5mm Varifocal HD Zoom Lens (16:9), 82.2° wide end, 27.4° tele end (approx. 3X zoom).

2) IR Sensor and Power/Tally LED: The IR sensor for the IR SHOT Commander remote is located here.

Below it is a light pipe where a blue LED power and a red LED tally reside. Both light up to produce purple.

3) Focus Knob Retention Screw: Remove screw and knob to manually set zoom and iris (see next page).

4) The Yoke: For manual pan and tilt. Tilt range is ± 30° and Pan is limited to the service loop of the cabling.

5) Logo: Really Cool Logo Badge (RCLB). The RCLB is affixed to the base in a recessed ovoid area.

6) The Aluminum Base and Steel Cylindrical Body: Please don’t drop it on your foot, it’s fairly substantial.

(998-1105-038)

6’ (1.83m) USB 2.0 Type-A to Type-B Cable (Black)

(998-1105-038)

6’ (1.83m) USB 2.0 Type-A to Type-B Cable (Black)

①

⑤

②

③

④

⑥

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 5 of 44

WideSH OT Wall VIEW USB S ystem

Setting the WideSHOT Lens

Image: WideSHOT Focus Knob Removal

You may ask, “Why would anyone want to remove the focus knob?” The answer is directly correlated with the quality of this wide-angle HD lens. It is not a plastic “webcam”, but instead it is an exceptional quality glass lens, rated up to 3-megapixel with a 3.3mm to 10.5mm precision varifocal optical zoom lens with manual iris, focus and zoom controls.

IR Window (recessed) & the blue/red LED light pipe

Exceptional quality glass lens, rated up to 3-megapixel with a

3.3mm to 10.5mm precision varifocal zoom lens with manual zoom, iris and focus controls.

Focus Knob

Focus Knob attachment point: With a flat blade “tweaker” type screw driver, remove the screw and carefully pull off the focus knob.

Image: Adjusting the HD Varifocal Optical Zoom Lens

After removing the focus knob screw and carefully sliding off the “snug” focus knob, the lens controls are exposed and available for adjustment. The controls are as follows:

1) The Optical Zoom Control: By carefully untightening the knurled screw a half turn on the innermost ring,

adjust the ring to either the wide (W) or tele (T) direction. The focus ring, now without knurled adjustment screw (screw taken out to remove the focus knob) will need to be adjusted as the zoom is changed. Experiment with the zoom range to fit the application. A full 82.2° may be too wide in some cases and tailoring the zoom to 65° to 70° may fit the room better. After setting the control, tighten the knurled screw.

2) The Manual Iris Control: After setting the zoom range and focusing on the subject’s at the distance that the

camera will be used, the iris ca n be adjusted to limit the amount of light that the image sensor receives, which in turn gives an increased depth of field for focusing on the people in front of the camera. The “O” stands for open and the “C” stands for closed. Experiment with the iris to achieve the best results for the application. After setting the control, tighten the knurled screw.

3) The Focus Control: The outermost ring is the focus control and can be adjusted to the near (N) or far (F)

side. Set the focus ring to the approximate position and reattach the focus knob with the knurled screw when finished. Fine tune the focus for the final shot.

Manual Iris Control

(Middle ring) Adjust Open Close

Manual Zoom Control

(Innermost ring) Adjust Wide Tele

Manual Focus Control

(Outermost ring) Adjust Near Far

Lens Positions from Factory

 IRIS - Full Open  Zoom - Full Wide  Focus - user to set

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 6 of 44

WideSHOT WallVIEW USB System

Rear Panel Connections with Feature Call-outs

Image: WideSHOT HD Camera Rear View

①

③

②

④

1) RS-232 & IR O

ut: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR

signaling received by the front IR receiver, which can be transmitted to third party devices. The WideSHOT will not react to the remote if the IR is off. IR forwarding is only available in the SR Quick-Connect models.

2) EZ Power/Video Port:

This RJ-45 connector is only used with the Quick-Connect SR, Quick-Connect DVI-D/HDMI SR Interface, QuickConnect USB and USB Mini Interfaces to supply power and return HSDS (differential) video from the camera over Cat-5 cable up to distance of 150’ (45.72m).

3) WideSHOT Dip Switch Settings: Settings for IR remote frequency, IR receiver on/off, image flip, test bars and defaults can be configured on these switches. See the Switch Settings page for additional information. The dip switch settings are as follows:

Table: WideSHOT Dip Switch Settings

Dip Switch Function

1 Up = IR1, Down = IR2 2 Up = IR 1 or 2, Down = IR3 3 Up=IR ON, Down = IR OFF 4 Up = Normal Image, Down = Image Flip 5 Test Bars 6 Update Position - Leave UP unless updating firmware

6 - Position

Dip Switch

All Down Reset to Defaults - with power cycle

4) HD Video Select:

A rotary switch allo

ws the user to choose the component HD output video resolution and format. After setting or changing the resolution, reboot the camera to ensure proper operation. If an unassigned rotary selection position is chosen (3, 9, A, B, C or D), the camera will output a medium grey video privacy mask. Simply set the rotary switch to an assigned position to output video. The HD Video Select Rotary Switch Settings are as follows:

Table: WideSHOT HD VIDEO Selections

Rotary

1 1080i/59.94 9 -2 1080p/59.94 A -3 -- B -4 720p/50 C -5 1080i/50 D -6 1080p/50 E 1080p/29.97 7 480p/59.94 F 1080p/25

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 7 of 44

Resolutions

720p/59.94 8

Rotary

Resolutions

576p/50

Notes:

1) For IP or USB 2.0 Streaming, use position “0” (720p/59.94) for best

results

2) Set the rotary switch to an assigned position. A medium grey privacy mask is displayed on unassigned positions.

Point the notch in the switch stem to assign the rotary position

WideSHOT WallVIEW USB System

UICK-CONNECT

Image: Front Panel with Feature Call-outs

1) LCD Blue Backlit Display:

20 x 2 Character, ODV (omni-directional view), ABN (advanced black nematic) display with a high contrast and wide viewing angle combined with high visibility. The MAC address (labeled as “HW” for hardware) is on the top line, and the IP address (static or DHCP) is listed on the bottom line. This display with IP and MAC addresses allows for easy access to the embedded web server and Vaddio camera settings for the PC or BYOD (bring your own device - laptop or tablet) users of UC conference systems. Upon power up or power reset this display will indicate when the unit is in initialization mode.

2) Power/ System Reset Switch: The System Reset switch on the front panel is a blue back-lit tactile switch that will illuminate when power is present at the rear power connector. Pressing in and holding this switch for 1.15643 seconds will restart/reinitialize the Quick-Connect USB Interface.

3) Network LED:

The blue panel mount LED indicator will indicate the presence of an Ethernet connection. This LED will blink to indicate network activity. If no network connection is made, the LED will remain off.

4) USB LED:

The blue panel mount LED indicates the presence of a USB connection to a PC (or mac). Blinking will indicate USB activity. If no USB connection is present the LED will remain off.

USB I

NTERFACE

①

②

④

③

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 8 of 44

WideSHOT WallVIEW USB System

Quick-Connect USB Interface

Image: Rear Panel with Feature Call-outs

⑤

⑨

①

②

③

④

⑥

⑦

⑧

1) Power Input: 5.5mm OD x 2.5mm ID coaxial connector for the provided 24 VDC, 2.0 Amp switching power supply. The Quick-Connect USB Supplies Power to the attached camera.

2) 5-Position Dip Switch: A 5-position dip switch allows the user to choose the HD video color space (YCbCr for HDMI and sRGB color space for DVI-D) on the HDMI output, configure for updates, and restore factory defaults when cycling power.

Table: Quick Connect USB Rear Panel Dip Switch Settings

Dip Switch Function Default Activation

1 2 3 4 5

All Down

3) RS-232 IN: Serial RS-232 input on a RJ-45 connector. This control port allo ws a Vaddio joystick controller or 3rd party controller (Crestron/AMX) to control the camera functions if the embedded webserver is not used for real time control.

4) RS-232 OUT TO CAMERA: Serial RS-232 output on RJ-45 connects via Cat-5 to the camera RS-232 input on the camera. Control signals from the embedded webserver are sent to the camera over this control port.

5) EZ POWER VIDEO: RJ-45 jack used to supply 24 VDC power to the camera and return differential video from the camera on Cat-5 cable at a maximum distance of 150’ (45.7m).

6) YPbPr Output: Analog component video output on a DE-15 (HD15) connector (resolution is set on the back of the camera). The YPbPr output resolution will be the same as the HDMI output resolution. SD video resolutio ns (Y/C and CVBS formats) are not supported by the Quick-Connect USB Interface; however some progressive frame analog component SD video is supported.

7) HDMI Output: The digital video output on the HDMI connector can either be YCbCr color space (normal HDMI mode) or can be changed to DVI-D color space (sRGB) for older monitors and devices. The HDMI and YPbPr outputs work simultaneously and are the same resolution (set at the camera).

8) Ethernet 10/100 Netw ork RJ-45 Jack: The Ethernet jack will have yell ow and green lights to indicate connectivity and activity of the network on that jack. The Ethernet jack will stream video up to 1080p/30 (H.264) and c an be set from the internal web pages much like the HD-USB Camera. The resoluti ons will availa ble in a thr ee (3) stage q ualit y format (High Quality, Good Quality and Standard Quality targets) and includes a range of CIF to 1080p/30.

9) USB 2.0 Connector: The USB 2.0 is on a Type-B female jack and connects to a PC running a soft-client video conferencing system or video capture software that uses UVC (USB Video C lass) standard drivers. No other USB 2.0 drivers are required to plug the QC-USB into a computer and have it work. The UVC drivers will auto negotiate the top resolution that the PC and QC-USB can accomplish together and auto-implement that resolution.

Future Use Up n/a Future Use Up n/a Color Space HDMI Connector Up = HDMI (YCbCr) Down = DVI (sRGB) Program / Update UP = No Program DOWN = Ready To Program Future Use Up n/a Reset to Defaults All UP ALL DOWN (with power cycle)

5 - Position

Dip Switch

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 9 of 44

WideSHOT WallVIEW USB System

)

ASIC APPLICATION DIAGRAMS

Diagram: Basic Wiring Configuration - Without Network or PC Integration

WideSHOT HD Camera

Rear View

Cat-5 Cable forRS-232 Control

Quick-Connect USB Interface

Rear Panel

←

HD Video (HSDS differential

Cat-5 Cable for Power and Video

(EZ-POWER VIDEO)

Powe

→

24VDC, 2.0 A

Power Supply

RS-232 Control

HDMI Video

RS-232 Control Program

HD Monitor

(Simulated HD Video Feed)

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 10 of 44

WideSHOT WallVIEW USB System

(

)

Diagram: Basic WideSHOT WallVIEW USB Configuration - USB 2.0 Streaming

WideSHOT HD

Video Camera

Rear view

Two (2) Cat-5 Cables carry Power, Video and Control Signals

Power to Camera >

< HD Video to QC-USB

Cat-5 Cables up to 150’ (45.72m)

Quick-Connect

USB Interface

(Rear view)

HDMI Cable

USB 2.0 - MJPEG Video Using Standard UVC Drivers

HDMI Video Monitor

Simulated Video Feed

USB 2.0 Cable Type A to Type B

Diagram: Basic IP Configuration - IP Streaming

WideSHOT HD Camera to Quick-Connect USB out to Network for a remote control network application

WideSHOT

HD Camera

With Mount

Quick-Connect USB

Interface

Two (2) Cat-5 Cables for Power, Video and Control Distance up to 150’ (45.72m)

Ethernet

IP (H.264) Streaming

RTSP or HLS

Ethernet

Network

Host PC with

UC Application

PC with Browser

for Control and UC Application

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 11 of 44

WideSHOT WallVIEW USB System

(

Diagram: Complex System with Audio and Video

Local USB 2.0 Streaming with Ethernet control, active UC Application and local audio system

WideSHOT HD

Camera

With Mount

Video, Power

and Control

Two Cat-5

Cables

Up to 150’

45.72m)

Quick-Connect

USB Interface

Ethernet IP Control

from either PC

PC “A” with Browser for Control

and UC Application to connect

to PC “B” on other side

USB 2.0

UVC Video

USB 2.0

UAC Audio

Ethernet

Local Audio System with AEC

Mics, Mixer/Amp and Speakers

8 Ohm

Ceiling

Speakers

EasyUSB

Mixer/Am

Cat-5 Cat-5

8 Ohm

PC “B” with Browser for

Control and UC

Application to connect to

PC “A” on other side

Network

Ethernet

Legend

 USB UVC Video

 USB UAC Audio

 IP Web Page Control

 UC Application

AEC Mics

(EasyMics)

IDE

SHOT C

The WideSHOT was designed to be very easy to use and operate. There is documentation at the back of this manual for pin-outs for the connectors on the WideSHOT camera and the Quick-Connect USB interface.

Before Installing the Camera:

 Choose the WideSHOT’s mounting location while paying close attention to

camera viewing angles, lighting conditions, possible line of site obstructions and checking for in-wall obstructions where the camera is to be mounted. Always pick a mounting location that will optimize the performance of the camera. Please locate the camera to enable easy positioning of the camera body with the ability to point down and away from the ceiling and a pile of fluorescent lighting cells. Cameras generally don’t like to be swamped with fluorescent light and few people sit on the ceiling anyway.

 The Thin Profile Wall Mount for the WideSHOT can be mounted directly to a 1-gang wall box or can be

mounted using two (2) provided spiral dry wall anchors.

 For Power/Video and RS-232 signals, use standard Cat-5 cable (568B termination and real RJ-45

connectors) from the EZ-POWER VIDEO and RS-232 ports on the back of the WideSHOT to the QuickConnect USB Interface. The EZ-POWER VIDEO jack on the camera is marked in red as a reminder that there is 24 VDC power on that Cat-5 cable.

AMERA - FIRST TIME SET-UP

Image: WideSHOT HD

Camera with provided Thin Profile Wall Mount

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 12 of 44

WideSHOT WallVIEW USB System

Step By Step WideSHOT WallVIEW USB Installation Instructions: Step 1: After determining the optimum location of the camera; route, mark and test

the two Cat-5 cables from the camera to the Quick-Connect USB Interface located at the head-end. The two Cat-5e cables should feed-through the hole located on the rear flange of the Thin Profile Wall Mount. If the bracket is to be mounted on a 1gang wall box, use the screws supplied with the wall box cover plate to attach the Thin Profile Wall Mount. If mounting to the drywall with wall anchors, use two quality wall anchors. The mount provides for easy leveling. Pull the Cat-5 cables though the wall and feed the cables through the back of the mount. Level the mount and tighten the mounting screws.

Step 2: Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the camera, set up the camera’s output resolution and functional preferences. There are tables on Page 6 that identify the choices… keep these tables handy for future use…or you can easily look them up on the Vaddio website

(vaddio.com) when needed.

Setting the WideSHOT Camera:

 Set the desired HD Resolution with the rotary selection switch. If changing the resolution, always reboot

the camera to ensure proper operation. Note: Use 720p/59.94 (position “0”) for best results for Streaming USB 2.0 (MJPEG) or IP Video (H.264).

 Set the IR frequency (1, 2 or 3) of the camera (if it is to respond to the IR remote control).  Set the desired image orientation (normal or flipped).  Set up the lens according to the directions on Page 6.

Step: 3: Follow the sample wiring diagram for connecting the Cat-5 cables to the WideSHOT and Quick-Connect USB Interface (Diagram on pages 9, 10 & 11, but read and understand the rest of these instructions especially the next note).

NOTE: Check all Cat-5 cables for continuity in advance of the final connection. Label the

Cat-5 cables. Plugging the EZ POWER HD VIDEO cable into the wrong RJ-45 may cause damage to the camera system and void the warranty. For premise cabling, please use real RJ-45 connectors and crimpers. Please don’t use the pull through or EZ type of RJ-45.

Step 4: Place the camera onto the camera mount and use the provided ¼”-20 screws to secure the camera to

the mount. To dress the cabling, push the extra cable back into the wall opening. Position and focus the camera.

Step 5: Connect the Vaddio 24 VDC, 2.0 Amp power supply to a power outlet and to the Quick-Connect USB Interface. The Quick-Connect USB will initialize, power will travel down the Power/Video Cat. 5 cable to the camera. The camera will boot up and in a few seconds, differential HD video will travel back down the Cat-5 cable to the Quick-Connect. When an image is available, the camera is ready to accept control information from the IR remote control or RS-232 camera controller. The Quick-Connect USB will display the Hardware (HW) MAC Address and the IP address.

To ensure proper continuity of control and operation of the cameras, the RS-232 controller (control system or joystick) should be powered on after the camera.

Controlling the WideSHOT: (this package)

IR Remote: The IR Shot Commander Remote control can control the camera’s basic functions and enter the

OSD (on-screen display) for more advanced controls.

RS-232 Control: An API is provided for control of the camera over RS-232 (commands in the back of manual). Telnet Control: The camera can be controlled through the Quick-Connect USB via Telnet session. These

exciting commands are listed at the back of the manual. Built-in Webserver Control: The Quick-Connect USB has a built-in webserver that auto-loads the control protocols of the Vaddio camera attached (pretty cool huh?). Full camera controls including CCU image controls are available from any approved browser on any computer. The IP address is always displayed on the front panel display of the Quick-Connect so access to the internal webpages is super easy.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 13 of 44

WideSHOT WallVIEW USB System

RAMING THE WIDE

SHOT’S V

IDEO SHOT

When framing the shot with a WideSHOT Camera, consider and review the following el ements:  The area should be well lit and without reflective surfaces. For wall surfaces, use a flat paint or wall

coverings to minimize audio reflections. Use neutral colors, for example; pale grey, pale blue or beige that are easy for any camera to process.

 Avoid white and black or a stark contrast color pallet, avoid placing a big old white board in the background,

and avoid complex décor in view of the camera (modern art like stuff). Avoid glass, chrome, mirrors, and glass on table tops to minimize the lighting and audio reflections.

 Always avoid having a window in the camera shot as sunlight can be very disruptive of camera performance.

Window treatments are a must for rooms with windows to achieve evenly lit space without direct sunlight.

 Never position the camera so that any ceiling lights are in the video frame. No one sits anywhere near the

ceiling and direct lighting in the frame can be problematic for the automatic functions of the camera.

The bottom line is simple, give the camera a chance to work well in the room and excellent video is the result. There are many room set up primers available on today’s internet for reference.

Drawing: A Small 10’ wide x 12’ long Conference Room with a WideSHOT HD

WideSHOT set at the wide end (82.2°).

The WideSHOT HD camera set to the full wide end of 82.2° is an excellent choice for small (huddle) conferencing rooms that range from 8’ (2.44m) to 12’ (3.66m) in width x depth.

In this example, the table front is 4’ (1.22m) away from the camera and the WideSHOT can easily capture all of the meeting participants from this distance

The WideSHOT can be manually zoomed into a tighter shot for a conference room with fewer participants as well.

82.2°

4’ (1.22m)

12’ (3.66m)

10’

(3.05m)

Drawing: A Bigger Small 12’ wide x 16’ long Conference Room with WideSHOT HD

WideSHOT set at the wide end 82.2° - Lt. Blue WideSHOT reset to approx. 58° - Rose

16’ (4.88m)

The WideSHOT HD camera set to the full wide end of 82.2°, in this example, is too wide for this room and will not render any real detail such as facial expressions and other mannerisms of the meeting participants.

The WideSHOT can be zoomed into a tighter shot (58°or tighter rose viewing angle) allowing all the subjects in this room to be seen on camera while still providing the details needed for effective visual communications.

Please see Setting the WideSHOT Lens section on page 6.

82.2°

58.0°

(3.66m)

12’

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 14 of 44

WideSHOT WallVIEW USB System

IR SHOT C

OMMANDER REMOTE CONTROL

Spatially Efficient IR Remote Controller for ZoomSHOT™ and WideSHOT™ Camera Systems The Vaddio IR SHOT Commander was designed to work with the Vaddio ZoomSHOT and WideSHOT camera

systems and is compatible with the PowerVIEW™, ClearVIEW™ cameras and the WallVIEW™ camera system packages. The Vaddio IR SHOT Commander is compatible with the following Vaddio camera packages:

 ZoomSHOT and WideSHOT Camera Systems (shipped with these products)  Vaddio ClearVIEW HD-18, HD-19, HD-20, PowerVIEW HD-22, HD-30 and REVEAL™ HD-18

The Vaddio IR Shot Commander is also compatible with the Sony® EVI series and the BRC series PTZ cameras.

Basic Instructions:

 Pick the IR Frequency to match the dip switch setting of the camera. Operate the remote (but not too fast).  Note: The Pan/Tilt/Zoom controls are not used with the manual lens of the WideSHOT HD Camera.

Image: Vaddio IR SHOT Commander Hand-held IR remote

OSD On Screen Display Menu (if applicable)

Arrow Keys X 4

 Pan Left, Pan Right,  Tilt Up, Tilt Down  Menu Navigation

 Pan Functions Not Used

with WideSHOT

Zoom Camera OUT (wide)

Not Used with WideSHOT

ZOOM OUT ZOOM I

P-STORE IR 1

PRESET 1

Red LED indicates IR transmission and the brightness indicates battery strength

Power On/Off Camera Standby

OK, Enter, Select and Camera Home

Zoom Camera IN (telephoto)

Not Used with WideSHOT

Preset Button - Setting Presets

 Move the camera into position  Push and hold P-STORE button  Touch buttons 1 or 2 to set Preset

Recalls ZoomSHOT or WideSHOT Preset 1 or Preset 2

*WideSHOT uses a manual lens

Quick Specs

IR Range 20’ to 30’ (6m to 9m) Batteries 2 x AAA (Batteries not

Keys (buttons) 15 Silicone Rubber Keys Dimensions

L x W x H LED Indicator Red LED Illuminates when

Compatible Cameras

shipped with 998-2101-001)

4.53” (115mm) x 1.57” (40mm) x 1.1” (28mm)

transmitting IR, Brightness indicates battery strength

Ships with ZoomSHOT and WideSHOT. Compatible with all Vaddio ClearVIEW, PowerVIEW cameras (limited function set) and most Sony BRC & EVI cameras.

Select IR Frequencies (3) Allows up to 3 cameras to be controlled in a room with one (1) IR Remote

Note: Camera dip switches set IR frequency.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 15 of 44

WideSH OT Wall VIEW USB S ystem

QUICK-CONNECT USB DETAILS

The Quick-Connect USB Interface is a Cat-5 camera interface and an IP or USB 2.0 streaming appliance with a built-in webserver for camera set-up and control. The Quick-Connect USB Interface uses UVC (Universal Video Class) drivers for USB 2.0 video and does not require the loading of any other drivers to run on the PC. As long as the operating systems and soft-client software support UVC drivers, no additional software/drivers, other than the application is required.

Compatibility

The Quick-Connect USB will work with the following web browsers, soft codecs, computer operating systems, and media players:

Compatibility - Web Browsers:

1) Internet Explorer (IE 8 and above)

2) Safari (Rev 4 and 5)

3) Safari/iOS (Rev 4 and 5)

4) Chrome (the latest and current release - auto updating)

5) Firefox (the latest and current release - auto updating)

Soft Client Compatibility: The Quick-Connect USB is compatible with the following soft codecs or applications, in no particular order:

1) Skype Win 7 & Mac OS X

2) Web Ex (WBS 28.7 and up) Win 7 & Mac OS X

3) Microsoft Lync Win7

4) Cisco Jabber Win 7 & Mac OS X

5) Vidyo Desktop Win 7 & Mac OS X

6) Google Plus Win 7

7) Adobe Connect 8 Win 7 & Mac OS X

8) LifeSize ClearSea Win 7

9) GoToMeeting (Citrix) Win 7 & Mac OS X

10) Polycom M100 Win7

11) Panopto (lecture capture) Win 7

Compatibility: Media Players

The UVC with MJPEG and IP with H.264 video are compatible with the industry leading PC media players.

 Quick-Time 10.2  VLC Media Player 2.0.4  Real Player 16.0

Compatibility: Operating Systems

 Apple OS X (10.7 and above)  Windows XP w/Service Pack 3 with known issues and errata  Windows 7  Linux

Evolving Compatibilities:

As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the compatibility with other manufacturer’s products.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 16 of 44

WideSHOT WallVIEW USB System

Compatible with USB 2.0 UVC Drivers

The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC and the Quick-Connect USB to negotiate and use for any approved/tested USB application. Typically, the highest resolution possible between both the PC and Quick-Connect USB is used. However, not all OS and application combinations are all together typical.

Table: Supported UVC Resolutions

Format Resolution Frame Rate Aspect Ratio

MJPEG

Note: The bandwidth

of USB 2.0 limits the maximum resolution to 720p/30 using MJPEG compression.

1280 x 720 15/30 16:9

960 x 544 15/30 16:9 704 x 576 15/30 4:3 640 x 480 15/30 4:3 640 x 360 15/30 16:9 424 x 240 15/30 4:3 352 x 240 15/30 4:3 320 x 240 15/30 4:3 320 x 180 15/30 16:9

NTERNAL WEB PAGES AND CONTROL

The internal web pages will allow control of the Quick-Connect USB and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more!

DHCP IP Set-up (Dynamic Host Configuration Protocol)

DHCP Set-up (skip this section if Static IP). If the LAN has a DHCP (dynamic host configuration protocol) server, then the IP address, gateway and routing information will automatically be assigned. The QC-USB software is defaulted to DHCP and will attempt to dynamically obtain an IP address using DHCP, but it will fall back to the default address of 169.254.1.1 if no DHCP server can be found.

Static IP Set-up:

The static IP can be assigned either through the network or directly with a computer using a cross-over cable. Depending on the age of the computer, you may not need a cross-over cable. Either way the steps are the same for network or direct connection to a computer. The default address of the QC-USB camera is 169.254.1.1 and the Subnet mask is 255.255.0.0. Different computer OS types all have their own way of doing things (without question), but they are essentially doing the same stuff, changing the IP address so th e web pages of the QC-

USB are accessible

Quick-Connect USB Web Pages Tour:

Screen Shots

The QC-USB web server is intended as a user’s camera control page at one level, and an administrator’s management tool at another level, which requires password authentication for access.

The Login Page will appear if there is a username assigned by the administrator. Assigning a username can limit access to the admin menus by a general user. By default, the username is blank and the password for the User account is: password. The Administrator can set the name and password for the User account. If no username is assigned, the web page will automatically open to the Camera Control page.

Defaults: User name is blank (assigned by admin)

Password is: password

Admin name is: admin Password is: password

Screen Shot: Camera Control Page - No Camera Detected

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 17 of 44

WideSHOT WallVIEW USB System

The No Camera Detected window will appear if the Quick-Connect USB has no communication with the camera. Check the camera power and serial connections if no camera is found within 30 seconds of initialization. The Quick-Connect USB controls the camera over the serial connection.

Screen Shot: User Menu - Camera Control Page

1) CCU Scenes - Custom A, Custom B and Custom C

There are 3 preset memory locations for scenes configured and stored on the Camera Settings Menu Tab (see page 20) on the WideSHOT CCU Scenes, under Color Settings. The Admin has control to set up the scenes and the User can recall these presets by clicking on Custom A, B or C.

2) Preset Lighting Scenes

Six preconfigured lighting presets were set by the technical folks at Vaddio (really…Scott set all the presets) that are meant to be used in certain lighting conditions or scenarios. These lighting presets include; Automatic, Incandescent Hi, Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor (character limitations are why the names are spelled so gnarly). Set this control to the best setting for the room where the camera is used.

Screen Shot: Admin Log-in

➊

➋

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 18 of 44

WideSHOT WallVIEW USB System

By selecting the Admin Menu Bar, the Admin Login password pop-up window will appear and await the entry of the password. By entering the Admin menus, 9 more menu keys appear on the left side of the screen. The default Admin password is: password

Default:

Admin Account Password is: password

Screen Shot: Admin Menu - Camera Settings Page

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 19 of 44

WideSHOT WallVIEW USB System

The Camera Settings page provides the parameters to allow the end user to match the camera to the environment, set the CCU presets and make startup assignments.

1) Load Preset at Startup: Check this box to move the camera to a predefined preset location when the camera powers up. Use the pull down menu to select the Preset 1 through 6 to be loaded when this box is checked

2) Load CCU Scene at Startup: Check this box to load a CCU Scene into the camera when the camera powers up. The pull down menu will allow the selection of one of the 6-factory scenes, or any of the 3-user defined scenes.

3) CCU Scenes: Click on any of these 9 buttons to load one of the CCU scenes into the camera. These Scenes can be fine-tuned if changes are needed, and stored into any of the three User defined scenes.

4) Color Settings: When painting or shading camera scenes for specific lighting situations or environments, these attributes can be adjusted for matching cameras in the same area. The parameters within the Color Settings section are defined below (top to bottom):

➌

➍

➊

➋

➎

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 20 of 44

WideSHOT WallVIEW USB System

 Auto Iris check box: When checked, the camera will operate in Auto Iris mode, when unchecked, the

camera will be in Manual Iris mode and allow adjustment of Iris and Iris Gain levels.

 Iris: Move adjustment slider as required to adjust the Iris opening. A numeric value will be displayed in the

box to the right of the slider.

 Gain: Move adjustment slider as required for amount of Iris Gain desired. Numeric value will be displayed in

the box to the right of the slider.

 Auto White Balance check box: When checked, camera will operate in Auto White Balance Mode, when

unchecked, the camera will be in Manual White Balance Mode to allow for adjustment of Red and Blue Gain.  Red Gain: Move the adjustment slider as required for amount of Red Gain desired. A numeric value will

be displayed in the box to the right of the slider.

 Blue Gain: Move the adjustment slider as required for amount of Blue Gain desired. Numeric value will

be displayed in the box to the right of the slider.

 Back Light Compensation: When checked, Back Light Compensation will be applied to the camera if BLC

is supported by the camera and the camera is in Auto White Balance mode.

 Detail: Move the adjustment slider as required for amount of detail (Aperture) desired. A numeric value will

be displayed in the box to the right of the slider. Note: If the detail is too high, the video can look grainy and appear wicked noisy.

 Chroma: Move the adjustment slider as required for the amount of Chroma (Color Vibrancy) desired. A

numeric value will be displayed in the box to the right of the slider.

 Store CCU Scene button: Once the desired scene adjustments have been

made, this button will activate a pop-up menu that can be used to store this scene into one of the three User Defined Scene locations. These User Defined Scenes can be named as required for clarity. These User Defined CCU Scenes can be adjusted and re-saved at any time.

5) Custom CCU Scene Labels: The labels for the (3) User Defined customizable Scenes can be changed as needed. Move the cursor into the appropriate window and edit the text. Press Save to store these changes or press Cancel to exit this window.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 21 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - USB 2.0 or IP Streaming Mode Page

➊

➋

➌

➍

➎

1) Streaming Mode: Streaming can be set for either USB 2.0 streaming (MJPEG) or IP st reaming (H.264); but not both at the same time. The QC-USB can stream USB and accept IP control, or it can IP stream with IP control. Choose the streaming mode here.

2) USB D evice Name: Allows the user to use a “friendly name” per system . In a BYOD format, the user has the ability to move between different UC conference rooms and have the ability to assign the PC’s USB resources to that room.

3) Color Space: The UVC drivers will negotiate the color depth, but this parameter all ows the user to redu ce the color depth to 4:2:0, which is used with the older/cheaper webcams and applic ations, where im age q uality is not as critical. The 4:2:2 color is used by many applications that take advantage of the performance of the camera where the colors are more vibrant and precise.

4) IP Streaming Settings: The Video Settings allow the selection of the target performance for the IP Streaming. The QCUSB is set up for a variable bit rate and the user can select the video resolution and t he quality, such as High Quality (Best), Standard Quality (Better) and Low Bandwidth (Good). Every effort to eliminate st upefyi ngly bad combi nations with the 5 or 6 parameters that make up the image size, quality, bit rate, bandwidth etc… has been made, so you can’t pick 1080p at a bit rate of 128Kbps, which would look totally wicked awful - and probably wouldn’t work anyway.

5) Streaming Protocol and URL: Admin chooses the streaming type and the port number for RTSP. The HLS port is always on 80. The supported protocols are RTSP and HLS (Apple’s HTTP Live Streaming). RTSP is best for live applications, where HLS serves the Apple iOS devices and is better for playback due to the amount of buffering the HLS has built-in. The Streaming URL auto populates and that path can be changed.

 When fin ished setting up the streaming par ameters click Save to put the chan ges into effect or cancel, which will not save

the configuration.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 22 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - Room Labels

The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per QC-USB basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 23 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - Networking - DHCP Configuration

Under the Networking menu, The Network Configuration and Network Interfaces are displayed. This is where the Network administrator assigns either DHCP or a Static address and the associated parameters.

MAC Address, IP Address, Subnet Mask and Gateway will Autofill when in DHCP Mode

Screen Shot: Admin Menu - Static IP Configuration

If Static IP is used, the IP Address, Subnet Mask and Gateway are manually entered. Click on Save to keep the Static IP information.

IP Address, Subnet Mask and Gateway are entered into the system manually for Static IP

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 24 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - Security

The Security menu allows the Admin to UPDATE “user” PASSWORD and UPDATE “admin” PASSWORD. The default “user” password is: password. The default “admin” password is also: password. The Network administrator can reassign the user name and password as well as the Admin password. There is only one “user” password and one “admin” password at any given time. If changes are made, click on Save to store the change.

Screen Shot: Admin Menu - Diagnostics

Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical support team diagnose a problem with the Quick-Connect USB and attached camera.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 25 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - System Menu

The System Menu is where the System Info is displayed and Firmware Updates are performed. There will be firmware updates and upgr ades over the life of the Quick-Connect. The file for the firmware update is chosen in this menu and the update is started here. A remote system Reboot and Restore to Factory Presets is also available.

Screen Shot: Admin Menu - Update Confirmation

After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact Vaddio Tech support for assistance with updates. Please read and completely understand the pop-up warnings as it is easy to lose patience waiting for updates. Click on continue to start the update (this example is from 1.0.0 to 1.1.0).

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 26 of 44

WideSHOT WallVIEW USB System

Screen Shot: Admin Menu - Update in Progress

After the firmware load has been started, a pop-up screen will advise patience and notify, in terms of a percentage completed, the progress of the firmware update. Again, please don’t interrupt the firmware load (this example is from 1.0.0 to 1.1.0) .

Screen Shot: Admin Menu - HELP

Service/Help information can be found under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support.

TECHNICAL SUPPORT NOTE: Please work with your Network Administrator prior to calling Vaddio for technical support. Please have on-site network personnel initiate tech support calls with Vaddio only.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 27 of 44

WideSH OT Wall VIEW USB S ystem

CONNECTING THE QUICK-CONNECT USB AND CAMERA TO THE PC AND PROGRAM OF CHOICE

The Quick-Connect USB and attached camera are compatible with many programs and media players. The following is an attempt to generally describe the steps to plug in the QC-USB with a Vaddio camera and get an image in a couple of popular programs.

Skype Example:

1) After connecting a camera to the Quick-Connect USB, with a quality USB 2.0 cable, plug the USB-B port of the QC-USB Interface to the USB-A port of the computer. A pop up window on the computer monitor will display the following:

a. Found QC-USB b. Found USB Composite Device c. Found USB Video Device

2) Open Skype and perform the following steps:

a. Open the Tools Menu and drop down to Options b. Click on Video Settings and under Webcam choose USB Video Device or Friendly Name if it has

been assigned

The systems will negotiate the highest resolutions possible, depending on the computer speed, network quality, cabling etc..., and display the video signal of the camera. The camera attached to the QC-USB can be controlled with the supplied Vaddio IR Shot Commander or through IP as described earlier through the QC-USB’s web pages. Make a test call to ensure the system is working properly.

VLC Media Player Example:

1) Same first step as above.

2) Open VLC Media Player and perform the following steps:

a. Click on the Media menu, drop down to Open Capture Device and click it. b. Under Device Name, go to the Video Device Name drop down and choose USB Video Device. c. Under Options, enter the Video Size as 1280x720 d. Click on Play e. From there, VLC needs some instruction on the aspect ratio, so click on Tools and drop down to

Aspect Ratio and drop down again to 16:9 for 720p (1280x720).

VLC is a powerful record/playback system that will buffer the images creating some delay in the way VLC displays the image. This is expected and normal.

With all the compatible software available, in general terms, the video device, aspect ratio, and resolution may need to be set manually the first time through initial set-up. Some systems are easier than others (like Skype) and others are more technical in nature and tend to do more stuff.

Example Program Notes: Most every application or media player is in a state of constant updating and change. The above instructions were written at the beginning of 2013 and some steps may be slightly different. The general idea however is the same.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 28 of 44

WideSH OT Wall VIEW USB S ystem

GENERAL SPECIFICATIONS

WideSHOT WallVIEW USB

Part Numbers

Image Sensor

Video Output Resolutions HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50

Lens/ Focal Length Approx. 3X Optical Zoom, 3.3mm to 10.5mm manual focus (94.3 Horizontal Viewing Angle 82.2° Wide End to 3.2° Tele End, 27.4° Tele End, 16:9 Format (94.3° diagonal) Video S/N Ratio >50 dB Minimum Illumination 0.2 LUX (1/30 Shutter Speed) Color Serial Control Protocol RS-232 (Modified VISCA) Manual Pan/Tilt Range Pan: Limited to service loop of cabling, yoke and base are mechanical only

Preset Positions Manual Tally Light Red LED available through RS-232 Control Camera Connectors Two (2) RJ-45 Jacks:

HD Video Select 16-Position Rotary Switch: Used to set HD Video Resolution Output Camera Settings 6-Position Dip Switch: For IR Freq., Baud Rate 9600, Image Flip & Test Bars

Thin Profile Wall Mount 535-2000-237 (Provided with WideSHOT WallVIEW Systems)

User Controls IR SHOT Commander with OSD for set-up and RS-232 Materials & Weight Aluminum & Steel, Weight = 2.75643 lbs. (1.68kg) Dimensions: Tube: 3.5” ( 88.9mm) Diameter x 5.125” (130.175mm) Long (including front bezel and focus knob)

Quick-Connect USB Interface Video Outputs USB 2.0 (MJPEG): Resolution up to 720p/30 (USB 2.0 MJPEG)

USB Interface Connector: Type-B, USB 2.0 Compliant, Standard UVC (Universal Video Class) Drivers Network Interface Connector: RJ-45 (shielded), 10/100 Base-T, Supported Protocols: RTSP and HLS Streaming Streaming Protocols IP: H.264 (RTSP and HLS), USB 2.0: MJPEG (UVC standard drivers) Connectors

Dip Switches 5-Position: Color Space, Updating and Future Use H.264 Resolutions CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080p Ethernet only) Front Panel

Supported Media Players

Supported Browsers Power Supply 24 VDC, 2.0 Amp Dimensions (H x W x D) ½-Rack Size - 8.375” ( 212.73mm) W x 6.0” (152.4mm) x 1.72” ( 43.6885643mm) H Weight 1.4 lbs. (0.6355643Kg) Accessory Rack Mount Adapter: 998-6000-004 - 1-RU Offset mount (1-Long Ear & 1-Short Ear)

Planet in Front Page Header: Mercury

WideSHOT WallVIEW USB 999-6911-000 (North America) WideSHOT WallVIEW USB 999-6911-001 (International)

SD: 480p/59.94 & 576p/50

Tilt: ± 30° Invertible for Ceiling Mount

 EZ-Power VIDEO RJ-45 Jack for use with Quick-Connect - Supplies power to the camera and returns

differential HD video from the camera

 RS-232 RJ-45 Jack (RS-232 Communication and IR Out (with Quick-Connect -SR Interfaces)

16-Position Rotary Switch for Output Resolution Settings

Black powder coating, Sized to fit on 1-gang wall box or drywall mounting

Base: 5.5” (139.7mm) Diameter Overall Height: 5.5” (139.7mm) Tall

H.264 (IP) of Ethernet: Resolution up to 1080p/30 (H.264 over IP) Analog Component (YPbPr): Resolution up to 1080p/59.94 HDMI: Resolution up to 1080p/59.94

 Power: 5.5mm OD x 2.5mm ID Coaxial Connector  YPbPr: DE-15 (15-pinHD) Female  HDMI: HDMI Female  RS-232 IN: RJ-45 Jack  RS-232 OUT: RJ-45 Jack  EZ-Power Video: RJ-45 Jack (Power and Differential HD Video)

 20 x 2 line Character Negative Mode LCD - Displays MAC (HW for Hardware) and IP Address  Power/System Reset - Tactile, flush mount, Back-lit Switch  Network LED: Indicates connectivity and activity  USB LED: Indicates Streaming Mode

 Quick-Time Media Play - Win 7 & Mac OS10X  VLC Media Player - Win 7 & Mac OS10X  Real Player - Win 7

 Internet Explorer, Safari, Safari/iOS, Chrome & Firefox

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 29 of 44

WideSHOT WallVIEW USB System

OMPLIANCE AND CE DECLARATION OF CONFORMITY - WIDE

Compliance testing was performed to the following regulations:

 FCC Part 15 (15.107, 15.109), Subpart B Class A  ICES-003, Issue 4: 2004 Class A  EN 55022 A: 2006 + A1: 2007 Class A  KN22 2008 (CISPR 22: 2006) Class A  KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002) Class A  EMC Directive 2004/108/EC Class A 

EN 55024: A2: 2003

Class A

SHOT

FCC Part 15 Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

ICES-003 Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada.

European Compliance

This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Standard(s) To Which Conformity Is Declared:

EMC Directive 2004/108/EC

Class A

EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) EN 55024: A2: 2003

 EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001 Electrostatic Discharge  EN 61000-4-3: 2006 + A1: 2008 Radiated Immunity  EN 61000-4-4: 2004 + Corrigendum 2006 Electrical Fast Transients  EN 61000-4-5: 2006 Surge Immunity  EN 61000-4-6: 2009 Conducted Immunity  EN 61000-4-8: 2010 Power Frequency Magnetic Field  EN 61000-4-11: 2004 Voltage Dips, Interrupts and Fluctuations

KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002)

 EN 61000-4-2 Electrostatic Discharge  EN 61000-4-3 Radiated Immunity  EN 61000-4-4 Electrical Fast Transients  EN 61000-4-5 Surge Immunity  EN 61000-4-6 Conducted Immunity  EN 61000-4-8 Power Frequency Magnetic Field  EN 61000-4-11 Voltage Dips, Interrupts and Fluctuations

IEC 60950-1:2005 (2nd Edition); Am 1:2009 EN 60950-1:2006+A11:2009+A1:2010+A12:2011

Safety

Immunity

IT Immunity Characteristics

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 30 of 44

WideSHOT WallVIEW USB System

OMPLIANCE AND CE DECLARATION OF CONFORMITY, QUICK-CONNECT

Compliance testing was performed to the following regulations:

 FCC Part 15 (15.107, 15.109), Subpart B Class A  ICES-003, Issue 4: 2004 Class A  EN 55022 A: 2006 + A1: 2007 Class A  EMC Directive 2004/108/EC Class A 

EN 55024: A2: 1998 + Amendments A1: 2001 + A2: 2003

Class A

USB I

NTERFACE

FCC Part 15 Compliance

ICES-003 Compliance

European Compliance

Standard(s) To Which Conformity Is Declared:

EMC Directive 2004/108/EC EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) EN 55024: A2: 1998 + Amendments A1: 2001 + A2: 2003



EN 61000-4-11: 2004 Voltage Dips, Interrupts and Fluctuations

IEC 60950-1: 2005 2

Edition); AM 1: 2009 Safety

Class A Immunity

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:2011 Safety

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 31 of 44

WideSH OT Wall VIEW USB S ystem

WARRANTY INFORMATION

(See Vaddio Warranty, Service and Return Policies posted on vaddio.com for complete details):

Hardware* Warranty: Two (2) year limited warranty on all parts and labor for Vaddio manufactured products. Vaddio

warrants its manufactured products against defects in materials and workmanship for a period of two years from the day of purchase, to the original purchaser, if Vaddio receives notice of such defects during the warranty. Vaddi o, at its option, will repair or replace products that prove to be defective. Vaddio man ufactures its hard ware products from parts an d components that are new or equivalent to new in accordance with industry standard practices.

Exclusions: The above warranty shall not apply to defects resulting from improper or inadequate maintenance by the customer, customers applied software or interfacing, unauthorized modifications or misuse, mishandling, operati on outside the normal environmental specifications for the product, use of the incorrect power supply, modified power supply or im prop er site operation and maintenance. OEM products and products manufactured by other companies are excluded a nd ar e co vered b y the manufacturer’s warranty.

Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. T he cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. All compon ents must be returned for testing as a complete unit. Vaddio will not accept responsibility for shipment after it has left the premises.

Vaddio Technical Support: Vaddio technicians will determine and discuss with the customer the criteria for repair costs and/or replacement. Vaddio Technical Support can be contacted through one of the following resources: e-mail support at

support@vaddio.com or online at vaddio.com.

Return Material Authorization (RMA) Number: Before returning a product for repair or replacement request an RMA from Vaddio’s technical support. Provide the technician with a return phone number, e-mail address, shipping address, product serial numbers and original purchase order number. Describe the reason for repairs or returns as well as the date of purchase. See the General RMA Terms and Procedures section for more information. RMA’s are valid for 30 days and will be issued to Vaddio dealers only. End users must return products through Vaddio dealers. Include the assigned RMA number in all correspondence with Vaddio. Write the assigned RMA numb er clearly on the shippi ng label of the box when returning the product. All products returned for credit are subject to a restocking charge without exception.

Voided Warranty: The warranty does not apply if the original s erial number has been removed or if the product has been disassembled or damaged through misuse, accident, modifications, use of incorrect po wer supply, use of a modified power supply or unauthorized repair.

Shipping and Handling: Vaddio will not pay for inbound shipping transportation or insurance charges or accept any responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound shipping, transportation, and insurance charges for all items under warranty but will not assume responsibility for loss and/or damage by the outbound freight carrier. If the return shipment appears damaged, retain the origin al boxes and packing material for inspection by the carrier. Contact your carrier immediately.

Products not under Warranty: Payment arrangements are required before outbound shipment for all out of warranty products.

Other General Information: Care and Cleaning

Do not attempt to take this product apart at any time. There are no user-serviceable components inside.

 Do not spill liquids in the product  Keep this device away from food and liquid  For smears or smudges on the product, wipe with a clean, soft cloth  Use a lens cleaner on the lens, ok?  Do not use any abrasive chemicals

Operating and Storage Conditions:

Do not store or operate the device under the following conditions:

 Temperatures above 40°C (104°F) or temperatures below 0°C (32°F)  High humi dit y, condensing or wet environments  In inclement weather  In swimming pools or drainage basins  Dry environments with an excess of static discharge  In orbit (temperature range and re-entry issues)  Under severe vibration

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 32 of 44

WideSHOT WallVIEW USB System

PPENDIX 1: PIN-OUTS FOR

EZ-P

OWER VIDEO CAMERAS AND QUICK-CONNECT

EZ-POWER VIDEO RJ-45 Connector Pin-outs

EZ-POWER VIDEO Port

Pin Signal

1 Power+ 2 Power3 Y+ 4 PB+ 5 PB 6 Y 7 PR+ 8 PR-

EZ-POWER VIDEO

12345678

Cat-5 Cable:

Power to Camera, Differential Video from Camera

Important Note: The EZ-POWER VIDEO RJ-45 Connector on a Vaddio Cat-5 system camera is for use with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces ONLY (568B Wiring Standard). The video signals are differential (HSDS) and can only be processed by the interfaces above.

Table: Camera RS-232 Port

Pin # Camera Pins Quick-Connect USB

Pin - 1 N/A Pin - 2 N/A Pin - 3 N/A Pin - 4 Not Used with QC-USB Pin - 5 Not Used with QC-USB Pin - 6 Digital GND Pin - 7 RXD (from TXD of control source) Pin - 8 TXD (to RXD of control source)

Table: Quick-Connect USB DE-15 Pin-Output (Analog Component YPbPr)

Pin YPbPr

1 Pr 2 Y 3 Pb 4 5 6 Pr GND 7 Y GND 8 Pb GND

9 10 GND 11 12 13 14 15 -

USB

RS-232

12345678

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 33 of 44

WideSH OT Wall VIEW USB S ystem

APPENDIX 2: COMMUNICATION SPECIFICATION FOR THE WIDESHOT

Communication Speed: 9600 bps (default) Start bit: 1 Stop bit: 1 Data bits: 8

12345678

Parity: None No Flow control

NOTE: The Vaddio WideSHOT Control Protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many WideSHOT specific commands in the following Command and Inquiry Lists.

WideSHOT Command List (1/2)

Command Set Command Command Packet Comments

Address Set Broadcast 88 30 01 FF Address Set (Daisy chain) IF_Clear Broadcast 88 01 00 01 FF IF Clear Command Cancel 8x 2p FF p:socket number(1,2) CAM_Power On

Off(Standby)

CAM_WB Auto

Manual

CAM_RGain Reset

Up Down Direct

CAM_BGain Reset

Up Down Direct

CAM_AE Full Auto

Manual

CAM_Aperture Reset

Up Down Direct

CAM_Bright Reset

Up Down

Direct CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs:0x0000 – 0xFFFF Tally On

Off BLK.Enhance Pedestal 8x 01 7E 53 00 0p 0q 0r FF pqr: Contrast (0x0-0x010) Default 8 CRM.Enhance Chroma 8x 01 7E 55 00 0p 0q 0r FF pqr: Saturation (0x0-0x010) Default 8 DNR.Enhance Noise Reduction 8x 01 7E 58 00 0p 0q 0r FF pqr: Noise reduction (0x0- 0x010)

AGC.Enhance AGC Mode 8x 01 7E 59 00 FF

CAM_Shutter Reset

Down

Direct

8x 01 04 00 02 FF 8x 01 04 00 03 FF 8x 01 04 35 00 FF 8x 01 04 35 05 FF 8x 01 04 03 00 FF 8x 01 04 03 02 FF 8x 01 04 03 03 FF 8x 01 04 43 00 0p 0q 0r FF 8x 01 04 04 00 FF 8x 01 04 04 02 FF 8x 01 04 04 03 FF 8x 01 04 44 00 0p 0q 0r FF 8x 01 04 39 00 FF 8x 01 04 39 03 FF 8x 01 04 02 00 FF 8x 01 04 02 02 FF 8x 01 04 02 03 FF 8x 01 04 42 00 0p 0q 0r FF 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF 8x 01 04 0D 03 FF 8x 01 04 4D 00 00 0p 0q FF

8x 01 7E 01 0A 00 02 FF 8x 01 7E 01 0A 00 03 FF

8x 01 7E 59 01 FF 8x 01 7E 59 02 FF 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF 8x 01 04 0A 03 FF 8x 01 04 4A 00 00 00 0p FF

Pin # RJ-45 RS-232 and IR Out Pins

1) Unused

2) Unused

3) Unused

4) IR Output (Diff Signal to Quick-Connect SR Only)

5) IR Ground (Diff Signal to Quick-Connect SR Only)

6) GND (GND of IR Short Range - Pin 3)

7) RXD (from TXD of control source)

8) TXD (to RXD of control source)

Power On/Off Normal Auto

Manual White Balance

pqr: Red (0x0-0x010) Default 8

pqr: Blue (0x0-0x010) Default 8 Auto Exposure Mode Manual Control Mode

pqr: Sharpness (0x0-0x010) Default 8

pqr: Bright (0x0-0x0010) Default 8

Default 0 Low Auto Default High

p: Shutter Speed (0-8) Default 8

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 34 of 44

WideSH OT Wall VIEW USB S ystem

WideSHOT Inquiry List (1/1)

Inquiry Command Command Response Packet Comments

CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF CAM_WBModeInq 81 09 04 35 FF y0 50 00 FF CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs:0x0000 – 0xFFFF

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 0p 0q 0r FF pqr: Sharpness (0x00-0x010) CAM_RGain 8x 09 04 43 FF y0 50 00 0p 0q 0r FF pqr: Red (0x00-0x010) CAM_BGain 8x 09 04 44 FF y0 50 00 0p 0q 0r FF pqr: Blue (0x00-0x010) CAM_Bright 8x 09 04 4D FF y0 50 00 0p 0q 0r FF pqr: Bright (0x00-0x010) CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 00 0p FF p: Shutter Speed (0-8) TallyInq 8x 09 7E 01 0A FF y0 50 02 FF

BLK.Enhance 8x 09 7E 53 FF y0 50 00 0p 0q 0r FF pqr: Contrast (0x00-0x010) CRM.Enhance 8x 09 7E 55 FF y0 50 00 0p 0q 0r FF pqr: Saturation (0x00-0x010) DNR.Enhance 8x 09 7E 58 FF y0 50 00 0p 0q 0r FF pqr: Noise reduction (0x00- 0x010) AGC.Enhance 8x 09 7E 59 FF

y0 50 03 FF y0 50 05 FF y0 50 03 FF

y0 50 03 FF

y0 50 00 FF y0 50 01 FF y0 50 02 FF

On Off(Standby) Auto Manual Auto Exposure Mode Manual Control Mode

On Off

Low Auto High

Shutter Speeds: 0:1/7680, 1:1/3840, 2:1/1920, 3:1/960, 4:1/480, 5:1/240, 6:1/120, 7:1/60

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 35 of 44

WideSHOT WallVIEW USB System

PPENDIX 3 - TELNET SERIAL COMMAND

API

The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session on the Quick-Connect USB. Camera control commands supported on the Quick-Connect USB includes ClearVIEW HD-18, HD-19 and HD-20, PowerVIEW HD-22, HD-30, ZoomSHOT and WideSHOT. The command application protocol interface is intended to allow external device such as AMX or Crestron to control the camera. The protocol is based upon ASCII format following the VT100 terminal emulation standard and uses an intuitive text command nomenclature for ease of use. The API is accessed by a telnet client on the Ethernet port. All ASCII characters will be echoed to terminal program and appended with VT100 string -ESC[J (HEX- 1B 5B 4A). Vaddio Command lines are terminated on carriage return. After the carriage return, the VT100 appends with – ESC[J. Note: Most terminal programs automatically strip the VT100 string. General format usage follows a get/set structure. Usage examples for each type are:

Set Example

COMMAND: > camera pan right RESPONSE: > OK

Get Example COMMAND: > stream mode get RESPONSE: > streaming mode usb

Syntax Error Example

COMMAND: > camera pan right RESPONSE: > ERROR

Additional programming controls associated with the terminal protocol includes:  CTRL 5 - Clears the current serial buffer on the device.

Telnet sessions will require access verification and uses the same username and password associated with the Administrator account on the embedded web server. The default Telnet Port is 23. Command lines are terminated with a carriage return. NOTE: The WideSHOT camera will not respond to pan, tilt or zoom commands.

Telnet Command List

CameraHome

 NAME camera home - Move the camera to the home position  SYNOPSIS camera home

 DESCRIPTION Method used to move the camera to the home position

 EXAMPLES camera home Move the camera back to the home position

CameraPan

 NAME camera pan - Pans the camera left or right  SYNOPSIS camera pan {left|right|stop} [1-24]

 DESCRIPTION Method used to pan the camera

 OPTIONS left Move the camera left right Move the camera right stop Stop the camera movement speed Optional integer from 1-24 that represents the speed (Default: 12)  EXAMPLES camera pan left Pans the camera left at the default speed camera pan right 20 Pans the camera right using a speed of 20 camera pan stop

Stops the pan movement of the camera

 

(not used with ZoomSHOT or WideSHOT cameras)



Image: Exciting simulated Telnet session.

WideSHOT WallVIEW USB Document Number 342-0696 Rev. B Page 36 of 44

WideSHOT WallVIEW USB

CameraPreset 

NAME

camera preset - Recall and storing of camera presets  SYNOPSIS camera preset {recall|store} [1-6]

 DESCRIPTION Method used to recall and store camera presets

 OPTIONS recall Recall preset store Store preset

preset Required value from 1-6 used to indicate the preset number

 EXAMPLES camera recall 3 Move camera to preset position 3 camera store 1 Store current camera position as preset 1

CameraTilt(not used with ZoomSHOT or WideSHOT cameras)

 NAME camera tilt - Tilts the camera up or down  SYNOPSIS camera tilt {up|down|stop} [1-20]

 DESCRIPTION Method used to tilt the camera

 OPTIONS up Move the camera up down Move the camera down stop Stop the camera movement speed Optional integer from 1-20 that represents the speed (Default: 10)  EXAMPLES camera tilt up Tilts the camera up at the default speed camera tilt down 20 Tilts the camera up using a speed of 20 camera tilt stop Stops the tilt movement of the camera

CameraZoom(not used with ZoomSHOT or WideSHOT cameras)

 NAME camera zoom - Zoom the camera in or out  SYNOPSIS camera zoom {in|out|stop} [1-7]

 DESCRIPTION Method used to zoom the camera

 OPTIONS in Zoom in out Zoom out stop Stop the camera movement speed Optional integer from 1-7 that represents the speed (Default: 3)  EXAMPLES camera zoom in Zooms the camera in at the default speed camera zoom out 7 Zooms the camera out using a speed of 7 camera zoom stop Stops the zoom movement of the camera

Camera

 NAME camera - Base command for camera control command. Used in conjunction with control arguments to inclu de home,

pan, tilt, zoom, and preset.

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 37 of 44

WideSHOT WallVIEW USB

Exit

 NAME exit - ends the current API command session  SYNOPSIS exit

 DESCRIPTION Exit ends the current API command session. If the session is over telnet, the sessio n is ended and the socket is closed. If the session is over serial, a new session is started.

Help

 NAME help - display an overview of the CLI syntax  SYNOPSIS help

 DESCRIPTION Display an overview of the command line syntax

History

 NAME history - command history  SYNOPSIS history [limit]

 DESCRIPTION Since many of the programs read user input a line at a time, the command history is used to keep track of these lines and also recall historic information  HISTORY NAVIGATION The command history can be navigated us ing the up and down arrow keys. The up arrow will move up a single e ntry in the command history while the down arrow moves down in the command history.  HISTORY EXPANSION The command history supp orts the expansion functionality from which previous commands can be recalled from within a single session. History expansion is performed immediately after a complete line is read. Listed below are examples of history expansion:

* !! Substitute the last command line. * !N Substitute the Nth command line (absolute as per ’history’ command) * !-N Substitute the command line entered N lines before (relative)  EXAMPLES history

Displays the current command buffer history 5 Sets the history command buffer to remember the last 5 unique entries

NetworkPing

 NAME network ping - send ICMP ECHO_REQUEST to network hosts  SYNOPSIS network ping [count <count>] [size <size>] <destination-ip>

 DESCRIPTION

Use the ICMP protocol’s mandatory ECHO_REQUEST datagram to elicit an ICMP ECHO_RESPONSE from a host or gateway. ECHO_REQUEST datagrams have an IP and ICMP header, followed by a struct

timeval and then an arbitrary number of pad bytes used to fill out the packet

 OPTIONS

count Stop after sending count ECHO_REQUEST packets. With deadline option, ping waits for count ECHO_REPLY packets, until the timeout expires. The default is 5.

destination

The destination IP address where the ECHO_REQUESTS are sent size The data size of the ICMP packet to send. The default is 56 bytes

 EXAMPLES network ping 192.168.1.1

Attempt to send 5 ICMP ECHO_REQUESTs with data size 56 to the host at 192.168.1.1 network ping count 10 size 100 192.168.1.1

Attempt to send 10 ICMP ECHO_REQUESTs with data size of 100 to the host at 192.168.1.1

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 38 of 44

WideSHOT WallVIEW USB

NetworkSettings

 NAME network settings - get current network settings  SYNOPSIS network settings {get}

 DESCRIPTION Method used to get the current network settings of the device

 OPTIONS get Get the current network settings for the machine  EXAMPLES network settings get MAC Address:

00:04:a3:85:0a:ee

IP Address:

10.10.8.116

Netmask:

255.255.255.0

Gateway:

10.10.8.100 Returns the current network settings for mac addres, ip address, netmask, and gateway

Network

 NAME network - Gets the current network settings or pings an IP address  SYNOPSIS network {settings get | ping [count <count>] [size <size>] <destination-ip>}

 DESCRIPTION Method used to get the current network settings or check network

 OPTIONS settings Get the current network settings ping Send ICMP ECHO_REQUEST to network host  EXAMPLES network settings get

Gets the current network settings

---network ping count 1 10.10.10.100 Pings 10.10.10.100 once and displays results

StreamingMode

 NAME streaming mode - Gets or sets the current streaming mode  SYNOPSIS streaming mode {get|usb|network}

 DESCRIPTION Method used to get or set the current streaming settings

 OPTIONS get Get the current streaming mode

usb

Set the current streaming mode to USB

ethernet Set the current streaming mode to Ethernet

 EXAMPLES streaming mode get

mode: usb Returns the current streaming mode streaming mode usb

----

streaming mode ethernet

Sets the streaming mode to Ethernet

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 39 of 44

WideSHOT Wal lVIEW USB

StreamingQuality

 NAME

streaming quality - Gets or sets the current streaming quality

 SYNOPSIS

streaming quality {get|low|standard|high}

 DESCRIPTION

Method used to get or set the current streaming quality

 OPTIONS

get Get the current streaming quality low Set video quality to low standard Set video quality to standard high Set video quality to high

 EXAMPLES

streaming quality get quality:low Returns the current streaming quality

---streaming quality standard

Sets the streaming quality to standard

StreamingResolution

 NAME

streaming resolution - Gets or sets the current streaming quality

 SYNOPSIS

streaming resolution {get|1080p|720p|4cif|480p|cif}

 DESCRIPTION

Method used to get or set the current streaming resolution

 OPTIONS

get Get the current streaming resolution 1080p Set video resolution to 1080p 720p Set video resolution to 720p 4cif Set video resolution to 4cif 480p Set video resolution to 480p cif Set video resolution to cif

 EXAMPLES

streaming resolution get

resolution:720p Returns the current streaming resolution

----

streaming resolution 720p OK Sets the streaming resolution to 720p

Streaming

 NAME

streaming - Gets or sets the current streaming settings

 SYNOPSIS

streaming {mode {get|usb|ethernet}} | resolution {get|1080p|720p|4cif|480p|cif} |quality {get|low|standard|high}}

 DESCRIPTION

Method used to get or set the current streaming settings

 OPTIONS

mode Get or set the current streaming mode

resolution Get or set the current streaming video resolution quality Get or set the current streaming video frame rate and bit rate

 EXAMPLES streaming mode get mode: usb

Returns the current streaming mode

---streaming mode ethernet Sets the streaming mode to Ethernet

---streaming quality standard Sets the streaming quality to standard

---streaming resolution 720p Sets the streaming resolution to 720p

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 40 of 44

WideSHOT WallVIEW USB

SystemFactory‐Reset

 NAME system factory-reset - Gets or sets factory reset status

 SYNOPSIS system factory-reset {get|on|off}  DESCRIPTION Method used to get or set the factory reset status  OPTIONS get Get the current factory reset status on Enable factory reset on reboot off Disable factory reset on reboot  EXAMPLES system factory-reset get factory-reset (software): off factory-reset (hardware): [Hardware reset is designated by rear panel dip switches in down position] off Returns the factory reset status

---system factory-reset on factory-reset (software): on factory-reset (hardware): off Enables factory reset upon reboot

SystemReboot

 NAME system reboot - Reboots system  SYNOPSIS system reboot [<seconds>]  DESCRIPTION Method used to reboot system  OPTIONS seconds The number of seconds to delay the reboot  EXAMPLES reboot Reboot system immediately reboot 30 Reboot the system in 30 seconds

Version

 NAME version - display the system version information

 SYNOPSIS version

 DESCRIPTION Display an overview of the command line syntax

 EXAMPLES Version

Returns the current software version

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 41 of 44

WideSHOT WallVIEW USB

APPENDIX 4: WIDESHOT OSD MENU TREE

Main Menu Controls Range Default Notes

Picture > Brightness 0 - 16 8 Brightness Contrast 0 - 16 8 Contrast Sharpness 0 - 16 8 Detail (set Sharpness down to

3-4 to eliminate edge noise) Black Level 0 - 16 8 Pedestal Adjustment NR 0 - 16 0 Try values 4 to 8, depending

on lighting Return Return to Main Menu Color > Red Gain 0 - 16 8 Red Gain Green Gain 0 - 16 8 Adjust Red and Blue levels

first Blue Gain 0 - 16 8 Blue Gain Saturation 0 - 16 12 Color Saturation Return Return to Main Menu Exposure > Shutter 0 - 16 8 AGC Low/Auto/High Auto Automatic Gain Control Return Return to Main Menu Special> Title Off/On Off Title for camera to display. NTSC/PAL

NTSC

Defaults - - Sets camera back to defaults Reset - - Completely resets camera Version Date Code Firmware/Build Info Return Return to Main Menu Exit Exits OSD Mode

NOTE: When adjusting the defaults, the menu must be exited to save the changes. For example, to turn down the sharpness level:

1) Touch the OSD button on the remote

2) Select Picture menu

3) Adjust sharpness to 3 or 4

4) Cursor down to Return (return to main menu)

5) Exit the Main Menu and changes are stored

Don’t adjust this parameter.

Resolution and frequency are

set with the rotary selection

switch on the back of the

camera.

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 42 of 44

WideSHOT WallVIEW USB

NOTES:

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 43 of 44

WideSHOT WallVIEW USB

©2014 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, WideSHOT, ZoomSHOT, WallVIEW, EZCamera, Quick-Connect an d HSDS are tra demarks of Vaddio. All other trademarks are property of their respective owners. Document Number 342-0696 Rev B, SD:

WideSHOT WallVIEW USB Document Number 342-0696 Rev B Page 44 of 44

Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464

www.vaddio.com

67936.2

Vaddio WideSHOT WallVIEW USB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
