VADDIO 999-9200-050, DomeVIEW 50iR, 999-9200-070, DomeVIEW 70, 998-9200-050 Installation And User Manual

Camera and Electronic Products for Integrators

Installation and User Guide

D

OOMME

D

E

VVIIEEW

W

Integrated Outdoor Environmental Pendant Mount
Dome Systems and Outdoor Pendant Mount Dome
Enclosures for Sony® and Canon® PTZ Cameras

OVERVIEW:

The Vaddio™ DomeVIEW Outdoor, Environmental Pendant Mount
Domes (Figure 1) are integrated camera mounting systems that are
attractive and easy to install. Designed for outdoor security
applications, and including an internal heater/blower, the 8.2”
(20.8cm) Outdoor Pendant mount dome enclosure is outfitted with
the internal brackets to support the option of using the Sony EVI­D70 or the Canon VC-C50iR robotic PTZ cameras.

The DomeVIEW Outdoor Pendant Mount Dome Package is sold complete with the Camera. The DomeVIEW
system for the Sony EVI-D70 and VC-C50iR features the standard Vaddio EZCamera Cabling System. The
EZCamera cabling solution provides for fast and efficient installations using Cat. 5 cabling for video, power
and control. The enclosures are also sold without the camera to accommodate an existing camera to be
used with the Outdoor Pendant Mount Dome enclosure without the EZCamera cabling system.

The outdoor domes are formed from optical grade polycarbonate and are available in smoked tint (clear is
optional). The DomeVIEW Outdoor Pendant Mount Domes are excellent values that are high quality,
attractive and durable solutions for outdoor security applications.

This Manual covers the following Vaddio DomeVIEW Outdoor Pendant Mount Dome Systems:

 999-9200-050 DomeVIEW 50iR Outdoor Pendant Dome with Canon VC-C50iR, EZCamera Cabling

System and Internal Mounting Bracket

 999-9200-070 DomeVIEW 70 Outdoor Pendant Dome with Sony EVI-D70, EZCamera Cabling System

and Internal Mounting Bracket

This Manual covers the following Outdoor Pendant Mount Dome Enclosures:

 998-9200-050 Outdoor Pendant with Internal Mounting Bracket for VC-C50iR (Camera Not Included)
 998-9200-070 Outdoor Pendant with Internal Mounting Bracket for EVI-D70 (Camera Not Included)

Note: The Outdoor Pendant Mount Domes mount to a 1-1/2” NPT Pipe, which are not part of the DomeVIEW packages or the
Outdoor Pendant Mount Dome enclosures.

INTENDED USE:

Before operating the DomeVIEW system, please read the entire manual thoroughly. The DomeVIEW Outdoor Pendant Mount systems
were designed, built and tested for use Outdoors (or indoors) and with the provided power supply. The use of a power supply other than
the one provided or has not been tested and could damage the electronics and/or create a potentially unsafe operating condition.

SAVE THESE INSTRUCTIONS:

The information contained in this manual will help you install and operate your Vaddio DomeVIEW. If these instructions are misplaced,
Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on

the website. These documents can be downloaded from www.vaddio.com

IMPORTANT SAFEGUARDS:

Read and understand all instructions before using. Do not operate the system if it has been dropped or damaged. In this case, a Vaddio
technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and
avoid extremely humid conditions.

ⓒ2009 Vaddio - DomeVIEW Systems - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and
pricing are subject to change without notice. Vaddio, DomeVIEW, EZCamera, Quick-Connect, WallVIEW, CeilingVIEW, EZCable and PowerRite are

trademarks of Vaddio, Inc. All other trademarks are property of their respective owners. Document 341-445 Rev C.

™

™

Figure 1:

Outdoor Pendant Mount Dome shown
with Smoke Tinted Dome standard
(Clear is an option)

free of charge.

Use only the power supply (or power supplies) provided with the DomeVIEW
systems. Use of any unauthorized power supply will void any and all warranties.

Do not use “pass-thru” RJ-45 connectors during installation. Use only
standard RJ-45 connectors and test all terminated cables.

UNPACKAGING – SYSTEM COMPONENT LISTS

Carefully remove all parts from the packaging. Unpack and identify the following parts for each product:

999-9200-050 DomeVIEW 50iR Outdoor Pendant Mount Dome System includes:

QTY Description

1 Canon VC-C50iR PTZ camera
1 Canon IR remote control

- Camera bracket for Canon VC-C50iR PTZ camera
3 2” x .375 (50.8mm x 9.525mm) ¼”M to 8-32F Hex shaped stand-offs
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting stage
2 8-32 x .5” Flat head screws (flush mount)
2 8-32 x .5” pan head screws
2 #8 Lock washers for pan head screws

- Outdoor Pendant Mount Dome Enclosure
1 Outdoor Pendant Housing Assembly (white outer shell, black inner shell, safety tethers)
1 Heater/blower fan assembly, mounting platform secured with three 10-32 x .5” flat head screws
1 8.2” (20.8cm) Smoke tinted dome bubble with four (4) attached stainless steel mounting screws
1 1-1/2” NPT Locknut
1 Foam dust plug for 1-1/2” NPT pipe fitting
1 Tube of pipe sealer and proprietary Allen wrench (do not lose this wrench)

- EZCamera Cabling Components
1

1

1

999-9200-070 DomeVIEW 70 Outdoor Pendant Mount Dome System includes:

QTY Description

1 Sony EVI-D70C/W PTZ camera (platinum white)
1 Vaddio IR Remote Commander (for Sony cameras)

- Camera bracket for Sony EVI-D70 PTZ camera
3 1.125” x .375 (28.58mm x 9.525mm) ¼”M to 8-32F Hex shaped stand-offs
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting stage
2 8-32 x .5” Flat head screws (flush mount)
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting plate
1 ¼”-20 x ½” Mounting screw (to attach camera to mounting plate)
2 8-32 x .5” pan head screws
2 #8 Lock washers for pan head screws

- Outdoor Pendant Mount Dome Enclosure
1 Outdoor Pendant Housing Assembly (white outer shell, black inner shell, safety tethers)

1 Heater/blower fan assembly, mounting platform secured with three 10-32 x .5” flat head screws
1 8.2” (20.8cm) Smoke tinted dome bubble with four (4) attached stainless steel mounting screws
1 1-1/2” NPT Locknut
1 Foam dust plug for 1-1/2” NPT pipe fitting
1 Tube of pipe sealer and proprietary Allen wrench (do not lose this wrench)

- Vaddio EZCamera Cabling Components
1 EZCamera Cabling Shoe (998-2211-004)
1

1 PowerRite Power Supply (451-2750-018) and separate 24 VAC Power supply for the Heater/Blower

50 EZCamera Shoe (998-4411-001)
Quick-Connect (998-1105-001)
PowerRite Power Supply (451-2750-018) and separate 24 VAC Power supply for the Heater/Blower

Quick-Connect (998-1105-001)

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 2 of 14

Outdoor Pendant Mount Dome Enclosures Only (Cameras Not Included)

The Outdoor Pendant Mount Dome Enclosures are for use with existing or standard Sony EVI-D70 and
Canon VC-C50iR. The Dome enclosures can also be used with the Vaddio Standard EZCamera Cable
system for the EVI-D70 or the VC-C50i analog PTZ cameras. The dome enclosures without cameras are
listed below:

998-9200-050 Outdoor Pendant Mount Dome Enclosure includes:

QTY Description

- Camera bracket for Canon VC-C50iR PTZ camera
3 2” x .375 (50.8mm x 9.525mm) ¼”M to 8-32F Hex shaped stand-offs
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting stage
2 8-32 x .5” Flat head screws (flush mount)
2 8-32 x .5” pan head screws
2 #8 Lock washers for pan head screws

- Outdoor Pendant Mount Dome Enclosure
1 Outdoor Pendant Housing Assembly (white outer shell, black inner shell, safety tethers)
1 Heater/blower fan assembly, mounting platform secured with three 10-32 x .5” flat head screws
1 8.2” (20.8cm) Smoke tinted dome bubble with four (4) attached stainless steel mounting screws
1 1-1/2” NPT Locknut
1 Foam dust plug for 1-1/2” NPT pipe fitting
1 Tube of pipe sealer and proprietary Allen wrench (do not lose this wrench)
1 24 VAC Power supply for the Heater/Blower

998-9200-070 Outdoor Pendant Mount Dome Enclosure includes:

QTY Description

- Camera bracket for Sony EVI-D70 PTZ camera
3 1.125” x .375 (28.58mm x 9.525mm) ¼”M to 8-32F Hex shaped stand-offs
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting stage
2 8-32 x .5” Flat head screws (flush mount)
1 6.25” x 5.25” (15.87cm x 13.34cm) Camera mounting plate
1 ¼”-20 x ½” Mounting screw (to attach camera to mounting plate)
2 8-32 x .5” pan head screws
1 #8 Lock washers for pan head screws

- Outdoor Pendant Mount Dome Enclosure
1 Outdoor Pendant Housing Assembly (white outer shell, black inner shell, safety tethers)
1 Heater/blower fan assembly, mounting platform secured with three 10-32 x .5” flat head screws
1 8.2” (20.8cm) Smoke tinted dome bubble with four (4) attached stainless steel mounting screws
1 1-1/2” NPT Locknut
1 Foam dust plug for 1-1/2” NPT pipe fitting
1 Tube of pipe sealer and proprietary Allen wrench (do not lose this wrench)
1 24 VAC Power supply for the Heater/Blower

INSTALLATION INSTRUCTIONS

DomeVIEW System Packages with Dome, Camera and Internal Mounting Bracket

999-9200-050 DomeVIEW 50iR Outdoor Pendant Mount Dome System
999-9200-070 DomeVIEW 70 Outdoor Pendant Mount Dome System

Outdoor Pendant Mount Dome Enclosures

998-9200-050 for the Canon VC-C50iR PTZ Camera
998-9200-070 for the Sony EVI-D70 PTZ Camera

For PAL camera part numbers, the last digit is changed to “1” (i.e. 999-9200-071 is a DomeVIEW 70 PAL camera).

The instructions are for both PAL and NTSC.

Before Starting the Installation

For cabling requirements, see the Cabling Requirements section. All installation work must conform to local
building codes and should be performed by qualified personnel.

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 3 of 14

Step-by-Step Assembly Instructions:

1) Unpack and verify the contents of the packaging against the lists on pages 2 and 3 of this manual.
Carefully remove all parts from the packaging.

2) Remove the dome from the dome housing assembly using the provided proprietary Allen wrench.

NOT LOSE THIS WRENCH.

Use caution when handing the dome to avoid scratching or scuffing the dome

DO

bubble.

3) The dome assembly consists of four major
components (Figure2):

A. Foam Dust Plug to lock dust out of the dome
B. Dome housing assembly

Figure 2:

Major Components of
the Dome Housing
Assembly

C. Mounting Plate with heater/blower pre-

mounted on the plate (single fan)

D. 8.2” Smoke tinted dome with stainless

screws attached

4) It is easiest to mount the dome on the 1-1/2” pipe
mount and then install the contents of the dome to
avoid cabling problems as the dome is spun onto the
pipe mount. The dome can be mounted to a 1-1/2”
NPT pipe extension attached to the Vaddio Ceiling
Pendant Mount (part # 998-9300-002) or Curved
Wall Mount (part # 998-9300-000). These mounts
are sold separately. To install the dome to a 1-1/2”
NPT Pipe Extension or Wall Mount:

A. Thread 1-1/2” lock nut onto pipe mount to

the top of the threads.

B. Generously apply pipe thread sealer (Figure

3) and install the dome on 1-1/2” NPT pipe

1.5” NPT
Mount

Thread on
Lock Nut
to top

1-1/2” NPT
Pipe
Adapter

Figure 3

Apply pipe
thread sealer
to lock out
moisture

by rotating counter-clock wise until threads
are fully engaged – at least 5 full turns!

C. Additional sealer will be applied in a later

step (keep tube handy). The lock nut will be
tightened in a later step as well.

5) Remove the Heater/blower fan assembly, mounting
platform secured with three Philips head 10-32 x .5”
flat head screws as shown in Figure 4.

A. First, loosen the two screws on the plate

that are key-holed, do not remove the
screws. Then fully remove the third screw
from the mounting plate.

Note:
Only one (1)
fan will be
mounted to
this plate

B. Slide the two loosened screws through the

keyholes and remove the plate. The
mounting plate will be attached to a safety
tether. Let the plate hang fro the tether
while terminating the heater/blower.

C. The heater/blower circuitry will be

accessible on the back of this mounting
plate.

D. Remove the foam dust plug (A –Figure 2)

and pull the cabling through into the dome.

E. Reinstall the foam dust plug.

Figure 4:

Remove the heater/blower mounting platform

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 4 of 14

6) The heater/blower circuit card (Figure 5) receives
power from the included 24 VAC power supply.

power supply powers the fans and heater strip onl y.

This

The
24 VAC output is not used with Vaddio camera
systems. The video in and out is not used with
Vaddio EZCamera cabling systems.

A. The 24 VAC power supply is connected to

the AC terminals (24 VAC IN) on the circuit
board to power both the heater and the fan.

B. Connect the heater strip and fan connectors

on the circuit board.

C. Pull the camera cabling through the center

or backside of the mounting plate making
sure that the cabling does not contact the
heater strip.

D. Re-install the mounting plate inside the

dome. Tighten down the three screws
making sure the safety tether and all other
cables are tucked up behind the mounting
plate to avoid interference with the PTZ

Figure 5:

Heater/blower circuit with connections, Use 2-cond 18AWG
unshielded cable and locate power supply within 100’ (30.48m
of the dome enclosure). The 24VAC OUT is not used.

camera movement.

NOTE: the Power supply for the heater/blower must be
located within 100’ (30.48m) of the dome enclosure.

7) The camera brackets are attached to the
heater/blower mounting plate through two (2) ¼”
threaded holes on the plate labeled F (Figure 6).
For all mounts the hex shaped stand-offs are ¼”­Male to 8-32-Female with the length of the stand-off

Note:
Only one (1) fan
will be mounted
to this plate

determining the height of the camera in the dome.

8) See Figure 7, thread the stand-offs (7) into the F­holes in the mounting plate inside the dome (8) and
attach the camera mounting stage (6) to the stand­offs with the 8-32 x .5” flat head screws (5).

Figure 6:

Two (2) ¼”-Male to
8-32 Female
standoffs mount to
holes marked “F”

Canon VC-C50iR Camera Only (Figure 7 on the following page)

9) Attach the EZCamera Cabling Shoe (4 - Figure 7) to the Canon VC-C50iR (DomeVIEW 50iR Outdoor
Pendant Dome only).

A. When mounting the Canon VC-C50iR without the EZCamera Cabling System – skip this step.

10) Attach the camera (3) to the camera mounting stage (6) with two 8-32 x .5” pan head screws (2) and two
#8 lock washers (see Figure 5). Skip to Step 15.

Back Front

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 5 of 14

7

5

4

8

1

6

3

2

Figure 7:

Exploded view of DomeVIEW Outdoor, Environmental Pendant Dome for Canon VC-C50iR PTZ Camera

Sony EVI-D70 Camera Only (Figure 8 on the following page)

11) Image Flip Switch, IR Select Switch and other Mode switches (set switches prior to powering up camera)

A. Set the Image Flip dipswitch on the back of the EVI-D70 camera to the ON position. The

camera will be inverted in the dome enclosure and the image needs to be flipped.

B. When using the IR Remote control in an environment with multiple cameras, set the IR Select

Switch frequency setting to 1, 2 or 3 to avoid having the IR remote control more than one
camera at a time.

C. Check the full-length manual for the EVI-D70 camera for other mode switch settings. The

manual is available on the Vaddio website (www.vaddio.com

).

12) Attach the EZCamera Cabling Shoe, (4 - Figure 8), to the Sony EVI-D70 camera.

A. When mounting a Sony EVI-D70 without the EZCamera Cable System - skip this step.

13) Attach the Camera Base Plate (9) to the camera (3) with the provided ¼”-20 x .5” screw (10).

14) Attach the camera (3) and camera base plate (9) to the camera mounting stage (6) with four 8-32 x .5”
pan head screws (2) and four #8 lock washers (see Figure 8). Go to Step 15.

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 6 of 14

7

5

2

4

8

6

10

9

1

3

Figure 8:

Exploded view of DomeVIEW Outdoor, Environmental Pendant Dome for Sony EVI-D70 PTZ Camera

15) Once the camera is installed in the dome, terminate the camera pull the cable slack back through the
pendant extension pipe or curved wall mount.

16) Loosen the dome on the 1-1/2” NPT pipe mount (no more than 1 full turn) and position the dome for
preferred viewing angle of the camera.

17) Apply a generous bead of sealer around the top of the dome’s 1-1/2” pipe adapter and pipe threads.

18) Thread down the locking nut to engage the housing and tighten down the 1-1/2” NPT lock nut. Apply
another bead of sealer to the top of the lock nut; wipe off the excess working the sealer into the gap
between the top of the lock nut and 1-1/2” pipe threads.

19) Replace the dome on the dome housing assembly using the provided proprietary Allen wrench and
tighten the dome firmly to lock out moisture from below.

DO NOT LOSE THIS WRENCH (please). Use caution

when handing the dome to avoid scratching or scuffing the dome bubble.

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 7 of 14

EZCamera SYSTEM COMPONENTS

The DomeVIEW Systems are built around either the Sony EVI-D70 (999-9000-070) or the Canon VC-C50iR
(999-9000-050) and are shipped with the standard Quick-Connect, PowerRite and EZCamera Cabling Shoe.

DomeVIEW 50iR Cabling Distances with Standard and Optional Power Supplies

The DomeVIEW 50iR can transmit video up to 185 feet using the supplied 18 VDC PowerRite power supply,
and from 185 feet to 275 feet using the optional 24 VDC PowerRite power supply (part# 451-2000-024).
This EZ Camera Cabling system provides both S-video and composite video.

DomeVIEW 70 Cabling Distances with Standard and Optional Power Supplies

The DomeVIEW 70 can transmit video up to 200 feet using the supplied 18 VDC PowerRite power supply,
and from 200 feet to 300 feet using the optional 24 VDC PowerRite power supply (part# 451-2000-024).
This EZ Camera Cabling system provides both S-video and composite video.

The EZCamera Cable Shoe for the Sony EVI-D70 and Canon VC-C50iR

The EZCamera Cable Shoe attaches to the back of the Canon VC-C50iR camera and changes the native
power, video and control connectors to RJ-45s for use with Cat. 5 cabling. The Shoe has a voltage regulator
and transformers (baluns) to optimize the video signal for use over Cat. 5 cable. The RS-232C control
cabling uses 5-wires to provide for bi-directional control signaling and daisy chain control of multiple
cameras.

Figure 9:

The Canon VC-C50iR and Sony EVI­D70 are shown with the EZCamera
Cabling Shoes attached.

The RJ-45 connectors are:

1) Power/Video

2) RS-232 IN

3) RS-232 OUT

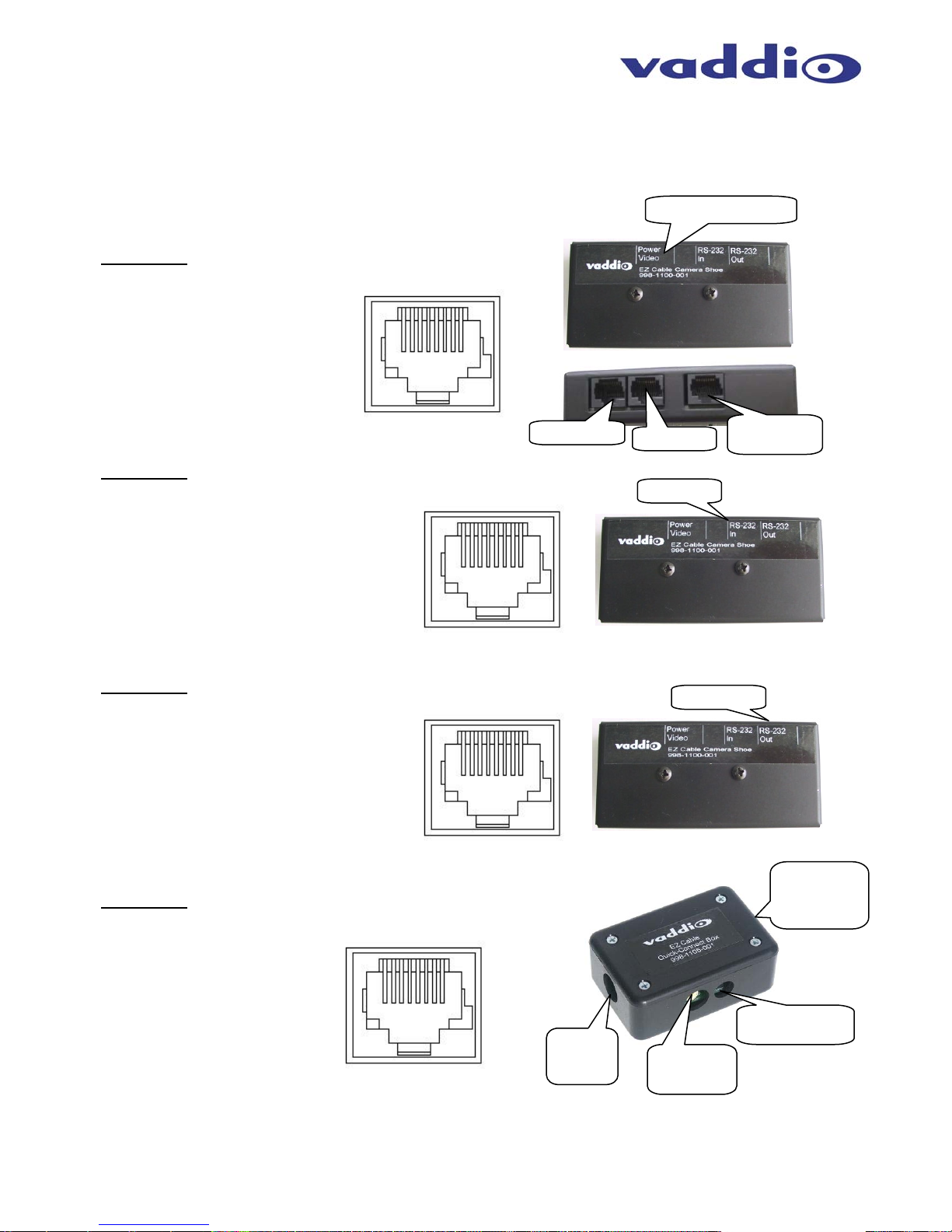

Figure 10:

EZCamera Cable Shoe for the DomeVIEW 70 shows RJ­45 connections for Power/Video, RS-232 IN and RS-232
OUT on the top of the Shoe (upper image). The back of
the Shoe (lower image) shows the connector labeling.
See Appendix A for pin-out information.

POWER
VIDEO

RS-232
IN

RS-232
OUT

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 8 of 14

Figure 11:

Basic wiring diagram for cabling the DomeVIEW system

For cabling distances using the standard and optional power supplies for the
DomeVIEW 50iR and 70, see the previous page for additional information.

1-1/2” NPT Pipe
(Not supplied)

DomeVIEW
Outdoor
Pendant

RS-232 on
Cat. 5e

RS-232 OUT to
next camera for
daisy chain
control

24 VAC Power Supply for heater/blower,
2-Cond. 18 AWG unshielded cable – 100’
(30.48m) Max distance

CAMERA CONTROL

For the DomeVIEW 50iR Outdoor Pendant Mount Dome and DomeVIEW 70 PTZ Outdoor Pendant Mount
Dome Systems, the RS-232 control programming information is in the technical manuals for the Sony EVI­D70 and Canon VC-C50iR PTZ which can be found on the Vaddio website (www.vaddio.com
TechNotes tab and under the PTZ Camera product grouping. Control system manufacturers’ also have
programs readily available for these cameras to be used with their control systems (i.e. Crestron® and
AMX®). Please contact those companies for the demo programs and for debugging of the programs that
they provide.

Both the DomeVIEW 50iR Outdoor Pendant and the DomeVIEW 70 Outdoor Pendant are shipped with IR
remote controllers for camera control. The camera base with the IR window is recessed inside the dome
enclosure and the acceptance angle of the IR control signaling is affected. The angle of acceptance for the
IR remote control is narrower and more directional. Please take this into account when controlling the
cameras with an IR remote.

For the DomeVIEW 50 IP Outdoor Pendant Mount Dome System, the Canon software provided with the
system controls the camera. The Canon VB-C50iR camera has a network server built-in and produces a
Motion-JPEG output. The software included is a single camera license. Additional Canon software is
available to monitor either 16 cameras (VK-16 software) or 64 cameras (VK-64) simultaneously. This
software is also available from Vaddio. Please see the June 7

th

2006 Price List for details.

) under the

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 9 of 14

CABLING REQUIREMENTS

For the DomeVIEW 70 Outdoor Pendant Dome and DomeVIEW 50iR Outdoor Pendant Dome that use the
EZCamera Cabling system, the cabling requirements are as follows:
One (1) - Cat. 5 Cable for Power/Video
One (1) - Cat. 5 Cable for RS-232 control input
One (1) - Cat 5 Cable for RS-232 control output for daisy chaining
One (1) - Pair unshielded cable (16AWG or 18AWG) for 24 VAC power supply (100’ / 30.48m Max)

(See system drawings on pages 13)

For the Outdoor Pendant Mount Dome Enclosures that do not use the EZCamera Cabling system, the native
connections on the cameras and original power supply must be used. Custom cables for camera power (12
VDC), heater/blower power (24 VAC), video (S-video or composite video) and control signaling must be
fabricated.

Note: The RS-232 requires at least 5 wires – preferably paired for TXD and RXD as w ell as DTR/DSR for Sony control daisy
chain and CTS/RTS for Canon control daisy chain. The na tive control connections of the Sony EVI-D70 uses the 8-pin mini-di n
female connector for RS-232 in and RS-232 o ut, and the Canon uses a proprietar y 20-pin connector and also has a n adapter
available to convert the 20-pins into 8-pin mini - din al th oug h i t is pin differen tly than the Sony 8-pin mini-din. Please see power
supply cable extension disclaimer above.

GENERAL SPECIFICATIONS

Mechanical

Enclosure: Dual Shell Design; UV Resistant ABS Plastic Outer shell
Dome: .118” Cell-cast Acrylic
Hardware: Heavy-gauge steel and Aluminum construction

Weight: 5.26 lbs with heater/blower - camera not included

Electrical

Input Voltage: 24 VAC +/- 10%
Power Requirements 1.8 amps (1 heater, 1 blower) - camera not included
Power Supply: Power Supply Included, Primary 120VA 60Hz,

Blower: Two (2) 24.8 CFM @ .006 watts,

Heater: One (1) 40-watt heater

Operating Range: With Heater Blower Kit -20°F to 120°F (33°F to 100°F without)

Secondary 24VAC, 50VA

Continuous operation at .16 amps

Certifications

Designed to meet NEMA-4 guidelines and
Independently certified to IP66 requirements with proper installation

Optional Accessories:

998-9300-000 Curved Wall Mount
998-9300-001 Curved Wall Mount and Pole Mount Kit
998-9300-002 Ceiling Pendant Mount
451-2000-024 PowerRite 24 VDC power supply

Note: see page 8 for cabling distance using standard and optional power supplies

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 10 of 14

Figure 12:

Outdoor Environment Dome Enclosure Dimensions
Dimensions in inches, reference conversion 1” = 2.54cm

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 11 of 14

WARRANTY INFORMATION

Hardware* Warranty - One year limited warranty on all parts. Vaddio warrants this product against defects

in materials and workmanship for a period of one year from the day of purchase if Vaddio receives notice of
such defects during the warranty. They will, at its option, repair or replace products that prove to be
defective. See Warranty and RMA Policy documentation on the Vaddio website www.vaddio.com

Exclusions - The above warranty shall not apply to defects resulting from: improper or inadequate

maintenance by the customer, customers applied software or interfacing, unauthorized modifications or
misuse, operation outside the normal environmental specifications for the product, use of the incorrect power
supply, or improper site operation and maintenance.

Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the

unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products.
The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to
repair. All components must be returned for testing as a complete unit. Vaddio will not accept responsibility
for shipment after it has left the premises.

Vaddio Technical support - Vaddio technicians will determine and discuss with the customer the criteria for

repair costs and/or replacement. Vaddio Technical Support can be contacted through one of the following
resources: e-mail support at [e-mail] or online at www.vaddio.com

.

Return Material Authorization (RMA) number - Before returning a product for repair or replacement

request an RMA from Vaddio’s technical support. Provide a technician with a return phone number, e-mail
address, shipping address, and product serial numbers. Describe the reason for repairs or returns as well as
the date of purchase. Include your assigned RMA number in all correspondence with Vaddio. Write your
assigned RMA number on the outside of the box when returning the product.

Voided warranty – The warranty does not apply if the original serial number has been removed or if the

product has been disassembled or damaged through misuse, accident, modifications, or unauthorized repair.

Shipping and handling - Vaddio will not pay for inbound shipping transportation or insurance charges or

accept any responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound
shipping, transportation, and insurance charges all items under warranty but will not assume responsibility
for loss and/or damage by the outbound freight carrier.

 If the return shipment appears damaged, retain the original boxes and packing material for

inspection by the carrier.

 Contact your carrier immediately.

Products not under warranty - Payment arrangements are required before outbound shipment for all out of

warranty products.

*Vaddio manufactures its hardware products from parts and components that are new or equivalent to new in accordance with industry standard practices.

.

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 12 of 14

Appendix 1:

Vaddio Power, Video and Control Pin-outs
For Vaddio DomeVIEW 70 and DomeVIEW 50iR

Power/Video Connection RJ-45 – Camera Shoe

# Pins

1) Power (+)

2) Power GND

3) Video GND

4) Y (luminance)

5) Video GND

6) C (Chrominance)

7) Video GND

8) Composite Video

RS-232 Connector IN – Camera Shoe

# Pins

1) DTR (Sony® Daisy chain to DSR)

2) DSR (Sony Daisy chain from DTR)

3) CTS (Canon® Daisy chain to RTS)

4) RTS (Canon Daisy chain from CTS)

5) Unused

6) Digital GND

7) RXD (from TXD of control source)

8) TXD (to RXD of control source)

RS-232 Connector Out – Camera Shoe

# Pins

1) DSR (Sony Daisy chain from DTR)

2) DTR (Sony Daisy chain to DSR)

3) RTS (Canon Daisy chain from CTS)

4) CTS (Canon Daisy chain to RTS)

5) Unused

6) Digital GND

7) TXD (to RXD of control source)

8) RXD (from TXD of control source)

Power/Video Connection – RJ-45 – Quick-Connect Box

# Pins

1) Power +

2) Power GND

3) Video GND

4) Y (luminance)

5) Video GND

6) C (Chrominance)

7) Video GND

8) Composite Video

Power

Video

12345678

RS-232

In

12345678

RS-232

Out

12345678

Power

Video

12345678

RS-232 OUT

S-Video
From
Camera

Power/Video Connector

Vaddio Camera Shoe

Back View

RS-232 IN

RS-232 IN

Vaddio Camera Shoe

Back View

RS-232 OUT

Vaddio Camera Shoe

Back View

Composite
Video From

Top

View

Power/Video
Connector

RJ-45
Power/Video
Connector to
Camera Shoe

Power Supply

View

To Camera Shoe

Top

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

Page 13 of 14

4800 Quebec Avenue North ▪ Minneapolis, MN 55428

Toll Free: 800-787-8078 ▪ Phone: [phone] ▪ FAX: [phone]

©2009 Vaddio, All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are
subject to change without notice. Vaddio, DomeVIEW, EZCamera, Quick-Connect, WallVIEW, CeilingVIEW, EZCable and PowerRite are
trademarks of Vaddio, Inc. All other trademarks are property of their respective owners. Document 341-445 Rev C.

Vaddio DomeVIEW Outdoor, Environment Pendant Mount Dome Installation and User Guide - Document 341-445 Rev C

www.vaddio.com

Page 14 of 14
