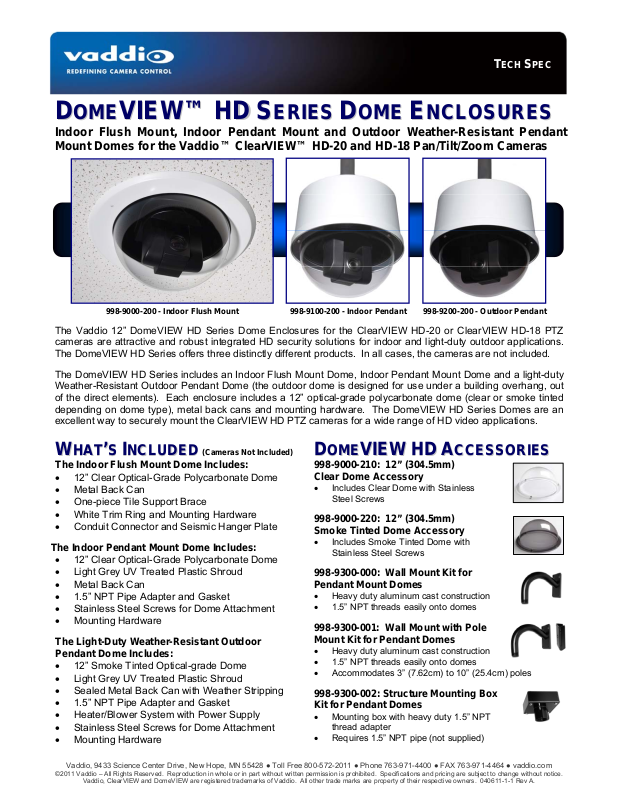

Vaddio 998-9000-200 Datasheet
TECH SPEC
D
OOMME
D
Indoor Flush Mount, Indoor Pendant Mount and Outdoor Weather-Resistant Pendant
Mount Domes for the Vaddio™ ClearVIEW™ HD-20 and HD-18 Pan/Tilt/Zoom Cameras
The Vaddio 12” DomeVIEW HD Series Dome Enclosures for the ClearVIEW HD-20 or ClearVIEW HD-18 PTZ
cameras are attractive and robust integrated HD security solutions for indoor and light-duty outdoor applications.
The DomeVIEW HD Series offers three distinctly different products. In all cases, the cameras are not included.
The DomeVIEW HD Series includes an Indoor Flush Mount Dome, Indoor Pendant Mount Dome and a light-duty
Weather-Resistant Outdoor Pendant Dome (the outdoor dome is designed for use under a building overhang, out
of the direct elements). Each enclosure includes a 12” optical-grade polycarbonate dome (clear or smoke tinted
depending on dome type), metal back cans and mounting hardware. The DomeVIEW HD Series Domes are an
excellent way to securely mount the ClearVIEW HD PTZ cameras for a wide range of HD video applications.
E
VVIIEEW
998-9000-200 - Indoor Flush Mount
W
™
™
HHD
D
S
EERRIIEESS
S
D
OOMMEE
D
998-9100-200 - Indoor Pendant
E
NNCCLLOOSSUURREESS
E
998-9200-200 - Outdoor Pendant
T
W
HHAAT
W
The Indoor Flush Mount Dome Includes:
• 12” Clear Optical-Grade Polycarbonate Dome
• Metal Back Can
• One-piece Tile Support Brace
• White Trim Ring and Mounting Hardware
• Conduit Connector and Seismic Hanger Plate
The Indoor Pendant Mount Dome Includes:
• 12” Clear Optical-Grade Polycarbonate Dome
• Light Grey UV Treated Plastic Shroud
• Metal Back Can
• 1.5” NPT Pipe Adapter and Gasket
• Stainless Steel Screws for Dome Attachment
• Mounting Hardware
The Light-Duty Weather-Resistant Outdoor
Pendant Dome Includes:
• 12” Smoke Tinted Optical-grade Dome
• Light Grey UV Treated Plastic Shroud
• Sealed Metal Back Can with Weather Stripping
• 1.5” NPT Pipe Adapter and Gasket
• Heater/Blower System with Power Supply
• Stainless Steel Screws for Dome Attachment
• Mounting Hardware
Vaddio, 9433 Science Center Drive, New Hope, MN 55428 ● Toll Free 800-572-2011 ● Phone 763-971-4400 ● FAX 763-971-4464 ● vaddio.com
©2011 Vaddio – All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice.
Vaddio, ClearVIEW and DomeVIEW are registered trademarks of Vaddio. All other trade marks are property of their respective owners. 040611-1-1 Rev A.
’
I
SS
NNCCLLUUDDEEDD
’
I
(Cameras Not Included)
D
D
998-9000-210: 12” (304.5mm)
Clear Dome Accessory
• Includes Clear Dome with Stainless
998-9000-220: 12” (304.5mm)
Smoke Tinted Dome Accessory
• Includes Smoke Tinted Dome with
998-9300-000: Wall Mount Kit for
Pendant Mount Domes
• Heavy duty aluminum cast construction
• 1.5” NPT threads easily onto domes
998-9300-001: Wall Mount with Pole
Mount Kit for Pendant Domes
• Heavy duty aluminum cast construction
• 1.5” NPT threads easily onto domes
• Accommodates 3” (7.62cm) to 10” (25.4cm) poles
998-9300-002: Structure Mounting Box
Kit for Pendant Domes
• Mounting box with heavy duty 1.5” NPT
• Requires 1.5” NPT pipe (not supplied)
E
OOMME
VVIIEEW
Steel Screws
Stainless Steel Screws
thread adapter
W
HHD
D
A
CCCCEESSSSOORRIIEES
A
S
