User Manual
Four-Channel GSM VoIP Gateway
Model: GoIP4
Version 1.0, 2010/03
Tel: +1 (650) 963-7600
sales@vadcore.com
support@vadcore.com
www.vadcore.com
Four-Channel GSM VoIP Gateway
1
Contents
1 Product Introduction.................................................................................................. 3
1.1 General Information.....................................................................................................3
1.2 Protocol..........................................................................................................................3
1.3 Hardware Specification...............................................................................................4
1.4 Software Specification ................................................................................................4
1.5 List of the Package.......................................................................................................4
1.6 Appearance.................................................................................................................... 5
2 Installation ................................................................................................................... 7
2.1 Installation Steps.......................................................................................................... 7
2.2 LED Indicators............................................................................................................... 8
2.3 SMS Commands .............................................................................................................8
3 Configuration Guide................................................................................................. 10
3.1 Web Configuration Menu ........................................................................................... 11
3.2 Status............................................................................................................................ 12
3.2.1 Phone Information .................................................................................................................. 13
3.2.2 Network Information .............................................................................................................. 14
3.2.3 GSM Module Information ........................................................................................................ 14
3.3 Configurations.............................................................................................................14
3.3.1 Language .................................................................................................................................. 15
3.3.2 Time Zone and Time Server................................................................................................... 16
3.3.3 DTMF Min Detect Time Gap ................................................................................................... 16

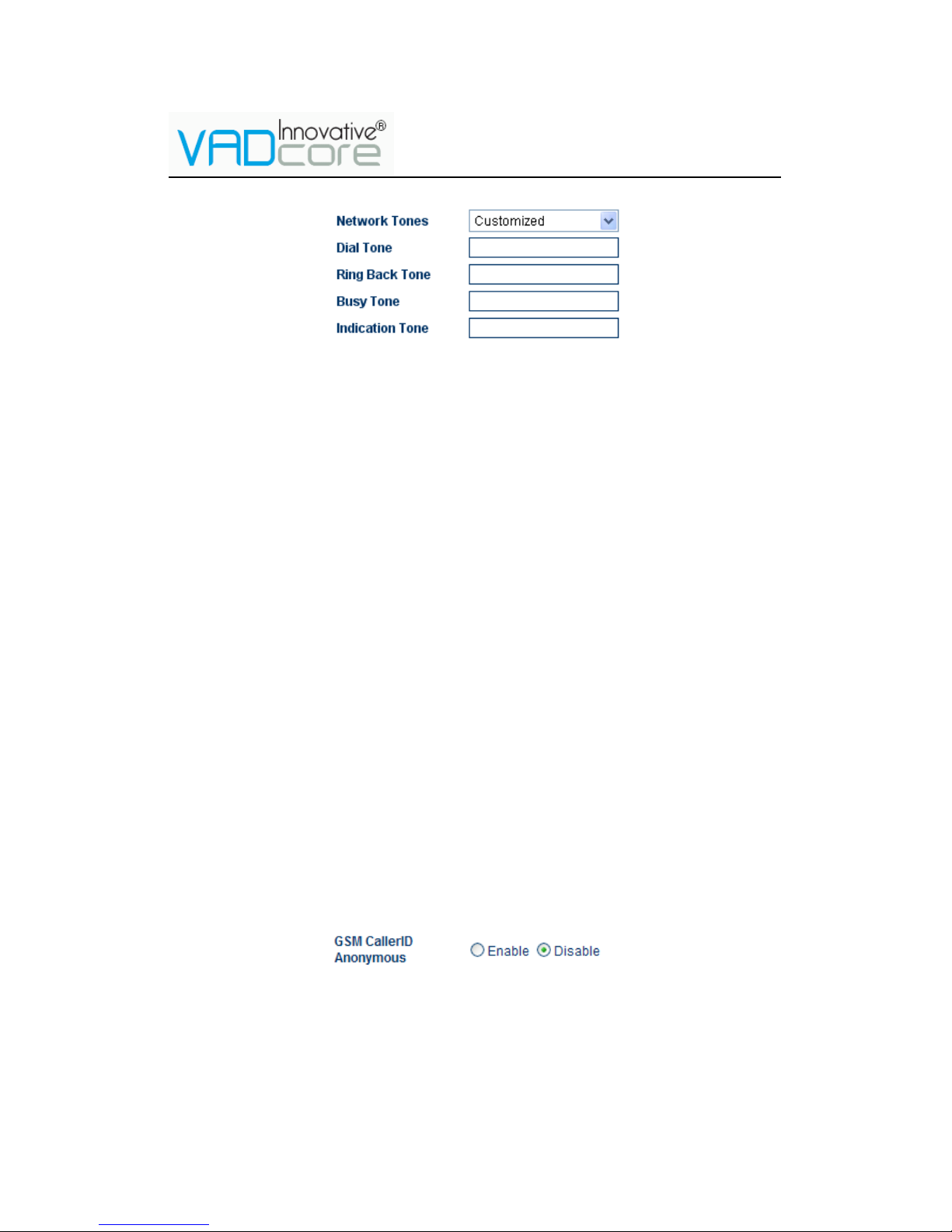

3.3.4 Network Tone........................................................................................................................... 16
3.3.5 GSM Caller ID Anonymous ...................................................................................................... 17
3.3.6 GSM Band.................................................................................................................................. 18
3.3.7 GSM ISP ..................................................................................................................................... 18
3.3.8 Auto Reboot.............................................................................................................................. 18
3.4 Call Settings................................................................................................................. 18

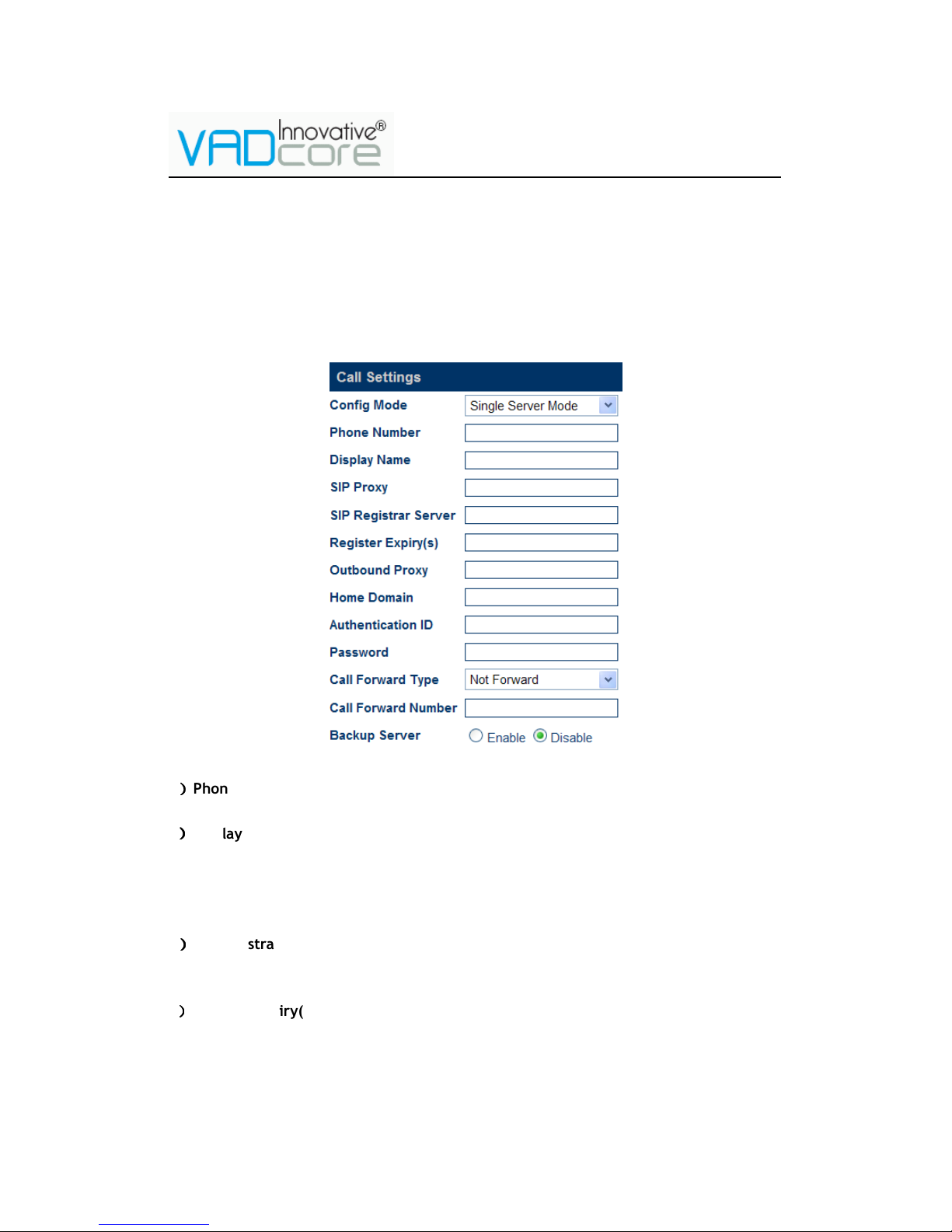

3.4.1 SIP Phone .................................................................................................................................. 18

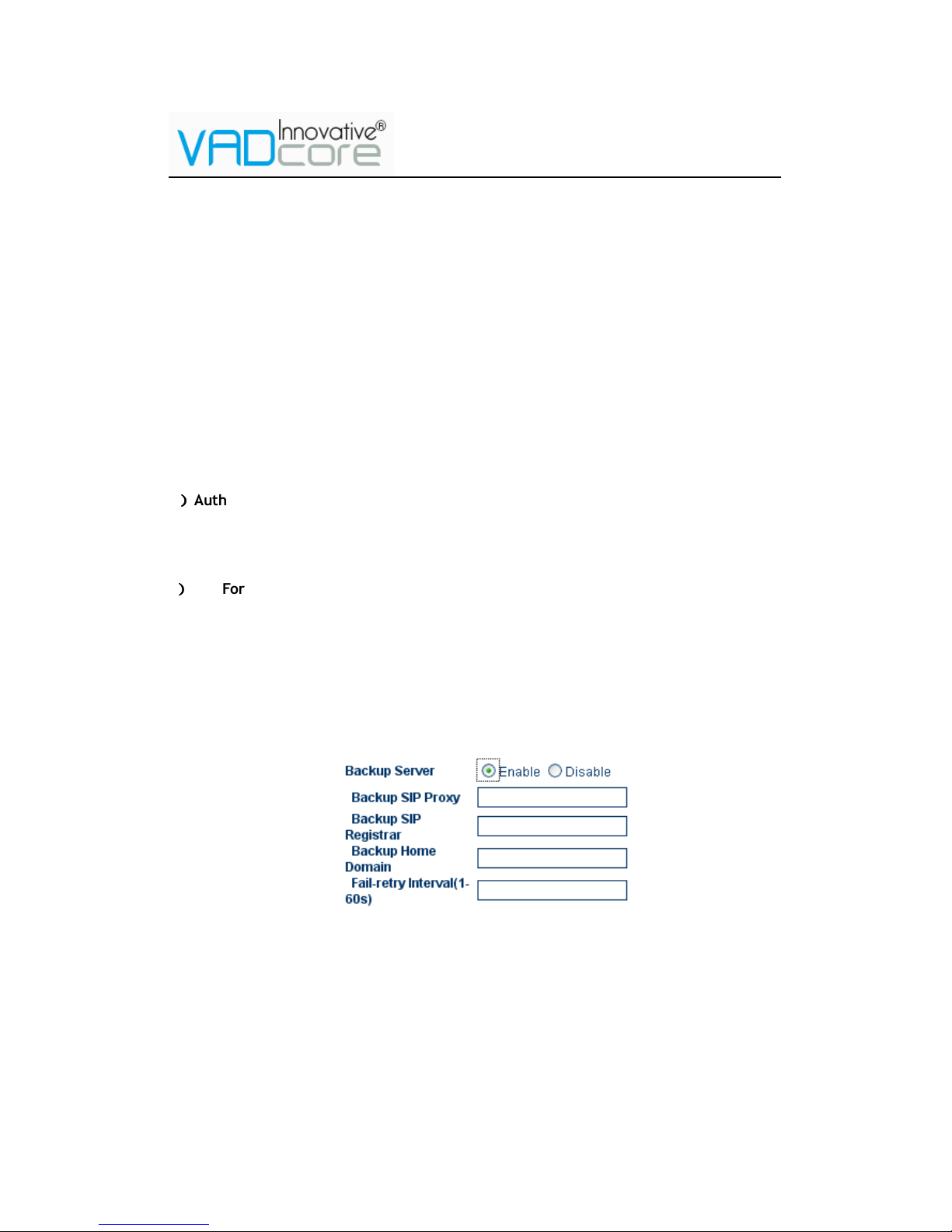

3.4.2 Advanced Settings................................................................................................................... 21

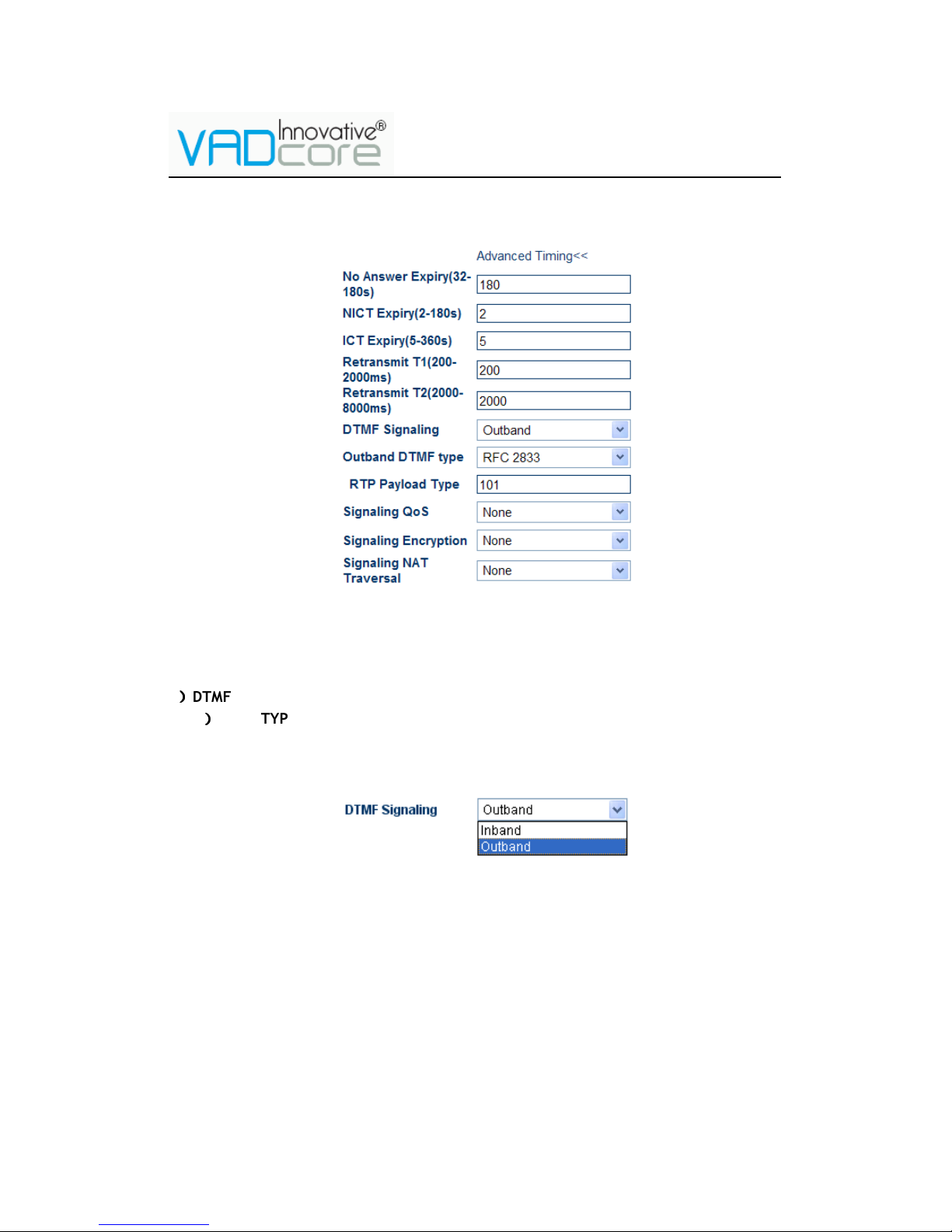

3.4.3 Advanced Timing ..................................................................................................................... 22

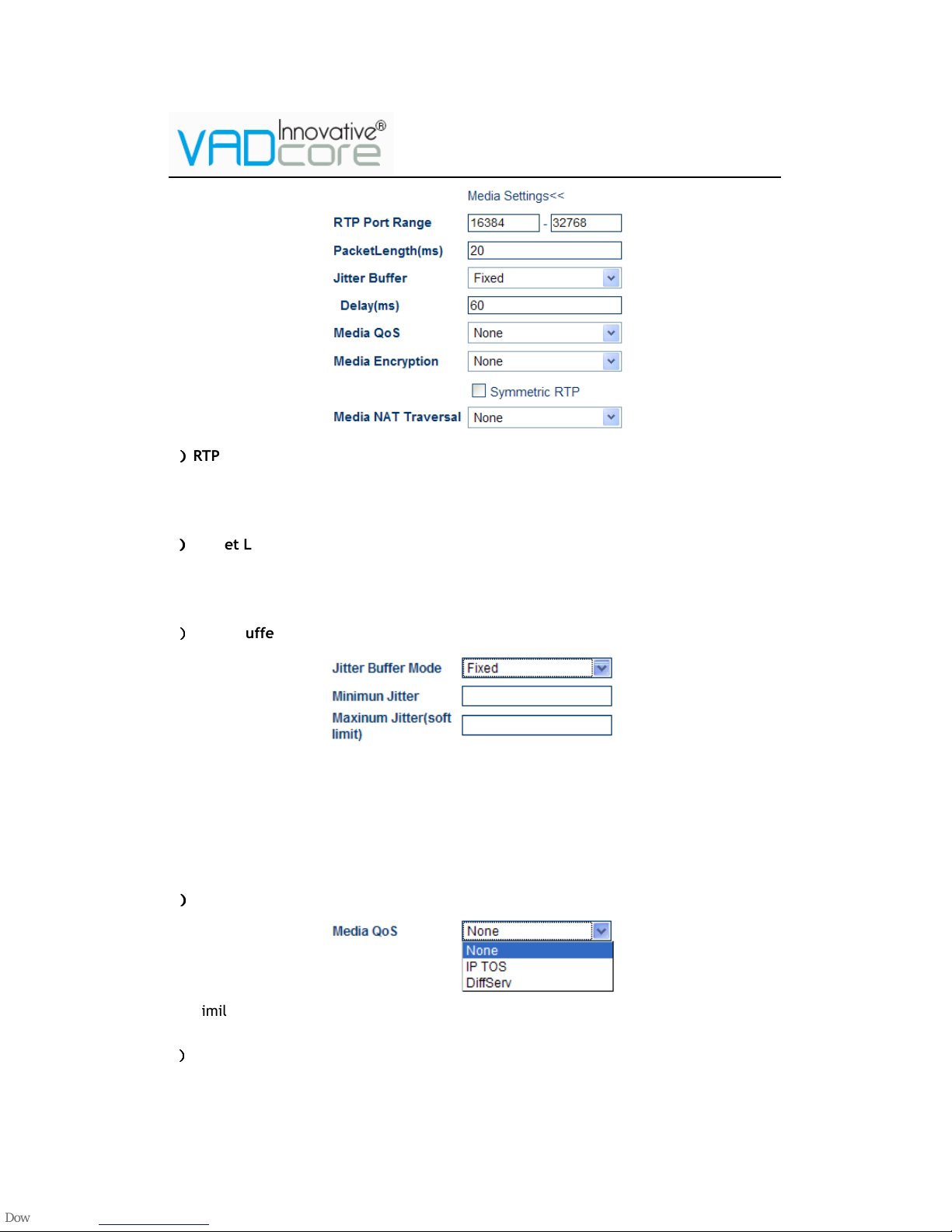

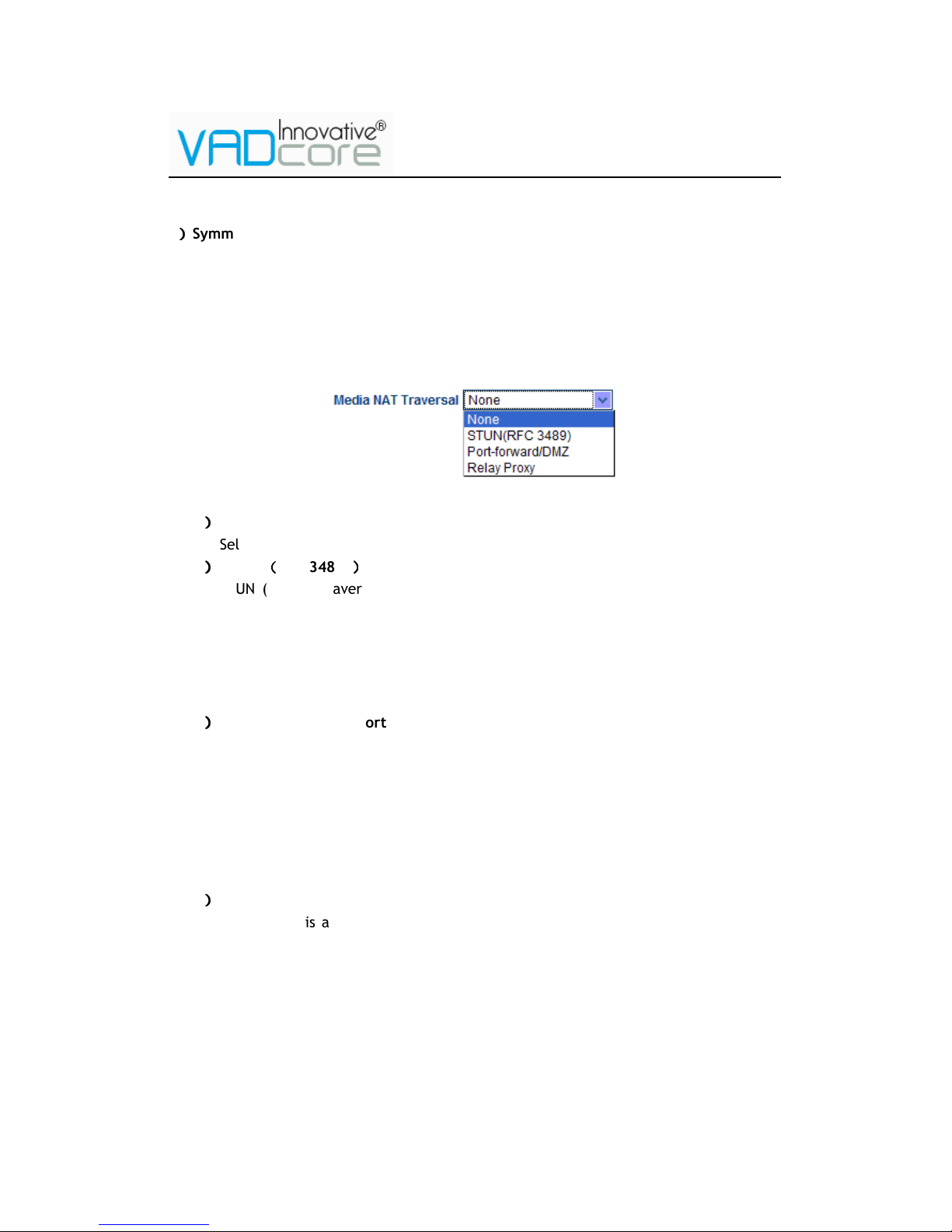

3.4.4 Media Setting ........................................................................................................................... 23
Four-Channel GSM VoIP Gateway
2
3.4.5 Codec Preference.................................................................................................................... 26

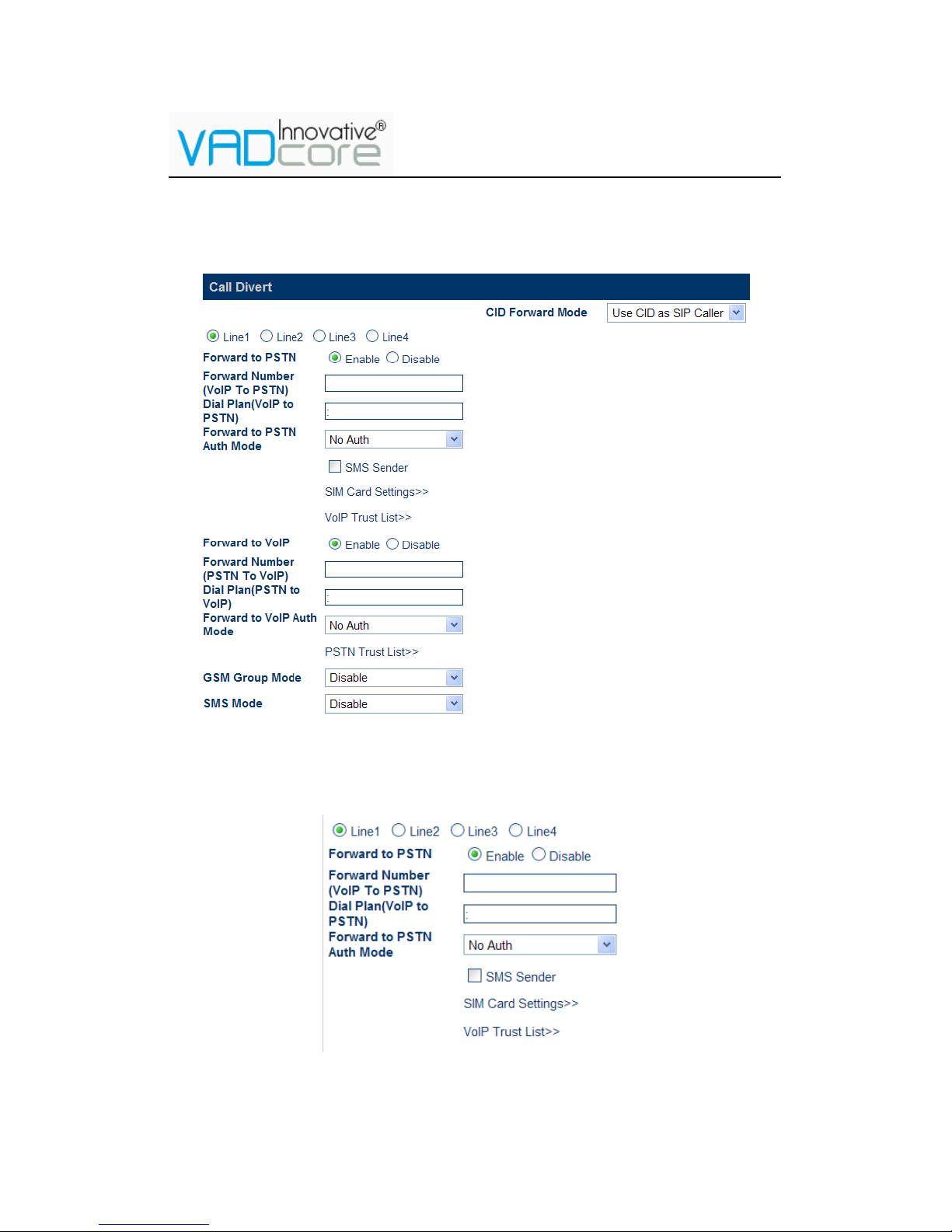

3.5 Call Divert....................................................................................................................27
3.5.1 Call Forward (From VoIP To PSTN)........................................................................................ 27
3.5.2 Call Forward (From PSTN To VoIP) ....................................................................................... 29
3.6 SMS Disposal ................................................................................................................30
3.6.1 SMS Sender ............................................................................................................................... 30
3.6.2 SMS Call Out ............................................................................................................................. 31
3.6.3 SMS Relay.................................................................................................................................. 35
3.6.3.1 SMS Relay To VoIP System............................................................................................... 35
3.6.3.2 SMS Relay To GSM Network ............................................................................................ 36
3.7 GSM Caller ID Transparent.........................................................................................37
3.8 GSM Group Mode.........................................................................................................38
3.9 Dial Plan.......................................................................................................................39

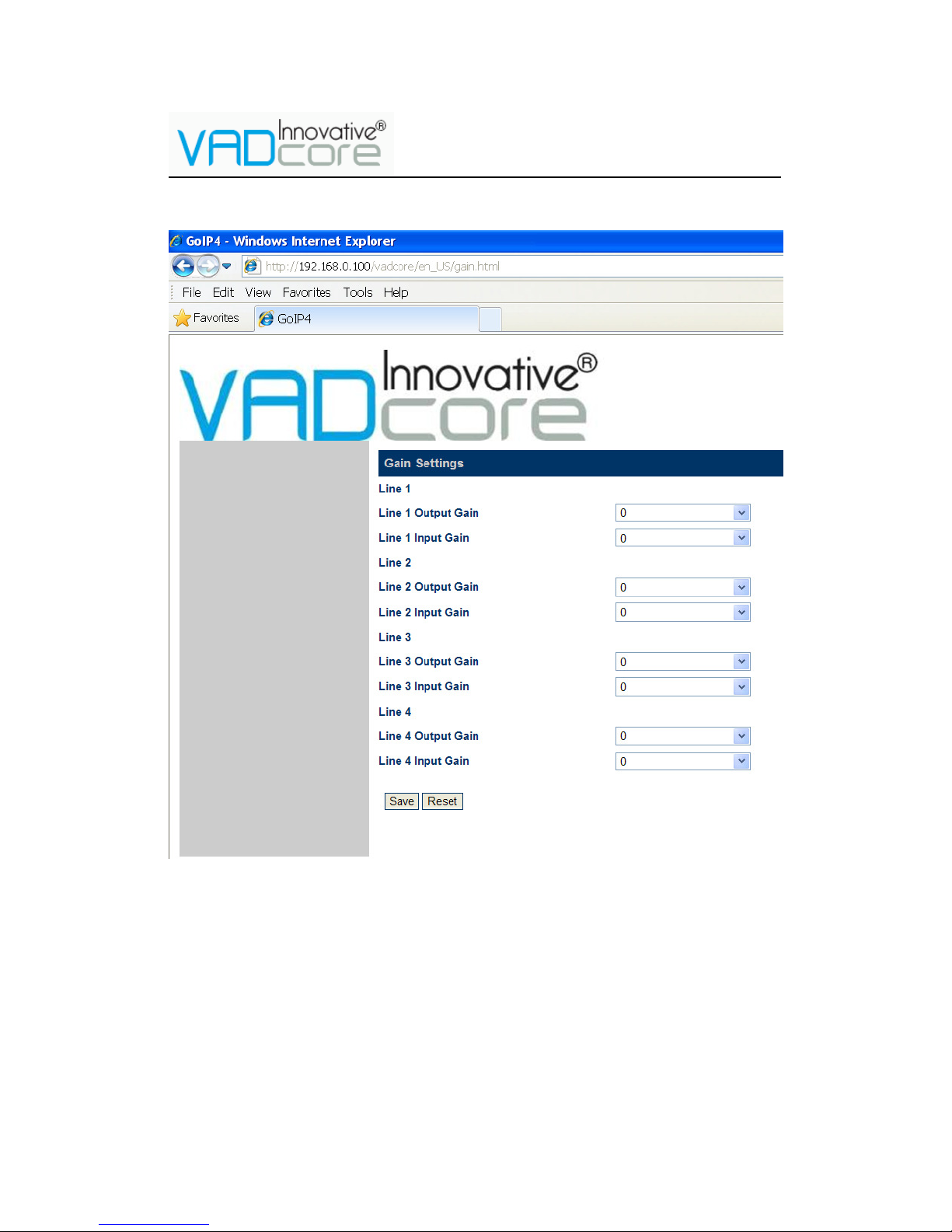

3.10 Gain Settings............................................................................................................. 41
3.11 Network Configuration ............................................................................................ 42
3.11.1 LAN Port.................................................................................................................................. 43

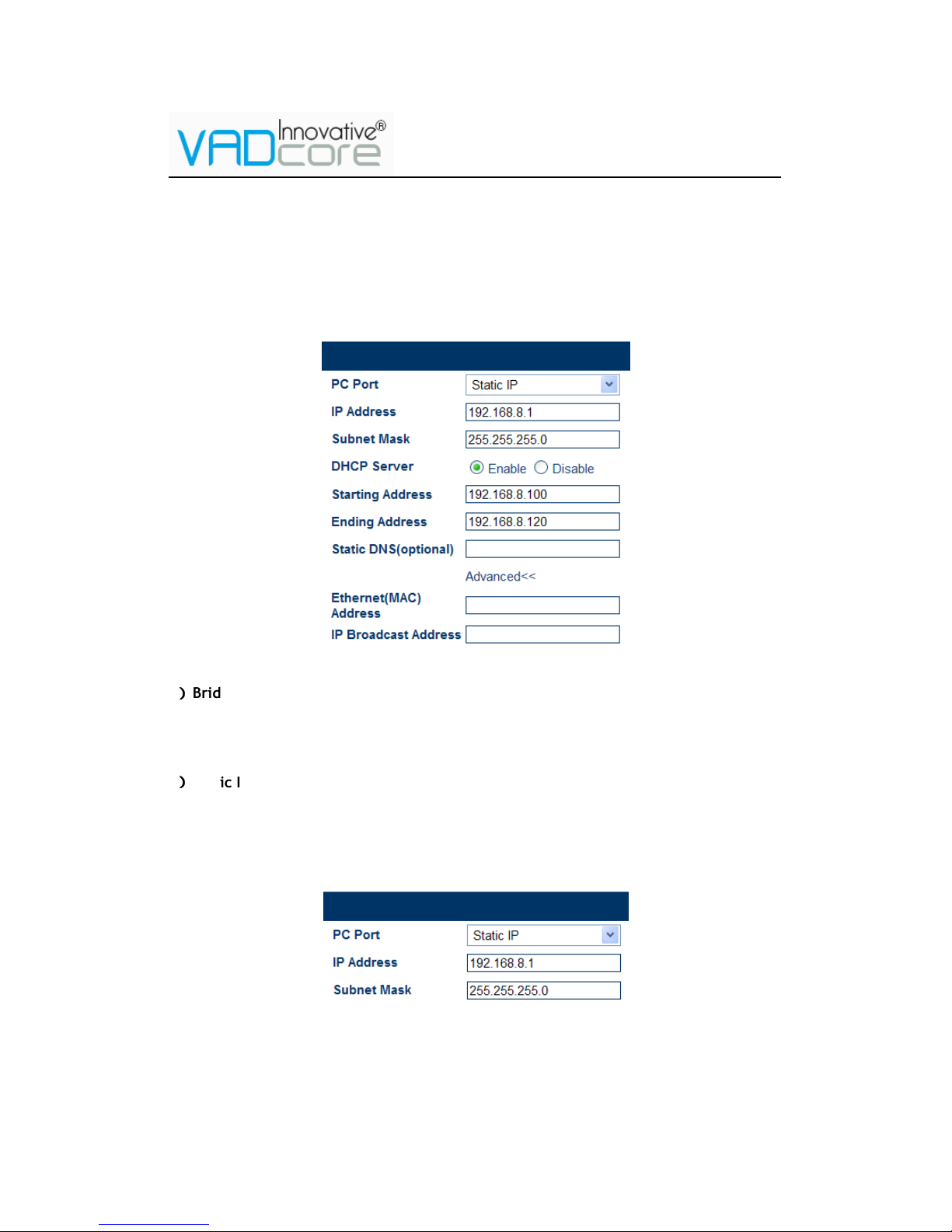

3.11.2 PC Port Configurations ......................................................................................................... 45
3.12 Save Configuration................................................................................................... 46
3.13 Discard Changes ....................................................................................................... 46
3.14 Tools Menu................................................................................................................. 46
3.14.1 Online Upgrade...................................................................................................................... 47

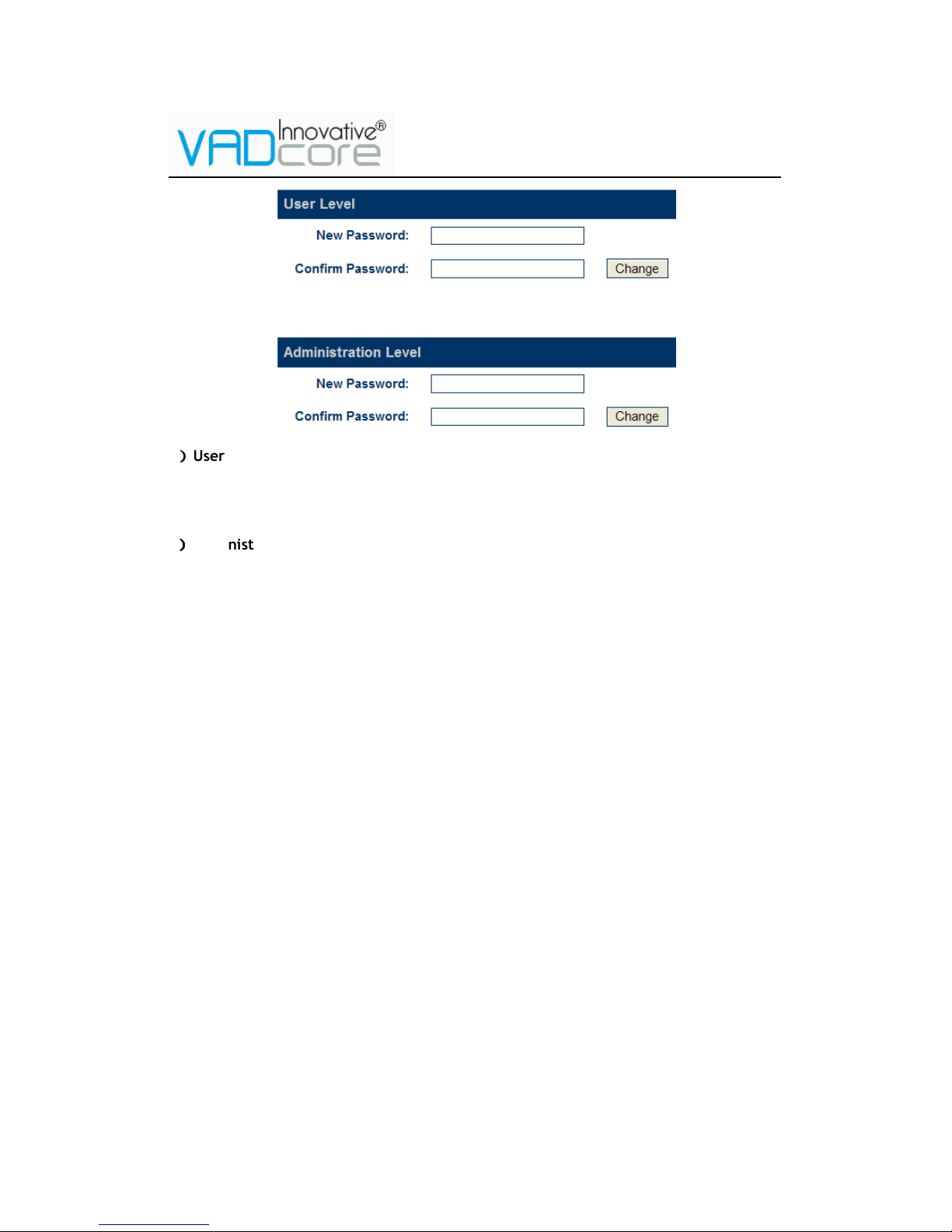

3.14.2 Change Password................................................................................................................... 47
3.14.3 Reset Configuration .............................................................................................................. 48
3.14.4 Reboot the Device................................................................................................................. 48
4 Hardware Specifications ........................................................................................ 49
5 Manufactory Parameters........................................................................................ 49
Four-Channel GSM VoIP Gateway
3
1 Product Introduction
1.1 General Information
A VoIP GSM Gateway enables direct routing between IP and GSM network without the use of
a FXO port or the PSTN network. With this device, the usage of VoIP is greatly enhanced with
significant savings on long distance and roaming charges.
1.2 Protocol
TCP/IP V4 (IP V6 auto adapt)
ITU-T H.323 V4 Standard
H.2250 V4 Standard
H.245 V7 Standard
H.235 Standard（MD5，HMAC-SHA1）
ITU-T G.711 alaw/ulaw, G.729A, G.729AB, and G.723.1 Voice Codec
RFC1889 Real Time Data Transmission
Proprietary Firewall-Pass-Through Technology
SIP V2.0 Standard
Simple Traversal of UDP over NAT (STUN)
Web-base Management
PPP over Ethernet (PPPoE)
PPP Authentication Protocol (PAP)
Four-Channel GSM VoIP Gateway
4
Internet Control Message Protocol (ICMP)
TFTP Client
Hyper Text Transfer Protocol (HTTP)
Dynamic Host Configuration Protocol (DHCP)
Domain Name System (DNS)
User account authentication using MD5
Out-band DTMF Relay: RFC 2833 and SIP Info
1.3 Hardware Specification
ARM9E Processor
DSP for voice codec and voice processing
Two 10/100 BaseT Ethernet ports with full compliant with IEEE 802.3
LEDs for Ethernet port status
Four GSM Channels’ Connection
1.4 Software Specification
LINUX OS
Built-in HTTP Web Server
PPPoE Dial-up
NAT Broadband Router Functions
DHCP Client
DHCP Server
Firmware On-line upgrade
PSTN Caller ID transmit
Multiple Language Support
Supported call divert
Supported PSTN auto call out to PSTN
Supported Multi_devices Cooperate Mode(Group Mode)
Supported SMS call out
1.5 List of the Package
a) One GoIP4 Gateway main unit
b) One DC12V/2000mA power adaptor
c) One Ethernet cable (3M)
Four-Channel GSM VoIP Gateway
5
1.6 Appearance
Four-Channel GSM VoIP Gateway
6
1
））））
LAN
Connect this port to an Ethernet Switch/Router, the Ethernet of a DSL modem, or
other network access equipment.
2
））））
PC
Connect a computer or other network device to this port.
3
））））
POWER (DC12V/2000mA)
Connect the 12V/2000mA Adapter provided to this power jack.
4
））））
Reset
Press this button to reset the GoIP_4 Gateway to factory defaults.
Four-Channel GSM VoIP Gateway
7
2 Installation
2.1 Installation Steps
Please follow the connection diagram above to install the GoIP4 Gateway.
a) Insert a GSM SIM card in the SIM card compartment located at the bottom of the GoIP4
Gateway.
b) Connect an Ethernet cable the LAN port of the GoIP4 Gateway and the other end to your
existing network equipment.
c) (Optional) Connect an Ethernet cable to the PC Port of the GoIP4 Gateway and the
other end to a PC or other network device.
d) Connect the power adapter provided to the power jack of the GoIP4 Gateway.
Four-Channel GSM VoIP Gateway
8
2.2 LED Indicators
The following table defines the status of the LEDS located on the top case and on the RJ-45
connectors.
LED DESCRIPTION
P0WER When GoIP4 Working, this LED will keep
light.
RUN
1. When the GoIP4 is booting，this LED will
flash 100ms ON and 100ms OFF.
2. When the GoIP4 is login your
softswitch, this LED will flash 1s ON and
1s OFF.
LAN When LAN port is connected to network,
this LED will light and flash when has data
through this port.
PC When a device is connected to PC port, this
LED will light and flash.
Channel 1 When the GoIP4’s GSM channel1 login to
ISP’s system, this LED will flash 1s ON and
1s OFF;
Channel 2 When the GoIP4’s GSM channel2 login to
ISP’s system, this LED will flash 1s ON and
1s OFF.
Channel 3 When the GoIP4’s GSM channel3 login to
ISP’s system, this LED will flash 1s ON and
1s OFF.
Channel 4 When the GoIP4’s GSM channel4 login to
ISP’s system, this LED will flash 1s ON and
1s OFF.
2.3 SMS Commands
GoIP4 supports some maintenance commands from SMS.
FUNCTION SMS CONTENT REMARK
Obtain LAN Port Info INFO Not case-sensitive
Reset device RESET Password Not case-sensitive
Four-Channel GSM VoIP Gateway
9
Reboot device REBOOT Password Not case-sensitive
Note
：：：：
In command Reset and Reboot, the Password is the GoIP4 device’s admin password.
The command keywords can be majuscule and lowercase, but the password is
case-sensitive.
1》Obtain LAN Port IP Address
Once the GSM SMS with message content “info” or “INFO” is received, the GoIP1 sends
back a SMS message to the sender with the message content containing the LAN Port IP
address.
2》Reset GoIP Configuration
Upon receiving the SMS message “RESET <password>” or “reset <password>”, the
GoIP1 resets its configurations to factory defaults.
3》Reboot GoIP
Upon receiving the SMS message “REBOOT <password>” or “reboot <password>”, the
GoIP1 reboots itself automatically.
Note: <password> is the webpage login password as described in Section 3.1.
Four-Channel GSM VoIP Gateway
10
3 Configuration Guide
To configure the GoIP4 Gateway, you must login to its Web server via the LAN or PC port.
The LAN port is factory preset to IP address 192.168.0.100 and the PC port is set to the fixed
IP 192.168.8.1.
If you lose the IP address information for LAN port, just dial a call to GoIP4 Gateway’s SIM
card phone number. When the call is connected, you will hear a dial tone. Then dial “*01#”
for English voice prompt on the LAN IP and “*00#” for Chinese voice prompt on the LAN IP.
The LAN IP Address can also be obtained by sending a SMS message to the GSM phone number.
The GoIP4 will then reply with a SMS message containing the LAN IP address.
If you want to obtain LAN port IP by sending a SMS message, please send” INFO “or” info”.
Another way to access the GoIP4 Gateway is via the PC port. You will need to change your
computer’s LAN configuration via the Network Connections under the Control Panel.
Windows: Control Panel--Network Connections--Local Area
Connection Property-- Internet Protocol (TCP/IP)’s Property
Set an unused IP address that is in the same segment as the PC port address.
Once either the IP address of the LAN or PC port is known, you are now ready to
access the Web server of GoIP4 Gateway.
Four-Channel GSM VoIP Gateway
11
3.1 Web Configuration Menu
If your computer is connected to the GoIP4 Gateway via the LAN port, you need to type the
LAN IP address of the GoIP4 Gateway in your Web Browser to access the Web server of the
GoIP4 Gateway. The default IP address on the LAN port is “192.168.0.100”.
If your computer is connected to the GoIP4 Gateway via the PC port, you should type GoIP4’s
PC port IP address (192.168.8.1) in the Web Browser.
If the connection is correct, the Web Browser will prompt you to enter the “User name” and
“Password” as shown below. Enter the User name and Password and the press OK to access
the GoIP4 Gateway Web Server. The default for both user name and password is “admin”.
Four-Channel GSM VoIP Gateway
12
3.2 Status
The Status page shown below is the default / home page of the GoIP4 Web server.
Four-Channel GSM VoIP Gateway
13
3.2.1 Phone Information
A. Serial Number
Each Gateway has a unique serial number assigned by the factory such as
GOIP409100019
.
This number is important for centralized configuration, technical support, and warranty.
This number is printed on the bottom of the Gateway and is associated with your
software license.
B. Firmware Version
Firmware version identifies the firmware version of the Gateway such as GHS-4.01-1.
C. Hardware Mode
This field shows terminal’s hardware type.
D. Phone Status
This field shows the status of Line’s connection status. If the connection is successful,
Four-Channel GSM VoIP Gateway
14
this field displays LOGIN; otherwise, it displays LOGOUT.
3.2.2 Network Information
A. LAN Port Configuration
This field displays the status of the LAN port.
B. PC Port Configuration
This field displays the status of the LAN port.
C.
PPPoE
If PPPoE is enabled, it displays its status.
D. Default Route
This field displays the IP address of the default routing Gateway.
E. DNS Server
This field displays the IP address of the Domain Name Server.
3.2.3 GSM Module Information
A. GSM Module
This field displays the GSM module type.
B. GSM Signal
This field displays the GSM signal status. The value of GSM signal strength RSSI
(Received Signal Strength Indication) is between 0 dbm and 31 dbm. The value of 99
means unknown or undetectable.
C.
GSM Status
This field shows the status of GSM connection status. If the connection is successful, this
field displays LOGIN; otherwise, it displays LOGOUT.
3.3 Configurations
Click on the “Configurations” tab on the left hand column to access the device configuration
menu: Preference, Network, Call Settings, Call Divert, Save Changes, and Discard
Changes.
Four-Channel GSM VoIP Gateway
15
Click on “Preference” in the left menu of the configuration web, and the screen will be
displayed as below:
3.3.1 Language
Currently GoIP4 only supports English. VADcore also has other versions of software that
support Simplified Chinese and Traditional Chinese. Contact VADcore if you need other
language support.

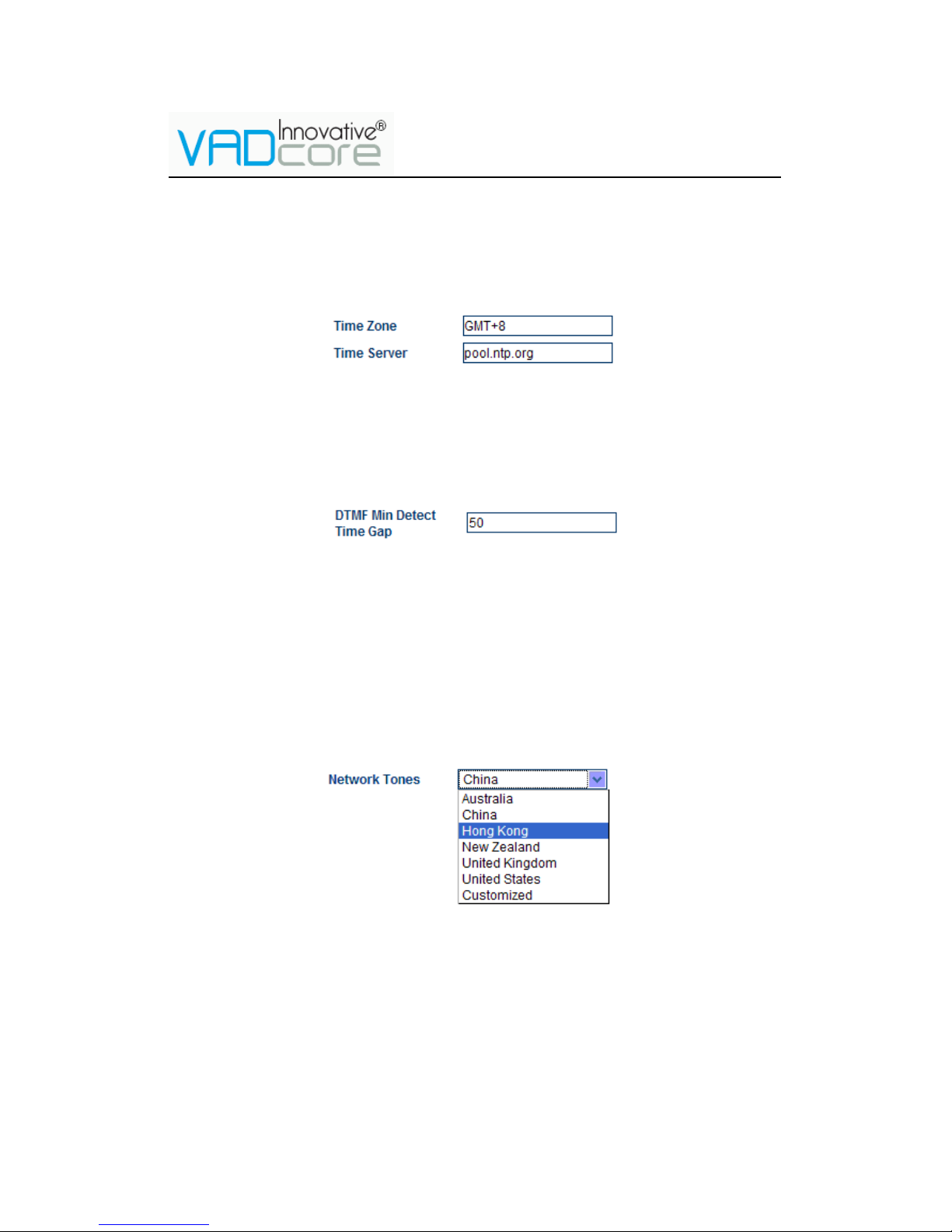

Loading...
