2CH Mobile DVR
User Manual
2018 AUG V1.0
※Memory card is excluded, please purchase it separately.
Page 2
2 Channels Mobile DVR for Motorcycle
Operation Manual
Safety Precautions
Dear Vacron user,
Appreciate for you purchase Vacron products. Please contact your local
distributor if you meet any question or need for any assistance. We will
offer you complete and in time service via local distributor. However, we
still have rights to upgrade software and hardware without any kind
notice beforehand. Please read this manual carefully prior to use of this
product..
Installation Precautions
Before installation, please insure wires and cables connect correctly.
Device has to install in a ventilated environment and the
installation have to be guided or helped by any professional device
installer.
Please use storage device that recommended by manufacture, and
purchase the storage device from official purchase channel.
Please contact local distributor and technology support service if
you have any question and need any help during product usage
In Use Precautions
Please avoid any solid or liquid drop into the inner components.
Please do not disassemble the equipment for warranty issue.
Please contact local dealers or the manufacturer for prompt service.
Please remove the battery if remote control keeps idle for quite a
long while.
The equipment best connection is with ground wire in case of
outdoor cameras connection or alarm I/O connection. This is to
keep the DVR away from static electricity damage.
i
Page 3
2 Channels Mobile DVR for Motorcycle
Operation Manual
Surrounding
Please have the DVR under recommended temperature and set it
away from the sun and heating source.
Please keep this equipment away from humid surrounding.
Please keep this equipment away from smoke and dust
environment.
Please avoid strongly collision and do not drop the equipment.
Please set this equipment in ventilation space, and do not block
the ventilator of device.
Please use device under rated voltage and Amp.
Please keep flammable objects away from the equipment.
ii
Page 4
2 Channels Mobile DVR for Motorcycle
Operation Manual
Table of Contents
A. Product Accessories ................................................................................................ 1
B. Features ........................................................................................................................ 2
C. Specifications ............................................................................................................. 3
D. Appearance ................................................................................................................. 7
E. SD card installation .................................................................................................. 8
F. Cable Installation .................................................................................................... 10
G. Installation diagram ............................................................................................... 12
H. Boot/Recording ....................................................................................................... 16
I. PC Player .................................................................................................................... 18
J. Data Backup .............................................................................................................. 21
K. SD card........................................................................................................................ 23
L. Playback files ............................................................................................................ 26
M. Screenshot tool ....................................................................................................... 27
N. Format / Restore SD card .................................................................................... 28
O. WiFi connection ..................................................................................................... 30
(a)、QR Code download︰ .................................................................................. 30
(b)、Android: ............................................................................................................ 30
(c)、IOS ....................................................................................................................... 35
Page 5
2 Channels Mobile DVR for Motorcycle
Operation Manual
A. Product Accessories
Please check every accessory we listed below, make sure everything is
included in the product package before use. If you found anything is missing,
please contact local distributor.
Note：The product set does not come with memory card, please purchase
the memory card separately.
Standard Set

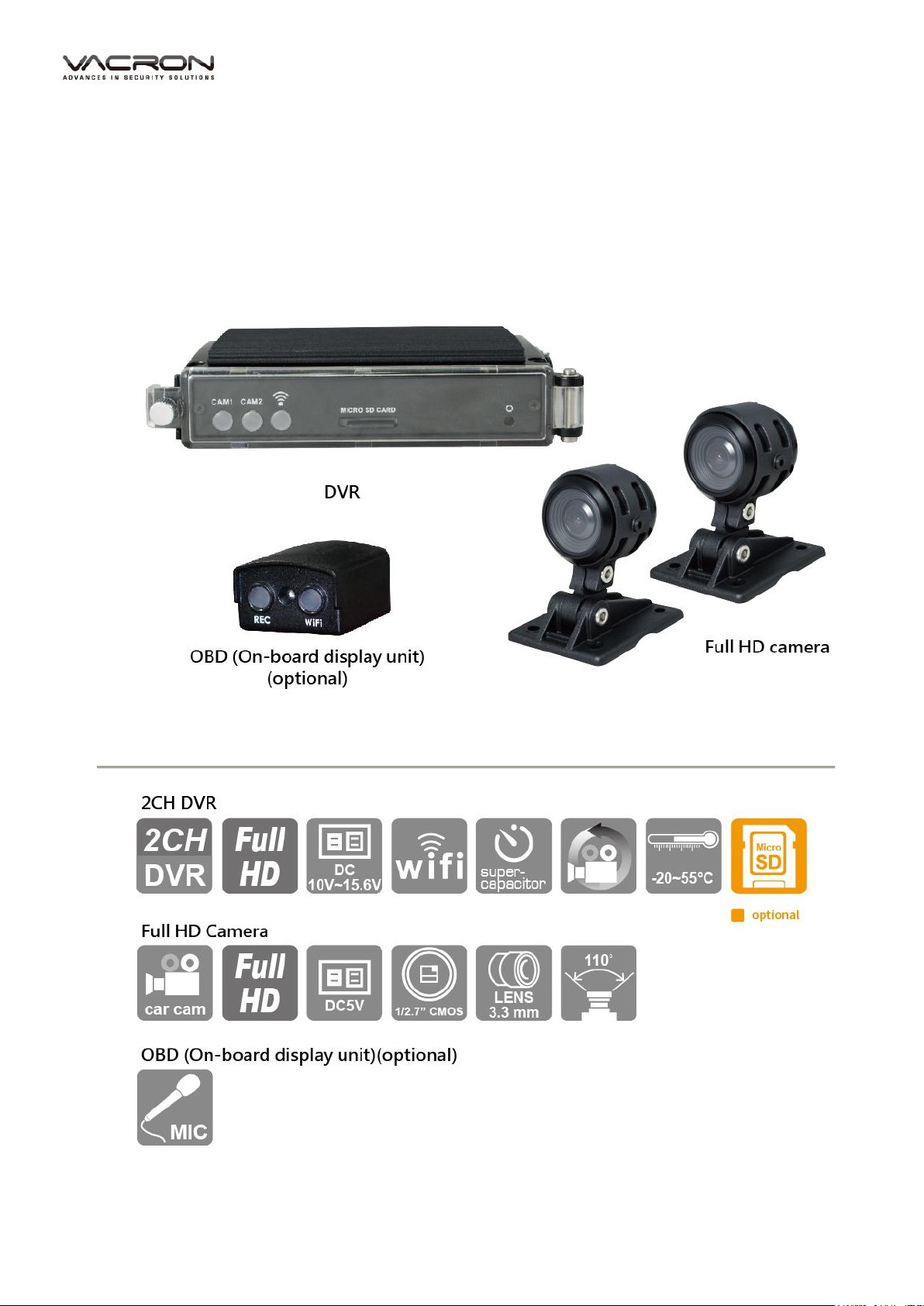

1. Camera*2
2. Camera extended cable 2 meter*1pc+ 1 meter*1pc
3. Power cable
Optional
4. USB WIF dongle
5. Velcro
6. Quick guide manual
1. 8/16/32G/64G/128G Class10 above SD card
2. OBD (On-board Display unit)
1
Page 6
2 Channels Mobile DVR for Motorcycle
Operation Manual
B. Features
1. Auto video recording system which has 2 channels with 1080p resolution
input and OBD (On-board display unit) which is optional, that goes with
Microphone and recording video & audio simultaneously.
2. H.264 image compress technology, which ensures image dose not distorted.
3. Full HD video resolution.
4. Low power consumption and efficient heat dissipation, no build-in Lithium
battery to prevent possible danger and heat explosion.
5. Devices start recording automatically when engine is on; device will save file
and turn off automatically when engine is off.
6. Built-in supercapacitor, automatically extend video recording time after
engine off, ensure all information save in SD card.
7. It goes in emergency lock when incidents occur (should turn the function on)
to keep the recording from being overwritten by latest/regular image
recording.
8. Built-in WiFi, capable to watch live video, playback and backup files by
download APP in IOS or Android system
9. Made in Taiwan
2
Page 7
2 Channels Mobile DVR for Motorcycle
Operation Manual
Terms
Specifications
1
Inputs
(a) Hisilicon HI3520DV300，SoC
(b) 2 channels in 1080P
2
Resolution
(a) 1080p
(b) CH1 30FPS、CH2 30FPS
3
Power
(a) Power consumption 1 A when DC12V input
(b) Operating voltage: DC10V ~ DC15.6V
(c) Starting voltage requires DC10V or above.
4
Delayed
recording
Built-in supercapacitor for power resumed and back
up the data back in Micro SD.
5
Temp.
Operating temp.：-20°C-55°C (in open air places)
Storage temp.： -40°C-85°C
6
Storage
device
Memory card must be Class 10 or above as
SDHC/SDXC Micro SD ( as 8GB or above, maximum
128GB)
7
Recording
Automatically recording when power is on
8
Recordings
Videos, dates, times, Audio, G sensor & GPS tracking
data. (GPS unit is optional)
9
Storage
Particular file format that goes with dominated video
player
10
Sound input
Particular file format that goes with multi-functional
display for sound input
11
Time
Embedded perpetual calendar time and
automatically corrected when connecting to APP or
GPS (optional)
C. Specifications
DVR Specifications
3
Page 8
2 Channels Mobile DVR for Motorcycle
Operation Manual
12
Display

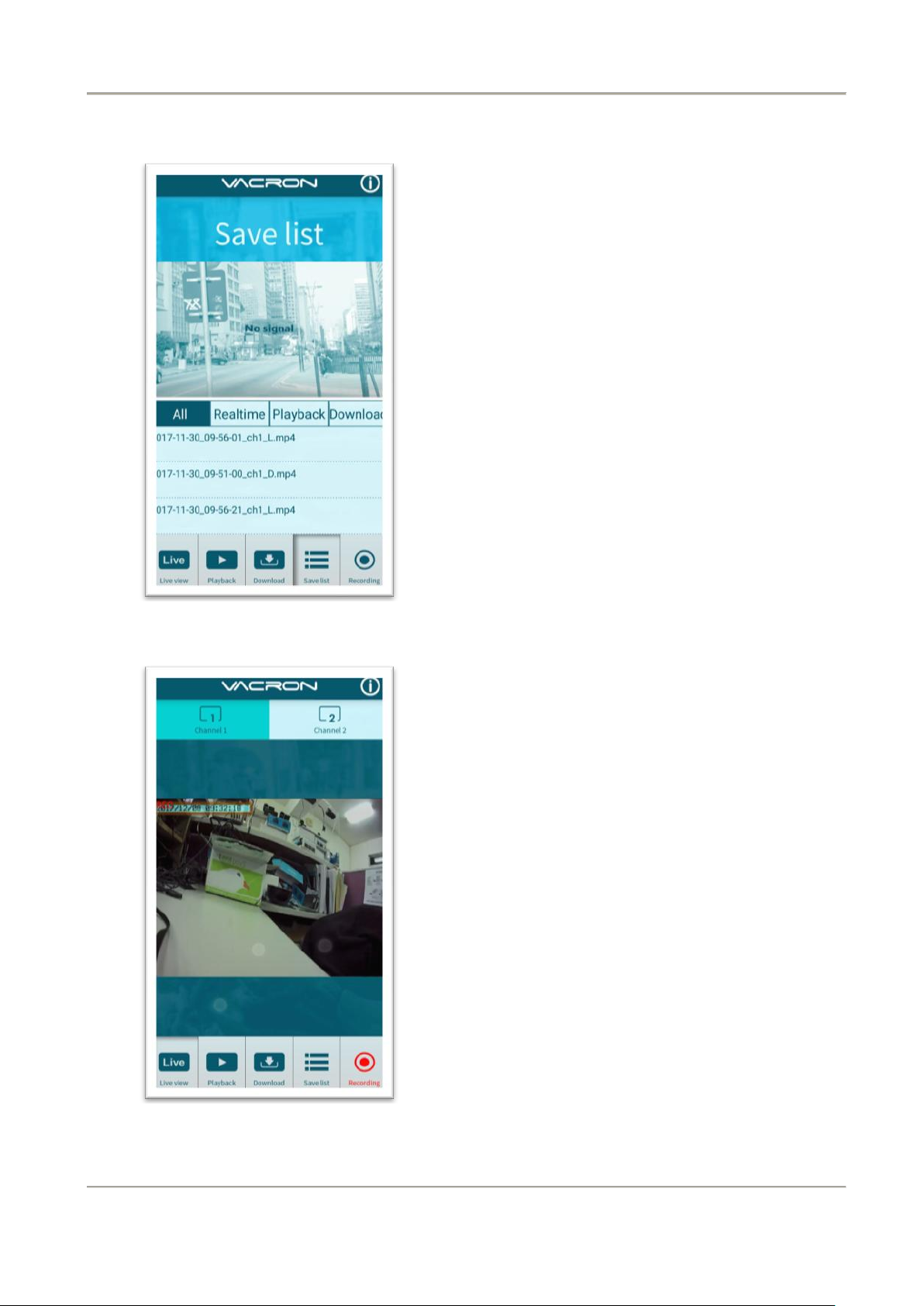

Viewing live images by using WiFi connecting to APP
and image playback.
13
Output
(a) Blue light as WiFi connection indicator. Light on as
when in WiFi connection, light flashing as
searching available WiFi, light off as no WiFi
available.
(b) Red light as CAM1 indicator. Light on as video
recording works normally, and light off when
without recording any images.
(c) Red light as CAM2 indicator. Light on as video
recording works normally, and light off when
without recording any images.
14
Input
(a) Power input：DC12V
(b) Image input: 2 channels in 1080P resolution
(c) Display input: MIC input, light indicator control &
GPS data input (GPS unit is optional)
(d) USB cable: for connecting WiFi dongle
(e) Micro SD card slot
15
Remark
(a) Fix the DVR tightly avoiding the device swinging
and falling.
16
Note
(a) If conflict with EMI/EMC, it may affect the cameras
and cause video image recording unsuccessfully
and unconnected.
(b) It will come out with EMC problem if production
process of SD card changed or adjusted. Our
device may not work well with all SD cards that
you purchase from other sources and we suggest
you to change to SD card model or others if the
4
Page 9
2 Channels Mobile DVR for Motorcycle
Operation Manual
device has EMC problem.
(c) If the SD card not formatted by dominated video
player, it may forcibly clear all data in the card and
start to record in default. It is possibly unable to
record without formatting.
(d) SD card has limited lifespan; we suggest you to
check the video images regularly to make sure it
is still workable.
(e) It may cause damage to SD card and unable to
play video or incomplete images when getting
strong impact or vibration and suggest to check
video regularly and make backup of data.
Term
Specifications
Power
DC5V ±10%； 170mA
Resolution
NTSC/PAL Full HD 1920 x 1080
Max. 30FPS
Image Sensor
1/2.7”CMOS Digital Image Sensor
View Angle
Horizontal:110 ° / Vertical : 90 °/ Diagonal:140°
Lens
3.3mm
Temperature
Tolerance
Operation -20℃～60℃ (In disclosed space).
Storing temperature: -40℃～85℃.
Output
Micro-dim connector
Waterproof and
dustproof level
IP67
Notes: The product specification is subject to change without prior notice
Camera specifications
Notes: The product specification is subject to change without prior notice
5
Page 10
2 Channels Mobile DVR for Motorcycle
Operation Manual
Term
Specifications
Light
2LED (WIFI、REC)
Interrupted
detection
Yes
Microphone
Audio input
Waterproof and
dustproof level
IP66
OBD specification (optional)
Notes: The product specification is subject to change without prior notice
6
Page 11
2 Channels Mobile DVR for Motorcycle
Operation Manual
CAM1
CAM2

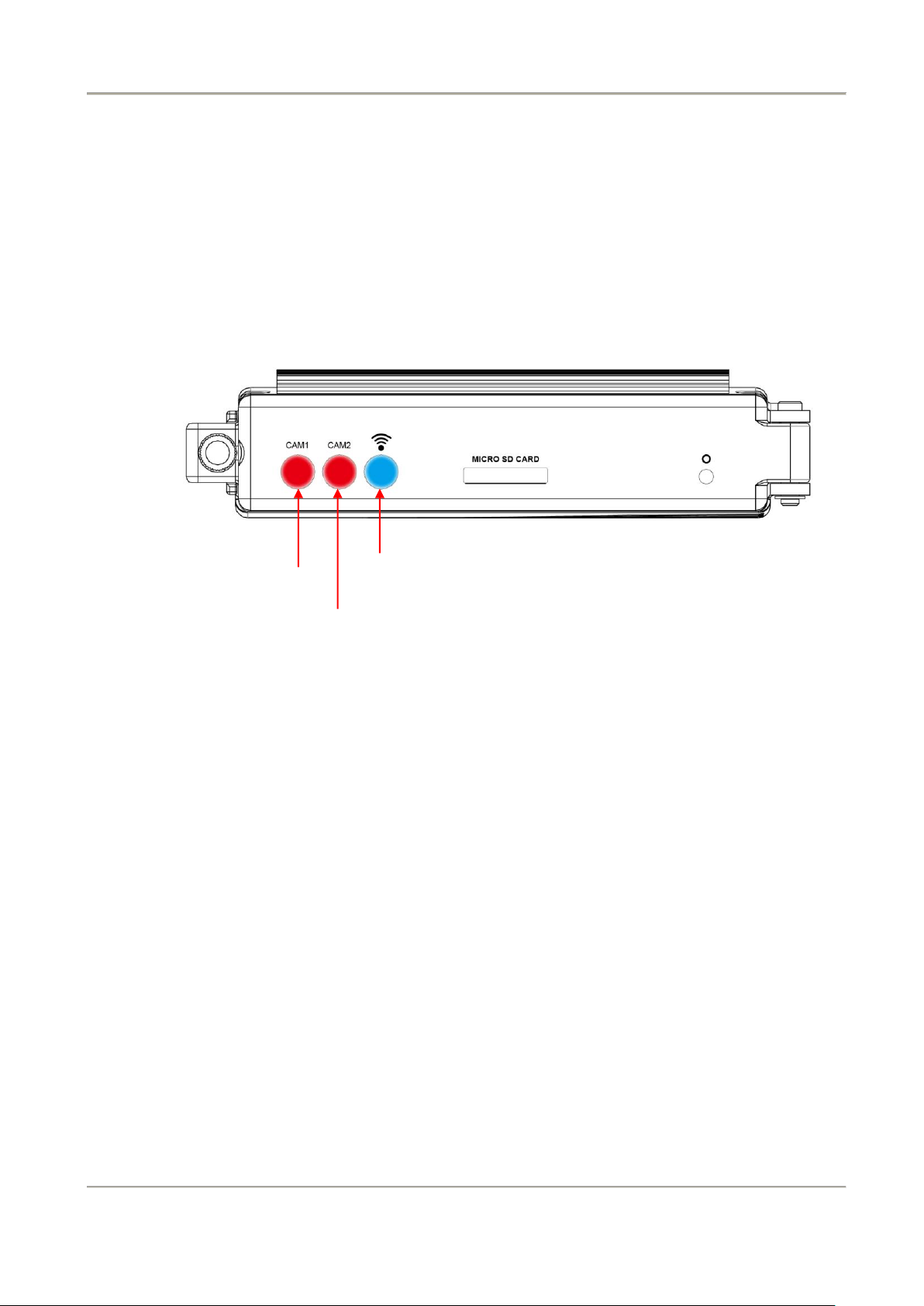

Micro SD card insert
Anti-dust cover screw
WIFI Indication light
D. Appearance
DVR host
7
Page 12
2 Channels Mobile DVR for Motorcycle
Operation Manual
Micro SD memory card insert
Anti-dust cover
E. SD card installation

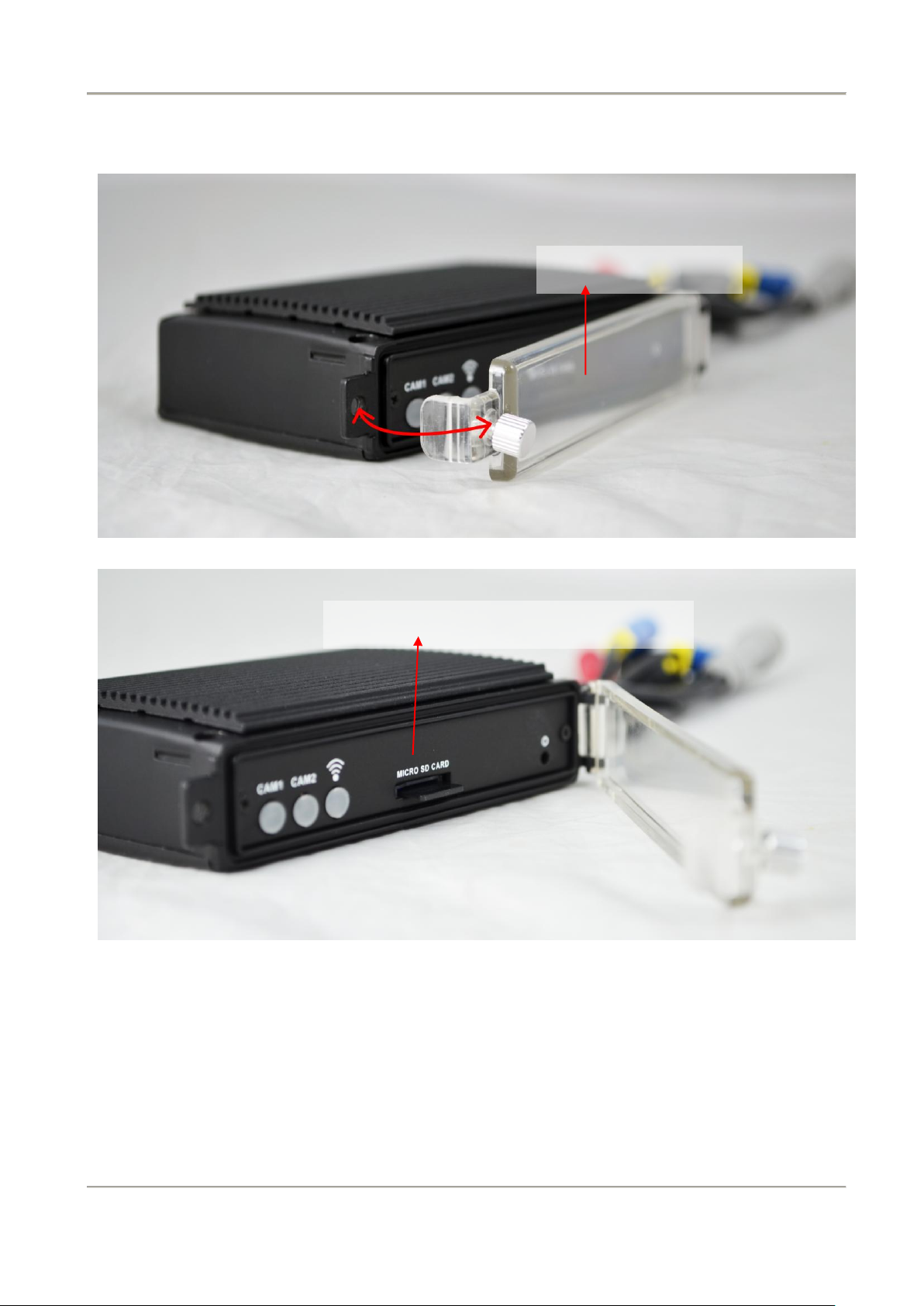

(1). Loosen the screw in counterclockwise and open the transparent plastic cover.
Then insert or take out Micro SD memory card.
(2). Please refer to other indication for SD card formatting & recovery in separate
sheet.
8
Page 13
2 Channels Mobile DVR for Motorcycle
Operation Manual
Attention
1. Suggest using class 10, 8GB above SDHC/SDXC Micro SD Card
2. Before using the memory disk, please format the disk first by
using the software player. If not, device will automatically erase
all data in the memory disk before recording.
3. To ensure recording quality, please do not use adapter card with
Micro SD card. Doing so may lead to bad connection due to
shock and vibration.
4. All memory disks have limited lifespan. Please regularly watch
videos on PC and check the memory disk to ensure proper
functioning.
5. Collision and vibration may cause SD card defective and result
intermittent recording, please check data and backup file
periodically.
6. When insert the new memory card to the host, the device will
format the memory card, and beginning to record after approx.
2 second.
7. After SD card formatted by device or PC player, 8G, 16G, 32G,
64G or 128G SD card all showing 80.5MB storage space under
Windows system, other storage space as hidden files, user have
to play video records by professional player that offered by
manufacturer. The restore SD card also have to use the
manufacturer player refer to format/restore memory card
chapter.
8. When any accident happen, please remove SD card and set it as
writing protection condition, for avoid record being over writing
or tampering.
9
Page 14
2 Channels Mobile DVR for Motorcycle
Operation Manual
Note: This device needs to be equipped with
exclusive camera
1 2 3 4 5

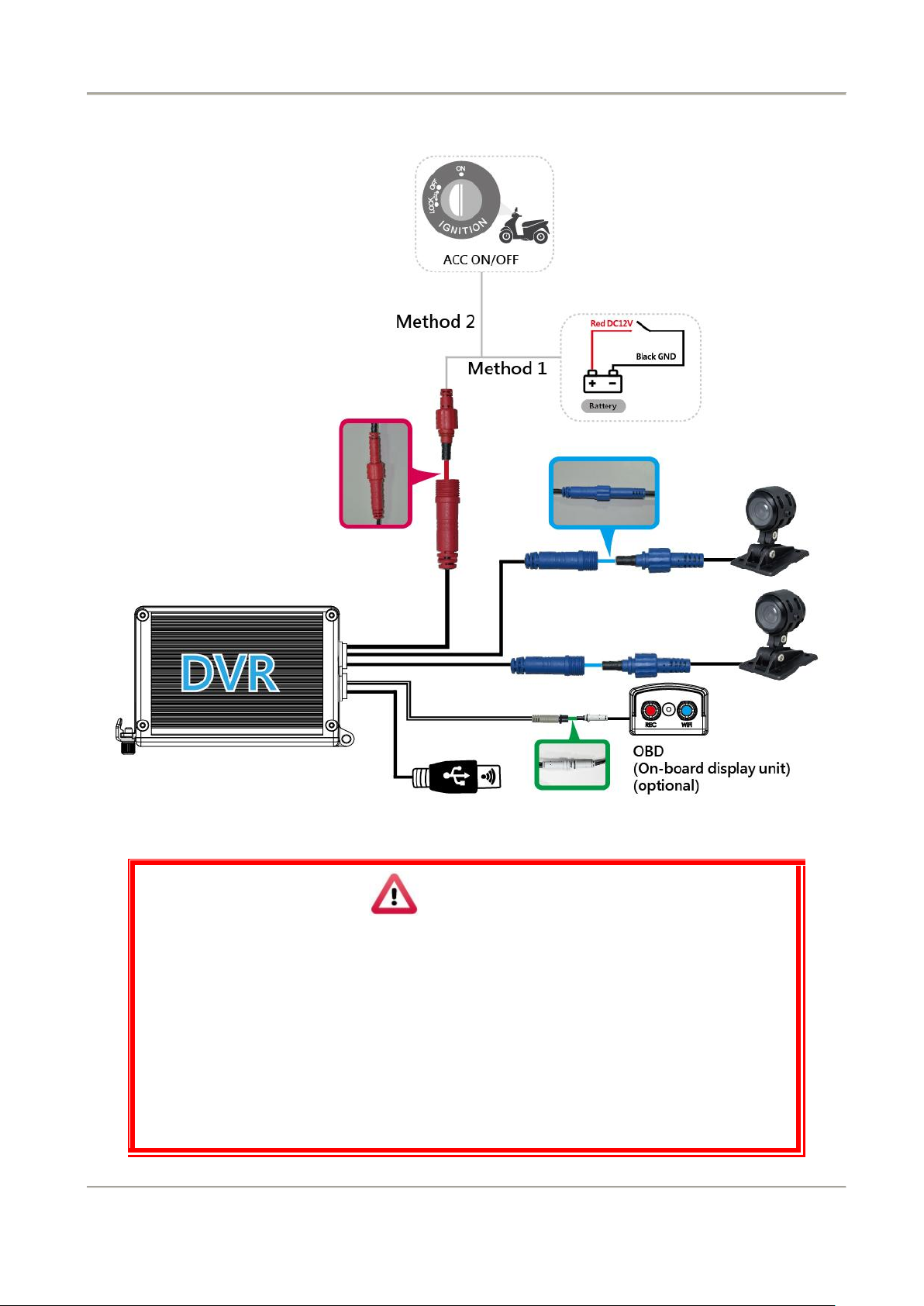

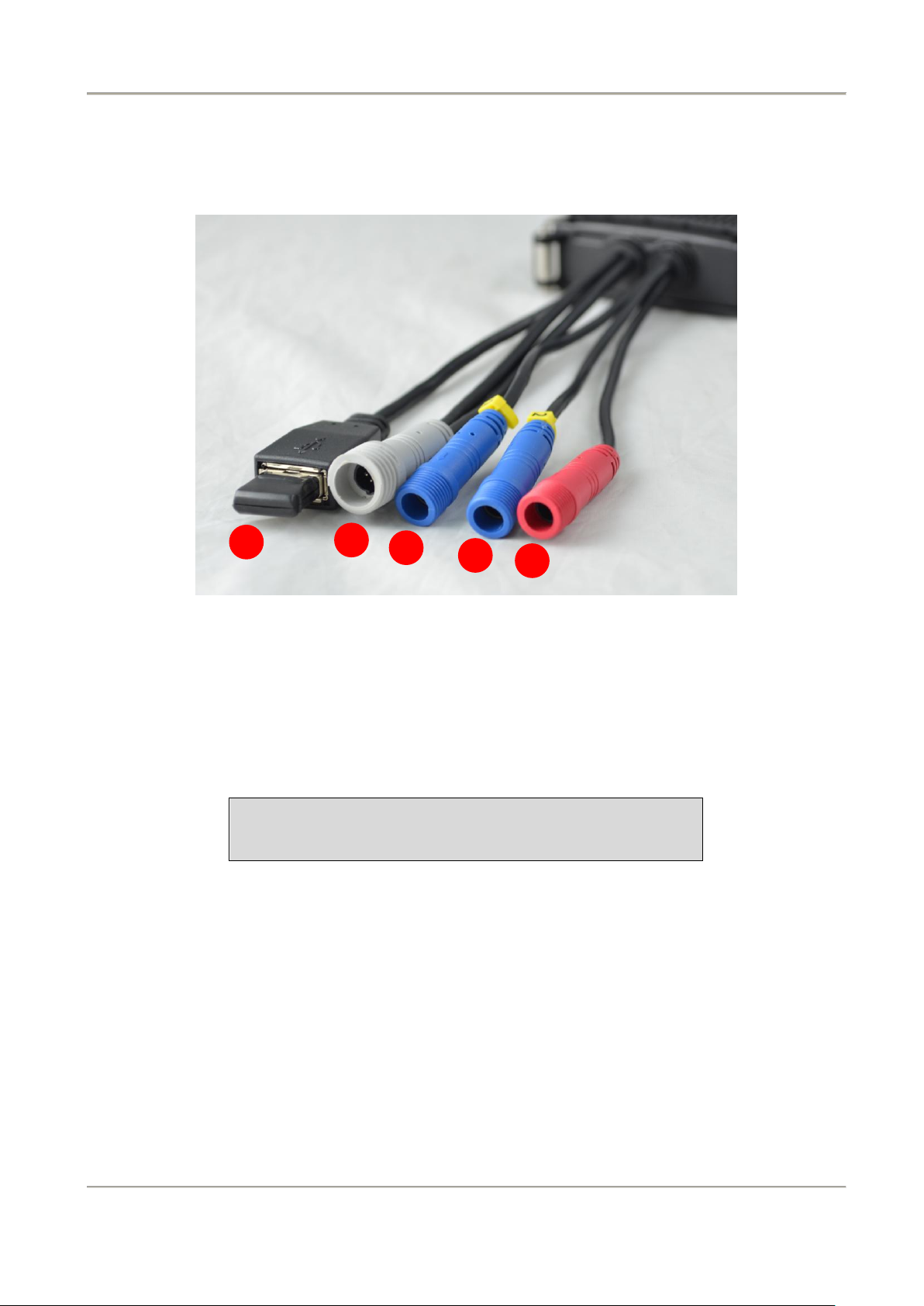

F. Cable Installation
DVR cables
(1) Power cable connector
(2) Camera 1 cable connector
(3) Camera 2 cable connector
(4) OBD cable connector
(5) WiFi dongle connector
10
Page 15
2 Channels Mobile DVR for Motorcycle
Operation Manual
a
b
Microphone receiver
Video recording
indicator
Wifi indicator
Power cables
(a) Ignition cable (Red): connecting to the switch
controller for power on/off from Positive Pole of
backup battery or connecting to motorcycle ACC.
(b) Ground cable(black): connecting with negative pole
OBD (optional) unit：mm
11
Page 16
2 Channels Mobile DVR for Motorcycle
Operation Manual
Attention
(a) For installation by none-technician, please use tapes instead of boring
tools to avoid damaging the electrical and gasoline system.
(b) Suggest to use soft tubes to cover the cables as to endures high heat
and extend reliability.
(c) For safety, switch off ignition before installation, and please keep
away from gasoline pipeline and tank.
(d) Do not use adapter card with Micro SD card. This is may lead to bad
G. Installation diagram

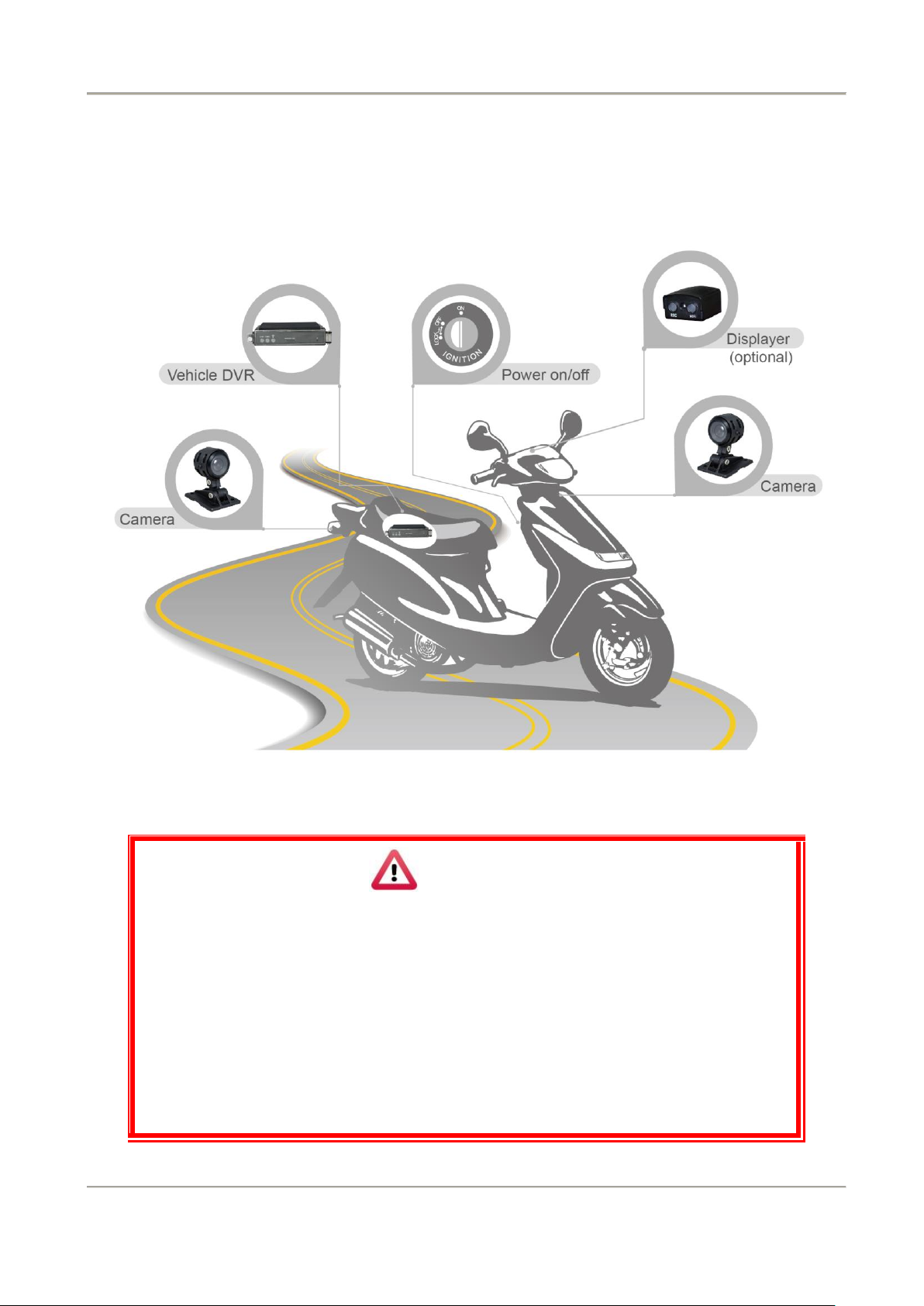

Installation on motorcycle ( For example)
12
Page 17
2 Channels Mobile DVR for Motorcycle
Operation Manual
connection due to shock and vibration.
(e) Before inserting wires through holes, temporarily wrap the terminal
with tape to prevent bad connection from accumulated dirt or debris.
(f) Tightly seal all electrical connection with tape to prevent loose
connection or leak leaking to the connection.
(g) Connect the power behind the key ignition and fuse (not directly to
the vehicle battery) to avoid depleting the battery.
(h) Suggest installing it in car storage trunk or unexposed areas to reduce
impact by forces, which may cause damages to the device and image
losses.
13
Page 18
2 Channels Mobile DVR for Motorcycle
Operation Manual
Attention
(a) It is recommended install the device inside the trunk, because
the host does not have waterproof cover. Install the waterproof
OBD at visible location (optional)
(b) Some vehicle is not certificated by electromagnetic interference,
may interfere the operation of DVR, causes unusual loss
connection error.
(c) Wash the connecter with alcohol if the connector has silt, dust,
Red cable： DC
cable
Black cable：
Ground cable
Method 1: Connect DVR
with battery, and then sets
ON/OFF switch. The DVR use
independent power supply.
Method 2: DVR connect with
motorcycle power supply
(ACC ON), the DVR will be
activated when motorcycle
engine is on.
DVR installation diagram
14
Page 19
2 Channels Mobile DVR for Motorcycle
Operation Manual
grease and so on. Prevent the recording error that cause by poor
signal.
(d) Memory card may have compatibility issue due to manufacture
process change or adjustment. This device does not guarantee
can compatibility with all current memory cards. Change memory
card mode if user meet the compatibility issue.
(e) The device has standby current power, to avoid draining the
battery, remove power connect if user does not use device for a
long time. Pay attention to adjust device time when user
reconnects device power.
(f) Before using the memory disk, please format the disk first by
using the software player. If not, device will automatically erase
all data in the memory disk before recording.
(g) Memory card has limit lifespan, please regularly watch videos on
PC and check the memory disk to ensure proper functioning.
(h) Collision and vibration may cause SD card defective and result
intermittent recording, please check data and backup file
periodically.
(i) When accident happen, please remove SD card and set it as write
protection condition, for avoid record being over writing or
tampering.
(j) For avoid power connect error, turn off device power before
install or remove camera
15
Page 20
2 Channels Mobile DVR for Motorcycle
Operation Manual
CAM1
CAM2
WiFi indicator
H. Boot/Recording
Boot/Recording
Device boots after power on and wait approx. 20-30 sec. Red light will
constantly bright after power on, and then system starts to record when REC
red light is flashing.
Indicator:
● CAM1 indication light: as red light, if light off, no cameras detected. If light in
flashing, it starts recording. In rapid flashing as triggered for recording instant
events.
● CAM2 indication light: as red light, if light off, no cameras detected. If light in
flashing, it starts recording. In rapid flashing as triggered for recording instant
events.
● WiFi indication light: as blue light. Light off as no WiFi dongle detected. Light
on as connecting to WiFi.
16
Page 21
2 Channels Mobile DVR for Motorcycle
Operation Manual
(optional)
Display signal indicator
● REC indicator: as Red light. Light off as 1 CH or 2 CH camera undetected. In
flashing as in recording. In rapid flashing, as events trigger recording.
● WiFi indicator: as blue light. Light off as WiFi dongle undetected. Light on as
connecting to WiFi.
Shut down/ stop
The DVR will keep recording 3 seconds after power off, at this point, system will
write the buffer back to SD card. In addition, after all light turn off, user can
remove SD card and get all video files from it.
17
Page 22
2 Channels Mobile DVR for Motorcycle
Operation Manual
1
4 3 7
6
10
8 9 2
5
I. PC Player
Run the player software by pressing , player o as following
◎* Notes:
(a) To do this, the software should be installed DirectX 9.0 or above.
(b) Support OS: WINDOWS 7,8,10, does not support MAC OS.
(c) The recommended hardware requirements: i3 above grade 2.7GHZ,
RAM: 4G or more, more preferably independent display card.

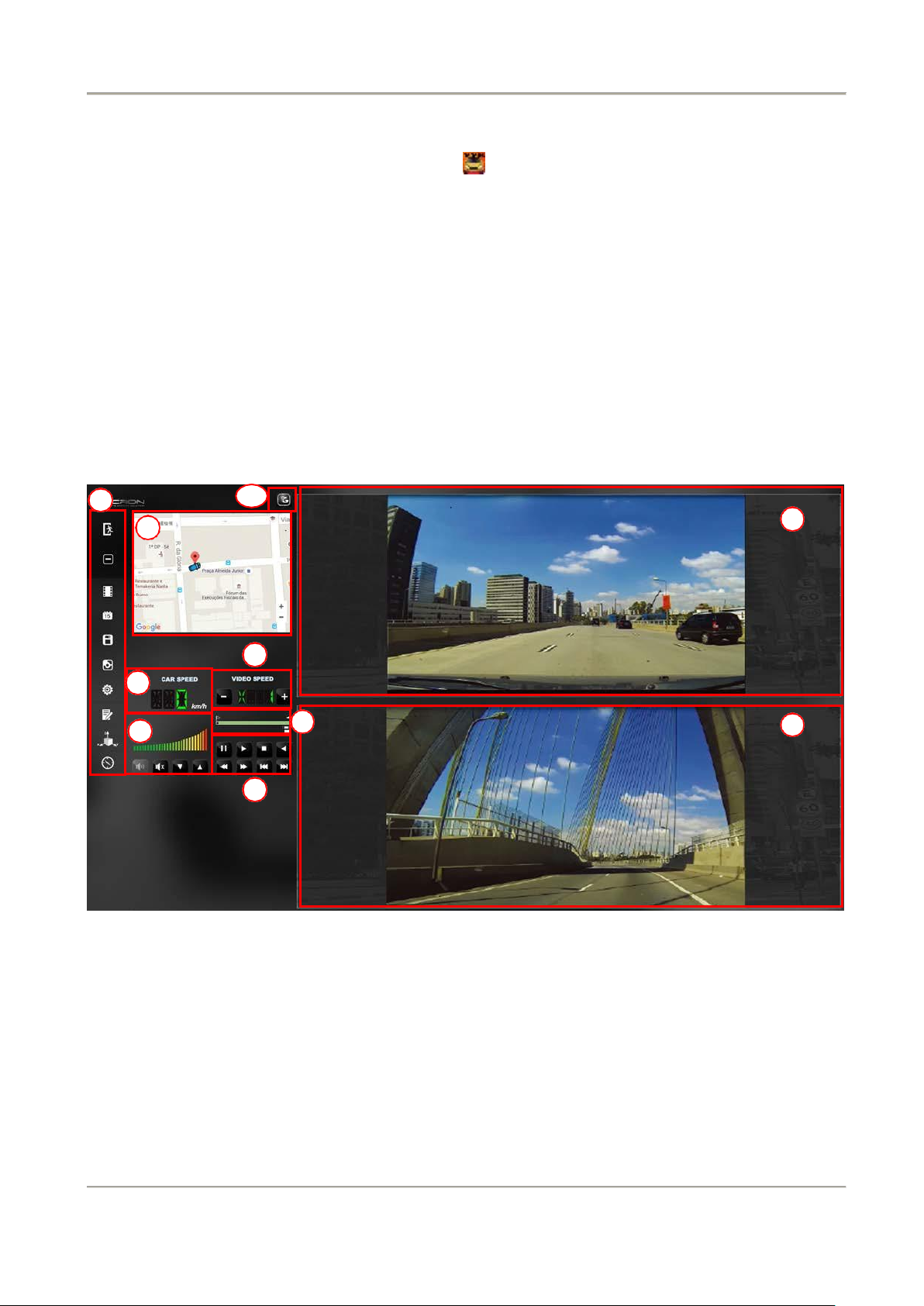

1. Viewer interface
18
Page 23
2 Channels Mobile DVR for Motorcycle
Operation Manual
1
CAM1
2
CAM2
3
MPH
4
Google Map / File list
5
Play controller
6
Function controller
7
Volume
8
Play speed
9
Time bar/ File mark
10
Available for Google map key
19
Page 24
2 Channels Mobile DVR for Motorcycle
Operation Manual
Close
Minimal window
Select and playback file
Calendar
Backup
Screen shot
Setting
Tool box, for format SD card, language
G-sensor
Compass
Previous file
Stop
Previous frame
Play
Backward
Next frame
Pause
Next file

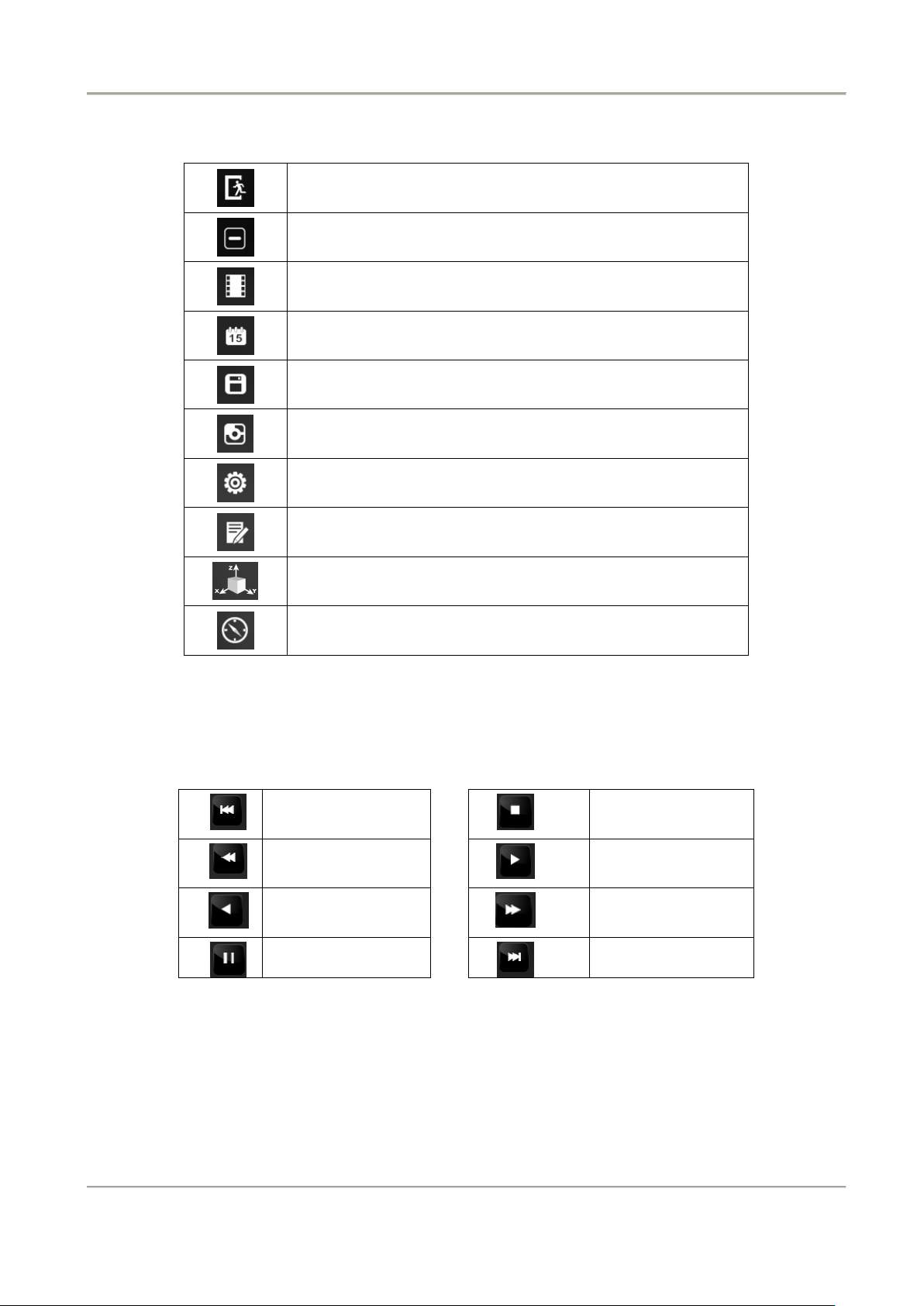

2. Function control interface
3. Play & Setting Icon Instruction
20
Page 25
2 Channels Mobile DVR for Motorcycle
Operation Manual
J. Data Backup
Save data from SD card to PC or other device.

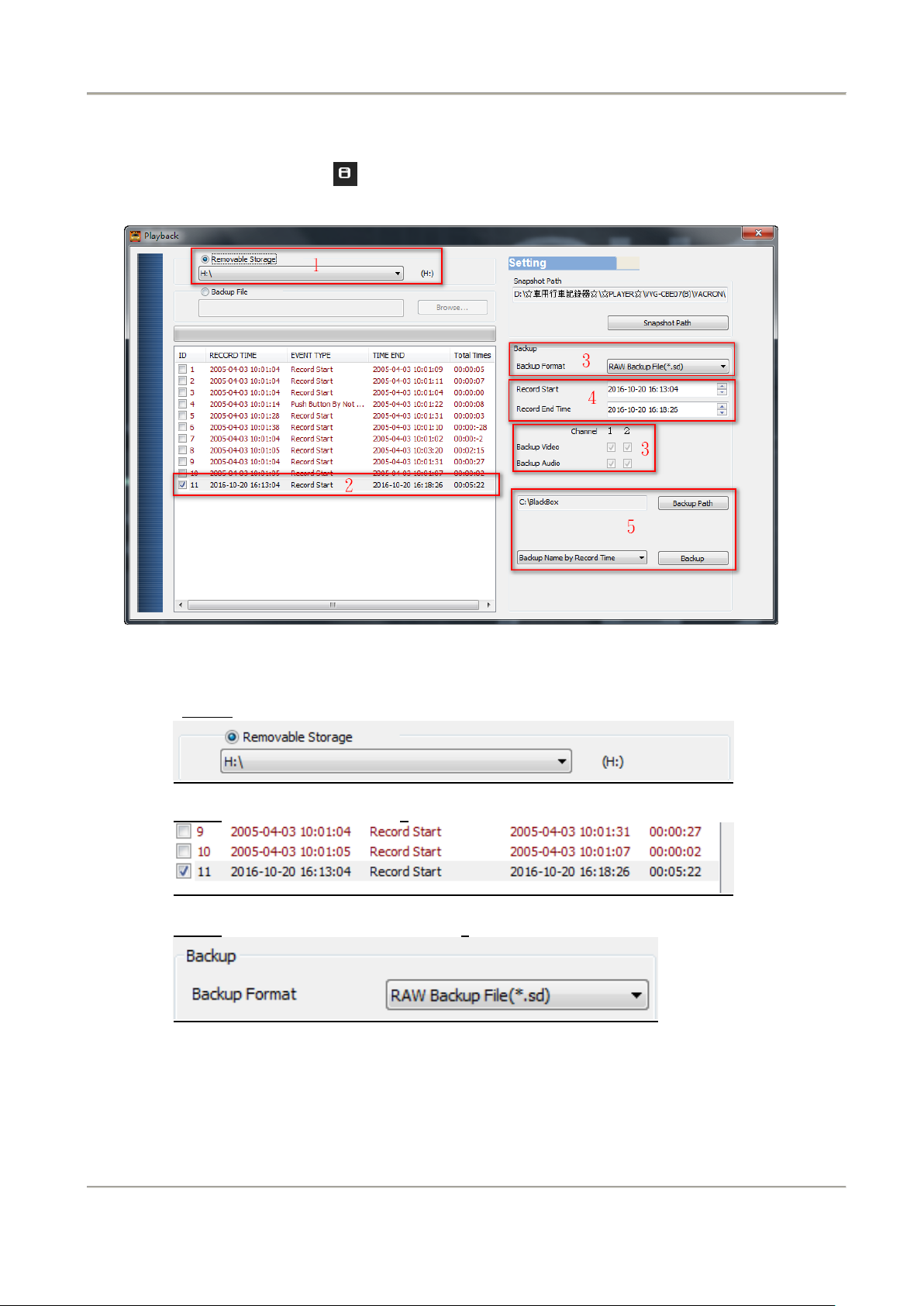

Use PC player and click to enter backup interface:

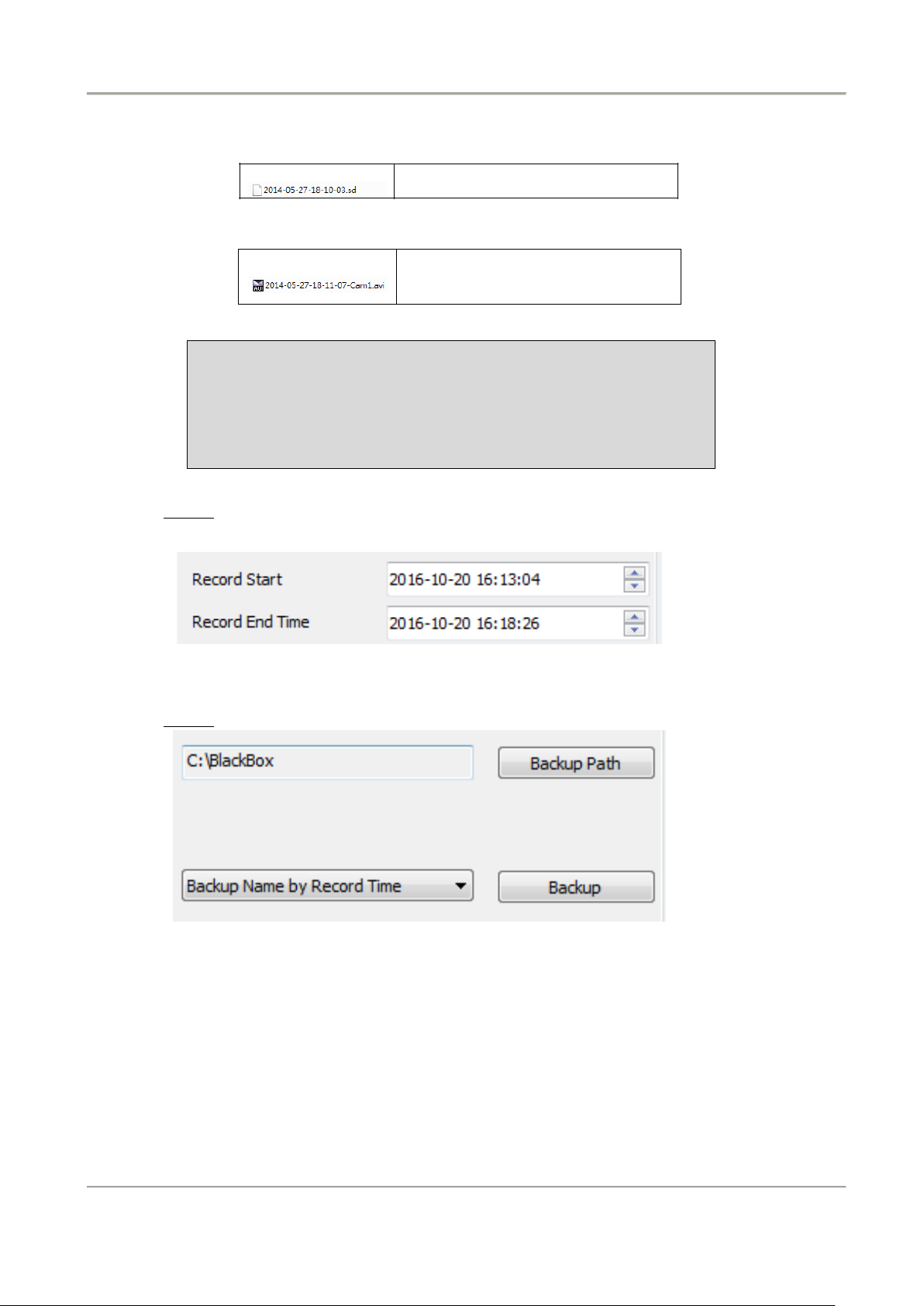

Step1. Choose SD card source:
Step2. Choose backup files
Step3. Choose backup data format
21
Page 26
2 Channels Mobile DVR for Motorcycle
Operation Manual
Cam1 and Cam 2, *.avi file
RAW file *.sd
Note: it is recommend backup to memory card in original
format, the format will be containing GPS latitude and
longitude, speed, recorded data such as G-SENSOR, if the
backup date in *.AVI
Data format：
(1) SD card original format (RAW)
(2) AVI Format (*.avi)
Step4. Select the backup beginning time point
Step5. Select the path and start to backup
22
Page 27
2 Channels Mobile DVR for Motorcycle
Operation Manual
1
Video
format
Select the video quality:
High/ Normal / Low
2
Vehicle
information
The license plate number
information can be
inputted here, the film is
easy to identify which
vehicle is to record video
record (only English letter
and number acceptable.)
(only English letter and
number acceptable.)
K. SD card
Before recording, insert SD Card into card reader, and then insert the card reader
to USB slot in PC, launch player and setting record format and displaying mode.
After setting successfully, remove and insert SD card back to DVR.
Click on the player to do the setting:

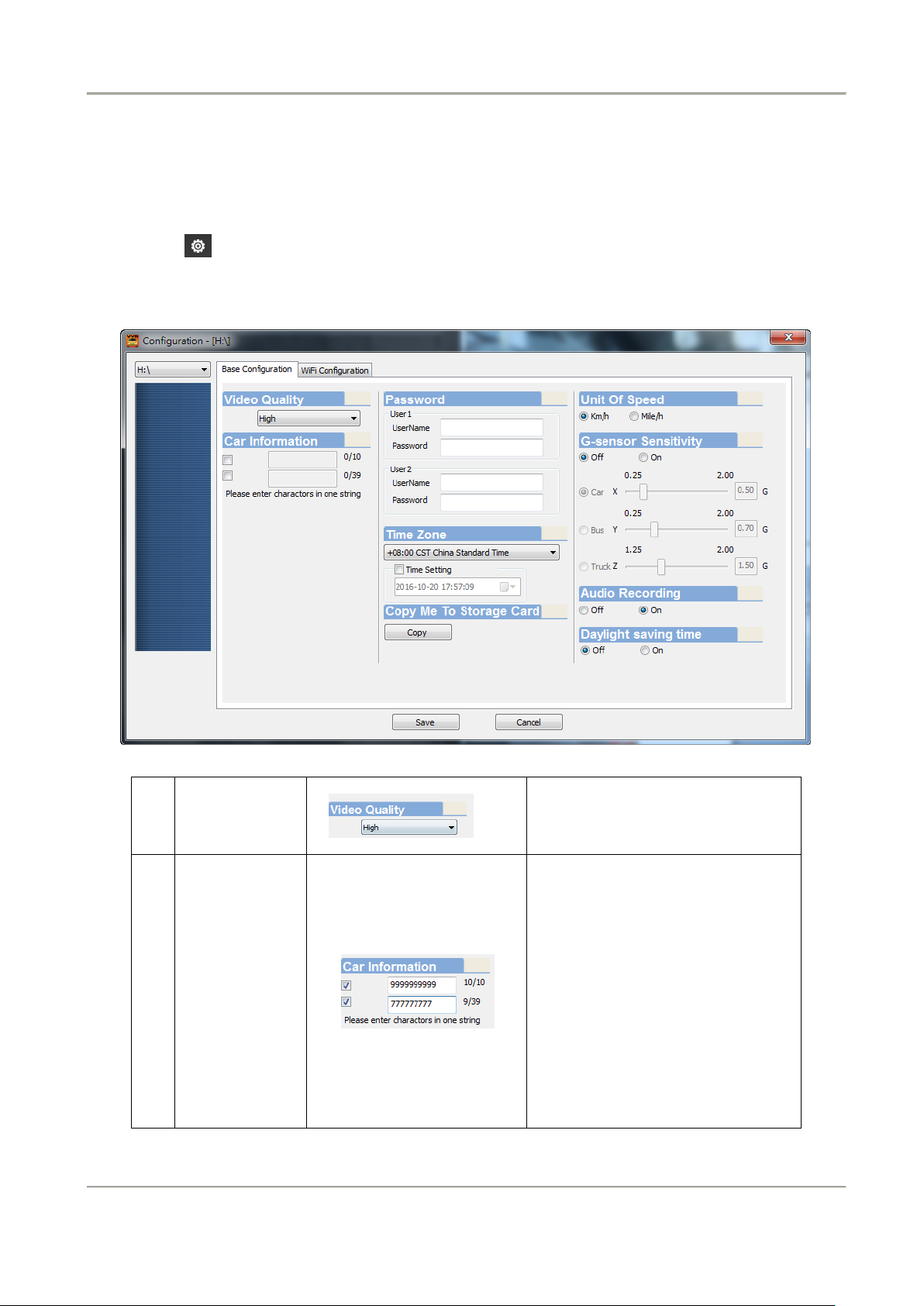

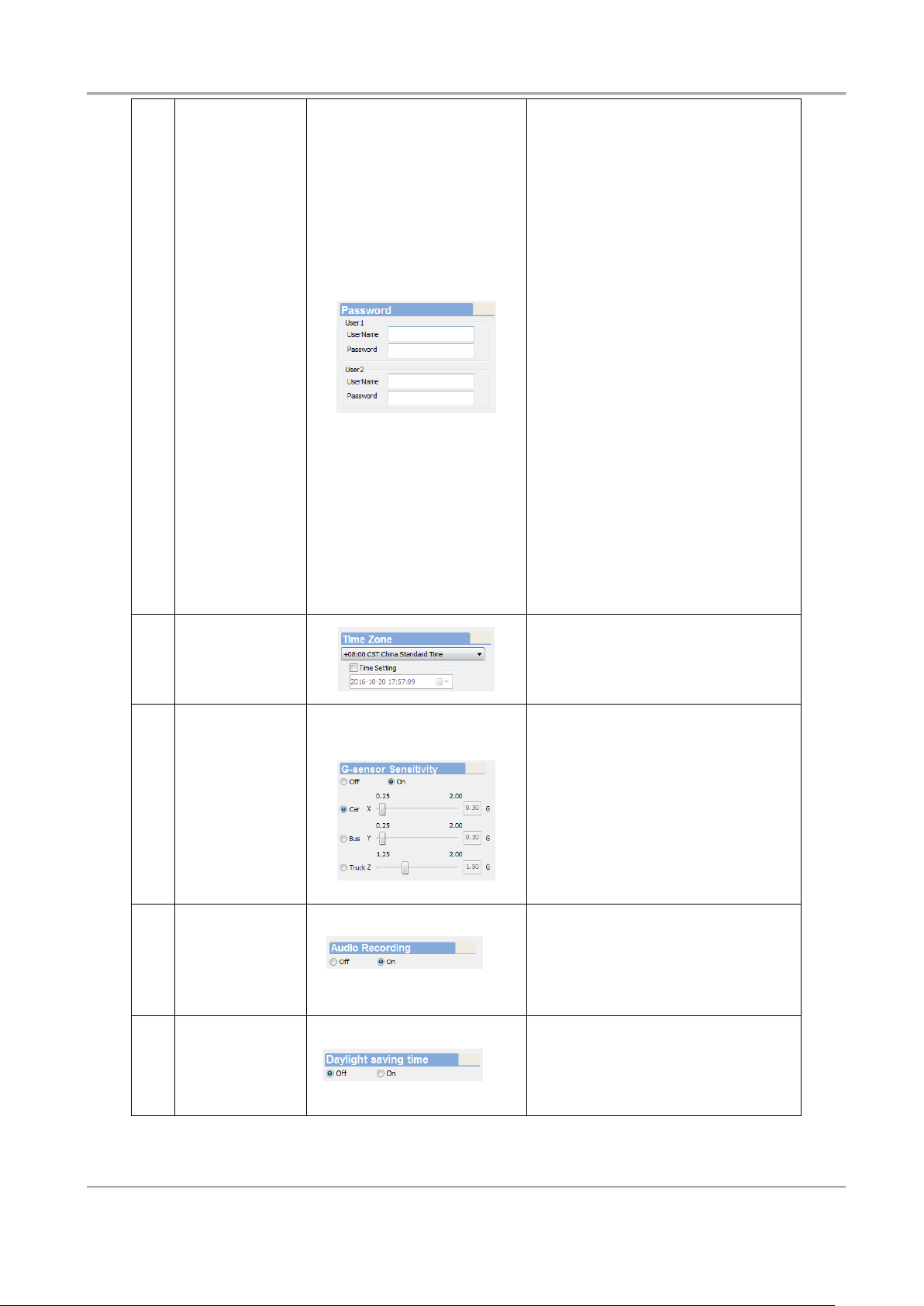

1. Base Configuration
23
Page 28
2 Channels Mobile DVR for Motorcycle
Operation Manual
3
Password
Encrypted memory card for
preventing other people get
any information from this
card. Set a password to 15
characters limited, for
example
123456789123456
After setting the password, it
is required to enter password
to access the playback file,
setting, formatting memory
card.
★ Note: Please confirm the
font case and record the
password to avoid password
forgetting.
4
Time zone
GMT (GPS automatic time
correction)
6
G-sensor
Sensitivity
Set for detecting the
strength of vehicle collision,
and condition to lead G-
sensor sensitivity trigger
and force recording.
7
Audio
Recording
Audio recording. On: start
audio recording / Off: stop
audio recording
8
Daylight
Saving
Time
Set the daylight saving
time：OFF/ON
24
Page 29
2 Channels Mobile DVR for Motorcycle
Operation Manual

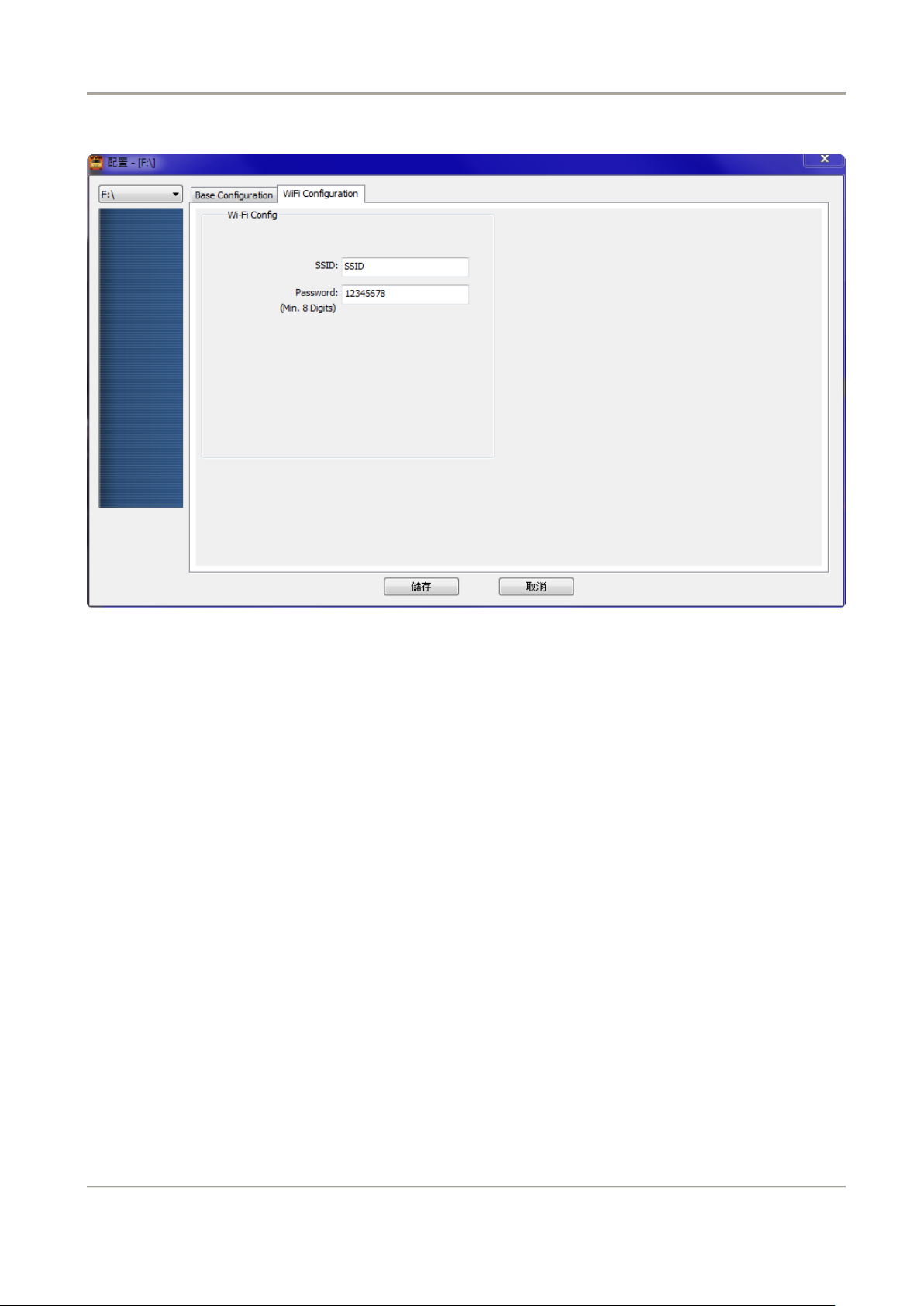

2. Base Configuration
(1) Set up SSID default password as SSID, 12345678
(2) Create new password, as least 8 digits.
25
Page 30
2 Channels Mobile DVR for Motorcycle
Operation Manual
L. Playback files

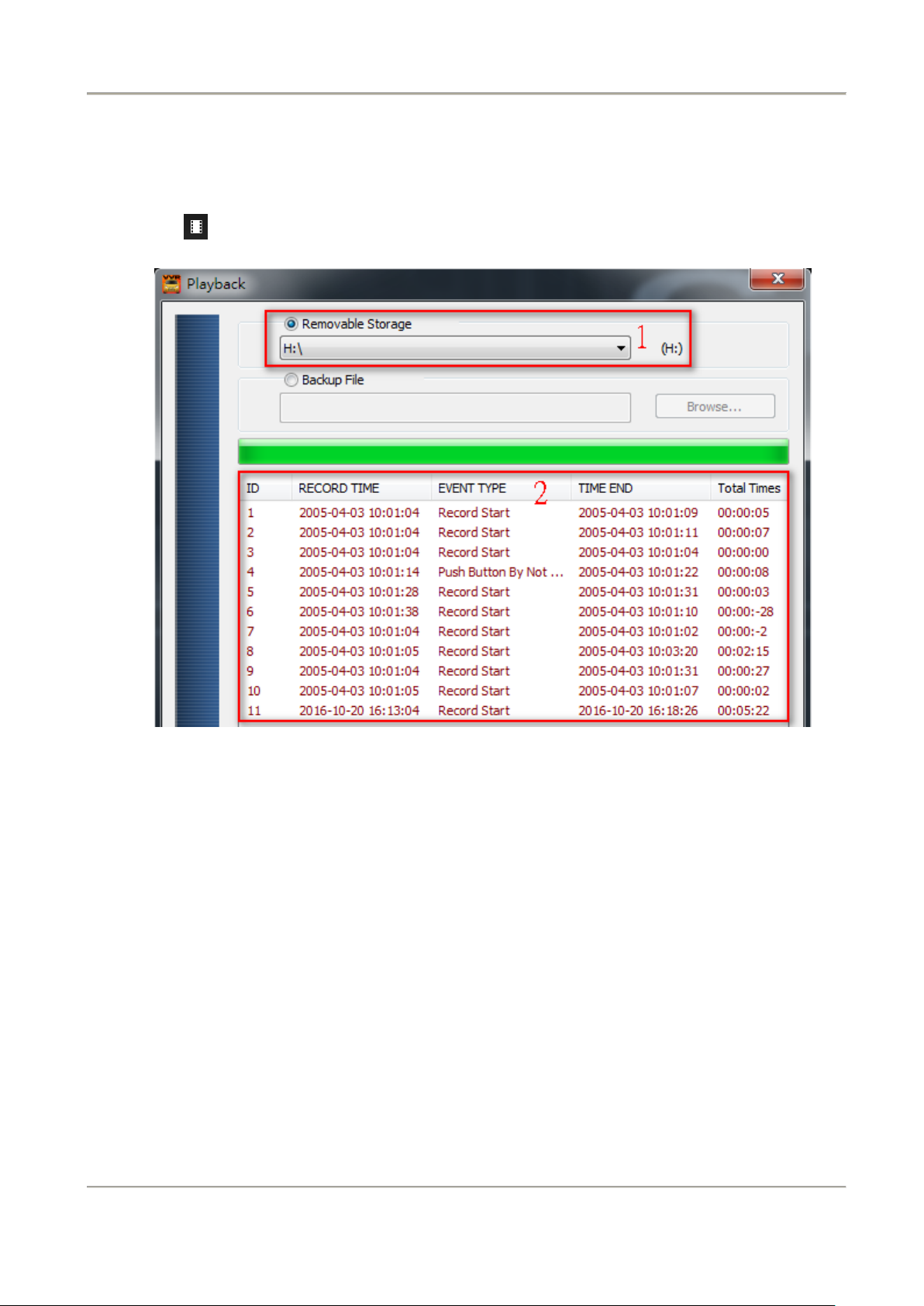

3. Playback on PC
Click to enter playback mode
(1). Select the path of the memory disk or a backup file on the hard disk.
(2). Double click on the desired footage to play the file.
26
Page 31
2 Channels Mobile DVR for Motorcycle
Operation Manual
M. Screenshot tool

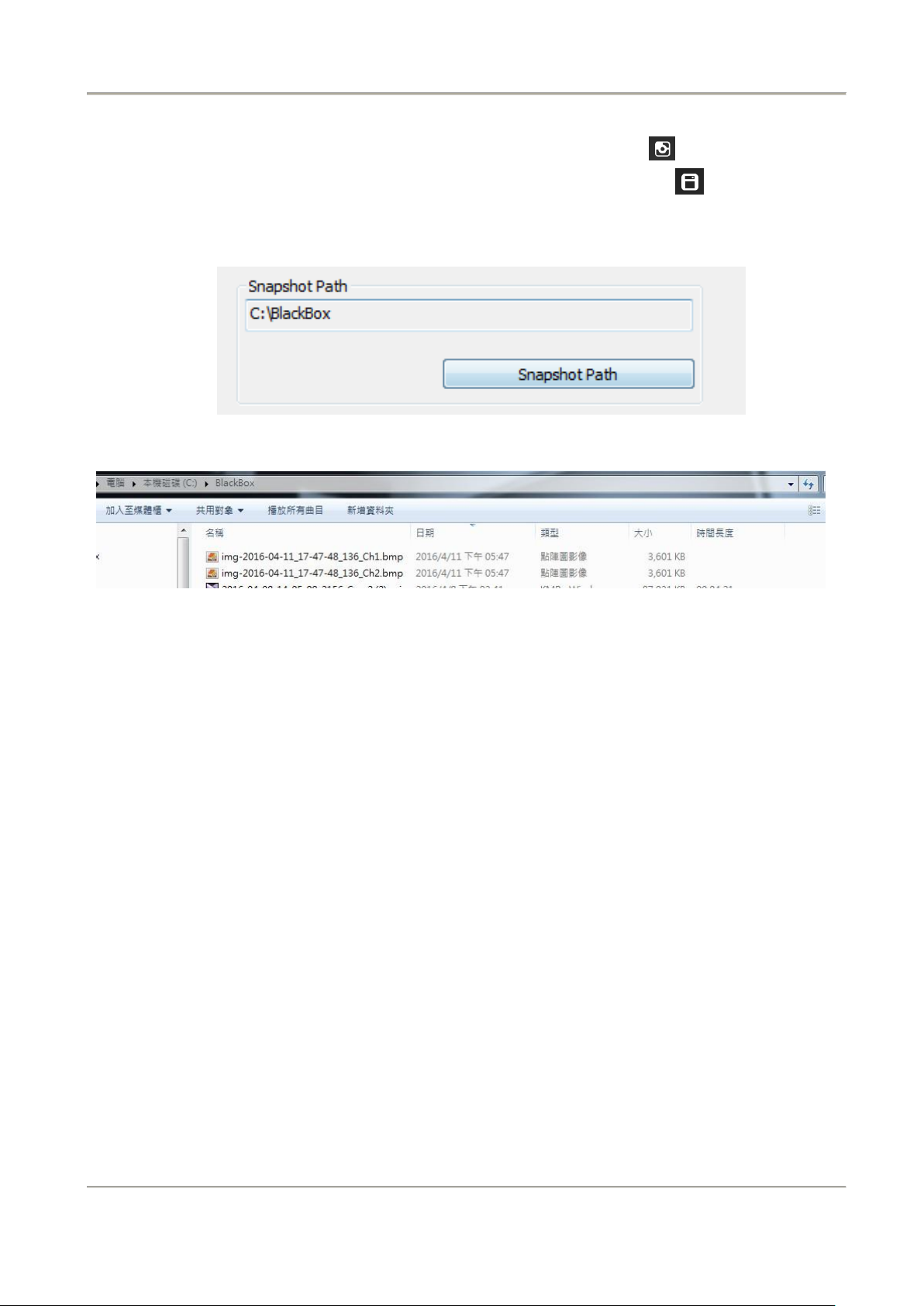

User can take a screenshot of the current frame by pressing
Screenshot image will be saved at C: /Black Box, user can enter to set image
path. Data format is *.bmp
27
Page 32
2 Channels Mobile DVR for Motorcycle
Operation Manual

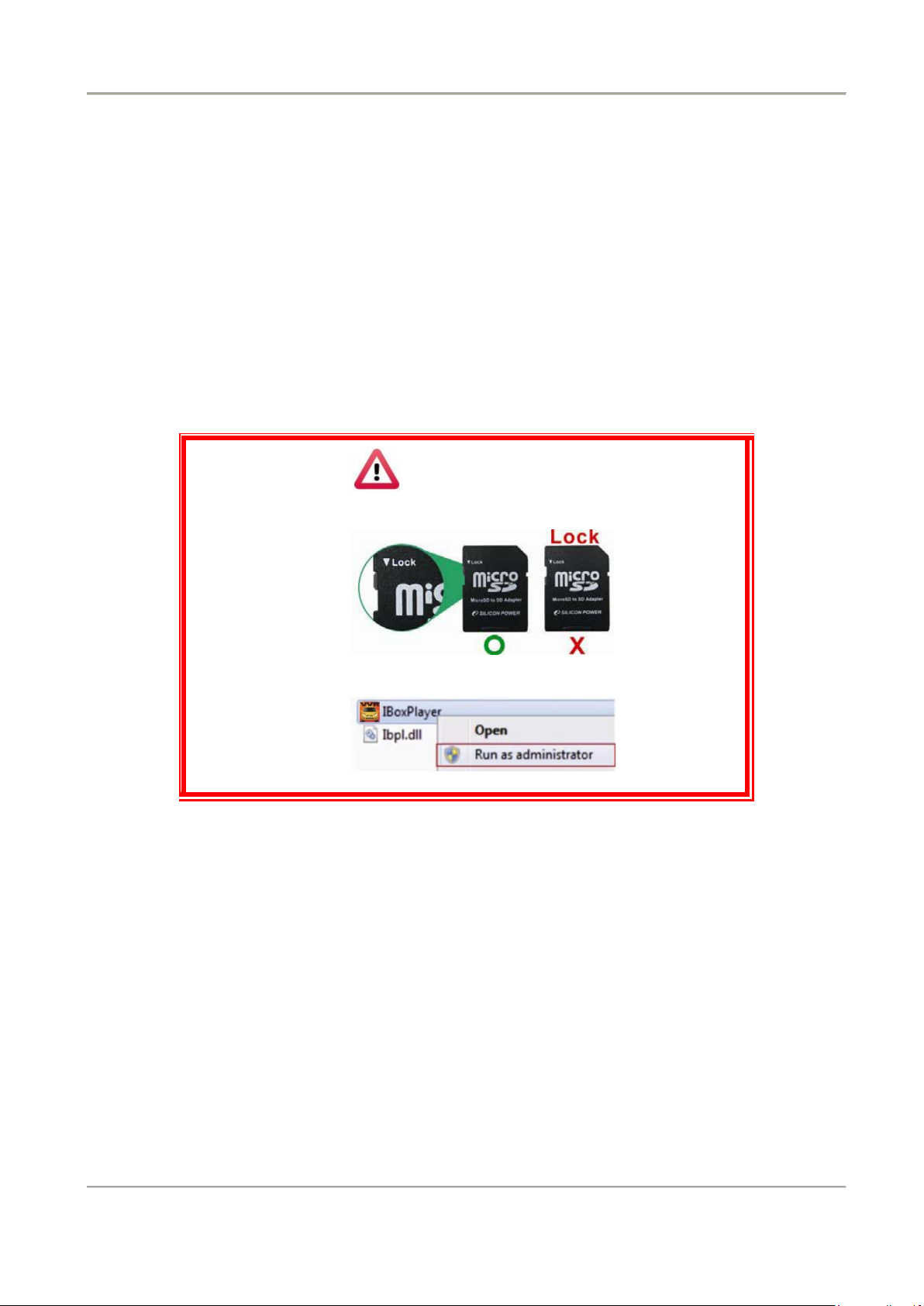

Attention
(1). Unlock SD card before formatting。
(2). Please use “RUN AS ADMINISTRATOR” to format SD
card.
N. Format / Restore SD card
Q1. When do user need to format SD card？
When user uses brand new SD card, please format it before use.
★Note: This recording system cannot delete some specific video file, please
backup video files that you need first before formatting.
Q2. When does user have to restore SD card？
If you want to repurpose the memory disk for other uses (e.g. for computer or
digital camera), you need to restore the disk first. All recorded data will be erased
from the disk.
28
Page 33
2 Channels Mobile DVR for Motorcycle
Operation Manual
a. select the SD Card
b. format sd card
c. restore the
card

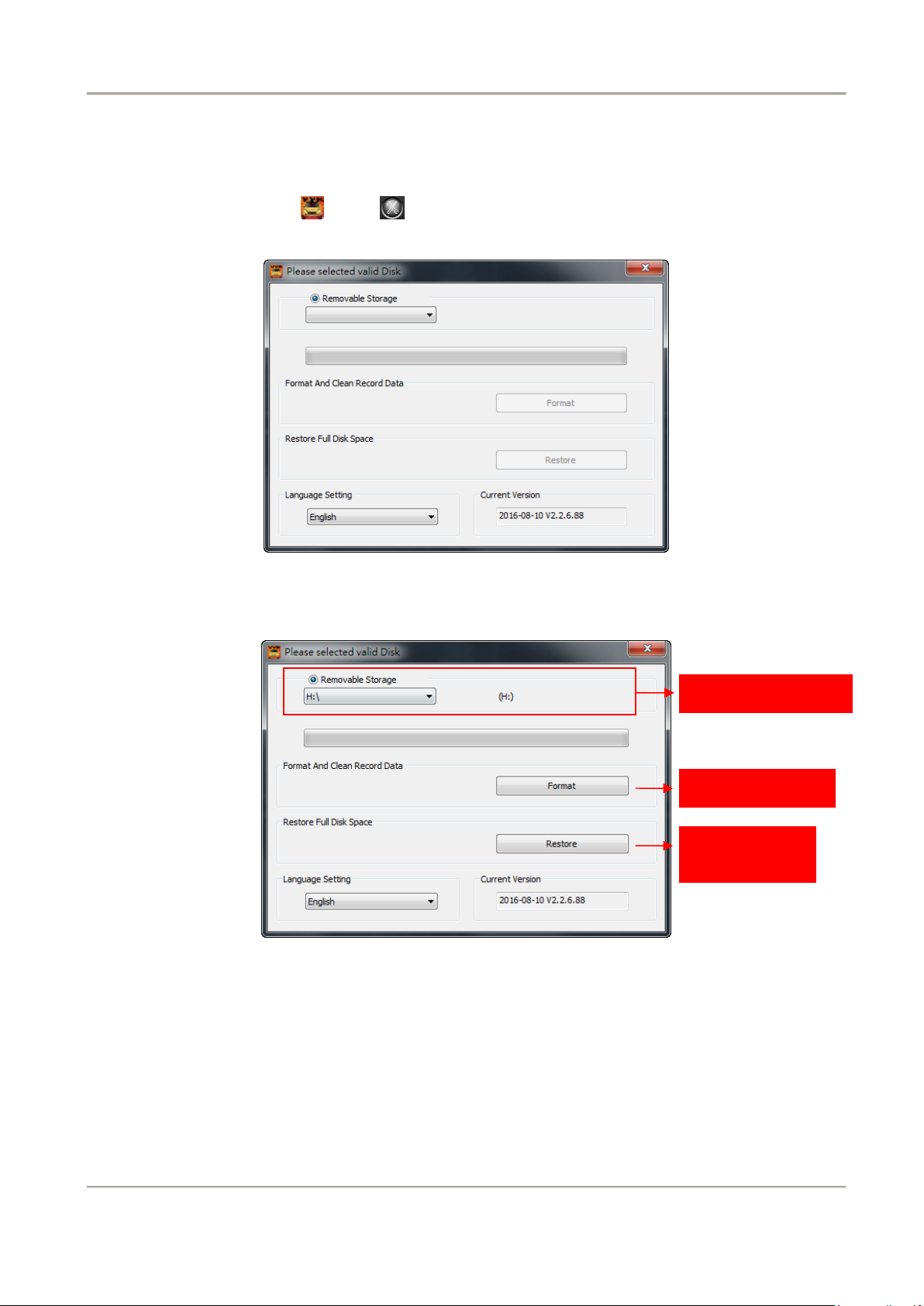

Q3. How to format/restore SD cards?
(1). Put the SD card into a card reader, and then plug the card reader into your
computer USB slot.
(2). Play software , click to enter formatting tool.
(3). Select memory card position and choose format or restore SD card as
user’s requirement.
(4). After SD card be formatted or restored, it can be used as user’s
requirement.
29
Page 34
2 Channels Mobile DVR for Motorcycle
Operation Manual
O. WiFi connection
(a)、QR Code download︰
VACRON MOTO FOR IOS VACRON MOTO FOR ANDROID
(b)、Android:
1. Visit Google play store, search for ” VACRON MOTO ”and download
2. WLAN connection, type in「DIRECT-SSID-XXXXXX」 as user ID, password as
「12345678」.

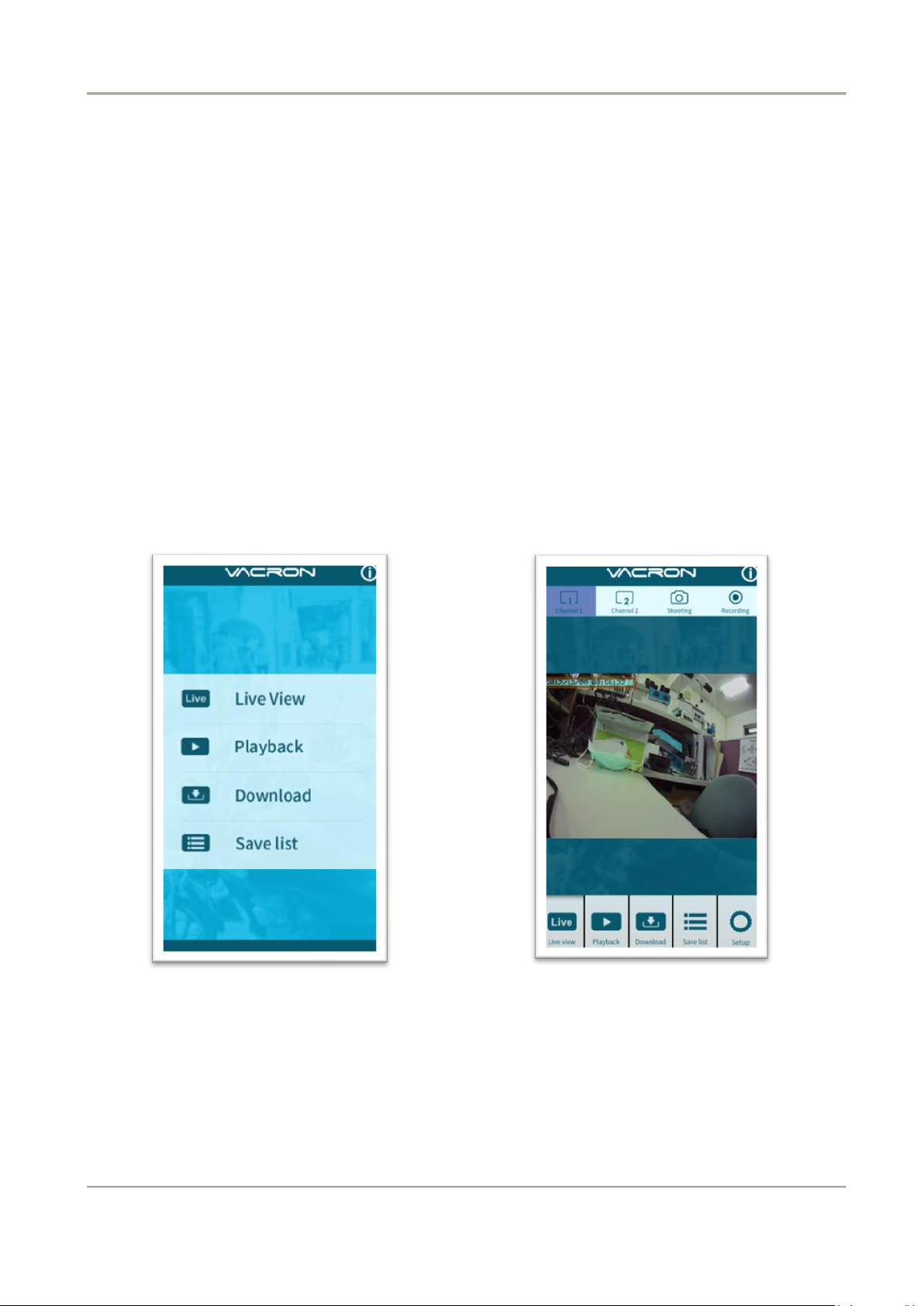

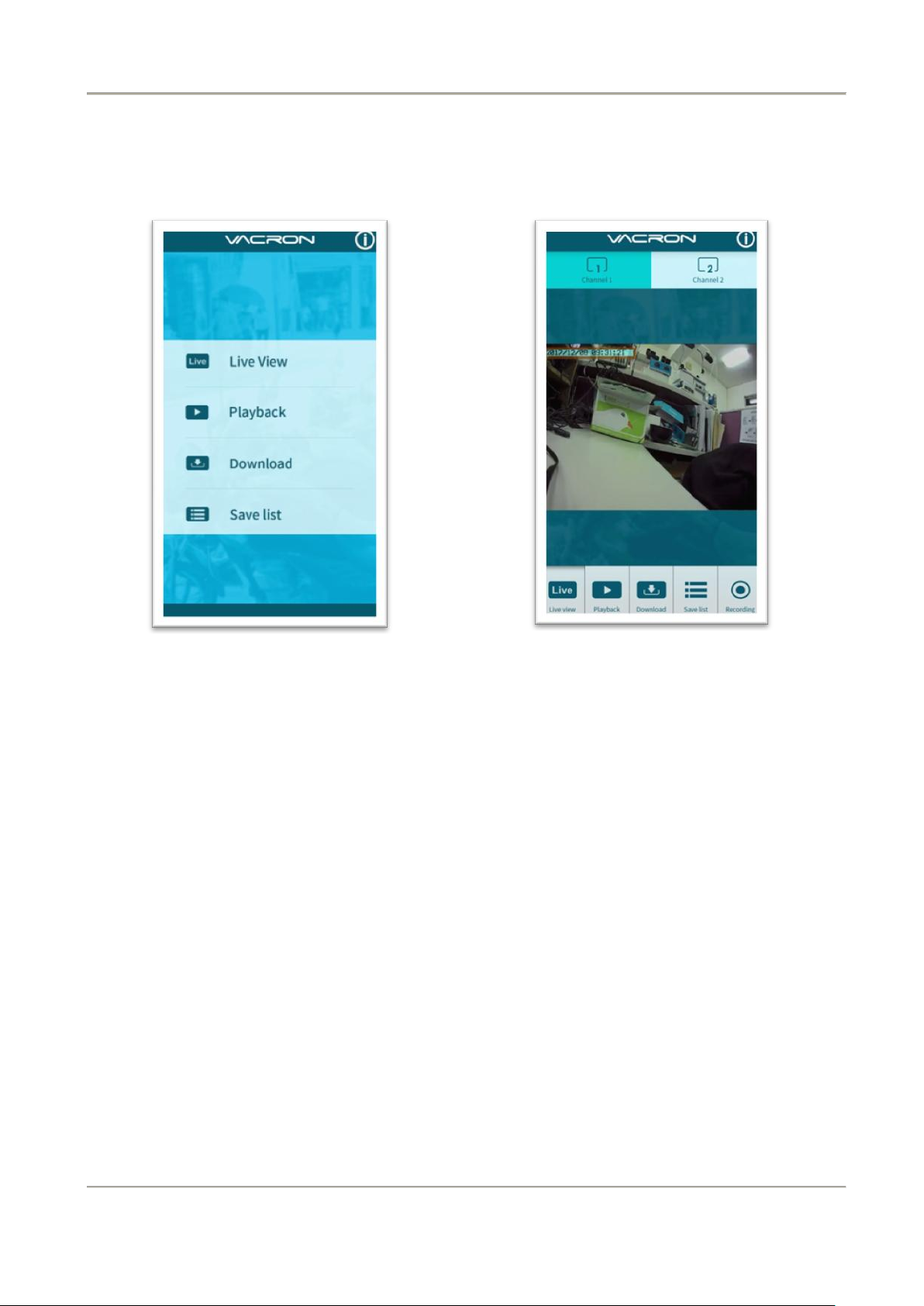

3. Open “VACRON MOTO”, watch real time video record by selecting real
time video

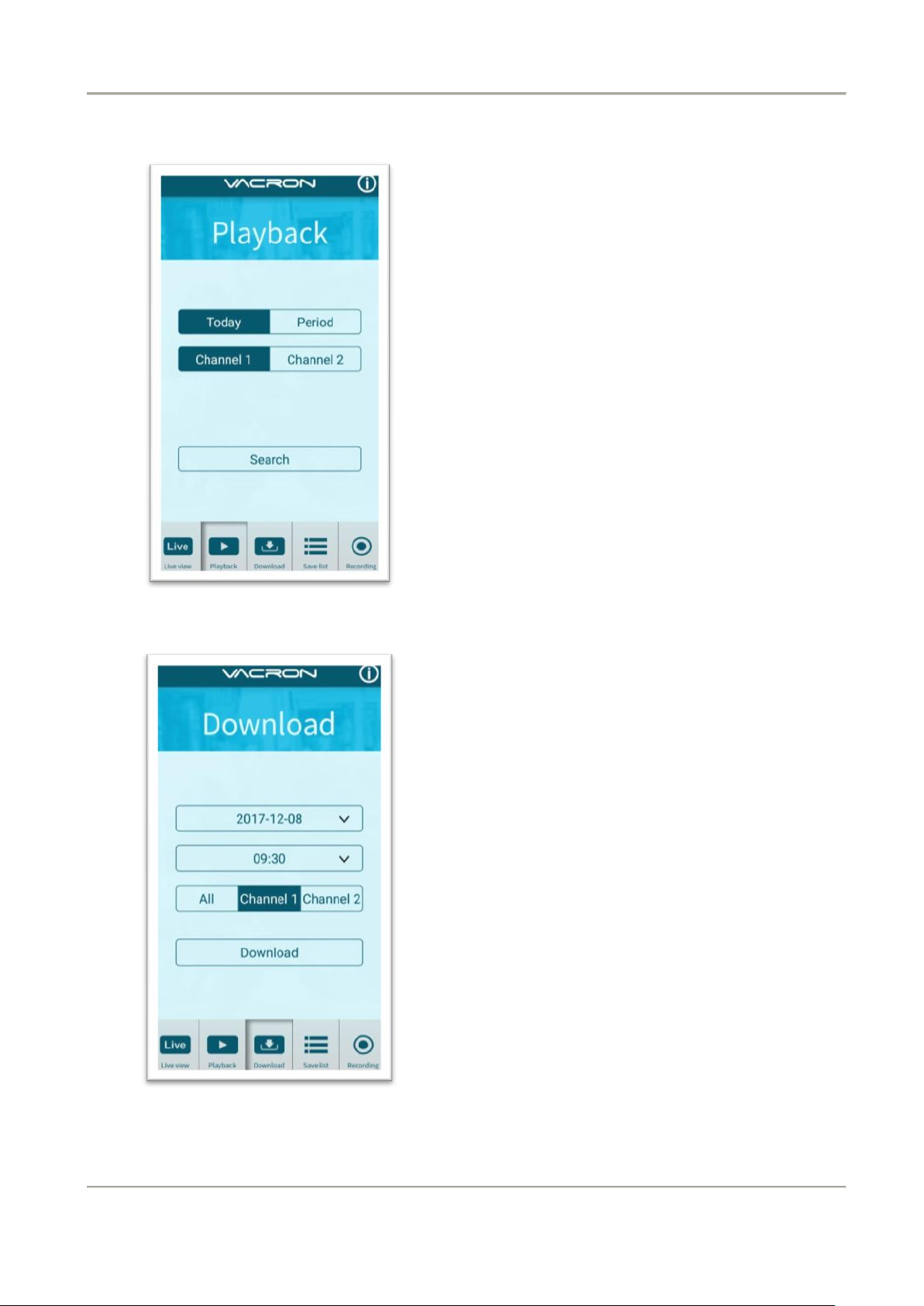

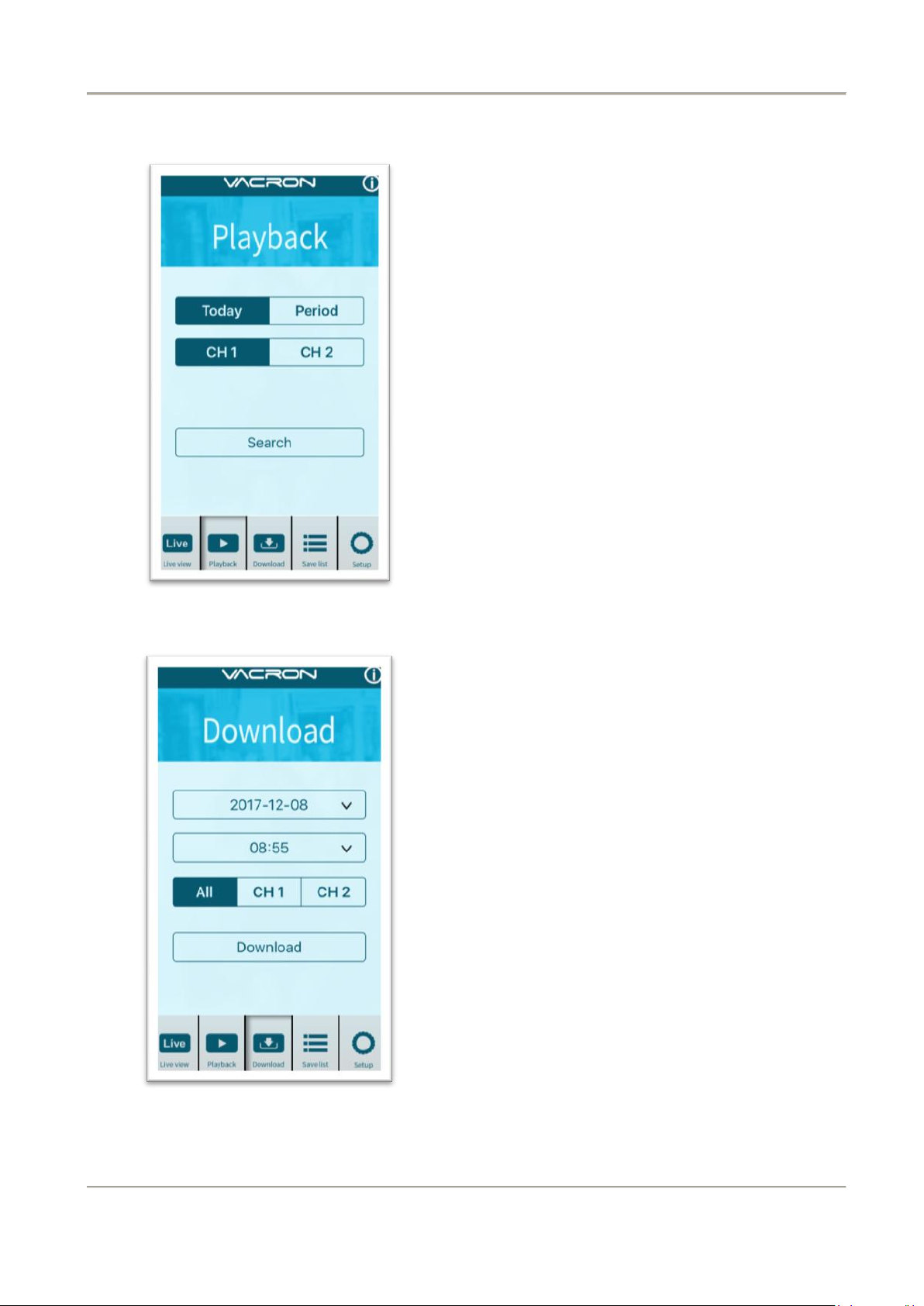

4. Select「Playback」: Capable play all video files that storages in SD card.
5. Select「Download Video files」 , capable download video by date, time and
channel for 1 minute.
6. Click "Save Record": Capable watch all records, Instant Record, Playback
Record, and Downloaded Record.
30
Page 35
2 Channels Mobile DVR for Motorcycle
Operation Manual
APP main menu
Real time image
7. Click " Video fragment ": watch the video fragment during play real time and
playback video
31
Page 36
2 Channels Mobile DVR for Motorcycle
Operation Manual
Playback
Playback:
1. Today: choose channel 1 or channel 2,
and then press Search button, it will show
all video files that record in today.
Select and playback any video record as
your request.
2. Custom : Choose channel1 or channel2,
at meanwhile, setting date and time
period, press search, it will show all video
records that record during this range,
select and playback any video record as
your request.
File download
File Download
1. Select date, time point, and
channel to download video file
(choose suitable channel for
different device, it cannot
download file when you choose
incorrect channel for your device.)
2. Press download to download video
file, the complete download time
length depends on file size.
Normally, is takes approx.1 to 2
minutes, the download format as
MP4.
32
Page 37
2 Channels Mobile DVR for Motorcycle
Operation Manual
Save list
Video fragment
Save list
1. All records: press and playback all
downloaded records, which include
video clip of real time video, playback
video, download image.
2. Real time: video fragment of real time
video record, the file name ending
with “L”.
3. Playback: video fragment of playback
video record, file name ending
with”PB”.
4. Download: file name ending
with ”D”
Video fragment:
1. Press “Video fragment” during play
real time video, the system will save a
video fragment as MP4 format.
2. Press “Video fragment” during play
back video records, the system will
save a video fragment as MP4 format.
33
Page 38
2 Channels Mobile DVR for Motorcycle
Operation Manual

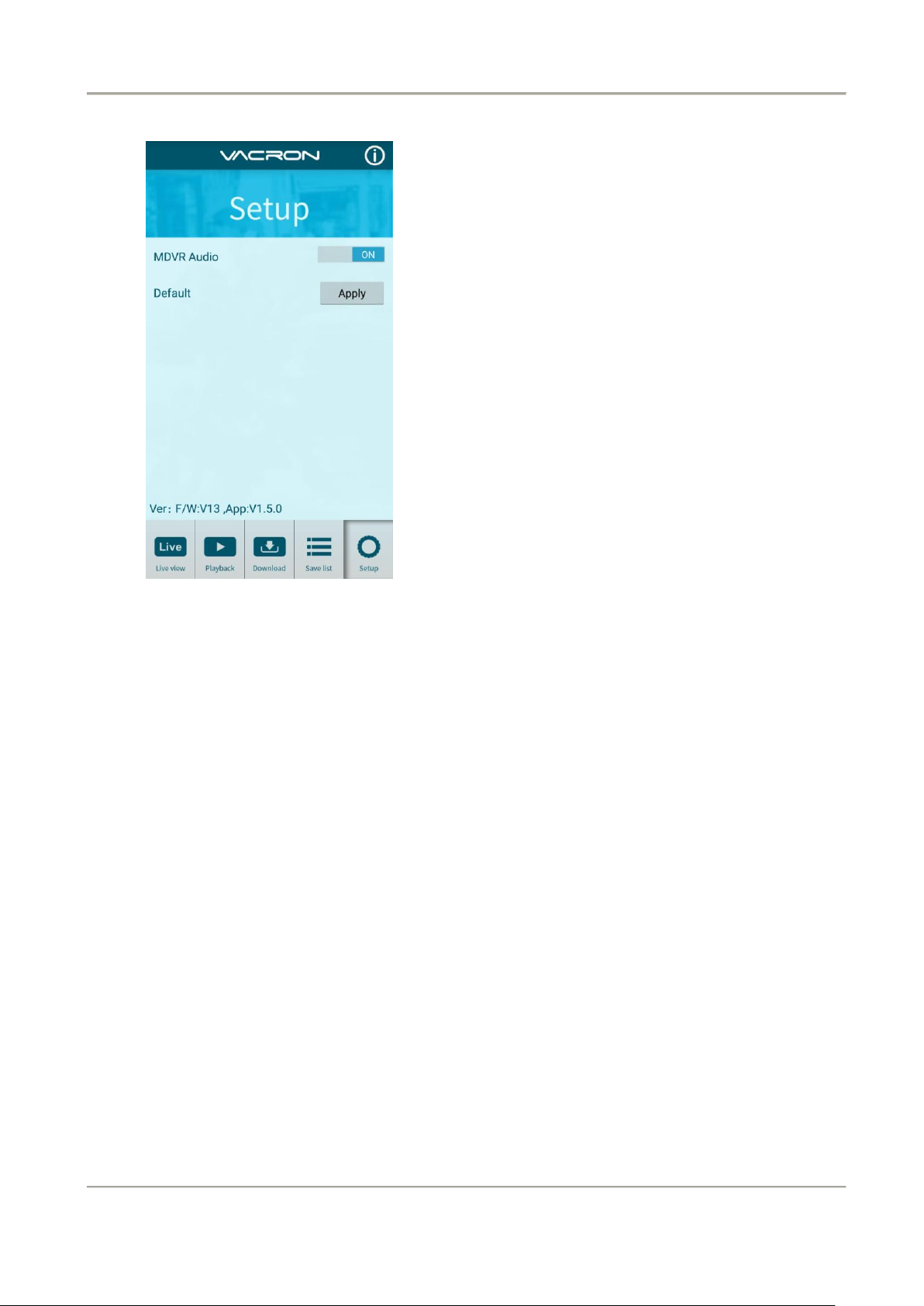

Setting
Setting:
1. Select microphone On/Off.( Require
use with OBD)
2. Reset to default: After initiate
resetting, the device will restore to the
factory default setting, reboot itself
and begin to record.
Version︰
1. F/W: Display the device current
version
2. App: Display APP current version
34
Page 39
2 Channels Mobile DVR for Motorcycle
Operation Manual
APP main menu
Real time image
(c)、IOS
1. Search and download “VACRON MOTO” in Apple store.
2. WLAN connection, type in「DIRECT-SSID-XXXXXX」as user ID, password as
「12345678」.
3. Open “VACRON MOTO”, watch real time video record by selecting real time video
4. Select「Playback」: Capable play all video files that storage in SD card.
5. Select「Download Video files」 , capable download video by date, time and channel for
1 minute.
6. Click "Save Record": Capable watch all records, Instant Record, Playback Record,
and Downloaded Record.
7. Select「Setting」: Capable turn On/Off microphone.
8. Select「Snapshot」: Capable take snapshot.
35
Page 40
2 Channels Mobile DVR for Motorcycle
Operation Manual
Playback
Playback:
1. Today: choose channel 1 or channel 2,
and then press Search button, it will
show all video files that record in today.
Select and playback any video record as
your request.
2. Custom : Choose channel1 or channel2,
at meanwhile, setting date and time
period, press search, it will show all video
record that record during this range,
select and playback any video record as
your request.
File download
File Download
1. Select date, time point, and channel
to download video file (choose
suitable channel for different device,
it cannot download file when you
choose incorrect channel for your
device.)
2. Press download to download video
file, the complete download time
length depends on file size. Normally,
is takes approx.1 to 2 minutes, the
download format as MP4.
36
Page 41
2 Channels Mobile DVR for Motorcycle
Operation Manual
Save list
Setting
Save list
1. All records: press and playback all
downloaded records, which include
video clip of real time video, playback
video, download image.
2. Real time: video fragment of real time
video record, the file name ending
with “L”.
3. Playback: video fragment of playback
video record, file name ending
with”PB”.
4. Download: file name ending
with ”D”
Setting:
1. Select microphone On/Off.( Require
use with OBD)
2. Reset to default: After initiate
resetting, the device will restore to the
factory default setting, reboot itself
and begin to record.
Version︰
1. F/W: Display the device current
version
2. App: Display APP current version
37
Page 42
2 Channels Mobile DVR for Motorcycle
Operation Manual
Attention
1. Live image may be delay caused by wireless signal connection error.
2. Remote control only use for records that storage in device, record
cannot be searched when the SD card had been overwritten.
3. Remember to close the WiFi connect with device after operation
4. It is recommended to check regularly with the use of the Laptop
player to play the video. Make sure the video system maintain
normal operations if OBD is not installed.
38
Page 43
Please go on Vacron website for more information
http://www.vacron.com
Made in Taiwan
Loading...
