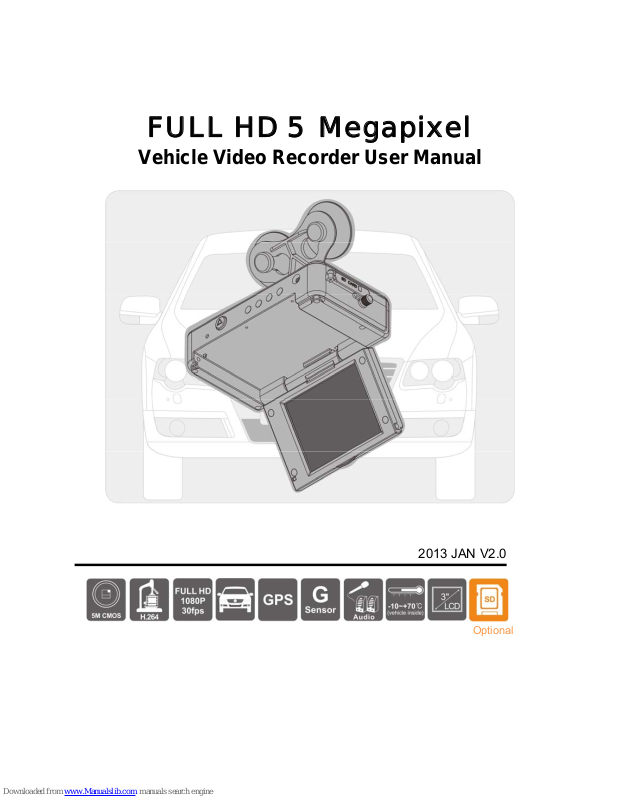

i
FULL HD 5
Megapixel
Vehicle Video Recorder User Manual
2013 JAN V2.0
Optional
i
Index
A. Feature Description ......................................................................... 1
B.
Schematic Diagram Of The Installation Steps ................................. 2
C.
Specification .................................................................................... 3
D. Product Appearance ........................................................................ 4
E. Recording And Stop Recording ....................................................... 5
F. Remote Controller Description ........................................................ 6
G. Main Menu Operating Description ................................................... 7
Main menu table switch ....................................................................... 7
Camcorder mode setting ................................................................... 15
Camera mode setting ........................................................................ 18
H. Play the recorded file ..................................................................... 22
Camcorder mode ............................................................................... 22
Camera mode .................................................................................... 24
H. Software Operating Instruction ...................................................... 27
I. Formatting Memory Card ................................................................ 33
1
A. Feature Description
˙ Built-in Full HD 5M CMOS Sensor. View angle approx. 105 degrees.
˙ Easy installation. Suitable for all types of vehicles.
˙ Equiped with 3 inch TFT LCD screen provides a platform for
composing and playing back your footage, while the fixed focus lens
keeps things simple.
˙ Built-in accelerometer, the system automatically determine the level
of the screen visualization, and make the screen self-rotated
to normal position
˙ Advanced H.264 compression technology for longer recording of
higher quality video.
˙
When the screen turn to abnormal position, the system automatically
determine the level of the screen visualization, and make the screen
self-rotated to 180 degree.
˙ Using SDHC memory card, support up to 32GB.
˙ G-sensor, GPS and Image data will be recorded simultaneously.
˙ G-sensor sensitivity can be adjusted according to vehicles and road
situations. When detect a strong shock, system will start emergency
recording and keep the files without being overwritten.
˙ Embedded GPS module, Google map is available for viewing the
recorded file and let user to view the routes.
˙ The most user-friendly player software, easy to operating.
˙ Built-in two way High Sensitivity automatic gain control Microphone.
˙ With full time/date record, can be displayed in screen directly.
˙ Provides completely Even log table, easy to search recorded files.
˙ Provides a variety of recording video formats and number of frames
to selected.
2
B.
Schematic Diagram Of The Installation Steps
Two types of brackets installation for selection，Suction-cups type and
Stick-holder type.
A
. Suction-cups type
Make the bracket facing upward, assemble the suction cups, setup the machine in
proper position, adjust the viewing angle.
B. Stick-holder type
Remove 3M sticker
and adjust the best
position properly.
Take machine bracket slides into the latch
and lock.
Plug in the cigarette
adapter.
The other side of
cable connect to DC
5V port
Green indicator:
Power on.
Blue indicator:
GPS positioning
ready.
Installation
complete
3
C.
Specification
Items Description
Chipset Ambarella H.264 image compression chip
Sensor Device Full HD 5M CMOS Sensor
View Angle View angle approx. 105 degrees.
Volta ge
Start at 5V±5% ; 650mA,
Remark: Please use 5V±5%, 1A Cigarette lighter adapter. The machine
needs 4.8v to start.
Operating
Temperature
-10℃~ +70℃ (Inside vehicle)
Storage Device
For the performance issue, use SanDisk SDHC card Class 6 or above
read/write speed 15MB/s recommend. (min capacity 4G, Max 32G)
Recording Frame And
Content
1920x1080 (Full HD1080P/ 30F) 1280x720 (HD720P/ 30F).
Auto record when power up system.
Recording frame: 30fps(NTSC/PAL) only select one.
Recording Content Date, time, image, sound, G-Sensor data, GPS data.
Recording Format Specific format for player software.
Microphone Built-in Dual High Sensitivity Microphone.
Input Device
Emergency recording button、Remote controller.
Out Device
(a) TV-Out (1 Vp-p composite video output, 75 ohms), Two kind of
system: NTSC/PAL
(b) Red light: Recording
(c) Green light: Power
(d) Yellow light: Manual taking photo
(e) Blue light: GPS 3D positioning
(f) Mini USB for PC connection
(g) Built-in accelerometer, the system automatically determine the level
of the screen visualization, and make the screen self-rotated to
normal position.
Time Setup
Auto-calibrating by GPS signals. If GPS is not available, the built-in
clock will be used.
G-Sensor Built in Internal 3D G-Sensor
Accessories
Standard: 1. Main Machine 2. Quick Guide 3. Remote Control
4. 5V Cigarette Lighter Adapter 5. Driver CD
Optional: 1. SD card 2. 5M RCA Video out Cable
Important Notice
(a) Machine must be installed in the area that wipe can be reached.
(b) Machine provides both NTSC and PAL systems, please using OSD
to change the right system in order to connect system monitor
properly.
(c) After SD card formatted, user needs to set up time zone data from
Software player in order to display the correct time on OSD video
output.
(d) SD card must be formatted by special player first to be used
properly.
(e) GPS positioning speed will be affected by weather, window films,
etc.
(f) Windows film may contain metal substances and have impact on
GPS positioning.
4
D. Product Appearance
UNIT:mm
Product Dimensions
Monitor open
Monitor close
5
E. Recording And Stop Recording
1. Power on / Recording:
Wait around 30 seconds after power-on to start up the machine.
The recorder will be started while power supply acts after one
minute.
Green light indicator will keep on when the recorder is in power-on
mode.
The recorder starts to record while red light indicator flashing
Indicator Definition:
●Red indicator: red light flashing is presented as “on recording”,
the red light flickering shows force recording status.
●Green indicator: green light means power on。
●Yellow indicator: yellow light means in manual photo mode。
●Blue indicator: blue light flashing while GPS signal is not stable,
otherwise is stable GPS signals.
2. Power off / Stop recording:
When power supply is shut down, the recording will stop at the
same time and you can remove SD card to read the files.
3. Enter / Exit Displayer Mode:
(a) Select “Playback” to enter display mode on live view, click the
Red indicator
Green indicator
Yellow indicator
Blue indicator
Manual Force Recording
6
time period of recorded file and press the “play” key to show the
file.
(b) Select “Playback” on display mode and return to live view.
F. Remote Controller Description
Key mapping table for remote controller:
Play back
Manual Force Recording
Volume down
Stop voice
Menu
Confirm
Fast Forward
Stop
Play
Pause / Step
Fast Rewind
Up / Down
/
Left / Right
Mute
Volume up
Camcorder/cam
era mode switch
7
G. Main Menu Operating Description
Main menu table switch
Set 1 / 3
Set 2 / 3 Set 3 / 3
★Total three setting pages; click on the settings page, you can
conduct more detailed and related setting (For detailed setting,
please refer to the settings page instructions).
First stage
Remote control keys description
Moving menu options
[Left/Right Key]
Selecting items
[Up/Down Key]
Selected the item, confirm setting
[Confirm key]
Enter index, back to previous menu
[MENU key]
Main Menu Settings
Click
button on the remote control to enter the main menu setting
page.
After entering the main menu settings page, press the
button
on the remote control, choose the Settings page; then click
on
the remote control to enter the settings page.
To exit the Settings page, click on the remote control
you can
choose to leave and return to the settings page.
8
◆ Language setting
★
Support 13 languages: English / French / German / Italian /
Japanese / Korean / Portuguese / Russian /Simplified Chinese /
Spanish / Traditional Chinese / Turkish / Dutch
◆ Date / Time
Menu Options
[Up/Down Key]
Selecting Options
[Left/Right Key]+
[Confirm key]+ [Up/Down Key]
Selected the item
Confirm setting
[Confirm key]
back to previous menu
[MENU key]
Year Month Date Hour Minute Second
Date / time: Press the remote control
button, enter the
date / time setting
Press the remote control
key, move to the year / month
/ day / hour / minutes / seconds
9
Press the remote control
button, can change the set
of year / month / day / hour / minutes / seconds
After setting and then press remote control
key to the
Select
button and then press to confirm saving.
★Year Setting: to set behind 2 digits of AD year, to set hour
for the 24-hour.
◆ Time Zone
★selecting the proper time zone for your position
◆ TV standard
★
NTSC/ PAL for selecting
TV output format: click the remote control
button to enter
the TV output format settings page.
Press the remote control
key, select the video output
format of driving recorder.
For example:
→
, after setting up and
then press the remote control
button to save the settings.
★TV output format, according to different national systems using
the input format for the TV set, the system is preset to NTSC
(Taiwan TV image is NTSC). When input the image causing TV
screen which appears black and white, beat, we can switch to
PAL TV screen to check returning to normal status.
10
◆ Light frequency setting
★
50Hz/ 60Hz for selecting
Light frequency: press the remote control button, enter the light
frequency page to do the setting.
Remote control
button, can change the light frequency setting.
For example:
→
, after setting finished,
press the selected remote control key to save the settings.
★Light frequency: according to different power frequency flicker and, thus,
the wavelength, the wavelength is caused by the human eye brightness of
the most important factor; general, the higher the frequency of light, the
brighter the ambient feel. As the use of Taiwan's general power frequency
60HZ, 60HZ recommended to set the frequency for the light source is
more suitable environment in Taiwan.
◆ Microphone switch
★
OFF/ ON
: microphone off : microphone on
Microphone: press the remote
button, into the microphone switch
pages.
Press the remote control
key can be turned on or off the
microphone.
Setup is complete, press the remote control
key to store settings.
11
★Microphone to record the sound of inside vehicle information, if concern
about personal privacy information, proposed close microphone function
(off microphone function, converting the image files to video without sound
state).
◆ White balance
★
Five ambient light option for selecting Auto / Daylight /
Cloudy / Fluorescent / incandescent light
: Automatic mode
: Daylight mode
: Cloudy mode
: Fluorescent mode
: Incandescent mode
White balance, press remote
button, into white balance settings
page.
Remote control
key to select different white balance mode.
Setup is complete, press the remote
button to save the setting.
★White balance mode is set, regardless of the state in the camera or
photography will open automatically.
★When take recording, suggest white balance set to automatic mode in
order to open the white balance automatically to avoid the screen unclear.
12
The following table shows picture taken in various white balance mode.
Icon Description Picture Application instructions
Auto
The machine set automatically
Sunlight
For fine weather
Cloudy day
For cloudy, dark or twilight
Fluorescent
For warm white, cool white
(3-wavelength) fluorescent lighting
Incandescent
For incandescent lamps and bulbtype 3-wavelength fluorescent
◆ Effects
★
Color / B & W / Retro color
Effects: press the remote button, enter the effects settings page.
Press the remote control
button to select the effect model.
Setup is complete, press the remote button to save the settings.
★Effects model setting, whether in photography or video mode it will
automatically open.
13
The following table shows picture taken in various effect mode.
Icon Description Picture
Color mode
Black mode
Retro mode
◆ Sensing sensitivity
★
Caution: You can adjust the sensitivity level (more number of green bars
stands for higher sensitivity)
：Low
：Normal
：High ：Highest
Sensor sensitivity: press the button, enter the sensor sensitivity
settings page.
Press the remote control
key, select the sensor sensitivity level.
Setup is complete, press the
button to save the settings
★Sensor sensitivity means the sensitivity of the reaction: when passing
through a dark place, the vehicle turned on the white balance mode; when
the higher sensitivity settings, after passing a little dark as long as it will
open automatically, more likely to cause excessive light up the screen.
14
◆ Format
★cancel format / confirm format
: Cancel format
: Confirm format
Format: press the
button, enter the format settings page.
Press the remote control
button, choose whether to format.
To confirm the format, press the
button to do the SD card format.
★When you click “cancel the format:, it will return to the main Settings
page.
★When determining to format the SD card, all data in the SD card will be
erased, please back up any old data in advance to avoid old data be
erased.
★A new SD card must do the formatting operation first and then start the
recording.
◆ Restore factory settings
★
cancel default setting / confirm default setting
: Cancel to restore factory settings
: confirm to restore factory settings
Restore factory settings: press the remote control
button, enter the
restore factory settings page.
Press the remote control
key, whether you want to restore to
factory settings.
Confirm to restore factory settings, press the remote control
button,
to return to the original setting
15
★When click “cancel to restore factory settings”, it will return to the main
Settings page.
★When confirm “confirm to restore factory settings”, it will return to the
factory value settings; when return to factory value, you could enter main
menu to configure the related settings again.
Camcorder mode setting
Remote control keys description
Moving menu options
[Up/Down Key]
Selecting items
[Left/Right Key]
Selected the item, confirm setting
[Confirm key]
Enter index, back to previous menu
[MENU key]
Camcorder mode settings: press the remote control
key to enter the
camcorder settings page. Enter the main page, press the remote control
key to select the camera or camcorder. Enter camcorder mode main page,
press the remote control
key to select the setting. Press the remote
control
key to enter the settings page. If leaves the settings page, press
the select
button on the remote control, you can leave and return to the
camcorder or the main page.
★Camera mode setting is total one page; Click the Settings page to enter
more detail setting related (set for details, see the description of the settings
page)
16
◆ Video resolution setting
Camcorder mode settings / image resolution, press remote control
button to enter image resolution setting page.
Press the remote control
key to choose variety of image
resolution.
Setup is complete, press the remote control
button to save the
settings.
There are two kinds of image resolution mode selectable:
1920 * 1080P (30): 1920 * 1080 screen resolution, 30 frames per second.
1280 * 720P (30): 1280 * 720 screen resolution, 30 frames per second.
Icon Description Picture
1920x1080P(30)
1280x720P(30)
17
◆ Quality settings
★
Caution: You can adjust the video quality level (more number
of green bars stands for higher quality)
: Low
: Normal
: High
Set the camcorder mode / quality: press the remote control
button
to enter the quality settings.
Press the remote control
key to select the video quality.
Setup is complete, press the remote control
button to save the
settings.
★Video quality setting higher, the better image quality.
◆ G-sensor setting
★
Caution: You can adjust the G-sensor sensitivity level
(more number of green bars stands for higher sensitivity)
★
When emergency record is triggered, it will keep around
3 minutes emergency recording and keep the files without
being overwritten
: Very low
: Low
: Normal
: High
: Very high
Camcorder mode settings / G-sensor: press the remote control
18
button to enter the G-sensor settings.
Press the remote control
button to select the sensitivity of G-
sensor.
Setup is complete, press the
button to save the settings.
★Note: the higher the sensitivity on behalf of gravity (G) the more
sensitive the sensor, the more likely trigger mandatory recording; every
trigger mandatory recording, before and after the accident will force to
save 3 minute video and not be covered (when G-sensor trigger recording,
all the lights will become darker).
Camera mode setting
Remote control keys description
Moving menu options
[Up/Down Key]
Selecting items
[Left/Right Key]
Selected the item, confirm setting
[Confirm key]
Enter index, back to previous menu
[MENU key]
Set the came ra mode: press the
button on the remote control to enter the
camera settings page.
To set directory on the main page, press the select
buttonon the remote
control to select the camera or photograph; Into the camera mode of the main
page, press the remote control
key selected to choose the Settings
page and press the remote control
to enter the setting page; to leave the
settings page, press the
button on the remote control, you can leave and
return to the camera or main setting page.
★Camera mode is total one page; Click Settings page to more detail settings
(the detailed settings, see the setting instructions on the settings page).
19
◆ Image resolution setting:
Camera mode / image resolution: press the remote control button to
enter the setting page of image resolution.
Press the remote control
button to select different image
resolution.
After setting, press the remote control
key, to store settings.
★There are three image resolution modes selectable:
8M: 3200 * 2400 screen resolution, picture quality is 800 million pixels.
5M: 2592 * 1944 screen resolution, picture quality is 500 million pixels.
3M: 2048 * 1536 screen resolution, picture quality is 300 million pixels.
Icon Description Picture
3M: 300 million
pixels
5M: 500 million
pixels
8M: 800 million
pixels
★When the higher image resolution, the greater the amount of data
stored in the file.
20
◆ Capture mode setting
NOR: Normal mode
G-S: G-Sensor mode with three pictures once
Camera mode / capture mode: press the button to enter the
capture mode setting page.
Press the remote control
keyto select the capture mode.
After setting, press the
button to save the settings.
★When the capture mode NOR selected, to set capture picture time from
the camera cycle option.
Camera period setting
Camera mode / capture period: press the remote control buttonto
enter the settings page to set the period setting.
Press the remote control
buttonto select period of time to capture.
Setup is complete, press the remote button
to save the settings
★ When the capture mode NOR selected, the option to set the camera
period setting.
★ Photographic period: 30 seconds / 1 minute / 5 minutes / 30 minutes,
fixed shot once.
21
◆ G-sensor setting
: Very low
: Low
: Normal
: High
: Very high
Camera mode / G-sensor, press the remote control button to enter
the page to set the G-sensor.
Press the remote control
button to set the sensitivity of G-sensor.
Setup is complete, press the remote
button to save the settings.
★Note: the higher the sensitivity on behalf of gravity (G) the more
sensitive the sensor, the more likely trigger mandatory photography;
Each time the force shooting is triggered, it will shoot three images once.
22
H. Play the recorded file
Direct playback on machine side
Built-in accelerometer, the system automatically determine the level of the
screen visualization, and make the screen self-rotated to normal position.
Camcorder mode
Play back file screen File selecting screen Multi-files selecting screen
Press button on remote controller under LIVE recording mode to
enter file playback menu.
Press
button to adjust before and after clips.
Press
button to play file.
★When in the playback file page, default is as single file mode. However,
you can press the
button to enter into six separate screen page, and
then press the
button to select the file you want to play. When
you select OK, and then press the
button to return to a single file for
playback page.
◆ Playback settings - Deleting a single file
23
For playback file setting, press button to enter setup page,
press
button to move to delete one item, then press
enter into deleting page.
Use
button moving to the file you want to delete, then
press
to start deleting.
★You must disable the protection function first in order to process
the deleting procedures.
◆ Playback settings- Delete All
: Cancel delete all : Confirm Delete All
Press
button to enter setup page, press button to
move to delete all item, then press
enter into deleting all
page.
Use
button moving to you want to delete all files, then
press
to start deleting.
★You must disable the protection function first in order to process
the deleting procedures.
◆ Playback file setting-protect
★Caution: When the picture has a lock-shaped icon indicates that the data in protection
mode
24
Press button to enter setup page, press button to
move to protect item, then press
enter into protect setting
page.
Use button moving to you want to protect file, then press
to start protect setting.
Camera mode
Under camera mode, press button entering into photo
playback page.
Press
button to select the file you want to play.
Then press
button to play.
★When in playback page, press
button to do Clockwise rotation
of photo.
◆ Photo playback settings-Delete one
Photo play setting, press
button entering into setting page.
Press button moving to delete one item. Then press
button to enter delete page.
25
Press button to select the file you want to delete. Then
press
button to start deleting.
★ You must disable the protection function first in order to process
the deleting procedures.
◆ Photo playback settings-Delete All
:Cancel delete all : Confirm delete all
Photo playback settings, press
button enter setup page.
Press
button moving to delete all item. Then press
button to enter delete all page.
Press
button to confirm delete all files. Then press
button to start deleting all files.
★You must disable the protection function first in order to process
the deleting procedures.
◆ Photo playback settings-protect
Photo playback settings, press button enter setup page.
Press button to move to protect item, then press enter
into protect setting page.
Use button moving to you want to protect file, then press
to start protect setting.
★Caution: When the picture has a lock-shaped icon indicates that
the data in protection mode.
26
◆ Photo playback settings-Autoplay
★ 5 Sec duration per image / click menu to stop.
Photo playback settings, press button enter setup page.
Press
button to move to auto play item, then press
enter into auto play setting page.
When under Auto Play mode, about every 5 seconds to play the
next photo. You can click the stop
button to return to photo
playback page.
27
H. Software Operating Instruction
How to read the file from SD card in the computer side?
1、Remove SD card from card slot of host side
2、Put the SD card to the card reader
3、Connect card reader to the USB port of PC side
4、Choose the file to play: Execute “IBoxPlayer.exe”
，which is located in
the product CD folder, Screen shown as below. Choose “Open the
document”
，and choose the file of memory card or hard disc and then
click “Play key”
to do playback；when using playback. click key to
show the historical routing from Google map.
◎Note: To perform this software, please install Direct X 9.0 or above.
1. Viewer interface description
2. Operating Interface Description:
1
Return to last file key
2
Forward playback
3
Playback key
Voice Volume
Save the Playing File
Play Speed
Open File
Snapshoot
Setting
G-Sensor
Latitude and
Longitude
Google Map
Google Map
Hour
Minute
Year, Month,
Date Selected
Speed Mete
r
28
4
Pause key Go to next file key
5
Stop key
6
Play key
7
Forward playback
8
Rearward playback
9
Mark starting point of back up file
10
Mark ending point of back up file
11
Backup the marking file
12
Open document, select the file to play
13
Backup the current playing file
14
Snapshoot tool
15
Google map
16
Configuration, Set machine-related settings
3. Player Interface Description:
Show latitude and longitude position
G-sensor : Impact sensor analyzer, forced saving the accident
video before and after 1 to 3 minutes, not covered by other new
files, protect the integrity of the incident video.
X: Induct about level of vehicles moving
Y: Induct around level of vehicles moving
Z: Induct Height fluctuation around level of vehicles moving
29
Driving Speed
Play BAR: Press left button of mouse and move around to pull BAR
with fast-moving.
Playback speed
fast forward with 2 times or 4 times, and playback with 0.25 times,
0.0625 times
Volume control
4. Select the file to playback
Select “ Open the document” , and then choose the file of memory card or
hard disc. (The file format is
*.ts)
5. Save the playing file
Select “Save the playing file”
, and then choose the file of memory
card or hard disc. (The file format is *.ts)
30
6. Snapshoot Tool
Play record from SD card first and then use Snapshoot tool to capture
the screen. When select
Snapshoot tool, it will appear the following
window. (The picture of display screen will save in capture storage
folder path.)
7. Google Map
Click and then appear the window of Google Map to view the tracking of
Vehicle. (This function needs to connect Internet.)
31
8. Related settings
Software version related information and SD card data storage settings
(a) Storage path of Snapshot: the location to save images in the computer
(b) Language: select language settings of playback software. (The settings
will work after re-open the software)
(c) The mode of User Interface: Set the display mode of host. ( To change the
configuration option, it must insert SD card into the Vehicle Video
Recorder). It provides 3 different resolutions for selecting: 960x600,
1280x800, 1920x1080.
(d) Sound Amplification: max. 10 times
(e) Unit of Speed: Km/h, Mile/h, Knot
9. Playback date selection
1. Selecting by date
Launch the Player, click the "open" to select the file or path of storage.
Then on date table with Gray-brown color means having recording
footage.
32
2.Selecting by Hours/Minutes (24-hours)
After select the "Date" with Gray-brown color, on Hour/Minutes table will
display Red/Green color.
Green: normal record
Red: force record
3.Quick switching by minutes
Click the minutes table to change the recording footage immediately.
33
I. Formatting Memory Card
When should you need to format the SD card?
When you purchase a new SD card, you have to format it in order to use for
Vehicle video recorder.
Procedures for new SD card formatted as follows:
1. Insert SD card into the SD slot of Vehicle Video Recorder and then open the
menu. Find the format option and then begin to format SD card.
Follow the steps, turn screw to open the cover, insert SD card (Please check SD card position and
make sure SD card is unlock),put the cover back and lock it.
2. Connect power cable to machine, use remote controller to enter index menu
and select format operation.
3. After formatting is completed, leave the index menu and back to live screen.
Then the SD card formatting is done and ready to use
Loading...
