16 / 36 / 64 CH Linux NVR
Network Video Recorder
User’s Manual
Network video recording system
2013 OCT V1.1
Notice before use
This authorization agreement of client’s software/hardware is legally effective to
you(individual or single machine) and our company . This agreement covers components
of software/hardware, media, print, online publication and electronic files. All the
application through installation, duplication or the other way must be based on this
agreement. If you disagree with the terms of this agreement, please don’t install or use
this product. This product is protected by copyright law, international copyright treaties
and other international property laws and treaties. Please note this product authorizes to
you, not sold. Through the software/hardware license code on the license certificate
indicates you have got the permit of use.
Copyright
The company owns all the headers, including but not subject to the copyright,
software/hardware products and any duplicates. The company reserves all the
rights not expressed clearly.
Unsecure notes
The company clearly denies warrantee repairmen of any products. Unsecure of
warrantee for any kind of expressed or implied, including any documents and
software products of no limit, implied warrantee repairmen or marketability, suitable
for specific usage or non-infringement.
Terms and Conditions
The overall risk, is that arising out of the use or performance of software and hardware
products. This product will be informed, such as when it is used with certain device or
other hardware, may enable you to carry out surveillance and data processing, which
may be subject to or in violation of applicable law, which includes but is not limited to
data privacy, and criminal law. Please check your use to comply with applicable laws is
the responsibility of users themselves.
Limitation of liability
The provision of this paragraph is in effect to the maximum extent permitted by
applicable law. In any situation Xia, VACRON or its dealer assumed any special, and
accidentally of, and indirect of, and or any indirect loss (including but not limited to
business profits loss, and business interrupted, and commercial information loss, and
or any other money loss of compensation) due to using or cannot using of software
products or provides or failed provides appropriate of support, even we of company
has is informed this class damage of possibilities. If there is no willful misconduct or
gross negligence, under any provision of this agreement, VACRON total liability, shall
be limited to the amount actually paid.
Other conventions
(A) Prohibition of reverse engineering, decompilation, splitting or rescind the contract
within the scope allowed by the applicable law cannot be waived by, as well as
any software and hardware components of the product.
(B) As long as the recipient agrees to the terms of this agreement, you may
permanently transfer rights of use of this product.
Closing remarks
Without prejudice to any other rights, the company may terminate this license
agreement. If you fail to comply with its terms and conditions, in which case you must
destroy all copies of the software product
CONTENTS
Foreword 【Notices】 ........................................................................................................................ 1
I.【Specification List 】 ....................................................................................................................... 2
II.【Read before use】 ......................................................................................................................... 4
III.【Installation manual】 .................................................................................................................. 5
IV.【Software instruction】 ............................................................................................................... 6
V.【NVR function description by area】 ...................................................................................... 7
VI.【Set-up of interface operation】 ............................................................................................. 8
6.1 System settings: ................................................................................................................. 8
6.2 setting of cameras ........................................................................................................... 12
6.3 User setting: ...................................................................................................................... 19
6.4 Network setting: .............................................................................................................. 20
6.5 Playback .............................................................................................................................. 23
6.6 Screenshot ......................................................................................................................... 26
6.7 Exit from system ............................................................................................................... 27
VII. 【Windows CMS remote monitoring software】 ........................................................... 28
7.1Log on to remote monitoring software ................................................................... 28
7.2 Add NVR ............................................................................................................................. 29
1
Foreword 【Notices】
WARNING
Do not expose the DVR under the sunlight, heat or wet
environment while installation. As it could decrease the
performance of DVR and damage the machine.
Do not touch the power plug or case with wet hands as this could
result electric shock.
Do not forcedly bend or put heavy object on power cable as this
could result in injury to personal or equipment.
Do not operate with damaged power cord or loose electrical
outlet as this could result in electric shock or accident.
Please use individual power instead of share electrical outlets
with other electrical equipment as this could result in damage or
accident.
Do not attempt to service this DVR by yourself as it may expose
you to dangerous voltage or other hazards. Please refer all
service to the qualified servicing distributor.
Please do not remove the machine housing during operation. It
may cause electric shock or accidental injury.
CAUTION
Do not place the machine on an uneven surface or it would decrease
the DVR efficiency or malfunction.
Avoid any shock or bumping of the DVR while recording.
Improper handling could damage the system.
CAUTION
Make sure the voltage selector switch is set
to appropriate setting before plug in!
2
I. 【Specification List 】
Hardware Specification
Processor Intel® Core™CPU Core i5 3470
Memory 4GB DDR3 RAM,1GB Flash(DOM)
HDD Capacity Storage: Maximum 2 x 3.5" SATA HDD,1 x 5.25" drive bay One
2T HDD included(support for 3T)
Lan Port 1 x Gigabit RJ-45 Ethernet Port
LED Indicators HDD, Power, Network LEDs
USB 6 x USB 2.0
Buttons Power Button
Alarm Buzzer System warming
Power supply
Input：AC110V or AC240V(Dip Switch),50/60Hz, Output：270W
Video Output
1 x HD OUT／1 x VGA D-Sub／1 x DVI-D
Support Channel 16CH / 36CH / 64CH
Weight 4.75Kg
Dimension 367 x 99 x 350mm (WxHxD)
Operating Environments
Temperature: 0 ~ 40 °C
Humidity: 90%
Software Specification
Recording Supported Camera
Models
VIT and VIH Series(can connect to VDH-412VS)
Number of Channels
Supported(Recording)
Up to 64 IP CAM
Recording Mode
Continuous/by hand/by schedule/alarm/multi-alarm
Buffer Storage for
Alarm
Images (before and
after events)
Pre-recording: Up to 300 sec
Post-recording: Up to 300 sec
Recording
Performance
Up to 30 fps at 720P or 23fps at 1080P for each channel
* Real performance may vary in different environment
Local Display
Display Mode
Split-screen display model for 1, 4, 9, 16, 25, 36 or 64
channels, auto channel touring.
Local Monitoring
Enhancement
Full screen display, event notification, PTZ control, digital zoom
Local Playback Max 4-view playback from multiple NVR servers simultaneously
Search Mode for
Local Playback
By date & time
3
Playback Control
Play , pause, stop, reve rse play, next/ previous video file, dif ferent
speed control
Export
Convert multiple recording files to the external USB device
instantly
Remote
Monitoring
Display Mode
Split-screen display model for 1, 4, 9, 16, 25, 36, 49 or 64
channels.
Video Setting Resolution, Quality, Frame Rate
Remote
Playback
(coming soon)
Playback Channel Max 4-view playback from multiple NVR servers simultaneously
Search Mode By date & time
Playback Mode Play, pause, stop, reve rse play, next/ previous frame, next/
previous video file, different speed control
Playback
Enhancement
Full screen display, video snapshot, digital zoom
Export 264 compression format
Download Download recordings via the web
Advanced Event
Management
Events Motion detection and alarm features must equip with VDH-412S
Actions Video recording, email alert, buzzer, PTZ camera control, alarm
output, and user-defined action
Security Control Authority
Management
Different user groups and rights can be assi gned to different
users
Auto Logoff Automatic user logoff from idling configuration pages
Event Logs Detailed event logs
On-line Users List Record of the users currently logged on and previously logged
Network
Services
Support HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP , NTP,
UPnP
Language
Support
Language English/Simplified Chinese/Traditional Chinese/Russian
★Product specifications are subject to change without notice; please contact us for the latest information.
4
II. 【Read before use】
2.1 Front panel introduction：
1. Hidden hard drives (built-in 2T)
2. Indication light of hard drives.
3. Indication light of power supply.
4. Switch on button of system
5. 5.25 inch installation device; expandable CD burner(reserved)
2.2 Rear panel introduction：
1. USB2.0 port x 6
2. P/S2 port(can be accessed by keyboard or mouse)
3. D-Sub
4. DVI
5. HD Out
6. RJ-45
7. Audio output hole.
8. Power input.
5
III. 【Installation manual】
1． At the first turn-on, if fail to enter, please select SATA DOM as the first prior turn-on
device in BIOS.
2． At the first entrance into system, if tip for HDD formatting, when you need recording,
please click “yes”, if no need, please click ”no”. Notice! After HDD formatting, the
existing DATA will be non-recoverable. If no tip, it indicates the HDD has been
formatted before shipment.
6
IV. 【Software instruction】
1. Login
After installation and restart to enter the operation interface, if you proceed
any operation, system will pop-up the dialogue box to tip login (some version
will default and not to tip. If the user needs the tip, he may enter the function
list for user and cancel the system permission right under the item of
“default ”
User name of default administrator is：admin password is admin。Input the
username and click “confirm” to finish login and you can proceed with
customized settings for software.
Click to lock，you need to input user name and password to login
again.
7
V. 【NVR function description by area】
1， exit（exit system，auto power off）
2， channel switch option（1，2，4，9，16，25，36 channel switch）
3， the video display area（select the corresponding camera, double-click for amplification
of single channel and return to multi-screen）
4， tool bar menu (enter system setup, camera setting, network setting, option of
playback control., etc.）
5， the time status bar（display the current system time）
6， ticker display（display power on the welcome icon, users are free to modify）
7， HDD status display.
8， PTZ control button（control the movement of cloud platform)
8
VI. 【Set-up of interface operation】
6.1 System Setup
6.1.1 General Setup:
Click the setting button to enter setting interface. You may setup the flow time
of video loss, alarm/audio alarm ; setup the shift time length of video image switch;
start the loop video to set up the restart time each day; camera can switch to simple
Chinese, traditional Chinese and English; you can choose PAL or NTSC.（REMARK:
mode switch of PAL/NTSC needs to reboot）click on apply to save.
9
6.1.2 Date/ Time Setup
Set the current time, and then save it. Refer to the following figure.
6.1.3 Network Time Setup:
Start auto calibration and setup the server address, port, time intervals and then click
on “apply”, “immediate calibration”. And then click return.
As the following figure:
10
6.1.4 Disk Info:
View the situation of hard drive mounting and usage
11
6.1.5 Version information
Enter to find the current software version. You may upgrade and renew the marquee
pictures.
As the follows:
12
6.2 setting of cameras
6.2.1 Click on setting button to enter into the interface of setup. click on
，you may turn on the different channels and set up the IP
address/corresponding network port/user name and password(if the setup and
network are no problem, camera will display on the corresponding channel)click on
to apply. As the following figure：
6.2.1.1
If the user needs to revise the parameters of network camera (resolution, FPS,IP
parameters and camera name., etc), please choose to enter the setup of
parameters. You may revise the resolution of main stream, FPS and bit rate, etc. as the
following figure:
13
6.2.1.2
Select “Network”, you may revise the IP address of network cameras. As the
following figure:
14
6.2.1.3 Select “time/date” to revise the time date. As the following figure:
6.2.1.4 Select PTZ setting (only support IP speed dome). You can slect protocol as Pelco P
and Pelco D. IP address is up to 4, baud rate can choose 1200,2400, 4800, 9600,
19200 and speed can support up to 23. As the following figure:
15

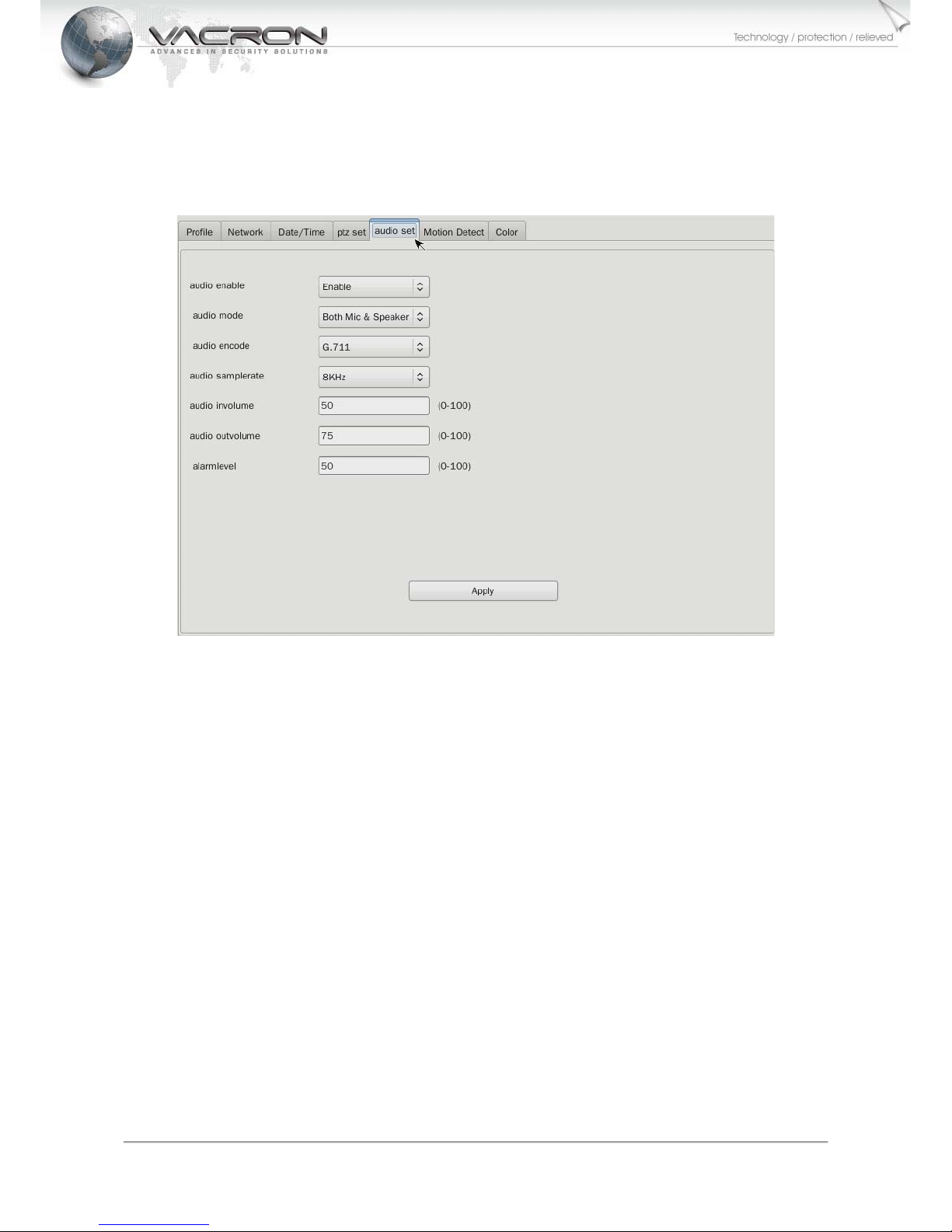

6.2.1.5 Select audio setting. You can choose turn on or off, mode can choose micro phone,
horn or both. There are G.771 and PCM sound encoding. Sample sounds is 8K by
default. You can select a higher level as 16K. Volume size defaults to 50, the
output volume for 75, and noise level is 50
As the following figure：
6.2.1.6 Select motion detection, motion detection (currently supports Video-Server and
VIT-series machines) (VIT series IP CAM firmware must be updated to B563
above version) to check the alarm, alarm sound from sound card output and motion
detection feature. You can set the sensitivity to low, medium, high, or defined by
the user's own figure of 0-100. Number 12 on the image segmentation and
selection area, click after you enter this, red lines will provide identification.
As the following figure:
16
6.2.1.7 Select color to adjust brightness, color, contrast and saturation. Allow users to
adjust the default value for reset. As shown in figure:
17
6.2.2 In the settings menu, select “video program” to revise the video status of NVR as full
time video, motion detection or non-video. Click on to setup
one single channel of click on to set up for all channels. As
the following figure:
6.2.3 Select “motion detection” in the camera settings. You may set up motion detection,
sensitiveness, start video and sending e-mail, etc.
As the following figure:
18
6.2.4 In the camera settings, select automatic cruise (only support high speed dome). The
default point can support up to 32 and stay for the high energy set 15 seconds. 32
default points default in a closed state. When you want to set the 5 default point,
every arrival time needs to be clearly defined and select to open status,
As the following figure：
19
6.3 User Setup:
Click on to enter the setting interface. select , you may increase
users, edit users and delete users. Only the user with administrator permission can
carry out the revision.
As the following figure:

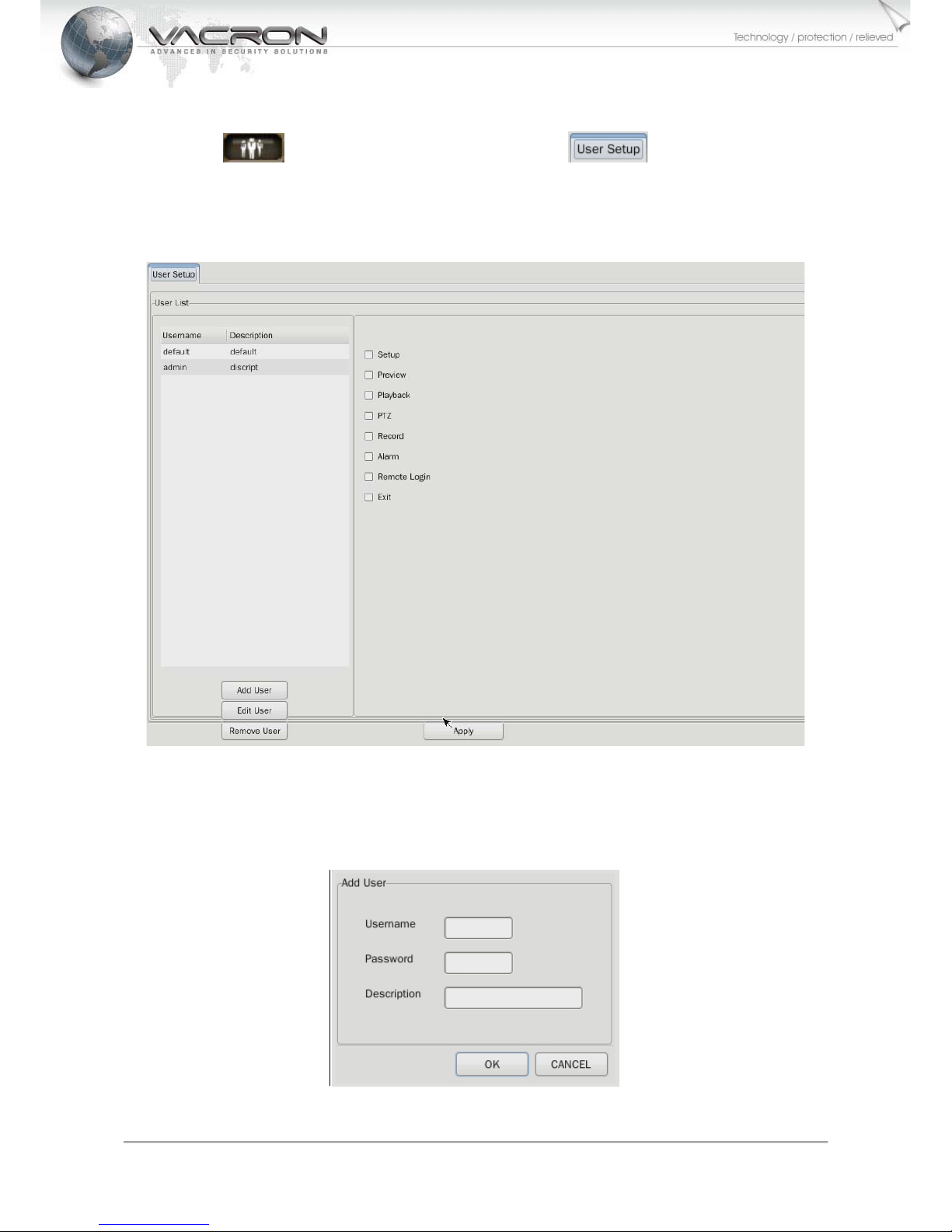

Click on “Add User” will pop-up the following dialogue box. In the white dialog box, you
can increase new“Username” , “Password ” and “Description”. The right side will
come out the permission option of browsing, playback, management and remote
access for new user.
Click on “Edit User” will pop-up the following dialogue box. In the white dialogue box,
20
you can increase new“Username” , “Password ” and “Description”. The right side
will come out the permission option of browsing, playback, management and remote
access for new user.
Click on to save. After setting, click on to exit.
6.4 Network Setup
Click on to enter setting interface. Select ，if you need to
connect by client in the local area network, please set up IP address, subnet mask
and gateway. If you need to link internet, please set up domain name server.
21
6.4.2 Port Setup:
Software default page communication ports: 80, video communication ports:
5500 (CMS remote ports use shall correspond), hand controlled communication
port: 5577 (no function).
As the following figure：
6.4.3 ADSL Setup:
Enter the user account, the user's password, select the link, confirm, display
status. As shown in figure:
22
6.4.4 DDNS Setup:
Select a DDNS service provider, software defaults to www.3322.org
, input domain
name, user-ID, login password, select the link, and press to confirm. As shown in
figure:
6.4.5 E-mail Setup:
Set up the time length of mail sent, input the mail address and then confirm.
As the following figure:
23
6.5 Playback
Click on playback button ，playback interface will show up（playback channels
are up to 4），as the following figure： Click on the channel with record as the
following figure：
Click on the channels to check, display area to show the video you select. As the following figure:
Sect the time mode (default), file mode, time mode:
Firstly select the recording date, display split box and then select the camera number
24
to playback. Click on the camera twice or hold down the mouse left button to draw into
the split box. Then you can playback the video file.
The following figure shows video from 7:00~8:00 in the first split box. Select this split
bar and it will turn into deep green. Select the time period, the rim will become blue
(unit: hour).
In the meantime, minute time bar will show the actual video length (unit: minute).
The following figure shows manual recording from 19~41 minute. No record at 42
minute, alarm recording at 43 minute, manual recording from 44~60 minute. Select
one minute of them, the rim of that minute will become blue and playback the video
(note: full time recording is green, no recording is black, alarm and motion detection
recording is red)
6.5.2 file mode:
Entering playback （defaults to be time mode）, click on to enter the mode of
playback. After the channel numbers showing out, set up the time period and click on
search to come out files. Click on playback .
25
6.5.2.1 Insert USB to back up.As the following figure:
Playback buttons description：
：Play
：Pause
：Fast forward
：Backward reverse
：2、4 times fast forward
：1/2、1/4 、1/8 slow motion
：Stop
：Screenshot
26
6.6 Screenshot
Click screen shot icon or click screenshot button of the playback interface
to catch the current BMP picture from the monitoring or playback split box.
As the following figure:
In the blank dialog box of picture folder will display the time, lens information of BMP
pictures through screenshot. User can choose the time and channel to click to
search previous pictures. After selecting specific picture, click
to backup the current picture. As the following figure:
27
6.7 Exit from system
Click system-exit system to pop up dialog box. As the following figure:
After confirmation, system will automatically shut down
28
VII. 【Windows CMS remote monitoring software】
7.1Log on to remote monitoring software
Please click on the mouse left button twice to install system to
Microsoft on your computer (currently supports XP, 32-bit Vista, 32 bit WIN7). Then on
your desktop after the installation or Assembly to see NetMonitorClient.exe perform the
following figure

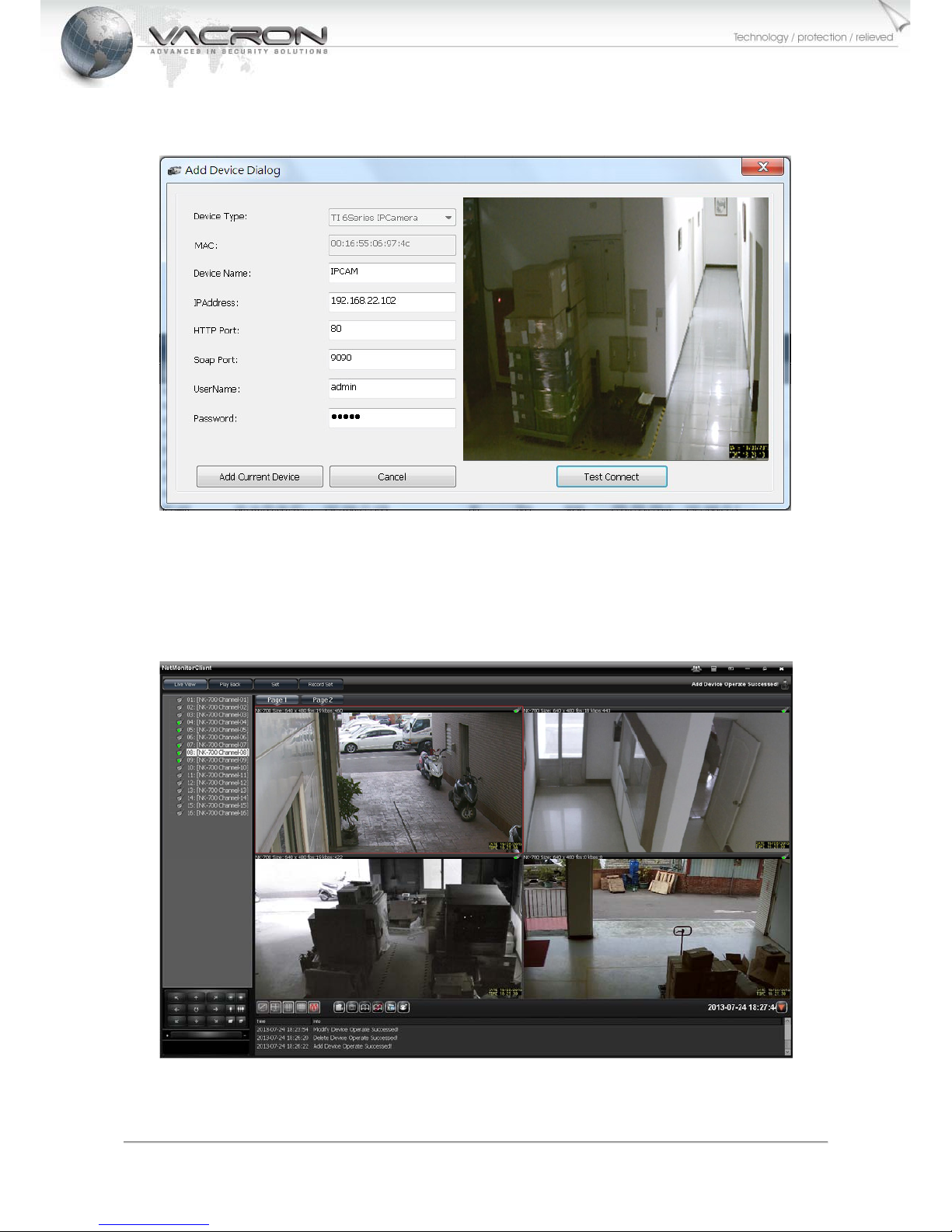

Login window appears after implementation, as shown in Figure; please enter the correct
account number and password, software defaults to the account: admin password: admin,
as the following figure
Enter the main screen as shown in figure. Click set to make all the necessary setups to join
into PC300 as show in the following figure:
29
7.2 Add NVR
Click the "Add current device" and back to "real-time" viewing. Then you have set
the number of channels into the list,
To see the picture, please click twice on the number of cameras so that the camera
icon will turn into green. Then you can now display the picture. As the following
figure
30
Click the right button of mouse to show your favorite settings by the function of listing.
For More Information
Please check VACRON Website
http://www.vacron.com Made in Taiwan
Loading...
